DigiBoard BCP-51W User manual

Cycling Computer
COMPLETE MANUAL
BCP-51W
BCP-51WH
BCP-52WA
BCP-52WAH
ENGLISH

SCREEN ELEMENTS
SCREEN ELEMENTS
» BCP-52WA / BCP-52WAH
» BCP-51W / BCP-51WH
1

OPERATIONS BUTTON
OPERATIONS BUTTON
2

CONTENTS
SECTION 1 : INSTALLATION
A Hardware: Mounting bracket, wheel magnet and speed sensor
B. Heart rate: Heart rate sensor set
C. Cadence: Cadence magnet and cadence sensor
SECTION 2 : FIRST TIME SET-UP
A. Battery installation
B. Settings
» Setting clock
» Setting heart rate values
» Setting gender
» Setting weight
» Setting wheel size
» Setting Km/h or M/h
» Setting odometer 1
» Setting total time 1
» Pairing
C. Setting home altitude
SECTION 3 : BEFORE EACH RIDE
» Trip data reset
» Home altitude calibration
SECTION 4 : ADVANCED SETTINGS
A. Second bike set-up
B. Advanced time settings
C. Advanced trip distance settings
D. Advanced heart rate settings
E. Advanced cadence settings
F. Advanced altitude settings
G. Temperature and Backlight
SECTION 5 : ADDITIONAL INFORMATION
A. Menu structure
B. Display elements
C. Functions overview
D. Troubleshooting
E. Technical specifications
5
6
7
9
10
11
12
13
14
15
15
16
16
17
19
20
22
23
24
25
26
27
28
30
30
31
32
32

SECTION 1
INSTALLATION

SECTION 1A : INSTALLATION - HARDWARE

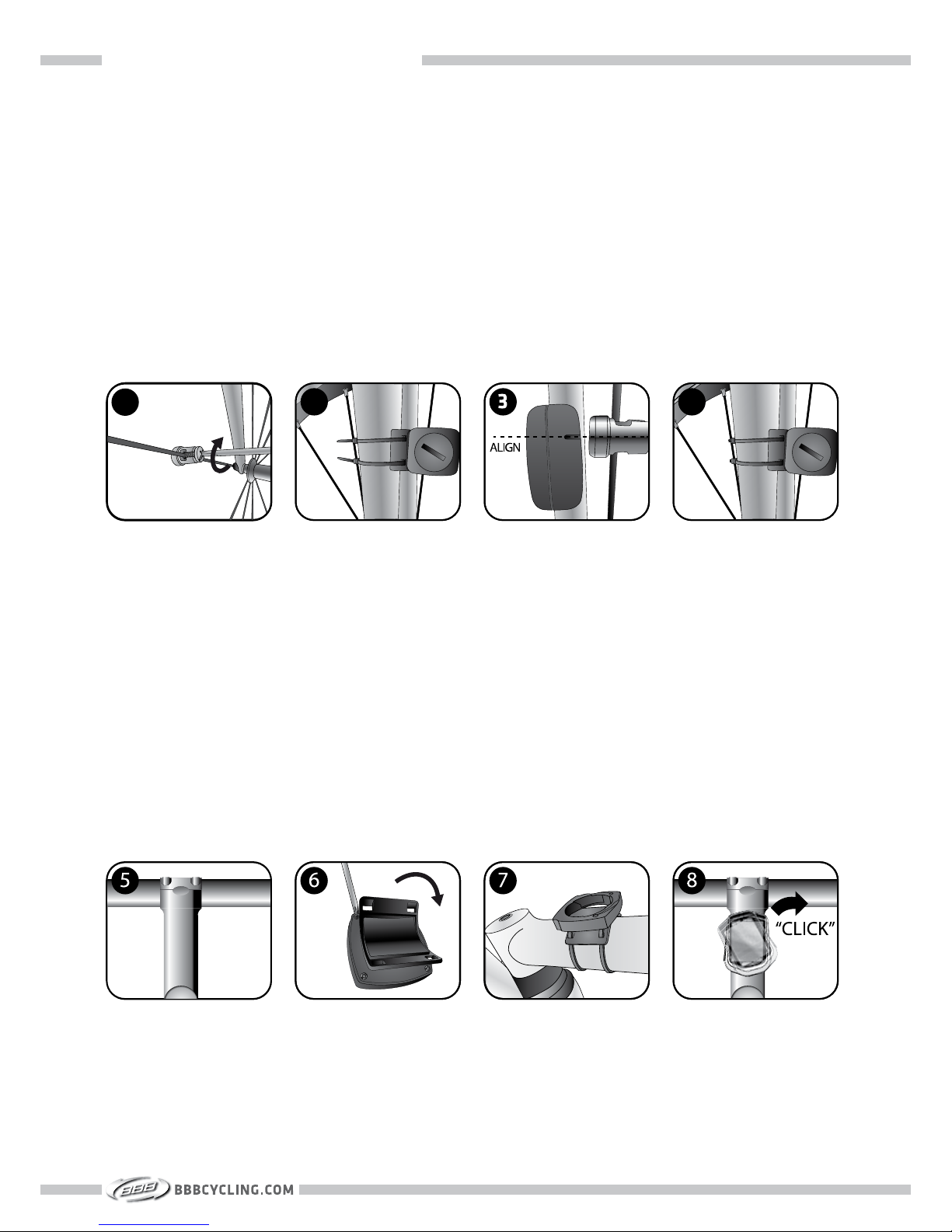

1. Install the wheel magnet on a spoke, using a Phillips srewdriver.
2. Position the speed sensor on the fork leg to achieve the correct alignment with the wheel
magnet. If needed, move the wheel magnet. When you have achieved the correct alignment,
pass two zip-ties through the speed sensor and around the fork leg.
3. Re-check the alignment of the speed sensor, and tighten both zip-ties. The distance between
the wheel magnet and the sensor point should be maximum 5mm.
4. Cut off the excess length of the zip-ties.
INSTALLING THE WHEEL MAGNET AND SPEED SENSOR
124
5. The bracket can be installed on the stem as well as the handlebar. The bracket is pre-assem-
bled in the handlebar position.
6. If you would like to have your computer on the stem, loosen the four screws on the bracket,
rotate the bracket 90 degrees and tighten the four screws.
7. Pass two zip-ties through the bracket and around the stem/handlebar. Cut off the excess
length of the zip-ties.
8. Place the BBB computer in the bracket and rotate clockwise till you hear a “click” sound.
INSTALLING THE COMPUTER BRACKET
5

SECTION 1B : INSTALLATION - HEART RATE
The heart rate sensors are integrated in the soft elastic belt. For
a correct heart rate measurement, the belt must be positioned
slightly below your chest, directly on your skin.
1. Make the two contact areas moist before you start your exer-
cise.
2. The chest belt needs to be snug to stay in place. Slide the
buckles to adjust the length of the belt for a snug but com-
fortable fit.
3. Press the ANT+ transmitter to the elastic belt on the two
push-button connectors.
Maintenance
- Remove the transmitter from the elastic belt after every use
and dry the push-buttons connectors on the transmitter.
Rinse the soft elastic belt under running water after every
use.
- Wash the elastic belt regularly in a washing machine at 30ºC.
Use a washing pouch. Do not spin-dry, iron, dry clean or
bleach the elastic belt. Do not use detergent with bleach or
fabric softener.
- Never put the transmitter in the washing machine!
INSTALLING THE HEART RATE SENSOR
The sensor batteries are pre-installed. When needed, check below illustrations for correct
replacement.
1. Open the battery cover by turning the cover counter clockwise.
2. Insert the battery (CR 2032) with the negative side (-) facing up for 3 seconds. This will
reset the sensor.
3. Insert the battery (CR 2032) with the positive side (+) facing up. Close the battery cover
by turning it clockwise.
Batteries should be disposed of in compliance with local regulations.
» BATTERY REPLACEMENT FOR THE HEART RATE SENSOR
12
6
+
3s

SECTION 1C : INSTALLATION - CADENCE
1. Install the cadence magnet on the non drive train side of the crank.
2. Install the cadence sensor on the chainstay.
3. Position the cadence sensor on the chainstay to achieve the correct alignment with the ca-
dence magnet. If needed, move the cadence magnet. The distance between the magnet and
the sensor point should be maximum 3mm. When you have achieved the correct alignment,
pass two zip-ties through the sensor and around the chainstay.
4. Cut off the excess length of the zip-ties.
INSTALLING THE CADENCE MAGNET AND CADENCE SENSOR
124
The sensor batteries are pre-installed. When needed, check below illustrations for correct
replacement.
1. Open the battery cover by turning the cover counter clockwise.
2. Insert the battery (CR 2032) with the negative side (-) facing up for 3 seconds. The will
reset the sensor.
3. Insert the battery (CR 2032) with the positive side (+) facing up. Close the battery cover
by turning it clockwise.
Batteries should be disposed of in compliance with local regulations.
» BATTERY REPLACEMENT FOR THE CADENCE SENSOR
7
12
+
3s

SECTION 2
FIRST TIME SET-UP

SECTION 2A : FIRST TIME SET-UP : BATTERY
1. Open the battery cover by turning the cover counter clockwise.
2. Insert the battery (CR 2032) with the positive side (+) facing up. Close the battery cover by
turning it clockwise
After the battery installation the first time setup menu will start automatically.
The first time setup procedure can be restarted by pressing the “AC” button on the back side the of
computer.
INSTALLING BATTERY INTO THE COMPUTER
1
+
2
9

SECTION 2B : FIRST TIME SET-UP : SETTINGS
1. To change 24HR clock or 12HR clock, press +or -.
2. To select, press M.
SETTING CLOCK
12
3. To set the TIME press +or -.
4. To select, press M.
34
10

SECTION 2B : FIRST TIME SET-UP : SETTINGS

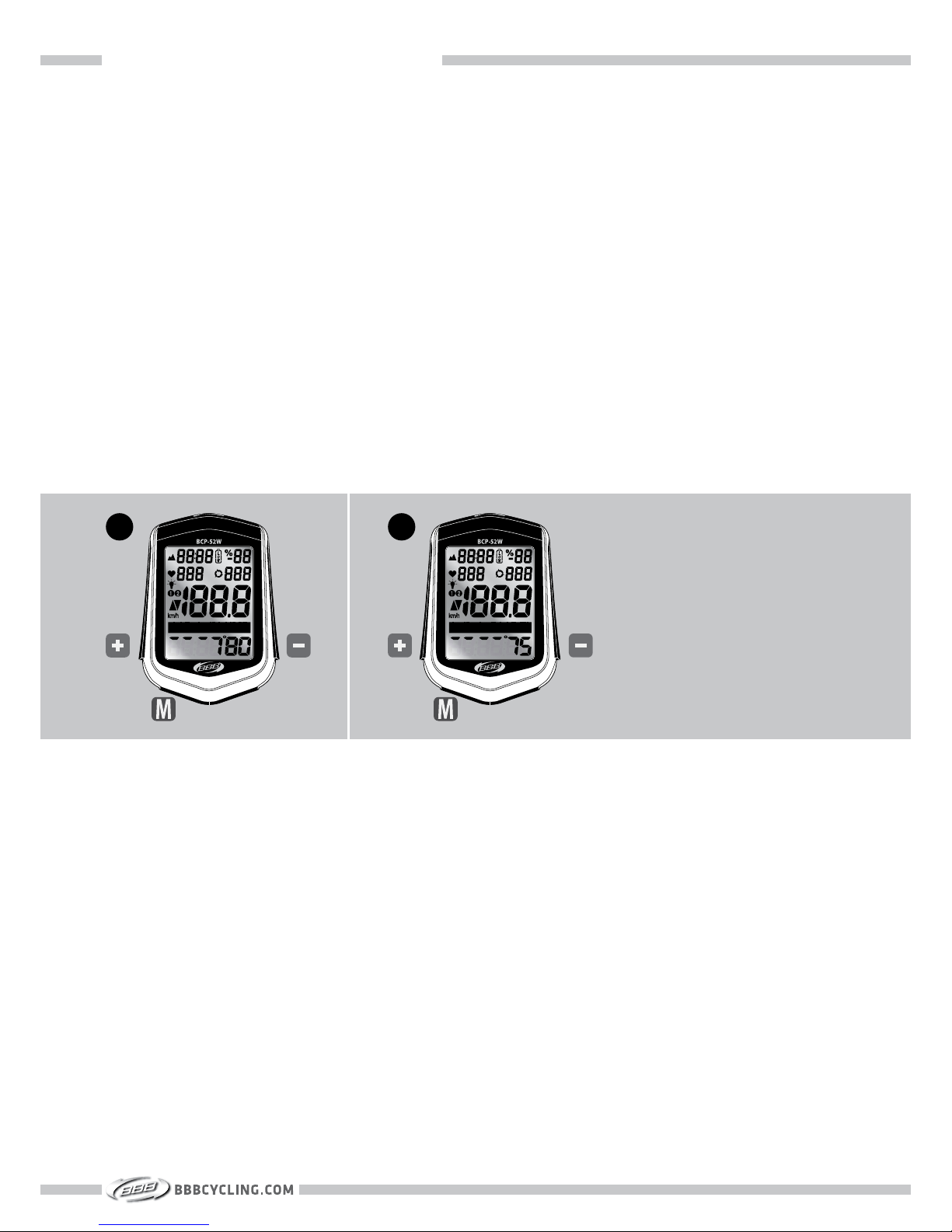

High Limit / Low Limit
For a healthy and effective training your heart rate should not be too high or too low. Your com-
puter will warn you when you are training too hard or not hard enough. The heart rate shown on
the display will start to flash when you are under or over your limits.
During an exercise test done by a sports doctor your high and low heart rate limit can be deter-
mined precisely. There is a simple, less precise, way to determine these values:
High limit = (220(man) / 224(woman)) – age) x 90%
Low limit = (220(man) / 224(woman)) – age) x 60%
1. To set HI LIMIT press +or -. To select, press M.
2. To set LO LIMIT press +or -. To select, press M.
SETTING HEART RATE VALUES
12
11

SECTION 2B : FIRST TIME SET-UP : SETTINGS

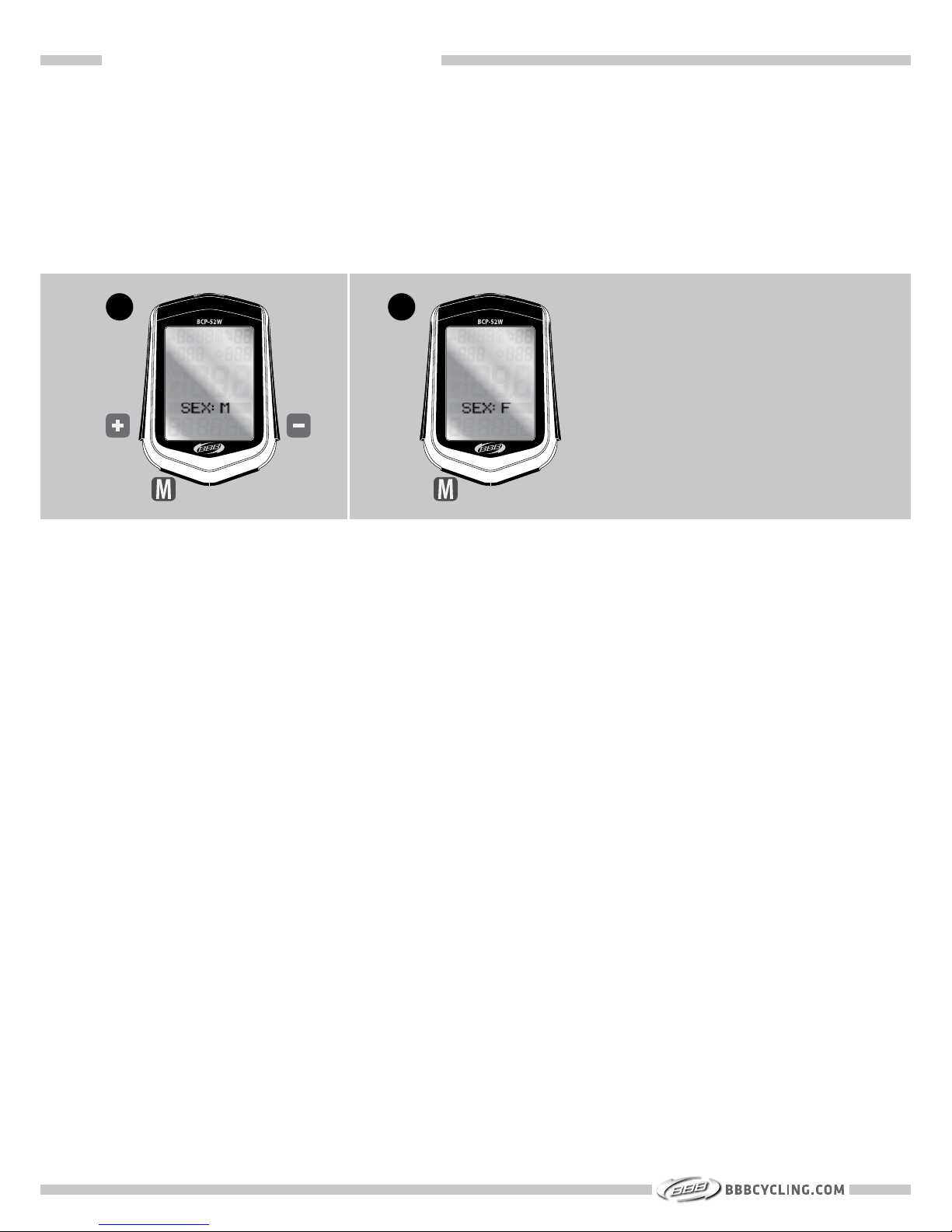

1. To set the SEX press +or -. (M= Male, F= Female).
2. To select, press M.
SETTING GENDER
12
12

SECTION 2B : FIRST TIME SET-UP : SETTINGS
1. To change KG or LB, press +or -.
2. To select, press M.
SETTING WEIGHT
3. To set the WEIGHT press +or -.
4. To select, press M.
12
34
13

This computer has wheel size presets for easy wheel size selection.
1. To set the correct wheel size press +or -. To select, press M.
SETTING WHEEL SIZE
SETTING CUSTOM WHEEL SIZE
1. When the preferred wheel size is not listed in the preset list, select CUSTOM. To select,
press M.
To set the WHEEL SIZE digits press +or -. To select, press M. Repeat these steps to set the
other digits.
1
SECTION 2B : FIRST TIME SET-UP : SETTINGS
PRESET MM
700 -
700
700
700
700
700
26
26
26
26
26
26
CUSTOM
23 2096
25 2105
28 2136
32 2155
35 2168
38 2180
1.5 2010
1.9 2045
1.95 2050
2.0 2055
2.1 2068
2.2 2075
0000 - 3999
-
-
-
-
-
-
-
-
-
-
-
1
To set the most precise wheel size, do a “rollout” test.
(Make sure the tires are at the correct tire pressure)
A. Sit on the bicycle, place the valve of the front
wheel on the floor.
B. Mark the floor at the valve position.
C. While you sit on the bicycle, have a helper roll the
bicycle forward with one revolution of the wheel,
so that the valve is directly on the floor again.
D. Mark the new position of the valve.
E. Measure the distance between the two marks, in
millimeters.
F. Set this value in the DigiBoard computer.
14

SECTION 2B : FIRST TIME SET-UP : SETTINGS
1. To change the SPEED UNIT to KM/H or M/H, press +or -.
2. To select, press M.
SETTING KM/H OR M/H
12

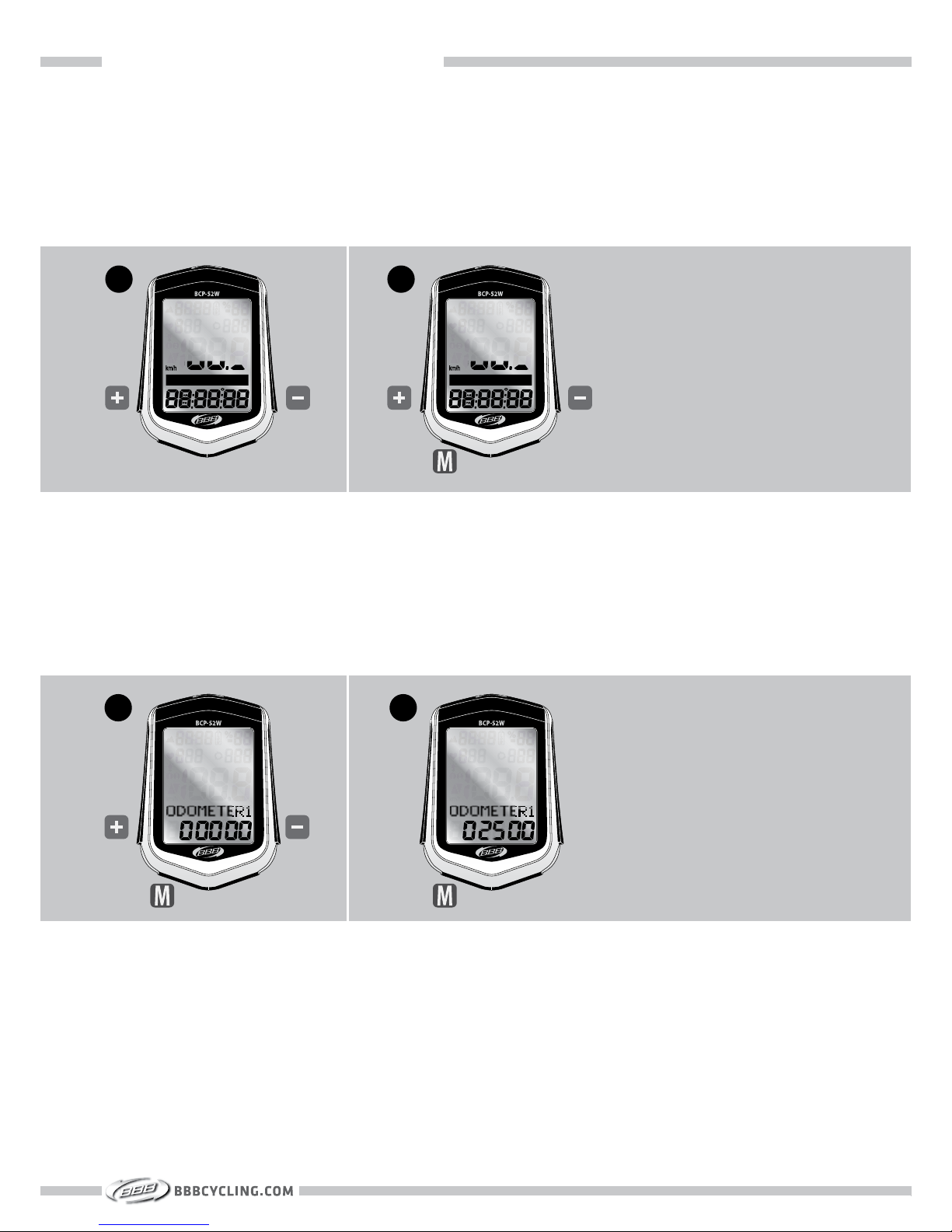

1. It is possible to set the ODOMETER data into your new bicycle computer. To select the first
digit, press +or -.
2. To select, press M. Repeat these steps to select the other digits.
SETTING ODOMETER 1
12
15

SECTION 2B : FIRST TIME SET-UP : SETTINGS

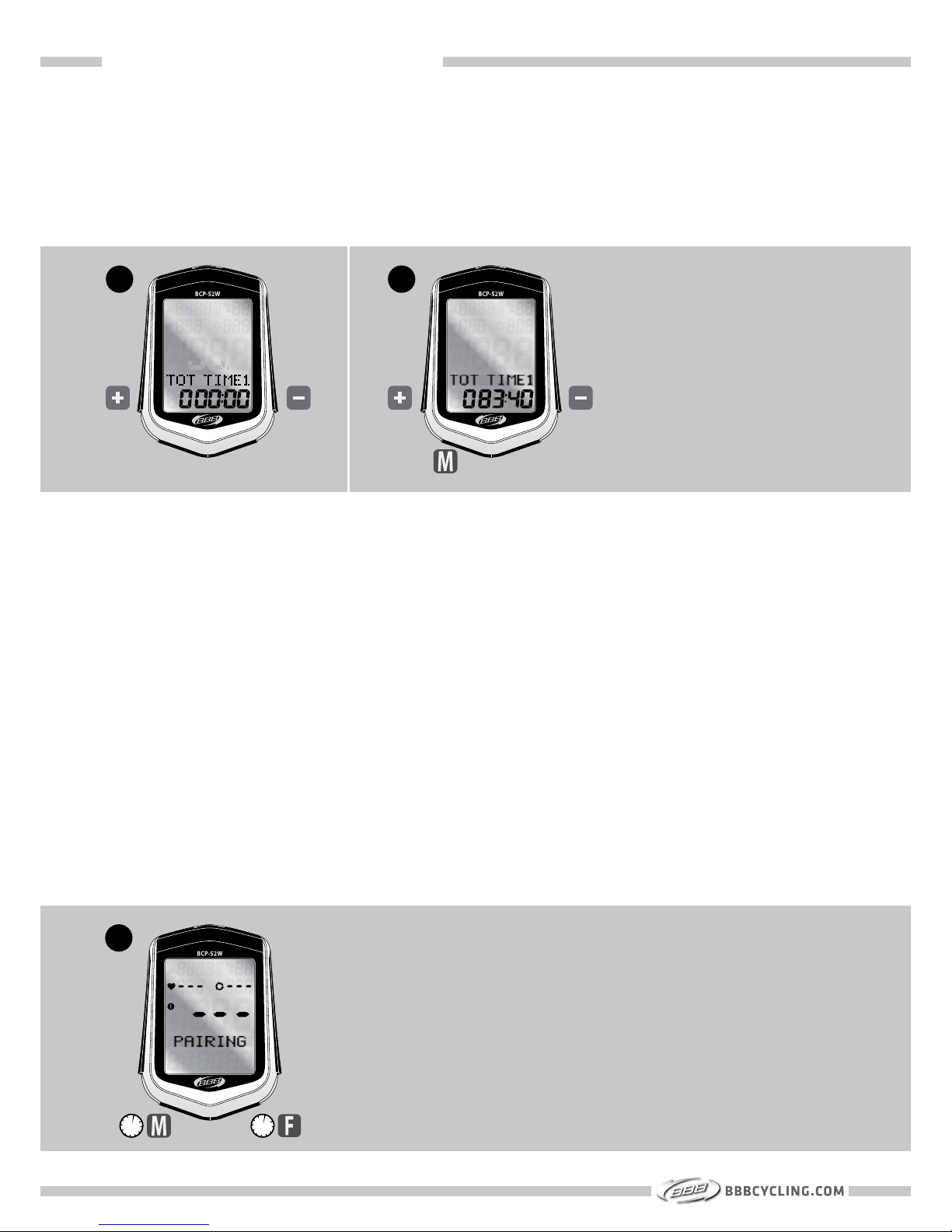

1. It is possible to set the TOTAL TIME data into your new bicycle computer. To select the first
digit, press +or -
2. To select, press M. Repeat these steps to select the other digits.
SETTING TOTAL TIME 1
12
1. During the pairing procedure the computer makes a secured digital connection with the
sensors. Once a sensor is found the computer will show “SPD FOUND”, “ CAD FOUND” and/
or “HRT FOUND”, depending on the type of sensors you are using.
During the pairing process the heart rate, cadence and speed symbol will flash in the dis-
play. When a sensor is found, the symbol will stop flashing. Before you start using your bicycle
wait until the pairing process is completely finished and the computer display shows the main
screen.
Once sensors are paired the connection is stored in the computer memory. The pairing process
does not have to be repeated before each ride.
The pairing procedure can be repeated manually by pressing the Mand Fbutton together for 3
seconds.
Starting the pairing procedure manually is needed when sensors cannot be found or when a later
bought sensor needs to be paired.
PAIRING
1
3s 3s
16

SECTION 2C : FIRST TIME SET-UP : HOME ALTITUDE
The altitude in this computer is measured by a pressure sensitive barometer. Not only altitude,
but also changing weather will influence the height showed on your computer.
Before each ride you have to calibrate the altitude to let the computer compare your home
altitude with the current weather situation.
Home altitude can also be described as start altitude. The home altitude is a saved preset for
easy calibration.
Are you on holiday?
Save your start altitude as home for calibration before each ride.
Will your ride start from a different altitude each day?
Check page 27, Advanced Altitude settings, for changing the current altitude.
Calibration of the altitude is described at page 20.

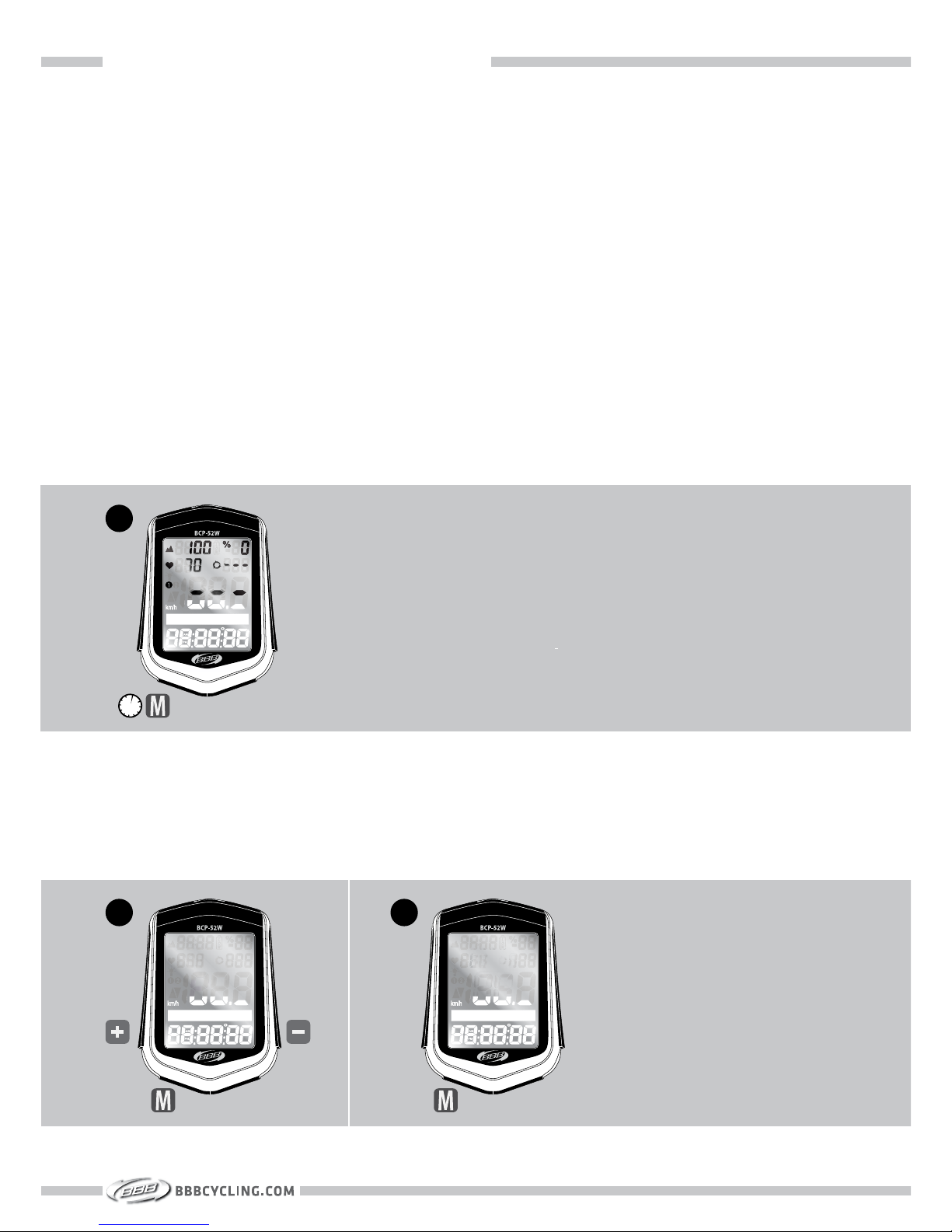

1. Start with the ALTITUDE menu (ALTI GAIN shown in display). Press Mbutton for 3 seconds.
SETTING ALTITUDE (BCP-52WA / BCP-52WAH ONLY)
2. To set the ALTITUDE press +or -. To select, press M. Repeat to set the other digits.
3. To save the HOME ALTITUDE, press Mto save the value.
SETTING HOME ALTITUDE (BCP-52WA / BCP-52WAH ONLY)
1
3s
Home altitude information for your specific position can be found by
various sources like maps, tourist information or on the internet.
23
17

SECTION 3 : BEFORE EACH RIDE
SECTION 3
BEFORE EACH RIDE

SECTION 3 : BEFORE EACH RIDE : TRIP DATA RESET
1. The TRIP data can be reset in any menu by pressing +and –button for 3 seconds.
Please note: Every trip related data is reset including CADENCE, HEART RATE and ALTITUDE.
Totals like ODO and TOTAL TIME will not be reset.
TRIP DATA RESET (BCP-52WA / BCP-52WAH ONLY)
1. The TRIP data can be reset in any menu by pressing +and –button for 3 seconds.
Please note: Every trip related data is reset including CADENCE and HEART RATE. Totals like
ODO and TOTAL TIME will not be reset.
TRIP DATA RESET (BCP-51W / BCP-51WH ONLY)
1
3s 3s
1
3s 3s
