Owner’s Manual
MPower™Echelon2 Console
REV DATE DESCRIPTION ECO BY
A
C
E
F
I
I
F
C
E
A
001
XXX-XXXX
CORE PART NO
MM
NOTICE OF PROPRIETARY INFORMATION
OF
FINE

Owner’s Manual
2
Introduction
Ease of Use
Push the ON/OFF button to activate console
Options in Workout
Access AVG/MAX values at any time during workout
Activate optional “gear” display for visual cue of resistance level
Reliability
“Plug and Play” design eliminates wireless communication issues common to modern
fitness environments
Readability
Large, easy to read characters laid out in a way designed for how you train
Connectivity
Save workout data wirelessly via ANT+, or with data output through USB
Easy Set-up
Simply plug the components of the system together, calibrate the console per the
installation instructions, and you are ready to ride
Long Battery Life
System uses 2 C cell batteries, which will last up to 12 months.*
Batteries are located in one, easy to access location for simple replacement
*Assumes an average usage of 20 hours per week without backlight usage. Backlight
usage and usage with external leader board systems can reduce battery life.
Key features of the Schwinn®system:
Welcome to the new Schwinn®Console system! Your new console will add
measurement to your Schwinn®bike, giving you more training options than ever
before.

Owner’s Manual
3
Console Speed Sensor
Length 7.1” (18 cm) Length 3.3” (8.3 cm)
Width 3” (7.7 cm) Width 2.5” (6.4 cm)
Thickness 1.9” (4.8 cm) Thickness 1.5” (3.7 cm)
Weight (console w/ sensor) 2.0 lb (0.9 kg)
Shipping Weight 2.8 lb (1.3 kg)
Power Sensor Power Requirements
Length 4.2” (10.7 cm) Console (2) C Batteries (LR14)
Width 2.6” (6.6 cm)
Thickness 1.0” (2.5 cm)
Weight 0.17 lb (0.1 kg)
Shipping Weight 0.22 lb (0.1 kg)
DO NOT dispose of this product as refuse. This product is to be
recycled. For information on the proper method of disposal, contact a
Customer Service representative. Contact information is available in
the Contacts section of this manual. For additional information,
please visit:
www.SchwinnEquipment.com
Specifications
Patent Information: This product may be covered by US and Foreign Patents and Patents
Pending.

Owner’s Manual
4
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Before using this equipment, obey the following warnings:
Important Safety Instructions
• Children must not be let on or near this machine. Moving parts and other features of the machine
can be dangerous to children.
• Consult a physician before you start an exercise program. Stop exercising if you feel pain or
tightness in your chest, become short of breath, or feel faint. Contact your doctor before you
use the machine again. Use the values calculated or measured by the machine’s computer for
reference purposes only.
• If you have a pacemaker or other implanted electronic device, consult your doctor before using
the wireless chest strap or other telemetric heart rate monitor.
• Do not use or put the machine into service until the machine has been fully assembled and
inspected for correct performance in accordance with the Owner’s Manual.
• Read and understand the complete Owner’s Manual supplied with the machine before first use.
Keep the Owner’s Manual for future reference.
FCC Compliance
Please note that the changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide a reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --
Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --
Consult the dealer or an experienced radio/TV technician for help.
Read and understand the complete Owner’s Manual. Keep Owner’s Manual for future reference.
Read and understand all warnings on this machine. If at any time the warning stickers become loose,
unreadable or dislodged, contact Customer Service for replacement stickers.
There is a risk of explosion if the battery is replaced with an incorrect type. Dispose of used
batteries according to the manufacturer's instructions.
Warranty Terms
For U.S. customers, to find the latest warranty terms go to the Schwinn®Equipment
website at www.schwinnequipment.com. For customers outside the U.S. contact the
distributor for your country and region for warranty terms.

Owner’s Manual
5
Features
REV DATE DESCRIPTION ECO BY
A
C
E
F
I
I
F
C
E
A
001
XXX-XXXX
CORE PART NO
MM
NOTICE OF PROPRIETARY INFORMATION
OF
FINE
AB
F
D
C
E
G
H
A Backlit LCD Display
B ON/OFF Button
C AVG/MAX Button
D Backlight Button
E STAGE Button
F Battery Level
G USB Port
H Battery Bay
Backlit LCD Display
During the workout, the multi-function, backlit LCD shows your workout measurements,
results, user setup data and console diagnostics.
To turn on the backlight, push the Backlight button. The backlight turns off after 10 seconds
to conserve the batteries. This backlight setting can be adjusted in the Service menu.
Heart Rate Monitor
The console receives heart rate data from the heart rate monitor (HRM).
The console can read heart rate data from an ANT+ 2.4GHz or Polar® compatible
5kHz wireless chest strap.
ANT+ 2.4GHz Wireless
The ANT+ 2.4GHz Wireless Heart Rate Monitor (HRM) sends heart rate data to the
console after proximity linking occurs during the User Setup. The console can read the

Owner’s Manual
6
HRM data to a distance of 118” (3 m) during Workout Mode.
If you have a compatible paired ANT+ Sport Watch and ANT+ HRM, the console
links with the Sport Watch and reads the heart rate data from it., if the watch is
compatible. The Schwinn console uses the ANT+ Fitness Profile.
Visit www.thisisant.com for a directory ofcompatible devices.
Standard EM 5kHz Pulse
The console uses the EM (electromagnetic) 5kHz pulse wireless protocol to read heart
rate data from the standard heart rate monitors (HRMs), such as a Polar® transmitter
chest strap.
Workout Data Storage
The console sends workout data to the user’s data storage device -- for example, a USB
flash memory device or a sport watch.
During Workout Mode the console sends workout data to the USB device:
• Workout (total) -- Time, Distance, Calories, Power, RPM, Avg Power, Max Power, Avg
If you connect the USB device after the workout ends, the console only sends the
Total Summary data to the USB device. Workout Data is stores as a .csv file with
the name MPOWERXX.csv. XX is the two-digit number from 1 to 99, the console will
automatically save using the next available number on the USB device if files are
already present.
The USB port also gives access to update the console firmware by a Service
Technician. There is a USB symbol that will flash next to the RPM when the console is
uploading data to the USB stick. The stick must remain in the plug as long as the USB
symbol flashes. Once the symbol stops flashing, the stick can be removed.
Features
ANT+ Sport Watch for Data Storage
During Workout Mode the console sends workout data to the ANT+ Sport Watch. When
the proximity linking is complete, the watch and console can send and read data up to
118” (3 m).
Visit www.thisisant.com for a directory of compatible devices.
USB Interface / Data Storage
The console can save workout data to a USB data storage device. You can connect the
USB storage device to the console during User Setup or after the workout ends. The
USB outut specification is (5Vd.c., 350mA).
HR and Max HR.
• Workout Stages -- Time, Distance, Avg Power, Max Power, MAX RPM. Consoles
with firmware V1.1 and later also report AVG and MAX heart rate for each stage.

Owner’s Manual
7
LCD Display Data
*Note: To change the measurement units to English Imperial or metric, refer to the User Setup section of this
manual.
Power
The power display field shows the Power in Watts that you are producing at the current
resistance level (1 horsepower = 746 Watts). Power data only shows if there is a power
sensor installed on the bike.
RPM
The RPM display field shows the current pedal revolutions per minute (RPM).
REV DATE DESCRIPTION ECO BY
A
C
E
F
I
I
F
C
E
A
001
XXX-XXXX
CORE PART NO
MM
NOTICE OF PROPRIETARY INFORMATION
OF
FINE
A1 POWER (Watts)
A2 RPM (Cadence)
A3 Heart Rate
A4 STAGE Time, Distance and Power
A3 A6
A5
Features
A5 Cal (Calories)
A6 Gear Indicator
A7 TOTAL Time, Distance and Power
Heart Rate
The Heart Rate display field shows the heart rate in beats per minute (BPM) from the heart
rate monitor (HRM). When the computer is ON, it will search for a signal from a compatible
heart rate strap for 30 seconds. During this time, the HR symbol will flash. If a strap is
detected, the HR symbol will stop flashing and remain solid while displaying the HR. If
a signal is not detected after 30 seconds, the HR symbol will disappear. The user may
reinitiate the pairing process by pressing and releasing the ON/OFF button.
A1
A2
A4 A7

Owner’s Manual
8
Workout Stage
The STAGE display field shows the time, distance and AVG/MAX power in the current Stage
of the workout. Time and distance values start at zero and count forward until the end of the
Stage. Power is averaged for the current stage.
Gear
The gear display field shows a number from 0-36 indicating resistance level. The gear
display can be turned OFF in Service Mode.
Workout Totals
The TOTAL display field shows the total time, distance and avg/max power for the entire
workout period.
Keypad
The multi-function keypad lets you set the console measurements for your workout, see
and update your workout data, and examine the console diagnostic messages. Tap the ON/
OFF button to activate the console from Sleep Mode. The Operations section of this manual
gives you the procedures for using the buttons in each Operations mode. The Backlight
button sets your selections in User Setup Mode and Service Mode.
Battery Level
The Battery Level icon shows the battery level for the console. All four segments of the
icon are on when the battery level is high. When the battery level is low, only the bottom
segment is on. The bottom segments flashes when battery level is very low.
If the battery level is too low to continue operation, the console display flashes the message
“LO batt” and the console goes into Sleep Mode. If this occurs during a workout, the
workout stops and the console display shows the workout results for 10 seconds. Then the
“LO batt” message displays and the console goes into Sleep Mode.
Bike Sensor Data
The console receives data from the bike’s sensors and uses the data to calculate workout
results.
RPM Sensor
The Schwinn® console comes with a RPM sensor for the bike. This sensor transmits
data from the flywheel to the power sensor and the console.
Features
Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in
your chest, become short of breath, or feel faint. Contact your doctor before you use the machine again.
Use the values calculated or measured by the machine’s computer for reference purposes only.
Calories
The Calories display field shows the estimated calories that you have burned during the
exercise. This value is calculated based on POWER if a Power Sensor is installed. Calories
are not calculated if a power sensor is not installed. Consoles with firmware V1.1 or later
have to ability to turn the CAL display OFF in the service menu.

Owner’s Manual
9
Power (Watts) Sensor
The Power sensor is an optional upgrade. The power sensor calculates rider Power
(Watts) production from the brake resistance mechanism.
For detailed instructions on how to install the Echelon2 console, RPM sensor, and
optional power upgrade kit, refer to the Installation Instructions included on the
CD that is in the console kit. Or go to the Schwinn Equipment website at www.
schwinnequipment.com/customer-resources and search for product information on
the Echelon2.
Pause Mode
The computer will go into Pause mode when the user stops pedaling. It will remain in Pause
mode for 5 minutes unless the rider begins pedaling. While in Pause mode, the timer will
continue running; however the computer will stop calculating Avg Power, Avg RPM, and Avg
HR. The computer will go back to Ride mode if the user starts pedaling within the 5 minutes.
If the user does not begin pedaling after 5 minutes have elapsed, the computer will enter
Summary mode. The computer will remain in Summary mode for 2 minutes, during which
time the display will flash ride results including Avg and Max values.
Use the appropriate instruction for monitoring equipment.
• USB storage device --install the device in the USB port.
HRM
Watch
Operations
User Setup Mode
In User Setup Mode the console collects user data to calculate and record workout data.
Proximity linking to the user’s HRM or ANT+ watch also occurs while in User Setup.
Note: If you have an ANT+ Sport Watch and paired ANT+ HRM, it is only necessary for
the console to link with the sport watch. However, if you have an ANT+ Sport Watch and
EM 5kHz HRM, the console links to the watch and the HRM.
Visit www.thisisant.com for a directory of compatible devices. The Schwinn console uses
the ANT+ Fitness profile.
• ANT+ watch --link to the console. Move the watch to 2”-4” (5-10 cm) or less
from the ANT+ Link Here icon on the console and hold it there until
proximity linking is complete.
• ANT+ HRM --link to the console. Lean into the console so that the HRM is 7.5”-31”
(20-80 cm) from the ANT+ Link Here logo, until a value is displayed.
ANT+

Owner’s Manual
10
Display Results Mode
To stop the workout and go to Display Results Mode, push the AVG/MAX button and hold it
down for 3 seconds or longer. The console shows total Calories, total time and distance, and
the Max and Average values. After 2 minutes the console sets the values back to zero and
goes into Sleep Mode.
Push the ON/OFF button and hold for 3 seconds to exit Display Results Mode and go to Sleep
Mode.
Ride Mode
When the console is powered on and rider begins to pedal, the console is in Ride Mode.
When the cadence decreases to zero, the console pauses and the LCD display shows the
last workout data values. If you stay paused for more than 5 minutes, the workout ends and
the console goes into Display Results Mode.
To start the STAGE time, distance and power calculations, tap the STAGE button. Values will
calculate until the STAGE button is tapped again, at which time the values will freeze on the
display. Tap the STAGE button again to clear the values and begin a new stage.
At any time while in Ride Mode, access Maximum and Average values by pressing AVG/MAX
button. One press will display Average values, a second press will display Maximum values.
Display will return to workout values after 3 seconds, or with a third push.
To end the workout, push the AVG/MAX button and hold for 3 seconds. The console goes to
Display Results Mode.
To turn off the console, push the ON/OFF button and hold for 3 seconds.
Service Mode
The Service Mode menu lets Service Technicians set the bike configurations, see
maintenance data, do calibrations and upgrade the console firmware.
• To go to Service Menu, push and hold the STAGE and AVG/MAX buttons for 5 seconds
• To scroll through the Service Mode menu and sub menu options, tap the STAGE or AVG/
MAX button
• To make selections and go to submenu options, push the Backlight button
• To exit Service Mode, tap the STAGE or AVG/MAX button until you see the EXIT option, then
push the Backlight button
Note: RPM must be 0 to enter Service Mode.
For detailed instructions on how to configure, calibrate, and update firmware, refer to the
Installation Instructions included on the CD that is in the console kit. Or go to the Schwinn
Equipment website at www.schwinnequipment.com/customer-resources and search for
product information on the Echelon2.
Gear
This option sets the GEAR function to ON or OFF.
Operations

Owner’s Manual
11
Units (English/Metric)
Set the Unit Measures for distance to km/mi.
Calibrate
The option allows calibration of the power sensor, manual adjustment of the output values
and allows views of current values being reported by the power sensor.
Calibration Options:
• Zero Point --Calibrates power sensor using calibration tool
• Power Adjust --Allows user to manually adjust the power calculation in console from
-99% to +99%. When Power Adjust is set to any % other than 0, the console will adjust
the calculated power values by this % for display. This adjustment will also affect the
values calculated from power: distance and calories.
• Current Angle --Allows user to see current angle being reported by Power Sensor
• Exit --Return to main menu
Batteries
Estimated percentage of battery life remaining in the batteries.
System
This option lets user access console summary data and perform a console reset for software
updates.
Options:

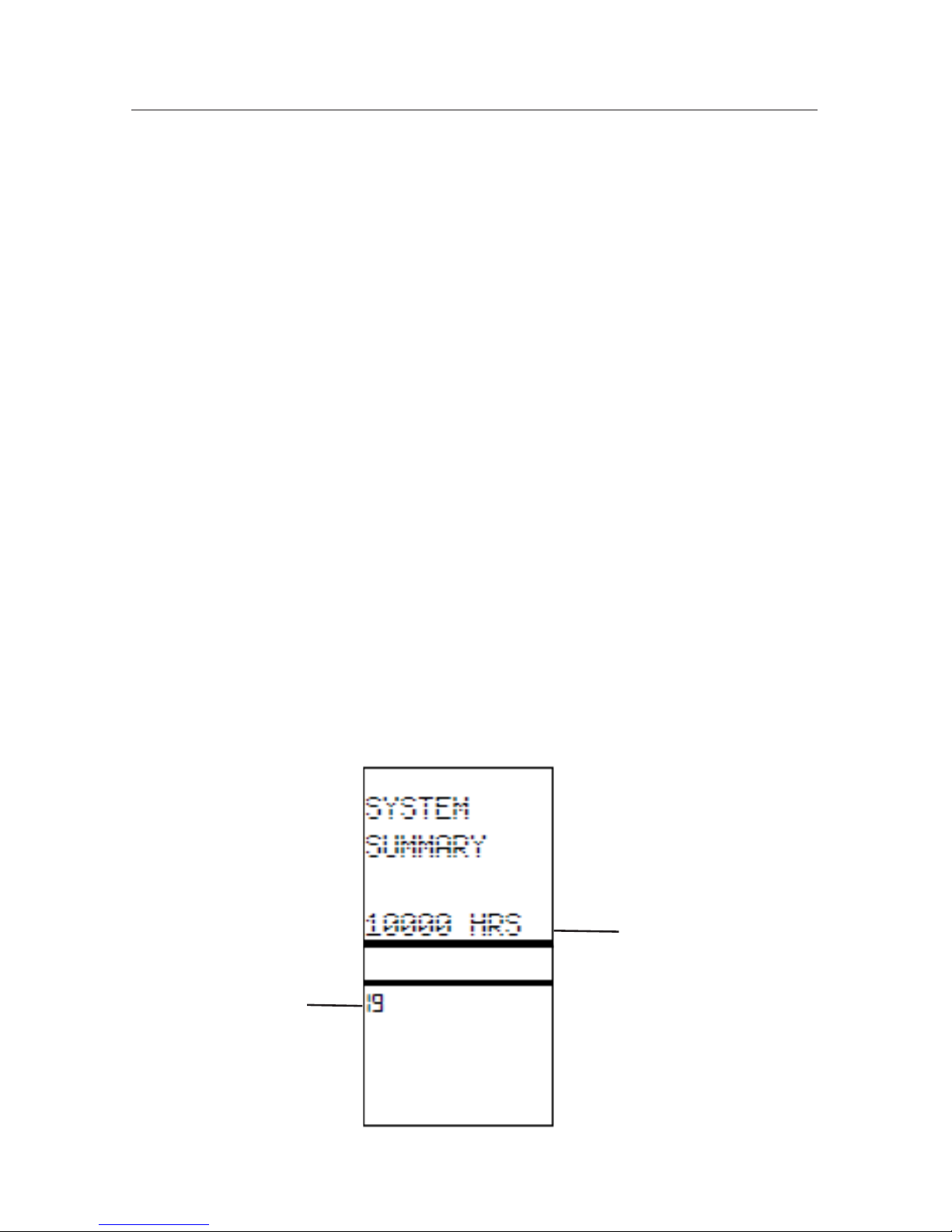

• Summary --Displays usage hours and console firmware version.
• Reset --Resets the console to factory default settings
• Load FW --Allows user to upload new firmware to the console while maintaining user
defined settings
Usage Hours
Firmware Version
Operations

Owner’s Manual
12
Carbon Blue
Set this option to ON for bikes with Carbon Blue belt drive, otherwise set to OFF.
Backlight
Settings for the function of the backlight. Options are:
• Setting can be set to TIMER 10, TIMER 15, TIMER 20, ON or OFF. When a TIMER option
is selected, pressing the light button during Ride Mode will turn on the backlight for the
number of seconds indicated (10, 15, 20). ON will keep backlight always on, OFF keeps
the backlight always off.
• LIGHT HOLD can be set ON or OFF. When this option is ON, a rider can press and hold the
light button for 3 seconds while in Ride Mode, and that will cause the light to stay on until
the light button is pressed again.
Note: Backlight usage has significant effect on battery life, plan accordingly.
Operations
Open ANT+ Channel
Set this option to ON when console is being used with a group display system, otherwise
set to OFF.

Owner’s Manual
13
Replacing the Console Batteries
If you need to replace the batteries in the console:
• Remove the screw that attaches the end of the console bracket to the back of the console
• Remove cable protective cap
• Unplug the cable from the back of the console
• Move the console up along the console bracket to open the battery bay
• Remove the old batteries
• Put the new batteries in the console. Make sure that they point in the correct direction
(+ and -)
• Move the console down the console bracket to close the battery bay
• Plug the cable back into the console
• Attach the console to the console bracket with the screw
• Attach the cable protective cap
Contact your Distributor or Core Health & Fitness directly
Maintenance
Equipment must be regularly examined for damage and repairs. The owner is responsible to make sure
that regular maintenance is done. Worn or damaged components must be replaced immediately or the
equipment removed from service until the repair is made. Only manufacturer supplied components can
be used to maintain and repair the equipment.
This product, its packaging, and components contain chemicals known to the State of California
to cause cancer, birth defects, or reproductive harm. This notice is provided in accordance with
California’s Proposition 65. If you would like additional information, please refer to our website, www.
schwinnequipment.com.
Before each use, inspect the exercise machine for loose, broken, damaged,
or worn parts. Do not use if found in this condition; repair or replace all
parts at the first sign of wear or damage. After each use, use a damp cloth
to wipe your equipment and computer free of sweat.
Important: To avoid damaging the finish on your bike and console, never
use a petroleum-based solvent when cleaning. Avoid getting excessive
moisture on the console. Replace the batteries as necessary
• Console -- (2) C batteries (LR14)

Owner’s Manual
14
Condition/Problem Check Solution
Console does not come on No batteries or dead batteries Replace batteries
Distance display is not accurate Display set to wrong unit of
measure (English/Metric)
Go to Service Mode menu and change
the Units configuration
Power display is not accurate Range of Power values Go to Service Mode menu and
select Calibration. Do the calibration
procedure. If Power values still seem
off, user Power Adjust feature to
manually adjust output
No RPM display RPM Sensor Make sure the sensor is close enough to
the flywheel so it can sense the magnet
No Power (Watts) display Power Sensor Ensure RPM sensor working -Power
will not be displayed if RPMs are not
picked up. Ensure all cables plugged in
securely and not damaged.
No Heart Rate display when
using chest strap
Transmitter contact with skin
Electromagnetic interference
Chest strap transmitter
HR receiver
Moisten skin contact area on the chest
strap. Ensure you lean close to the
console during User Setup to get a
connection
Turn off any Television, AM radio,
microwave, or computer within 6 feet (2
meters) of the bike
Test chest strap with another HRM
device such as HR watch or a machine
at the gym. If transmitter has good
skin contact and still doesn’t send a HR
signal, replace battery. If new batteries
do not solve the problem, replace the
chest strap transmitter
If chest strap is known to work with
other devices and no sources of
interference are present, or console is
tested with a Pulse Simulator and does
not receive the signal, contact Customer
Service
Troubleshooting

Owner’s Manual
15
Core Health & Fitness
Phone: [phone]
Email: [email protected]
Website: www.schwinnequipment.com
Core Health & Fitness UK Direct
UK Email: ukser[email protected]
Phone: [phone]
Contacts

©2015 Core Health & Fitness, LLC. All rights reserved. 1-888-678-2476 - www.stairmaster.com
P/N 620-8310 REV F, July 2015
