DigitalBox 1T SCART User manual

See the world through
Installation Guide
DVB-T Scartreceiver

2Installation guide
GB
READ THIS FIRST!
This user manual helps you to get familiar with the installation and operation of the
terrestrial receiver.
Please read this user manual before using the receiver.
Store this user manual on a safe place so you will always be able to use it for reference.
Safety precautions:
To reduce risk of electric shock, this product should ONLY be opened by an authorized
technician if service is required. Disconnect the product from mains and other
equipment if a problem should occur.

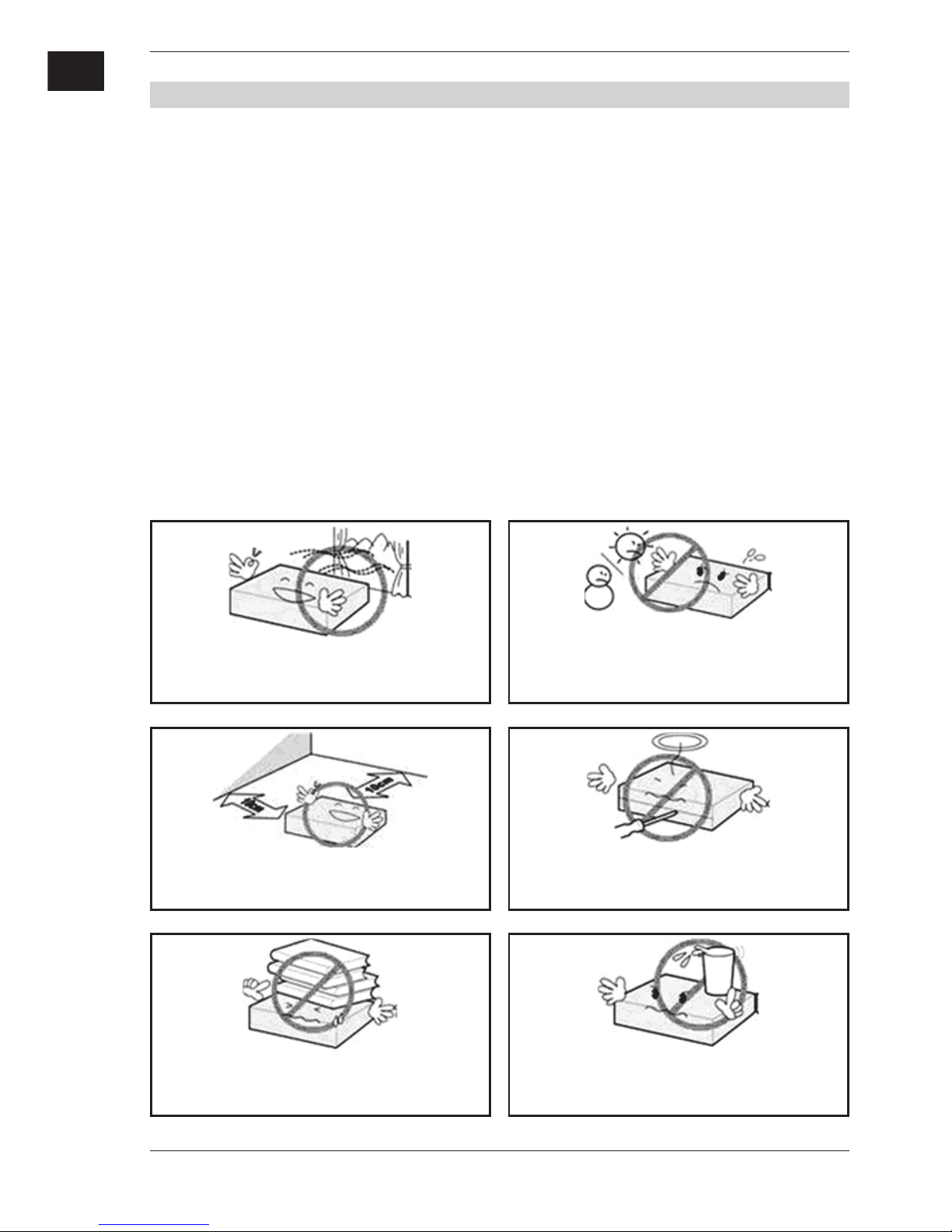

Remarks to the installation, use and care of the receiver:
Place the product in a
well-ventilated area.
Don’t install in the cold or
under direct sunlight.
Leave a minimum 10 cm gap all
around the product.
Don’t place objects on top
of the product.
Don’t disassemble, repair,
or reorganize the product.
Don’t place cups that hold water or
other liquids on top of the product.

3DVB-T Scartreceiver
GB
INTRODUCTION
Features:
This user manual covers the installation of the terrestrial receiver and the
necessary steps to operate various features. This manual also explains special features
available only in this receiver and will allow you to get full advantage of these features.
This receiver offers:
• 400 channels
• Multilanguage OSD (On Screen Display) with 256 Colors
• Favorite lists
• EPG (Electronic Program Guide) for On Screen Channel Information
• Teletext
• Automatic and manual installation
• Multi-Language function (Menu, Audio)
• Editing Functions
• Digital Tuner
• Fully DVB-T and MPEG-2 compliant
• Parental lock control
Contents of the packaging:
After purchasing the receiver, unpack it and check to make sure that all of the following
Items are included in the packaging:
• Remote control
• 2x AAA batteries
• Power adapter

4Installation guide
GB
BACK PANEL
Connect to audio R/L to TV
or audio tuner
Connect to tv using scart cable
Infrared remote
Connect to a PC for s/w upgrade Ant IN: Connect to antenna
Connect to the power supply with 5V

5DVB-T Scartreceiver
GB

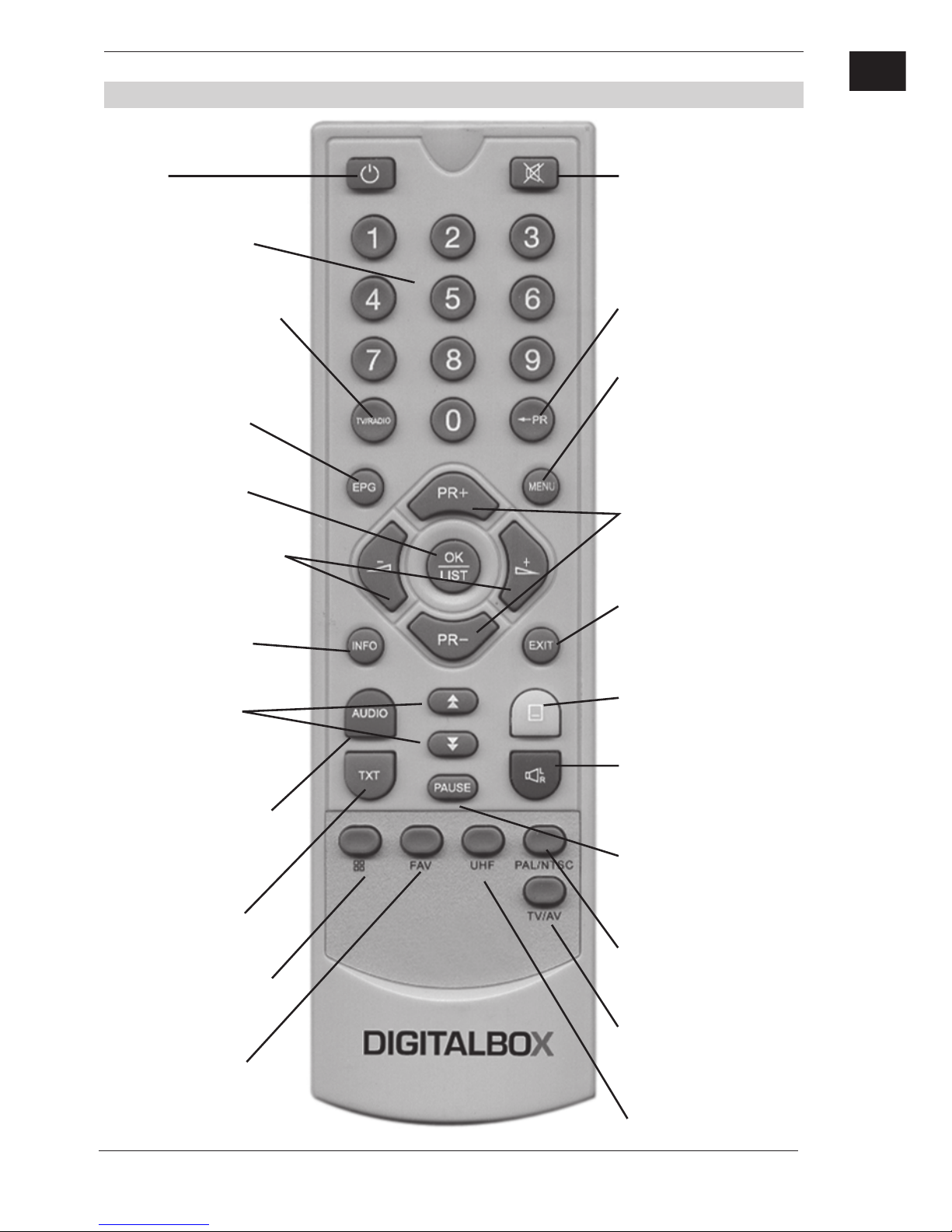

REMOTE CONTROL FUNCTIONS
Press key to
enter channel list
Power
on/off
Press to
change channel
Press key to
mute the sound
Press key to
display EPG screen
Press key to return
to previous channelPress to switch to
TV or Radio mode
Press key to enter
the menu or exit
current menu
Press key to list
favorite channels
Press key to multi-
picture on the screen
No function
Press key to
switch among
AUTO, PAL, NTSC
Press key to switch
between TV and AV
Press key to display
audio mode window
Press key to enter
teletext mode
Press key to enter
subtitle mode
Press key to display
audio mode window
Press key to open
information screen
Press key to exit
current menu
Press key to pause
the screen
Press key to page
up or down
Press to change
channel
Press to adjust volume

6Installation guide
GB
INSTALLATION
Channel setup:
When first time power on,
it will show welcome page like below:
• Press [Up/Down] key to select submenu.
• Press [Left/Right] key to select region
and OSD language.
• Press [Left/Right] key to select “scan mode”.
• Press “Search” to start searching.
• Press [Exit] after all channels have been
searched

7DVB-T Scartreceiver
GB
OPERATION
Main Menu:
• Press [Up/Down] key to select submenu.
• Press [OK] key to enter the selected item.
Channel menu:
• Press [Up/Down] to select submenu.
• Press [OK] to enter the selected item.
TV Channel List:
• Press [Up/Down] key to preview the
current highlighted program.
• Press [Menu] or [Exit] keys to enter full
screen playing mode.
• Press key [0] ~[4] to:
0: Delete all
1: Add favorite mark
2: Lock selected channel
3. Move selected channel
4. Delete selected channel

8Installation guide
GB
Radio Channel List:
The operation of the “Radio Channel List”
is the same as “TV Channel List”
TV Favorite List:
The “TV Favorite List” will show all the
favorite channels in the list.
• Press key [0] ~[4] to:
0: Delete all favorites
2: Lock selected channel
4. Delete selected channel
Radio Favorite List:
The operation of the “Radio Channel List”
is the same as “TV Channel List”
Delete All Favorites:
This operation will remove all favorite channels
(including TV and radio favorite channels).
Delete All:
This operation will delete all channels
(including TV and radio channels)

9DVB-T Scartreceiver
GB

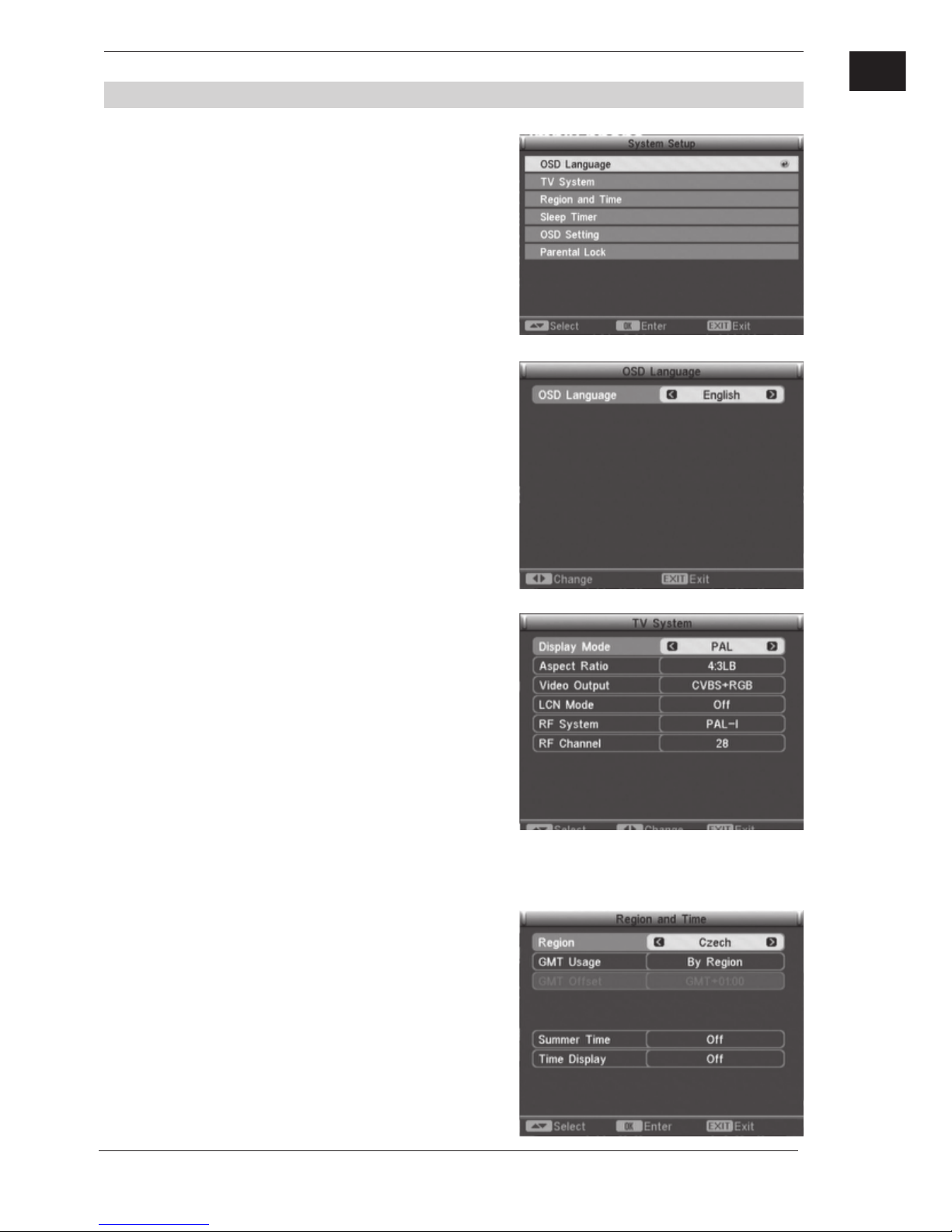

SYSTEM SETUP
• Press [Up/Down] key to select submenu.
• Press [OK] key to enter the selected item.
OSD Language:
• Press [Left/Right] key to select language.
• Press [Exit].
TV System:
• Press [Left/Right] key to select
Auto, PAL or NTSC.
• Press [Left/Right] key to select
4:3LB/4:3PS/16:9.
• Press [Left/Right] key to select
CVBS, CVBS+RGB.
• Press [Left/Right] key to select
LCN on or off.
• Press [Exit].
Region and Time:
• Press [Left/Right] key to select region.
• Press [Left/Right] key to select
GMT Usage. Change values by demand.
• Press [Exit].

10Installation guide
GB

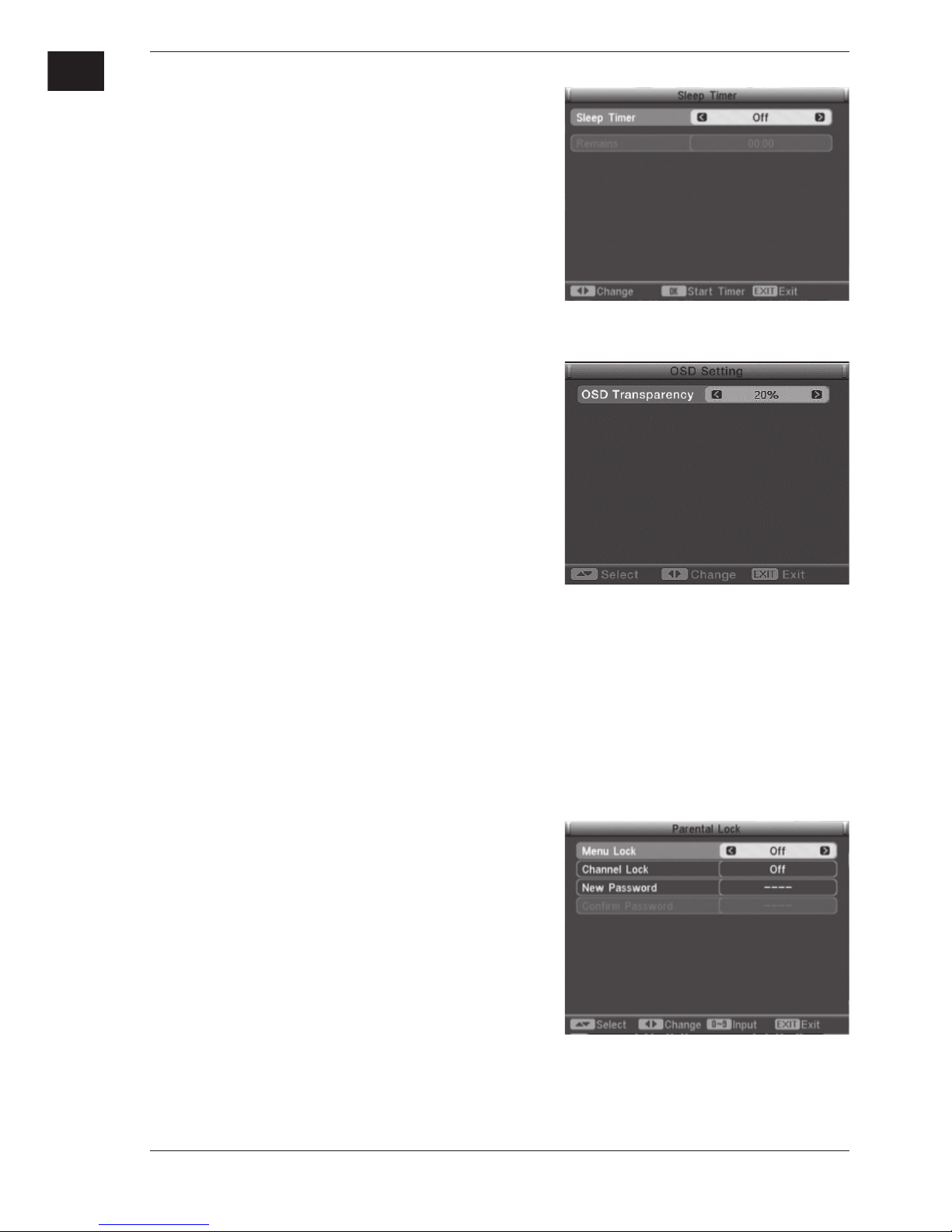

Sleep Timer:
• Press [Left/Right] key to
select on/off.
• Press [Left/Right] key to choose:
Off /10min. /30min. /60min. /
90min. /120min.
• Press [Exit].
OSD Setting:
• Press [Left/Right] key to set
OSD transparency.
• Press [Exit].
Parental Lock:
You can set a password for anyone who
wishes to operate in the “Installation” menu.
You can also set a password for the locked
channels. Refer to chapter about how to set
a locked channel.
Press [OK] key. A dialogue will prompt to input
the password. The default password is
“3330”.
When you input the correct password a
screen like right will appear:
• Press [Left/Right] key to select menu
lock on/off.
• Press [Left/Right] key to select channel
lock on/off.
• Press [Exit].

11 DVB-T Scartreceiver
GB
TOOL
• Press [Up/Down] key to select submenu.
• Press [OK] key to enter the selected item.
Information Menu:
• When you enter the “Information” menu
you will see a screen like above. The screen
displays some parameters of information
of current channel
• Press [Exit].
Load Factory Default:
• Press [OK] key to enter the selected item.
• Confirm yes or no to load factory default.

12Installation guide
GB
TECHNICAL SPECIFICATIONS
Tuner and Channel:
• Frequency Range: 51MHz to 860MHz
• Channel bandwidth: 6/7/8MHz
• Demodulation: COFDM 2K,8K
• Mapping: QPSK,16-QAM,64-QAM
• Guard-Interval: 1/2,2/3,3/4,5/6,7/8
• Demodulation: COFDM
MPEG Transport Stream & A/V Decoding:
• Transport Stream:
MPEG-2 ISO/IEC 13818 Transport Stream Specification
• Profile Level: MPEG-2 MP@ML
• Frame Rate: 25Hz for PAL, 30Hz for NTSC
• Video Resolution: 720x576 (PAL), 720x480 (NTSC)
• Audio Decoding: MPEG/MusiCAM Layer MP3, AC3
• Audio Mode:
Single channel, Dual channel, Joint stereo, Stereo
• Sampling Rate: 32, 44.1,48kHz
Enviromental Condition:
• Operating Temperature: 0 ~40°C
• Operating Humidity Range:
10
~85% RH, Non-condensing
Designs and specifications are subject to change without prior notice.
No guarantee or liability can be accepted for any changes and modifications of
the product or damage caused due to incorrect use of this product.
