IMPORTANT INFORMATION
Using the
appliance
Default
seng
Sengs
by app
The appliance is delivered with a default seng for a formula amount
of 67.5 ml powder to 200 ml water. The pre-installed poron size is
240 ml for a whole poron and 120 ml for a half poron.
The appliance can be set for the required formula using the app,
which can be downloaded from the App Store or Google Play. You
can also use the app to change the poron size.
The appliance is intended for use by adults only.
The appliance is only designed to make formula, and to dose water
for preparing baby porridge.

3
Fire
Damage
Warranty
Lock
Water
The appliance is not intended for usage on their own by children, nor
persons with reduced physical, mental or sensory capabilies, or lack
of experience/knowledge, unless they are supervised by a person
responsible for their safety or has been given necessary instrucons
concerning use.
Children should be supervised to ensure that they do not play with
the appliance.
If the supply cable is damaged, do not operate the appliance.
A damage cable must be replaced by a Diluo approved service center.
The cable must not be folded, clamped or pulled along sharp edges,
nor placed at hot surfaces or in contact with chemicals.
Never immerse the appliance in water. Clean surfaces only with a so
moist rag.
In the event of damage, fault or a suspected fault aer knocking the
appliance over, immediately unplug the appliance from the wall sock-
et. Never switch on a damaged appliance. Service and repairs may
only be carried out by an authorised service centre. If a fault is re-
paired incorrectly, the manufacturer accepts no liability for any dam-
age that may occur.
Diluo cannot be held responsible for the quality of the water. Use
only clean, fresh water.
In the event of a re in the appliance, only a powder or CO2 exn-
guisher should be used.
If the user opens the appliance, the warranty is invalidated. The ap-
pliance should always be removed from the wall socket for service
and maintenance.
The appliance can be locked and unlocked by holding in the Full Por-
on and Cleaning buons simultaneously. When locked, there is a
constant red light around the buons.

4
DISPOSAL
The product is marked according to EU Direcve 2002/96/EC regarding
the disposal and recycling of waste which comprises electrical or elec-
tronic devices. The symbol below indicates that the appliance must not
be treated as household waste, but should be handed over to the appli-
cable collecon point for separate handling.
Bole
Hot
surfaces
Storage
The appliance’s bole holder is designed to hold the most common wide
-neck type boles on the market. Should your bole not t, do not force
it into place.
The appliance is ed with a sensor which senses when the bole is in
place. If the bole is not properly in place, formula making can only be
started locally.
In a cleaning cycle, the water is heated to 70°C and washed out into the
bole. Consequently, the bole gets hoer than it normally would when
making formula. As children may be near the appliance during cleaning,
please bear in mind this higher temperature. Also when making formula
the water is heated to 70°C before being mixed with the colder water.
Therefore, please take care when making formula.
If the appliance will not be used for an extended period, run the cleaning
cycle and empty all the containers. The appliance should also be un-
plugged from the wall socket. The appliance should always be stored
above 0°C, whether or not the system is empty.
When transporng the appliance, the original packaging should be used
to minimise the risk of damage caused by wrongful handling or external
circumstances.
Before rst use aer unpacking, loose parts such as the water container,
powder container and bole should be cleaned. Read the cleaning
secon for further instrucons.
Transport

5

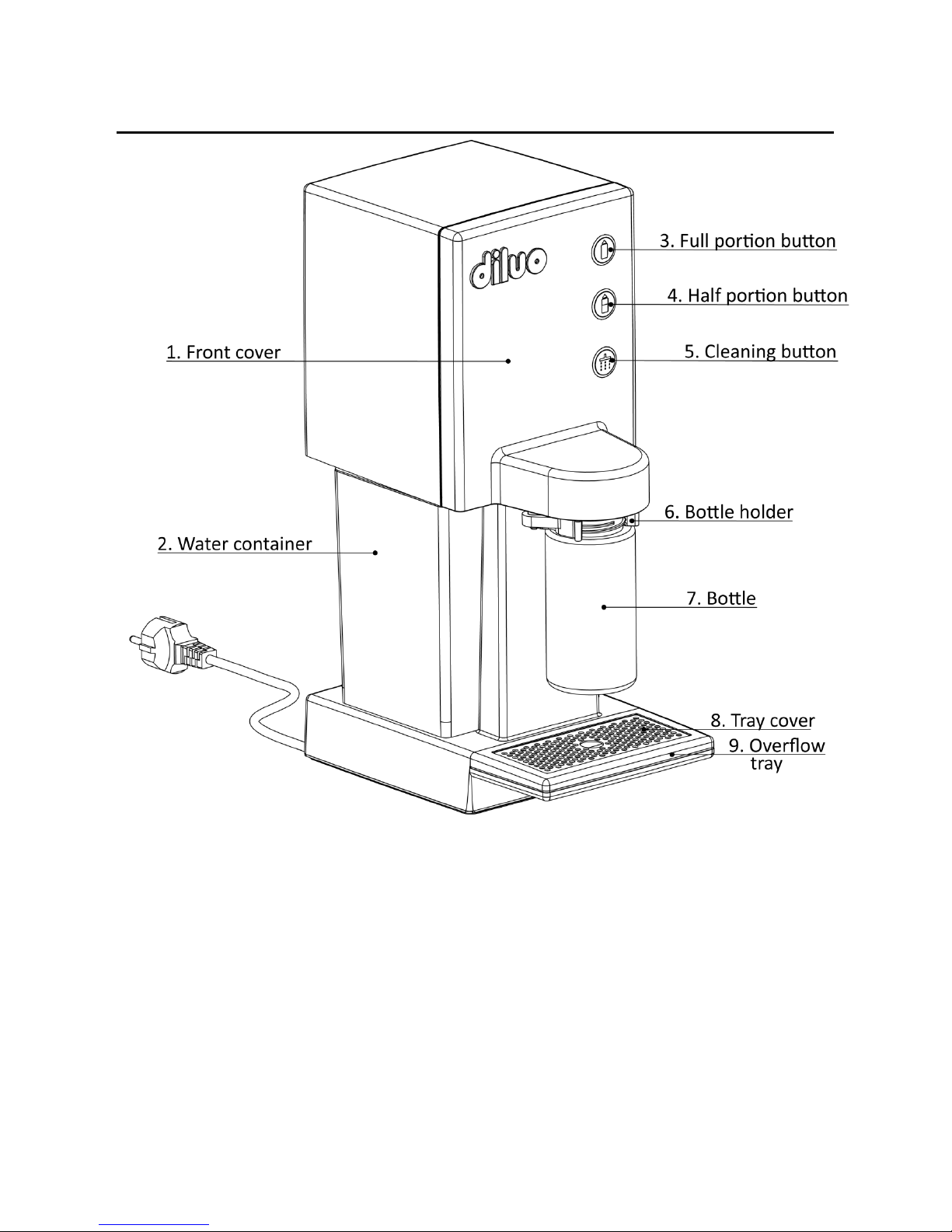

OVERVIEW OF THE APPLIANCE

6

7

8
BEFORE USE
- Place the appliance on a at surface.
- Insert the plug (17) into an earthed wall socket.
- Switch the power on (16) on the back of the appliance.
- Fill with water – see ‘Filling with water’ under ‘Using the appliance’.
- Fill with powder – see ‘Filling with powdered formula’ under ‘Using
the appliance’.
- On rst switching on the appliance or when the power has been cut
o, the appliance will need cleaning before you can make formula –
see the separate secon entled ‘Cleaning’.
Filling with water
- Remove the water container (2)
from the appliance by grabbing the
handle on the back of the container
and pulling it to one side.
- Fill the water container with fresh
water up to the maximum level
point.
- Replace the water container in the
appliance.
USING THE APPLIANCE

9
Filling with powdered formula
- Open the front cover (1).
- Pull the powder container out (10) using the handle (19).
Fing the bole
- Choose any wide-neck type bole (7).
- Push the bole into the bole holder (6).
- Make sure that the bole is straight and is pushed in all the way.

10
- Check that the powder level indicator (24) is fully in its grooves on the
powder container, and that it is poinng straight down.
- Li the lid (18) of the powder container and move the leveller (28) to
the mark in the powder container. See the picture below.
- Fill the container with powdered formula, put the lid on, and t it
back into the appliance.

11
Signals
The appliance has a signalling system for
dierent kinds of faults. Light signals (15)
behind the water container and in the
buons (see the illustraon, right) indi-
cate as described below.
During use
Filling
Cleaning
- A constant white light behind the
water container and on the selected
buon indicates that the appliance is
working.
- A constant white light behind the
water container and on the selected
buon indicates that the appliance is
working.
- A ashing red light behind the water
container indicates a low powder
level or no powder container.
- A ashing blue light behind the pow-
der container indicates a low water
level or no water container.
- A constant red light behind the wa-
ter container indicates that the front
cover is not closed or that the mixing
funnel is not ed properly.
- The Cleaning buon shows a con-
stant orange light when the appliance
needs cleaning.
- The Cleaning buon shows a ashing
orange light when the appliance
needs descaling.

12
MAKING THE FORMULA
- Choose a large enough bole for the selected poron size.
- Make sure the bole is properly ed in the bole holder.
- Press the buon for the desired poron size to begin preparaon, or
- Select the desired poron size and start preparaon via the app.
- When the formula is ready there is a green light in the water contain-
er and the bole can be removed.
When preparing baby porridge, place a larger vessel on the overow
tray to collect the water. Otherwise the process is the same.
CLEANING
- Choose a bole that can hold at least 300 ml.
- Make sure the bole is properly ed in the bole holder.
- Hold the Cleaning buon in for 3 seconds to acvate cleaning.
- The appliance will run a cleaning cycle and show a green light in the
water container when nished.
- Remove the bole, discard the wastewater and rinse.
- Replace the bole.
Daily cleaning
To keep the appliance nice and fresh, it is important to clean it regular-
ly. Follow the instrucons below for daily cleaning.
- Removal of the powder container is the same as for lling with pow-
dered formula (see page 9).

13
- Disconnect the outlet hose (13) from the mixing funnel (12).
- Remove the mixing funnel and impeller by pulling them straight out.

14
- Remove the mixing funnel aachment (22) by turning it to the right
to detach, and then pull it straight out.
- Remove the mixing funnel lid (21) by turning it counter clockwise
and liing it up.
- Rinse and wipe clean all loose parts before replacing them.

15
- The overow tray (9) is lied straight up from the appliance. The tray
cover (8) is loose and can simply be taken o.
- Wash the overow tray and cover up by hand.
Cleaning as required
To access other parts for cleaning, they must be removed from the appli-
ance. Do this following the instrucons below.
The parts should be replaced in reverse order.
- Remove the lid (18) and the powder level indicator (24)
from the powder container. Then wash the rest of the
powder container in the dishwasher.

16
- If further cleaning and dismantling is needed, loosen the powder out-
let locking nut (20) and carefully pull it out of the powder container.
- Loosen the locking peg (26) which holds the srrer (29) and leveller
(28) in place by squeezing the sides together and pushing down.

17
- Once the locking peg has been
loosened, the srrer and leveller
can be lied upwards.
- Loosen the dosage screw’s locking nut (25) by turning it counter clock-
wise.

18
- Remove the loose parts from the powder container.
Descaling
- Mix 15 grams of citric acid or acec acid with 1 litre of water in the wa-
ter container.
- Place a vessel that can take at least 1 litre under the appliance’s outlet.
- Hold the Cleaning buon in for 10 seconds to start the descaling pro-
cess.
- The appliance will run an automac descaling cycle which takes about
30 minutes.
- Rinse the water container and ll it with fresh water.
- Run two cleaning cycles before using the appliance again.

19
TROUBLESHOOTING
Problem Cause Acon
The appliance does not
react.
The power switch is not on.
Switch on the power on
the back of the appli-
ance.
The appliance is not
plugged in.
Insert the plug into an
earthed wall socket.
The appliance will not
make formula.
The appliance is indicang
that water or powder
needs relling.
Check the water and
powder levels and try
again.
The bole is not properly
ed in the bole holder,
the front cover is not fully
closed.
Check that the bole is
properly ed and that
the front cover is fully
closed.
The appliance needs clean-
ing before formula can be
made.
Run a cleaning cycle and
try again.
The mixing funnel is miss-
ing or incorrectly ed.
Check that the mixing
funnel is properly ed.
The front cover won’t
close.
The powder container or
mixing funnel is incorrectly
ed.
Check that the powder
container is correctly
ed. Check that the
mixing funnel is properly
ed and that the mixer
lid is turned to the
locked posion.
*Troubleshoong connued on the next page
The appliance indicates
no powder container/
low powder level.
The powder container is
missing or the powder level
is too low.
Fill the powder contain-
er with powdered for-
mula and check that the
indicator is properly
ed.

20
The formula is not the
right temperature.
The temperature seng
needs adjusng.
Adjust the temperature
using the app.
The appliance indicates
no water container/
low water level.
The water container is miss-
ing or the water level is too
low.
Remove the water con-
tainer and rell it with
water if necessary.
Check that the round
oat is in place and can
move in its groove. Re-
place the water contain-
er in the appliance.
TECHNICAL DATA
Dimensions (w x h x d) (mm) 172 x 445 x 275
Weight (empty) 4.0 kg
Water container volume 1.8 l
Powder container volume 0.8 l
Cable length 1.2 m
~220-240 V, 50-60Hz, 1800 W
CONTACT
Diluo i Karlstad AB Tel: [phone]
Pumpgatan 4 [e-mail]
SE-652 21 Karlstad, Sweden www.mydiluo.se
All materials that come into contact with food meet European Parlia-
ment and Council Regulaon 1935/2004.
With reservaon for clerical errors.
