Dimplex DC10RCDH User manual

MODEL:
DC10RCDH / DC12RCDH
INSTRUCTION MANUAL
PORTABLE AIR CONDITIONER

1
IMPORTANT INFORMATION
Carefully read this instruction manual before you install or
use your portable air conditioner. Please retain this manual
for product warranty and for future reference.
CAUTION
1. Make sure the inlet and outlet vents are never blocked.
2. Ensure the appliance is on a stable, even surface when operating to avoid water
leakage.
3. Do not operate this unit in an explosive or corrosive atmosphere.
4. When switched to cooling, only operate this unit in ambient temperatures between
17°C and 43°C. For heating, only operate this unit in ambient temperatures between
5°C and 23°C.
5. Clean the air filter frequently to ensure efficient operation.
6. To prevent compressor damage when the unit has been operating and is turned off,
please wait at least 3 minutes before restarting.
7. This unit needs to be plugged into a 220-240V ~ 50Hz AC, 10 Amp power outlet.
8. Do not use any extension cords with this unit.
9. This unit is for indoor operation only.
10. Open the adjustable air vent and extend the exhaust pipe (and drain pipe, if fitted) to
the closest window before using.
11. Only ever have a professional technician, manufacturer or service agent replace a
damaged power cord.
12. The batteries from the remote control must be removed and disposed of safely,
before the appliance is scrapped.
13. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
14. Children should be supervised to ensure that they do not play with the appliance.
Important.
The air conditioner must always be stored and
transported upright. In case of doubt we suggest you
wait for at least 24 hours before operation.
(Please keep unit upright at all times)
Important.
The air conditioner must always be stored and
transported upright. In case of doubt we suggest you
wait for at least 24 hours before operation.
(Please keep unit upright at all times)

2
PACKAGE CONTENTS
Portable air conditioner
Remote control
User manual
Extendable window kit
PARTS
1. Control panel
2. Remote control receiver
3. Adjustable air vent
4. Window kit adaptor
5. Exhaust hose
6. Hot air filter
7. Hot air inlet
8. Home for remote control
9. Hot air outlet
10. Water filler（for humidifying
function）
11. Cool air filter
12. Cool air inlet
13. Water tank
14. Drain hole
15. Outlet grille (for heating and
humidifying
16. Exhaust hose attachment

3
CONTROLS AND DISPLAY
1. POWER Press the POWER button to turn the unit "ON" or "OFF".
※The portable air conditioner is fitted with a compressor delay protection circuit. This
protects the unit from possible damage due to rapid starting and stopping of its
compressor. Compressor operation begins 3 minutes after the unit is switched on or the
mode is switched from dehumidify to air conditioning.
2. FUNCTION Press this key to select cooling, heating, dehumidifying or
humidifying.
※Humidifier:
1. The unit will stop automatically after four hours of operation. Put water into the water
filler (10) to restart operation.
2. The unit will stop humidifying if the ambient humidity is equal to the pre-set humidity.

4
3. (TEMP+) In cooling mode, this button raises the set temperature by
1°C each time it is pressed to a maximum of 30°C. In heating
mode, this button raises the set temperature by 1°C each time it
is pressed to a maximum of 25°C.
4. (TEMP-) In cooling mode, this button lowers the set temperature by 1°C
each time it is pressed, to a minimum of 17°C. In heating
function, this button lowers the set temperature by 1°C each time
it is pressed to a minimum of 15°C.
※The time taken to reach the desired set temperature will depend on the environment
and the size of the space in which the unit is operating in. For example, if the ambient
temperature is too hot or the room is too large, the rate at which the temperature
descends will be slow as the cooling may be less effective.
5. DISPLAY The display indicates the current set temperature or the timer
setting. When the timer or temperature is adjusted, the new
setting is shown before the display returns to the current set
temperature.
※The display is also used to show error codes should a fault occur, see ERROR
CODES.
6. SPEED Press SPEED to select TURBO, HIGH, LOW or AUTO fan
speed. If AUTO fan speed is selected, the unit operates at
maximum capacity and turbo fan speed while the room
temperature is more than 2°C from the set temperature. When
the room temperature is within 2°C of the set temperature, the
unit operates at HIGH fan speed. Once the room temperature
equals the set temperature, the unit will operate at minimum
capacity and low fan speed to efficiently maintain the desired
temperature. When TURBO, HIGH or LOW speed is selected,
the unit operates at maximum capacity until the set temperature

5
is reached. The fan operates at the selected speed.
7. TIMER ON/OFF button for the programmable timer.
The timer can be used to turn the unit on automatically after
a set time delay is complete.
1. With the unit OFF, press the "TIMER" button to set the desired
time delay before you wish the unit to start.
2. Choose the function desired (cooling, dehumidifier, heating or
humidifier.)
3. Once the set time delay is complete, the unit will turn on
automatically.
4. If you press the “POWER” button before the time delay is
complete, the delay will be cancelled and the unit will turn on
immediately.
The timer can be used to turn the unit off automatically after
a set time period is complete.
1. With the unit ON, press the "TIMER" button to set the desired
time for the unit to remain on.
2. Once the set time period is complete, the unit will turn off
automatically.
3. If you press the “POWER” button before the time delay is
complete, the delay will be cancelled and the unit will turn off
immediately.
8. SLEEP Press the SLEEP button to select the sleep comfort mode.
When the unit is cooling and sleep mode is selected, the unit will
raise the set temperature 1°C each hour to a maximum of 2°C
over two hours.
When the unit is heating and sleep mode is selected, the unit will
lower the set temperature 1°C each hour to a maximum of 2°C
over two hours.
These temperatures will be maintained for the balance of the
time set and help maximize sleep comfort.
When setting the "sleep comfort" mode, please ensure that you

6
set the number of hours required by using the TIMER function.
The hours set will be shown on the display by pressing either the
TEMP+ or TEMP- buttons.

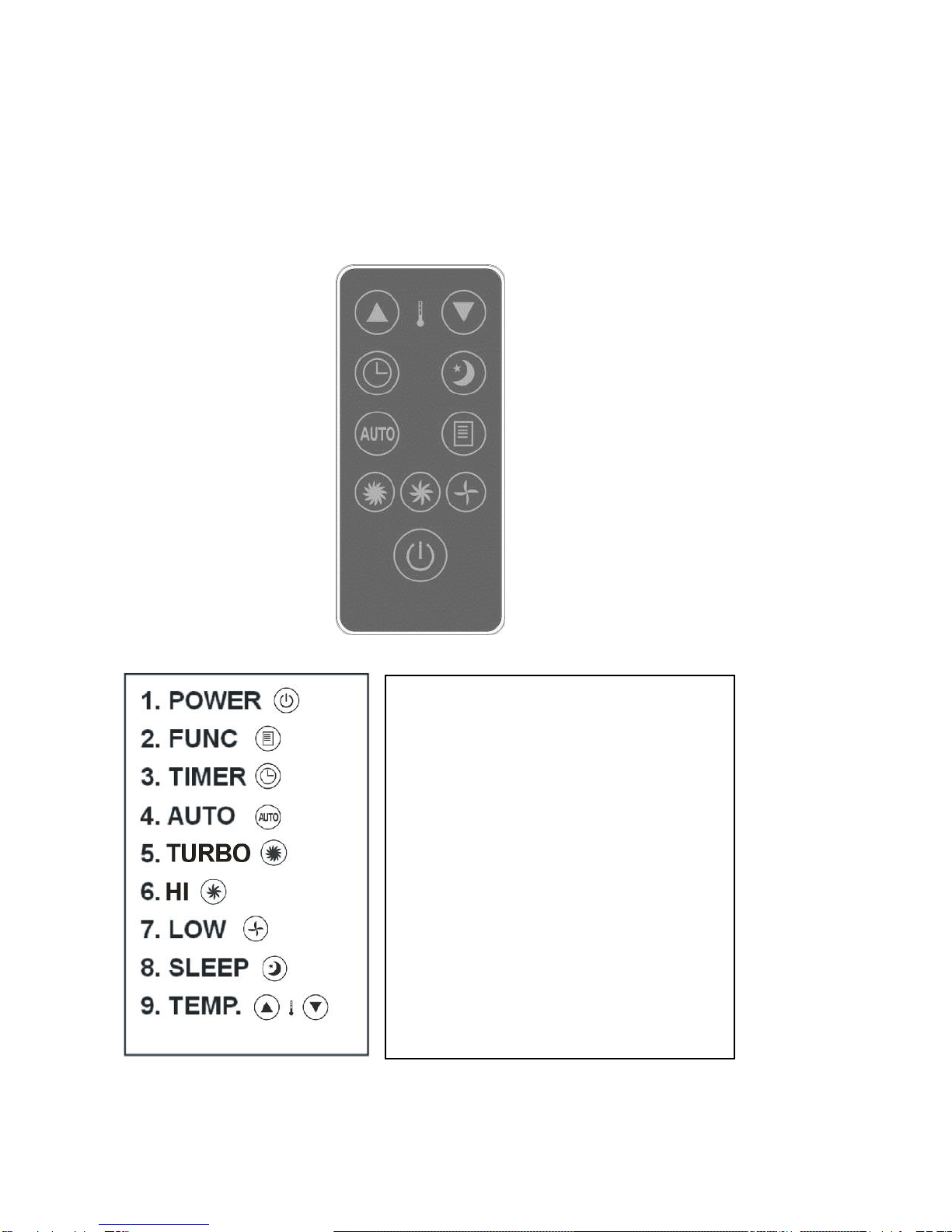

REMOTE CONTROL FUNCTION
On/Off switch
Function “MODE” selector
Hourly programming
Automatic fan speed
Turbo fan speed
High fan speed
Low fan speed
Night operation selector
Temperature selector

7
INSTALLATION
Unit Setup
1. Remove the water tank and take out the exhaust hose.
2. Remove the outlet grille and install the exhaust tube by
rotating it clockwise onto the rear air outlet. Please
ensure it is fully inserted before use. To remove the
exhaust hose, please rotate in an anti-clockwise
direction.
Locating the unit.
Install the portable air conditioner in a flat location
with adequate space to ensure the air inlets and
outlets will not be blocked.
Keep a minimum clearance of 50cm from walls and
other objects. Position the unit to allow the exhaust
hose to reach a suitable window, as shown.
Avoid sharp bends or kinks in the exhaust hose.
The optional adjustable window slider is included to
ensure the exhaust hose is held in place (in the
window) and prevents expelled hot air re-entering the
room.
The appliance should not be used in damp areas
such as a laundry or bathroom.
Do not place the unit where it will be in direct sunlight as it may overheat and turn off.

8

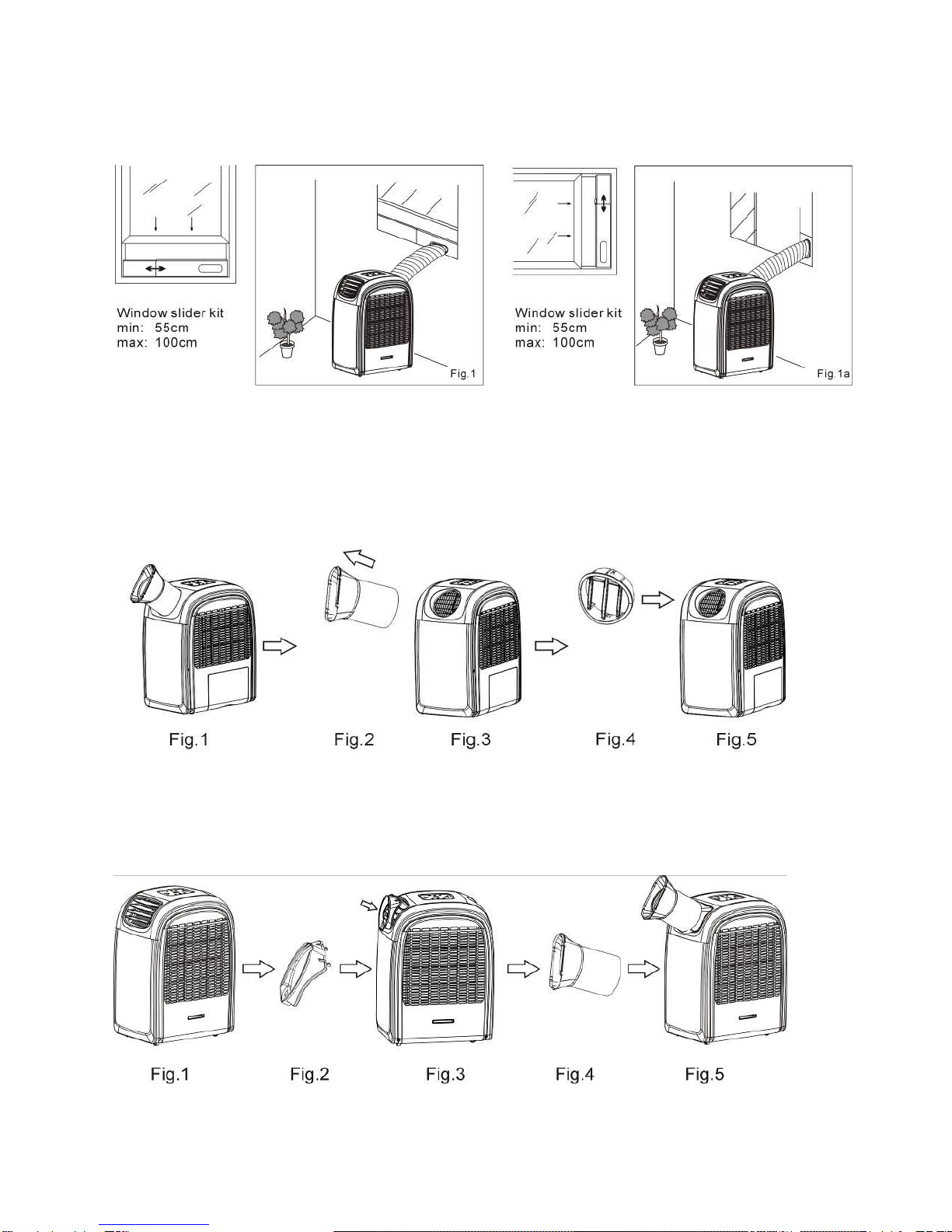

ADJUSTABLE WINDOW SLIDER KIT
The adjustable window slider kit is installed as shown below.
HEATING / COOLING / DEHUMIDIFYING
When using the heating function, remove the exhaust hose (Fig. 2) and replace the
opening (Fig. 3) with the outlet grille as shown in Fig. 4.
On the opposite end, install the exhaust hose attachment (Fig. 2) onto the unit’s grille as
shown in Fig.3. Attach the exhaust hose (Fig.4) onto the exhaust hose attachment (Fig.
2) by rotating it in a clockwise direction.

9
Once complete, ensure the outlet exhaust is attached to the window when using the
heating function. Reverse the process for cooling or dehumidification.
HUMIDIFYING
When using the humidifying function, remove the exhaust hose and fix the outlet grille
on the unit.
1. Fill the water filler and select humidifier function.
2. The unit will stop automatically after four hours of operation. Put water into the
water filler to restart operation.
3. The unit will stop humidifying if the ambient humidity is equal to the pre-set
humidity.
WATER DRAIN (Error code E4)
When the air conditioner is used, excess water condensation may be produced that will
fill the water tank. When the water tank is full, the unit will stop working and display an
E4 error code.
This means the unit will need to be drained as follows:
1. Switch off and unplug the unit.
2. Remove the water tank and pour out the water.
3. Put the water tank back to original position.
4. Restart the unit.

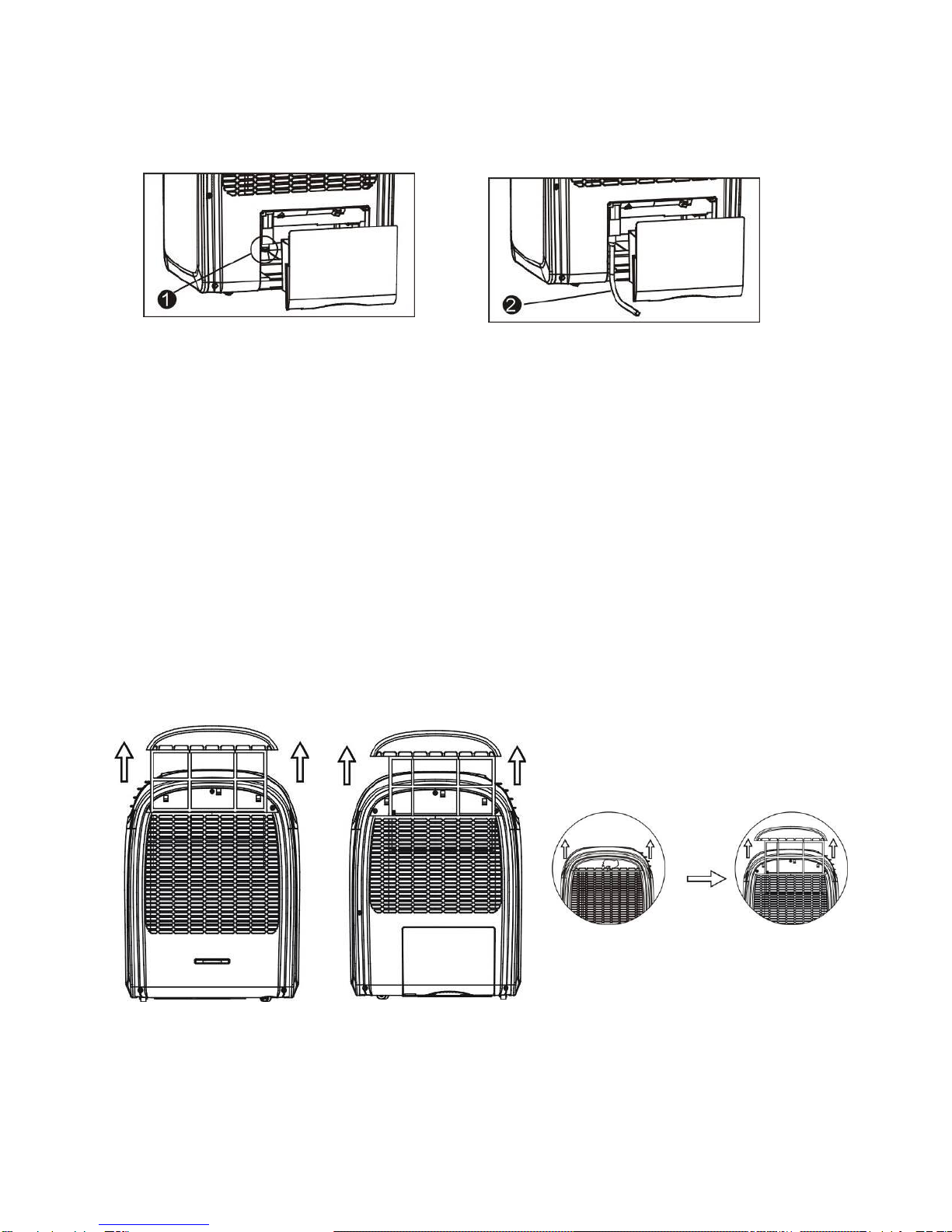

CONTINUOUS DRAINAGE
To continually drain the unit in dehumidifying mode, follow below steps:
1. Switch off and unplug the unit.
2. Remove the water tank and pour out the water.
3. Remove drain plug (Fig.1)
4. Plug draining tube to draining hole (Fig.2)
5. Put the water tank back to original position.

10
6. Draining tube should be placed lower than the draining hole to allow the water
to flow out effectively.
MAINTENANCE
WARNING: ALWAYS UNPLUG THE UNIT BEFORE MOVING OR CLEANING.
CLEANING
Air filters
The air filters are located on the left and right side of the unit. To remove the air filters,
please follows the arrow directions below by pulling out the filters in an upward
direction. Clean only with warm soapy water.
Cabinet
As with filters, clean only with warm soapy water.

11
CARE OF THE UNIT
1. Only plug the unit into a suitable 220-240V~ 50Hz AC 10 AMP power supply.
2. Hold the plug when unplugging the unit, never pull on the cord.
3. Do not place the unit in direct sunlight. This can fade the plastic case.
4. Do not operate the unit in a confined space.
5. Do not place objects on top of the unit. This blocks the air outlet.
6. Do not place the unit where the air inlets or outlets may be blocked by curtains or
furniture.
7. Keep the filters clean.
OVERHEAT PROTECTION
This unit is fitted with an overheat prevention device. If the unit overheats it will
automatically turn off. The unit can be restarted after 30 minutes.
ERROR CODES
Error codes are shown on the display should a fault occur.
E1: Indicates open circuit or short circuit in the room temperature sensor.
E2: Indicates open circuit or short circuit in the pipe temperature sensor.
E3: Indicates a refrigerant leak.
Please contact an authorized service centre if any of the above error
messages are shown.
E4: Indicates the water tank is full. Refer to WATER DRAIN.
If error code E4 persists, please contact an authorized service centre.

12
TROUBLE SHOOTING
If you have any issues with your unit, please contact Glen Dimplex on 1300 556
816 for your nearest service agent. Proof of purchase is required at the time of
service.
Never try to repair or dismantle the air conditioner yourself. Unauthorized repairs may result in
the loss of warranty and can endanger the user and their property.
Problem
Cause
Solution
The air
conditioner
does not
operate.
No power supply.
Connect to a functioning power supply
socket and switch on.
Error code E4 is shown,
indicating the internal water
container is full.
Empty the internal water container. (Refer to
WATER DRAIN)
The start timer function is
active.
Press the POWER button to deactivate the
TIMER function.
The air
conditioner
does not
seem to
operate
efficiently.
The air conditioner is in direct
sunlight.
Close the curtains.
Windows or doors are open.
Close windows and doors.
The filters are dirty.
Clean the filters.
The air inlets or outlets are
blocked.
Remove the blockage.
The room temperature is
below the set temperature.
Lower set temperature.
The air
conditioner is
noisy.
The air conditioner is not
level.
Place the air conditioner on an even, solid
surface.
The
compressor
does not
work.
The overheat protection is
activated.
Wait 30 minutes until the temperature has
decreased, then restart the air conditioner.
Note: Compressor operation begins 3
minutes after the unit is switched on.
The remote
control
does not
function.
The distance between the
remote control and the air
conditioner is too far.
Move closer to the air conditioner. Aim the
remote control directly at the control panel.
The batteries are flat.
Replace the batteries.

13
WARRANTY
The warranty period is 24 months from the date of purchase.
Glen Dimplex Australia Pty Ltd. Glen Dimplex New Zealand Ltd.
Unit 1, 21 Lionel Road. 38 Harris Road, East Tamaki,
Mount Waverley VIC 3149. Manukau, Auckland 2013
Australia New Zealand
Ph: 1300 556 816 Ph: [phone]
Fax: [phone] Fax: [phone]
Web: www.dimplex.com.au Web: www.dimplex.co.nz
DISPOSAL
• Do not dispose of electrical appliances as unsorted municipal
waste. Use separate collection facilities.
• Contact your local government for information regarding the
collection systems available.
• If electrical appliances are disposed of in landfills or dumps,
hazardous substances can leak into the ground water, polluting the
food chain and damaging health and well-being.

14
SPECIFICATION
Model No.
DC10RCDH
DC12RCDH
Power Source
220-240V~50Hz
220-240V~50Hz
Power
Consumption
(EN14511)
1153W/967W
1346W/1129W
Rated Power
(EN60335)
1280W/1100W
1480W/1300W
Cooling/Heating
Capacity
3000W/3000W
3500W/3500W
Humidifying
Capacity
0.2L/H
0.2L/H
Air Flow
360M³/H
450M³/H
Moisture
Removed
50 L/day
60 L/day
Water Tank
Capacity
2.4L
2.4L
Refrigerant
R410A
R410A
Min. room size
10m³
10m³
Max. room size
22m³
25m³
Dimensions (mm)
330Wx477Dx630H
330Wx477Dx630H
Net Weight
28KG
29.5KG
