Dimplex DLG920 User manual

7214550200R01
20" Electric Log Set
Model DLG920 (6909740259)
Owner’s Manual
IMPORTANT SAFETY INFORMATION: Read this manual rst before attempting
to install or use the Log Set. Always comply with the warnings and safety
instructions contained in this manual to prevent personal injury or property
damage.
To view the full line of Dimplex products,
visit www.dimplex.com

2 www.dimplex.com
Table of Contents
SAVE THESE INSTRUCTIONS
Conventions used in this manual:
!NOTE: Procedures and techniques that are considered important enough to
emphasize.
CAUTION: Procedures and techniques which, if not carefully followed, will
result in damage to the equipment.
WARNING: Procedures and techniques which, if not carefully followed, will
expose the user to the risk of re, serious injury, or death.
Welcome ............................................................3
IMPORTANT INSTRUCTIONS .......................4
Installation ..........................................................6
Operation .......................................................... 9
Maintenance .................................................... 11
Warranty ..........................................................12
Technical Support ............................................14

3
Welcome
Thank you for purchasing a DLG920 Log Set by Dimplex. Please use our
convenient online registration page to record your model and serial numbers
for future reference at:
www.dimplex.com/register
CAUTION: Read all instructions and warnings carefully before starting installation.
Failure to follow these instructions may result in a possible electric shock or re hazard
and will void the warranty.

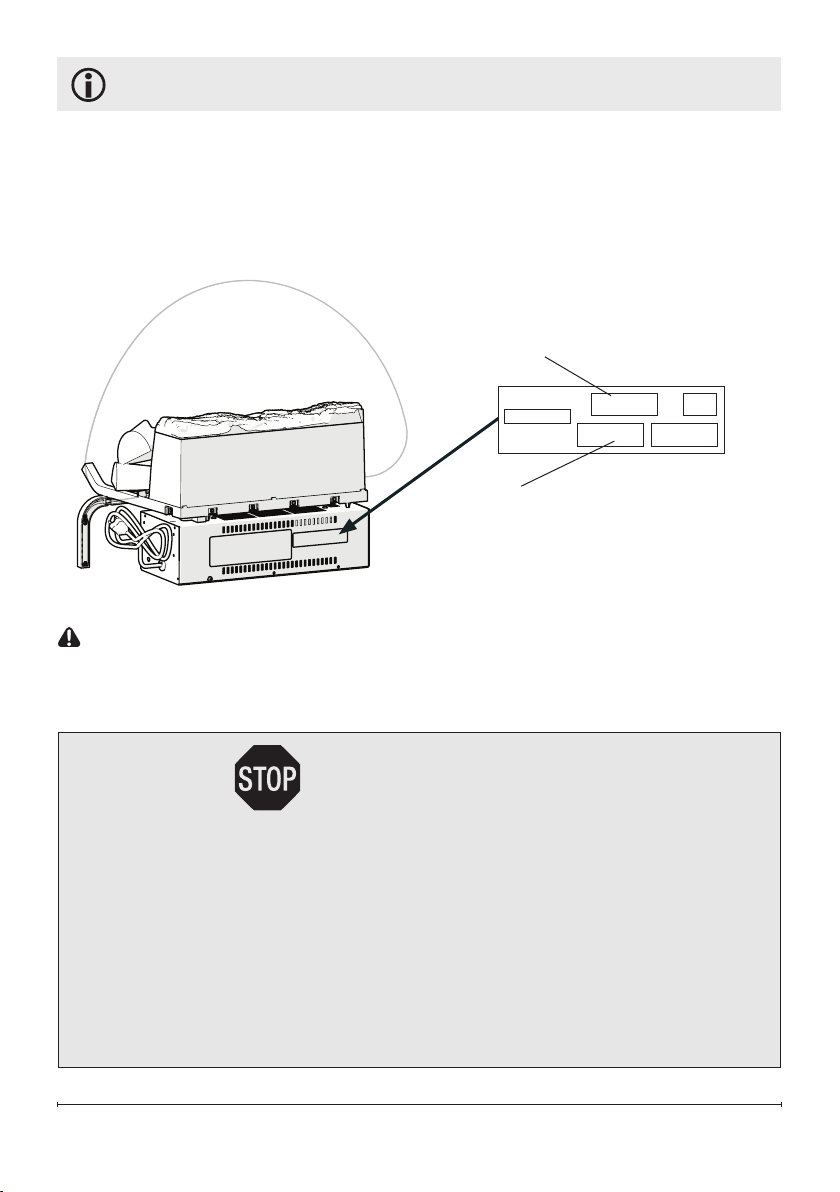

Serial Number
Model Number
MOD
MODEL / CAT NO
SERIAL NO
NO NEED TO RETURN TO THE STORE
Questions with operation or assembly? Require Parts Information?
Product Under Manufacturer’s Warranty?
Contact us at: www.dimplex.com/customer_support
For Troubleshooting and Technical Support
OR Toll-Free 1-888-346-7539
In order to better serve you, please have your model and serial numbers
ready or register your product online before calling (see above).

4 www.dimplex.com
Basic Precautions
When using any electrical appliance,
basic precautions should always be
followed to reduce the risk of fire,
electric shock, and injury to persons.
These precautions include:
①Read all instructions before using
the log set.
DANGER: High temperatures may
be generated under certain abnormal
conditions. Do not partially or fully cover
or obstruct the front of the log set.
②Extreme caution is necessary
when any heater is used by or near
children or invalids and whenever
the log set is left operating and
unattended.
③  Always unplug the log set when it is
not in use.
④ Do not operate the log set with
a damaged cord or plug or after
the log set malfunctions, has
been dropped, or damaged in any
manner. Contact Technical Service
at 1-888-346-7539.
⑤Do not use this log set outdoors.
⑥This log set is not intended for use
in bathrooms, laundry areas, and
similar indoor locations. Never
locate the log set where it may
fall into a bathtub or other water
container.
⑦ Do not run power cord under
carpeting. Do not cover cord with
throw rugs, runners, or similar
coverings. Do not route cord under
furniture or appliances. Arrange cord
IMPORTANT INSTRUCTIONS
away from traffic area and where it
will not be tripped over.
⑧To disconnect the log set, turn the
control to Off, then remove plug from
outlet.
⑨Connect the power cord to a
properly grounded outlet only.
⑩Do not insert or allow foreign objects
to enter any ventilation or exhaust
opening as this may cause an
electric shock or fire, or damage the
log set. To prevent a possible fire,
do not block air intakes or exhaust
in any manner. Do not use on soft
surfaces, like a bed, where openings
may become blocked.
⑪ This log set has hot and arcing or
sparking parts inside. Do not use
it in areas where gasoline, paint,
or flammable liquids are used or
stored.
⑫Use this log set only as described
in this manual. Any other use not
recommended by the manufacturer
may cause fire, electric shock, or
injury to persons.
⑬ Always plug the log set directly into
a wall outlet/receptacle. Never use
with an extension cord or relocatable
power tap (outlet/power strip).
⑭Do not burn wood or other materials
on the log set.

5
Special Precautions
WARNING: Remote control contains a
small battery. Keep away from children.
If swallowed, seek medical attention
immediately.
WARNING: Do not install battery
backwards, charge, put in re or mix
with used or other battery types as it
may explode or leak causing injury.
CAUTION: Do not open the unit. There
is a risk of electric shock. There are no
user-serviceable parts inside.
CAUTION: Always use a qualied
technician or service agency to repair
this unit.
IMPORTANT INSTRUCTIONS
FCC Compliance
CAUTION: This unit has been tested
and found to comply with the limits for
Class B digital device, pursuant to part
15 of the FCC Rules. These limits are
designed to provide reasonable protection
against harmful interference in a residential
installation. This unit generates, uses and
can radiate radio frequency energy and,
if not installed and used in accordance
with the instructions, may cause harmful
interference to radio or television reception,
which can be determined by turning the unit
OFF and ON, the user is encouraged to try
to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the unit
and the receiver.
• Connect the unit into an outlet on a
circuit di󰀨erent from that to which the
receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.
This unit complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This unit may not cause
harmful interference, and (2) this unit must
accept any interference received, including
interference that may cause undesired
operation.
FCC CAUTION: Any changes or
modications not expressly approved by
the party responsible for compliance could
void the user’s authority to operate this
equipment.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICEABLE PARTS INSIDE

6 www.dimplex.com
Installation
The Log Set Model DLG920 offers an alternative to wood or gas fireplaces. It can
give your existing fireplace new life or transform a cabinet or media center of your
own into a stunning focal point.
Specifications
Electrical
Volts: 120 V, 60 Hz
Amps: 12.5 A
Watts: 1500 W
Wiring: Plug-In
Bulb Type: LED
Approvals
Dimensions
Width: 23.7" (603 mm)
Height: 19.0" (482 mm)
Depth: 12.5" (317 mm)
Weight: 11 lbs (5.0 kg)
Operating Temperature Range:
-4o to 104o F (-20oto 40o C)
NOTE: A 15 Amp, 120 Volt circuit
is required. A dedicated circuit is
preferred, but not essential in all cases.
A dedicated circuit will be required if,
after installation, the circuit breaker trips
or the fuse blows on a regular basis
when the heater is operating. Additional
appliances on the same circuit may
exceed the current rating of the circuit
breaker.
WARNING: Electrical outlet wiring
must comply with local building codes
and other applicable regulations to
reduce the risk of re, electric shock, or
injury to persons.
!
Placement

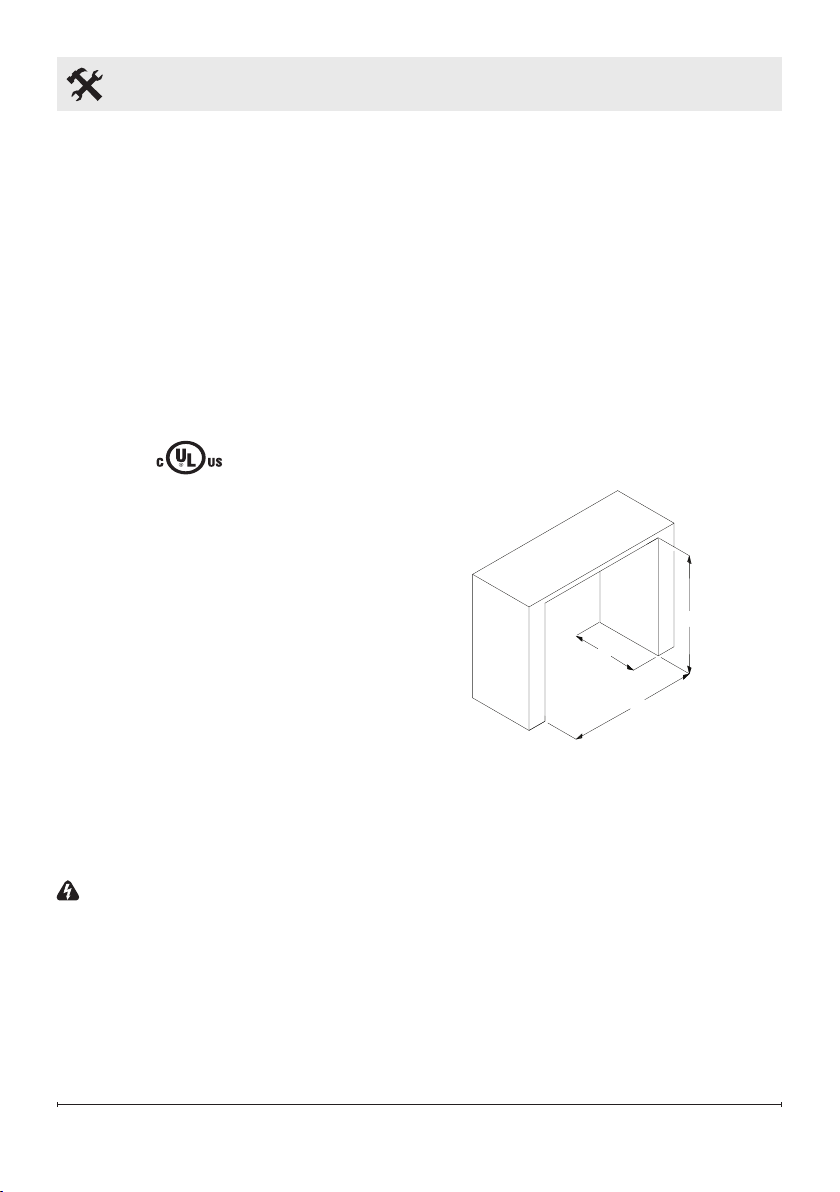

1. The Revillusion log set does not
require venting. For optimal viewing,
it is recommended to install the unit
in an opening with the following
minimum dimensions:
A. 24" (610 mm) wide,
B. 22" (559 mm) high
C. 14" (356 mm) deep.
2. Make sure there is clearance for air
circulation beneath the unit.
3. If installing in an existing fireplace
opening, seal all drafts and vents
with a non-fibrous insulation
material to prevent any chimney
debris from falling onto the unit. Do
not install into an existing fireplace
opening that is prone to dampness.
A
B
C

7
Installation
Assembly
1. Place the log set into position.
a. Lift the log set by holding the
sides of the heater box for
stability. Do not lift by gripping
the logs or the front grate legs.
b. If installing the unit in a carpeted
area, place a one-piece, solid,
flat surface under the unit. Make
sure that both of the grate feet
rest securely on this surface.
CAUTION: Each of the Realogs™
contain LEDs that pulse and glow.
Handle the log set carefully. They
are fragile and can crack or break if
dropped.
2. Place the ember mat in front and
below the grate.
3. Connect the wires from the ember
mat to the connector on the right
side of the grate box.
4. Install the Mirage™ Flame Panel by
inserting the bottom edge into the
tabs between the back log and grate
log assemblies.
a. The painted side should be at
the back and the smooth side to
the front.
b. Position the screen so that the
cutout in the middle aligns with
the center tab. Start on one end
to insert the screen in all the
way across. When in place, the
screen should be centered and
slightly curved.
5. Plug the unit directly into a wall
outlet.

8 www.dimplex.com

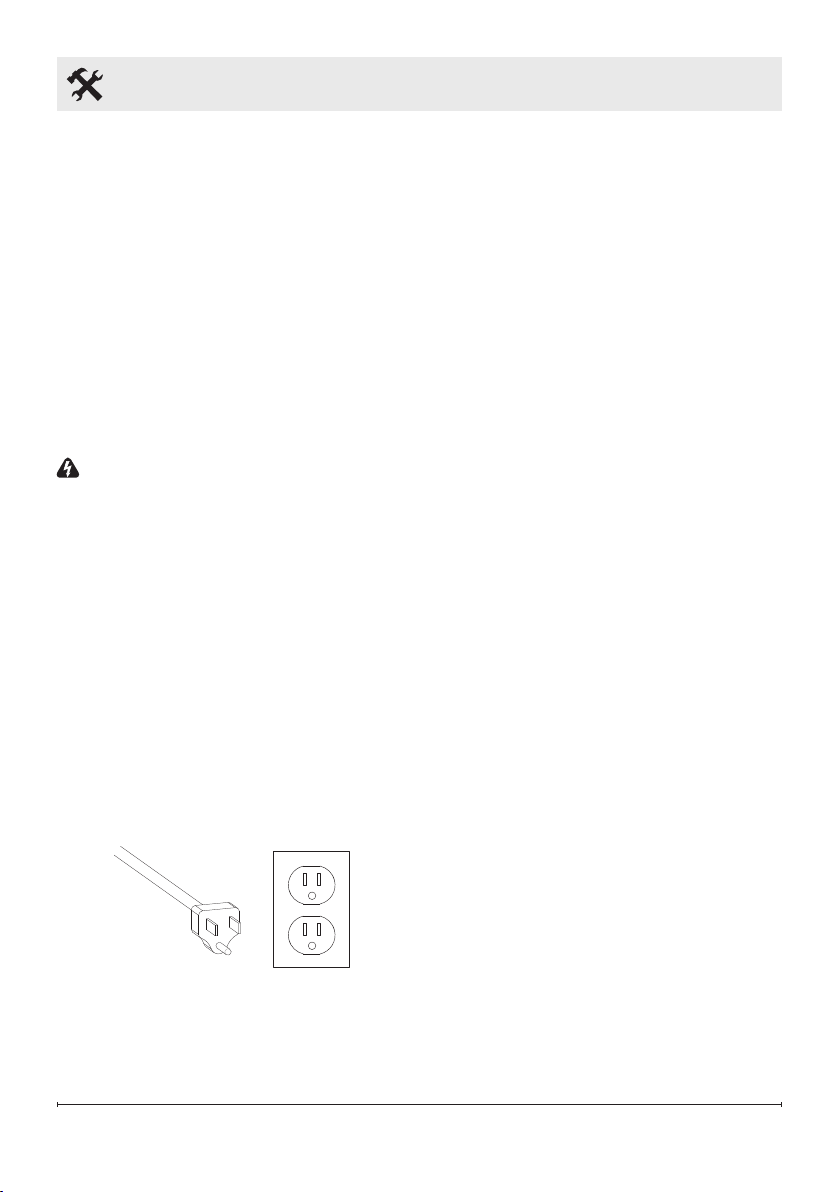

Grounding Instructions
This product must be grounded. If it
should malfunction or break down,
grounding provides a path of least
resistance for electric current to reduce
the risk of electric shock. This product
is equipped with a cord having an
equipment-grounding conductor and a
grounding plug.
The plug must be plugged into an
appropri ate outlet that is properly
installed and grounded in accordance
with all local codes and ordinances.
DANGER: Improper connec tion of
the equipment-grounding conductor can
result in a risk of electric shock. Check with
a qualied electrician or serviceman if you
are in doubt as to whether the product is
properly grounded. Do not modify the plug
provided with the product – if it will not t
the outlet, have a proper outlet installed by
a qualied electrician.
This product is for use on a nominal
120-volt circuit and has a grounding
plug that looks like the plug in the
following figure. Make sure that the
product is connected to an outlet
having the same con figuration as the
plug. No adapter should be used with
this product.
Installation

9

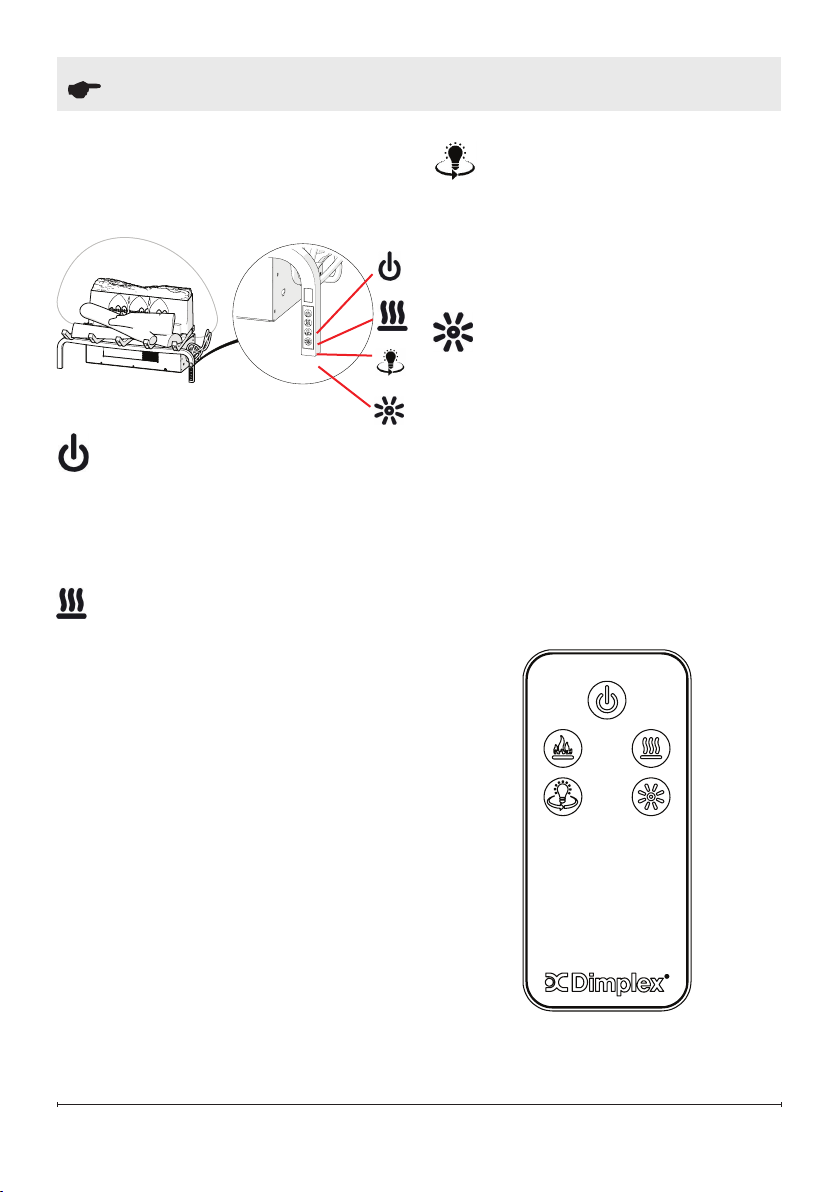

Manual Control
The manual controls are located on the
right-front leg of the log grate.
Power
Press to turn the flame effect on
and activate the previous heat
setting (Off, Low, or High). Press
again to put the unit in standby
mode.
Heat
• Heat On
Press to set the heat to Low
(indicated by 1 short beep).
Press again to set the heat
to High (indicated by 2 short
beeps).
• Heat Off
Press to turn heat Off (indicated
by 1 long beep).
•
NOTE: After the heater is
switched o󰀨, the fan will continue on
for 60 seconds before turning o󰀨.
The log LEDs remain On when the
heater is ON and the ame e󰀨ect
is O󰀨.
!
Operation
360oLight
Press multiple times to change
the LEDs on the sides and back
of the unit from white flickering to
white solid to Off. (This feature is
active only when the flame effect
is On.)
Brightness
Press multiple times to toggle
the log set LEDs through its four
brightness settings.
Remote Control
The replace is supplied with a multi-
function remote control.
The remote control has a range of
approximately 30 ft (9 m). To operate
correctly, the remote control must be
pointed toward the front of the unit.

10 www.dimplex.com
Power
Press to activate the current
standby state (On/Off).
• Standby State On
Press to turn everything Off.
Press again to active the
previous flame effect state.
• Standby State Off
Press to activate the previous
flame effect state.
- If the flame effect was On, the
previous heat setting will be
activated (High, Low, or Off).
- If the flame effect was Off, the
previous heat setting will be
activated (High or Low).
Press again to turn everything
O󰀨.
Flame
Press to light the back log, grate
log, and ember mat, and start the
flame effect.
Heat
• Heat On
Press to set the heat to Low
(indicated by 1 short beep).
Press again to set the heat
to High (indicated by 2 short
beeps).
• Heat Off
Press to turn heat Off (indicated
by 1 long beep).
NOTE: After the heater is
switched o󰀨, the fan will continue
on for 60 seconds before turning
o󰀨. The log LEDs remain On when
the heater is ON and the ame e󰀨ect
is O󰀨.
!
Operation
360oLight
Press multiple times to change
the LEDs on the sides and back
of the unit from white flickering to
white solid to Off. (This feature is
active only when the flame effect
is On.)
Brightness
Press multiple times to toggle
the log set LEDs through its four
brightness settings.

11
General Maintenance
Inspect the log set regularly, depending
upon conditions, and at a minimum
yearly intervals. Remove dust and
clean the logs, mat, grate, and base as
required.
Except for installation and cleaning
described in this manual, an authorized
service representative should perform
any other servicing.
WARNING: Disconnect power and
allow heater to cool before attempting any
maintenance or cleaning to reduce the risk
of re, electric shock, or injury.
Clean Logs and Base
The log set should not be operated with
an accumulation of dust or dirt on or in
the unit, as this can cause a build up of
heat and eventual damage.
Dust and vacuum the log set as
needed. Use a damp cloth and a mild
detergent to clean painted surfaces
of the fireplace. Never use abrasive
cleaners.
Maintenance
Clean Mirage™Flame Panel
The Mirage™ Flame Panel is cleaned
in the factory during the assembly
operation. During shipment, installation,
handling, etc., the screen may collect
dust particles; these can be removed
by dusting lightly with a clean dry cloth.
To remove fingerprints or other marks,
clean the Mirage™ Flame Panel
reflector screen with a damp cloth.
Never use abrasive cleaners. Dry the
screen completely with a lint free cloth
to prevent water spots.
Battery Replacement

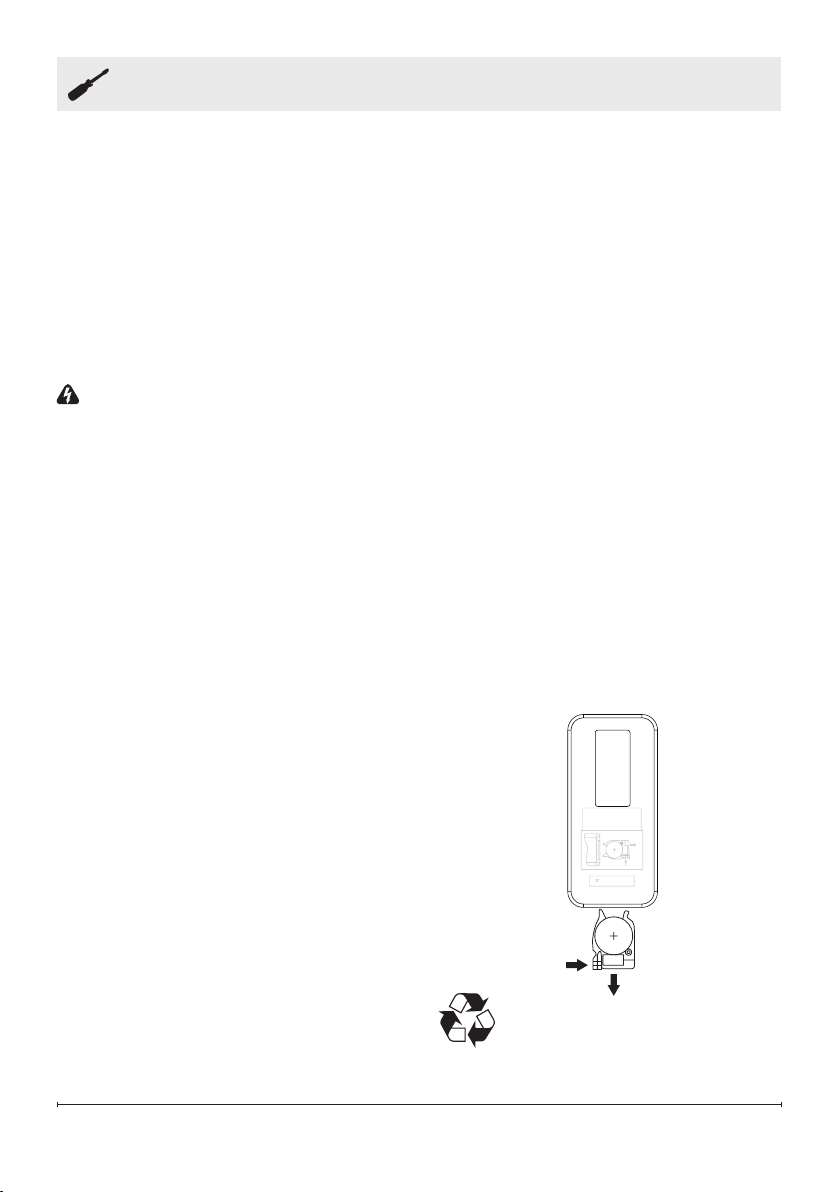

To replace the battery:
1. Push the release tab toward the
center and slide the battery cover
open.
2. Install 3V Lithium battery in the
battery holder. The positive (+) side
of the battery faces up.
3. Close the battery cover.
OPEN
CR2025/2032
RELEASE
OPEN
OPEN ---- OUVRIR
PUSH ---- POUSSER
RELEASE ---- DÉGAGER
Lithium Battery--Batterie au lithium
PUSH
Battery must be recycled or
disposed of properly. Check with
your Local Authority or Retailer for
recycling advice in your area.

12 www.dimplex.com
Warranty
One Year Limited Warranty
Products to which this limited warranty applies
This limited warranty applies to your newly
purchased Dimplex electric replace insert. This
limited warranty applies only to purchases made
in any province of Canada except for Yukon
Territory, Nunavut, or Northwest Territories or in
any of the 50 States of the USA (and the District
of Columbia) except for Hawaii and Alaska. This
limited warranty applies to the original purchaser
of the product only and is not transferable.
Products excluded from this limited warranty
Light bulbs are not covered by this limited
warranty and are the sole responsibility of
the owner/purchaser. Products purchased in
Yukon Territory, Nunavut, Northwest Territories,
Hawaii, or Alaska are not covered by this limited
warranty. Products purchased in these States,
provinces, or territories are sold AS IS without
warranty or condition of any kind (including,
without limitation, any implied warranties or
conditions of merchantability or tness for a
particular purpose) and the entire risk of as to
the quality and performance of the products is
with the purchaser, and in the event of a defect
the purchaser assumes the entire cost of all
necessary servicing or repair.
What this limited warranty covers and for how
long
Products covered by this limited warranty have
been tested and inspected prior to shipment and,
subject to the provisions of this warranty, Glen
Dimplex Americas (Glen Dimplex Amerias herein)
warrants such products to be free from defects
in material and workmanship for a period of 12
months from the date of the rst purchase of
such product.
The limited 12 month warranty period also
applies to any implied warranties that may exist
under applicable law. Some jurisdictions do not
allow limitations on how long an implied warranty
lasts, so the above limitation may not apply to the
purchaser.
What this limited warranty does not cover
This limited warranty does not apply to products
that have been repaired (except by Glen
Dimplex Americas or its authorized service
representatives) or otherwise altered. This
limited warranty does further not apply to defects
resulting from misuse, abuse, accident, neglect,
incorrect installation, improper maintenance or
handling, or operation with an incorrect power
source.
What you must do to get service under this
limited warranty
Defects must be brought to the attention of
Technical Service by 1-888-346-7539. Please
have proof of purchase, catalogue/model and
serial numbers available when calling. Limited
warranty service requires a proof of purchase of
the product.
What Glen Dimplex Americas will do in the event
of a defect
In the event a product or part covered by this
limited warranty is proven to be defective in
material or workmanship during the 12 month
limited warranty period you have the following
rights:
• Glen Dimplex Americas will in its sole
discretion either repair or replace such
defective product or part without charge.
If Glen Dimplex Americas is unable to
repair or replace such product or part, or if
repair or replacement is not commercially
practicable or cannot be timely made, Glen
Dimplex Americas may, in lieu of repair
or replacement, choose to refund the
purchase price for such product or part.
• Limited warranty service will be performed
solely by dealers or service agents of Glen
Dimplex Americas authorized to provide
limited warranty services.
• The purchaser is responsible for removal
and transportation of such product or part
(and any repaired or replacement product
or part) to and from the authorized dealer’s
or service agent’s place of business.

13
Warranty
• This limited warranty does not entitle the
purchaser to on-site or in-home services.
On-site or in-home services may be
performed at the purchaser’s specic
request and expense at Glen Dimplex
Americas’s then-current rates for such
services.
• Glen Dimplex Americas will not be
responsible for, and the limited warranty
services shall not include, any expense
incurred for installation or removal of the
product or part (or any replacement product
or part) or any labour or transportation
costs. Such costs shall be the purchaser’s
responsibility.
What Glen Dimplex Americas and its dealers
and service agents are also not responsible for:
IN NO EVENT WILL GLEN DIMPLEX
AMERICAS, OR ITS DIRECTORS,
OFFICERS, OR AGENTS, BE LIABLE TO
THE PURCHASER OR ANY THIRD PARTY,
WHETHER IN CONTRACT, IN TORT, OR ON
ANY OTHER BASIS, FOR ANY INDIRECT,
SPECIAL, PUNITIVE, EXEMPLARY,
CONSEQUENTIAL, OR INCIDENTAL LOSS,
COST, OR DAMAGE ARISING OUT OF
OR IN CONNECTION WITH THE SALE,
MAINTENANCE, USE, OR INABILITY TO USE
THE PRODUCT, EVEN IF GLEN DIMPLEX
AMERICAS OR ITS DIRECTORS, OFFICERS,
OR AGENTS HAVE BEEN ADVISED OF THE
POSSIBILITY OF SUCH LOSSES, COSTS OR
DAMAGES, OR IF SUCH LOSSES, COSTS,
OR DAMAGES ARE FORESEEABLE. IN NO
EVENT WILL GLEN DIMPLEX AMERICAS, OR
ITS OFFICERS, DIRECTORS, OR AGENTS
BE LIABLE FOR ANY DIRECT LOSSES,
COSTS, OR DAMAGES THAT EXCEED THE
PURCHASE PRICE OF THE PRODUCT.
SOME JURISDICTIONS DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL
OR CONSEQUENTIAL DAMAGES, SO THE
ABOVE LIMITATION OR EXCLUSION MAY
NOT APPLY TO THE PURCHASER.
How State and Provincial law apply
This limited warranty gives you specic legal
rights, and you may also have other rights
which vary from jurisdiction to jurisdiction. The
provisions of the United Nations Convention on
Contracts for the Sale of Goods shall not apply
to this limited warranty or the sale of products
covered by this limited warranty.

Technical Support
Technical and troubleshooting support, as well as
a list of replacement parts can be found on:
www.dimplex.com/customer_support.
1-888-346-7539 | www.dimplex.com
In keeping with our policy of continuous product
improvement, we reserve the right to make
changes without notice.
© 2020 Glen Dimplex Americas

7214550200R01
Ensemble de bûches 20 po.
Modéle DLG920 (6909740259)
Manuel d'utilisation
CONSIGNES DE SÉCURITÉ IMPORTANTES : Lire le présent manuel avant
d’essayer d’installer ou d’utiliser l'ensemble de bûches RevillusionMC. Toujours
respecter les avertissements et suivre les consignes de sécurité comprises dans
le présent manuel an de prévenir les blessures ou les dommages matériels.
Pour découvrir la gamme complète de
produits Dimplex, visitez www.dimplex.com

2www.dimplex.com
Table des matières
CONSERVER CES INSTRUCTIONS
Références utilisées dans le manuel :
!NOTA : Marches à suivre et techniques considérées su󰀩samment
importantes pour qu'on les souligne.
MISE EN GARDE : Marches à suivre et techniques dont le non-respect
pourrait causer des dommages matériels.
AVERTISSEMENT : Marches à suivre et techniques qui, si elles ne sont pas
bien respectées, exposeront l’utilisateur à des risques d’incendie, de blessure
grave ou de décès.
Bienvenue et félicitations .................................. 3
Instructions importantes.................................... 4
Installation......................................................... 6
Utilisation........................................................... 9
Entretien........................................................... 11
Garantie ...........................................................12
Service d’assistance technique........................14

3
Numéro de série
Numéro de modèle
MOD
MODEL / CAT NO
SERIAL NO
Bienvenue et félicitations
Merci de votre achat de l'ensemble de bûches de Dimplex DLG920. Veuillez
utiliser notre page d'inscription en ligne pour inscrire votre modèle et vos numéros
de série à des ns de référence ultérieure à l'adresse
www.dimplex.com/register
MISE EN GARDE: Lire attentivement toutes les consignes et tous les avertissements
avant de procéder à l'installation. Le non-respect de ces consignes pourrait entraîner
un risque de choc électrique ou d'incendie et annulera la garantie.
IL N'EST PAS NÉCESSAIRE D'ALLER AU MAGASIN
Des questions à propos de l'utilisation ou du montage? Besoin d'information sur les pièces?
Besoin d'information à propos d'un produit sous une garantie du fabricant?
Communiquer avec nous à : www.dimplex.com/customer_support
Pour le dépannage et le Service d'assistance technique
OU Sans frais au 1-888-346-7539
An que nous puissions mieux vous servir, veuillez avoir votre
modèle et votre numéro de série à portée de main ou veuillez inscrire
votre produit en ligne avant de téléphoner (voir ci-dessus).
ARRÊT

4www.dimplex.com
INSTRUCTIONS IMPORTANTES
Précautions de base
Lorsqu’un appareil électrique est utilisé,
il est important de toujours prendre
des précautions de base pour réduire
les risques d’incendie, de décharges
électriques et de blessures. Ces
précautions incluent les suivantes :
① Lire toutes les instructions avant
d'utiliser l'ensemble de bûches.
DANGER : Dans certaines conditions,
des températures anormalement
élevées peuvent être générées. Ne
pas couvrir ni obstruer partiellement
ou complètement la partie frontale de
l'ensemble de bûches.
② Faire preuve d’une grande prudence
lorsque lorsque tout appareil de
chauffage est utilisé par des enfants
ou des personnes handicapées,
ou s’il est en marche et laissé sans
surveillance.
③ Toujours débrancher l'ensemble de
bûches lorsqu’il n’est pas utilisé.
④Ne pas se servir de l'ensemble de
bûches si la fiche ou le cordon sont
endommagés, si l'ensemble de
bûches fonctionne mal ou s'il a été
échappé ou endommagé de quelque
manière que ce soit. Communiquer
avec le service technique au
1 888 346-7539.
⑤ Ne pas utiliser l'ensemble de bûches
à l’extérieur.
⑥ Cet ensemble de bûches n’est pas
conçu pour être utilisé dans une
salle de bain, une salle de lavage
ou autres endroits semblables
à l’intérieur. Ne jamais installer
l'ensemble de bûches à un endroit
où il pourrait tomber dans une
baignoire ou dans tout autre
réservoir d’eau.
⑦Ne pas faire passer le cordon
d'alimentation sous un tapis. Ne
pas couvrir le cordon de carpettes,
de tapis de couloir ou autres
recouvrements de sol. Ne pas faire
passer le cordon sous des meubles
ou des appareils. Éloigner le cordon
des endroits passants et éviter de le
placer là où il pourrait provoquer la
chute d’une personne.
⑧ Pour débrancher l'ensemble de
bûches, éteindre l’appareil, puis
retirer la fiche de la prise de courant.
⑨Brancher le cordon d'alimentation
dans une prise de courant mise à
terre seulement.
⑩ Ne pas introduire ou permettre
l'introduction de corps étrangers
dans la prise d’air de ventilation ou
la bouche de sortie d’air, car cela
peut occasionner des décharges
électriques, provoquer un incendie
ou endommager l'ensemble de
bûches. Pour éviter un incendie,
ne pas obstruer l’entrée ou la sortie
d’air d’aucune façon. Ne pas utiliser
sur des surfaces instables, comme
un lit, où les ouvertures risquent de
se bloquer.
⑪ Cet ensemble de bûches contient
des pièces qui chauffent et
produisent un arc électrique ou
des étincelles. Ne pas utiliser dans
des endroits où de l’essence, de
la peinture ou d'autres produits
inflammables sont utilisés ou
entreposés.

5
INSTRUCTIONS IMPORTANTES
MISE EN GARDE
RISQUE DE DÉCHARGE ÉLECTRIQUE NE PAS OUVRIR
AUCUNE PIÈCE DONT L'ENTRETIEN PEUT ÊTRE EFFECTUÉ
PAR L'UTILISATEUR NE SE TROUVE À L'INTÉRIEUR
⑫ Se servir de l'ensemble de bûches
uniquement de la façon décrite
dans le présent manuel. Toute
autre utilisation non recommandée
par le fabricant pourrait causer un
incendie, des décharges électriques
ou des blessures.
⑬Toujours brancher l'ensemble de
bûches directement dans une
prise de courant murale. Ne jamais
utiliser de rallonge ou de barre
d'alimentation portative.
⑭ Ne pas brûler de bois ni d’autres
matériaux dans l'ensemble de
bûches.
Précautions spéciales
AVERTISSEMENT : La télécommande
contient une petite pile. Garder hors de
la portée des enfants. Si elle est avalée,
consulter immédiatement un médecin.
AVERTISSEMENT : Ne pas installer
la pile à l'envers, la recharger, la mettre
au feu ou l'utiliser avec des piles usées
ou un autre type de pile, car cela risque
d'entraîner une explosion ou une fuite
pouvant causer des blessures.
MISE EN GARDE : Ne pas ouvrir
l'ensemble de bûches. Risque de
décharges électriques. Aucune pièce
dont l'entretien peut être e󰀨ectué par
l'utilisateur ne se trouve à l'intérieur.
MISE EN GARDE : Toujours recourir
aux services d’un technicien qualié ou
d’une entreprise de services d'entretien
pour faire réparer cet appareil.
Conformité à la FCC
MISE EN GARDE : Cet appareil a été
testé et jugé conforme aux limites autorisées
pour un dispositif numérique de classe B, en
vertu de la partie 15 des règlements de la
FCC. Ces limites visent à o󰀨rir une protection
raisonnable contre les interférences nuisibles
dans une installation résidentielle. Cet
appareil génère, utilise et peut émettre de
l’énergie radioélectrique. S’il n’est pas installé
et utilisé selon les instructions, il peut causer
des interférences nuisibles à la réception des
signaux de radio ou de télévision, ce qui peut
être vérié en mettant le commutateur de
l’appareil en position de marche, puis d’arrêt.
Nous recommandons à l’utilisateur de tenter
d’éliminer les interférences à l’aide d’une ou
de plusieurs des mesures suivantes :
• Changer l’orientation ou l’emplacement de
l’antenne réceptrice.
• Augmenter la distance entre l'appareil et
le récepteur.
• Brancher l’appareil dans une prise sur un
circuit autre que celui où le récepteur est
branché.
• Consulter le détaillant ou un technicien
radio/télévision expérimenté pour obtenir
de l’aide.
L'appareil est conforme à la partie 15 des
règlements de la FCC. L’utilisation de
l’appareil est assujettie aux deux conditions
suivantes : (1) L’appareil ne doit pas causer
d’interférences nuisibles. (2) L’appareil doit
accepter toute interférence captée, y compris
les interférences susceptibles de causer un
fonctionnement indésirable.
MISE EN GARDE DE LA FCC : Les
changements ou les modications n’ayant
pas fait l’objet d’une approbation expresse de
la partie responsable de la conformité auront
pour e󰀨et d’annuler le droit d’utilisation de
l’appareil par l’utilisateur.

6www.dimplex.com
Installation
L'ensemble de bûches DLG920 offre une solution rechange aux foyers au bois ou
au gaz. Il peut redonner vie à votre foyer existant ou transformer un caisson ou
un centre multimédia en un point d'attraction percutant.
Fiche technique
Alimentation électrique
Volts : 120 V, 60 Hz
Ampères : 12,5 A
Watts : 1500 W
Câblage : Prêt à brancher
Type d'ampoule : DEL
Approbations
Dimensions
Largeur : 23,7 po (603 mm)
Hauteur : 19 po (482 mm)
Profondeur : 12,5 po (317 mm)
Poids : 11 lb (5,0 kg)
Plage de températures :
-4° à 104° F (-20° à 40° C)
NOTE: Un circuit de 15 ampères
et de 120 volts est requis. Un circuit
spécialisé est préférable, mais pas
essentiel dans tous les cas. Un
circuit spécialisé sera requis si, après
l’installation, le disjoncteur se déclenche
ou si le fusible saute régulièrement
pendant le fonctionnement. L’ajout
d’appareils sur le même circuit risque
d’excéder la puissance nominale du
disjoncteur.
AVERTISSEMENT : An de réduire
les risques d’incendie, de décharges
électriques ou de blessures, le câblage
électrique doit être conforme au
Code du bâtiment local et aux autres
règlements en vigueur.
!
Emplacement
1. Aucune ventilation n’est requise
pour l'ensemble de bûches
Revillusion. Pour une apparence
optimale, il est recommander
d'installer le foyer dans une
ouverture ayant les dimensions
minimales suivantes :
A. Largeur de 24po (610 mm),
B. Hauteur de 22 po (559 mm)
C. Profondeur de 14 po (356 mm).
2. S'assurer qu'un dégagement est
prévu pour la circulation de l’air
sous le foyer.
3. Si le foyer est installé dans une
ouverture existante, sceller toutes
les ouvertures de ventilation à
l’aide de matériaux d’isolation non
fibreux afin d’empêcher tout débris
de la cheminée de tomber sur le
foyer. Ne pas installer le foyer dans
une ouverture existante exposée à
l'humidité.
A
B
C
