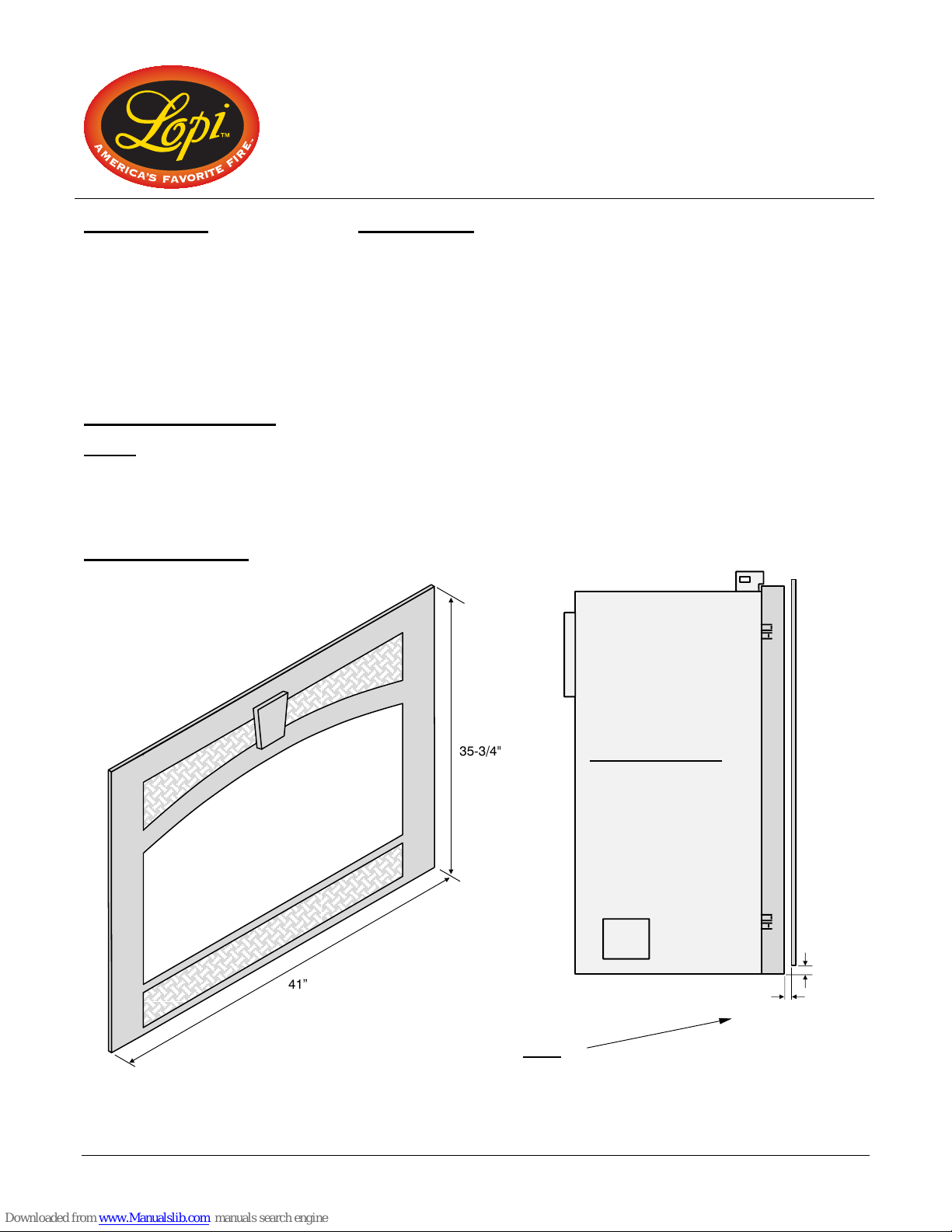

Lopi Hearthview 864 User manual

Hearthview (864) Wilmington Face

Pewter 99300495 Black 99300496

Page 1 of 10 17601408 - 8/31/10 © Travis Industries, Inc.

Compatibility:

• 864TRV Fireplace

• 864ST Fireplace

• 864HO Fireplace

Packing List:

• Face

• Glass Frame Cover

• Aromatherapy Bracket

• Face Baffle

• (2) Upper Face Brackets (w screws attached)

• (4) Fireplace Brackets (upper and lower)

• (16) Nuts (for Face Brackets & Aromatherapy Bracket))

• (2) 10-24 1-1/2" Screws

Aromatherapy Option

NOTE: Aromatherapy option is not compatible with the 864HO.

This face is compatible with the aromatherapy tray (sku 98500385) on the 864ST and 864TRV.

If using this option, make the necessary modifications to the face prior to installing the face

(see page 7 of this instruction sheet for details).

Installation Details

SIDE OF FIREPLACE

1”

0” TO 1”

NOTE:

This face has an adjustable bracket that allows for

different facing depths to be tucked under the face.





41”

35-3/4"

Hearthview (864) Wilmington Face

Pewter 99300495 Black 99300496

Page 2 of 10 17601408 - 8/31/10 © Travis Industries, Inc.

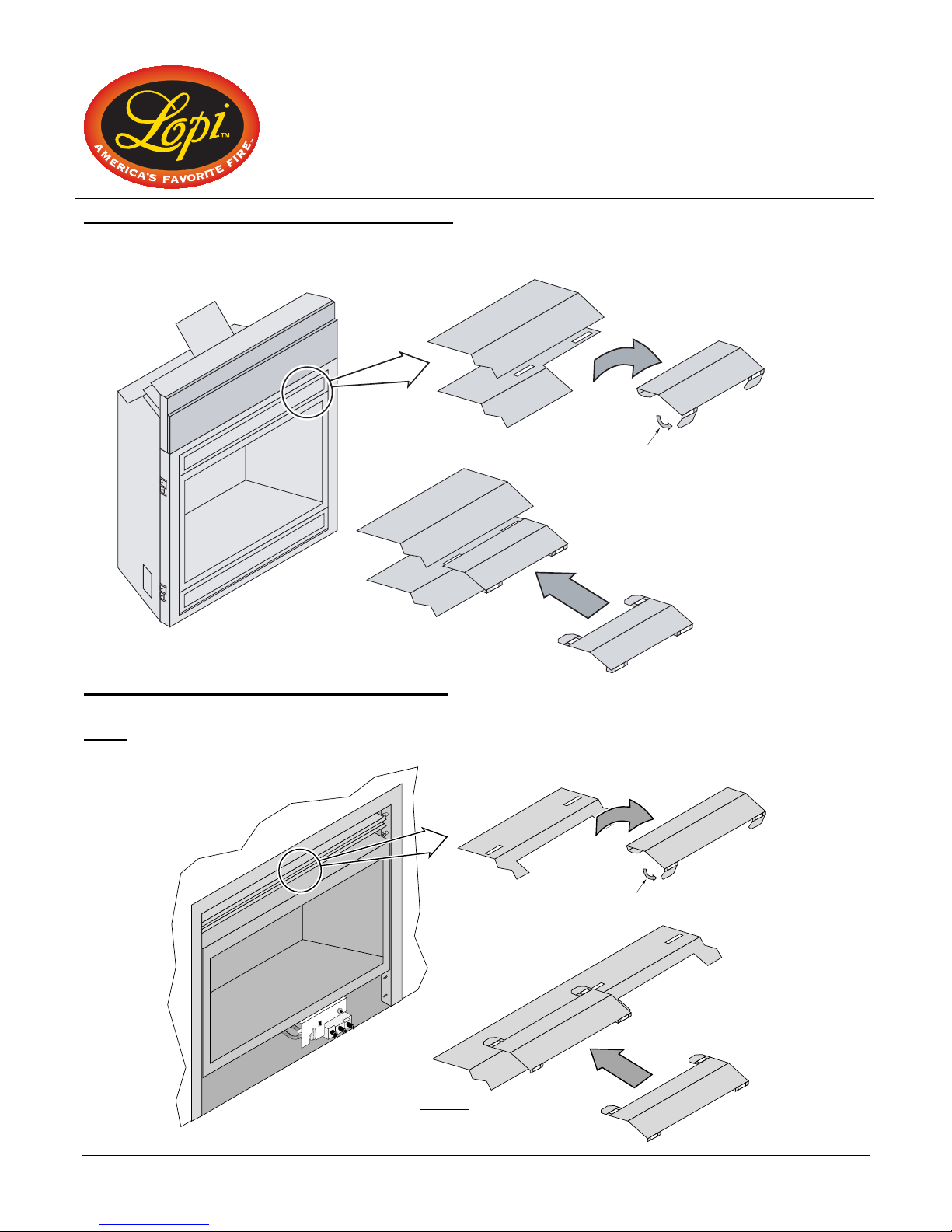

Special Instructions for 864HO Fireplaces

The Wilmington face requires the outer grill deflectors to be removed to allow for installation of the face mounting

brackets. Once the brackets are installed, replace the deflectors. See the instructions below.

Remove the outer deflector on both sides

(use needle-nose pliers if necessary).

These tabs bend down

to allow for removal.

Re-attach the deflectors once the

mounting brackets are in place. Bend the

tabs down, making sure the deflectors are

secure and flat.

Special Instructions for 864ST Fireplaces

The Wilmington face requires removal of the center deflector prior to installing the face.

NOTE: This deflector must be replaced to its original position if a different face or grill is used.

Remove the center deflector (use needle-

nose pliers if necessary).

These tabs bend down

to allow for removal.

Re-attach the deflector to the

louver. Bend the tabs as

shown, making sure the

deflector is secure and flat.

WARNING: The deflector must be

replaced in its original position if a

different face or grill is used.

Hearthview (864) Wilmington Face

Pewter 99300495 Black 99300496

Page 3 of 10 17601408 - 8/31/10 © Travis Industries, Inc.

Installation

1 Install the fireplace brackets onto the fireplace following the directions below.

Repeat these steps for the opposite side.

Upper

Bracket

Lower

Bracket

Upper

Left

Lower

Left

Upper

Right

Lower

Right

Bracket

Identification

Remove and discard the nuts and bushings

above and below the firebox.

Place the upper and lower brackets in place

and secure using the nuts included with this

kit.

Discard the stock

bushings and nuts.

Discard the stock

bushings and nuts.

Hearthview (864) Wilmington Face

Pewter 99300495 Black 99300496

Page 4 of 10 17601408 - 8/31/10 © Travis Industries, Inc.

2 Install the glass frame cover following the directions below.

Push these pins inwards

to lock the cover in place.

Place the cover over the top of the door frame.

Hearthview (864) Wilmington Face

Pewter 99300495 Black 99300496

Page 5 of 10 17601408 - 8/31/10 © Travis Industries, Inc.

3 Attach the face baffle and face brackets following the directions below.





Loosen these upper

nuts and slide the

face baffle over the

studs. Tighten the

nuts to secure the

baffle.

Face

Baffle

Attach the upper face

brackets to the face with

the included nuts.

Hearthview (864) Wilmington Face

Pewter 99300495 Black 99300496

Page 6 of 10 17601408 - 8/31/10 © Travis Industries, Inc.

4 Install the face following the directions below.













Slide the face into place.

The tabs on the upper

brackets insert into the slots

on the fireplace brackets,

holding the face in place

while the screws are

tightened.

Optional Facing (and/or hearth) --

See the installation manual for details.

Plated Surfaces

Use denatured alcohol and a soft cloth to clean plated surfaces. Marks

left on the surface may damage the face.

Denatured

Alcohol

Soft Cloth

Hearthview (864) Wilmington Face

Pewter 99300495 Black 99300496

Page 7 of 10 17601408 - 8/31/10 © Travis Industries, Inc.

Aromatherapy Option - Modification Details

The instructions below details preparation of the aromatherapy tray and the installation of the

extension. Refer to the aromatherapy kit for details on use of this kit.

1 Prepare the aromatherapy bracket following the directions below.

Bend these clips on the aromatherapy bracket up.

2 Attach the aromatherapy bracket to the back of the face following the directions below.



Attach the

aromatherapy bracket to

the face with the

included nuts. Aromatherapy

Bracket

Hearthview (864) Wilmington Face

Pewter 99300495 Black 99300496

Page 8 of 10 17601408 - 8/31/10 © Travis Industries, Inc.

3 Remove the keystone and discard the retainer plate following the directions below.

Aromatherapy Tray

Plate





Remove and

discard this plate.

Keystone

4 Attach the aromatherapy tray to the keystone following the directions below.

Aromatherapy Tray

Keystone

NOTE: Hand-tighten these nuts.

Over-tightening may create dimples in

the keystone.

Hearthview (864) Wilmington Face

Pewter 99300495 Black 99300496

5 Attach the extension assembly following the directions below.





Extension Assembly

Slide the extension assembly into

place (it is installed from behind the

face). Secure the extension

assembly with two 8-32 nuts

(included with the aromatherapy kit).

NOTE: The studs on the

aromatherapy bracket

insert into these holes.

Hearthview (864) Wilmington Face

Pewter 99300495 Black 99300496

6 Slide the tray into the extension assembly following the directions below.





Slide the extension assembly

all the way out.

a

Tilt the tray upwards and

insert this notch under the

rollers. Tilt the tray level to

complete the installation.

Use a cottom swab to apply a thin layer of anti-seize  to the

bearings and sliding surfaces.

NOTE: the anti-seize stains very easily - take care to prevent it

from contacting your skin, clothing, or other surfaces.

Anti-Seize



c

b

INSTALLATION NOTE: The aromatherapy bracket comes in close proximity to the upper center glass latch.

When installing the face, position the bracket above the glass latch.
