INSTRUCTION MANUAL
For domestic household use only.
Conner 1.5kW Mini Electric Fire
Suite
Model: CNR15-AU
8/54203/0 Issue 4
OCN 11905

IMPORTANT
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND
RETAINED FOR FUTURE REFERENCE.
CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/
OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY
Please read the operating instructions carefully before using your product for
the first time and keep them in a safe place.
• When using electrical appliances, basic precautions should always be followed
to reduce the risk of fire, electrical shock and injury to persons, including the
following:
• If the appliance is damaged, check with the supplier before installation and
operation.
- Do not use outdoors.
- Do not use in the immediate surroundings of a bath, shower or a
swimming pool.
- Do not use this heater if it has been dropped.
- Do not use if there are visible signs of damage to the heater.
- Use this heater on a horizontal and stable surface, or fix it to the
wall, as applicable.
• Do not locate the appliance immediately below a fixed socket outlet or
connection box.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the
appliance.
• Do not use this appliance in series with a thermal control, a program controller,
a timer or any other device that switches on the heat automatically, since a
fire risk exists when the appliance is accidentally covered or dis-placed.
• In the event of a fault, unplug the appliance.
• Unplug the appliance when not required for long periods.
• This product is only intended for INDOOR RESIDENTIAL applications only.
• DO NOT cover cord with carpeting, throw rugs, runners, or similar coverings.
• DO NOT route cord under furniture or appliances. Take care to position the
cord away from traffic areas and where it will not be a tripping hazard.
• This appliance must not be used in a bathroom.
• Although this appliance complies with safety standards, we do not recommend
2

its use on deep pile carpets or on long hair type of rugs
• The appliance must be positioned so that the plug is accessible.
• If the supply cord is damaged it must be replaced by the manufacturer or
service agent or a similarly qualified person in order to avoid a hazard.
• Keep the supply cord away from the front of the appliance.
• Do not use this heater in small rooms when they are occupied by persons
not capable of leaving the room on their own, unless constant supervision is
provided.
• In order to avoid overheating, DO NOT COVER the appliance. Do not place
material or garments on the appliance, or obstruct the air circulation around
the appliance, for instance by curtains or furniture, as this could cause
overheating and a fire risk.
• This Heater carries the warning symbol indicating that it must not
be covered.
• In order to avoid a hazard due to inadvertent resetting of the thermal cut-out,
this appliance must not be supplied through an external switching device,
such as a timer, or connected to a circuit that is regularly switched on and off
by the utility.
• CAUTION Some parts of this product can become very hot and cause burns.
Particular attention has to be given where children and vulnerable people are
present.
• Children shall not turn on/off the appliance.
• Ensure that furniture, curtains or other combustible material are positioned
no closer than 1 metre from the appliance.
• Unplug the appliance when not required for long periods.
3

WARNING: KEEP BATTERIES OUT OF REACH OF CHILDREN
• Swallowing may lead to serious injury in as little as 2 hours or death, due to
chemical burns and potential perforation of the oesophagus.
• If you suspect your child has swallowed or inserted a button battery
immediately call the 24-hour Poisons Information Centre on 13 11 26 (in
Australia) or 0800 764 766 (in New Zealand) for fast, expert advice.
• Examine devices and make sure the battery compartment is correctly secured,
e.g. that the screw or other mechanical fastener is tightened. Do not use if the
compartment is not secure.
• Dispose of used button batteries immediately and safely. Flat batteries can
still be dangerous.
CAUTION: No obvious symptoms
Unfortunately, it is not obvious when a button or coin battery is stuck in a
child's oesophagus (food pipe).
There are no specific symptoms associated with this. The child might:
• cough, gag or drool a lot
• appear to have a stomach upset or virus
• be sick
• point to their throat or stomach
• have a pain in their abdomen, chest or throat
• be tired or lethargic
• be quieter or more clingy than usual or otherwise 'not themselves'
• lose their appetite or have a reduced appetite
• not want to eat solid food/be unable to eat solid food
These types of symptoms vary or fluctuate. with the pain increasing and then
subsiding.
A specific symptom to button and coin battery ingestion is vomiting fresh
(bright red) blood. If the child does this seek immediate help. The lack of clear
symptoms is why it is important to be vigilant with 'flat' or spare button or
coin batteries in the home and the products that contain them.
4

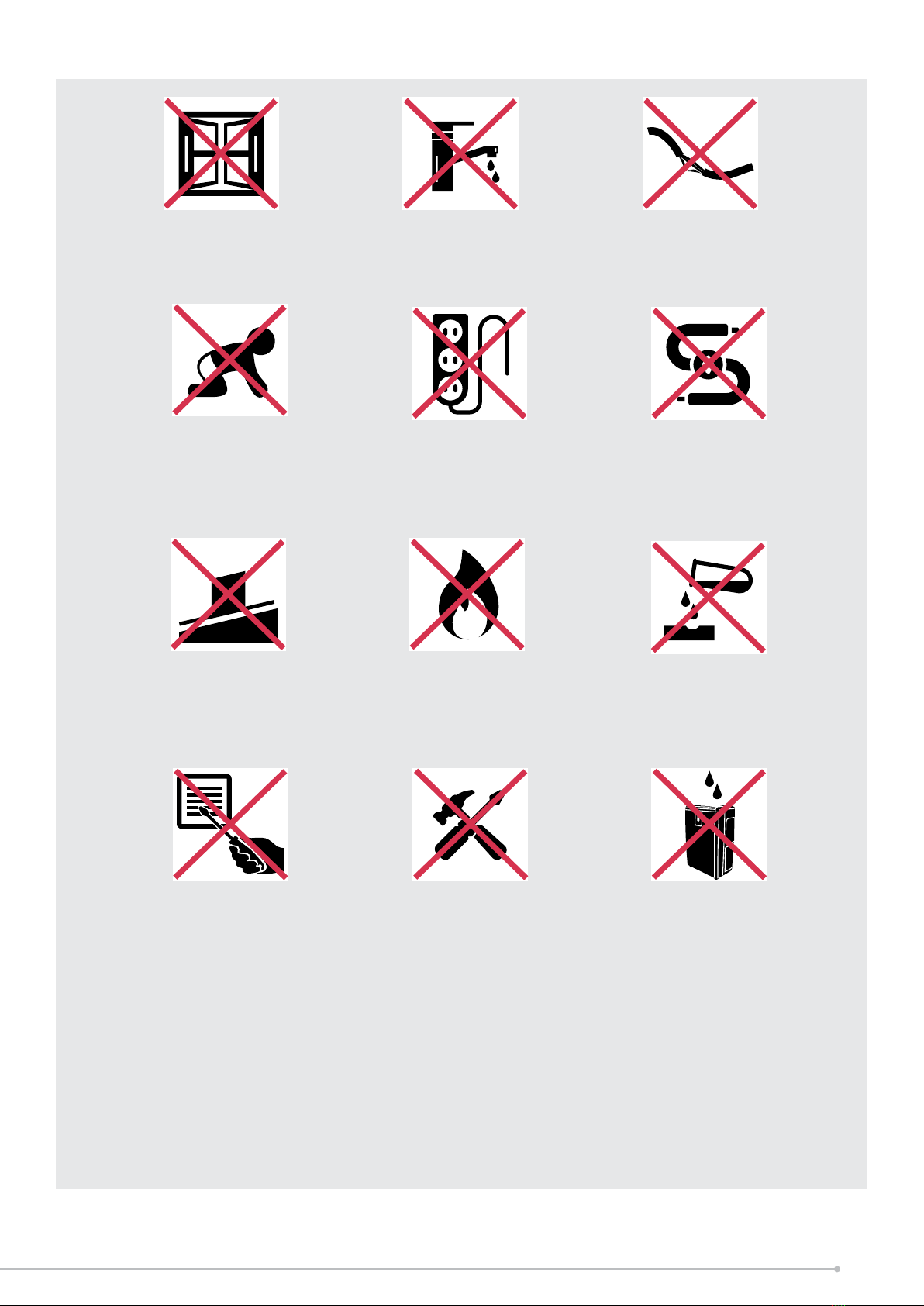

Exposed to the
weather outdoors
Near water If the power cable
wires are frayed or cut
Where small children
may be left unattended
No extension leads or
power boards
Where there is risk
of fire or close to
a naked flame
Where the power
cable may be
damaged
On a slope or
uneven surface
Where it may be
damaged by
chemicals
If there is a risk
of water falling on
the unit
Where there is a risk
of interference by
foreign objects
This product is not
made for DIY repair
5

Model no. CNR15-AU
Colour/Finish White (Concrete Front)
Heat Output 1.5kW
Heat Settings 2
Thermostat Control Y
Remote Control Y
Warranty 2 years
Dimensions (w x d x h) 650 x 195 x 868
Specifications
For greater precision, please always refer to the rating label placed on the product.
6

Operation
WARNING: FALLING OR TIPPING APPLIANCES CAN CAUSE INJURY OR DEATH
OF YOUNG CHILDREN, PLEASE ENSURE CHILDREN DO NOT CLIMB, HANG OR
STAND ON THIS PRODUCT.
WARNING: THIS APPLIANCE IS PROVIDED WITH A TIPPING RESTRAINT. THIS
RESTRAINT IS NOT A SUBSTITUTE FOR PROPER ADULT SUPERVISION. THIS
RESTRAINT MAY PROVIDE PROTECTION AGAINST TIPPING FURNITURE. DO
NOT ALLOW CHILDREN TO CLIMB ON FURNITURE. FAILURE TO DETACH THIS
RESTRAINT BEFORE MOVING FURNITURE MAY RESULT IN INJURY AND DAMAGE.
Tipping Restraint Kit

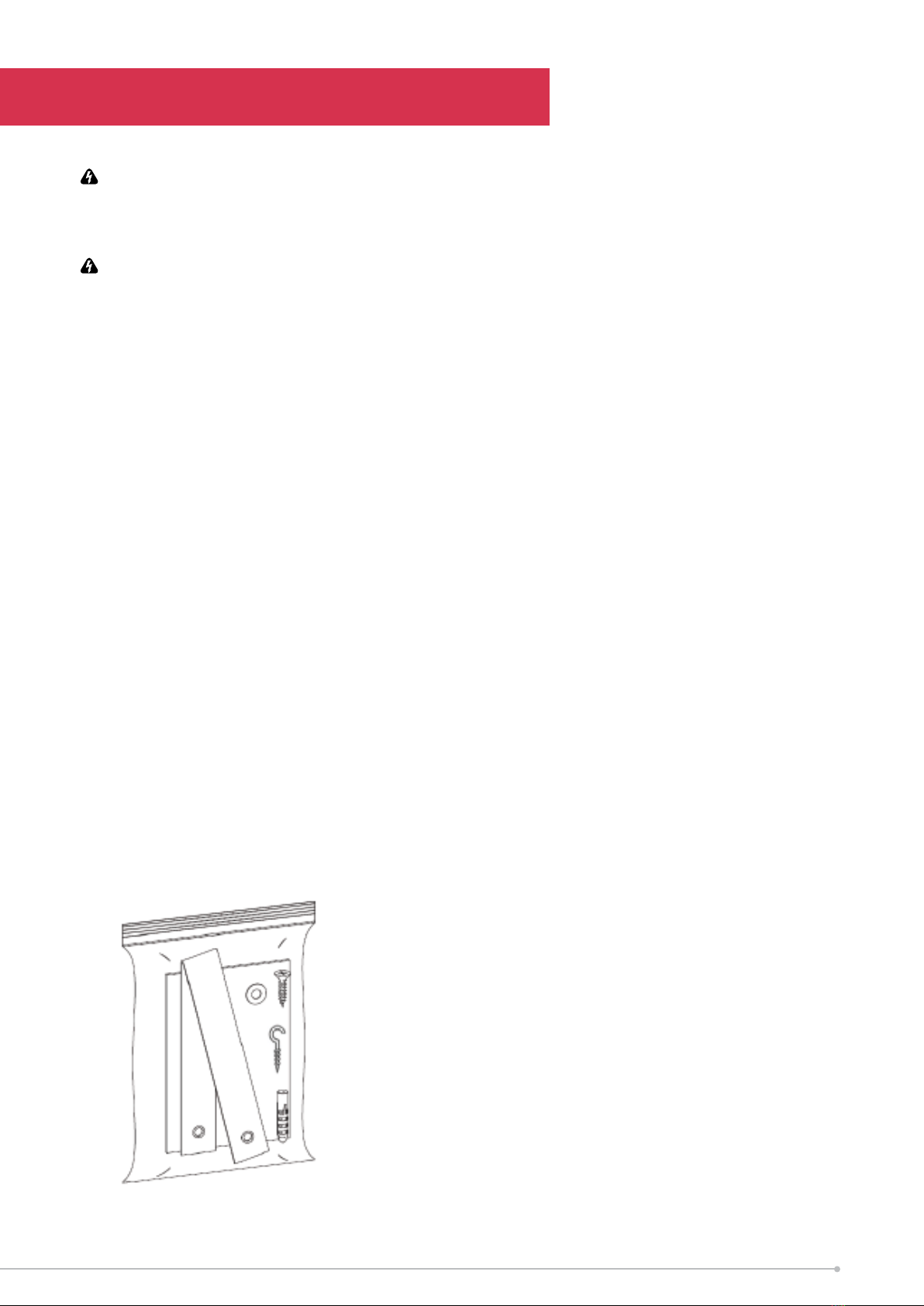

This product is provided with a 'Tipping Restraint Kit,' to prevent the product
accidentally tipping over. Fitting instructions are supplied with this kit. Please follow
these instructions carefully.
Thermal Safety Cut-out
The built-in overheat cut-out switches off the appliance automatically in the event
of a fault. If this occurs switch off the appliance or disconnect the mains plug from
the socket. After a short cooling down phase, the appliance is ready for use again.
If the fault should occur again, see your local dealer.
WARNING: In order to avoid a hazard due to inadvertent resetting of the thermal
cut-out, this appliance must not be supplied through an external switching device,
such as a timer, or connected to a circuit that is regularly switched on and off by
the utility.
Tipping restraint kit
7

Setup & Product Dimensions
General
Unpack the heater carefully and retain the packaging for possible future use, in the
event of moving or returning the fire to your supplier.
The fire incorporates a flame effect, which can be used with or without heating, so that
the comforting effect may be enjoyed at any time of the year. Using the flame effect
on its own only requires little electricity.
Before connecting the heater check that the supply voltage is the same as that stated
on the heater.
Please note: Used in an environment where background noise is very low, it may be
possible to hear a sound which is related to the operation of the flame effect. This is
normal and should not be a cause for concern.
CAUTION: Except for installation and cleaning described in this manual, an
authorized service representative should perform any other servicing.
WARNING – THIS APPLIANCE MUST BE EARTHED
This heater must be used on an AC ~ supply only and the voltage marked on the heater
must correspond to the supply voltage.
Before switching on, please read the safety warnings and operating instructions.
Light Emitting Diode
This fire is fitted with LED (Light Emitting Diode) bulbs in place of traditional
incandescent bulbs. These generate the same light levels as traditional bulbs, but use
a fraction of the energy consumed. These LED lamps are maintenance free and should
not require replacing during the life of the product.
8

Operation
Controls

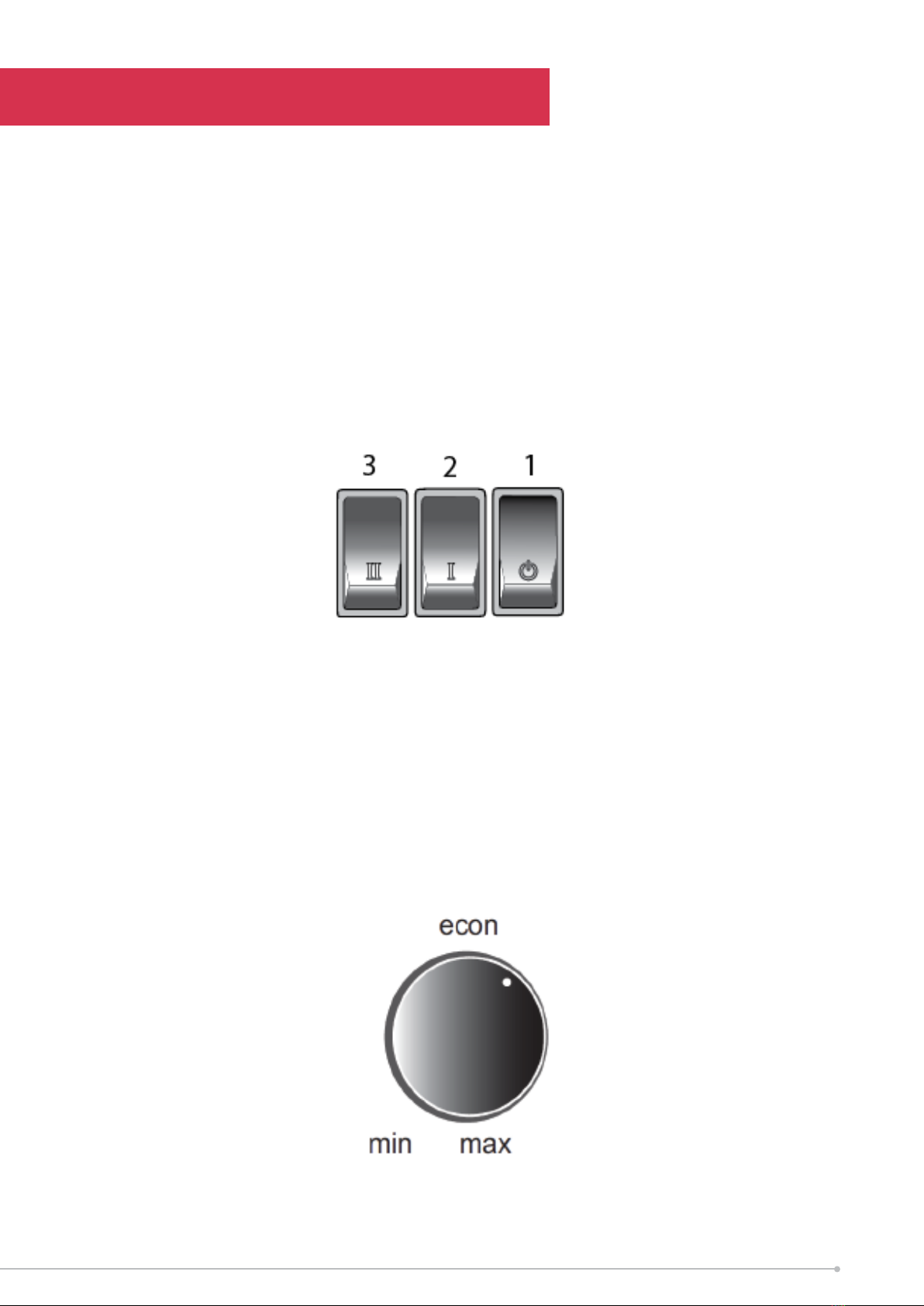

The switches provide a choice of heat settings, The appliance is in standby mode
when the mains lead is plugged in. This is indicated by the red neon behind the flame
effect screen. The two selector switches are in the ON position when the side with
the markings on (i.e. I, or II) are pushed in.
1. Selector switch 1 (0) - Controls the electricity supply to the appliance and
flame effect. Press for ‘ON' & ‘Standby’. If both selector switches 2 and 3 are in
the OFF position, the product works on flame effect only.
2. Selector Switch 2 (I) - Provides 750W heat output.
3. Selector Switch 3 (II) - Provides 1.5kW output with switch 2 also pressed.
Thermostat (T)
In order to maintain a certain room temperature, set the controller to ‘max.’. Operate
the appliance at full power until the required room temperature is reached. Set back
the thermostatic controller until the appliance switches off with an audible “click”.
This temperature will be kept almost constant by the thermostatic control switching
on and off automatically. Please note that the appliance can only be switched on
when the thermostat setting is higher then the room temperature.
9

Remote control
The maximum range of use is ~ 5 metres.
WARNING: It takes time for the receiver to respond to the transmitter. Do not press the
buttons more than once within two seconds for correct operation.
1. To activate the remote control remove the battery isolation strip, which is used to
ensure your remote control reaches you fully charged.
2. To replace the remote control battery, turn over the remote control, and follow the
diagram embossed on the remote control
3. Only use CR2025 or CR2032 size batteries.
Remote Control
To replace the battery:
1. Remove the screw, push down on the battery cover located on the back of the remote
control. Slide the battery cover open.
2. Install 1 x 3V CR2025 or CR2032 Lithium battery in the battery holder. The positive
(+) side of the battery faces up.
3. Close the battery cover and replace the screw
Discard leaking batteries:
Dispose of batteries in the proper manner according to provincial and local regulations.
Any battery may leak electrolyte if mixed with a different battery type, if inserted
incorrectly, if all batteries are not replaced at the same time, if disposed on a fire, or if
an attempt is made to change a battery not intended to be recharged.
10

Over time, dust can accumulate which can effect performance. It is recommended
to clean the unit at least once a month.
CAUTION: ALWAYS Turn the unit OFF and disconnect the appliance from the
power supply before undergoing any cleaning and maintenance.
For general cleaning use a soft clean duster – never use abrasive cleaners. The glass
viewing screen should be cleaned carefully with a soft cloth.
DO NOT use proprietary glass cleaners.
To remove any accumulation of dust or fluff the soft brush attachment of a vacuum
cleaner should occasionally be used to clean the outlet grille of the fan heater.
WARNING: do not operate the product without the grille and outer glass in position
as this may effect the operation of the heater.
IMPORTANT
The control panel and other parts must not come into contact with water or any
other liquids.
Cleaning
Recycling: Do not dispose of electrical appliances as unsorted municipal
waste. Use separate collection facilities. Contact your local government
for information regarding the collection systems available. If electrical
appliances are disposed of in landfills or dumps, hazardous substances
can leak into the ground water, polluting the food chain and damaging
health and well-being.
Warranty
Please refer to the warranty card in the box for warranty information. For any
troubleshooting advice, please contact the relative Customer Care Centre below.
Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd
8 Lakeview Drive, 38 Harris Road, East Tamaki,
Scoresby 3179, Victoria Auckland 2013
Australia New Zealand
Ph: 1300 556 816 Ph: 0800 666 2824
11

Customer Care: 1300 556 816
[e-mail]
www.dimplex.com.au
Supplied by Glen Dimplex Australia
8 Lakeview Drive, Scoresby, Victoria, 3179
© Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without
prior permission in writing of Glen Dimplex Australia.
CNR15-AU v4
12
