Dimplex EF830 User manual

Electric replace
2000W
Original Instructions – EF830_V10521
WARNING: Read the instructions before using the appliance.
EF830
EAN: 5059340241678
BX220IM/B3
5059340241678-EF830_A5_IM_GB-V03.indd 15059340241678-EF830_A5_IM_GB-V03.indd 1 13-05-2021 13:17:2413-05-2021 13:17:24

2
EF830
Let’s
get started...
These instructions are for your safety. Please read through
them thoroughly before use and retain them for future
reference.
Getting Started... 02
Safety information 03
Your product 06
In more detail... 07
Product functions 08
Cleaning and maintenance 14
Technical specication 16
Installation 18
5059340241678-EF830_A5_IM_GB-V03.indd 25059340241678-EF830_A5_IM_GB-V03.indd 2 13-05-2021 13:17:2413-05-2021 13:17:24

3
EF830
Getting Started . . .
Safety warnings
PLEASE READ THE FOLLOWING INSTRUCTIONS
CAREFULLY BEFORE USING THE APPLIANCE.
> This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
> Children of less than 3 years should be kept away unless
continuously supervised. Children aged from 3 years and
less than 8 years shall only switch on/ off the appliance
provided that it has been placed or installed in its intended
normal operating position and they have been given
supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
Children aged from 3 years and less than 8 years shall not
plug in, regulate and clean the appliance or perform user
maintenance.
> CAUTION: Some parts of this product can become very
hot and cause burns. Particular attention has to be given
where children and vulnerable people are present.
> If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualied
persons in order to avoid a hazard.
> The heater must not be located immediately below a
socket-outlet.
Safety information
5059340241678-EF830_A5_IM_GB-V03.indd 35059340241678-EF830_A5_IM_GB-V03.indd 3 13-05-2021 13:17:2513-05-2021 13:17:25

4
EF830
Getting Started . . .
> Do not use this heater if it has been dropped.
> Do not use if there are visible signs of damage to the heater.
> When use this heater, please x it to the wall.
WARNING: To reduce the risk of re, keep textiles,
curtains, or any other ammable material a minimum
distance of 1 m from the air outlet.
> Do not use this heater in the immediate surroundings of a
bath, a shower or a swimming pool.
> CAUTION! In order to avoid a hazard due to inadvertent
resetting of the thermal cutout, this appliance must not be
supplied through an external switching device, such as a
timer, or connected to a circuit that is regularly switched
on and off by the utility.
> Connect the power plug to an easily reachable socket
outlet so that in case of an emergency the appliance can
be unplugged immediately. Pull the power plug out of the
socket outlet to completely disconnect the appliance from
the voltage.
> If the appliance is without plug, please following below
points:
Always switch off the mains supply during installation or
maintenance.
Means for disconnection having a contact separation
in all poles must be incorporated in the xed wiring in
accordance with the wiring rules.

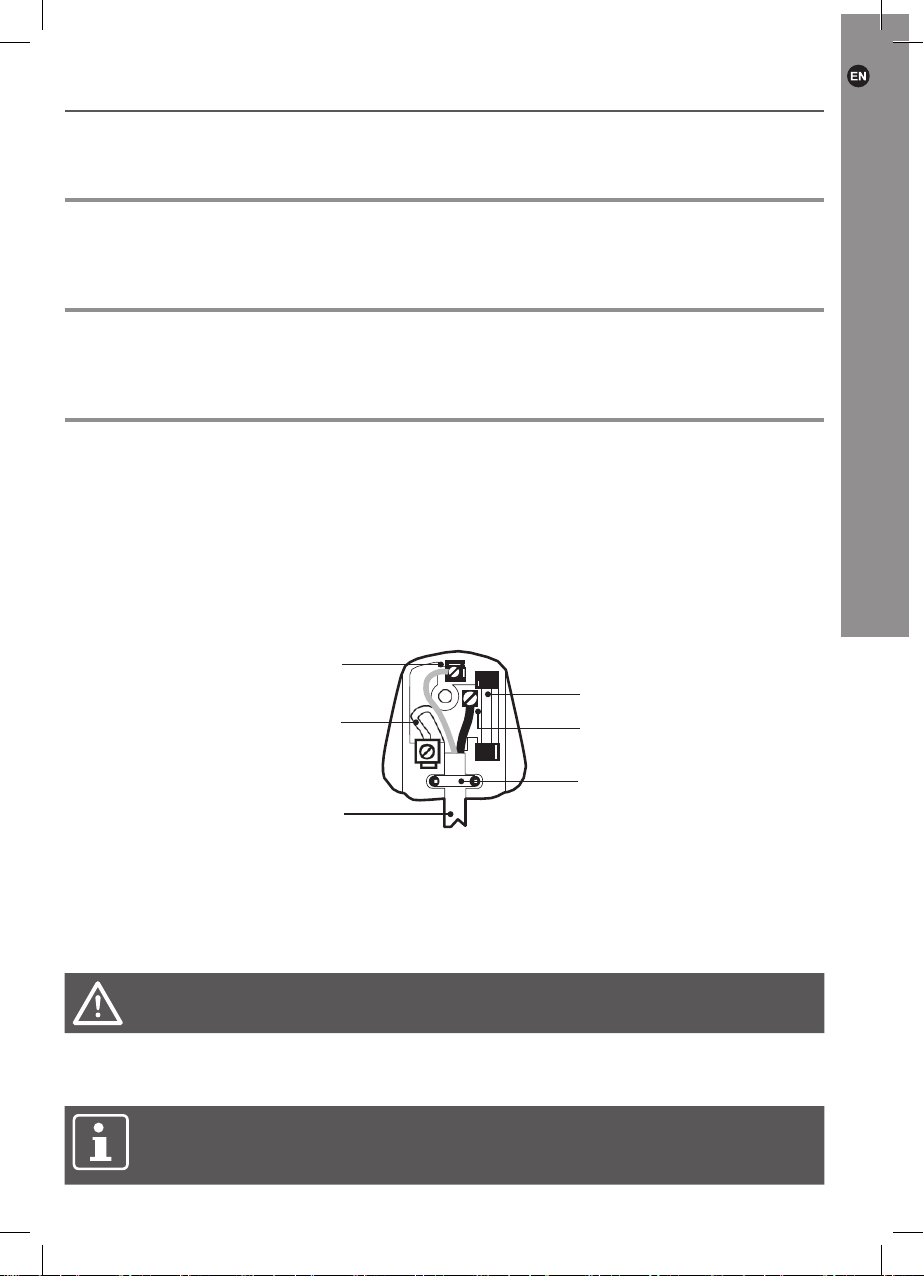

WARNING: You need to connect the conductors of the
supply cable to a connection block ensuring the mains
polarity is followed as below:
The blue wire must be connected to the terminal marked
with an N or coloured black.
The brown wire must be connected to the terminal marked
with an L or coloured red.
Safety information
5059340241678-EF830_A5_IM_GB-V03.indd 45059340241678-EF830_A5_IM_GB-V03.indd 4 13-05-2021 13:17:2513-05-2021 13:17:25

5
EF830
Getting Started . . .
The yellow-green wire must be connected to the terminal
marked with an earthing symbol.
WARNING! Never connect live or neutral wires to the
earth terminal.
WARNING! In order to avoid overheating, do not cover
the heater.
Thermal Cut-Out
> CAUTION! This product has one non-self-resetting overheat
protection devices. In the event that the heater stops working
as a result of overheating take the following immediate steps:
Switch the electricity off at the socket or off the replace power
switch. Remove any objects that are covering the product.
> CAUTION! Do not touch the heater as it will be hot.
> Set the heater switches to O (off position) and leave the
heater to cool. Once completely cool, reconnect the heater
and switch it on.
Safety information
5059340241678-EF830_A5_IM_GB-V03.indd 55059340241678-EF830_A5_IM_GB-V03.indd 5 13-05-2021 13:17:2513-05-2021 13:17:25

6
EF830
Getting Started . . .

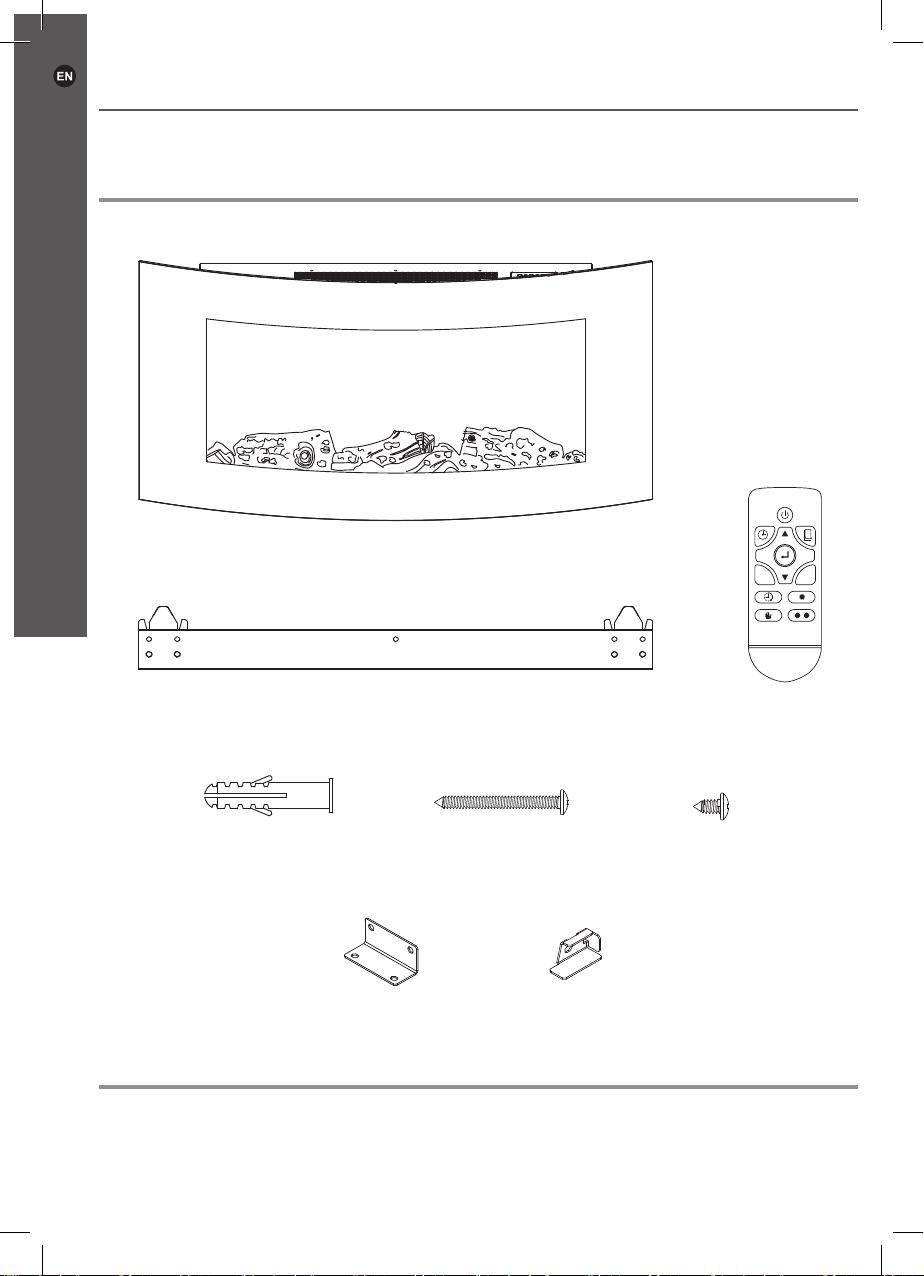

Your product
[01] x 1
C
_
+
IC
SUN
[03] x 1
[02] x 1
[07] x 1 [08] x 1
[04] x 7 [06] x 3
[05] x 7
You will need
Screwdriver x 1

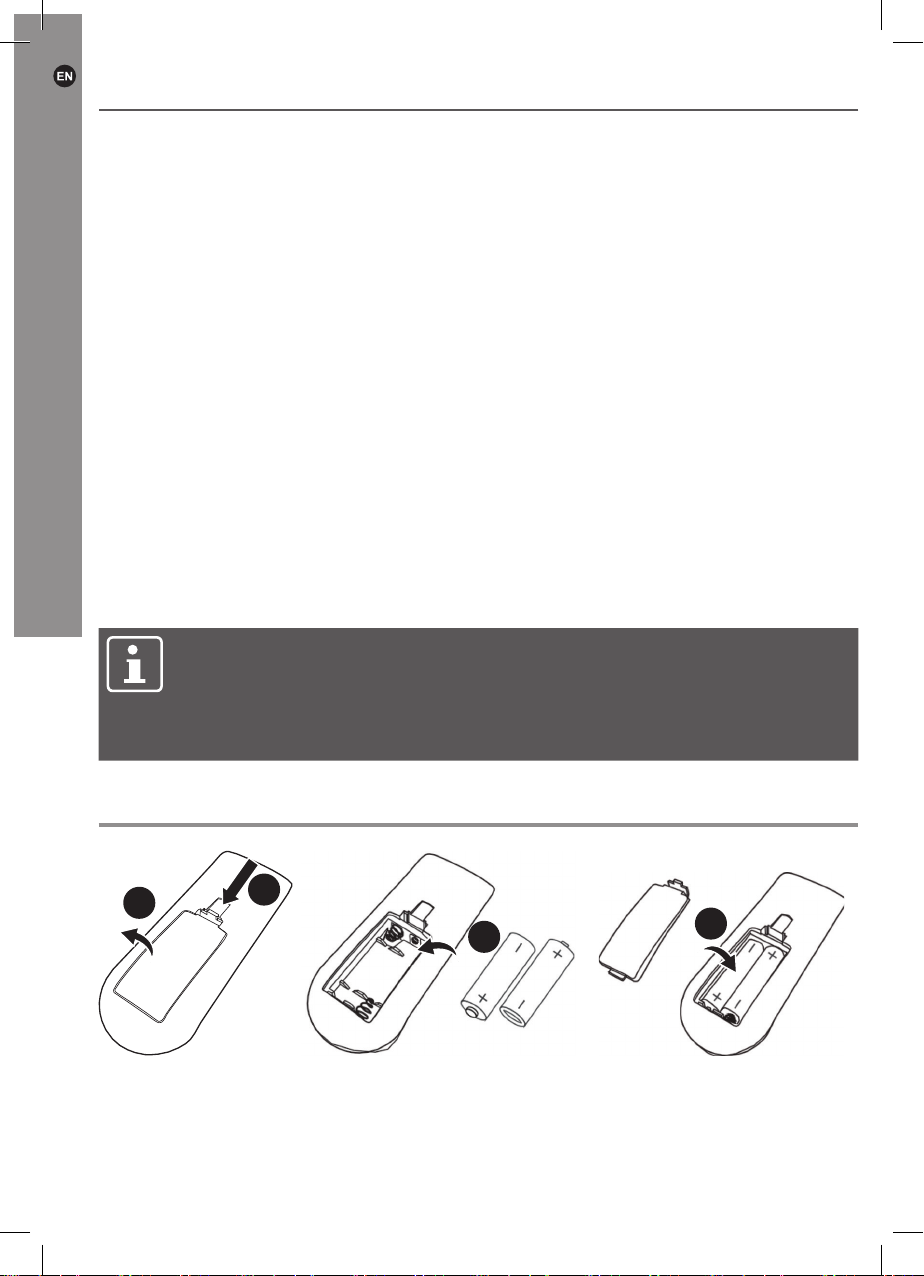

AAA 1.5V Battery x 2
Your product
5059340241678-EF830_A5_IM_GB-V03.indd 65059340241678-EF830_A5_IM_GB-V03.indd 6 13-05-2021 13:17:2713-05-2021 13:17:27

7
EF830
In more detail . . .
In more
detail...
Product functions 08
Cleaning and maintenance 14
Technical specication 16
Installation 18
5059340241678-EF830_A5_IM_GB-V03.indd 75059340241678-EF830_A5_IM_GB-V03.indd 7 13-05-2021 13:17:2713-05-2021 13:17:27

8
EF830
In more detail . . .
Intended use
> This product is intended for indoor use only. It is not intended for commercial use.
> This product is intended for xed installation only. Do not use it as a free standing
heater.
> This product contains no user serviceable parts and requires little maintenance.
Leave any servicing or repairs to qualied personnel only. The LEDs contained in
this product are non-replaceable.
> Before connecting the appliance to the power supply, check that the power supply
voltage and current rating corresponds with the power supply details shown on the
appliance rating label.
Installation
NOTE: The wall mount fasteners included with this replace are for use ONLY with a
concrete walls. For wood walls, cinder blocks, or other wall types, consult a professional
for the best attachment methods.
NOTE: This product includes a GLASS panel! Always use extreme caution when handling
glass. Failure to do so could result in personal injury or property damage.
> This appliance is designed to be permanently xed to a wall at a minimum height of
300 mm from bottom of heater to oor. The wall bracket must be tted horizontally
and the cable routed to the bottom right of the heater.
> A height of 600 mm from bottom of heater to oor is recommended for optimum
viewing of fuel bed (see Fig. 2 for recommend xing dimensions).
> Keep top of heater at least 1000 mm away from ceiling or other objects for optimum
heat ventilation.
> For optimum viewing, mark the top ve screws xing positions on wall in accordance
with the recommend xing dimensions- see Fig. 2. Drill holes.
> Fix the wall bracket using the plugs and screws provided (05).
> Before the installation, take off the glass panel from the heater, and store the glass
panel in a safe place.
> Carefully lift the heater up ensuring that the two top rear slots of heater engages the
wall bracket (see Fig. 3) and is sitting centrally.
> Gently bring the heater level with the wall.
> Load the small wall bracket with the 2 pcs short screws (06) on the lower parts of
the heater (see Fig.4).
> Mark the two bottom holes position-see Fig.5, remove the heater and keep the
heater in a safe position.
> Drill and t wall plug.
> Place the front glass panel over the front of the heater aligning the hooks at each side
of the glass panel with the slots at each side of the heater body See-Fig.6. Then slide
down the glass panel in place. Again two people will be required for this operation.
Product function
5059340241678-EF830_A5_IM_GB-V03.indd 85059340241678-EF830_A5_IM_GB-V03.indd 8 13-05-2021 13:17:2813-05-2021 13:17:28

9
EF830
In more detail . . .
> Insert and tighten the front glass panel screw-Fig.7. to secure the front glass panel
to the heater.
> Ret the heater to the wall xing bracket and use the screw provided (05) to
permanently x the heater in place.
Switching on/off
Use the on/off switch to power on the appliance (set it to standby mode).
In a standby mode, the appliance can be operated either manually, by the switches
located on the top right hand side of the appliance or by the supplied remote control.
Manual operation
NOTE: The appliance only starts working, if the set temperature is higher than
the ambient room temperature.
Appliance powered off
Appliance powered on, set to standby mode
> Press to switch the ame effect on/off.
> Press and hold to toggle between 5 different ame
dim levels
Press to activate low level heating (1000 W)
Press to activate high level heating (2000 W)
Product function
5059340241678-EF830_A5_IM_GB-V03.indd 95059340241678-EF830_A5_IM_GB-V03.indd 9 13-05-2021 13:17:2813-05-2021 13:17:28

10
EF830
In more detail . . .

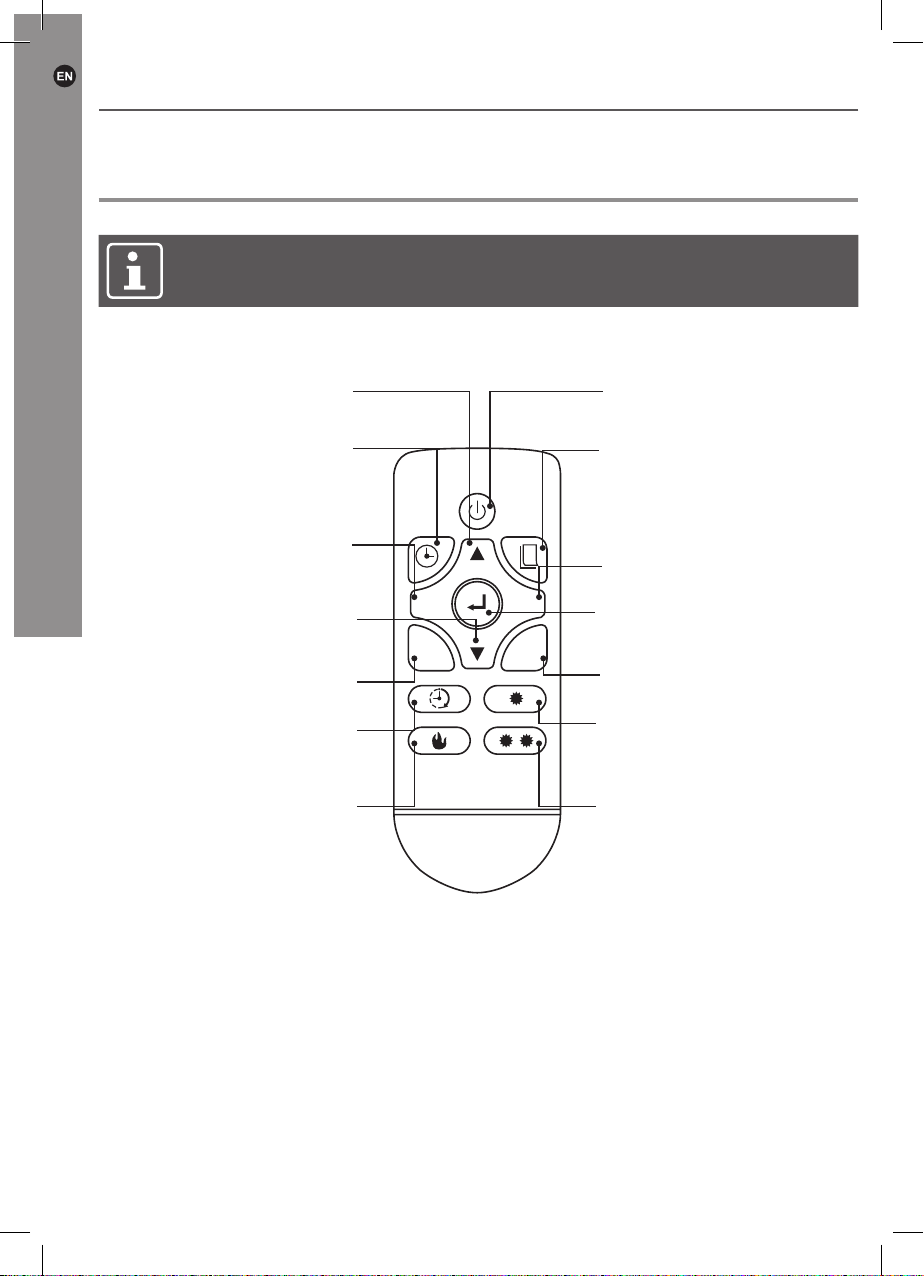

Remote control
NOTE: The appliance should be powered on using the on/off switch before it
can be operated using remote control.
Go up in menu
(change day)
- Switch the appliance on
- Set to standby mode
Set day/time
- Decrease temperature
- Decrease hour/minute
Conrm selection
Set automatic
heating mode
Press to activate
low level heating
Press to activate
high level heating
Go down in menu
(change day)
Cancel key
Set timer key
Timer on/off key
Toggle between 5
different ame dim levels
- Increase temperature
- Increase hour/minute
C
_
+
IC
SUN
Product function
5059340241678-EF830_A5_IM_GB-V03.indd 105059340241678-EF830_A5_IM_GB-V03.indd 10 13-05-2021 13:17:2813-05-2021 13:17:28

11
EF830
In more detail . . .
Display
1 2 43 65 7
111098
1 Cursor 2 Day of the week
3 Timer icon 4 Temperature/timer number
5 Timer on 6 Timer off
7 Flame dim level 8 Heating level
- low heating level
- high heating level
9 Automatic heating mode 10 Time/temperature display
11 Standby mode icon
Product function
5059340241678-EF830_A5_IM_GB-V03.indd 115059340241678-EF830_A5_IM_GB-V03.indd 11 13-05-2021 13:17:2913-05-2021 13:17:29

12
EF830
In more detail . . .
Settings
Setting weekday and time
1. Press the key. When the date is ashing, press the “▲” or “▼” key to select the day.
2. Press the key again, then press the “+” or “-” key to set the hour.
3. Press the key again, then press the “+” or “-” key to set the minute.
4. Press the key to conrm the setting.
Setting temperature
NOTE: This setting is only applicable for the temperature in standard heating mode,
not for the temperature in the timer mode. The default set temperature is 20 °C.
The appliance only starts working, when the set temperature is higher than
the room temperature.
If timer is on, temperature cannot be set manually. Please switch off timer
mode by pressing the timer on/off key.
Press the “+” or “-” key to set the temperature, which ranges from 15 to 30 °C.
After the temperature setting has been completed, the display ashes about 5 seconds,
then shows the room temperature.
Setting timer
> Up to 10 different timer settings can be programmed.
> Each timer setting has its date, power-on time and power-off time.
> The maximum duration of each timer setting is 23 hours 50 minutes.
> If the power-off time of the timer setting falls on the following day, it is
unnecessary to set the date – just set the power-off time.
1. Press the key, the timer number starts blinking (01-10).
2. Press the “+” or “-” key to select a timer number.
3. Press the key. The cursor on the left side of the day blinks.
4. Press the “▲” or “▼” key to move the cursor to the corresponding day. Press the “+”
key to add a corresponding day, or press the “-” key to delete a day.
5. Press the key to set the on time. The hour digit starts blinking.
6. Press the “+” or “-” key to set the hour.
7. Press the key. The minute digit starts blinking.
8. Press the “+” or “-” key to set the minute.
9. Press the key, to set the off time. The hour digit starts blinking.
10. Press the “+” or “-” key to set the hour.
11. Press the key. The minute digit starts blinking.
12. Press the “+” or “-” key to set the minute.
13. Press the key. The temperature digit starts blinking.
14. Press the “+” or “-” key to set the temperature.
15. Press the key to continue with the Timer setting or press the key to conrm
the setting.
Product function
5059340241678-EF830_A5_IM_GB-V03.indd 125059340241678-EF830_A5_IM_GB-V03.indd 12 13-05-2021 13:17:2913-05-2021 13:17:29

13
EF830
In more detail . . .
Viewing the timer setting
1. Press the key.
2. Press the “+” or “-” key to check the power-on time of the set timers one by one.
3. To check the power-off time, press the “▲” key.
4. Press the “+” or “-” key to check the power-off time of the set timers one by one.
5. To delete selected setting, press the “C” key.
Activation timer
Press the key to activate the timer function.
NOTE: When the timer is active, the heating level must be manually selected.
If the heater function is not selected, only the ame effect goes on at the set
power-on time.
Automatic heating mode
Press the “IC” key to activate automatic heating mode. The “AUTO” icon appears on
the display. And this function has two effects:
1. Adaptive start
After the automatic heating mode is turned on, if the weekly timer is turned on and
in the standby mode, within 20 minutes before the scheduled start-up time, the
heater will make three corresponding heating methods according to the current room
temperature.
1) The room temperature is lower than the set temperature by around ≥10°C, the high
heating power will be turned on.
2) The room temperature is lower than the set temperature by around ≥5°C but
<10°C, the lower heating power will be turned on.
3) If the room temperature is less than around 5°C below the set temperature, the
heating will not be turned on.
2. Automatic heating
After turning on automatic heating mode, if the heater does not turn on the weekly timer;
or the weekly timer is turned on, and it is in the default heating period, the heater will also
make three corresponding heating methods according to the current room temperature:
1) The room temperature is lower than the set temperature by around ≥6°C, high
heating power will be turned on.
2) The room temperature is lower than the set temperature by around <6°C, lower
heating power will be turned on.
3) When the room temperature reaches or exceeds the set temperature, the heater
will stop heating.
NOTE: The working temperature in the automatic heating mode will be a little
different according to the different ambient room temperature.
Product function
5059340241678-EF830_A5_IM_GB-V03.indd 135059340241678-EF830_A5_IM_GB-V03.indd 13 13-05-2021 13:17:2913-05-2021 13:17:29

14
EF830
In more detail . . .
1. Switch the product off and cut off the power outlet before
cleaning.
2. Let the product cool before cleaning.
3. Using a soft, moist cloth, with or without a mild soap
solution, carefully clean the exterior surface of the product.
4. Do not allow water or other liquids to run into the interior
of the product, as this could create a re and/or electrical
hazard.
5. We also recommend the periodic cleaning of this
appliance by lightly running a vacuum cleaner nozzle
over the guards to remove any dust or dirt that may have
accumulated inside or on the unit.
6. CAUTION! Do not use harsh detergents, chemical cleaners
or solvents as they may damage the surface nish.
NOTE: This product contains no user serviceable parts
and requires little maintenance. Leave any servicing or
repairs to qualied personnel only. The LEDs contained
in this product are non-replaceable.
Battery replacement
1
4
2
3
2 x AAA, 1.5 V
Cleaning and maintenance
5059340241678-EF830_A5_IM_GB-V03.indd 145059340241678-EF830_A5_IM_GB-V03.indd 14 13-05-2021 13:17:3013-05-2021 13:17:30

15
EF830
In more detail . . .
Storage
The product can be stored in the off-season, we recommend using the original
(or appropriately sized) packaging. It is important to keep it in a safe, dry location.
Transportation
It is recommended to transport the product in the original packaging that is
appropriately secured. Avoid excessive vibrations.
Plug replacement
This appliance is supplied with a BS1363 pin plug tted with a 10 Amp fuse. Should
the fuse require replacement, it must be replaced with a fuse rated at 10 Amp and
approved to BS1362. In the event the mains plug has to be removed/replaced for
any reason, please note: IMPORTANT: The wires in the mains lead are coloured in
accordance with the following code:
Blue or Black – N - (Neutral)
Brown or Red – L (Live)
Green / Yellow – E / (Earth)
Connect Green /
Yellow to E(earth)
10 AMP fuse
approved to
BS 1362
Connect Blue to
N(Neutral)
Brown L(Live)
Outer sleeve
rmly clamped
Cable grip
As the colours of the wires in the mains lead of this appliance may not correspond
with the coloured markings identifying the terminals in your plug, proceed as follows.
The blue wire must be connected to the terminal marked with an N or coloured black.
The brown wire must be connected to the terminal marked with an L or coloured red.
WARNING! Never connect live or neutral wires to the earth terminal of the plug.
Only t an approved 13 Amp BS 1363 or BS 1363/A plug and the correctly rated fuse.
If in doubt, consult a qualied electrician.
NOTE: If a moulded plug is tted and has to be removed take great care
in disposing of the plug and severed cable, it must be destroyed to prevent
engaging into a socket.
Cleaning and maintenance
5059340241678-EF830_A5_IM_GB-V03.indd 155059340241678-EF830_A5_IM_GB-V03.indd 15 13-05-2021 13:17:3013-05-2021 13:17:30

16
EF830
In more detail . . .
Technical specications
Rated voltage: 220-240 V~, 50 Hz
Rated power input: 2000 W
This product complies with conformity requirements of the
applicable European Regulations or Directives.
This product complies with conformity requirements of the
applicable UK Regulations.
For indoor use only.
Class I product, must be connected to earth.
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist. Check
with your Local Authority or local store for recycling advice.
xxWyy yy-week of the year
Technical specications
5059340241678-EF830_A5_IM_GB-V03.indd 165059340241678-EF830_A5_IM_GB-V03.indd 16 13-05-2021 13:17:3013-05-2021 13:17:30

17
EF830
In more detail . . .
Model identier(s): EF830
Item Symbol Value Unit Item Unit
Heat output
Type of heat input, for electric storage local
space heaters only (select one)
Nominal heat
output
Pnom 2.0 kW Manual heat charge control, with
integrated thermostat
No
Minimum
heat output
(indicative)
Pmin 1.0 kW Manual heat charge control with room
and/or outdoor temperature feedback
No
Maximum
continuous
heat output
Pmax,c 2.0 kW Electronic heat charge control with room
and/or outdoor temperature feedback
No
Auxiliary electricity consumption
Fan assisted heat output No
Type of heat output/room temperature control
(select one)
At nominal
heat output
elmax 0.014
(fan motor)
kW Single stage heat output and no room
temperature control
No
At minimum
heat output
elmin 0.014
(fan motor)
kW Two or more manual stages, no room
temperature control
No
In standby
mode
elSB 0.48 W With mechanic thermostat room
temperature control
No
With electronic room temperature control No
Electronic room temperature control plus
day timer
No
Electronic room temperature control plus
week timer
Yes
Other control options (multiple selections
possible)
Room temperature control, with
presence detection
No
Room temperature control, with open
window detection
No
With distance control option No
With adaptive start control Yes
With working time limitation No
With black bulb sensor No
Contact details
Kingsher International Products B.V.
Rapenburgerstraat 175E, 1011 VM Amsterdam,
The Netherlands
www.kingsher.com/products
Technical specications
5059340241678-EF830_A5_IM_GB-V03.indd 175059340241678-EF830_A5_IM_GB-V03.indd 17 13-05-2021 13:17:3113-05-2021 13:17:31

18
EF830
In more detail . . .
Installation
NOTE: This appliance is designed to be permanently xed to a wall at a minimum
height of 300 mm from bottom of heater to oor, and a height of 600 mm from bottom
of heater to oor is recommended for this drawing.
01
[01] x 1
[01]
1000
500
138
600
02
[02] x 1
[04] x 5
[05] x 5
[02]
652
596
1020
Installation
5059340241678-EF830_A5_IM_GB-V03.indd 185059340241678-EF830_A5_IM_GB-V03.indd 18 13-05-2021 13:17:3113-05-2021 13:17:31

19
EF830
In more detail . . .
03
04
[06] x 2
[07] x 1
[07]
[06]
Installation
5059340241678-EF830_A5_IM_GB-V03.indd 195059340241678-EF830_A5_IM_GB-V03.indd 19 13-05-2021 13:17:3113-05-2021 13:17:31

20
EF830
In more detail . . .
05
[04] x 2
[07] x 1
[01]
[07]
06
Installation
5059340241678-EF830_A5_IM_GB-V03.indd 205059340241678-EF830_A5_IM_GB-V03.indd 20 13-05-2021 13:17:3213-05-2021 13:17:32
