Dimplex OPTIFLAME BF Series Quick start guide

ALL BF30 MODELS
PARTS & SERVICE MANUAL
7400640000R03

2
Contents
OPERATION...................................................................................................................... 3
EXPLODED PARTS.......................................................................................................... 6
WIRING DIAGRAM.......................................................................................................... 7
REPLACEMENT PARTS.................................................................................................. 8
TO REPLACE LIGHT BULBS.......................................................................................... 9
TO REPLACE MAIN ON/OFF SWITCH ....................................................................... 10
TO REPLACE FLAME MOTOR/FLAME ROD ............................................................ 11
TO REPLACE FLAME MOTOR/FLAME ROD ............................................................ 12
TO REPLACE HEATER ON/OFF SWITCH.................................................................. 13
TO REPLACE HEATING ELEMENTS.......................................................................... 14
TO REPLACE BLOWER MOTOR / BLOWER............................................................. 15
TO REPLACE TEMPERATURE LIMIT SWITCH........................................................ 16
TO REPLACE REMOTE CONTROL CIRCUIT BOARD............................................. 17
TO REPLACE THE POWER CORD (MODELS BF30DXPI ONLY)........................... 19
TROUBLE SHOOTING GUIDE ..................................................................................... 20
APPEARANCE ........................................................................................................ 20
HEATER................................................................................................................... 21
NOISE....................................................................................................................... 22
GENERAL................................................................................................................ 23

3
OPTIFLAME ELECTRIC FIREPLACE
OPERATION
REMOTE CONTROL
The Optiflame fireplace is supplied with a
radio frequency remote control (all models
except BF36E). This remote control has a
range of approximately 50ft. (15.25m), it does
not have to be pointed at the fireplace and can
pass through most obstacles (including walls).
It is supplied with one of 243 independent
frequencies to prevent interference with other
units. The frequency designation is indicated
on the back of the transmitter (FIGURE 1).
A. Remote Control Initialization
This procedure is required every time there is
a loss of power to the remote control in the
fireplace (i.e. power failure, breaker tripped,
main power switch is turned off)
1. Ensure that power is supplied through
main service panel.
2. Access the manual controls, (remove glass
doors if applicable) pull right hand edge of
right hand steel curtain towards the center
of unit. (FIGURE 2)
3. Locate manual controls refer to FIGURE 3.
4. Activate main power switch, red indicator
light 1 will flash.
5. Press ON button located on the remote
control transmitter (FIGURE 1). This will
synchronize the remote control transmitter
and receiver.

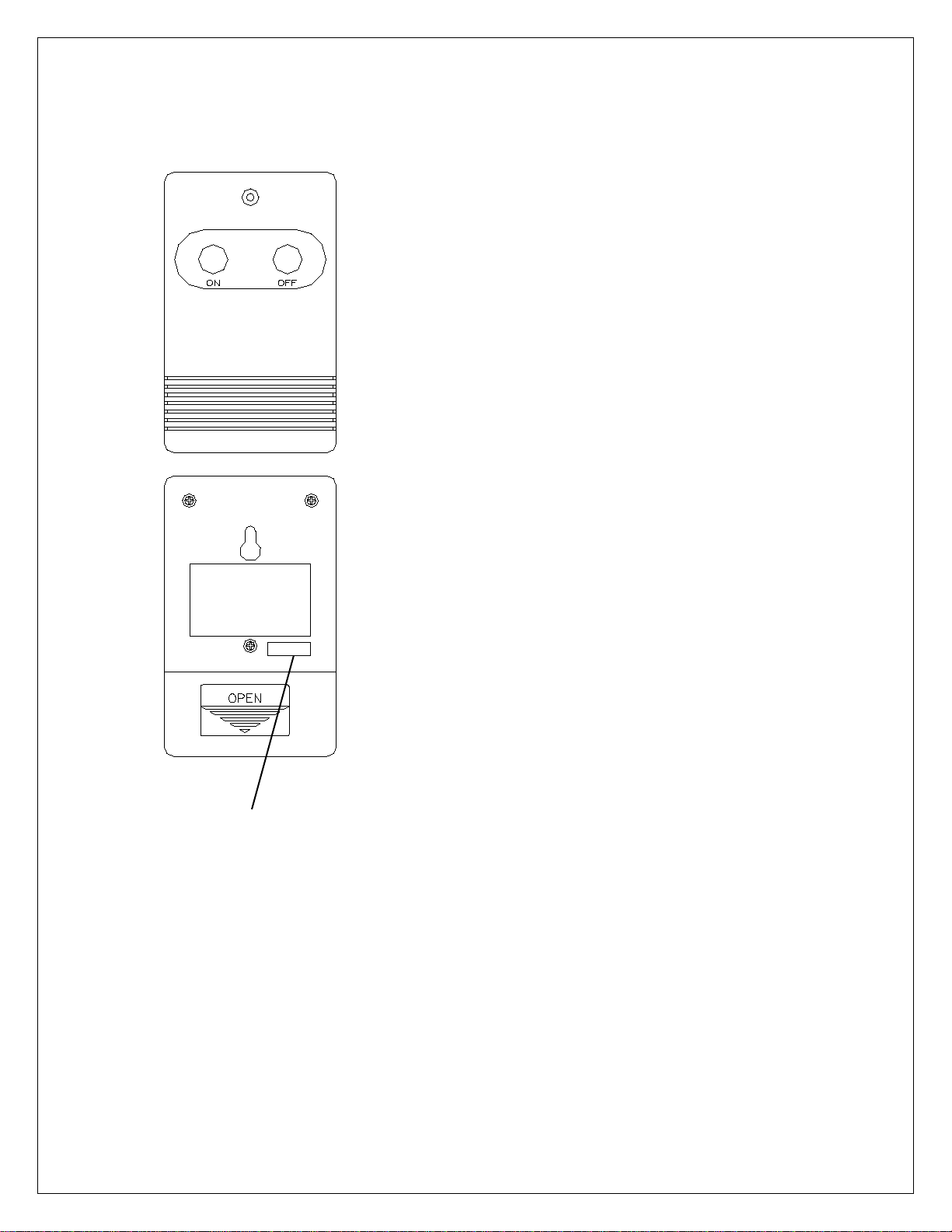

FIGURE 1 B. Remote Control Usage
The remote control operates the fireplace
levels sequentially. The level is increased
every time the ON button on the transmitter is
pressed. The fireplace can be turned off at
any point by pressing the OFF button on the
remote control transmitter.
FIGURE 1

4
OPTIFLAME ELECTRIC FIREPLACE
OPERATION
Level 1: The flame effect is turned on and the
first red indicator light is activated.
Level 2: The flame effect remains on, the
heater is activated to the low heat setting, and
the first and second red indicator lights are
activated.
Level 3: The flame effect remains on, the
heater is set to the high heat setting, and all
three red indicator lights are activated.

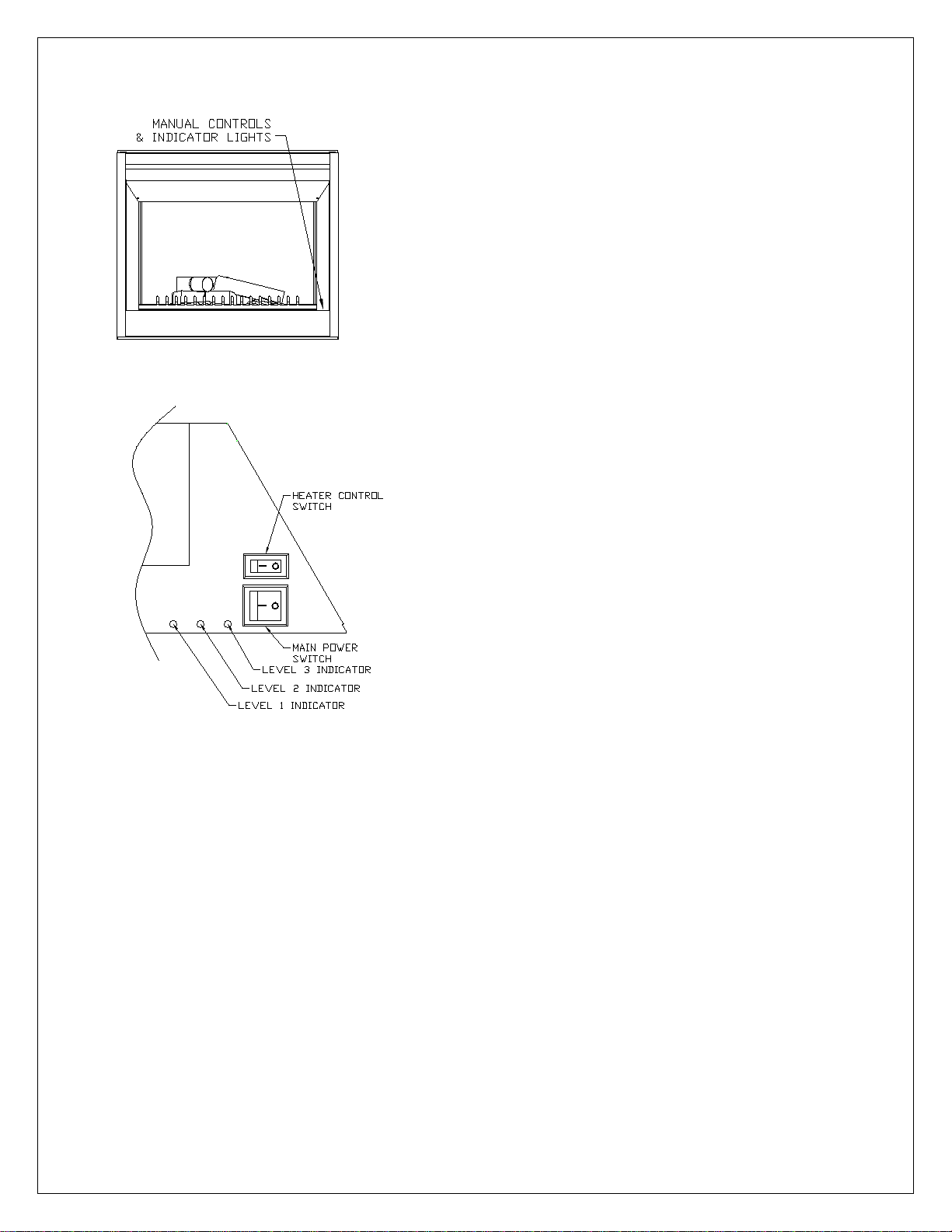

FIGURE 2 MANUAL CONTROLS
The fireplace can also be controlled in a similar
manner to the remote control with switches
located on the fireplace (FIGURE3).
A. Main Power Switch
ALL MODELS WITH REMOTE CONTROL.
Main on/off switch, supplies power to the
remote control receiving unit. When placed in
the on position level 1 indicator will flash.
ALL MODELS WITHOUT REMOTE
CONTROL.
Main on/off switch, activates the flame effect.
FIGURE 3 B. Heater Control Switch
ALL MODELS WITH REMOTE CONTROL.
Operates fireplace in the same manner as the
remote control transmitter. Pressing the left
side of this switch has the same effect as the
ON button on the remote control and the right
side has the same effect as the OFF button of
the remote control. Pressing once to the left
activates Level 1, twice activates Level 2,
three times activates Level 3. Pressing to the
right turns the fireplace off.
ALL MODELS WITHOUT REMOTE
CONTROL.
Heater ON/OFF switch, activates heater to
high level.
FIGURE 3

5
OPTIFLAME ELECTRIC FIREPLACE
OPERATION
WALL MOUNTED CONTROLS
The fireplace can be installed with wall-
mounted controls in addition to the controls
provided. These controls include wall
switches and thermostats.
A. Wall Mounted Thermostats
ALL MODELS WITH REMOTE CONTROL.
When the fireplace is set to Level 2, or Level 3
the wall mounted thermostat will control the
heat output of the unit. When the fireplace is
set to Level 2, or 3 the heater will not activate
until the wall mounted thermostat senses an
ambient temperature lower than the
temperature to which it is set.
B. Wall Mounted Switches
ALL MODELS WITHOUT REMOTE
CONTROL ONLY.
This model may be installed such that a wall-
mounted switch activates the flame effect and
a wall mounted thermostat activates the
heater.
RESETTING THE TEMPERATURE
CUTOUT SWITCH
The heater on this fireplace is protected with a
safety device to prevent overheating. Should
the heater overheat, an automatic cut out will
turn the heater off and it will not come back on
without being reset. It can be reset by
switching the Main Power switch (FIGURE 3)
to OFF and waiting 5 minutes before switching
it to ON.
The remote control will need to be re-initialized.

6
OPTIFLAME ELECTRIC FIREPLACE
EXPLODED PARTS
12
15
5
11
14
13
10
4
3
17
6
1
8
9
7
16
2

7
OPTIFLAME ELECTRIC FIREPLACE
WIRING DIAGRAM

8
OPTIFLAME ELECTRIC FIREPLACE
REPLACEMENT PARTS
BF SERIES FIREPLACES
OPTIFLAME
CATALOGUE NO.
BF30E
BF30ST
BF30DX
BF30DXPI
PART NO.
6900740100
6900740200
6900740600
6900740600
MOD. LEVEL
None
None
None
None
REPLACEMENT PART
1. LOG SET
0438200200RP
0438200200RP
0438200200RP
0438200200RP
2. MIRROR ASSEMBLY
5900160500RP
5900160500RP
5900160900RP
5900160900RP
3. POWER ON/OFF SWITCH
2800070400RP
2800070400RP
2800070400RP
2800070400RP
4. AUXILARY CONTROL SWITCH
2800070700RP
2800070500RP
2800070500RP
2800070500RP
5. WALL MOUNTED THERMOSTAT
N/A
DISCONTINUED
6. LOWER LIGHT HARNESS
2500170200RP
2500170200RP
2500170200RP
2500170200RP
7. FLICKER MOTOR
2000141000RP
2000141000RP
2000141000RP
2000141000RP
8. GROMMET
N/A
9. REFLECTOR ROTISSERIE
5900080600RP
5900080600RP
5900080600RP
5900080600RP
10. BLOWER ASSEMBLY
***Not original – Ignore 240V prong
5300160100RP
5300160100RP
5300160100RP
5300160100RP
11. REMOTE CONTROL TRANSMITTER
***Original no longer available. New
Receiver required to work with new
transmitter.
N/A
3000370600RP
3000370600RP
3000370600RP
12. REMOTE RECEIVER/CIRCUIT
BOARD
***Wiring Conversion Required and
new transmitter to match.
N/A
3000820600RP
3000820600RP
3000820600RP
13. ELEMENT
2200460200RP
2200460200RP
2200460200RP
2200460200RP
14. TEMPERATURE LIMITING SWITCH
2300250100RP
2300250100RP
2300250100RP
2300250100RP
15. CURTAIN ROD
8800250300RP
8800250300RP
8800250300RP
8800250300RP
16. MESH CURTAIN
8800250300RP
8800250300RP
8800250300RP
8800250300RP
17. POWER CORD (BF30DXPI ONLY)
4100040400RP

9
OPTIFLAME ELECTRIC FIREPLACE
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating elements to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the
risk of electric shock or damage to persons.
Light bulbs need to be replaced when you notice a dark section of the flame or
when the clarity and detail of the log exterior disappears. There are four bulbs
under the log set which generate the flames and embers.
It is a good idea to replace all of the light bulbs at one time if they are close to the
end of their rated life. Group replacement will reduce the number of times you
need to open the unit to replace the light bulbs.
TO REPLACE LIGHT BULBS
1. Open the steel curtains (remove glass doors if applicable).
2. Remove the log grate retaining screws and remove the log grate.
3. Pull the rear edge of the log set forward by grasping the ember bed by the
sides (handle the log set only by the ember bed and not the logs) and
pulling firmly until the rear tab pops out from under the back ledge, then lift
out.
4. Locate and examine to determine which bulbs require replacement in the
rear of the unit. If more room is needed the flame rod can be lifted up by
lifting up on the flame rod on the opposite side of the motor.
5. Unscrew bulb counter clockwise.
6. Insert new bulb screwing clockwise.
7. Replace the log set by inserting the front edge, pushing the back down
until the rear tab snaps under the back ledge and the logs are resting
against the mirror.
Quantity 4 clear chandelier or candelabra bulbs with an E-12 (small)
socket base, 60 watt rating. Example GE 60BC or Philips 60CTC
CAUTION DO NOT EXCEED 60 WATTS PER BULB

10
OPTIFLAME ELECTRIC FIREPLACE
If the fireplace was operating prior to servicing allow at least 10 minutes for light
bulbs and heating elements to cool off to avoid accidental burning of skin.
Disconnect circuit power before attempting any maintenance or cleaning to
reduce the risk of electric shock or damage to persons.
TO REPLACE MAIN ON/OFF SWITCH
1. Open the steel curtains (remove glass doors if applicable).
2. Remove the log grate retaining screws and remove the log grate.
3. Pull the rear edge of the log set forward by grasping the ember bed by the
sides (handle the log set only by the ember bed and not the logs) and
pulling firmly until the rear tab pops out from under the back ledge, then lift
out.
4. Remove the light bulb closest to the main on/off switch for easier access.
5. Locate the cover plate by the switches and remove the mounting screws.
6. Remove the cover plate.
7. Reach hand into the opening and locate the main on/off switch.
8. Depress the retainer clips on the rear of the switch and push the switch
out of the bottom cover.
NOTE: It may be necessary to remove the heater on/off switch as well for
easier access.
9. Disconnect the wiring connections noting their original locations.
10.Properly orient the new switch and connect all of the wiring connections.
11.Reassemble in the reverse order as above.
OPTIFLAME ELECTRIC FIREPLACE

11
If the fireplace was operating prior to servicing allow at least 10 minutes for light
bulbs and heating elements to cool off to avoid accidental burning of skin.
Disconnect circuit power before attempting any maintenance or cleaning to
reduce the risk of electric shock or damage to persons.
TO REPLACE FLAME MOTOR/FLAME ROD
1. Open the steel curtains (remove glass doors if applicable).
2. Remove the log grate retaining screws and remove the log grate.
3. Pull the rear edge of the log set forward by grasping the ember bed by the
sides (handle the log set only by the ember bed and not the logs) and
pulling firmly until the rear tab pops out from under the back ledge, then lift
out.
4. Locate and remove the screw under the glass on the same side as the
switches.
5. Reach into the fireplace opening, remove the screw and the inner access
plate.
6. Disconnect the flame motor wiring from the circuit board by gently pulling
off the terminal connections from the circuit board.
7. Lift the flame rod up by pulling up on the flame rod on the opposite side of
the motor.
8. Remove the screws from the flame mounting bracket and remove the
flame rod and motor assembly.
9. Remove the flame motor mounting bracket from motor assembly and
install on the replacement flame motor.
NOTE: When removing the flame motor some damage may occur to the
flame rod. If flame rod is damaged replace to insure proper operation.
10.To remove the flame rod attach needle nose pliers to the spring on the
motor shaft and pull while rotating in the opposite direction of the spring
winding.
11.To replace the flame rod attach needle nose pliers to the flame rod spring
and push onto the flame motor shaft while rotating in the opposite
direction of the spring winding.
OPTIFLAME ELECTRIC FIREPLACE

12
TO REPLACE FLAME MOTOR/FLAME ROD
12.Properly orient the flame motor and connect all of the wiring connections
in their original locations.
13.Reassemble in the reverse order as above.
NOTE: To replace the log set, insert the front edge of the log set and pushing
back down until the rear tab snaps under the back ledge and the logs are
resting against the mirror.

13
OPTIFLAME ELECTRIC FIREPLACE
If the fireplace was operating prior to servicing allow at least 10 minutes for light
bulbs and heating elements to cool off to avoid accidental burning of skin.
Disconnect circuit power before attempting any maintenance or cleaning to
reduce the risk of electric shock or damage to persons.
TO REPLACE HEATER ON/OFF SWITCH
1. Open the steel curtains (remove glass doors if applicable).
2. Remove the log grate retaining screws and remove the log grate.
3. Pull the rear edge of the log set forward by grasping the ember bed by the
sides (handle the log set only by the ember bed and not the logs) and
pulling firmly until the rear tab pops out from under the back ledge, then lift
out.
4. Remove the light bulb closest to the heater on/off switch for easier access.
5. Locate the cover plate by the switches and remove the mounting screws.
6. Remove the cover plate.
7. Reach hand into the opening and locate the heater on/off switch.
8. Depress the retainer clips on the rear of the switch and push the switch
out of the bottom cover.
9. Disconnect the wiring connections noting their original locations.
10.Properly orient the new switch and connect all of the wiring connections.
11.Reassemble in the reverse order as above.

14
OPTIFLAME ELECTRIC FIREPLACE
If the fireplace was operating prior to servicing allow at least 10 minutes for light
bulbs and heating elements to cool off to avoid accidental burning of skin.
Disconnect circuit power before attempting any maintenance or cleaning to
reduce the risk of electric shock or damage to persons.
TO REPLACE HEATING ELEMENTS
1. Open the steel curtains (remove glass doors if applicable).
2. Remove the steel curtains by lifting up on the curtain mounting rod
releasing it from the side mounting tab, and pulling out.
3. Remove the top cover mounting screws from inside the firebox and
remove the top cover by lifting it up from the back, bowing it slightly in the
center and pulling out by one end.
4. Locate the element assembly mounted to the top cover and disconnect
the connections noting their original locations.
5. Using a ¼” box wrench or ratchet remove the hex head screw from both
sides of the element and blower assembly.
NOTE: When removing the element and blower assembly mounting screws
support the assembly to prevent any damage to the unit.
6. Remove the element and blower assembly by rotating the elements down
being careful not to damage the blower wiring.
7. Remove the screws from the element and blower assembly bracket and
separate the blower assembly from the element assembly.
8. Bend the open end of the element retaining bracket just enough so the
element can be removed.
9. Remove the element by pulling down and out from the loose end of the
retaining bracket.
10.Properly orient the replacement element and connect all of the wiring
connections in their original locations.
11.Reassemble in the reverse order as above.

15
OPTIFLAME ELECTRIC FIREPLACE
If the fireplace was operating prior to servicing allow at least 10 minutes for light
bulbs and heating elements to cool off to avoid accidental burning of skin.
Disconnect circuit power before attempting any maintenance or cleaning to
reduce the risk of electric shock or damage to persons.
TO REPLACE BLOWER MOTOR / BLOWER
1. Open the steel curtains (remove glass doors if applicable).
2. Remove the steel curtains by lifting up on the curtain mounting rod
releasing it from the side mounting tab, and pulling out.
3. Remove the top cover mounting screws from inside the firebox and
remove the top cover by lifting it up from the back, bowing it slightly in the
center and pulling out by one end.
4. Locate the element assembly mounted to the top cover and disconnect
the connections noting their original locations.
5. Using a ¼” box wrench or ratchet remove the hex head screw from both
sides of the element and blower assembly.
NOTE: When removing the element and blower assembly mounting screws
support the assembly to prevent any damage to the unit.
6. Remove the element and blower assembly by rotating the elements down
being careful not to damage the blower wiring.
7. Remove the screws from the element and blower assembly bracket and
separate the blower assembly from the element assembly.
8. Disconnect the wiring connections noting their original locations.
9. Properly orient the new blower assembly and connect all of the wiring
connections.
10.Reassemble in the reverse order as above.

16
OPTIFLAME ELECTRIC FIREPLACE
If the fireplace was operating prior to servicing allow at least 10 minutes for light
bulbs and heating elements to cool off to avoid accidental burning of skin.
Disconnect circuit power before attempting any maintenance or cleaning to
reduce the risk of electric shock or damage to persons.
TO REPLACE TEMPERATURE LIMIT SWITCH
1. Open the steel curtains (remove glass doors if applicable).
2. Remove the steel curtains by lifting up on the curtain mounting rod
releasing it from the side mounting tab, and pulling out.
3. Remove the top cover mounting screws from inside the firebox and
remove the top cover by lifting it up from the back, bowing it slightly in the
center and pulling out by one end.
4. Locate the element assembly mounted to the top cover and disconnect
the connections noting their original locations.
5. Using a ¼” box wrench or ratchet remove the hex head screw from both
sides of the element and blower assembly.
NOTE: When removing the element and blower assembly mounting screws
support the assembly to prevent any damage to the unit.
6. Remove the element and blower assembly by rotating the elements down
being careful not to damage the blower wiring.
7. Locate the temperature limit switch and remove the mounting screw.
8. Disconnect the wiring connections noting their original locations.
9. Properly orient the new temperature limit switch and connect all of the
wiring connections.
10.Reassemble in the reverse order as above.

17
OPTIFLAME ELECTRIC FIREPLACE
If the fireplace was operating prior to servicing allow at least 10 minutes for light
bulbs and heating elements to cool off to avoid accidental burning of skin.
Disconnect circuit power before attempting any maintenance or cleaning to
reduce the risk of electric shock or damage to persons.
TO REPLACE REMOTE CONTROL CIRCUIT BOARD
1. Open the steel curtains (remove glass doors if applicable).
2. Remove the log grate retaining screws and remove the log grate.
3. Pull the rear edge of the log set forward by grasping the ember bed by the
sides (handle the log set only by the ember bed and not the logs) and
pulling firmly until the rear tab pops out from under the back ledge, then lift
out.
4. Locate and remove the screw under the glass on the same side as the
switches.
5. Reach into the fireplace opening, remove the screw and the inner access
plate.
6. Locate the cover plate by the switches and remove the mounting screws.
7. Remove the cover plate.
8. Reach hand into the opening and locate the wiring for the red heat
indicator lights.
9. Pull the red heat indicator lights out through the bottom of the mounting
plate noting their original locations.
10.Reach hand into the opening and locate the heater selection switch.
11.Depress the retainer clips on the rear both of the switches and push the
switches up to release them from the mounting plate.
12.Disconnect the switch wiring connections noting their original locations.
13.Locate the remote control circuit board mounted to the back of the unit
and remove the wiring connections noting their original locations.
14.Depress the ends of the four plastic mounting posts with pliers.
15.Remove the remote control circuit board from the unit.

18
OPTIFLAME ELECTRIC FIREPLACE
If the fireplace was operating prior to servicing allow at least 10 minutes for light
bulbs and heating elements to cool off to avoid accidental burning of skin.
Disconnect circuit power before attempting any maintenance or cleaning to
reduce the risk of electric shock or damage to persons.
TO REPLACE REMOTE CONTROL CIRCUIT BOARD
16.Properly orient the replacement circuit board and connect all of the wiring
connections in their original locations.
17. Reassemble in the reverse order as above.
NOTE: When installing the replacement circuit board ensure the red heat
indicator lights are installed into their original mounting locations.

19
OPTIFLAME ELECTRIC FIREPLACE
If the fireplace was operating prior to servicing allow at least 10 minutes for light
bulbs and heating elements to cool off to avoid accidental burning of skin.
Disconnect circuit power before attempting any maintenance or cleaning to
reduce the risk of electric shock or damage to persons.
TO REPLACE THE POWER CORD (MODELS BF30DXPI ONLY)
1. Remove the fireplace from the mantel or wall.
2. Locate the power cord retaining plate and remove the screw.
3. Remove the power cord retaining plate.
4. Locate and remove the power cord wire nuts noting the orientation of the
power cord connections.
5. Reassemble in the reverse order as above.

20
OPTIFLAME ELECTRIC FIREPLACE
TROUBLE SHOOTING GUIDE
APPEARANCE
Problem Flame frozen.
Probable Cause Loose wiring or defective flame motor.
Solution Check all wiring for loose connections, repair/replace
as necessary. If wiring connections are suitable,
replace flame motor.
Service Manual Reference Page 11
Problem Flame not bright, flame not visible.
Probable Cause Loose wiring or burnt out light bulb(s).
Solution Check all wiring for loose connections, repair/replace
as necessary. Check light bulb(s), replace burnt out
bulbs with factory specified bulbs.
Service Manual Reference Page 9
Problem Flame shudder.
Probable Cause Defective flame motor.
Solution Replace flame motor with a new one.
Service Manual Reference Page 11
Problem Log set dim, ember bed not glowing.
Probable Cause Loose wiring or burnt out light bulb(s).
Solution Check all wiring for loose connections, repair/replace
as necessary. Check light bulb(s), replace burnt out
ones with factory specified bulbs.
Service Manual Reference Page 9
