Dimplex ELECTRALOG DF203A User manual

Service Manual
Model Number:
Compact Fireplace
DF203A
DF2006
UL Part Number
6901860100 to 800
7400410000R01
In keeping with our policy of continuous product development, we reserve the right to make changes without notice.
© 2011 Dimplex North America Limited
Dimplex North America Limited
1367 Industrial Road Cambridge ON Canada N1R 7G8
1-888-346-7539 www.dimplex.com
REV PCN DATE
01 - 14-SEP-11
IMPORTANT SAFETY INFORMATION: Always read this manual rst before attempting to service this
replace. For your safety, always comply with all warnings and safety instructions contained in this
manual to prevent personal injury or property damage.

2 www.dimplex.com
Always use a qualied technician or service agency to repair this replace.
!NOTE: Procedures and techniques that are considered important enough to emphasize.
CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the
equipment.
WARNING: Procedures and techniques which, if not carefully followed, will expose the user to the
risk of re, serious injury, or death.
OPERATION.........................................................3
MAINTENANCE ......................................................4
EXPLODEDPARTSDIAGRAM ..........................................5
REPLACEMENT PARTS ................................................6
WIRINGDIAGRAM ...................................................7
MAINPOWERSWITCHREPLACEMENT..................................8
HEATER CONTROL SWITCH REPLACEMENT..............................8
THERMOSTAT CONTROL REPLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
FLICKER MOTOR & REFLECTOR ASSEMBLY REPLACEMENT................9
HEATER ASSEMBLY REPLACEMENT ...................................10
POWER CORD REPLACEMENT ........................................10
MIRRORREPLACEMENT.............................................11
BUILT-IN REMOTE RECEIVER / CIRCUIT BOARD REPLACEMENT............11
LOWER LIGHT HARNESS REPLACEMENT ...............................11
TROUBLESHOOTING GUIDE ..........................................13
TABLE OF CONTENTS

3
Remote Control
The replace is supplied with a radio frequency remote
control. This remote control has a range of approximately
50 feet (15.25 m), it does not have to be pointed at the
replace and can pass through most obstacles (including
walls). It is supplied with one of hundreds of independent
frequencies to prevent interference with other units.
!NOTE: Before attempting any operation with the
remote, pull the plastic insulator strip out from between
the remote casing and battery cover (Figure 2).
To operate, push the ON button to turn replace on, push
the OFF button to turn the replace off.
!NOTE: Ensure that the replace Main ON/OFF
switch is set to the remote control setting.
Remote Control Initialization/Reprogramming
If the hand held transmitter or receiver board has been
replaced, follow these steps to initialize the transmitter and
receiver:
Place the1. Main ON/OFF Switch (Figure 1A) in the OFF
(“O”) position.
Wait a minimum of ve (5) seconds and then place 2.
the Main ON/OFF Switch in the Remote Control
position.
Within3. 10 seconds of changing the switch position,
press the ON button located on the remote control
transmitter (Figure 2).
This will synchronize the remote control transmitter and the
replace receiver.
!NOTE: You will have only 10 seconds to perform this
last step. Failure to do so will result in these steps
needing to be followed again.
Battery Replacement
To replace the battery:
Slide battery cover open on the hand held transmitter1.
(Figure 2).
Install one (1) 12-Volt (A23) battery in the battery 2.
holder.
Close the battery cover3.
Battery must be recycled or disposed of properly.
Check with your Local Authority or Retailer for
recycling advice in your area.
OPERATION
To access the controls, swing down the front cover panel
located on the lower front of the replace. (Figure 1)
A. Main ON/OFF Switch
The switch has two ON positions marked with and
“Manual”. The “Manual“ position is for manual operation.
In this position the built-in remote control is by-passed.
The position is for operating the unit with the provided
remote control.
When in position the unit is operated with the ON and
OFF buttons of the remote control. When the switch is in
the center position the unit is off.
B. Heater ON/OFF Switch
The Heater ON/OFF Switch supplies power to the heater
fan and the heater element. When the switch is in the ON
position the heater operates if the thermostat calls for heat.
C. Heater Thermostat Control
To adjust the temperature to your individual requirements,
turn the thermostat control clockwise all the way to turn
on the heater. When the room reaches the desired
temperature, turn the thermostat knob counter clockwise
until you hear a click. Leave in this position to maintain the
room temperature at this setting. For additional heat, turn
clockwise until you hear the click again and the heater will
turn on.
Resetting The Temperature Cutoff Switch
Should the heater overheat, an automatic cut out will turn
the heater off and it will not come back on without being
reset. It can be reset by switching the Main ON/OFF
Switch to OFF and waiting 5 minutes before switching the
unit back on.
CAUTION: If you need to continuously reset the heater,
unplug the unit and call technical support at 1-888-346-
7539.
!NOTE: The heater may emit a slight, harmless odor
when rst used. This odor is a normal condition caused
by initial heating of internal heater parts and will not occur
again.
Figure 2
Off Button
On
Button
Battery
Cover
Plastic
Strip
Figure 1

4 www.dimplex.com
MAINTENANCE
WARNING: Disconnect power before attempting any
maintenance or cleaning to reduce the risk of re, electric
shock or damage to persons.
Light Bulb Replacement
Allow at least 5 minutes for light bulbs to cool off before
touching bulbs to avoid accidental burning of skin.
Light bulbs need to be replaced when you notice a dark
section of the ame or when the clarity and detail of the log
exterior disappears. There are two (2) bulbs under the log
set which generate the ames and embers.
Helpful Hints
It is a good idea to replace all light bulbs at one time if they
are close to the end of their rated life. Group replacement
will reduce the number of times you need to open the unit
to replace light bulbs.
Bulb Requirements
Quantity of 2 clear chandelier or candelabra bulbs with
an J-12 (small) socket base, 60 watt rating. Example GE
60BC or Philips 60 CTC.
To Replace The Light Bulbs
Unplug the unit from power outlet.1.
On the back of the Compact Fireplace remove the 2.
screws from the light access cover (Figure 11)
Remove the light access cover.3.
Reach into the opening, locate and examine the bulbs4.
to determine which bulb(s) require replacement.
Unscrew the bulb(s) counter clockwise.5.
Insert new bulb(s).6.
Install the light access cover and install the screws.7.
Glass Cleaning
The glass is cleaned in the factory during the assembly
operation. During shipment, installation, handling, etc., the
front glass panel may collect dust particles; these can be
removed by dusting lightly with a clean dry cloth.
To remove ngerprints or other marks, the front glass panel
can be cleaned with a damp cloth. The front glass panel
should be completely dried with a lint free cloth to prevent
water spots. To prevent scratching, do not use abrasive
cleaners or spray liquids on the clear door surface.
Compact Fireplace Surface Cleaning
Use warm water only to clean painted surfaces of the
Compact Fireplace. Do not use abrasive cleaners.
Servicing
Except for light bulb replacement and cleaning described
above, an authorized service representative should perform
any other servicing.
Screws
Light
Bulbs
Light Access
Cover
Figure 3

5
EXPLODED PARTS DIAGRAM
6
18
2
3
4
5
9
10
8
7
14
12
15
11
116
20

6 www.dimplex.com
MODEL/CAT.
#20” Compact 20” Compact
20”
Compact
20”
Compact DF2006 20” Compact DF2006 DF203A
PART NO. 6901860100 6901860200 6901860300 6901860400 6901860500 6901860600 6901860700 6901860800
MOD LEVEL: NONE NONE NONE NONE NONE NONE NONE NONE
PART PART NUMBER
1. Logset 0438270100RP 0478550100RP
2. Flicker
Motor 2000220100RP
3. Heater
Assembly 2200490800RP
4. Cutout 2300270100RP
5. Thermostat 2300150100RP*
6. Heat On/Off
Switch 2800070200RP
7. Capacitor 3200030100RP
8. Terminal
Block 4000070100RP
9. Cord Set 4100090104RP
10. Reector
Assembly 5900340100RP
11. Mirror 5900410100RP 5900560100RP 5900620100RP
12. Front Glass 5900420100RP
13. Bushing,
Snap In 8500000400RP
14. Flicker
Connector 8500680100RP
15. Control
Knob 8800000300RP
16. Lamp
holder
Assembly
4200120800RP 2500170100RP 2500170300RP
17. Heyco
Strain Relief 8500260003RP
18. Main
Power Switch 2800070200RP 2800071100RP
19. Remote
Receiver
(Built-in)
N/A 3000380200RP
20. Remote
Transmitter N/A 3000370500RP
REPLACEMENT PARTS

7
WIRING DIAGRAM
6901860100 - 6901860500 (No Built In Remote Receiver)
6901860600 - 6901860800 (Built In Remote Receiver)

8 www.dimplex.com
MAIN POWER SWITCH REPLACEMENT
Tools Required: Phillips Head Screwdriver
Flat Head Screwdriver
CAUTION: If unit was operating prior to servicing allow
at least 10 minutes for lights, heating elements and top
panel to cool off to avoid accidental burning of skin.
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
Unplug the unit from power outlet.1.
Remove the rebox from the back of the mantel by 2.
removing the retaining screws which secure the rebox
anges to the mantel.
Carefully remove the Compact Fireplace from the 3.
mantel, holding onto the front glass so that it does not
move.
WARNING: The front glass is held to the Compact
Fireplace with double sided tape and could come apart
when separated from the mantel

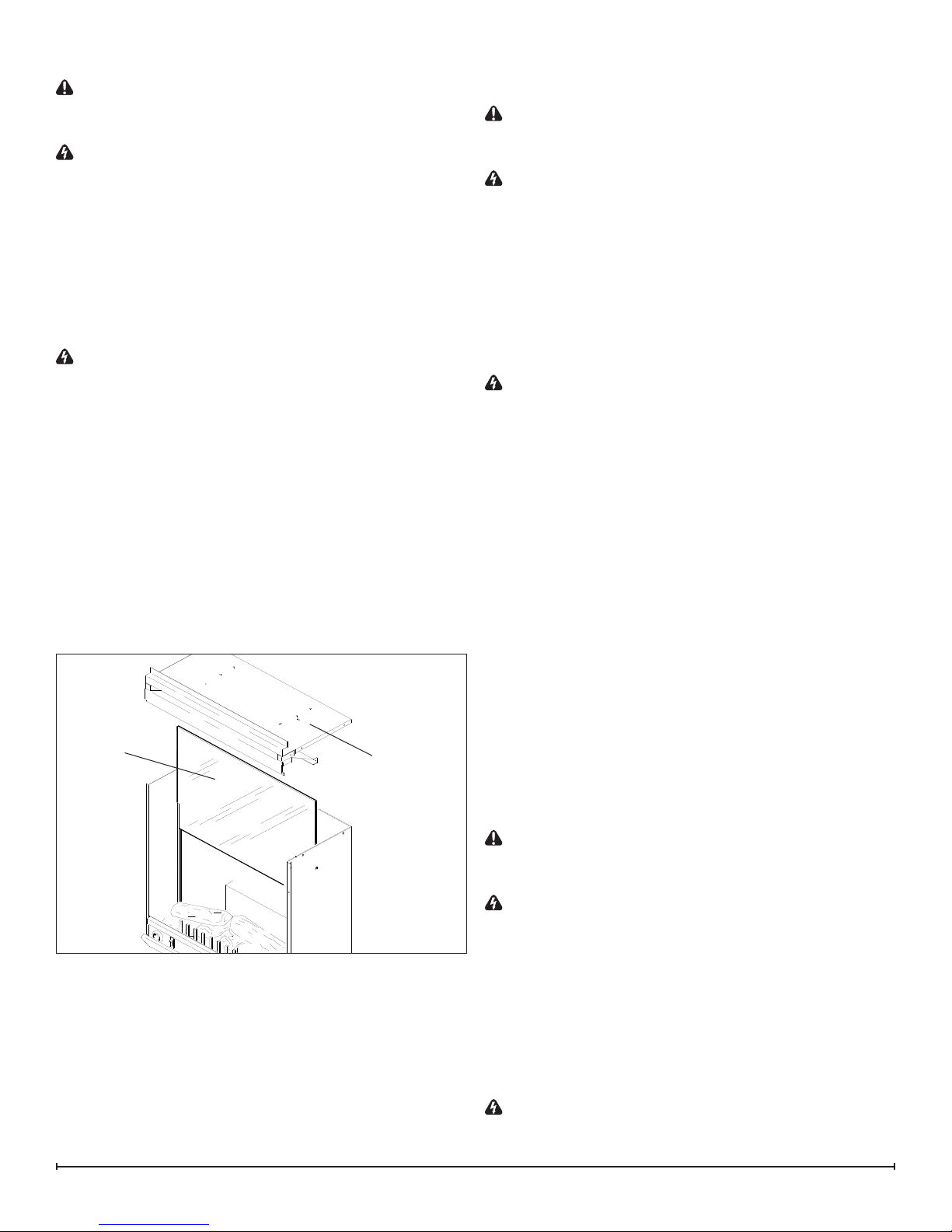

Remove the two screws on each top glass retaining4.
bracket, gently pull glass forward, lift out and set aside
in a safe place. (Figure 4)
Remove the log set screw and remove the log set.5.
Lay the Compact Fireplace on its back.6.
Remove the 4 bottom access panel screws and sepa-7.
rate the bottom access panel from the unit. (Figure 5)
Locate the Main Power switch and disconnect the wir-8.
ing connections noting their original locations.
!NOTE: A at head screwdriver can be used to gently
pry between the end of the connector and the switch to
release the wires.
Depress the retainer clips on the rear of the switch and9.
push the switch out of the bottom access panel.
Properly orient the new switch and connect all of the10.
wiring connections.
Reassemble in the reverse order as above.11.
Figure 4
HEATER CONTROL SWITCH
REPLACEMENT
Tools Required: Phillips Head Screwdriver
Flat Head Screwdriver
CAUTION: If unit was operating prior to servicing allow
at least 10 minutes for lights, heating elements and top
panel to cool off to avoid accidental burning of skin.
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
Unplug the unit from power outlet. 1.
Remove the rebox from the back of the mantel by 2.
removing the retaining screws which secure the rebox
ange to the mantel.
Carefully remove the Compact Fireplace from the 3.
mantel, holding onto the front glass so that it does not
move.
WARNING: The front glass is held to the Compact
Fireplace with double sided tape and could come apart
when separated from the mantel.
Remove the two screws on each top glass retaining4.
bracket, gently pull glass forward, lift out and set aside
in a safe place. (Figure 4)
Remove the log set screw and remove the log set.5.
Lay the Compact Fireplace on its back.6.
Remove the 4 bottom access panel screws and sepa-7.
rate the bottom access panel from the unit. (Figure 5)
Locate the Heater control switch and disconnect the8.
wiring connections noting their original locations.
!NOTE: A at head screwdriver can be used to gently
pry between the end of the connector and the switch to
release the wires.
Depress the retainer clips on the rear of the switch and9.
push the switch out of the bottom access panel.
Properly orient the new switch and connect all of the10.
wiring connections.
Reassemble in the reverse order as above.11.
On/Off/Remote
Switch
Heater On/Off
Switch
Figure 5

9
Mounting
Screws
Control Knob
THERMOSTAT CONTROL
REPLACEMENT
Tools Required: Phillips Head Screwdriver
Flat Head Screwdriver
CAUTION: If unit was operating prior to servicing allow
at least 10 minutes for lights, heating elements and top
panel to cool off to avoid accidental burning of skin.
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
Unplug the unit from power outlet.1.
Remove the rebox from the back of the mantel by 2.
removing the retaining screws which secure the rebox
ange to the mantel.
Carefully remove the Compact Fireplace from the 3.
mantel, holding onto the front glass so that it does not
move.
WARNING: The front glass is held to the Compact
Fireplace with double sided tape and could come apart
when separated from the mantel
Remove the two screws on each top glass retaining4.
bracket, gently pull glass forward, lift out and set aside
in a safe place. (Figure 4)
Remove the log set screw and remove the log set.5.
Lay the Compact Fireplace on its back.6.
Remove the 4 bottom access panel screws and sepa-7.
rate the bottom access panel from the unit. (Figure 5)
Locate the thermostat control and pull off the ther-8.
mostat control knob to expose the mounting screws.
(Figure 6)
Remove the mounting screws.9.
Disconnect the wiring connections noting their original10.
locations and remove the thermostat control switch.
Properly orient the new thermostat control switch and11.
reconnect all wiring connections.
Reassemble in the reverse order as above.12.
FLICKER MOTOR & REFLECTOR
ASSEMBLY REPLACEMENT
Tools Required: Phillips Head Screwdriver
Flat Head Screwdriver
CAUTION: If unit was operating prior to servicing allow
at least 10 minutes for lights, heating elements and top
panel to cool off to avoid accidental burning of skin.
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
Unplug the unit from power outlet.1.
Remove the rebox from the back of the mantel by 2.
removing the retaining screws which secure the rebox
ange to the mantel.
Carefully remove the Compact Fireplace from the 3.
mantel, holding onto the front glass so that it does not
move.
WARNING: The front glass is held to the Compact
Fireplace with double sided tape and could come apart
when separated from the mantel
Remove the two screws on each top glass retaining4.
bracket, gently pull glass forward, lift out and set aside
in a safe place. (Figure 4)
Remove the log set screw and remove the log set.5.
Lay the Compact Fireplace on its back.6.
Remove the 4 bottom access panel screws and sepa-7.
rate the bottom access panel from the unit. (Figure 5)
Locate and disconnect the 3 motor assembly wires go-8.
ing to the terminal block. (Figure 7)
Remove the 2 motor mounting screws.9.
Separate the motor from the icker connector and 10.
remove.
Slide the reector assembly out of the snap-in bushing 11.
and remove.
Reassemble in the reverse order as above.12.
Figure 6
Flicker
Rod
Flicker Con-
nector
Flicker Motor
Figure 7

10 www.dimplex.com
HEATER ASSEMBLY REPLACEMENT
Tools Required: Phillips Head Screwdriver
Flat Head Screwdriver
CAUTION: If unit was operating prior to servicing allow
at least 10 minutes for lights, heating elements and top
panel to cool off to avoid accidental burning of skin.
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
Unplug the unit from power outlet.1.
Remove the rebox from the back of the mantel by 2.
removing the retaining screws which secure the rebox
ange to the mantel.
Carefully remove the Compact Fireplace from the 3.
mantel, holding onto the front glass so that it does not
move.
WARNING: The front glass is held to the Compact Fire-
place with double sided tape and could come apart when
separated from the mantel
Remove the two screws on each top glass retaining4.
bracket, gently pull glass forward, lift out and set aside
in a safe place. (Figure 4)
Remove the 6 screws that secure the top panel to the5.
rebox and lift off the top panel.
Disconnect heater assembly wires, noting their original6.
locations.
!NOTE: A at head screwdriver can be used to gently
pry between the end of the connector and the heater to
release the wires.
Remove the 4 screws that secure the top panel to the7.
heater assembly
Remove the 2 hanging brackets and the high tempera-8.
ture cutout and install them on the new heater assem-
bly. (Figure 8)
Properly orient the new heater assembly and connect9.
all of the wiring.
WARNING: Ensure wires do not come in contact with
moving parts by securing wires in wiring tie wraps.
!NOTE: When re-installing the bottom heater pan, en-
sure that the heater assembly wires are clear of the blower
wheel. Additional wiring tie wraps may be required.
Reassemble in the reverse order as above.10.
POWER CORD REPLACEMENT
CAUTION: If unit was operating prior to servicing allow
at least 10 minutes for lights, heating elements and top
panel to cool off to avoid accidental burning of skin.
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
Unplug the unit from power outlet.1.
Remove the rebox from the back of the mantel by 2.
removing the retaining screws which secure the rebox
Power Cord
Strain Relief
anges to the mantel.
Carefully remove the Compact Fireplace from the 3.
mantel, holding onto the front glass so that it does not
move.
WARNING: The front glass is held to the Compact
Fireplace with double sided tape and could come apart
when separated from the mantel
Remove the two screws on each top glass retaining4.
bracket, gently pull glass forward, lift out and set aside
in a safe place. (Figure 4)
Remove the log set screw and remove the log set.5.
Lay the Compact Fireplace on its back.6.
Remove the 4 bottom access panel screws and sepa-7.
rate the bottom access panel from the unit. (Figure 5)
Locate and disconnect the power cord wiring connec-8.
tions noting their original locations. (Figure 9)
With needle nose pliers, grasp the power cord strain9.
relief grommet from inside the back of the bottom panel
and push while twisting to remove.
Install the new power cord.10.
Reassemble in the reverse order as above.11.
Figure 9
Mounting Brackets
High
Temperature
Cutout
Top Panel
Heater
Assembly
Figure 8

11
Mirror Top Panel
MIRROR REPLACEMENT
CAUTION: If unit was operating prior to servicing allow
at least 10 minutes for lights, heating elements and top
panel to cool off to avoid accidental burning of skin.
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
Unplug the unit from power outlet.1.
Remove the rebox from the back of the mantel by 2.
removing the retaining screws which secure the rebox
ange to the mantel.
Carefully remove the Compact Fireplace from the 3.
mantel, holding onto the front glass so that it does not
move.
WARNING: The front glass is held to the Compact
Fireplace with double sided tape and could come apart
when separated from the mantel
Remove the two screws on each top glass retaining4.
bracket, gently pull glass forward, lift out and set aside
in a safe place. (Figure 4)
Remove the screws that secure the top panel and the5.
heater support panel to the rebox and lift off the top
panel.
Support the top panel so that the heater wires are not6.
strained and remove the heater support panel and set
aside.
Replace old mirror with new mirror.7.
Reassemble in the reverse order as above.8.
BUILT-IN REMOTE RECEIVER /
CIRCUIT BOARD REPLACEMENT
CAUTION: If unit was operating prior to servicing allow
at least 10 minutes for lights, heating elements and top
panel to cool off to avoid accidental burning of skin.
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
Unplug the unit from power outlet.1.
Remove the rebox from the back of the mantel by 2.
removing the retaining screws which secure the rebox
ange to the mantel.
Carefully remove the Compact Fireplace from the 3.
mantel, holding onto the front glass so that it does not
move.
WARNING: The front glass is held to the Compact Fire-
place with double sided tape and could come apart when
separated from the mantel
Remove the two screws on each top glass retaining4.
bracket, gently pull glass forward, lift out and set aside
in a safe place. (Figure 4)
Lay the Compact Fireplace on its back.5.
Remove the 4 bottom access panel screws and sepa-6.
rate the bottom access panel from the unit. (Figure 5)
Locate the remote circuit board mounted on the side7.
panel.
Release the circuit board from the side panel by using8.
needle nose pliers to depress the tab on the mounting
standoffs and gently lift the board off.
Relocate the wires from the old board to the new board.9.
!NOTE: A at head screwdriver can be used to gently
pry between the end of the connector and the circuit board
to release the wires.
Re-assemble the compact replace in reverse order.10.
LOWER LIGHT HARNESS
REPLACEMENT
CAUTION: If unit was operating prior to servicing allow
at least 10 minutes for lights, heating elements and top
panel to cool off to avoid accidental burning of skin.
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
Unplug the unit from power outlet.1.
Remove the rebox from the back of the mantel by 2.
removing the retaining screws which secure the rebox
ange to the mantel.
Carefully remove the Compact Fireplace from the 3.
mantel, holding onto the front glass so that it does not
move.
WARNING: The front glass is held to the Compact Fire-
place with double sided tape and could come apart when
Figure 10

12 www.dimplex.com
separated from the mantel
Remove the two screws on each top glass retaining4.
bracket, gently pull glass forward, lift out and set aside
in a safe place. (Figure 4)
Lay the Compact Fireplace on its back.5.
Remove the 4 bottom access panel screws and sepa-6.
rate the bottom access panel from the unit. (Figure 5)
On the bottom of this bottom access panel, remove the7.
screws (9) which secure the socket mounting panel to
the bottom panel of the rebox.
Remove the light bulbs from the sockets by turning8.
each one counter clockwise until they are free.
Remove the sockets from their mounting panel and dis-9.
connect the socket wires attached to the terminal block
near the icker motor. Be sure to note their original
location in the terminal block.
!NOTE: Dependent on the age of the unit the sock-
ets may be secured with either a screw ring or a snap in
socket.
Attach the replacement sockets into the each socket10.
opening on the housing panel/bracket.
Re-assemble the compact replace in reverse order.11.

13
PROBLEM CAUSE SOLUTION
General
Circuit breaker trips or fuse
blows when unit is turned on
Short in unit wiring. Trace wiring in unit.
Improper circuit current rating Additional appliances may exceed the current rating
of the circuit breaker or fuse. Plug unit into another
outlet or install unit on a dedicated 15 amp circuit.
Unit turns on or off by itself Remote control has a similar frequency
to other remotes in the area.
Replace Remote Control
Radio frequency disturbance from out-
side sources.
Replace hand held remote control and receiver board
where necessary.
Defective circuit board Replace circuit board
Lights dim in room while the unit
is on
Unit is drawing close to circuit current
rating
Move the unit to another outlet or install unit on a dedi-
cated 15 amp circuit
Power cord gets warm Normal Operation The power cord may get slightly warm to the touch
when the heater is on
Defective power cord Replace power cord if cord gets hot to the touch.
Appearance
Fireplace does not turn on Manu-
ally
Improper operation Refer to Operation Section
No incoming voltage from the electrical
wall socket
Check Fuse/Breaker Panel
Defective main On/Off/Remote switch Replace main On/Off/Remote switch
Defective Circuit Board Replace Circuit Board
Loose wiring Check wiring connections
Fireplace does not turn on with
the Remote Control
Improper operation Refer to Operation Section
Remote control not initialized to replace Initialize the remote control
Defective remote control Install new battery into the handheld transmitter. Re-
initalize remote where necessary
Replace remote control receiver and circuit board
where necessary
Defective circuit board Replace circuit board
Loose wiring Check wiring connections
Flame Frozen Defective ame motor Replace ame motor
Loose wiring Check wiring connections
Flame not bright or ame not
visible
Burnt out light bulbs Replace light bulbs/ LED Strip
Loose wiring Check wiring connections
Defective light harness Replace light harness
Log set dim, not glowing Burnt out light bulbs Replace light bulbs
Flame Shutter Defective ame motor Replace ame motor
Light leaking around the log set Log set not positioned properly Check log set for proper t
Heater
Heater is not turning off Improper operation Refer to Operation Section
Defective heater on/off switch Replace heater on/off switch
Loose wiring Trace wiring in unit
TROUBLESHOOTING GUIDE

14 www.dimplex.com
PROBLEM CAUSE SOLUTION
Heater Continued
Heater is not turning on, but
ame effect is still functioning
Improper operation Refer to Operation Section
Defective heater assembly Replace heater assembly
Defective heater on/off switch Replace heater on/off switch
Heater is turning off after a
couple of minutes of operation
Build up of dirt/dust in heater assembly Clean out heater assembly
Defective Heater Assembly Replace Heater Assembly
Heater emits an odor Normal Operation Normal operation is when the heater emits an odor
for a brief period after the heater is initially turned on.
The heater is burning off any dust accumulated during
manufacturing or operation.
Defective heater assembly Replace heater assembly
Heater fan turns on but heater
lacks heat
Improper operation Refer to Operation Section
Defective thermostat Replace thermostat
Loose wiring Trace wiring in unit
Defective heater assembly Replace heater assembly
Heating element is glowing red Normal Operation Small glowing sections of the element are considered
normal.
Defective heater assembly If larger glowing sections are causing the heater to trip
the thermal cutout, unplug unit, discontinue use and
replace heater assembly.
Heater fan runs continuously Loose wiring Trace wiring in unit
Defective heater on/off switch Replace heater on/off switch
Defective heater assembly Replace heater assembly
Defective thermostat Replace thermostat
Noise
Excessive noise with the heater
on
Dirty blower assembly Clean blower assembly
Defective blower assembly Replace heater assembly
Grinding or excessive noise with
the heater off
Moving ame rod hitting or rubbing
against internal components
Ensure rod is straight and mounted properly in the
bracket, spinning freely away from other components.
Replace if necessary.
Defective ame motor Replace ame motor
