Revillusion™ 20" Electric Log Set
Model RLG20 (6909740159)
Owner’s Manual
IMPORTANT SAFETY INFORMATION: Read this manual rst before attempting
to install or use the Revillusion™ Log Set. Always comply with the warnings and
safety instructions contained in this manual to prevent personal injury or property
damage.
To view the full line of Dimplex products,
visit www.dimplex.com

2 www.dimplex.com
Table of Contents
SAVE THESE INSTRUCTIONS
Conventions used in this manual:
!NOTE: Procedures and techniques that are considered important enough to
emphasize.
CAUTION: Procedures and techniques which, if not carefully followed, will result in
damage to the equipment.
WARNING: Procedures and techniques which, if not carefully followed, will expose
the user to the risk of re, serious injury, or death.
Welcome ..............................................................3
IMPORTANT INSTRUCTIONS ............................4
Installation ............................................................6
Operation ..............................................................9
Maintenance ...................................................... 11
Warranty ...........................................................12
Technical Support ..............................................14

3
Welcome
Thank you for purchasing a Revillusion™ Log Set by Dimplex. Please use our
convenient online registration page to record your model and serial numbers for
future reference at:
www.dimplex.com/register
CAUTION: Read all instructions and warnings carefully before starting installation.
Failure to follow these instructions may result in a possible electric shock or re hazard
and will void the warranty.
Serial Number
Model Number
MOD
MODEL / CAT NO
SERIAL NO
NO NEED TO RETURN TO THE STORE
Questions with operation or assembly? Require Parts Information?
Product Under Manufacturer’s Warranty?
Contact us at: www.dimplex.com/customer_support
For Troubleshooting and Technical Support
OR Toll-Free 1-888-DIMPLEX (1-888-346-7539)
Monday to Friday 8:00 a.m. to 4:30 p.m. EST
In order to better serve you, please have your model and serial numbers
ready or register your product online before calling (see above).

4 www.dimplex.com
Basic Precautions
When using any electrical appliance,
basic precautions should always be
followed to reduce the risk of fire,
electric shock, and injury to persons.
These precautions include:
① Read all instructions before using
the log set.
DANGER: High temperatures may
be generated under certain abnormal
conditions. Do not partially or fully cover or
obstruct the front of the log set.
② Extreme caution is necessary when
any heater is used by or near children
or invalids and whenever the log set is
left operating and unattended.
③ Always unplug the log set when it is
not in use.
④ Do not operate the log set with a
damaged cord or plug or after the log
set malfunctions, has been dropped,
or damaged in any manner. Contact
Dimplex Technical Service at 1-888-
346-7539.
⑤ Do not use this log set outdoors.
⑥ This log set is not intended for
use in bathrooms, laundry areas, and
similar indoor locations. Never locate
the log set where it may fall into a
bathtub or other water container.
⑦ Do not run power cord under
carpeting. Do not cover cord with throw
rugs, runners, or similar coverings.
Do not route cord under furniture or
appliances. Arrange cord away from
traffic area and where it will not be
tripped over.
IMPORTANT INSTRUCTIONS
⑧ To disconnect the log set, turn the
control to Off, then remove plug from
outlet.
⑨ Connect the power cord to a
properly grounded outlet only.
⑩ Do not insert or allow foreign
objects to enter any ventilation or
exhaust opening as this may cause an
electric shock or fire, or damage the
log set. To prevent a possible fire, do
not block air intakes or exhaust in any
manner. Do not use on soft surfaces,
like a bed, where openings may
become blocked.
⑪ This log set has hot and arcing
or sparking parts inside. Do not use
it in areas where gasoline, paint, or
flammable liquids are used or stored.
⑫ Use this log set only as described
in this manual. Any other use not
recommended by the manufacturer
may cause fire, electric shock, or injury
to persons.
⑬ Always plug the log set directly into
a wall outlet/receptacle. Never use with
an extension cord or relocatable power
tap (outlet/power strip).
⑭ Do not burn wood or other materials
on the log set.

5
Special Precautions
WARNING: Remote control contains
a small battery. Keep away from children.
If swallowed, seek medical attention
immediately.
WARNING: Do not install battery
backwards, charge, put in re or mix with
used or other battery types as it may
explode or leak causing injury.
CAUTION: Do not open the unit. There
is a risk of electric shock. There are no
user-serviceable parts inside.
CAUTION: Always use a qualied
technician or service agency to repair
this unit.
IMPORTANT INSTRUCTIONS
FCC Compliance
CAUTION: This unit has been tested
and found to comply with the limits for
Class B digital device, pursuant to part
15 of the FCC Rules. These limits are
designed to provide reasonable protection
against harmful interference in a residential
installation. This unit generates, uses and
can radiate radio frequency energy and,
if not installed and used in accordance
with the instructions, may cause harmful
interference to radio or television reception,
which can be determined by turning the unit
OFF and ON, the user is encouraged to try
to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the unit
and the receiver.
• Connect the unit into an outlet on a
circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.
This unit complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This unit may not cause
harmful interference, and (2) this unit must
accept any interference received, including
interference that may cause undesired
operation.
FCC CAUTION: Any changes or
modications not expressly approved by
the party responsible for compliance could
void the user’s authority to operate this
equipment.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICEABLE PARTS INSIDE

6 www.dimplex.com
Installation
The Revillusion™ Log Set Model RLG20 offers an alternative to wood or gas
fireplaces. It can give your existing fireplace new life or transform a cabinet or
media center of your own into a stunning focal point.
Specifications
Electrical
Volts: 120 V, 60 Hz
Amps: 12.5 A
Watts: 1500 W
Wiring: Plug-In
Bulb Type: LED
Approvals
Dimensions
Width: 23.7" (603 mm)
Height: 19.0" (482 mm)
Depth: 12.5" (317 mm)
Weight: 11 lbs (5.0 kg)
Operating Temperature Range:
-4o to 104o F (-20oto 40o C)
NOTE: A 15 Amp, 120 Volt circuit is
required. A dedicated circuit is preferred,
but not essential in all cases. A dedicated
circuit will be required if, after installation,
the circuit breaker trips or the fuse blows
on a regular basis when the heater is
operating. Additional appliances on the
same circuit may exceed the current rating
of the circuit breaker.
WARNING: Electrical outlet wiring
must comply with local building codes and
other applicable regulations to reduce
the risk of re, electric shock, or injury to
persons.
!
Placement

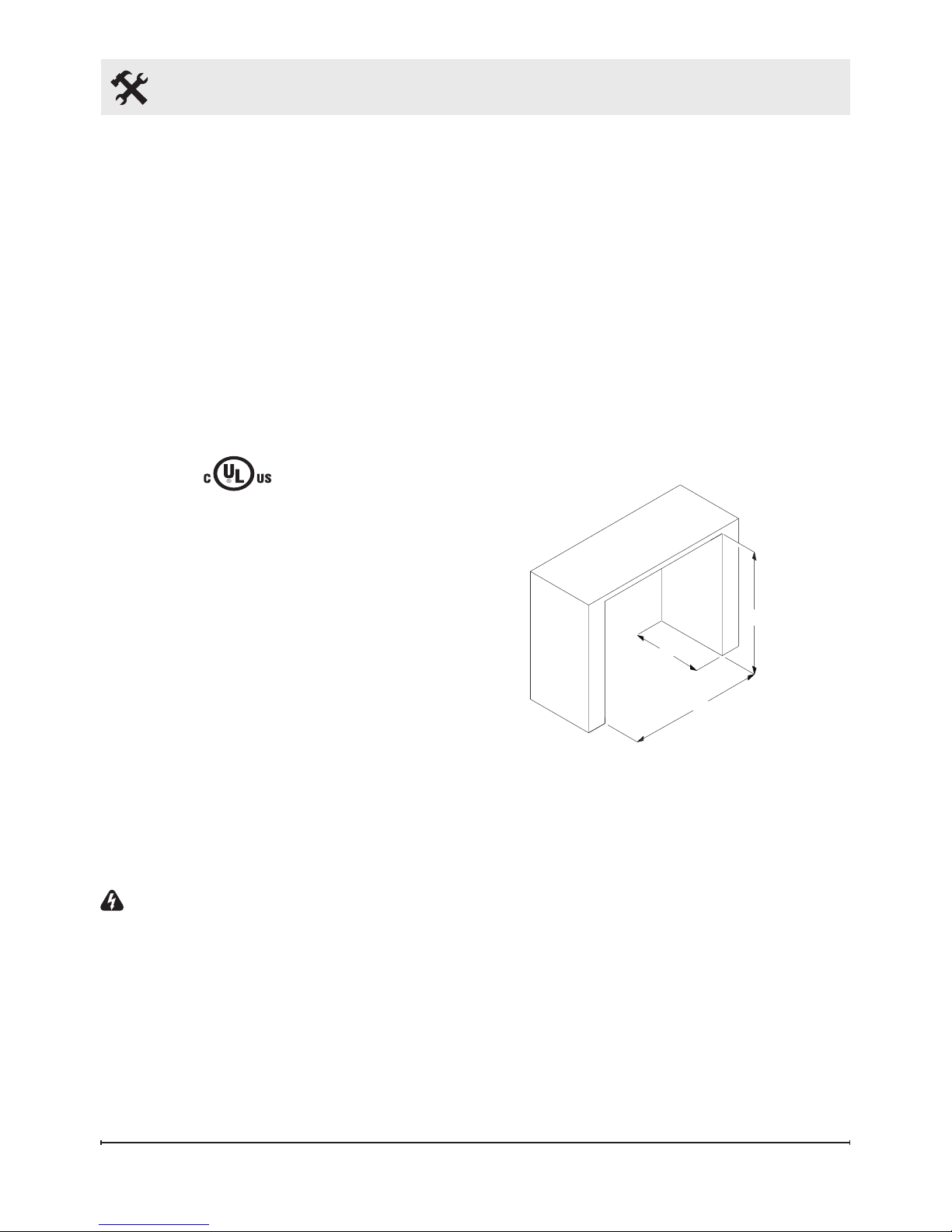

1. The Revillusion log set does not
require any special venting. Install
the unit in an opening with the
minimum dimensions:
A. 24" (610 mm) wide,
B. 22" (559 mm) high
C. 14" (356 mm) deep.
2. Make sure there is clearance for air
circulation beneath the unit.
3. If installing in an existing fireplace
opening, seal all drafts and vents
with a non-fibrous insulation
material to prevent any chimney
debris from falling onto the unit. Do
not install into an existing fireplace
opening that is prone to dampness.
A
B
C

7
Installation
Assembly

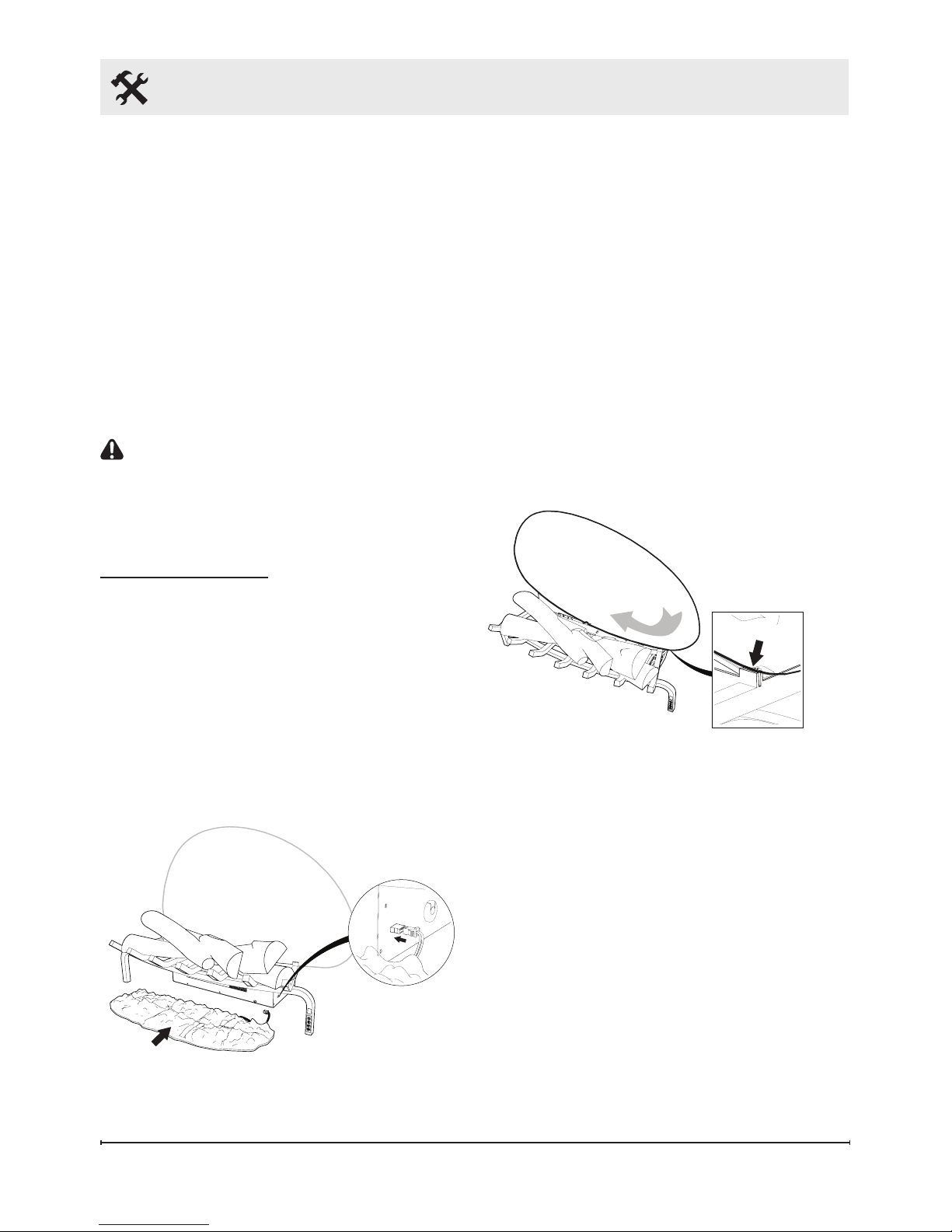

1. Place the log set into position.
a. Lift the log set by holding the
sides of the heater box for
stability. Do not lift by gripping
the logs or the front grate legs.
b. If installing the unit in a carpeted
area, place a one-piece, solid,
flat surface under the unit. Make
sure that both of the grate feet
rest securely on this surface.
CAUTION: Each of the Realogs™
contain LEDs that pulse and glow. Handle
the log set carefully. They are fragile and
can crack or break if dropped.
Ember Mat Option
An ember mat is available as an
optional accessory and can be
purchased separately.
2. Place the ember mat in front and
below the grate.
3. Connect the wires from the ember
mat to the connector on the right
side of the grate box.
4. Install the Mirage™ Flame Panel by
inserting the bottom edge into the
tabs between the back log and grate
log assemblies.
a. The painted side should be at
the back and the smooth side to
the front.
b. Position the screen so that the
cutout in the middle aligns with
the center tab. Start on one end
to insert the screen in all the
way across. When in place, the
screen should be centered and
slightly curved.
5. Plug the unit directly into a wall
outlet.

8 www.dimplex.com
Grounding Instructions
This product must be grounded. If it
should malfunction or break down,
grounding provides a path of least
resistance for electric current to reduce
the risk of electric shock. This product
is equipped with a cord having an
equipment-grounding conductor and a
grounding plug.
The plug must be plugged into an
appropri ate outlet that is properly
installed and grounded in accordance
with all local codes and ordinances.
DANGER: Improper connec tion of
the equipment-grounding conductor can
result in a risk of electric shock. Check with
a qualied electrician or serviceman if you
are in doubt as to whether the product is
properly grounded. Do not modify the plug
provided with the product – if it will not t
the outlet, have a proper outlet installed by
a qualied electrician.
This product is for use on a nominal
120-volt circuit and has a grounding
plug that looks like the plug in the
following figure. Make sure that the
product is connected to an outlet
having the same con figuration as the
plug. No adapter should be used with
this product.
Installation

9
Manual Control

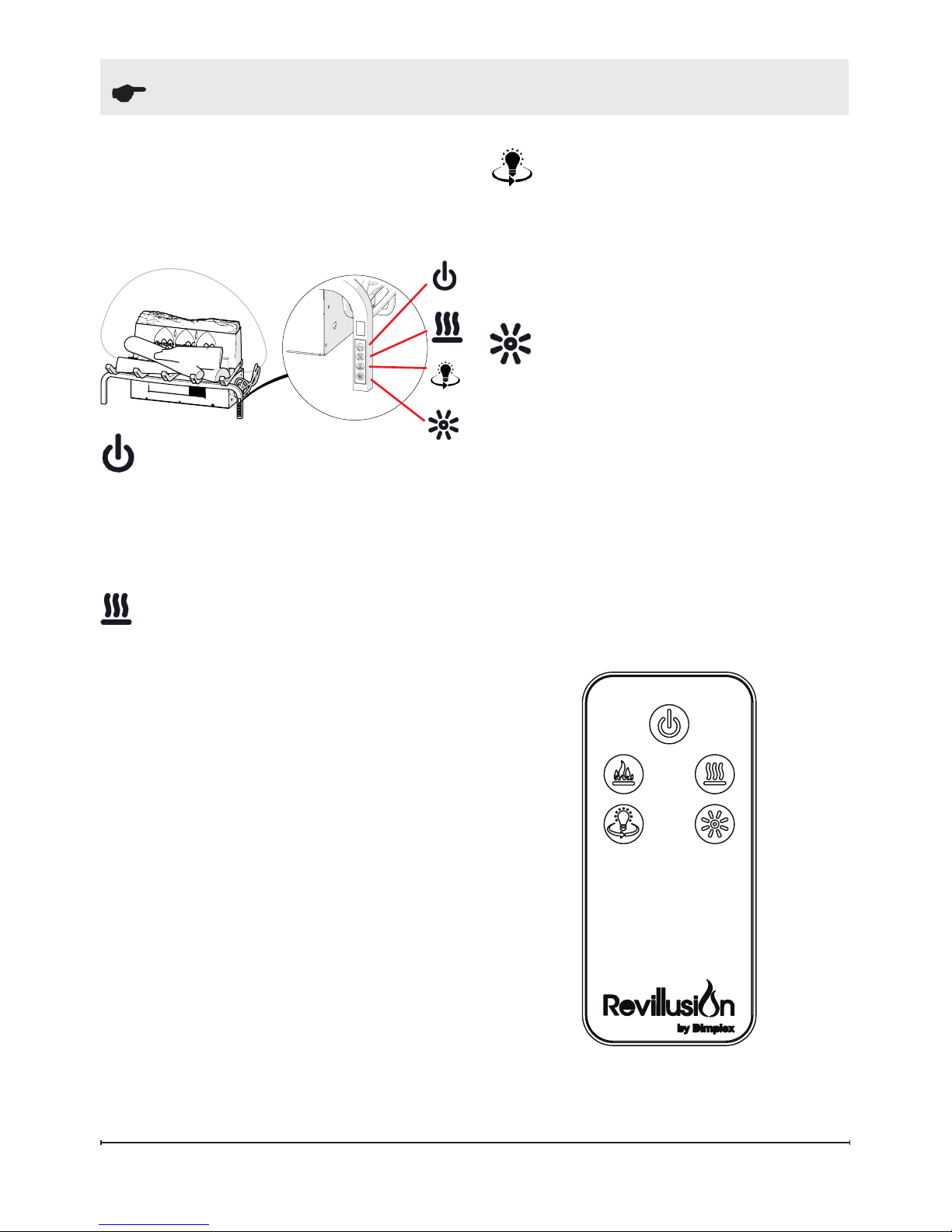

The manual controls for the Revillusion
are located on the right-front leg of the
log grate.
Power
Press to turn the flame effect on
and activate the previous heat
setting (Off, Low, or High). Press
again to put the unit in standby
mode.
Heat
• Heat On
Press to set the heat to Low
(indicated by 1 short beep).
Press again to set the heat
to High (indicated by 2 short
beeps).
• Heat Off
Press to turn heat Off (indicated
by 1 long beep).
NOTE: After the heater is
switched off, the fan will continue on
for 60 seconds before turning off.
The log LEDs remain On when the
heater is ON and the ame effect is
Off.
!
Operation
360oLight
Press multiple times to change
the LEDs on the sides and back
of the unit from white flickering to
white solid to Off. (This feature is
active only when the flame effect
is On.)
Brightness
Press multiple times to toggle
the log set LEDs through its four
brightness settings.
Remote Control
The replace is supplied with a multi-
function remote control.
The remote control has a range of
approximately 30 ft (9 m). To operate
correctly, the remote control must be
pointed toward the front of the unit.

10 www.dimplex.com
Power
Press to activate the current
standby state (On/Off).
•Standby State On
Press to turn everything Off.
Press again to active the
previous flame effect state.
•Standby State Off
Press to activate the previous
flame effect state.
- If the flame effect was On, the
previous heat setting will be
activated (High, Low, or Off).
- If the flame effect was Off, the
previous heat setting will be
activated (High or Low).
Press again to turn everything
Off.
Flame
Press to light the back log, grate
log, and ember mat (optional),
and start the flame effect.
Heat
• Heat On
Press to set the heat to Low
(indicated by 1 short beep).
Press again to set the heat
to High (indicated by 2 short
beeps).
• Heat Off
Press to turn heat Off (indicated
by 1 long beep).
NOTE: After the heater is
switched off, the fan will continue on
for 60 seconds before turning off.
The log LEDs remain On when the
heater is ON and the ame effect is
Off.
!
Operation
360oLight
Press multiple times to change
the LEDs on the sides and back
of the unit from white flickering to
white solid to Off. (This feature is
active only when the flame effect
is On.)
Brightness
Press multiple times to toggle
the log set LEDs through its four
brightness settings.

11
General Maintenance
Inspect the log set regularly, depending
upon conditions, and at a minimum
yearly intervals. Remove dust and
clean the logs, mat, grate, and base as
required.
Except for installation and cleaning
described in this manual, an authorized
service representative should perform
any other servicing.
WARNING: Disconnect power and
allow heater to cool before attempting any
maintenance or cleaning to reduce the risk
of re, electric shock, or injury.
Clean Logs and Base
The log set should not be operated with
an accumulation of dust or dirt on or in
the unit, as this can cause a build up of
heat and eventual damage.
Dust and vacuum the log set as
needed. Use a damp cloth and a mild
detergent to clean painted surfaces
of the fireplace. Never use abrasive
cleaners.
Maintenance
Clean Mirage™ Flame Panel
The Mirage™ Flame Panel is cleaned
in the factory during the assembly
operation. During shipment, installation,
handling, etc., the screen may collect
dust particles; these can be removed
by dusting lightly with a clean dry cloth.
To remove fingerprints or other marks,
clean the Mirage™ Flame Panel
reflector screen with a damp cloth.
Never use abrasive cleaners. Dry the
screen completely with a lint free cloth
to prevent water spots.
Battery Replacement
To replace the battery:
1. Push the release tab toward the
center and slide the battery cover
open.
2. Install 3V Lithium battery in the
battery holder. The positive (+) side
of the battery faces up.
3. Close the battery cover.
CR2025/2032
RELEASE
OPEN
OPEN ---- OUVRIR
PUSH ---- POUSSER
RELEASE ---- DÉGAGER
Lithium Battery--Batterie au lithium
PUSH
Battery must be recycled or
disposed of properly. Check with
your Local Authority or Retailer for
recycling advice in your area.

12 www.dimplex.com
Warranty
One Year Limited Warranty
Products to which this limited warranty applies
This limited warranty applies to your newly
purchased Dimplex electric compact replace.
This limited warranty applies only to purchases
made in any province of Canada except
for Yukon Territory, Nunavut, or Northwest
Territories or in any of the 50 States of the USA
(and the District of Columbia) except for Hawaii
and Alaska. This limited warranty applies to the
original purchaser of the product only and is not
transferable.
Products excluded from this limited warranty
Light bulbs are not covered by this limited
warranty and are the sole responsibility of
the owner/purchaser. Products purchased in
Yukon Territory, Nunavut, Northwest Territories,
Hawaii, or Alaska are not covered by this limited
warranty. Products purchased in these States,
provinces, or territories are sold AS IS without
warranty or condition of any kind (including,
without limitation, any implied warranties or
conditions of merchantability or tness for a
particular purpose) and the entire risk of as to
the quality and performance of the products is
with the purchaser, and in the event of a defect
the purchaser assumes the entire cost of all
necessary servicing or repair.
What this limited warranty covers and for how
long
Products covered by this limited warranty have
been tested and inspected prior to shipment and,
subject to the provisions of this warranty, Dimplex
warrants such products to be free from defects
in material and workmanship for a period of 12
months from the date of the rst purchase of
such product.
The limited 12 month warranty period also
applies to any implied warranties that may exist
under applicable law. Some jurisdictions do not
allow limitations on how long an implied warranty
lasts, so the above limitation may not apply to the
purchaser.
What this limited warranty does not cover
This limited warranty does not apply to products
that have been repaired (except by Dimplex or its
authorized service representatives) or otherwise
altered. This limited warranty does further not
apply to defects resulting from misuse, abuse,
accident, neglect, incorrect installation, improper
maintenance or handling, or operation with an
incorrect power source.
What you must do to get service under this
limited warranty
Defects must be brought to the attention of
Dimplex Technical Service by contacting Dimplex
at 1-888-346-7539, or 1367 Industrial Road,
Cambridge Ontario, Canada N1R 7G8. Please
have proof of purchase, catalogue/model and
serial numbers available when calling. Limited
warranty service requires a proof of purchase of
the product.
What Dimplex will do in the event of a defect
In the event a product or part covered by this
limited warranty is proven to be defective in
material or workmanship during the 12 month
limited warranty period you have the following
rights:
• Dimplex will in its sole discretion either
repair or replace such defective product
or part without charge. If Dimplex is
unable to repair or replace such product
or part, or if repair or replacement is not
commercially practicable or cannot be
timely made, Dimplex may, in lieu of repair
or replacement, choose to refund the
purchase price for such product or part.
• Limited warranty service will be performed
solely by dealers or service agents of
Dimplex authorized to provide limited
warranty services.
• The purchaser is responsible for removal
and transportation of such product or part
(and any repaired or replacement product
or part) to and from the authorized dealer’s
or service agent’s place of business.

13
Warranty
• This limited warranty does not entitle the
purchaser to on-site or in-home services.
On-site or in-home services may be
performed at the purchaser’s specic
request and expense at Dimplex’s then-
current rates for such services.
• Dimplex will not be responsible for, and the
limited warranty services shall not include,
any expense incurred for installation or
removal of the product or part (or any
replacement product or part) or any labour
or transportation costs. Such costs shall be
the purchaser’s responsibility.
What Dimplex and its dealers and service
agents are also not responsible for:
IN NO EVENT WILL DIMPLEX, OR ITS
DIRECTORS, OFFICERS, OR AGENTS,
BE LIABLE TO THE PURCHASER OR ANY
THIRD PARTY, WHETHER IN CONTRACT, IN
TORT, OR ON ANY OTHER BASIS, FOR ANY
INDIRECT, SPECIAL, PUNITIVE, EXEMPLARY,
CONSEQUENTIAL, OR INCIDENTAL LOSS,
COST, OR DAMAGE ARISING OUT OF
OR IN CONNECTION WITH THE SALE,
MAINTENANCE, USE, OR INABILITY TO USE
THE PRODUCT, EVEN IF DIMPLEX OR ITS
DIRECTORS, OFFICERS, OR AGENTS HAVE
BEEN ADVISED OF THE POSSIBILITY OF
SUCH LOSSES, COSTS OR DAMAGES, OR
IF SUCH LOSSES, COSTS, OR DAMAGES
ARE FORESEEABLE. IN NO EVENT WILL
DIMPLEX, OR ITS OFFICERS, DIRECTORS,
OR AGENTS BE LIABLE FOR ANY DIRECT
LOSSES, COSTS, OR DAMAGES THAT
EXCEED THE PURCHASE PRICE OF THE
PRODUCT.
SOME JURISDICTIONS DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL
OR CONSEQUENTIAL DAMAGES, SO THE
ABOVE LIMITATION OR EXCLUSION MAY
NOT APPLY TO THE PURCHASER.
How State and Provincial law apply
This limited warranty gives you specic legal
rights, and you may also have other rights
which vary from jurisdiction to jurisdiction. The
provisions of the United Nations Convention on
Contracts for the Sale of Goods shall not apply
to this limited warranty or the sale of products
covered by this limited warranty.

14 www.dimplex.com
Technical Support
Technical and troubleshooting support, as well as a list of replacement parts can
be found on:
www.dimplex.com/customer_support.
© 2016 Dimplex North America Limited
Dimplex North America Limited
1367 Industrial Road
Cambridge ON
Canada N3H 4W3
