Dimplex DFO2607 User manual

PRACTICAL USER’S GUIDE
FOR THE DIMPLEX 26” OUTDOOR
ELECTRIC FIREPLACE
MODEL NUMBER:
DFO2607
Valued Customer,
We are pleased that you have chosen to purchase an electric fireplace
manufactured by Dimplex North America Ltd. Over the years, valuable
memories will occur around the warmth and comfort of your hearth. Thank you
for allowing our product to be the backdrop for those special moments.
7207980200REV00
Quality checked by:
Serial Number _________________
Model Number _________________
CAT Number __________________

QUICK REFERENCE GUIDE FOR THE DIMPLEX ELECTRIC
FIREPLACE
1. Prior to the first use of the fireplace verify the following:
• Are the circuit breakers for the socket the unit uses on?
2. The information regarding the model of your fireplace can be found
on the rating plate. See Page 2 for location.
3. If you have any technical questions regarding the operation or service
of your fireplace have your Model and Serial Number ready, and
contact Dimplex North America technical support at 1-888-DIMPLEX
(1-888-346-7539) before returning the product to the point of
purchase.
CONTENTS
PAGE 1 Important Instructions
PAGE 2 Model and Serial Number
Information
PAGE 3 Site Selection and Preparation
PAGE 4 Fireplace Installation
PAGE 4 Operation
PAGE 5 Maintenance
PAGE6 Warranty

IMPORTANT INSTRUCTIONS
SAVE THESE INSTRUCTIONS
PLEASE RETAIN THIS USER’S GUIDE FOR FUTURE REFERENCE
When using electrical appliances, basic precautions should always be followed to reduce the
risk of fire, electric shock, and injury to persons, including the following:
1. Read all instructions before using the electric fireplace.
2. Always unplug the electric fireplace when not in use.
3. Do not operate any unit with a damaged cord or plug, or if the electric fireplace has
been dropped or damaged in any manner. Return unit to authorized service facility for
examination, electrical or mechanical adjustment, or repair.
4. Do not run the cord under carpeting. Do not cover cord with throw rugs, runners, or the
like. Arrange cord away from traffic area and where it will not be tripped over.
5. To disconnect the unit, turn the controls off, then remove the plug from the outlet.
6. Do not modify the electric fireplace. Use it only as described in this manual. Any other
use not recommended by the manufacturer may cause fire, electric shock or injury to
persons.
7. Do not burn wood or other materials in the electric fireplace.
8. Do not strike the fireplace glass.
9. Always use a certified electrician should new circuits or outlets be required.
10.Always use properly grounded, fused and GFI outlets.
11.Disconnect all power supply before performing any cleaning, maintenance or relocation
of the unit.
12.Do not use a pressure washer to clean unit.
13. When transporting or storing the unit and cord, keep in a dry place, free from excessive
vibration and store so as to avoid damage.
NOTE: Procedures and techniques that are considered important enough to emphasize.
CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to
the equipment.
WARNING: Procedures and techniques which, if not carefully followed, will expose the user to
the risk of fire, serious injury, illness or death.
1

Model Numbe
r
Serial Number
MODEL AND SERIAL NUMBER INFORMATION
If you have any questions regarding our products please have the product model and serial
numbers available upon calling Dimplex customer service or technical support. To locate the

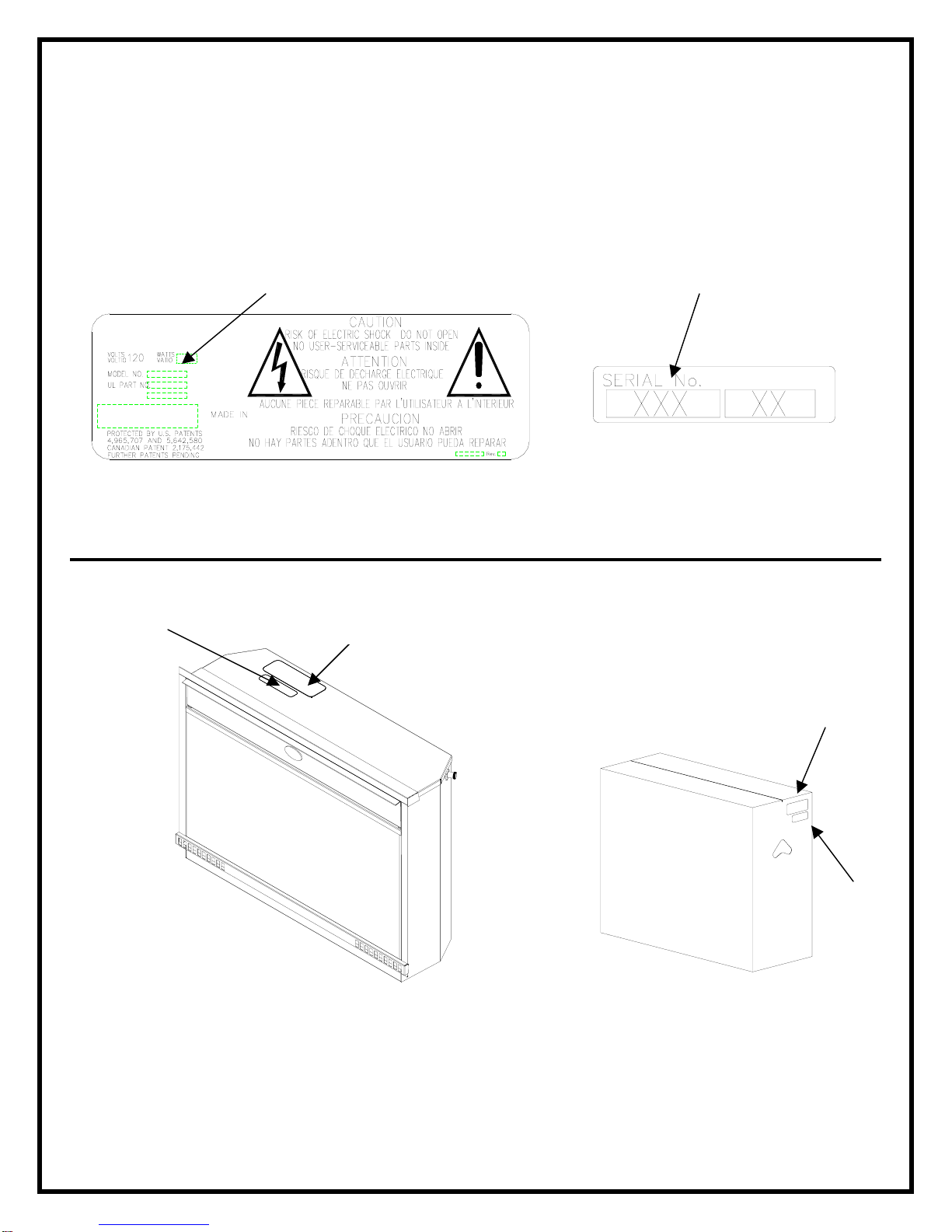

model and serial number labels see below. Record the Model number, Serial number, and
CAT number on the front cover of this manual for future reference.
Model Numbe
r
Model Number
Serial
Number
CartonFirebox
2
Serial
Number
Figure 1

NOTE 1
A 15amp, 120 volt outdoor GFI is required. Additional appliances on the same circuit may
exceed the current rating of the circuit breaker.
WARNING
Ensure the power cord is not installed so that it is pinched or against a sharp edge and ensure
that the power cord is stored or secured to avoid tripping or snagging to reduce the risk of fire,
electric shock or injury to persons.
Construction and electrical outlet wiring must comply with local/national building codes and
other applicable regulations to reduce the risk of fire, electric shock and injury to persons.
Do not attempt to wire your own new outlets or circuits. To reduce the risk of fire, electric
shock or injury to persons, always use a licensed electrician.
SITE SELECTION AND PREPARATION
This section provides instructions for selecting a location and preparing the site to install the
fireplace into your Dimplex mantel surround.
1. Select a suitable location.
2. For ease of electrical hook up you may wish to locate the fireplace near an existing
outlet. (Refer to NOTE 1).
NOTE
The dimensions of the fireplace are 27.60”wide X 20.10” high X 9” deep. The viewing area is
26” wide and 13” high.
3
20 Feet
Figure 2

FIREPLACE INSTALLATION
Dimplex Mantel Surround Kit
1. Install the fireplace assembly only into the Dimplex outdoor mantel.
(refer to mantel assembly instructions)
2. Select a suitable location that is level and away from high traffic
New Wall Construction
NOTE: This unit must be removable from opening.
1. Select a suitable location.
2. The fireplace insert comes completely assembled and wired. Some tools may be required
to prepare the site and assembly.
The dimensions of the required opening are 27” wide X 19.75” high X 13.50” deep.
(FIGURE 3).
This fireplace does not require any venting.
Figure 3
5” clearance for transformer
and GFI receptacle

OPERATION

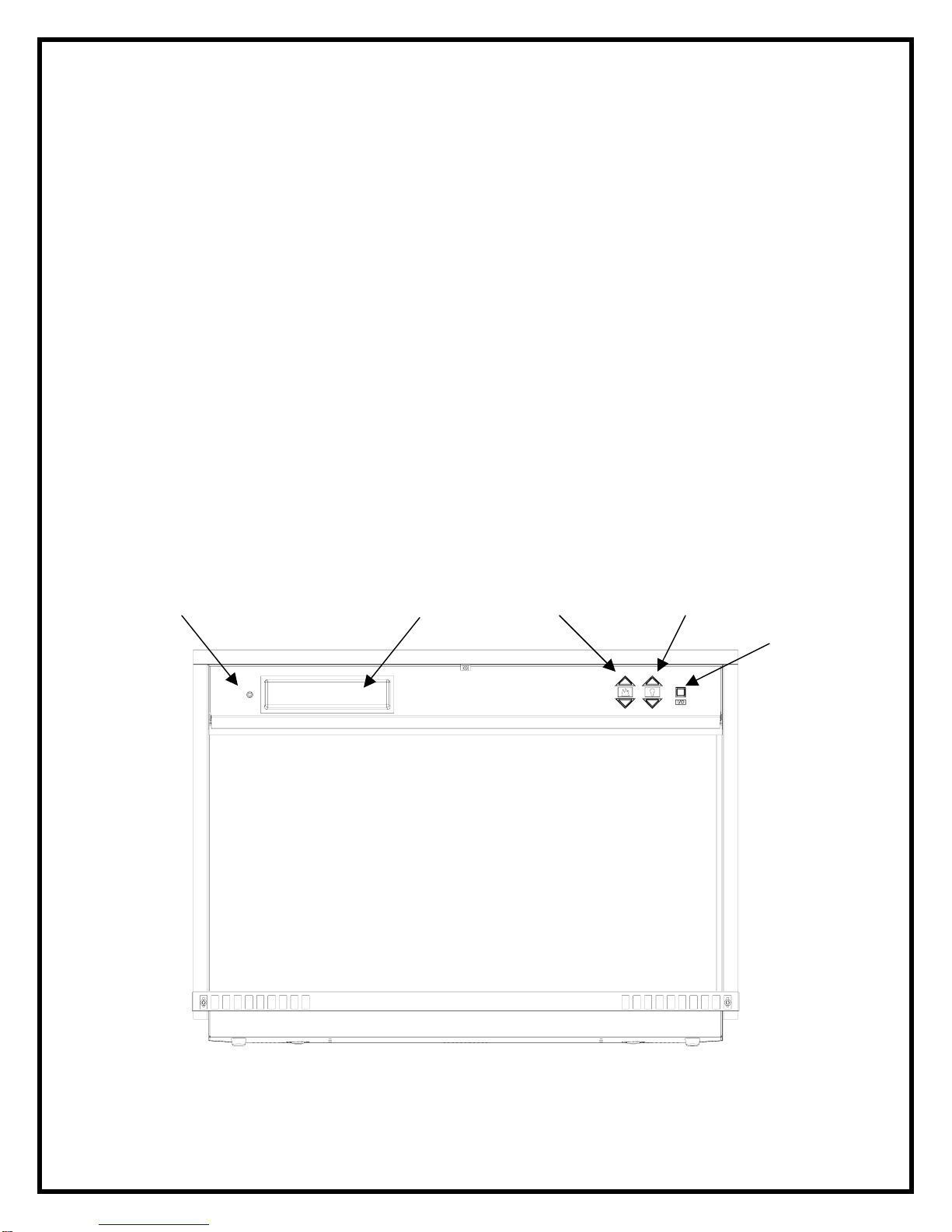

ELECTRIC FIREPLACE MANUAL CONTROL
The manual controls for the firebox are located in the upper right hand corner behind the
access panel. To access the controls, open the upper access panel by pulling forward and
down.
To locate controls refer to Figure 3.
NOTE: The main on/off switch/flame action and flame brightness controls are
always illuminated as long as the unit is plugged in.
A. Main On/Off Switch
The ON/OFF SWITCH supplies power to the flames and over head lights.
B. Flame Action Control
Press the up or down arrow to adjust the flame speed to the desired level.
C. Flame Brightness Control
Press the up or down arrow to increase or decrease the brightness of the over head lights.
D. Storage Compartment
A convenient location to place your CD’s or MP3 player.
E. Audio Input Plug
Using the audio cord included, a CD or MP3 player may be connected to the firebox.
NOTE: This unit does not have a heat option
Figure 3
Main
On/Off
Switch
4
Flame Brightness
Flame Action
A
udio Input Plug Storage Compartment

MAINTENANCE
WARNING
Disconnect power before attempting any maintenance or cleaning to reduce the risk of fire,
electric shock or damage to persons.
COVERING YOUR DIMPLEX OUTDOOR FIREPLACE
When not in use, cover your Dimplex outdoor fireplace with a weather resistant covering. The
cover will help protect your fireplace from detrimental effects of weather and environmental
pollutions.
GLASS CLEANING
The glass is cleaned in the factory during the assembly operation. During shipment,
installation, handling, etc., the glass may collect dust particles; these can be removed by
dusting lightly with a clean dry cloth.
To remove fingerprints or other marks, the glass can be cleaned with a damp cloth. To
prevent scratching, do not use abrasive cleaners or spray liquids on the glass surface.
SEASONAL CLEANING
To clean the glass or remove debris from inside unit.
NOTE: Gloves are required as edges may be sharp.
1. Remove top from mantel.
2. Lift firebox out of mantel.
3. Lay firebox on it’s back.

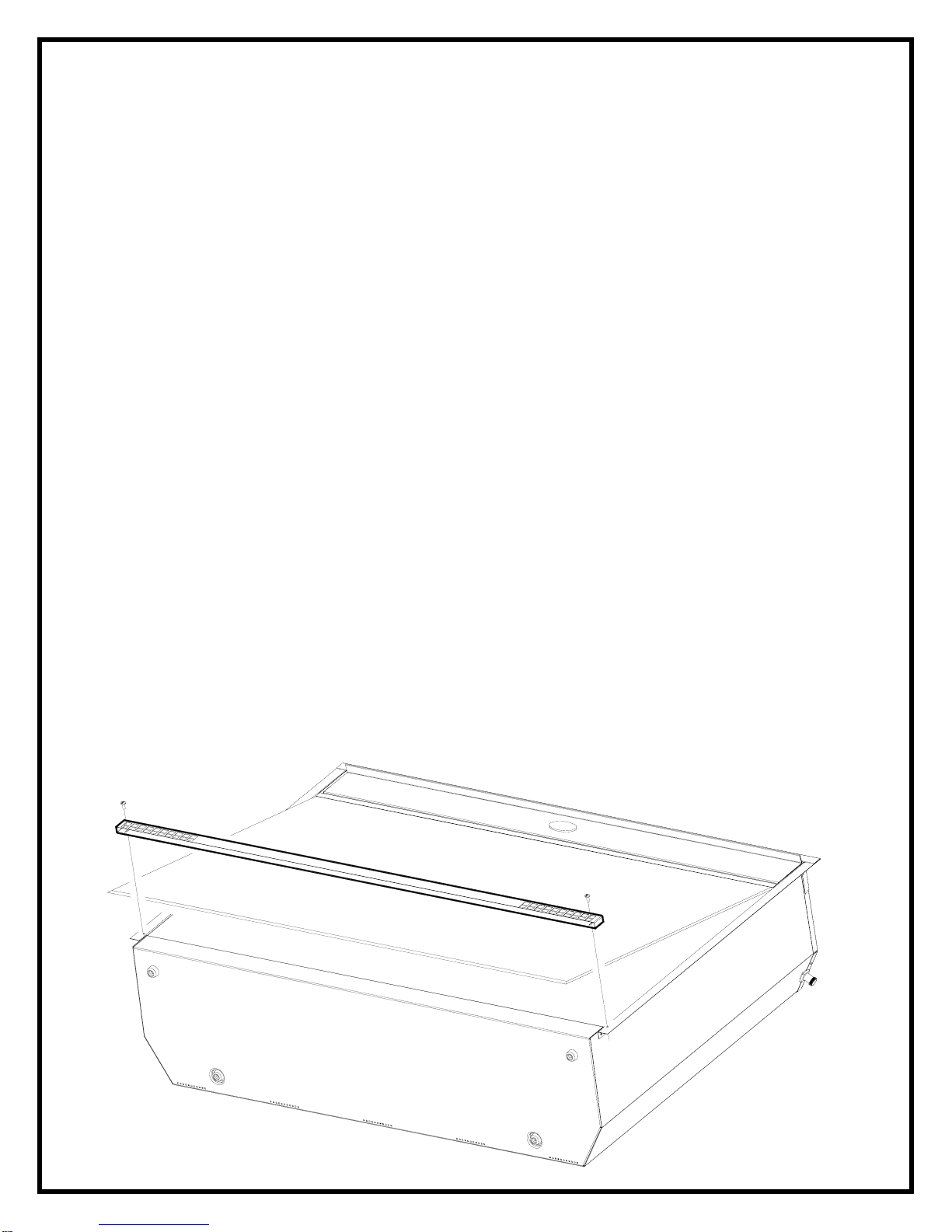

4. Remove screws from the left and right side of the front glass lower support. (Fig ??)
5. Insert the tip of a slot screwdriver between the glass edge and either the left or right
side trim.
6. Using the screwdriver as a lever, apply pressure in a downward motion, forcing the
edge of the glass up.
5
Figure 4

ONE YEAR LIMITED WARRANTY
Products to which this limited warranty applies
This limited warranty applies to your newly purchased Dimplex electric stove and to newly
purchased Dimplex fireplace surrounds (mantels) and trims. This limited warranty applies
only to purchases made in any province of Canada except for Yukon Territory, Nunavut, or
Northwest Territories or in any of the 50 States of the USA (and the District of Columbia)
except for Hawaii and Alaska. This limited warranty applies to the original purchaser of the
product only and is not transferable.
Products excluded from this limited warranty
Light bulbs are not covered by this limited warranty and are the sole responsibility of the
owner/purchaser. Products purchased in Yukon Territory, Nunavut, Northwest Territories,
Hawaii, or Alaska are not covered by this limited warranty. Products purchased in these
States, provinces, or territories are sold AS IS without warranty or condition of any kind
(including, without limitation, any implied warranties or conditions of merchantability or fitness
for a particular purpose) and the entire risk of as to the quality and performance of the
products is with the purchaser, and in the event of a defect the purchaser assumes the entire
cost of all necessary servicing or repair.
What this limited warranty covers and for how long
Products covered by this limited warranty have been tested and inspected prior to shipment
and, subject to the provisions of this warranty, Dimplex warrants such products to be free from
defects in material and workmanship for a period of 12 months from the date of the first
purchase of such product.
The limited 12 month warranty period also applies to any implied warranties that may exist
under applicable law. Some jurisdictions do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to the purchaser.
What this limited warranty does not cover
This limited warranty does not apply to products that have been repaired (except by Dimplex or
its authorized service representatives) or otherwise altered. This limited warranty does further
not apply to defects resulting from misuse, abuse, accident, neglect, incorrect installation,
improper maintenance or handling, or operation with an incorrect power source.
What you must do to get service under this limited warranty
Defects must be brought to the attention of Dimplex Technical Service by contacting Dimplex
at 1-888-DIMPLEX (1-888-346-7539), or 1367 Industrial Road, Cambridge Ontario, Canada
N1R 7G8. Please have proof of purchase, catalogue/model and serial numbers available
when calling. Limited warranty service requires a proof of purchase of the product.
What Dimplex will do in the event of a defect
In the event a product or part covered by this limited warranty is proven to be defective in
material or workmanship during the 12 month limited warranty period you have the following
rights: 6

 Dimplex will in its sole discretion either repair or replace such defective product or part
without charge. If Dimplex is unable to repair or replace such product or part, or if repair
or replacement is not commercially practicable or cannot be timely made, Dimplex may, in
lieu of repair or replacement, choose to refund the purchase price for such product or
part.
 Limited warranty service will be performed solely by dealers or service agents of
Dimplex authorized to provide limited warranty services.
 The purchaser is responsible for removal and transportation of such product or part
(and any repaired or replacement product or part) to and from the authorized dealer's or
service agent's place of business.
 This limited warranty does not entitle the purchaser to on-site or in-home services.
On-site or in-home services may be performed at the purchaser's specific request and
expense at Dimplex’s then-current rates for such services.
 Dimplex will not be responsible for, and the limited warranty services shall not include,
any expense incurred for installation or removal of the product or part (or any
replacement product or part) or any labour or transportation costs. Such costs shall be
the purchaser’s responsibility.
What Dimplex and its dealers and service agents are also not responsible for:
IN NO EVENT WILL DIMPLEX, OR ITS DIRECTORS, OFFICERS, OR AGENTS, BE LIABLE
TO THE PURCHASER OR ANY THIRD PARTY, WHETHER IN CONTRACT, IN TORT, OR
ON ANY OTHER BASIS, FOR ANY INDIRECT, SPECIAL, PUNITIVE, EXEMPLARY,
CONSEQUENTIAL, OR INCIDENTAL LOSS, COST, OR DAMAGE ARISING OUT OF OR IN
CONNECTION WITH THE SALE, MAINTENANCE, USE, OR INABILITY TO USE THE
PRODUCT, EVEN IF DIMPLEX OR ITS DIRECTORS, OFFICERS, OR AGENTS HAVE
BEEN ADVISED OF THE POSSIBILITY OF SUCH LOSSES, COSTS OR DAMAGES, OR IF
SUCH LOSSES, COSTS, OR DAMAGES ARE FORESEEABLE. IN NO EVENT WILL
DIMPLEX, OR ITS OFFICERS, DIRECTORS, OR AGENTS BE LIABLE FOR ANY DIRECT
LOSSES, COSTS, OR DAMAGES THAT EXCEED THE PURCHASE PRICE OF THE
PRODUCT.
SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO THE PURCHASER.
How State and Provincial law apply
This limited warranty gives you specific legal rights, and you may also have other rights
which vary from jurisdiction to jurisdiction. The provisions of the United Nations Convention
on Contracts for the Sale of Goods shall not apply to this limited warranty or the sale of
products covered by this limited warranty.
1367 Industrial Road
Cambridge, Ontario
Canada, N1R 7G8
1-888-DIMPLEX
1-888-346-7539
7
