Dimplex Revillusion RBF30WC User manual

7214620100R04
Revillusion®Built-in Electric Firebox
Models: RBF30 (6909780100), RBF30WC (6909780200),
RBF36 (6909790100), RBF36WC (6909790300),
RBF36P (6909790200), RBF36PWC (6909790400),
RBF42 (6909800100), RBF42WC (6909800200)
Owner’s Manual
IMPORTANT SAFETY INFORMATION: Read this manual rst before attempting
to install or use the Revillusion® Built-in Electric Firebox. Always comply with the
warnings and safety instructions contained in this manual to prevent personal
injury or property damage.
To view the full line of Dimplex products,
visit www.dimplex.com

2 www.dimplex.com
Table of Contents
SAVE THESE INSTRUCTIONS
Conventions used in this manual:
!NOTE: Procedures and techniques considered important enough to emphasize.
CAUTION: Procedures and techniques which, if not carefully followed, will result in
damage to the equipment.
WARNING: Procedures, precautions and techniques which, if not carefully followed,
will expose the user to the risk of re, serious injury, or death.
Welcome ............................................................3
IMPORTANT INSTRUCTIONS ..........................4
Specications .....................................................6
Installation ..........................................................7
Electrical .............................................................9
Operation .........................................................17
Maintenance.....................................................20
Warranty ...........................................................21
Technical Support.............................................24

3
Welcome
Thank you for purchasing a Revillusion® Built-in Electric Firebox by Dimplex.
Please use our convenient online registration page to record your model and
serial numbers for future reference at:
www.dimplex.com/register
CAUTION: Read all instructions and warnings carefully before starting installation.
Failure to follow these instructions may result in a possible electric shock or re hazard
and will void the warranty.

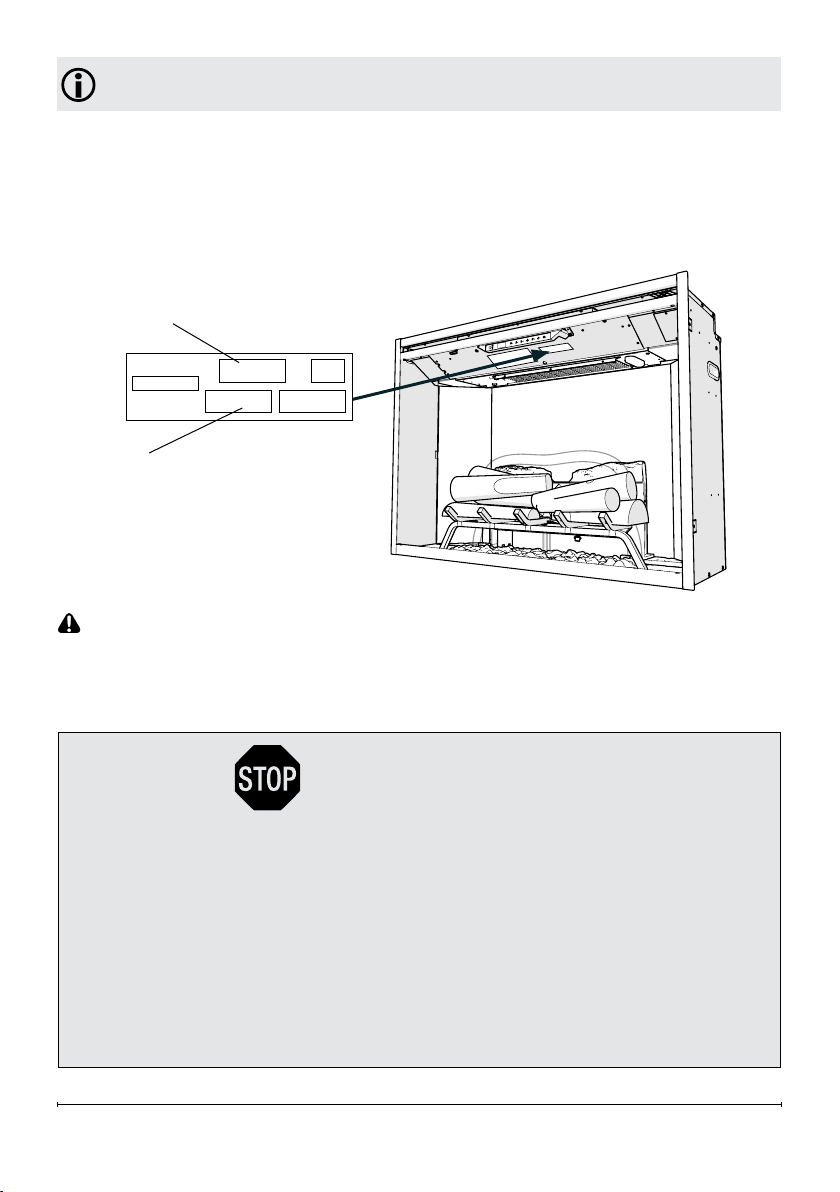

Serial Number
Model Number
MOD
MODEL / CAT NO
SERIAL NO
NO NEED TO RETURN TO THE STORE
Questions with operation or assembly? Require Parts Information?
Product Under Manufacturer’s Warranty?
Contact us at: www.dimplex.com/customer_support
For Troubleshooting and Technical Support
OR Toll-Free 1-888-346-7539
Monday to Friday 8:00 a.m. to 4:30 p.m. EST
In order to better serve you, please have your model and serial numbers
ready or register your product online before calling (see above).

4 www.dimplex.com
Basic Precautions
When using any electrical appliance,
basic precautions should always be
followed to reduce the risk of fire,
electric shock, and injury to persons.
These precautions include:
① Read all instructions before using
the Revillusion® Built-in Electric
Firebox.
DANGER: High temperatures may
be generated under certain abnormal
conditions. Do not partially or fully
cover or obstruct the front of the
rebox.
② This firebox is hot when in use.
To avoid burns, do not let bare skin
touch hot surfaces. The trim around
the heater outlet becomes hot during
heater operation. Keep combustible
materials, such as furniture, pillows,
bedding, papers, clothes, and curtains
at least 3 feet (0.9 m) from the front of
the firebox.
③ Extreme caution is necessary when
the firebox is used by or near children
or invalids and whenever the firebox is
left operating and unattended.
④ Always turn off the firebox when it is
not in use.
⑤ Do not operate the firebox after it
malfunctions, has been dropped, or
damaged in any manner. Disconnect
power at the service panel and have
the firebox inspected by a reputable
electrician before using.
⑥ Do not use this firebox outdoors.
IMPORTANT INSTRUCTIONS
⑦ Never locate the firebox where it
may fall into a bathtub or other water
container.
⑧ Do not insert or allow foreign
objects to enter any ventilation or
exhaust opening as this may cause an
electric shock, or fire, or damage the
firebox.
⑨ To prevent a possible fire, do not
block air intakes or exhaust in any
manner
⑩ To disconnect the heater, turn
the controls to OFF and turn off the
power to the heater circuit at the main
disconnect panel.
⑪ All electrical heaters have hot and
arcing or sparking parts inside. Do not
use it in areas where gasoline, paint, or
flammable liquids are used or stored.
⑫ Do not modify this firebox. Use
it only as described in this manual.
Any other use may cause fire, electric
shock, or injury to persons.
⑬ Do not burn wood or other materials
in this firebox.
⑭ Disconnect all power coming to
the firebox at the main service panel
before performing any cleaning or
maintenance.
⑮ When transporting or storing the
firebox, keep it in a dry place, free from
excessive vibration, and store to avoid
damage.
NOTE: Changes or modications
not expressly approved by the party
responsible for compliance could
void user's authority to operate the
equipment.
!

5
Special Precautions
WARNING: Remote control contains
a small battery. Keep away from children.
If swallowed, seek medical attention
immediately.
WARNING: Do not install battery
backwards, charge, put in re or mix with
used or other battery types as it may
explode or leak causing injury.
WARNING: Do not open the unit. There
is a risk of electric shock. There are no
user-serviceable parts inside.
CAUTION: Always use a qualied
technician or service agency to repair the
built-in electric rebox.
IMPORTANT INSTRUCTIONS
FCC Compliance
CAUTION: This unit has been tested
and found to comply with the limits for
Class B digital device, pursuant to part
15 of the FCC Rules. These limits are
designed to provide reasonable protection
against harmful interference in a residential
installation. This unit generates, uses and
can radiate radio frequency energy and,
if not installed and used in accordance
with the instructions, may cause harmful
interference to radio or television reception,
which can be determined by turning the unit
OFF and ON, the user is encouraged to try
to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the unit
and the receiver.
• Connect the unit into an outlet on a
circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.
This unit complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This unit may not cause
harmful interference, and (2) this unit must
accept any interference received, including
interference that may cause undesired
operation.
FCC CAUTION: Any changes or
modications not expressly approved by
the party responsible for compliance could
void the user’s authority to operate this
equipment.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICEABLE PARTS INSIDE

6 www.dimplex.com
Specications
The Revillusion® Built-in Electric Firebox offers an alternative to a wood or gas
fireplace. It can give your existing fireplace new life or transform a cabinet or
media center of your own into a stunning focal point.
Electrical
Operation Temperature -4o to 104o F (-20oto 40o C)
WARNING: Electrical outlet wiring must comply with local building codes and
other applicable regulations to reduce the risk of re, electric shock, or injury to
persons.
NOTE: A 15 Amp circuit is required. A dedicated circuit is preferred, but not
essential in all cases. A dedicated circuit will be required if, after installation,
the circuit breaker trips or the fuse blows on a regular basis when the heater is
operating. Additional appliances on the same circuit may exceed the current rating
of the circuit breaker.
!
Volts 120 V 60 Hz 208 V 60 Hz 240 V 60 Hz
Amps 10.83 A 9.5 A 10.73 A
Watts 1300 W 1975 W 2575 W
Wiring
Hard wire, plug-in kit optional accessory and only available for 120 V installations
Bulb Type LED
Approvals
Dimensions
RBF30
/ RBF30WC
RBF36
/ RBF36WC
RBF36P
/ RBF36PWC
RBF42
/ RBF42WC
Width 31 1/8"
792 mm
37 1/8"
944 mm
37 1/8"
944 mm
43 1/4"
1098 mm
Height 26 5/8"
676 mm
26 5/8"
676 mm
31"
788 mm
31"
788 mm
Depth 12 1/8"
307 mm
12 1/8"
307 mm
12 1/8"
307 mm
12 1/8"
307 mm
Weight
RBF30 / RBF36WC RBF36 / RBF36WC RBF36P / RBF36PWC RBF42 / RBF42WC
50 lbs
22.7 kg
60 lbs
27.2 kg
65 lbs
29.5 kg
70 lbs
31.8 kg

7
Unpacking the Unit
The unit comes packed with a protective sheet covering the front of the unit. This
sheet is intended to prevent dust and debris from entering during construction.
This sheet is designed so that it can be partially removed to complete the wiring
and unpacking and can be reinstalled until the final installation is complete.
The log set was installed on the grate and the grate permanently fixed to the
firebox at the factory.
Carefully remove the packaging from around the log set. Make sure the wires
from the log set are connected securely to the grate box.
CAUTION: The Realogs® contain LEDs to create a unique pulse and glow
effect. Handle the log set carefully. They are fragile and can crack or break if
dropped.
Installation
Framing
1. The Revillusion® Built-in Electric
Firebox does not require any special
venting.
2. Rough in the framing opening.
Following the recommended framing
dimensions below.
!NOTE: The materials used for
the nished surround must be cut to
precise dimensions (dimensions B &
C) as the 1/4" (0.6 cm) self trimming
ange is only to create a nished
appearance.
RBF30 / RBF30WC RBF36 / RBF36WC RBF36P / RBF36PWC RBF42 / RBF42WC
A 12 1/2" (318 mm) 12 1/2" (318 mm) 12 1/2" (318 mm) 12 1/2" (318 mm)
B 30 5/8" (778 mm) 36 5/8" (930 mm) 36 5/8" (930 mm) 42 5/8" (1083 mm)
C 26 3/16" (665 mm) 26 3/16" (665 mm) 30 5/8" (778 mm) 30 5/8" (778 mm)
D 25 3/4" (654 mm) 25 3/4" (654 mm) 30 1/4" (768 mm) 30 1/4" (768 mm)
E12" (306 mm) 12" (306 mm) 12" (306 mm) 12" (306 mm)
F29 3/8" (746 mm) 35 3/8" (898 mm) 35 3/8" (898 mm) 41 1/2" (1053 mm)
G31 1/8" (792 mm) 37 1/8" (944 mm) 37 1/8" (944 mm) 43 1/4" (1098 mm)
H22 3/4" (578 mm) 22 3/4" (578 mm) 27 1/4" (691 mm) 27 1/4" (691 mm)
I26 5/8" (6764 mm) 26 5/8" (674 mm) 31" (788 mm) 31" (788 mm)
J54 1/4" (1378 mm) 60" (1524 mm) 60" (1524 mm) 66 1/2" (1689 mm)
K 38 1/2" (978 mm) 42 1/2" (1080 mm) 42 1/2" (1080 mm) 47" (1194 mm)
L 38 1/2" (978 mm) 42 1/2" (1080 mm) 42 1/2" (1080 mm) 47" (1194 mm)

8 www.dimplex.com
Installation
Placement
This firebox is a zero clearance design,
with the exception of the top of the unit,
where any insulation and vapor barrier
should be placed a minimum of 2"
(5.1 cm) from the firebox.
DANGER!: High temperatures may
be generated under certain abnormal
conditions. Do not partially or fully cover or
obstruct the front of the rebox.
WARNING: All electrical heaters have
hot and arcing or sparking parts inside. Do
not use it in areas where gasoline, paint, or
flammable liquids are used or stored.
WARNING: The built-in electric firebox
must NOT be in direct contact with any
building vapor barrier or insulation.
Rough-In Framing Dimensions Firebox Dimensions Rough-In Corner Dimensions
G
F
I
H
E
D
J
K
L
C
B
A
1. Place the firebox into the framed
opening. Level with shims if
necessary.
2. From the inside of the unit, gently
remove the interior brick panels
(attached magnetically) and bent
out, up to 90°, to be flush with the
surrounding studs.
3. Attach the firebox to frame using
four mounting flanges on the sides
of firebox and suitable hardware.

9
Bathroom Installation
This built-in electric firebox must
be protected by a GFI circuit when
installed in an area where water is
present. If the unit is installed using
a receptacle, it must be readily
accessible.
This firebox is not watertight and must
be installed as to prevent water from
entering the unit. Install the unit away
from showers, tubs, etc. Keep towels
and other combustible materials 3 feet
(0.9 m) away from the front of the unit.

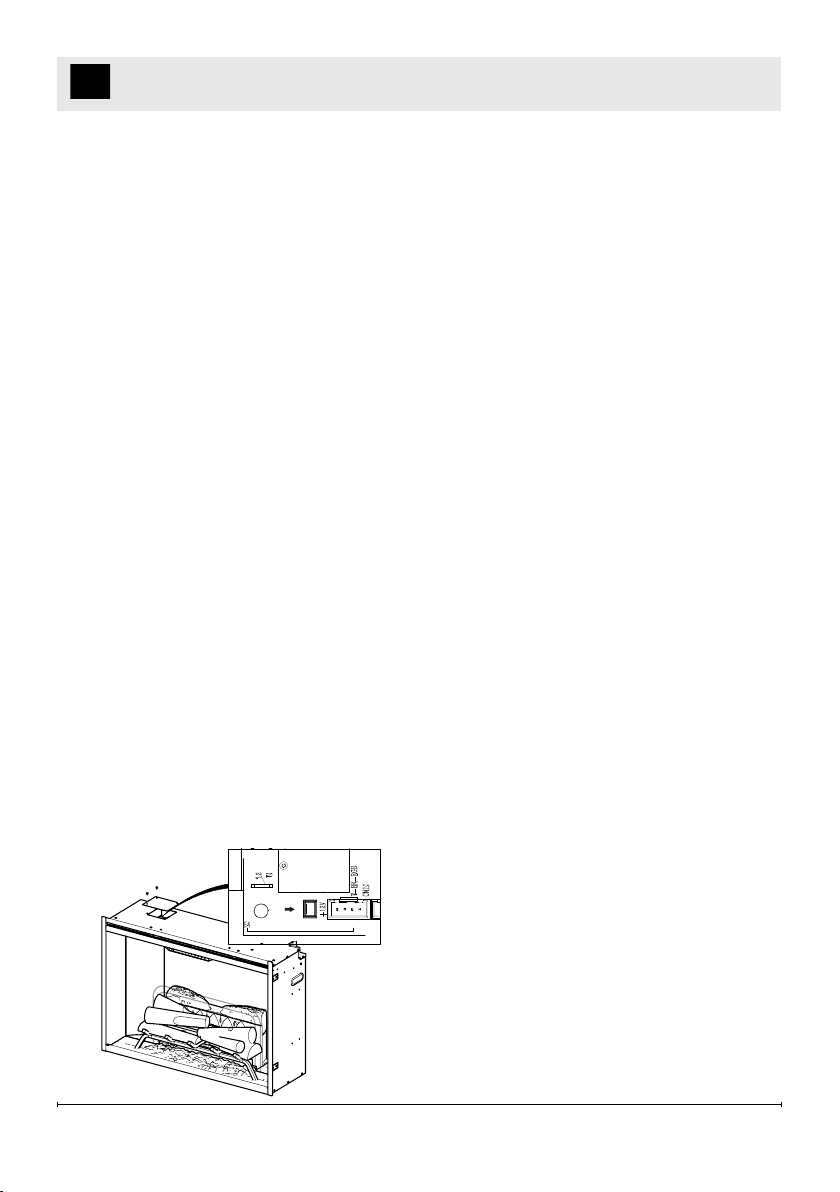

Permanent Heat Disable
The firebox heater can be permanently
disabled by removing the electronic
jumper on the main control board.
Disable the heater before any other
installation takes place.
To permanently disable the heater:
1. Locate and remove the panel on the
top left of the unit.
2. Pull out the electronic jumper
(shunt), on the on the left side of
the screw in the right corner of the
board. The label beside the jumper
is "HT EN".
3. Reinstall the previously removed
panel.
General Electrical
The installation of the built-in electric
firebox must comply with the applicable
Local and/or National Electrical Codes
and utility requirements. (See the
unit wiring diagram at the end of this
section.) Employ qualified personnel
where required by law.
1. Allow 8" (20.3 cm) of service cable
for connecting power supply wire
to junction box on the unit when
installing and before finishing the
wall. Allow up to 4 ft (122 cm) of
service cable for connecting power
supply wire to junction box when
installing after finishing wall.
2. Wire a dedicated, properly fused
circuit with a 15 A rating for the
appropriate voltage (120 V, 240 V).
3. Feed the service cable through
the electrical cover on the back of
the unit and secure using a 1/2"
(1.3 cm) approved strain relief
connector.
4. Remove the outer jacket and strip
the individual conductors 1/2"
(1.3 cm) from the end.
5. Follow the following instructions for
your specific installation.
6. Wiring inspection can be done from
the front of the unit: remove the
access panel, to the right of the
controls, to access the service cable
and wires from the unit.
Electrical
HT EN

10 www.dimplex.com

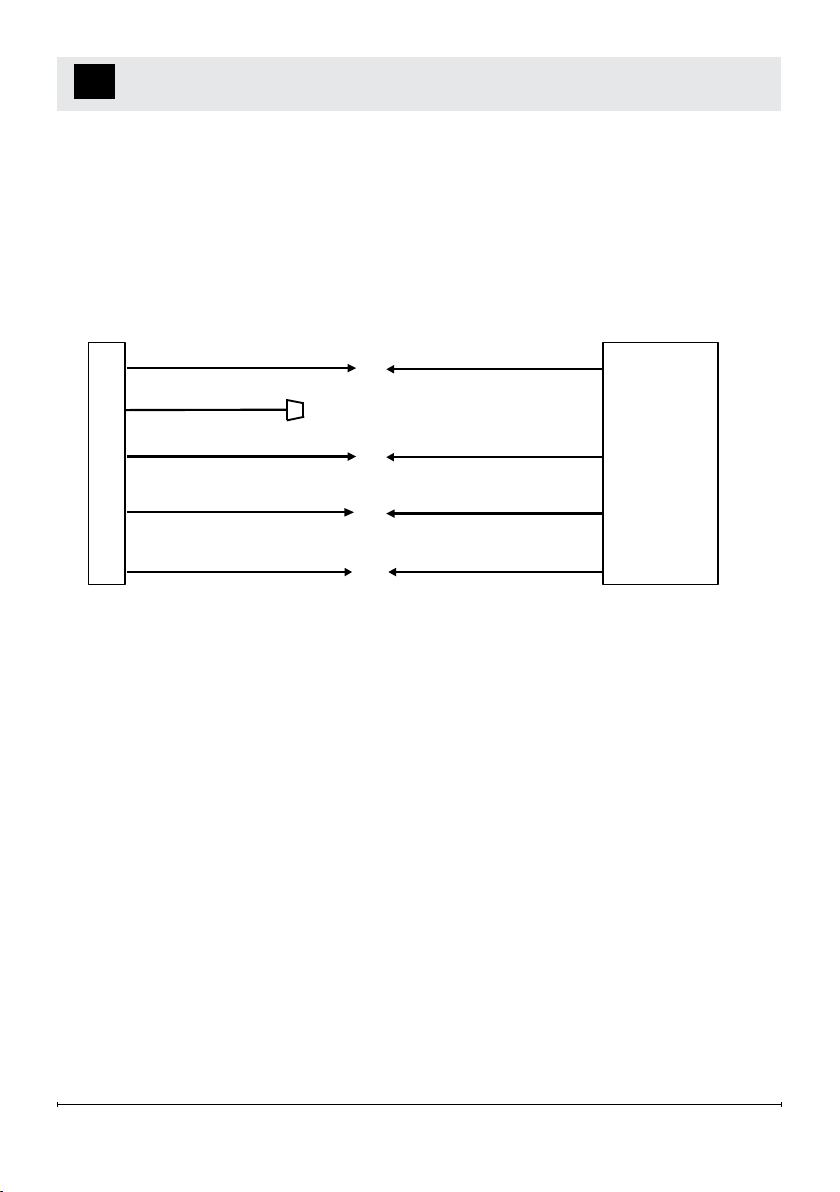

Direct Power Wiring (120 V)
All wiring must be completed prior to installing the built-in electric firebox.
Use 2-conductor wires with ground (3 wires total) from the power supply (breaker
panel) to the junction box on the built-in electric firebox.
To install 120 V direct power wiring:
1. Pull out the 5 wires marked L1, L2,
N, NH, and G (black, red, white,
blue, and green).
2. Connect N (white) and NH (blue)
from the built-in electric firebox to
the N (white) from the power supply.
3. Terminate L2 (red) with a wire
connector (not included).
4. Connect L1 (black) wire from the
built-in electric firebox to the L1
(black) from the power supply.
Electrical
FIREPLACE JUNCTION BOX
WHITE - N
BLACK - L1
GROUND - G
WHITE - N
BLACK - L1
GROUND - G
120 V
POWER
SUPPLY
BREAKER
PANEL
BLUE - NH
RED - L2
5. Connect the G (green) ground wire
from the built-in electric firebox to
the ground from the power supply.
6. Insert all the wiring back into the
built-in electric firebox and secure
with a cable clamp.
7. Make sure all connections are tight.

11
Direct Power Wiring (240 V)
All wiring must be completed prior to installing the built-in electric firebox.
Use 3-conductor wires with ground (4 wires total) from the power supply (breaker
panel) to the junction box on the built-in electric firebox.
Electrical
To install 240 V direct power wiring:
1. Pull out the 5 wires marked L1, L2,
N, NH, and G (black, red, white,
blue, and green).
2. Connect N (white) from the built-in
electric firebox to the N (white) from
the power supply.
3. Terminate NH (blue) with a wire
connector (not included).
4. Connect L2 (red) wire from the
built-in electric firebox to the L2
(red) from the power supply.
5. Connect L1 (black) wire from the
built-in electric firebox to the L1
(black) from the power supply.
6. Connect the G (green) ground wire
from the built-in electric firebox to
the ground from the power supply.
7. Insert all the wiring back into the
built-in electric firebox and secure
with a cable clamp.
8. Make sure all connections are tight.
FIREPLACE JUNCTION BOX
WHITE - N
BLACK - L1
GROUND - G
WHITE - N
BLACK - L1
GROUND - G
240 V
POWER
SUPPLY
BREAKER
PANEL
RED - L2 RED - L2
BLUE - NH

12 www.dimplex.com

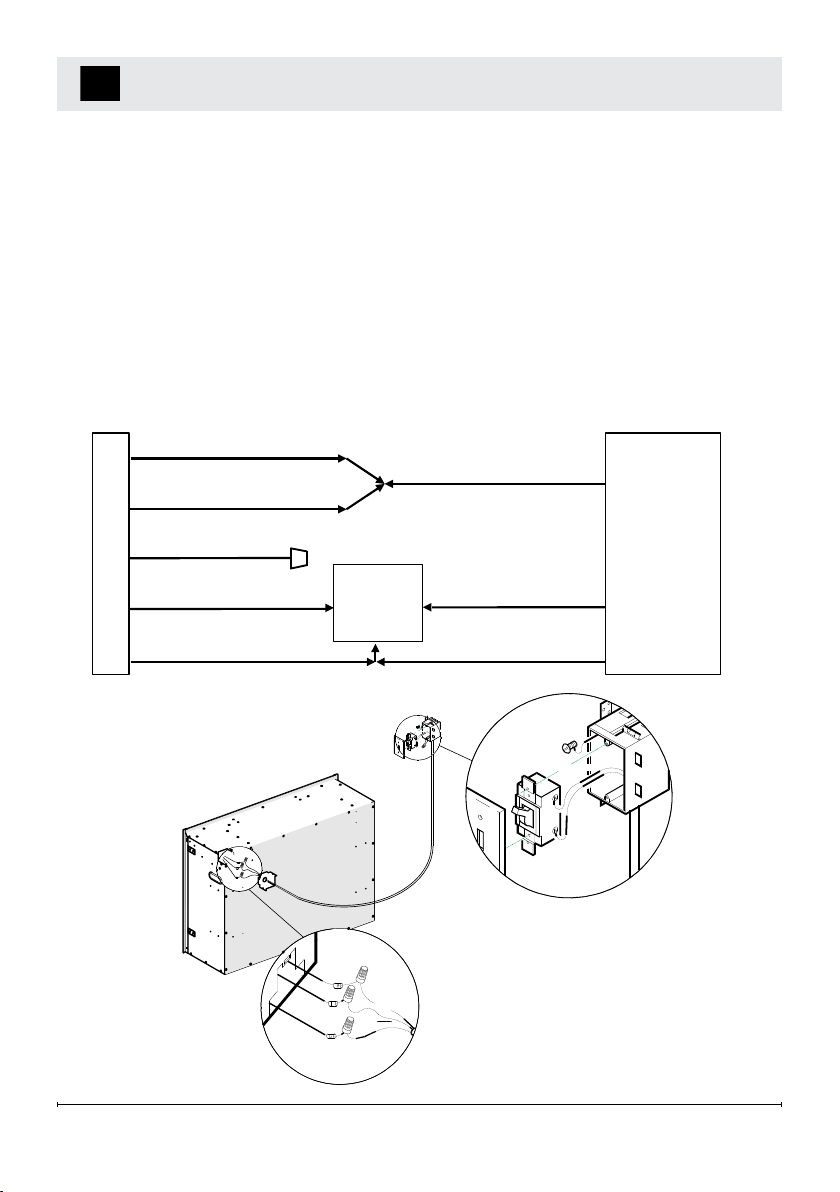

Wall Switch (120 V)
NOTE: Use a single pole, single
throw (On/Off) wall switch that is rated
for a minimum of 15 A.
!
Electrical
Before installing the wall switch:
• Connect a 2-conductor wire with
ground (3 wires total) from the
power supply panel to the main
switch wall box.
• Connect a 2-conductor wire with
ground (3 wires total) from the main
switch wall box to the junction box
on the built-in electric firebox.
FIREPLACE JUNCTION BOX
120 V
POWER
SUPPLY
BREAKER
PANEL
RED - L2
BLACK - L1
GROUND - G
WALL
SWITCH
BLACK - L1
GROUND - G
WHITE - N
BLUE - NH
WHITE - N

13
To install a 120 V wall switch:
1. Pull out the 5 wires marked L1, L2,
N, NH, and G (black, red, white,
blue, and green).
2. Connect the N (white) and the NH
(blue) wires from the built-in electric
firebox to the N (white) from the
power supply panel.
3. Terminate L2 (red) with a wire
connector (not included).
4. Connect L1 (black) from the built-in
electric firebox to the L1 (black) from
the main power wall switch using a
wire connector (not supplied).
5. Connect the other end of L1 (black)
to the L1 terminal of the main power
wall switch.
6. Connect G (green) from the built-
in electric firebox to the G (green)
ground wire of the main power wall
switch by using a wire connector
(not supplied).
Electrical
7. Secure the two remaining ground
wires (green) with a ground screw in
the main switch wall box.
8. Insert all the wiring of the main
power wall switch into the main
switch wall box.
9. Insert all the wiring back into the
built-in electric firebox and secure
with a cable clamp.
10. Makes sure all connections are
tight.

14 www.dimplex.com
Wall Switch (240 V)
NOTE: Use a double pole, single
throw (On/Off) wall switch that is rated
for a minimum of 15 A.
!!
Electrical
Before installing the wall switch:
• Connect a 3-conductor wire with
ground (4 wires total) from the
power supply panel to the main
switch wall box.
• Connect a 3-conductor wire with
ground (4 wires total) from the main
switch wall box to the junction box
on the built-in electric firebox.
FIREPLACE JUNCTION BOX
WHITE - N
BLACK - L1
GROUND - G
WHITE - N
BLACK - L1
GROUND - G
240 V
POWER
SUPPLY
BREAKER
PANEL
RED - L2 RED - L2
BLUE - NH
WALL
SWITCH
G
L1
N
L2
G
L2
N
L1

15
Electrical
To install a 240 V wall switch:
1. Pull out the 5 wires marked L1, L2,
N, NH, and G. (black, red, white,
blue, and green).
2. Connect the N (white) wire from the
firebox to the N (white) wire from the
main power wall switch by using a
wire connector (not included).
3. Terminate NH (blue) with a wire
connector (not included).
4. Connect the L2 (red) wire from the
built-in electric firebox to the L2
(red) wire from the main power wall
switch by using a wire connector.
5. Connect the other end of the L2
(red) wire from the main power wall
switch to the L2 terminal of the main
power wall switch.
6. Connect the L1 (black) wire from
the built-in electric firebox to the
L1 (black) wire from the main
power wall switch by using a wire
connector. (Wire connectors are not
supplied).
7. Connect other end of L1 (black) wire
from the main power wall switch to
the L1 terminal of the main power
wall switch.
8. Connect the G (green) wire from
the firebox unit to the G (green) wire
from the main power wall switch by
using a wire connector.
9. Connect the L1 wire from the power
supply to the L1 terminal of the
main power wall switch.
10. Connect the L2 (black) wire from
the power supply to the L2 terminal
of the main power wall switch.
11. Connect the N (white) wire from the
power supply to the remaining N
(white) wire from the built-in electric
firebox by using a wire connector.
12. Secure the two remaining G
(green) wires with a ground screw
in the main switch wall box.
13. Insert all the wiring of the main
power wall switch into the main
switch wall box.
14. Insert all the wiring back into the
built-in electric firebox and secure
with a cable clamp.
15. Makes sure all connections are
tight.

16 www.dimplex.com

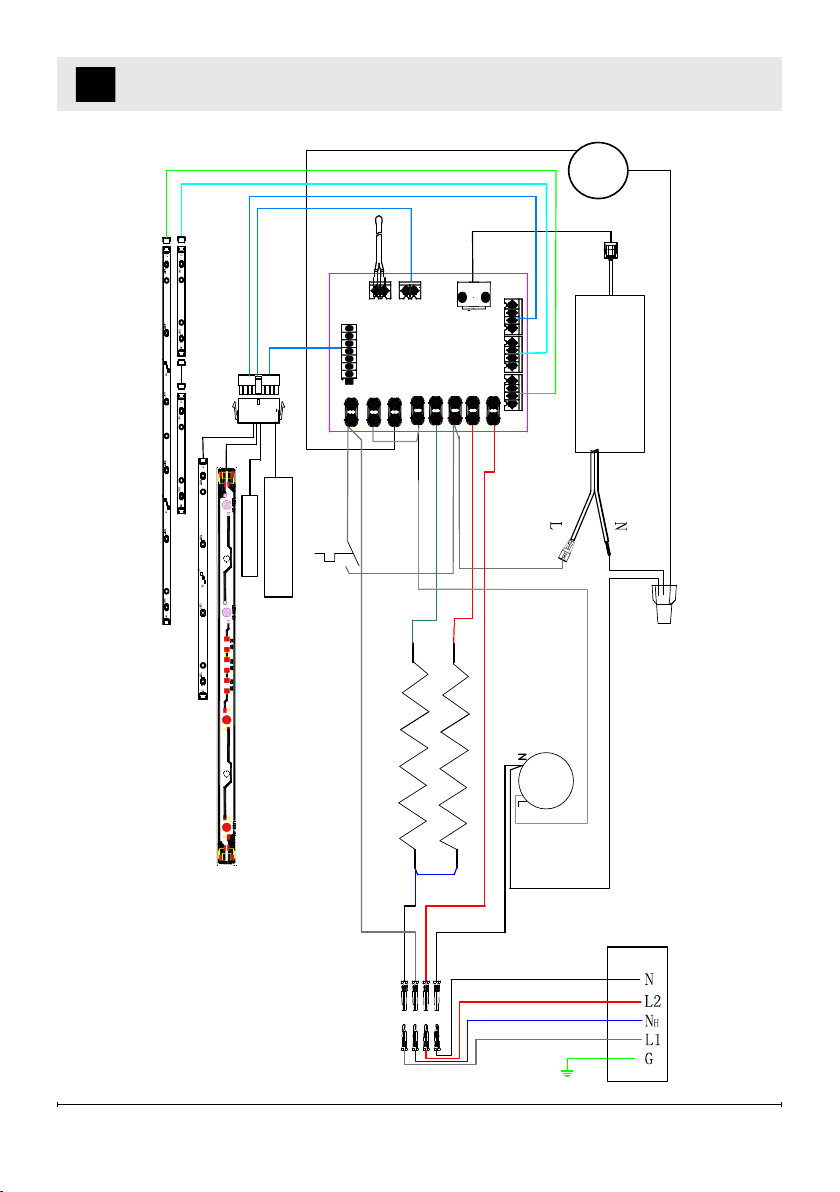

Electrical
M
M

17

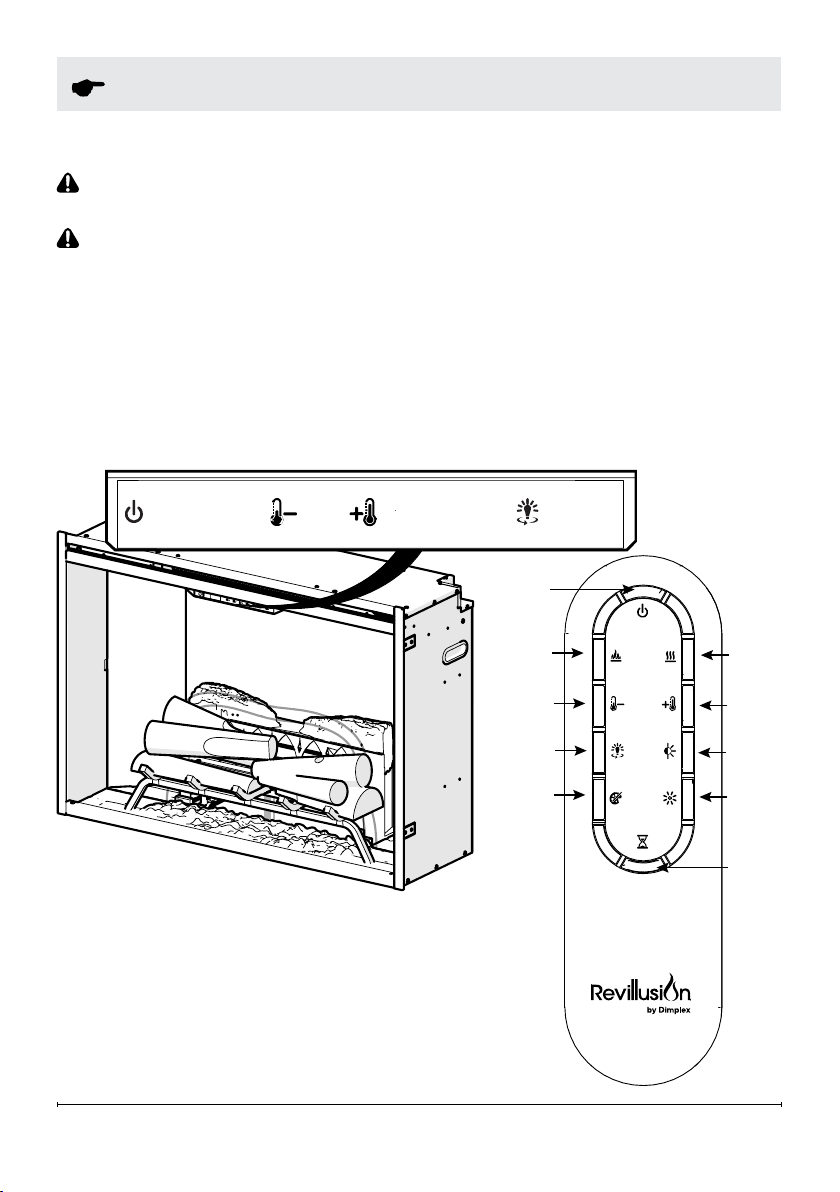

Operation
Touch Panel and Remote Controls
WARNING: The Revillusion® Built-in Electric Firebox must be installed
properly before it is used.
CAUTION: Except for installation and cleaning described in this manual, an
authorized service representative should perform any other servicing.
The manual controls for the Revillusion® Built-in Electric Firebox are located on
the front panel. Touch an icon to activate. The selected setting displays on the left
side of the panel.
A multi-function remote control also is provided. The remote control has a range
of approximately 30 ft (9 m). To operate correctly, the remote control must be
pointed toward the front of the built-in electric firebox.
H
A
C
I
E
J
B
F
G
D
A B C D E F G

18 www.dimplex.com
Operation

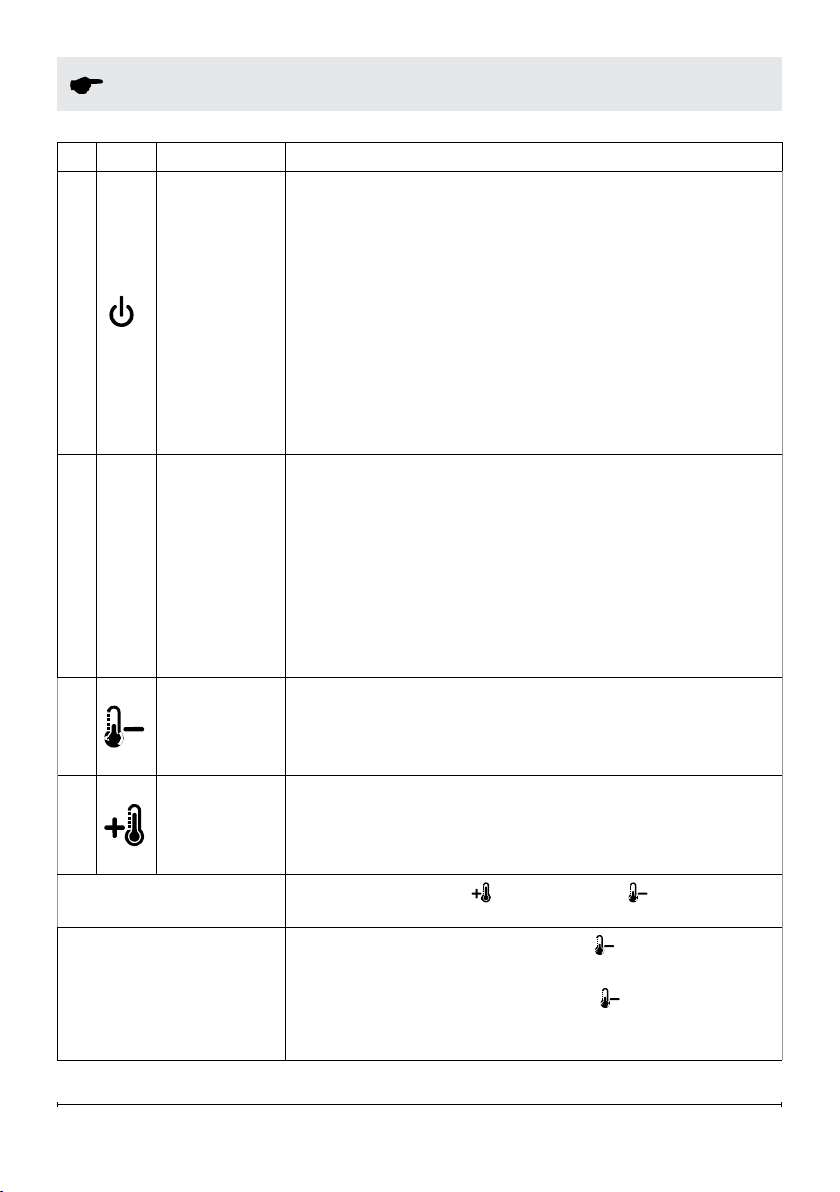

Icon Function Description
APower/
Standby
Press to activate the current standby state (On/Off).
• Standby State On
Press to turn everything Off. Press again to activate
the previous state.
• Standby State Off
Press to activate the previous state.
- If the flame effect was On, the previous heat setting
will be activated (On or Off).
- If the flame effect was Off, the previous heat setting
will be activated (High or Low).
Press again to turn everything Off.
BHeat
• Heat On
Press to turn heat On (indicated by 1 short beep and
the icon appearing on the display). Displays current
heater temperature setting. Use the Temp Up/Down
icon to change the heater temperature setting.
• Heat Off
Press to turn heat Off (indicated by 1 short beep).
!NOTE: After the heater is switched off, the fan will
continue on for 60 seconds before turning off.
CTemp Down
Press multiple times to lower the heater temperature
in 10F (10 C) increments. Displays current
temperature; lowest temperature is 410F (50 C). This
feature is active whenever the heat is enabled.
DTemp Up
Press multiple time to raise the heater temperature in
10F (10 C) increments. Displays current temperature;
highest temperature is 990F (370 C). This feature is
active whenever the heat is enabled.
Change Fahrenheit
(0F) to Celsius (0C) Press both Temp+ ( ) and Temp– ( ) on the unit.
Heat Enable
Heat Disable
Hold both Heat ( ) and Temp– ( ), on the unit, for
2 seconds. Temperature displays on the screen.
Hold both Heat ( ) and Temp– ( ), on the unit,
for 2 seconds, when temperature is adjusted "---"
displays on the screen.

19
Operation
Icon Function Description
EColor
Themes
Press multiple times to change the flame base colors
from Red to Blue to Off. (The first segment on the
display will change from "r" to "b" to blank) This
feature is active only when the flame effect is On.
F360oLight
Press multiple times to change the LEDs on the sides
and back of the unit from Midnight mode to white to
yellow to red. (The middle segment on the display
will change through 0 - 3 respectively. This feature is
active only when the Flame is ON.)
GBrightness
Press to change the LED lights from High to Low.
(The last segment on the display will change from "H"
to "L") The Realog® LEDs remain On when the heater
is ON and the flame effect is Off.
!NOTE: When the Light Sensor is activated, High
and Low ickering brightness settings are also available
(Flashing "H" and "L").
HFlame Press to light the log set and start the flame effect.
Press again to turn feature Off.
ILight
Sensor
Press to activate the ambient light sensor (ALS ON).
Press again to turn the sensor off (ALS OFF).
!NOTE: The light sensor will adjust the brightness of the
replace based on the ambient light in the room.
JTimer
Press multiple times to change the sleeper timer in
0.5 hr increments from 0.5 hr to 8.0 hr before turning
off. The remaining time on the sleep timer displays.
Control Lock
Control Unlock
Hold both Temp– ( ) and Brightness ( ), on the
unit, for 2 seconds to disable the manual controls.
Hold both Temp– ( ) and Brightness ( ), on the
unit, for 2 seconds to enable the manual controls.
Resetting the Temperature Cutoff Switch
Should the heater overheat, an automatic cut out will turn the heater off and it will
not come back on without being reset. It can be reset by disconnecting power at
the main electrical panel and waiting 5 minutes before plugging the unit back in.
CAUTION: If you need to con tinuously reset the heater, unplug the unit and call
technical support at 1-888-346-7539.

20 www.dimplex.com
Remote Battery Replacement
To replace the battery:
1. Push down on the battery cover
located on the back of the remote
control. Slide the battery cover
open.
2. Install 3V (CR2032) Lithium battery
in the battery holder. The positive
(+) side of the battery faces up.
3. Close the battery cover.
The old battery must be recycled
or disposed of properly. Check
with your Local Authority or
Retailer for recycling advice in
your area.
CAUTION: When transporting or
storing the heater and cord, keep in a dry
place, free from excessive vibration and
store so as to avoid damage.
Maintenance
General Maintenance
Inspect the built-in electric firebox
regularly, depending upon conditions,
and at a minimum yearly intervals.
Remove dust and clean the logs, grate,
and base as required.
WARNING: Disconnect power and
allow heater to cool before attempting any
maintenance or cleaning to reduce the risk
of re, electric shock, or injury.
CAUTION: Except for installation
and cleaning described in this manual, an
authorized service representative should
perform any other servicing.
Clean Logs and Base
The built-in electric firebox set should
not be operated with an accumulation
of dust or dirt on or in the firebox, as
this can cause a build up of heat and
eventual damage.
Dust and vacuum the firebox as
needed. Use a damp cloth and a mild
detergent to clean painted surfaces of
the built-in electric firebox. Never use
abrasive cleaners.
Clean Reflector Screen
The reflector screen is cleaned in the
factory during the assembly operation.
During shipment, installation, handling,
etc., the screen may collect dust
particles; these can be removed by
dusting lightly with a clean dry cloth.
To remove fingerprints or other marks,
clean the reflector screen damp cloth.
Never use abrasive cleaners. Dry the
screen completely with a lint free cloth
to prevent water spots.
