Dimplex DF2010-EU User manual

Owner’s Manual
Model
DF2010-EU
6903040900
7210950100REV00
IMPORTANT SAFETY INFORMATION: Always read this manual first
before attempting to install or use this fireplace. For your safety, always
comply with all warnings and safety instructions contained in this manual
to prevent personal injury or property damage.
EN RU UA FR ES IT DE PL PT

2 www.dimplex.com
Table of Contents
Always use a qualified technician
or service agency to repair
this fireplace.
!NOTE: Procedures and
techniques that are
considered important
enough to emphasize.
CAUTION: Procedures and
techniques which, if not
carefully followed, will result
in damage to the equipment.
WARNING: Procedures
and techniques which, if not
carefully followed, will expose
the user to the risk of fire,
serious injury, or death.
Welcome & Congratulations .........3
Important Safety Instructions .......4
Fireplace Installation ..............6
Operation ........................8
Maintenance.....................10
Warranty .......................12

3
Welcome & Congratulations
Thank you and congratulations for
choosing to purchase an electric
fireplace from Dimplex, the world
leader in electric fireplaces.
Please carefully read and save
these instructions.
CAUTION: Read all
instructions and warnings
carefully before starting
installation. Failure to follow
these instructions may result
in a possible electric shock,
fire hazard and will void
the warranty.

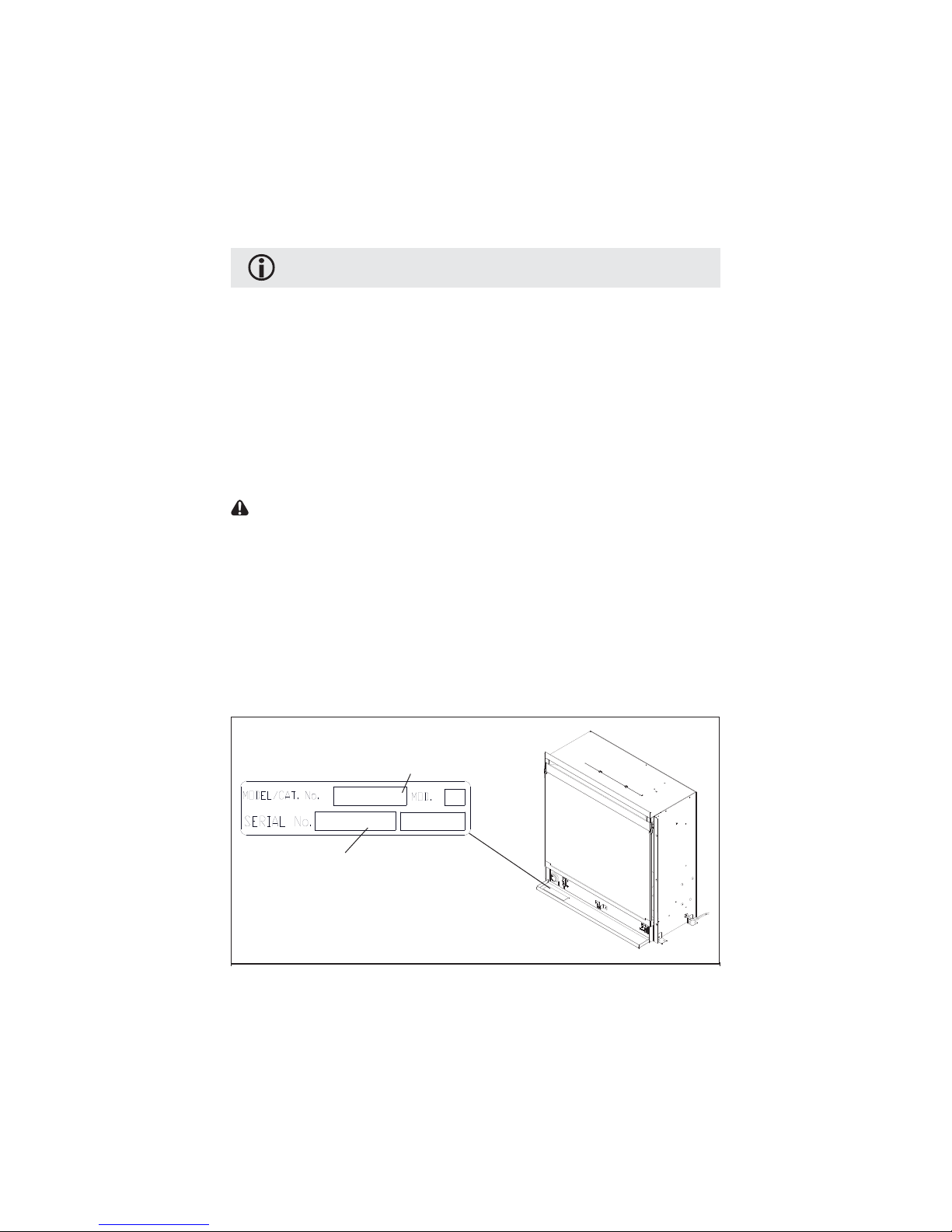

Serial Number
Figure 1
Model Number
Please record your model and
serial numbers below for future
reference: model and serial
numbers can be found on the
Model and Serial Number Label
of your fireplace.

4 www.dimplex.com
①Read all instructions before
using this appliance.
②This fireplace is hot when in
use. To avoid burns, do not let
bare skin touch hot surfaces.
The trim around the heater outlet
becomes hot during heater
operation. Keep combustible
materials, such as furniture,
pillows, bedding, papers, clothes,
and curtains at least 0.9 m (3
feet) from the front of the unit.
③Extreme caution is necessary
when any heater is used by or
near children or invalids and
whenever the unit is left operating
and unattended.
④Young children should be
supervised to ensure that they do
not play with the appliance.
⑤The appliance is not intended
for use by young children
or infirmed persons without
supervision.
⑥ The appliance must be
positioned so that the plug is
accessible.
⑦Always unplug the electric
fireplace when not in use.
IMPORTANT SAFETY INSTRUCTIONS
⑧If the supply cord is damaged,
it must be replaced by the
manufacturer, or its service agent,
or a qualified person in order to
avoid a hazard.
⑨Do not operate any unit with
a damaged cord or plug, or if
the heater has malfunctioned,
or if the electric fireplace has
been dropped or damaged in
any manner. Return heater
to authorized service facility
for examination, electrical or
mechanical adjustment, or repair.
⑩Do not use outdoors.
⑪Do not use this fireplace in the
immediate surroundings of a bath,
a shower or a swimming pool.
⑫Do not install the fireplace
directly on carpet or a similar
surface which may restrict air
circulation beneath the unit.
⑬Do not run the cord under
carpeting. Do not cover cord with
throw rugs, runners, or the like.
Arrange cord away from traffic
area and where it will not be
tripped over.
⑭Do not locate the heater
immediately below a fixed socket-
outlet.

5
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
⑮Do not locate the appliance in
front of a fixed socket-outlet.
⑯To disconnect the fireplace,
turn the controls off, then remove
the plug from the outlet.
⑰Do not insert or allow foreign
objects to enter any ventilation
or exhaust opening as this may
cause an electric shock or fire, or
damage to the heater.
⑱To prevent a possible fire, do
not block air intake or exhaust
in any manner. Do not use on
soft surfaces, like a bed, where
openings may become blocked.
⑲All electrical heaters have
hot and arcing or sparking parts
inside. Do not use in areas where
gasoline, paint, or flammable
liquids are used or stored or
where the unit will be exposed to
flammable vapors.
⑳Do not modify the electric
fireplace. Use it only as
described in this manual. Any
other use not recommended by
the manufacturer may cause fire,
electric shock or injury to persons.
Avoid the use of an extension
cord. Extension cords may
overheat and cause a risk of fire.
If you must use an extension
cord, the cord must be 3-core
type and have a rating no less
than 13 Amps.
Do not burn wood or other
materials in the electric fireplace.
Do not strike the fireplace
glass.
Always use a certified
electrician should new circuits or
outlets be required.
Always use properly grounded
and fused outlets.
Disconnect all power supply
before performing any cleaning,
maintenance or relocation of the
unit.
When transporting or storing
the unit and cord, keep in a
dry place, free from excessive
vibration and store so as to avoid
damage.
21
22
23
24
25
26
27

6 www.dimplex.com
Fireplace Installation
!NOTE: A 13 Amp, 230 Volt
alternating current (VAC) circuit is
required. A dedicated circuit is
preferred but not essential in all
cases. A dedicated circuit will be
required if, after installation, the
circuit breaker trips or fuse blows
on a regular basis when the
heater is operating. Additional
appliances on the same circuit
may exceed the current rating of
the circuit breaker.
WARNING: Ensure the power
cord is not installed so that it is
pinched or against a sharp edge
and ensure that the power cord is
stored or secured to avoid tripping
or snagging to reduce the risk of
fire, electric shock or injury to
persons.
WARNING: Construction
and electrical outlet wiring must
comply with local building codes
and other applicable regulations
to reduce the risk of fire, electric
shock and injury to persons.
WARNING: Do not attempt
to wire your own new outlets or
circuits. To reduce the risk of fire,
electric shock or injury to persons,
always use a licensed electrician.
!IMPORTANT: If not using
a Dimplex mantel, the fireplace
must be installed in an enclosure
with the following MINIMUM
Dimensions (Figure 2).
New Wall Construction
Select a suitable location that is1.
not susceptible to moisture and
IMPORTANT SAFETY INSTRUCTIONS
WARNING: In order to avoid
overheating, do not cover the
heater
CAUTION: In order to avoid
a hazard due to the inadvertent
resetting of the thermal cutout,
this appliance must not be
supplied through an external
switching device, such as a timer,
or connected to a circuit that is
regularly switched on and off by
the utility.

7
is away from drapes, furniture
and high traffic.
Place the fireplace in the2.
desired location to see how it
will look in the room.
Mark the desired location on3.
the floor.
Use studs to frame an opening4.
of 22.3" (679 mm) wide x 21.5"
(587 mm) high x 10" (254 mm)
deep.
Option #1: The power cord can
be run from behind the trim and
along the wall to an outlet near
the fireplace.
Option #2: A new outlet can be
can be installed inside the framing
construction.
Make sure the units Main ON/1.
OFF switch is switched OFF
Fireplace Installation
(refer to operating instruction
section).
Plug the unit into a 13 Amp2.
socket outlet. If the cord
does not reach you may use
a 3-core type extension cord
rated for a minimum of 13
Amps.
Ensure that firebox is securely3.
mounted within the mantel.
Refer to mantel assembly
instructions if firebox needs to
be installed.

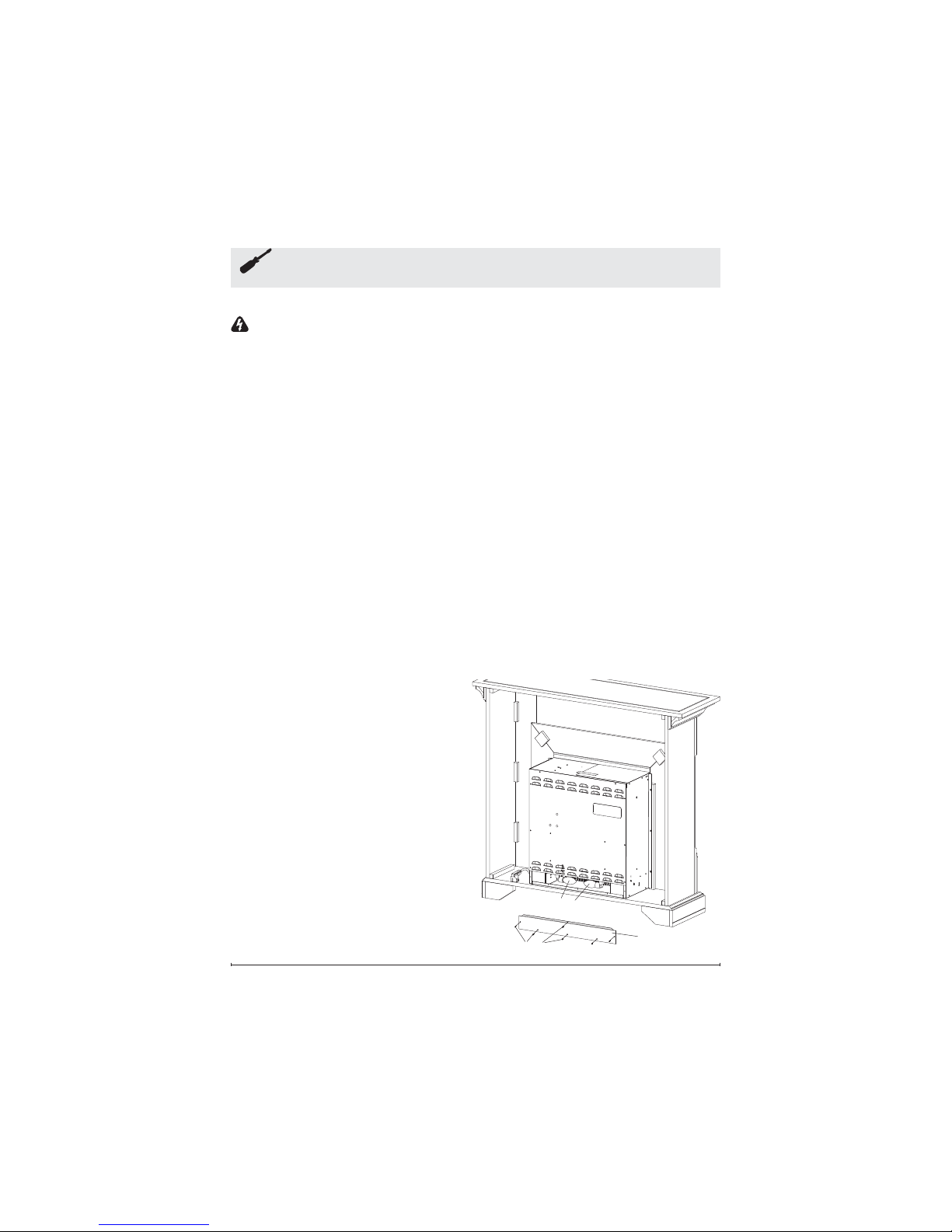

Corner Mantel Assembly
Assemble the top of the mantel4.
to the rear support using the
supplied hardware.
Using the supplied hardware5.
assemble the top and rear
support assembly to the
main fireplace body (Figure 3).
Figure 2
Mantel Top
Main Body
Hardware
Rear Support
Figure 3
21.5"
547mm
22.3"
566 mm
10"
254 mm

8 www.dimplex.com
Operation
To access the controls, swing
down the front cover panel
located on the lower front of the
fireplace (refer to diagram above,
Figure 4).
A. Main Three Position ON/OFF
Switch
The switch has two ON positions
marked with and “Manual”. The
“Manual“ position is for manual
operation. In this position the
built-in remote control is by-
passed.
The position is for operating
the unit with the provided remote
control.
When in position, the unit is
operated with the ON and OFF
buttons of the remote control.
When the switch is in the center
position the unit is off.
B. Heater ON/OFF Switch
The Heater ON/OFF Switch
supplies power to the heater fan
and the heater element. When the
Figure 4 ACB
switch is in the ON position the
heater operates if the thermostat
calls for heat.
C. Heater Thermostat Control
To adjust the temperature to
your individual requirements,
turn the thermostat control
clockwise all the way to turn
on the heater. When the room
reaches the desired temperature,
turn the thermostat knob counter
clockwise until you hear a click.
Leave in this position to maintain
the room temperature at this
setting. For additional heat, turn
clockwise until you hear the click
again and the heater will turn on.
Resetting the Temperature
Cutoff Switch
Should the heater overheat, an
automatic cut out will turn the
heater off and it will not come
back on without being reset. It
can be reset by switching the

9
Operation
Main Three Position ON/OFF
Switch to OFF and waiting 5
minutes before switching the unit
back on.
CAUTION: If you need to
continuously reset the heater,
unplug the unit and contact your
local dealer.
!NOTE: The heater may emit
a slight, harmless odor when
first used. This odor is a normal
condition caused by initial heating
of internal heater parts and will
not occur again.

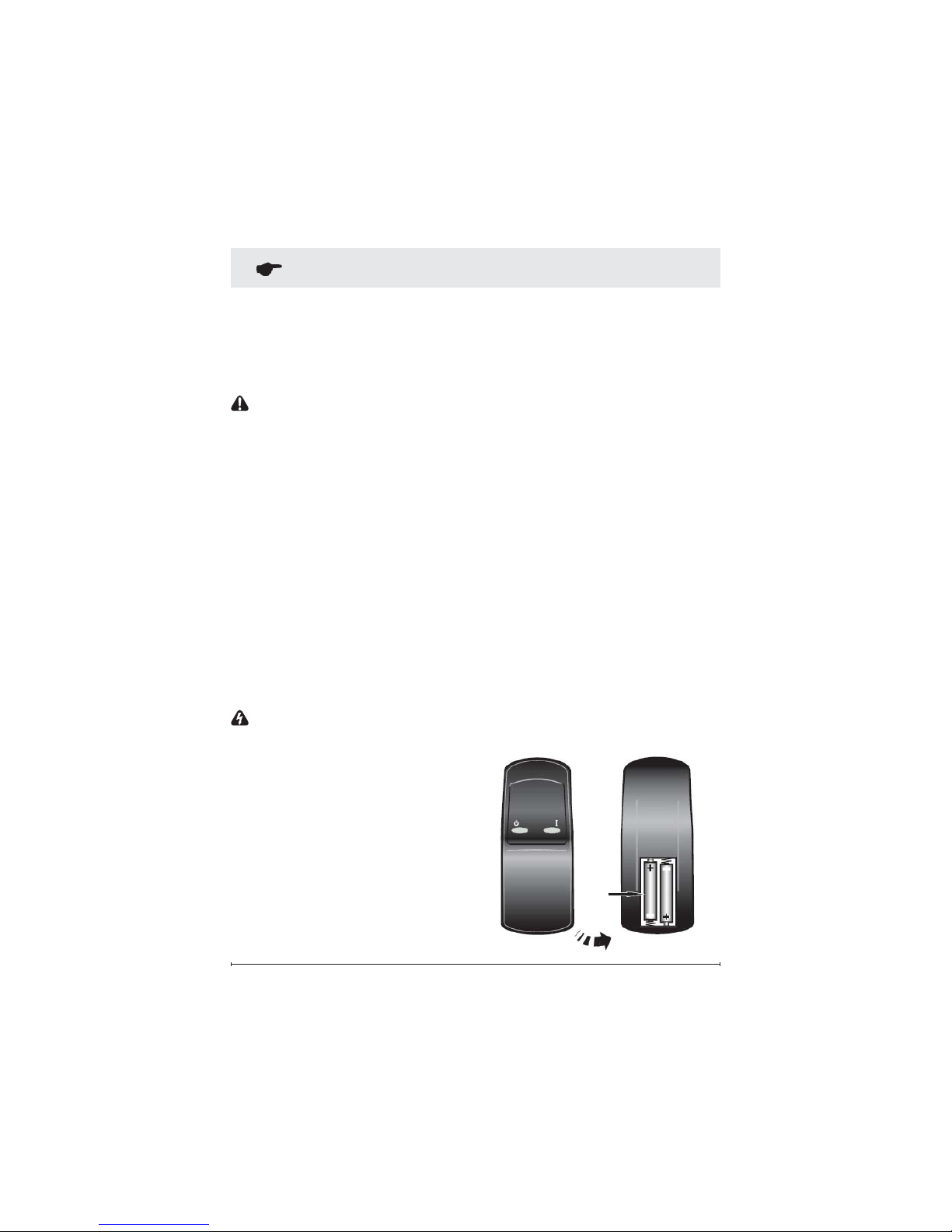

Remote Control (Figure 5)
The fireplace is supplied with an
integrated on/off remote control.
Where the maximum rage of use
is ~15m.
WARNING: It takes time for
the receiver to respond to the
transimitter. Do not press the
buttons more than once within
two seconds for correct operation.
!NOTE: Ensure that the
fireplace 3 position switch
is set to the remote control
setting (up position).
To operate, push the ON button
to turn fireplace on, push the OFF
button to turn the fireplace off.
Battery Replacement
To replace the battery:
Slide battery cover open1.
on the back of the remote
control.
Install AAA batteries into the2.
remote control.
Replace the battery cover.3.
Discard leaky batteries. Dispose
of batteries in the proper manner
according to provincial and local
regulations. Any battery may leak
electrolyte if mixed with a different
battery type, if inserted incorrectly,
if all the batteries are not replaced
at the same time, if disposed of in
a fire, or if an attempt is make to
charge a battery not intended to
be recharged.
Figure 5

10 www.dimplex.com
WARNING: Disconnect
power before attempting any
maintenance or cleaning to
reduce the risk of fire, electric
shock or damage to persons.
Light Bulb Replacement
Allow at least five (5) minutes for
light bulbs and heater to cool off
before touching bulbs to avoid
accidental burning of skin.
Light bulbs need to be replaced
when you notice a dark section
of the flame or when the clarity
and detail of the log exterior
disappears. There are two (2)
bulbs under the log set which
generate the flames and embers.
Bulb Requirements
Quantity of two (2) clear chande-
lier or candelabra bulbs with an
E-14 socket base, 60 watt rating.
Helpful Hints
It is a good idea to replace all
light bulbs at one time if they are
close to the end of their rated life.
Group replacement will reduce
the number of times you need
to open the unit to replace light
bulbs.
To Replace The Light Bulbs
(Figure 6)
Unplug the unit from power1.
outlet.
On the back of the Compact2.
Fireplace remove the screws
from the light access cover.
Remove the light access3.
cover.
Reach into the opening,locate4.
and examine the bulbs to
determine which bulb(s)
require replacement.
Unscrew the bulb(s) counter-5.
clockwise.
Insert new bulb(s).6.
Install the light access cover7.
and install the screws.
Figure 6
Light Bulbs
Screws Light Access
Cover
Maintenance
