Dimplex THWG XLF50 User manual

Service Manual
Model UL Part Number
XLF50 6909630100
XLF74 6909690100
XLF100 6909700100
7400940000R00
In keeping with our policy of continuous product development, we reserve the right to make changes without notice.
© 2016 Dimplex North America Limited
Dimplex North America Limited
1367 Industrial Road Cambridge ON Canada N3H 4W3
1-888-346-7539 www.dimplex.com
REV PCN DATE
00 - 21-JAN-16
IMPORTANT SAFETY INFORMATION: Always read this manual rst before attempting to service this
replace. For your safety, always comply with all warnings and safety instructions contained in this
manual to prevent personal injury or property damage.

2 www.dimplex.com
Always use a qualied technician or service agency to repair this replace.
!NOTE: Procedures and techniques that are considered important enough to emphasize.
CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the
equipment.
WARNING: Procedures and techniques which, if not carefully followed, will expose the user to the
risk of re, serious injury, or death.
Operation ...........................................................3
Additional key Combinations...........................................4
Maintenance.........................................................5
Exploded Parts Diagram - XLF50........................................6
Exploded Parts Diagram - XLF74........................................7
Exploded Parts Diagram - XLF100.......................................8
Wiring DiagramS .....................................................9
Preparation for Service...............................................10
Main Control Board Replacement ......................................11
LED Power Distributor Replacement (Only XLF74 & 100)...................11
Power Supply Replacement ...........................................11
Capacative Controls and Display Replacement ...........................12
Media LED light Strips Replacement....................................12
Flame LED Strips Replacement ........................................12
Flicker Assembly Replacement ........................................13
Thermistor Replacement .............................................13
Blower/Fan Replacement .............................................14
Troubleshooting Guide ...............................................15
TABLE OF CONTENTS

3
B. Flame Effects
Turns the Flame Effect On and Off.
→ Activated by pressing the button on the remote.
C. Heat ON/OFF
Turns the heater On and Off.
→ Activated by pressing the button on the remote or the
unit.
• Indicated by the icon and the setpoint temperature will
ash on the display, then the intake temperature will be
displayed before turning off.
!NOTE: After the heater is switched off, there is a 2
minute fan delay, where the fan will continue running before
turning off.
!NOTE: The unit can be operated in Heat Only Mode.
When the unit is only running with the heater, the icon
will continuously be displayed on the Display.
!NOTE: The heater may emit a slight, harmless odor
when rst used. This odor is a normal condition caused
by initial heating of internal heater parts and will not occur
again.
D Temperature Down
Decreases the temperature setting.
→ Adjusted by repeatedly pressing the corresponding but-
ton on the remote.*
• Indicated by setpoint temperature on the Display de-
creasing and the speed of the fan decreasing to reduce
the amount of heat being projected into the room.**
E. Temperature Up
Increases the temperature setting.
→ Adjusted by repeatedly pressing the corresponding but-
ton on the remote.*
• Indicated by the setpoint on the Display increasing and
the speed of the fan increasing to increase the amount of
heat being projected into the room.
* The rst time the button is pressed the current temper-
ature set point will be displayed for 2 seconds.
** The temperature can be adjusted from 5 °C to 37 °C (41
°F to 99 °F).
!NOTE: Holding the and the buttons down for
two seconds, on the unit, will change the temperature scale
from °C to °F, or vice versa.
F. Eco Operation
Runs the heater in a reduced wattage range when acti-
vated.
→ Adjusted by pressing the corresponding button on the
remote when the heater is on.
• Indicated by the Display and a reduced fan speed.
G. Heat Boost
Turns the Heater Boost On and Off. Runs the unit at the full
rated wattage.
OPERATION

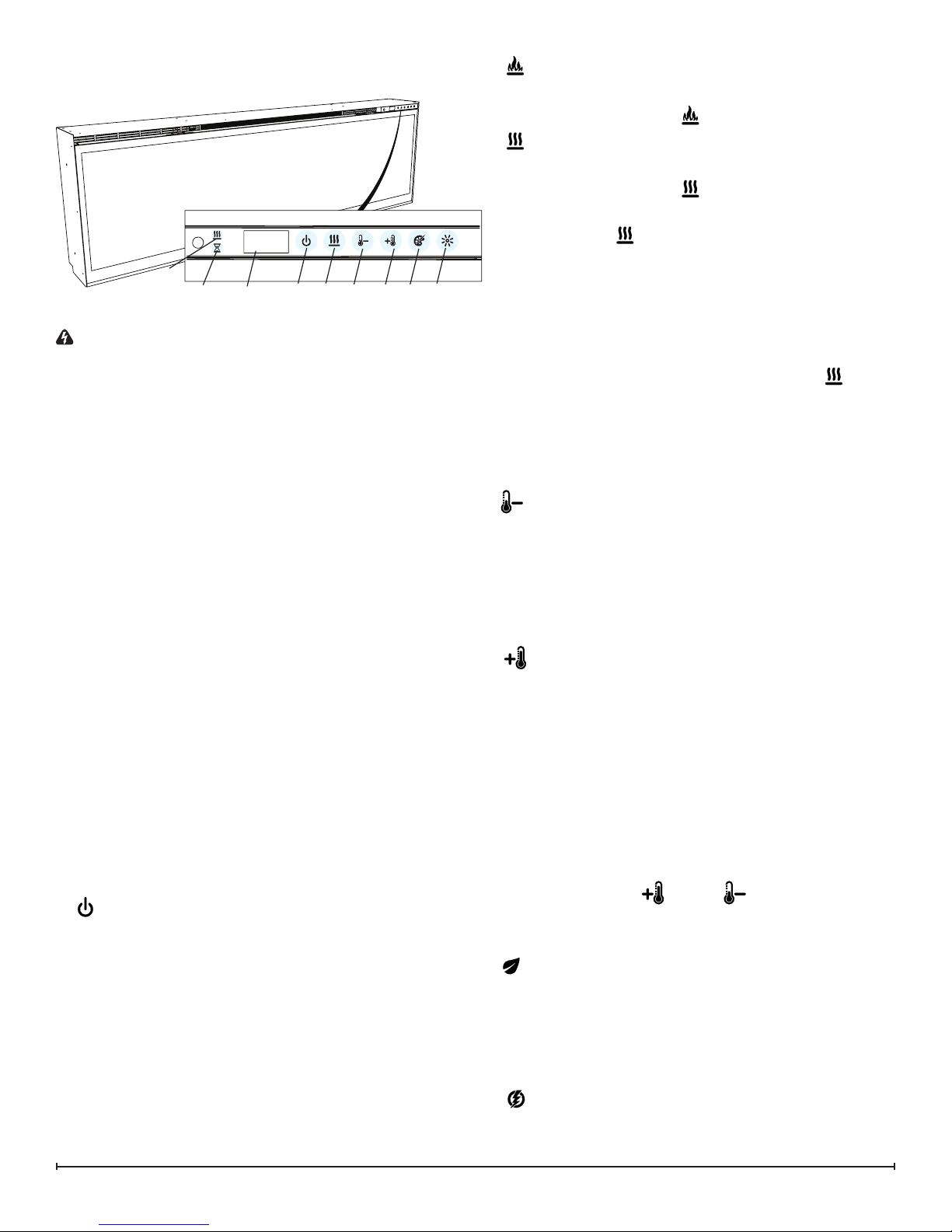

Figure 1
General Operation
WARNING: This electric firebox must be properly in-
stalled before it is used.
This firebox operates with Comfort$averTM technology,
which automatically adjusts the fan speed and heater watt-
age to safely and precisely match the requirements of the
room based on the thermostat setting. The heater operates
such that once the room reaches the set point, the fan and
heater will continuously run at a low level, to maintain the
desired room temperature. If the temperature in the room
rises significantly, i.e. sun coming through a window or a
central furnace turns on, the heater will turn off and periodi-
cally turn back on to circulate the air around the unit, until
the room temperature drops and requires the heater to be
constantly on again.
!NOTE: The unit is designed so that the fan will run con-
tinuously while the heater is on.
!NOTE: The element retains heat after shutdown, there is
a built in cool down period of 2 minute before the fan shuts
off completely, when the heat function is turned Off.
Remote Operation
The replace is supplied with an IR multi-function remote
control.
!NOTE: To operate correctly, the remote control must be
pointed towards the front of the unit.
Controls
The unit can be controlled by either the manual controls
which are located on the upper right of the replace or the
remote (Figure 1 & 2).
A. Standby
Turns the unit On and Off.
→ Activated by pressing the Standby button on the remote
or the unit.
• The unit will turn On with the same functions that it was
set to when it was turned Off and the intake temperature
will be indicated on the Display.
!NOTE: When any button is pressed on the unit the
intake temperature will be displayed on the Display for 7
seconds.
AC D E F
Display G
I
J

4 www.dimplex.com
→ Activated and adjusted by repeatedly pressing the cor-
responding button on the remote.
• Indicated by the heater running at full heat, for a user set
amount of time, to quickly heat up a cold room/space.
The Heat Boost can be set for a maximum of 20 minutes,
in 5 minute increments.
Disable Heat
If desired, depending on the season, the heater on the unit
can be disabled. The function of the remaining controls will
continue to function as outlined in this manual.
Pressing the and buttons on the unit at the same
time and holding for 2 seconds will disable and enable the
heater.
!NOTE: When the heater has been disabled and any of
the heat related functions are used, the Display will indicate
“---”.
H. Color Themes
Different presets of lighting color combinations are avail-
able in the unit.
→ Changed by repeatedly pressing the corresponding but-
ton on the remote or the unit.
• Cycles through the different preset light settings of the
unit, this includes different combinations of colors of the
ame base and media lighting.
!NOTE: Two of the themes in the cycle are a prism
where the unit cycles through a variety of colors. Pressing
the stops the cycling and holds the unit on the preferred
color, indicated by a solid circle. When the unit is on prism,
and is cycling through the colors, a rotating circle will be
displayed.
I. Brightness
Changes the Brightness of the lights in the unit.
→ Adjusted by repeatedly pressing the corresponding but-
ton on the remote or the unit.
• Indicated by the second digit on the Display changing to
show: “H” (high), and “L” (low).
J. Sleep Timer
The Sleep Timer can be set to automatically shut off the
replace after a preset time (from 30 minutes to 8 hours).
→ To set the timer press the timer button on the remote,
repeatedly, until the desired time is displayed.
• The Display will display the different times as it is ad-
justed. Once the timer has begun, pressing the button
will display the time remaining before the unit turns Off.
!NOTE: The Sleep Timer can be cancelled at any time
by pressing the button repeatedly until the sleep timer
displays nothing.
Resetting the Temperature Cutoff Switch
Should the heater overheat, an automatic cut out will turn
the whole unit off and it will not come back on without being
reset. If the button on the unit is pressed, Er2 will be
Figure 2
A
D
BC
E
G
J
F
HI
displayed on the unit. It can be reset by turning the unit off
at the main disconnect panel and waiting 5 minutes before
turning the unit back on.
CAUTION: If you need to continuously reset the heater,
turn the unit off at the main disconnect panel and call tech-
nical support at 1-888-346-7539.
Remote Control Battery Replacement
To replace the Battery:
1. Slide battery cover open on the remote control.
2. Correctly install one 3 Volt (CR2032 [longer life] or
CR2025) Battery in the battery holder.
3. Close the battery cover.
Battery must be recycled or disposed of properly.
Check with your Local Authority or Retailer for recyc-
ling advice in your area
ADDITIONAL KEY COMBINATIONS
Software Revision Display - On the unit, hold and
to display the software revision of the unit.
Factory Reset - On the unit, hold the and the , until
the display shows “ooo”

5
MAINTENANCE
 WARNING: Disconnect power and allow heater to cool
before attempting any maintenance or cleaning to reduce
the risk of re, electric shock or damage to persons.
!NOTE: The replace should not be operated with an
accumulation of dust or dirt on or in the unit, as this can
cause a build up of heat and eventual damage. For this
reason the heater must be inspected regularly, depending
upon conditions and at least at yearly intervals.
Partially Reective Glass Cleaning
The partially reective glass is cleaned in the factory dur-
ing the assembly operation. During shipment, installation,
handling, etc., the partially reective glass may collect dust
particles; these can be removed by dusting lightly with a
clean dry cloth.
To remove ngerprints or other marks, the partially reec-
tive glass can be cleaned with a damp cloth. The partially
reective glass should be completely dried with a lint free
cloth to prevent water spots. To prevent scratching, do not
use abrasive cleaners.
Fireplace Surface Cleaning
Use only a damp cloth to clean painted surfaces of the
replace. Do not use abrasive cleaners.
Servicing
Except for installation and cleaning described in this manu-
al, an authorized service representative should perform any
other servicing.

6 www.dimplex.com
EXPLODED PARTS DIAGRAM - XLF50
Replacement Parts List - XLF50
12
14
1
2
3
4
10
11
7
13
8
16
9
1. Heater Assembly (with cutouts) .....2203720100RP
2. Remote Control..................3001250100RP
3. Main Control Board ...............3001650100RP
4. Capacative Controls and Display ....3001680100RP
5. Power Supply ...................2100250500RP
6. Thermistor......................3001560500RP
7. Partially Reective Glass ..........5902890100RP
8. Front Glass .....................5902900100RP
9. Flicker Motor ....................2000500900RP
10. Flicker Assembly ................5902920100RP
11. 6-Light LED Flame Assembly .......3001670100RP
12. 8-Light LED Flame Assembly .......3001670200RP
13. 4-Light RGB LED Assembly (2) .....3001570400RP
14. Media Tray .....................5902910100RP
15. 6-Light Coloured Media LED Assembly....3001570100RP
16. 8-Light Coloured Media LED Assembly (2) .3001570300RP
17. Hardware Kit ....................9600360100RP
18. Large Acrylic Media...............1400130200RP
19. Medium Acrylic Media .............1400150100RP
Accessories
River Rocks .............................DFS1314
Driftwood Accessory Kit................LF50DWS-KIT
15
5

7
EXPLODED PARTS DIAGRAM - XLF74
Replacement Parts List - XLF74
12
6
1
2
3
4
19
10
11
7
13
8
14
1. Heater Assembly (with cutouts) .....2203720100RP
2. Remote Control..................3001250100RP
3. Main Control Board ...............3001650100RP
4. Capacative Controls and Display ....3001680100RP
5. Power Supply (2) ................2100250600RP
6. Thermistor......................3001560700RP
7. Partially Reective Glass ..........5902890200RP
8. Front Glass .....................5902940100RP
9. Flicker Motor ....................2000480200RP
10. Flicker Assembly ................5902920200RP
11. 6-Light LED Flame Assembly .......3001670100RP
12. 8-Light LED Flame Assembly (2) ....3001670200RP
13. Media Tray .....................5902910200RP
14. 6-Light Coloured Media LED Assembly....3001570100RP
15. 8-Light Coloured Media LED Assembly (5) .3001570300RP
16. Hardware Kit ....................9600360100RP
17. Large Acrylic Media...............1400130300RP
18. Medium Acrylic Media (2) ..........1400150100RP
19. LED Power Distributor ............3001720100RP
Accessories
River Rocks .............................DFS1314
Driftwood Accessory Kit................LF74DWS-KIT
15
59
LED Conguration
Flame LED’s (white)
Flame Base (colour)
Media (colour)
12
15 15
15
15

8 www.dimplex.com
EXPLODED PARTS DIAGRAM - XLF100
Replacement Parts List - XLF100
1. Heater Assembly (with cutouts) ......2203720100RP
2. Remote Control...................3001250100RP
3. Main Control Board ................3001650100RP
4. Capacative Controls and Display .....3001680100RP
5. Power Supply a) 5 Amp ............2100250500RP
b) 3 Amp.............2100250600RP
6. Thermistor.......................3001560700RP
7. Partially Reective Glass ...........5902890300RP
8. Front Glass ......................5902940200RP
9. Flicker Motor .....................2000480200RP
10. Flicker Assembly .................5902920300RP
11. 6-Light LED Flame Assembly (5) .....3001670100RP
12. Media Tray ......................5902910300RP
13. 6-Light Coloured Media LED Assembly (5) . 3001570100RP
14. 8-Light Coloured Media LED Assembly (4) . 3001570300RP
15. Hardware Kit .....................9600350100RP
16. Large Acrylic Media................1400130200RP
17. Medium Acrylic Media (2) ...........1400150100RP
18. LED Power Distributor ............3001720100RP
Accessories
Driftwood Accessory Kit (2) ............. LF50DWS-KIT
11
6
1
2
3
4
18
10
11
7
12
8
13
13
5a 9
LED Conguration
Flame LED’s (white)
Flame Base (colour)
Media (colour)
11
14 14
13
5b
11
13
14
11
13
14

9
WIRING DIAGRAMS
CUTOUTS
THERMAL
CUTOUTS
THERMAL
M
M
FLICKER MOTOR
FLAME LED ASSEMBLY
MEDIA LED ASSEMBLY
MEDIA LED ASSEMBLY
POWER ADAPTER
FAN FAN
CERAMIC ELEMENT
FLICKER MOTOR
FLAME LED ASSEMBLY
MEDIA LED ASSEMBLY
MEDIA LED ASSEMBLY
POWER ADAPTER
FAN FAN
CERAMIC ELEMENT
POWER ADAPTER
RELAY BOARD
MAIN CONTROL
BOARD
MAIN CONTROL
BOARD
THERMISTOR
THERMISTOR
XLF50
XLF74, XLF100

10 www.dimplex.com
16.49 in
419 mm
15.82 in.
402 mm
15.00 in.
381 mm
5.79 in.
147 mm
4.34 in.
110 mm
XLF50 50.31 in [1278 mm]
XLF74 74.31 in [1887 mm]
XLF100 100.31 in [2548 mm]
XLF50 51.41 in [1306 mm]
XLF74 75.41 in [1941 mm]
XLF100 101.41 in [2576 mm]
PREPARATION FOR SERVICE
!NOTE: All components are replaceable from the front
of the replace while the unit is mounted in the wall.
Tools Required: Philips head screwdriver
WARNING: Disconnect power before attempting any
maintenance or cleaning to reduce the risk of electric
shock or damage to persons.
CAUTION: If unit was operating prior to servicing allow
at least 10 minutes for lights and heating elements to cool
off to avoid accidental burning of skin.
!NOTE: All instructions are created for replacement
of the XLF50 components and as a result the number of
screws may differ for the XLF74 and XLF100.
1. Turn the breaker off at the electrical panel.
2. Remove the front glass assembly by removing the 2
screws (1 on the left and 1 on the right side, located
just inside the top front vent opening). These screws
secure the front glass panel to the inside of the re-
place. (Figure 4)
3. Lift the front glass assembly out of the unit and care-
fully place the glass assembly aside in a safe location.
4. Remove the decorative acrylic ember-bed pieces from
the media tray, which lies along the bottom of the inter-
ior Partially Reective Glass. A medium sized container
such as a bucket or a box will be needed to keep the
acrylic ember-bed pieces together.
5. Attach the suction cup to the partially reective glass to
assist with removat.
6. Remove the Partially Reective Glass by removing the
12 screws from the glass retaining bracket, starting on
either end and working your way to the middle, along
the top of the opening, ensuring that neither the bracket
Figure 5
Figure 4
Figure 3
