Dimplex CDS8515 User manual

7207100100rev06
Owner’s Manual
Model Numbers:
TDS8515
CDS8515
Valued Customer,
Thank you and congratulations for purchasing a Dimplex
electric stove. Over the years, valuable memories
will occur around the warmth and comfort of your stove.
Thank you for allowing our product to be the backdrop
for those special moments.
Serial Number
Model Number
Part Number
Quality checked by:

2
QUICK REFERENCE GUIDE
1. Before using the stove verify:
• Are the circuit breakers for the unit on?
• Are the light bulbs loose? (To check, follow
the instructions for replacing the light bulbs
under the maintenance section of this
manual)
2. The heater may emit a slight, harmless odor
when rst used. This odor is a normal condition
caused by the initial heating of internal heater
parts.
3. The information regarding the model of your
unit can be found on the rating plate. See Page
6 for an illustration on how to locate the rating
plate.
4. If you have any questions or concerns
regarding the operation of your stove, contact
Dimplex customer service at 1-888-DIMPLEX
(1-888-346-7539)

3
CONTENTS
Important Instructions . . . . . . . . . . . . . . . . Page 4
Model and Serial Number Information. . . . Page 6
Stove Installation . . . . . . . . . . . . . . . . . . . . Page 7
Operation.......................... Page 7
Maintenance.......................Page 11
Warranty ......................... Page 14
!NOTE: This equipment has been tested and found to comply with the limits for Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
· Reorient or relocate the receiving antenna.
· Increase the separation between the equipment and the receiver.
· Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
· Consult the dealer or an experienced radio/TV technician for help.
Operation is subject to the following two conditions: (1) this device may not cause
interference and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.

4
IMPORTANT INSTRUCTIONS
Retain this User’s Guide for Future Reference
When using electrical appliances, basic precautions should always be followed
to reduce the risk of re, electric shock, and injury to persons, including the
following:
1. Read all instructions before using the stove.
2. The heater is hot when in use. To avoid burns, do not let bare skin touch
hot surfaces. The trim around the heater outlet becomes hot during heater
operation. Keep combustible materials, such as furniture, pillows, bedding,
papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the
unit.
CAUTION: High Temperature, keep electrical cords, drapery, and
other furnishings at least 3 feet (0.9 m) from the front of the heater
and away from the side and rear.
3. Extreme caution is necessary when any heater is used by or near children
or invalids and whenever the unit is left operating and unattended.
4. Always unplug the stove when not in use.
5. Do not operate any unit with a damaged cord or plug, or if the heater
has malfunctioned, or if the stove has been dropped or damaged in any
manner. Return heater to authorized service facility for examination,
electrical or mechanical adjustment, or repair.
6. Do not use outdoors.
7. The stove is not intended for use in bathrooms, laundry areas and similar
indoor locations. Never locate heater where it may fall into a bathtub or
other water container.
8. Do not run the cord under carpeting. Do not cover cord with throw rugs,
runners, or the like. Arrange cord away from trafc area and where it will
not be tripped over.
9. To disconnect the unit, turn the controls off, then remove the plug from the
outlet.
10. Do not insert or allow foreign objects to enter any ventilation or exhaust
opening as this may cause an electric shock or re, or damage to the
heater.
11. To prevent a possible re, do not block air intake or exhaust in any manner.
Do not use on soft surfaces, like a bed, where openings may become
blocked.
12. All electrical heaters have hot and arcing or sparking parts inside. Do not
use in areas where gasoline, paint, or ammable liquids are used or stored
or where the unit will be exposed to ammable vapors.

5
13. Do not modify the stove. Use it only as described in this manual. Any other
use not recommended by the manufacturer may cause re, electric shock
or injury to persons.
14. To reduce the risk of electric shock, this appliance has a polarized plug
(one blade is wider than the other). This plug will t in a polarized outlet
only one way. If the plug does not t fully in the outlet, reverse the plug. If
it still does not t, contact a qualied electrician to install the proper outlet.
Do not change the plug in any way. Avoid the use of an extension cord.
Extension cords may overheat and cause a risk of re. If you must use an
extension cord, the cord must be No. 14 AWG minimum size and rated no
less than 1875 Watts.
15. Do not burn wood or other materials in the stove.
16. Do not strike the clear door panel.
17. Always use a certied electrician should new circuits or outlets be required.
18. Always use properly grounded, fused and polarized outlets.
19. Disconnect all power supply before performing any cleaning, maintenance
or relocation of the unit.
20. When transporting or storing the unit and cord, keep in a dry place, free
from excessive vibration and store so as to avoid damage.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICEABLE PARTS INSIDE
SAVE THESE INSTRUCTIONS
!NOTE: Procedures and techniques that are considered important
enough to emphasize.
CAUTION: Procedures and techniques which, if not carefully
followed, will result in damage to the equipment.
WARNING: Procedures and techniques which, if not carefully
followed, will expose the user to the risk of re, serious injury,
illness or death.

6

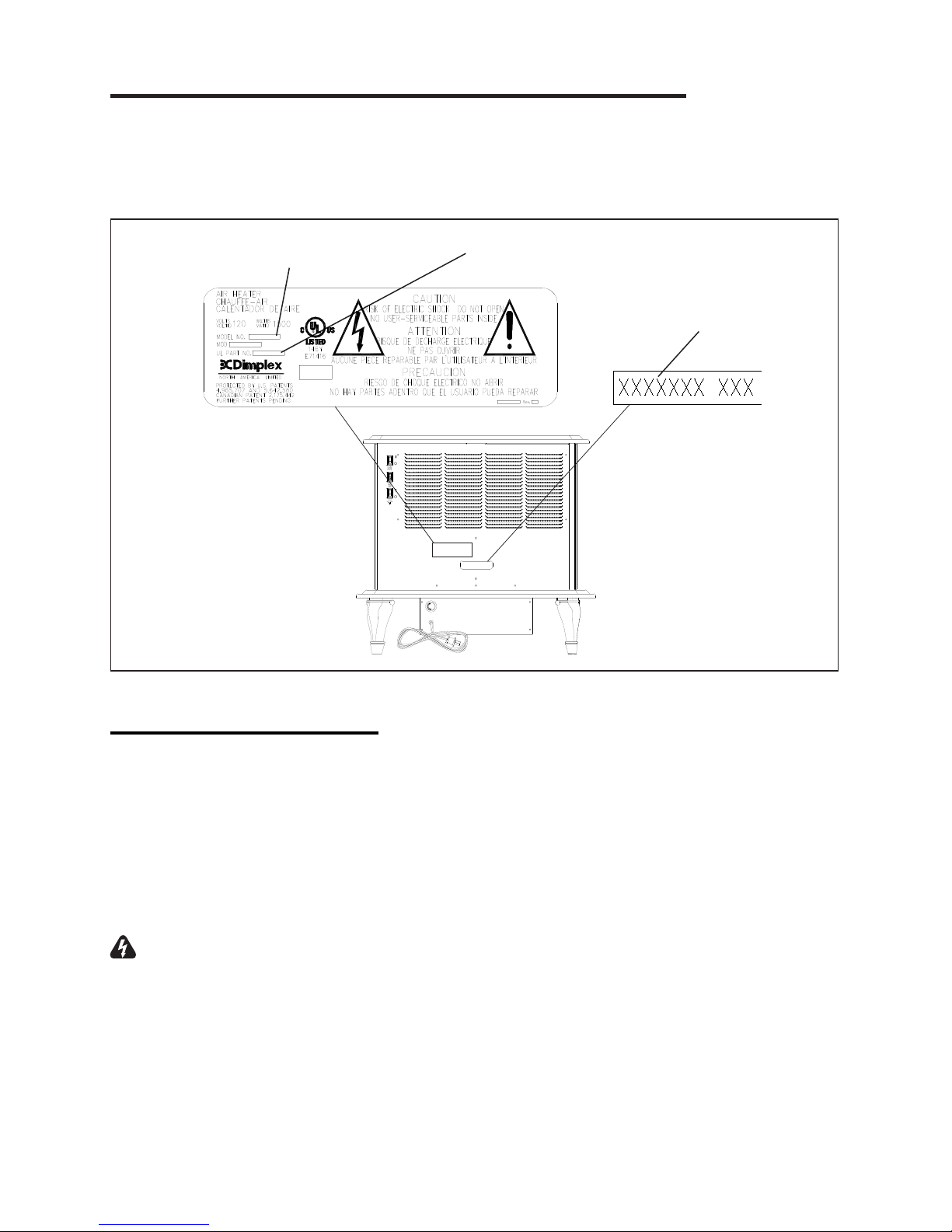

Figure 1
Serial Number
Model Number Part Number
Model and Serial Number Information
If you have any questions about our products please have the product
model and serial numbers available upon calling Dimplex customer
service. To locate the model and serial number see below (Figure 1).
Stove Installation
!NOTE: A 15 Amp, 120 Volt circuit is required. A dedicated circuit
is preferred but not essential in all cases. A dedicated circuit will
be required if, after installation, the circuit breaker trips or fuse
blows on a regular basis when the heater is operating. Additional
appliances on the same circuit may exceed the current rating of the
circuit breaker.
WARNING: Ensure the power cord is not installed so that it is
pinched or against a sharp edge and ensure that the power cord is
stored or secured to avoid tripping or snagging to reduce the risk of
re, electric shock or injury to persons.
Construction and electrical outlet wiring must comply with local
building codes and other applicable regulations to reduce the risk of
re, electric shock and injury to persons.

7
Do not attempt to wire your own new outlets or circuits. To reduce
the risk of re, electric shock or injury to persons, always use a
licensed electrician.
1. Make sure the unit’s Main ON/OFF switch is switched OFF (refer
to operating instruction section).
2. Plug the unit into a 15 Amp/120 Volt outlet. If the cord does not
reach, you may use an extension cord rated for a minimum of 1875
Watts.
Operation
To access the controls, go to the back of the stove (Figure 2).
Figure 2
A
B
C
D
Back View Front View
E
A. Main Power ON/OFF Switch
The Main Power ON/OFF Switch supplies power to all unit functions
(ame, Purire™, and heater).

8
B. Manual Selection Switch
To choose between ame effect setting, ame effect with Purire™
setting, and ame effect with Purire™ and heat setting.
Pressing the switch up (“ I” position) has the same effect as the ON
button on the remote control and pressing the switch down (“ II ”
position) has the same effect as the OFF button of the remote control.
Pressing the switch up once activates Level 1, twice activates Level
2, three times activates Level 3. Pressing the switch down turns the
electric stove OFF.
Level 1: The ame effect is turned on and the rst red indicator is
activated.
Level 2: The ame effect remains on, the Purire™ is activated, and
the rst and second red indicator lights are activated.
Level 3: The ame effect and Purire™ remain on, the heater is
activated, and all three red indicator lights are activated.
C. Interior Light ON/OFF Switch
The Interior Light On/Off Switch supplies power to the interior light.
D. Heater Thermostat Control
To adjust the temperature to your individual requirements, turn the
thermostat control clockwise all the way to turn on the heater. When
the room reached the desired temperature, turn the thermostat knob
counter clockwise until you hear a click. Leave in this position to
maintain the room temperature at this setting. For additional heat, turn
clockwise until you hear the click again and the heater will turn on.
E. LED Indicators
Indicates the current
function of the stove
(Figure 3).
!NOTE: The heater
may emit a slight,
harmless odor when
rst used. This odor is a normal condition caused by initial heating
Figure 3
Level 1 Indicator
Level 2 Indicator
Level 3 Indicator

9
of internal heater parts and will not occur again.
Resetting the Temperature Cutoff Switch
This unit is equipped with a thermostat which controls the temperature
of the room. It does this by turning the heater on and off. The heater
is protected with a safety device to prevent overheating. Should the
heater overheat, an automatic cut out will turn the heater off and it will
not come back on without being reset. It can be reset by switching
the Main ON/OFF Switch to OFF and waiting ve (5) minutes before
switching the unit back on.
CAUTION: If you need to continuously reset the heater, unplug the
unit and call your local dealer.
Remote Control Usage
The stove is supplied with a radio frequency remote control. This
remote control has a range of approximately 50 feet (15.25 m). It
does not have to be pointed at the stove and can pass through most
obstacles (including walls). It is supplied with one of 243 independent
frequencies to prevent interference with other units. The frequency
designation is indicated on the back of the transmitter (Figure 4).
The remote control operates the stove levels sequentially. The level is
increased every time the ON button on the transmitter is pressed. The
stove can be turned off at any point by pressing the OFF button on the
remote control transmitter.
Level 1: The ame effect is turned on and the rst red indicator is
activated.
Level 2: The ame effect remains on, the Purire™ is activated, and
the rst and second red indicator lights are activated.
Level 3: The ame effect and Purire™ remain on, the heater is
activated, and all three red indicator lights are activated.
!NOTE: When the stove is turned on by transmitter the stove will
start with ames only. The level can be increased every time the
ON button on the transmitter is pressed.

10
Remote Control
Initialization
Follow these steps for remote
control initialization and if
required, re-initialization:
1. Ensure that power is
supplied through the main
service panel.
2. Access the manual controls.
3. Locate manual controls.
4. Activate main power switch.
5. Press and hold the side of
the Manual Selection
Switch marked “ I ” for ve
(5) seconds (red indicator light will ash).
6. Press the ON button located on the remote control transmitter.
This will synchronize the remote control transmitter and receiver.
Battery Replacement
To replace the battery:
1. Slide battery cover open on the hand held transmitter (Figure 4).
2. Correctly install one (1) 12 Volt (A23) battery in the battery holder.
3. Close the battery cover.
Maintenance
WARNING: Disconnect power before attempting any maintenance
or cleaning to reduce the risk of re, electric shock or damage to
persons.
Light Bulb Replacement
WARNING: Allow at least ve (5) minutes for light bulbs to cool off
before touching bulbs to avoid accidental burning of skin.
Light bulbs need to be replaced when you notice a dark section of
the ame or when the clarity and detail of the log exterior disappears.
Figure 4
On
Button
Off
Button
Battery
Battery
Cover
Frequency Code

11
There is one (1) bulb under the top panel for generating the interior
light and two (2) bulbs under the log set which generate the ames and
embers.
Tool Requirements: Slot screwdriver
Helpful Hints
It is a good idea to replace all light bulbs at one time if they are close to
the end of their rated life. Group replacement will reduce the number
of times you need to open the unit to replace light bulbs.
Upper Light Bulb Requirements
Quantity of one (1) 15 Watt candelabra E12 small base 120 Volt.
Do not exceed 15 Watts.
Upper Bulb Replacement
1. Remove the two (2) screws at the upper corners of the back panel.
Lift the back end of the top to clear the brackets and pull back. Lift
top carefully, and place to the side of the stove (Figure 5).
Caution should be taken as the top mounting brackets may
scratch the nish.
2. Remove the burnt bulb by pushing in and turning counter-clockwise.
3. Replace the upper light bulb.
4. Reassemble in the reverse order as above.
Lower Light Bulb Requirements
Quantity of three (3) 35 Watt Halogen Quartz lamps, 120 Volt, G9
base.
Do not exceed 35 Watts per bulb.
Lower Bulb Replacement
1. Gently place stove on its back on a at surface.
2. Remove thermostat knob.
3. Remove the heater cover retaining screws located on the bottom of
the stove (Figure 6) and lower heater and light assembly out onto
the oor.

12
4. Remove the burnt out bulb(s)
by pulling straight out of
socket. If bulbs are difcult to
remove from socket move the
bulb from side to side while
pulling being careful not to
damage the light socket.
5. Replace the lower light bulbs.
6. Reassemble in the reverse
order as above.
Purire™ Filter
The Purire™ lter supplied in
your stove is reusable and
washable. The lter should be
cleaned or replaced on average
once a year. To clean the lter
gently tap lter on a hard surface
to dislodge any loose dirt or
debris, and then clean with
water. No soap or cleaning
products are recommended.
The lter size is 20 inches x
10 inches x 1 inch, rated at
MERV 10. If using an after
market lter follow the
manufacturers recommended
replacement instructions.
To replace lter (Figure 7):
1. Remove the two (2) screws
at the upper corners of the
back panel.
2. Lift the back end of the top to
clear the brackets and pull
back.
3. Lift top carefully, and place to the side of the stove.
Upper Light
Bulb
Lower Light
Bulbs (3)
Figure 5
Figure 6
Screws
Screws

13
Caution should be taken
as the top mounting
brackets may scratch the
nish.
4. Slide lter out of air lter
bracket.
5. Reassemble in reverse order
as above.
Glass Cleaning
The glass is cleaned in the
factory during the assembly
operation. During shipment,
installation, handling, etc., the
clear door may collect dust
particles; these can be removed
by dusting lightly with a clean dry
cloth.
To remove ngerprints or other marks, the clear door can be cleaned
with a damp cloth. The clear door should be completely dried with a
lint free cloth to prevent water spots.
CAUTION: Do not use abrasive cleaners on glass surface or spray
liquids directly onto any surface.
Stove Surface Cleaning
Use a cloth dampened with warm water only to clean painted surfaces
of the electric stove. Do not use abrasive cleaners.
Filter
Figure 7

14
One Year Limited Warranty
Products to which this limited warranty applies
This limited warranty applies to the following models of your newly purchased Dimplex
electric stove TDS8515TC and CDS8515 and to newly purchased Dimplex stove
surrounds (mantels) and trims. This limited warranty applies only to purchases made in
any province of Canada except for Yukon Territory, Nunavut, or Northwest Territories or
in any of the 50 States of the USA (and the District of Columbia) except for Hawaii and
Alaska. This limited warranty applies to the original purchaser of the product only and is
not transferable.
Products excluded from this limited warranty
Light bulbs and Purire™ lters are not covered by this limited warranty and are the
sole responsibility of the owner/purchaser. Products purchased in Yukon Territory,
Nunavut, Northwest Territories, Hawaii, or Alaska are not covered by this limited
warranty. Products purchased in these States, provinces, or territories are sold AS
IS without warranty or condition of any kind (including, without limitation, any implied
warranties or conditions of merchantability or tness for a particular purpose) and the
entire risk of as to the quality and performance of the products is with the purchaser,
and in the event of a defect the purchaser assumes the entire cost of all necessary
servicing or repair.
What this limited warranty covers and for how long
Products covered by this limited warranty have been tested and inspected prior to
shipment and, subject to the provisions of this warranty, Dimplex warrants such products
to be free from defects in material and workmanship for a period of 12 months from the
date of the rst purchase of such product.
The limited 12 month warranty period also applies to any implied warranties that may
exist under applicable law. Some jurisdictions do not allow limitations on how long an
implied warranty lasts, so the above limitation may not apply to the purchaser.
What this limited warranty does not cover
This limited warranty does not apply to products that have been repaired (except by
Dimplex or its authorized service representatives) or otherwise altered. This limited
warranty does further not apply to defects resulting from misuse, abuse, accident,
neglect, incorrect installation, improper maintenance or handling, or operation with an
incorrect power source.
What you must do to get service under this limited warranty
Defects must be brought to the attention of Dimplex Technical Service by contacting
Dimplex at 1-888-DIMPLEX (1-888-346-7539), or 1367 Industrial Road, Cambridge
Ontario, Canada N1R 7G8. Please have proof of purchase, catalogue/model and serial
numbers available when calling. Limited warranty service requires a proof of purchase of
the product.
What Dimplex will do in the event of a defect
In the event a product or part covered by this limited warranty is proven to be defective

15
in material or workmanship during the 12 month limited warranty period you have the
following rights:
Dimplex will in its sole discretion either repair or replace such defective product or•
part without charge. If Dimplex is unable to repair or replace such product or part, or
if repair or replacement is not commercially practicable or cannot be timely made,
Dimplex may, in lieu of repair or replacement, choose to refund the purchase price
for such product or part.
Limited warranty service will be performed solely by dealers or service agents of•
Dimplex authorized to provide limited warranty services.
Dimplex will not be responsible for, and the limited warranty services shall not•
include, any expense incurred for installation or removal of the product or part (or
any replacement product or part) or any labour or transportation costs. Such costs
shall be the purchaser’s responsibility.
What Dimplex and its dealers and service agents are also not responsible for:
IN NO EVENT WILL DIMPLEX, OR ITS DIRECTORS, OFFICERS, OR AGENTS, BE
LIABLE TO THE PURCHASER OR ANY THIRD PARTY, WHETHER IN CONTRACT,
IN TORT, OR ON ANY OTHER BASIS, FOR ANY INDIRECT, SPECIAL, PUNITIVE,
EXEMPLARY, CONSEQUENTIAL, OR INCIDENTAL LOSS, COST, OR DAMAGE
ARISING OUT OF OR IN CONNECTION WITH THE SALE, MAINTENANCE, USE,
OR INABILITY TO USE THE PRODUCT, EVEN IF DIMPLEX OR ITS DIRECTORS,
OFFICERS, OR AGENTS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH
LOSSES, COSTS OR DAMAGES, OR IF SUCH LOSSES, COSTS, OR DAMAGES
ARE FORESEEABLE. IN NO EVENT WILL DIMPLEX, OR ITS OFFICERS,
DIRECTORS, OR AGENTS BE LIABLE FOR ANY DIRECT LOSSES, COSTS, OR
DAMAGES THAT EXCEED THE PURCHASE PRICE OF THE PRODUCT.
SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO THE PURCHASER.
How State and Provincial law apply
This limited warranty gives you specic legal rights, and you may also have other
rights which vary from jurisdiction to jurisdiction. The provisions of the United Nations
Convention on Contracts for the Sale of Goods shall not apply to this limited warranty
or the sale of products covered by this limited warranty.
© 2010 Dimplex North America Limited
Dimplex North America Limited
1367 Industrial Road Cambridge ON
Canada N1R 7G8
1-888-346-7539 www.dimplex.com
