Dimplex DS5629 User manual

Owner’s Manual
Model
DS5629
7208330100R03
IMPORTANT SAFETY INFORMATION: Always read this manual rst
before attempting to install or use this stove. For your safety, always
comply with all warnings and safety instructions contained in this manual
to prevent personal injury or property damage.
To view the full line of Dimplex products, please visit
www.dimplex.com

2 www.dimplex.com
Table of Contents
Always use a qualied technician
or service agency to repair
this stove.
!NOTE: Procedures and
techniques that are
considered important
enough to emphasize.
CAUTION: Procedures and
techniques which, if not
carefully followed, will result
in damage to the equipment.
WARNING: Procedures
and techniques which, if not
carefully followed, will expose
the user to the risk of re,
serious injury, or death.
Welcome & Congratulations . . . . . . . . . . . . . . . . .3
IMPORTANT INSTRUCTIONS . . . . . . . . . . . . . . .4
Stove Installation ..........................7
Operation................................8
Maintenance............................10
Warranty ...............................12
ReplacementParts........................14

3

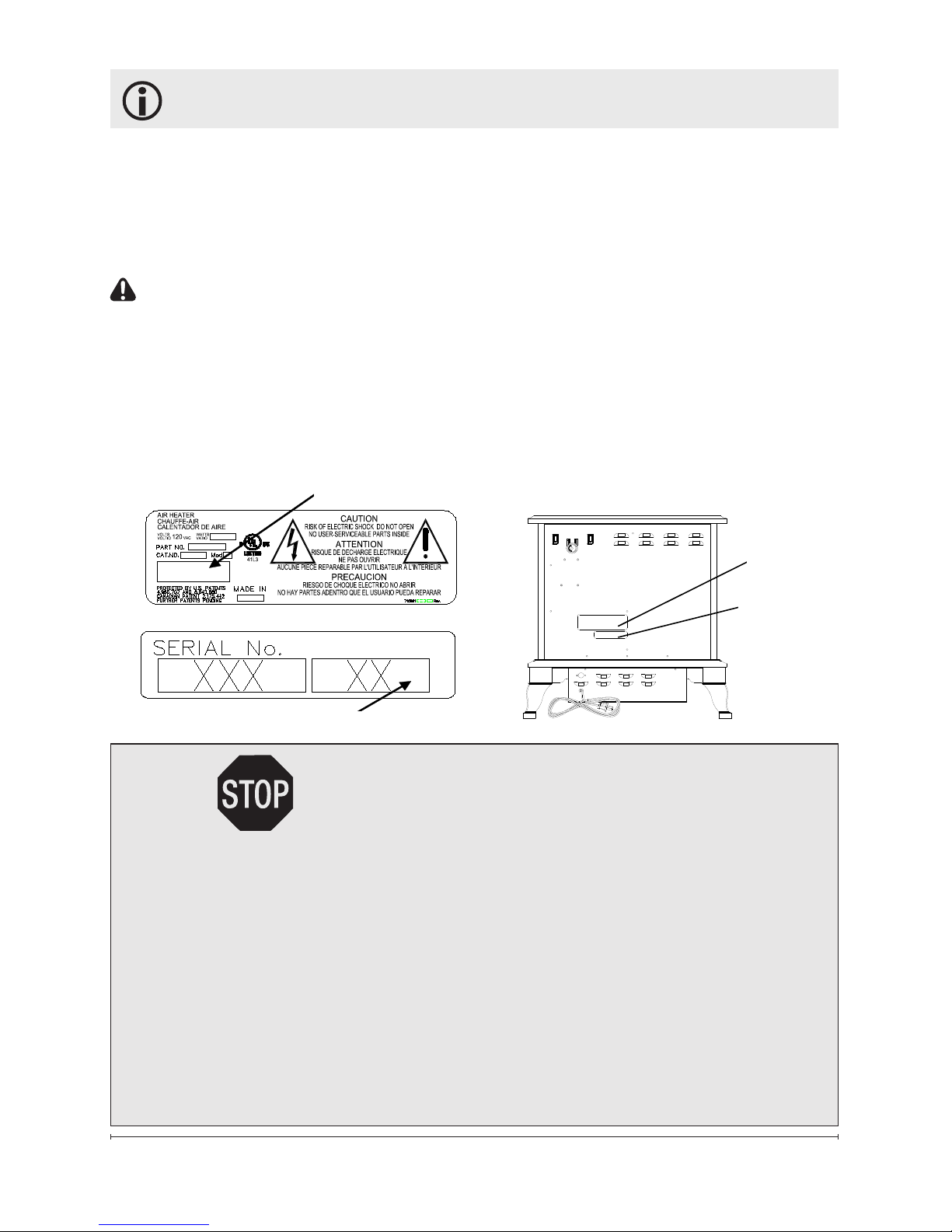

Welcome & Congratulations
Thank you and congratulations for choosing to purchase an electric
stove from Dimplex, the world leader in electric replaces.
Please carefully read and save these instructions.
CAUTION: Read all instructions and warnings carefully before
starting installation. Failure to follow these instructions may result in a
possible electric shock, re hazard and will void the warranty.
Please record your model and serial numbers below for future
reference: model and serial numbers can be found on the Model and
Serial Number Label of your stove.
Model
Number
NO NEED TO RETURN TO THE STORE
Questions with operation or assembly? Require Parts Information?
Product Under Manufacturer’s Warranty?
Contact us at: www.dimplex.com/customer_support
For Troubleshooting and Technical Support
OR Toll-Free 1-888-DIMPLEX (1-888-346-7539)
Monday to Friday 8:00 a.m. to 4:30 p.m. EST
Please have your model number and product serial
number ready. (See above)
Model Number
Serial
Number
Serial Number

4 www.dimplex.com
When using electrical appliances,
basic precautions should always
be followed to reduce the risk of
fire, electric shock, and injury to
persons, including the following:
①Read all instructions before
using the Stove.
②The heater is hot when in use.
To avoid burns, do not let bare
skin touch hot surfaces. The trim
around the heater outlet becomes
hot during heater operation.
Keep combustible materials, such
as furniture, pillows, bedding,
papers, clothes, and curtains at
least 3 feet (0.9m) from the front
of the unit.
CAUTION: High Temperature,
keep electrical cords, drapery,
and other furnishings at least 3FT
(.9m) from the front of the heater
and away from the side and rear.
③ Extreme caution is necessary
when any heater is used by or
near children or invalids and
whenever the unit is left operating
and unattended.
④ Always unplug the Stove when
not in use.
⑤ Do not operate any unit with
a damaged cord or plug, or if the
IMPORTANT INSTRUCTIONS
heater has malfunctioned, or if
the Stove has been dropped or
damaged in any manner. Return
heater to authorized service
facility for examination, electrical
or mechanical adjustment, or
repair.
⑥ Do not use outdoors.
⑦ The Stove is not intended for
use in bathrooms, laundry areas
and similar indoor locations.
Never locate heater where it may
fall into a bathtub or other water
container.
⑧Do not run the cord under
carpeting. Do not cover cord with
throw rugs, runners, or the like.
Arrange cord away from trafc
area and where it will not be
tripped over.
⑨To disconnect the unit, turn the
controls off, then remove the plug
from the outlet.
⑩Do not insert or allow foreign
objects to enter any ventilation
or exhaust opening as this may
cause an electric shock or re, or
damage to the heater.
⑪ To prevent a possible re, do
not block air intake or exhaust
in any manner. Do not use on

5
SAVE THESE INSTRUCTIONS
soft surfaces, like a bed, where
openings may become blocked.
⑫All electrical heaters have hot
and arching or sparking parts
inside. Do not use in areas where
gasoline, paint, or ammable
liquids are used or stored or
where the unit will be exposed to
ammable vapors.
⑬Do not modify the Stove.
Use it only as described in
this manual. Any other use
not recommended by the
manufacturer may cause re,
electric shock or injury to persons.
⑭ To reduce the risk of electric
shock, this appliance has a
polarized plug (one blade is wider
than the other). This plug will t in
a polarized outlet only one way.
If the plug does not t fully in the
outlet, reverse the plug. If it still
does not t, contact a qualied
electrician to install the proper
outlet. Do not change the plug
in any way. Avoid the use of an
extension cord. Plug the cord
directly into an appropriate wall
receptacle.
⑮ Do not burn wood or other
materials in the Stove.
⑯Do not strike the clear door
panel.
⑰ Always use a certied
electrician should new circuits or
outlets be required.
⑱ Always use properly
grounded, fused and polarized
outlets.
⑲ Disconnect all power supply
before performing any cleaning,
maintenance or relocation of the
unit.
⑳ When transporting or storing
the unit and cord, keep in a
dry place, free from excessive
vibration and store so as to avoid
damage.
IMPORTANT INSTRUCTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICEABLE PARTS INSIDE

6 www.dimplex.com
CAUTION: This equipment has
been tested and found to comply with
the limits for Class B digital device,
pursuant to part 15 of the FCC
Rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment
generates, uses and can radiate
radio frequency energy and, if not
installed and used in accordance with
the instructions, may cause harmful
interference to radio or television
reception, which can be determined
by turning the equipment off and
on, the user is encouraged to try to
correct the interference by one or
more of the following measures:
Reorient or relocate the receiving•
antenna.
Increase the separation between•
the equipment and the receiver.
Connect the equipment into an•
outlet on a circuit different from
that to which the receiver is
connected.
Consult the dealer or an•
experienced radio/TV technician
for help.
Operation is subject to the following
two conditions: (1) this device may
not cause interference and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
IMPORTANT INSTRUCTIONS
WARNING: Remote control
contains small batteries. Keep away
from children. If swallowed, seek
medical attention immediately.
WARNING: Do not install battery
backwards, charge, put in re or mix
with used or other battery types - may
explode or leak causing injury.
!NOTE: Changes or modications
not expressly approved by the party
responsible for compliance could
void user's authority to operate the
equipment.

7
Stove Installation
!NOTE: A 15amp, 120
volt circuit is required. A
dedicated circuit is preferred
but not essential in all cases. A
dedicated circuit will be required
if, after installation, the circuit
breaker trips or fuse blows on a
regular basis when the heater is
operating. Additional appliances
on the same circuit may exceed
the current rating of the circuit
breaker.
WARNING: Ensure the power
cord is not installed so that
it is pinched or against a
sharp edge and ensure that
the power cord is stored or
secured to avoid tripping or
snagging to reduce the risk of
re, electric shock or injury to
persons.
Construction and electrical
outlet wiring must comply
with local building codes and
other applicable regulations to
reduce the risk of re, electric
shock and injury to persons.
Do not attempt to wire your
own new outlets or circuits. To
reduce the risk of re, electric
shock or injury to persons,
always use a licensed electri-
cian.
Make sure the units On/Off1.
switch is switched OFF (refer
to operating instruction sec-
tion).
Plug the unit into a2.
15Amp/120volt outlet.

8 www.dimplex.com
To access the controls go to the
back of the Stove
A. 3-Position Switch
The switch has two On positions
marked with "-" and "=". The "-"
position is for manual operation.
In this position the built-in remote
control is bypassed. The "="
position is for operating the unit
with the provided remote control.
When in "=" position the unit is
operated with the On and Off but-
tons of the remote control.
When the switch is in the center
position the unit is off.
B. Heater On/Off Switch
The Heater On/Off Switch sup-
plies power to the heater fan and
the heater element.
C. Heater Thermostat Control
To adjust the temperature to your
individual requirements, turn the
thermostat control clockwise all
the way to turn on the heater.
When the room reached the
desired temperature, turn the
thermostat knob counter clock-
wise until you hear a click. Leave
in this position to maintain the
room temperature at this setting.
For additional heat, turn clockwise
until you hear the click again and
the heater will turn on. To turn the
heater off, switch the Heater On/
Off switch to the Off position.
!NOTE: When the heater is
switched On, the heater fan will
operate. The heater element may
or may not be on, depending on
the thermostat control setting.
(See "Heater Thermostat Con-
trol")
Resetting the Temperature
Cutoff Switch
Should the heater overheat, an
automatic cut out will turn the
heater off and it will not come
back on without being reset. It
can be reset by switching the On/
Off Switch to Off and waiting 5
minutes before switching the unit
back on.
CAUTION: If you need to
continuously reset the heater,
unplug the unit and call Dimplex
Operation
Figure 1

9
Operation
North America Limited at 1-800-
668-6663.
Remote Control (Figure 2)
The stove is supplied with an inte-
grated On/Off remote control.
!NOTE: Ensure that the stove
3-position switch is set to the
remote control setting, "=".
To operate, push the ON button to
turn stove on, push the OFF but-
ton to turn the stove off.
!NOTE: Before attempting any
operation with the remote, pull
the plastic insulator strip out from
between the remote casing and
battery cover (Figure 2).
Remote Control Reprogram-
ming/Initialization
Place the 3-Position Switch1.
(Figure 1A) in the OFF (“O”)
position.
Wait a minimum of ve (5) 2.
seconds and then place the
3-Position Switch in the Re-
mote position, "=".
Within 10 seconds of chang-3.
ing the switch position, press
the On button located on
the remote control (Figure
2). This will synchronize the
remote control and the stove
receiver.
!NOTE: You will have only 10
seconds to perform this last step.
Failure to do so will result in these
steps needing to be followed
again.
Battery Replacement
To replace the battery:
Slide battery cover open on1.
the remote control.
Correctly install one 12 volt2.
(A23) battery in the battery
holder.
Close the batter cover.3.
Battery must be recycled
or disposed of properly.
Check with your Local
Authority or Retailer for recycling
advice in your area.
Figure 2
Off Button
On
Button
Battery
Cover
Plastic
Strip

10 www.dimplex.com
WARNING: Disconnect power
before attempting any main-
tenance or cleaning to reduce
the risk of re, electric shock
or damage to persons.
Light Bulb Replacement
Allow at least 5 minutes for light
bulbs to cool off before touching
bulbs to avoid accidental burning
of skin.
Light bulbs need to be replaced
when you notice a dark section of
the ame or when the clarity and
detail of the log exterior disap-
pears. There are two bulbs under
the log set which generate the
ames and embers.
Tool Requirements - Phillips
screw driver
Helpful Hints: It is a good idea to
replace all light bulbs at one time
if they are close to the end of their
rated life. Group replacement will
reduce the number of times you
need to open the unit to replace
light bulbs.
Upper Light Bulb Requirements
Quantity of 1 clear chandelier or
candelabra bulbs with an E-12
(small) socket base, 7 watt rating.
Upper Bulb Replacement
Open door by pulling the1.
Maintenance
handle.
Locate the upper bulb brack-2.
et.
Bend light retainer bracket3.
down.
Locate and remove the light4.
bulb.
Insert new bulb.5.
Bend light retainer bracket6.
back into its original position.
Close the door.7.
Lower Light Bulb Requirements
Quantity of 2 clear chandelier or
candelabra bulbs with an E-12
(small) socket base, 60 watt rat-
ing.
Lower Bulb Replacement
Open door by pulling the1.
handle.
Remove the screw from the2.
logset located in the center
of the emberbed and remove
the logset from the unit.
Locate and examine the bulbs3.
to determine which bulb(s)
required replacement.
Locate and remove the light4.
bulb(s).
Insert new bulb(s).5.
Install the logset into the unit,6.
pushing rmly against the

11
glass. Replace the logset re-
taining screw into the ember
bed.
Close the door.7.
Glass Cleaning
The clear door is cleaned in the
factory during the assembly op-
eration. During shipment, instal-
lation, handling, etc., the clear
door may collect dust particles,
these can be removed by dusting
lightly with a clean dry cloth.
To remove ngerprints or other
marks, the clear door can be
cleaned with a damp cloth. The
clear door should be completely
dried with a lint free cloth to
prevent water spots. To prevent
scratching, do not use abrasive
cleaners or spray liquids on the
clear door surface.
Plastic Door Cleaning
To remove ngerprints or other
marks, the clear door can be
cleaned with a damp cloth. The
clear door should be completely
dried with a lint free cloth to
prevent water spots. To prevent
scratching, do not use abrasive
cleaners or spray liquids on the
clear door surface.
Stove Surface Cleaning
Use warm water only to clean
painted surfaces of the Com-
pact Stove. Do not use abrasive
cleaners.
Servicing
Except for light bulb replacement
and cleaning described above, an
authorized service representative
should perform any other servic-
ing.
Maintenance
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICEABLE PARTS INSIDE

12 www.dimplex.com
ONE YEAR LIMITED WARRANTY
Products to which this limited warranty
applies
This limited warranty applies to your newly
purchased Dimplex electric stove. This
limited warranty applies only to purchases
made in any province of Canada except
for Yukon Territory, Nunavut, or Northwest
Territories or in any of the 50 States of the
USA (and the District of Columbia) except
for Hawaii and Alaska. This limited war-
ranty applies to the original purchaser of
the product only and is not transferable.
Products excluded from this limited war-
ranty
Light bulbs are not covered by this limited
warranty and are the sole responsibility of
the owner/purchaser. Products pur-
chased in Yukon Territory, Nunavut, North-
west Territories, Hawaii, or Alaska are not
covered by this limited warranty. Products
purchased in these States, provinces, or
territories are sold AS IS without warranty
or condition of any kind (including, without
limitation, any implied warranties or condi-
tions of merchantability or tness for a
particular purpose) and the entire risk of
as to the quality and performance of the
products is with the purchaser, and in the
event of a defect the purchaser assumes
the entire cost of all necessary servicing
or repair.
What this limited warranty covers and for
how long
Products covered by this limited warranty
have been tested and inspected prior to
shipment and, subject to the provisions
of this warranty, Dimplex warrants such
products to be free from defects in mate-
rial and workmanship for a period of 12
months from the date of the rst purchase
of such product.
The limited 12 month warranty period also
applies to any implied warranties that may
exist under applicable law. Some jurisdic-
tions do not allow limitations on how long
an implied warranty lasts, so the above
limitation may not apply to the purchaser.
What this limited warranty does not cover
This limited warranty does not apply to
products that have been repaired (except
by Dimplex or its authorized service
representatives) or otherwise altered. This
limited warranty does further not apply
to defects resulting from misuse, abuse,
accident, neglect, incorrect installation,
improper maintenance or handling, or
operation with an incorrect power source.
What you must do to get service under
this limited warranty
Defects must be brought to the attention of
Dimplex Technical Service by contacting
Dimplex at 1-888-DIMPLEX (1-888-346-
7539), or 1367 Industrial Road, Cam-
bridge Ontario, Canada N1R 7G8. Please
have proof of purchase, catalogue/model
and serial numbers available when calling.
Limited warranty service requires a proof
of purchase of the product.
What Dimplex will do in the event of a
defect
In the event a product or part covered by
this limited warranty is proven to be defec-
tive in material or workmanship during the
12 month limited warranty period you have
the following rights:
Dimplex will in its sole discretion•
either repair or replace such defec-
tive product or part without charge. If
Dimplex is unable to repair or replace
such product or part, or if repair or
Warranty

13
replacement is not commercially
practicable or cannot be timely made,
Dimplex may, in lieu of repair or
replacement, choose to refund the
purchase price for such product or
part.
Limited warranty service will be per-•
formed solely by dealers or service
agents of Dimplex authorized to
provide limited warranty services.
The purchaser is responsible for•
removal and transportation of such
product or part (and any repaired
or replacement product or part) to
and from the authorized dealer's or
service agent's place of business.
This limited warranty does not•
entitle the purchaser to on-site or
in-home services. On-site or in-home
services may be performed at the
purchaser's specic request and ex-
pense at Dimplex’s then-current rates
for such services.
Dimplex will not be responsible for,•
and the limited warranty services
shall not include, any expense
incurred for installation or removal of
the product or part (or any replace-
ment product or part) or any labour
or transportation costs. Such costs
shall be the purchaser’s responsibil-
ity.
What Dimplex and its dealers and service
agents are also not responsible for:
IN NO EVENT WILL DIMPLEX, OR ITS
DIRECTORS, OFFICERS, OR AGENTS,
BE LIABLE TO THE PURCHASER OR
ANY THIRD PARTY, WHETHER IN CON-
TRACT, IN TORT, OR ON ANY OTHER
BASIS, FOR ANY INDIRECT, SPECIAL,
PUNITIVE, EXEMPLARY, CONSEQUEN-
TIAL, OR INCIDENTAL LOSS, COST,
OR DAMAGE ARISING OUT OF OR
IN CONNECTION WITH THE SALE,
MAINTENANCE, USE, OR INABILITY TO
USE THE PRODUCT, EVEN IF DIMPLEX
OR ITS DIRECTORS, OFFICERS, OR
AGENTS HAVE BEEN ADVISED OF
THE POSSIBILITY OF SUCH LOSSES,
COSTS OR DAMAGES, OR IF SUCH
LOSSES, COSTS, OR DAMAGES ARE
FORESEEABLE. IN NO EVENT WILL
DIMPLEX, OR ITS OFFICERS, DIREC-
TORS, OR AGENTS BE LIABLE FOR
ANY DIRECT LOSSES, COSTS, OR
DAMAGES THAT EXCEED THE PUR-
CHASE PRICE OF THE PRODUCT.
SOME JURISDICTIONS DO NOT ALLOW
THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATION
OR EXCLUSION MAY NOT APPLY TO
THE PURCHASER.
How State and Provincial law apply
This limited warranty gives you specic
legal rights, and you may also have other
rights which vary from jurisdiction to juris-
diction. The provisions of the United Na-
tions Convention on Contracts for the Sale
of Goods shall not apply to this limited
warranty or the sale of products covered
by this limited warranty.
Warranty

14 www.dimplex.com
Replacement Parts
FlickerMotor.......................................2000210200RP
FlickerRod ....................................... 5900080600RP
Heater Assembly (with cutout)..........................2200490700RP
Thermostat ........................................2300150100RP
ControlKnob.......................................8800000300RP
3-Position Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2800071100RP
On/OffSwitch ......................................2800070200RP
LogSet ...........................................0438780100RP
UpperLightSocket ..................................4200121000RP
LowerLightSocket ..................................2500510000RP
PowerCord........................................4100040900RP
SnapInBushing ....................................8500000400RP
Terminal Block ......................................4000070100RP
Capacitor ..........................................2300030100RP
Partially Reective Glass..............................5900630100RP
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3000370500RP
Remote Control Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3000380200RP
Door.............................................Color Dependent
Foot .............................................Color Dependent
© 2012 Dimplex North America Limited
Dimplex North America Limited
1367 Industrial Road
Cambridge ON
Canada N1R 7G8
