Dimplex Club CLB20 User manual

Important Safety Advice:
When using electrical appliances, basic precautions
should be followed to reduce the risk of fire, electric
shock, and injury to persons, including the following :
•If the appliance is damaged, check immediately
with the supplier before installation and operation.
•Do not use this heater in the immediate
surroundings of a bath, shower or swimming pool.
•Do not use outdoors.
•This heater must not be located immediately below
a fixed socket outlet or connection box.
•Do not cover or obstruct in any way the heat outlet
grille located at the bottom of the heater.
Overheating will result if the heater is accidentally
covered.
•Ensure that furniture, curtains or other
combustible materials are positioned no closer
than 1 metre from the heater.
•In the event of a fault unplug the heater.
•Unplug the heater when not required for long
periods.
•Keep supply cord away from the front of the
heater.
•Although this heater complies with safety
standards, we do not recommend its use on deep
pile carpets or on long hair type of rugs.
•This appliance is not intended for use by children
or other persons without assistance or
supervision if their physical, sensory or mental
capabilities prevent them from using it safely.
Children should be supervised to ensure that they
do not play with the appliance.
•The appliance must be positioned so that the plug
is accessible.
•If the supply cord is damaged it must be replaced
by the manufacturer or service agent or similarly
qualified person in order to avoid a hazard.
IMPORTANT : THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE

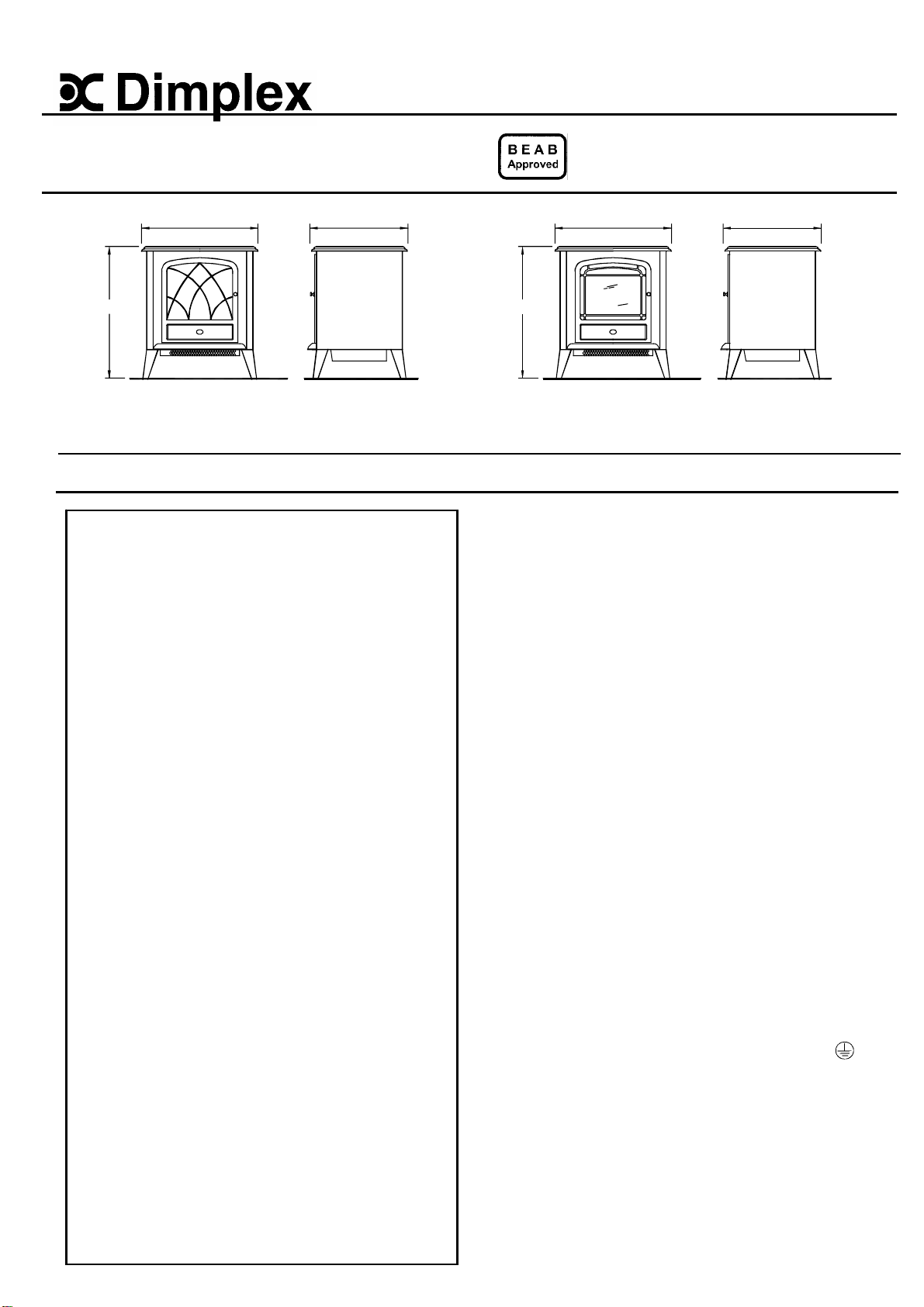

510 340 340
597
Ritz Stove Club Stove
597
510
Fig. 1 Fig. 1
GeneralGeneral
Unpack the heater carefully and retain the packaging for possible
future use, in the event of moving or returning the fire to your
supplier.
Unpack the heater carefully and retain the packaging for possible
future use, in the event of moving or returning the fire to your
supplier.
This model is designed to be free standing and is normally
positioned against a wall.
This model is designed to be free standing and is normally
positioned against a wall.
A choice of 1kW or 2kW heat output is provided by the fan heater,
which is located at the bottom of the unit.
A choice of 1kW or 2kW heat output is provided by the fan heater,
which is located at the bottom of the unit.
Before connecting the heater check that the supply voltage is the
same as that stated on the heater.
Before connecting the heater check that the supply voltage is the
same as that stated on the heater.
Please note: Used in an environment where background noise
is very low, it may be possible to hear the fan which operates
the flame effect. This is normal and should not be a cause for
concern.
ElectricalElectrical
WARNING: THIS APPLIANCE MUST BE EARTHED.WARNING: THIS APPLIANCE MUST BE EARTHED.
This fire is suitable for operation on an AC~ electricity supply having
the same voltage as that shown on its rating label.
This fire is suitable for operation on an AC~ electricity supply having
the same voltage as that shown on its rating label.
In the event of replacing the fuse supplied, a 13 amp fuse approved
by ASTA to BS 1362 must be used.
In the event of replacing the fuse supplied, a 13 amp fuse approved
by ASTA to BS 1362 must be used.
If the socket outlets in your home are not of the 13 amp BS1363
type they will not accept the plug connected to this heater, therefore
cut off the plug. When cut off this plug can constitute a shock
hazard if inserted into a socket outlet. It must therefore be disposed
of safely.
If the socket outlets in your home are not of the 13 amp BS1363
type they will not accept the plug connected to this heater, therefore
cut off the plug. When cut off this plug can constitute a shock
hazard if inserted into a socket outlet. It must therefore be disposed
of safely.
Before wiring the appropriate plug please note that the wires in this
mains lead are coloured in accordance with the following code.
Before wiring the appropriate plug please note that the wires in this
mains lead are coloured in accordance with the following code.
GREEN/YELLOW - EARTHGREEN/YELLOW - EARTH
BLUE - NEUTRALBLUE - NEUTRAL
BROWN - LIVEBROWN - LIVE
ConnecttheGreen/Yellow wireto the terminal marked‘E’ortheearthsymbol or
colouredGreenorGreen/Yellow.
ConnecttheGreen/Yellow wireto the terminal marked‘E’ortheearthsymbol or
colouredGreenorGreen/Yellow.
ConnecttheBrown wiretothe terminal marked‘L’orcolouredRed.ConnecttheBrown wiretothe terminal marked‘L’orcolouredRed.
ConnecttheBlue wiretotheterminalmarked‘N’orcolouredBlack.ConnecttheBlue wiretotheterminalmarked‘N’orcolouredBlack.
DO NOT connect the Brown (Live) or the Blue (Neutral) wires to the
Earth terminal of your 13 amp plug. If the terminals of the plug are
unmarked or you are in any doubt, consult a qualified electrician.
DO NOT connect the Brown (Live) or the Blue (Neutral) wires to the
Earth terminal of your 13 amp plug. If the terminals of the plug are
unmarked or you are in any doubt, consult a qualified electrician.
CAUTION: If you use this heater in conjunction with a thermal
control, programme controller, timer or any other device which
switches the heater on automatically observe all safety warnings at
all times.
CAUTION: If you use this heater in conjunction with a thermal
control, programme controller, timer or any other device which
switches the heater on automatically observe all safety warnings at
all times.
Installation and Operating Instructions
Ritz Stove Model: RIT20 08/19042/2 Issue 2
Club Stove Model: CLB20
Please note: Used in an environment where background noise
is very low, it may be possible to hear the fan which operates
the flame effect. This is normal and should not be a cause for
concern.

Operation
The unique flame effect may be enjoyed whether or not the heating
elements are in operation.
Controls
The heater controls are located behind the door of the heater.
The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic Compatibility
(EMC) EN55014, EN60555-2 and EN60555-3 which cover the essential requirements of EEC Directives 73/23 and 89/336
Glen Dimplex UK Limited UK customer help line (8.00AM – 6.00PM Mon-Fri; 8.30AM-1.00PM Sat)
Millbrook House
Grange Drive Customer Services: Tel. [phone]
Hedge End Fax. [phone]
Southampton e-mail [email protected]
Hampshire. SO30 2DF Republic of Ireland Tel. [phone]
[c] Glen Dimplex UK Limited
All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex UK Limited.
Three switches provide a choice of heat settings. A switch is in the
ON position when the side with the markings on (i.e. I, I, or II ) is
pushed in.
Fig. 2
Switch 1 ( I ) Controls the electricity supply to the heater and
flame effect.
Note: This switch must be in the ON
( I ) position for heater to operate with or without
heat.
Switch 2 ( I) Provides 1kW heat output
Switch 3 ( II ) Provides 2kW output with switch 2
Maintenance
WARNING – BEFORE UNDERTAKING ANY MAINTENANCE
OR CLEANING REMOVE PLUG OR
DISCONNECT FROM THE ELECTRICITY
SUPPLY.
Lamp Replacement
Fig. 3
Two lamps are located behind the back panel as indicated in Fig.3.
Fig. 4
To gain access to the lamps, the four screws which secure the back
panel, must be removed. Remove and slide out panel as indicated
on Fig. 4
Fig. 5
Remove the defective lamp by unscrewing it as shown - see Fig. 5.
Replace with a 60W E14 SES Clear Candle lamp.
Take care not to over-tighten the lamp. Refit the back panel and
secure with the four screws.
Safety cut-out
An automatic cut-out will switch off the heater if for any reason it
overheats. This could occur for instance, if the air inlet or outlet were
restricted in any way. If the cut-out operates, the heater will switch
off. The heater will switch on once the obstruction has been
removed and the heater has cooled. If the cut-out continues to
operate intermittently, the heater should be switched off and
Customer Services contacted.
Cleaning
For general cleaning use a soft clean duster – never use abrasive
cleaners. The plastic viewing screen should be cleaned carefully
with a soft cloth. DO NOT use proprietary glass cleaners.
After Sales Service
Your product is guaranteed for one year from the date of purchase.
Within this period, we undertake to repair or exchange this product
free of charge (excluding lamps & subject to availability) provided it
has been installed and operated in accordance with these
instructions.
Your rights under this guarantee are additional to your statutory
rights, which in turn are not affected by this guarantee.
Should you require after sales service you should contact our
customer services help desk on 0870 727 0101. It would assist us if
you can quote the model number, series, date of purchase, and
nature of the fault at the time of your call. The customer services
help desk will also be able to advise you should you need to
purchase any spares.
Please do not return a faulty product to us in the first instance as this
may result in loss or damage and delay in providing you with a
satisfactory service.
Please retain your receipt as proof of purchase.
