Dimplex CELESTE User manual

PRACTICAL USER’S GUIDE
FOR THE ELECTRIC STOVE
MODEL NUMBERS:
CELESTE/RHAPSODY
Valued Customer,
We are pleased that you have chosen to purchase an electric stove manufactured
by Dimplex North America Limited.
7204250100REV04
Quality checked by:

CONTENTS
PAGE 1 Important Instructions
PAGE 2 Stove Installation
PAGE 2 Operation
PAGE 3 Maintenance
PAGE 5 Warranty

QUICK REFERENCE GUIDE FOR THE ELECTRIC STOVE
1. Prior to the first use of the Stove verify the following:
• Are the circuit breakers for the unit on?
• Are the light bulbs in your Stove loose? (to check, follow the
instructions for replacing the light bulbs under the maintenance
section of this manual)
2. The heater on your Stove may emit a slight, harmless odor when first
used. This odor is a normal condition caused by the initial heating of
internal heater parts and will not occur again.
3. The information regarding the model of your Stove can be found on
the rating plate located on the back of the unit.
4. If you have any technical questions or concerns regarding the
operation of your Stove, or require service contact Dimplex North
America customer service at 1-888-DIMPLEX (1-888-346-7539) before
returning the product to the point of purchase.

IMPORTANT INSTRUCTIONS
SAVE THESE INSTRUCTIONS
PLEASE RETAIN THIS USER’S GUIDE FOR FUTURE REFERENCE
When using electrical appliances, basic precautions should always be followed to reduce the
risk of fire, electric shock, and injury to persons, including the following:
1. Read all instructions before using the Stove.
2. The heater is hot when in use. To avoid burns, do not let bare skin touch hot
surfaces. The trim around the heater outlet becomes hot during heater operation. Keep
combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains
at least 3 feet (0.9m) from the front of the unit.
3. Extreme caution is necessary when any heater is used by or near children or invalids
and whenever the unit is left operating and unattended.
4. Always unplug the Stove when not in use.
5. Do not operate any unit with a damaged cord or plug, or if the heater has malfunctioned,
or if the Stove has been dropped or damaged in any manner. Return heater to
authorized service facility for examination, electrical or mechanical adjustment, or
repair.
6. Do not use outdoors.
7. The Stove is not intended for use in bathrooms, laundry areas and similar indoor
locations. Never locate heater where it may fall into a bathtub or other water container.
8. Do not run the cord under carpeting. Do not cover cord with throw rugs, runners, or the
like. Arrange cord away from traffic area and where it will not be tripped over.
9. To disconnect the unit, turn the controls off, then remove the plug from the outlet.
10.Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this
may cause an electric shock or fire, or damage to the heater.
11.To prevent a possible fire, do not block air intake or exhaust in any manner. Do not use
on soft surfaces, like a bed, where openings may become blocked.
12.All electrical heaters have hot and arching or sparking parts inside. Do not use in areas
where gasoline, paint, or flammable liquids are used or stored or where the unit will be
exposed to flammable vapors.
13.Do not modify the Stove. Use it only as described in this manual. Any other use not
recommended by the manufacturer may cause fire, electric shock or injury to persons.
14.Avoid the use of an extension cord. Extension cords may overheat and cause a risk of
fire. If you must use an extension cord, the cord must be No. 16 AWG minimum size
and rated no less than 1875 watts.
15.Do not burn wood or other materials in the Stove.
16.Do not strike the clear door panel.
17.Always use a certified electrician should new circuits or outlets be required.
18.Always use properly grounded, fused and polarized outlets.
19.Disconnect all power supply before performing any cleaning, maintenance or relocation
of the unit.
20. When transporting or storing the unit and cord, keep in a dry place, free from excessive
vibration and store so as to avoid damage.
NOTE: Procedures and techniques that are considered important enough to emphasize.
CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to
the equipment.
WARNING: Procedures and techniques which, if not carefully followed, will expose the user to
the risk of fire, serious injury, illness or death.
1

NOTE
A 15amp, 120 volt circuit is required. A dedicated circuit is preferred but not essential in all
cases. A dedicated circuit will be required if, after installation, the circuit breaker trips or fuse
blows on a regular basis when the heater is operating. Additional appliances on the same
circuit may exceed the current rating of the circuit breaker.
WARNING
Ensure the power cord is not installed so that it is pinched or against a sharp edge and ensure
that the power cord is stored or secured to avoid tripping or snagging to reduce the risk of fire,
electric shock or injury to persons.
Construction and electrical outlet wiring must comply with local building codes and other
applicable regulations to reduce the risk of fire, electric shock and injury to persons.
Do not attempt to wire your own new outlets or circuits. To reduce the risk of fire, electric
shock or injury to persons, always use a licensed electrician.
STOVE INSTALLATION
1. Make sure the units MAIN ON/OFF switch is switched OFF (refer to operating
instruction section).
2. Plug the unit into a 15Amp/120volt outlet. If the cord does not reach, you may use an
extension cord rated for a minimum of 1875 watts.
OPERATION

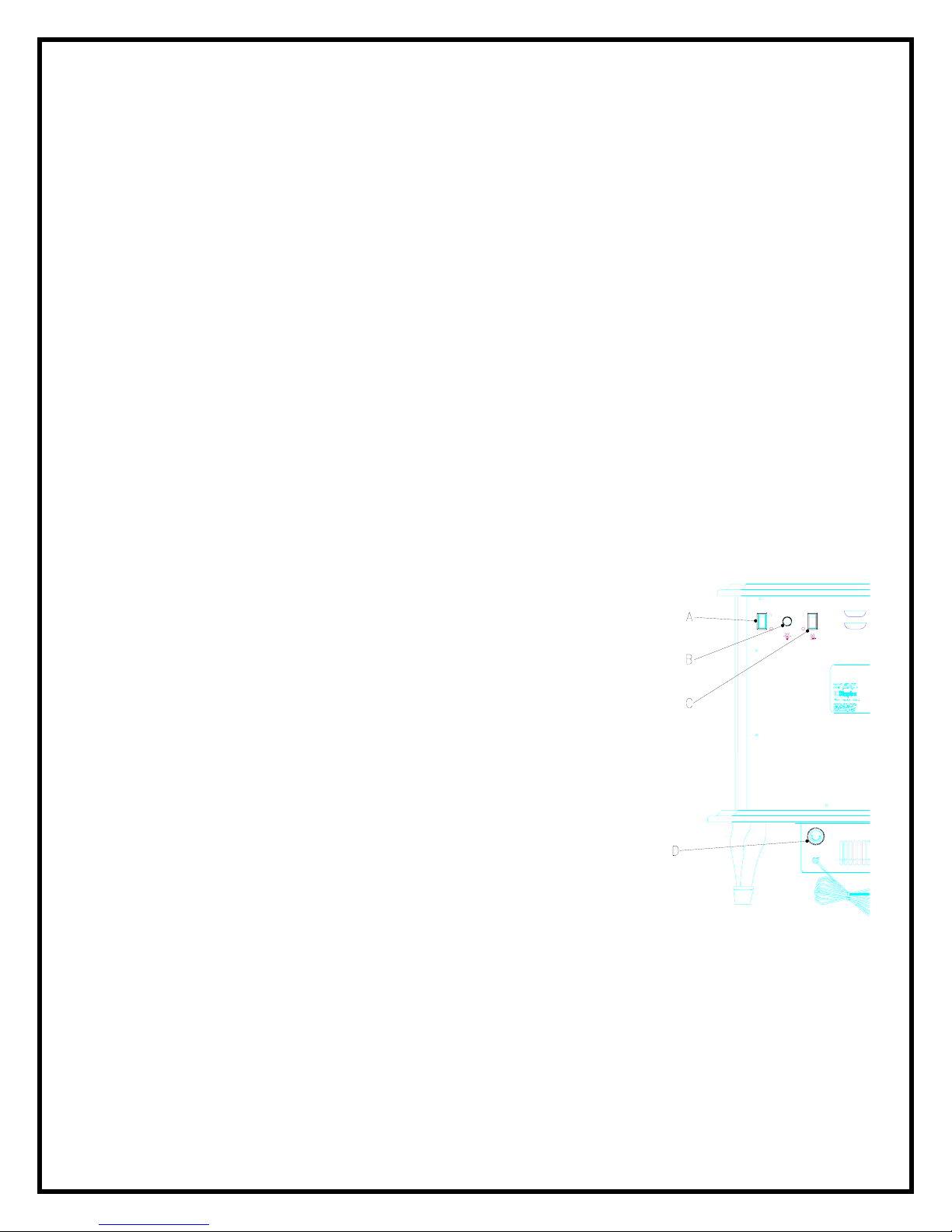

To access the controls, go to the back of the stove.
A. MAIN POWER ON/OFF SWITCH
The main power on/off switch supplies power to all stove
functions (heater & flame). The main power indicator light will
illuminate, confirming the unit is turned on.
B. LIGHT DIMMER CONTROL
Controls the light intensity of the log bed display area. Rotate
the knob to choose the desired setting.
C. HEATER ON/OFF SWITCH
The heater on off switch supplies power to the heater
D. HEATER THERMOSTAT CONTROL
To adjust the temperature to your individual requirements, turn
the thermostat control clockwise all the way to turn on the
heater. When the room reaches the desired temperature, turn
the thermostat knob counter clockwise until you hear a click.
Leave in this position to maintain the room temperature at this
setting. For additional heat, turn clockwise until you hear the click again and the heater will
turn on.
2

RESETTING THE TEMPERATURE CUTOFF SWITCH
Should the heater overheat, an automatic cut out will turn the heater off and it will not come
back on without being reset. It can be reset by switching the MAIN ON/OFF SWITCH to OFF
and waiting 5 minutes before switching the unit back on.
CAUTION
If you need to continuously reset the heater, unplug the unit and call Dimplex North America
Limited at 1-800-668-6663.
MAINTENANCE
WARNING
Disconnect power before attempting any maintenance or cleaning to reduce the risk of fire,
electric shock or damage to persons.
LIGHT BULB REPLACEMENT
Allow at least 5 minutes for light bulbs to cool off before touching bulbs to avoid accidental
burning of skin.
Light bulbs need to be replaced when you notice a dark section of the flame or when the clarity
and detail of the log exterior disappears. There are two bulbs under the log set which generate
the flames and embers.
TOOL REQUIREMENTS
Slot screw driver
HELPFUL HINTS
It is a good idea to replace all light bulbs at one time if they are close to the end of their rated
life. Group replacement will reduce the number of times you need to open the unit to replace
light bulbs.
UPPER LIGHT BULB REQUIREMENTS
Quantity of 1 –15 watt candelabra E12 small base 120 volt. DO NOT EXCEED 15 WATTS

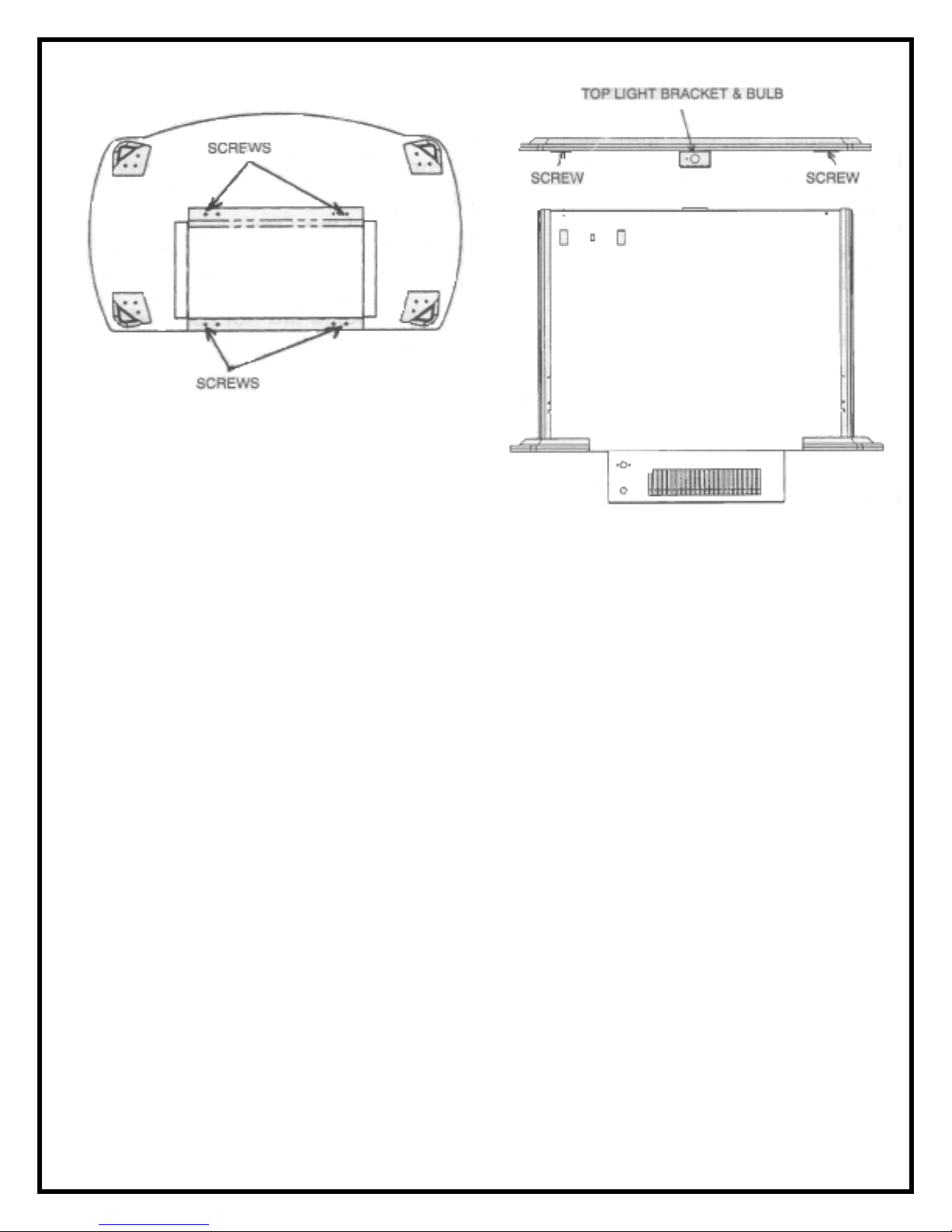

UPPER BULB REPLACEMENT
1. Remove the stove pipe kit (if equipped).
2. Remove the 2 screws at the upper corners of the back panel. Lift the back end of the
top to clear the brackets and pull back. Lift top carefully, and place to the side of the
stove. Caution should be taken as the top mounting brackets may scratch the finish.
3. Remove the burned bulb by pushing in and turning counter-clockwise.
4. Replace the upper light bulb.
5. Reassemble in the reverse order as above.
LOWER LIGHT BULB REQUIREMENTS
Quantity of 3 – 35 watt Halogen Quartz lamps, 120 volt, G9 base. DO NOT EXCEED 35
WATTS PER BULB
LOWER BULB REPLACEMENT
1. Remove the stove pipe kit (if equipped).
2. Gently place stove on its back on a flat surface.
3. Remove the heater cover retaining screws located on the bottom of the stove and lower
heater and light assembly out onto the floor.
4. Remove the burnt out bulb(s) by pulling straight out of socket. If bulbs are difficult to
remove form socket move the bulb from side to side while pulling being careful not to
damage the light socket.
5. Replace the lower light bulbs.
6. Reassemble in the reverse order as above.
3

GLASS CLEANING
The clear door is cleaned in the factory during the assembly operation. During shipment,
installation, handling, etc., the clear door may collect dust particles, these can be removed by
dusting lightly with a clean dry cloth.
To remove fingerprints or other marks, the clear door can be cleaned with a damp cloth. The
clear door should be completely dried with a lint free cloth to prevent water spots. To prevent
scratching, do not use abrasive cleaners or spray liquids on the clear door surface.
STOVE SURFACE CLEANING
Use warm water only to clean painted surfaces of the Compact Stove. Do not use abrasive
cleaners.
4

ONE YEAR LIMITED WARRANTY
Products to which this limited warranty applies
This limited warranty applies to the following models of your newly purchased Dimplex electric
stove TDS7599TB, TDS7599TG, TDS7599TC, CDS6599CB, CDS6599CG, CDS6599CC,
CDS6599CMB and to newly purchased Dimplex fireplace surrounds (mantels) and trims. This
limited warranty applies only to purchases made in any province of Canada except for Yukon
Territory, Nunavut, or Northwest Territories or in any of the 50 States of the USA (and the
District of Columbia) except for Hawaii and Alaska. This limited warranty applies to the
original purchaser of the product only and is not transferable.
Products excluded from this limited warranty
Light bulbs are not covered by this limited warranty and are the sole responsibility of the
owner/purchaser. Products purchased in Yukon Territory, Nunavut, Northwest Territories,
Hawaii, or Alaska are not covered by this limited warranty. Products purchased in these
States, provinces, or territories are sold AS IS without warranty or condition of any kind
(including, without limitation, any implied warranties or conditions of merchantability or fitness
for a particular purpose) and the entire risk of as to the quality and performance of the
products is with the purchaser, and in the event of a defect the purchaser assumes the entire
cost of all necessary servicing or repair.
What this limited warranty covers and for how long
Products covered by this limited warranty have been tested and inspected prior to shipment
and, subject to the provisions of this warranty, Dimplex warrants such products to be free from
defects in material and workmanship for a period of 12 months from the date of the first
purchase of such product.
The limited 12 month warranty period also applies to any implied warranties that may exist
under applicable law. Some jurisdictions do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to the purchaser.
What this limited warranty does not cover
This limited warranty does not apply to products that have been repaired (except by Dimplex or
its authorized service representatives) or otherwise altered. This limited warranty does further
not apply to defects resulting from misuse, abuse, accident, neglect, incorrect installation,
improper maintenance or handling, or operation with an incorrect power source.
What you must do to get service under this limited warranty
Defects must be brought to the attention of Dimplex Technical Service by contacting Dimplex
at 1-888-DIMPLEX (1-888-346-7539), or 1367 Industrial Road, Cambridge Ontario, Canada
N1R 7G8. Please have proof of purchase, catalogue/model and serial numbers available
when calling. Limited warranty service requires a proof of purchase of the product.
What Dimplex will do in the event of a defect
In the event a product or part covered by this limited warranty is proven to be defective in
material or workmanship during the 12 month limited warranty period you have the following
rights: 5

 Dimplex will in its sole discretion either repair or replace such defective product or part
without charge. If Dimplex is unable to repair or replace such product or part, or if repair
or replacement is not commercially practicable or cannot be timely made, Dimplex may, in
lieu of repair or replacement, choose to refund the purchase price for such product or
part.
 Limited warranty service will be performed solely by dealers or service agents of
Dimplex authorized to provide limited warranty services.
 The purchaser is responsible for removal and transportation of such product or part
(and any repaired or replacement product or part) to and from the authorized dealer's or
service agent's place of business.
 This limited warranty does not entitle the purchaser to on-site or in-home services.
On-site or in-home services may be performed at the purchaser's specific request and
expense at Dimplex’s then-current rates for such services.
 Dimplex will not be responsible for, and the limited warranty services shall not include,
any expense incurred for installation or removal of the product or part (or any
replacement product or part) or any labour or transportation costs. Such costs shall be
the purchaser’s responsibility.
What Dimplex and its dealers and service agents are also not responsible for:
IN NO EVENT WILL DIMPLEX, OR ITS DIRECTORS, OFFICERS, OR AGENTS, BE LIABLE
TO THE PURCHASER OR ANY THIRD PARTY, WHETHER IN CONTRACT, IN TORT, OR
ON ANY OTHER BASIS, FOR ANY INDIRECT, SPECIAL, PUNITIVE, EXEMPLARY,
CONSEQUENTIAL, OR INCIDENTAL LOSS, COST, OR DAMAGE ARISING OUT OF OR IN
CONNECTION WITH THE SALE, MAINTENANCE, USE, OR INABILITY TO USE THE
PRODUCT, EVEN IF DIMPLEX OR ITS DIRECTORS, OFFICERS, OR AGENTS HAVE
BEEN ADVISED OF THE POSSIBILITY OF SUCH LOSSES, COSTS OR DAMAGES, OR IF
SUCH LOSSES, COSTS, OR DAMAGES ARE FORESEEABLE. IN NO EVENT WILL
DIMPLEX, OR ITS OFFICERS, DIRECTORS, OR AGENTS BE LIABLE FOR ANY DIRECT
LOSSES, COSTS, OR DAMAGES THAT EXCEED THE PURCHASE PRICE OF THE
PRODUCT.
SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO THE PURCHASER.
How State and Provincial law apply
This limited warranty gives you specific legal rights, and you may also have other rights
which vary from jurisdiction to jurisdiction. The provisions of the United Nations Convention
on Contracts for the Sale of Goods shall not apply to this limited warranty or the sale of
products covered by this limited warranty.
1-888-DIMPLEX
1-888-346-7539
Approved for use in the United States and Canada 6
1367 Industrial Road
Cambridge, Ontario
Canada, N1R 7G8
