Dimplex DS6650 User manual

Owner’s Manual
Model
DS6650
7205720100R03
IMPORTANT SAFETY INFORMATION: Always read this manual rst
before attempting to install or use this replace. For your safety, always
comply with all warnings and safety instructions contained in this manual
to prevent personal injury or property damage.
To view the full line of Dimplex products, please visit
www.dimplex.com

2 www.dimplex.com
Table of Contents
Always use a qualied technician
or service agency to repair
this stove.
!NOTE: Procedures and
techniques that are
considered important
enough to emphasize.
CAUTION: Procedures and
techniques which, if not
carefully followed, will result
in damage to the equipment.
WARNING: Procedures
and techniques which, if not
carefully followed, will expose
the user to the risk of re,
serious injury, or death.
Welcome & Congratulations......... 3
IMPORTANT INSTRUCTIONS ........ 4
Stove Installation ................. 6
Operation ........................ 7
Maintenance...................... 9
Warranty ........................ 11

3
Welcome & Congratulations
Thank you and congratulations for choosing to purchase an electric
stove from Dimplex, the world leader in electric replaces.
Please carefully read and save these instructions.
CAUTION: Read all instructions and warnings carefully before
starting installation. Failure to follow these instructions may result
in a possible electric shock, re hazard and will void the warranty.

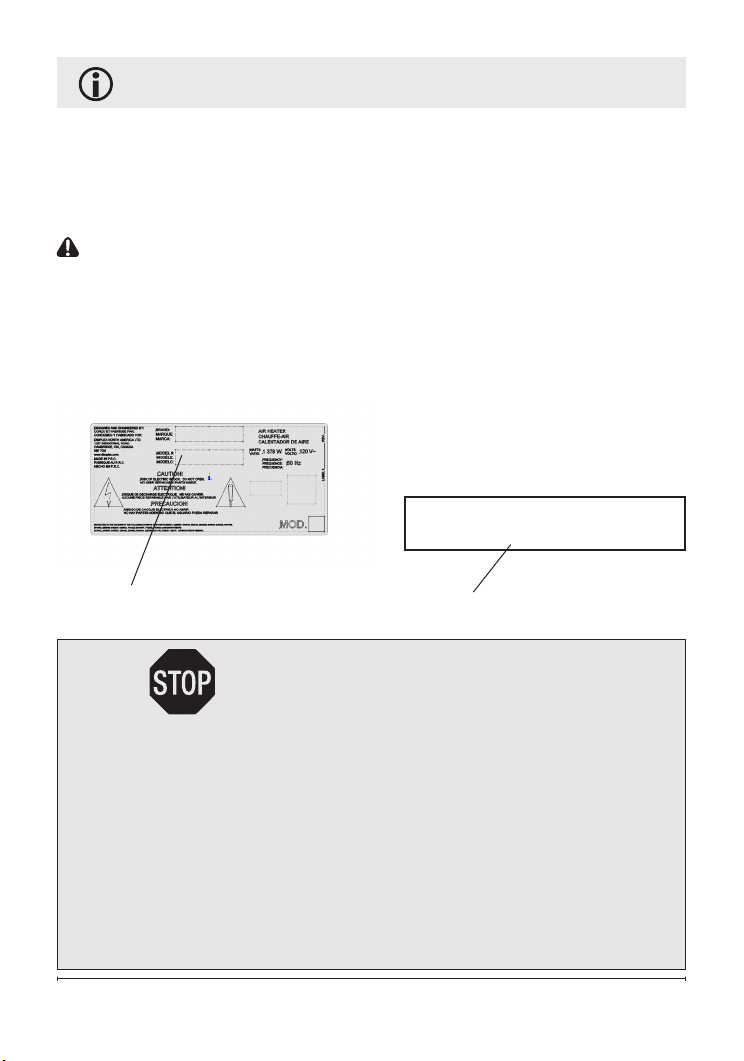

Please record your model and serial numbers below for future
reference: model and serial numbers can be found on the Model and
Serial Number Label of your stove.
Model Number
Label
Serial Number
XXXXXXX XXX
NO NEED TO RETURN TO THE STORE
Questions with operation or assembly? Require Parts Information?
Product Under Manufacturer’s Warranty?
Contact us at: www.dimplex.com/customer_support
For Troubleshooting and Technical Support
OR Toll-Free 1-888-DIMPLEX (1-888-346-7539)
Monday to Friday 8:00 a.m. to 4:30 p.m. EST
Please have your model number and product serial
number ready. (See above)

4 www.dimplex.com
① Read all instructions before
using this appliance.
② The heater is hot when in use.
To avoid burns, do not let bare
skin touch hot surfaces. The trim
around the heater outlet becomes
hot during heater operation.
Keep combustible materials, such
as furniture, pillows, bedding,
papers, clothes, and curtains at
least 3 feet (0.9m) from the front
of the unit.
③ Extreme caution is necessary
when any heater is used by or
near children or invalids and
whenever the unit is left operating
and unattended.
④ Always unplug the stove when
not in use.
⑤ Do not operate any unit with
a damaged cord or plug, or if the
heater has malfunctioned, or if
the stove has been dropped or
damaged in any manner. Return
heater to authorized service
facility for examination, electrical
IMPORTANT INSTRUCTIONS
or mechanical adjustment or
repair.
⑥ Do not use outdoors.
⑦ The stove is not intended for
use in bathrooms, laundry areas
and similar indoor locations.
Never locate heater where it may
fall into a bathtub or other water
container.
⑧Do not run the cord under
carpeting. Do not cover cord with
throw rugs, runners or the like.
Arrange cord away from trafc
area and where it will not be
tripped over.
⑨ To disconnect the unit, turn
the controls off, then remove the
plug from the outlet.
⑩Do not insert or allow foreign
objects to enter any ventilation
or exhaust opening as this may
cause an electric shock or re, or
damage to the heater.
⑪ To prevent a possible re, do
not block air intake or exhaust

5
SAVE THESE INSTRUCTIONS
in any manner. Do not use on
soft surfaces, like a bed, where
openings may become blocked.
⑫ All electrical heaters have
hot and arching or sparking parts
inside. Do not use in areas where
gasoline, paint, or ammable
liquids are used or stored or
where the unit will be exposed to
ammable vapours.
⑬ Do not modify the stove.
Use it only as described in
this manual. Any other use
not recommended by the
manufacturer may cause re,
electric shock or injury to persons.
⑭This heater is not intended for
use with an extension cord. Plug
cord directly into wall receptacle.
⑮ Do not burn wood or other
materials in the stove.
⑯ Do not strike clear door panel.
⑰ Always use a certied
electrician should new circuits or
outlets be required.
⑱ Always use properly
grounded, fused and polarized
outlets.
⑲ Disconnect all power supply
before performing any cleaning,
maintenance or relocation of the
unit.
⑳ When transporting or storing
the unit and cord, keep in a
dry place, free from excessive
vibration and store so as to avoid
damage.
IMPORTANT INSTRUCTIONS

6 www.dimplex.com
!NOTE: A 15amp, 120 volt
alternating current (VAC) circuit
is required. A dedicated circuit
is preferred but not essential in
all cases. A dedicated circuit will
be required if, after installation,
the circuit breaker trips or fuse
blows on a regular basis when the
heater is operating. Additional
appliances on the same circuit
may exceed the current rating of
the circuit breaker.
WARNING: Ensure the power
cord is not installed so that it is
pinched or against a sharp edge
and ensure that the power cord is
stored or secured to avoid tripping
or snagging to reduce the risk
of re, electric shock or injury to
persons.
Construction and electrical
outlet wiring must comply with
local building codes and other
applicable regulations to reduce
the risk of re, electric shock and
injury to persons.
Do not attempt to wire your own
new outlets or circuits. To reduce
the risk of re, electric shock or
injury to persons, always use a
licensed electrician.
IMPORTANT SAFETY INSTRUCTIONS
Stove Installation
Make sure the units MAIN1.
ON/OFF switch is switched
OFF (refer to operating in-
struction section).
Plug the unit directly into a 2.
15Amp/120volt outlet.

7
Operation
To access the controls go to the
back of the Stove.
A. MAIN ON/OFF SWITCH
The on/off switch supplies power
to all unit functions (heat/ame)
B. HEATER ON/OFF SWITCH
The HEATER ON/OFF SWITCH
supplies power to the heater fan
and the heater element.
C. HEATER THERMOSTAT
CONTROL
To adjust the temperature to your
individual requirements, turn the
thermostat control clockwise all
the way to turn on the heater.
When the room reached the
desired temperature, turn the
thermostat knob counter clock-
wise until you hear a click. Leave
in this position to maintain the
room temperature at this setting.
For additional heat, turn clockwise
until you hear the click again and
the heater will turn on. To turn the
heater off, switch the HEATER
ON/OFF SWITCH to the OFF
position.
!NOTE: When the heater is
switched ON, the heater fan will
operate. The heater element may
or may not be on, depending on
the thermostat control setting.
RESETTING THE TEMPERA-
TURE CUTOFF SWITCH
Should the heater overheat, an
automatic cut out will turn the
heater off and it will not come
back on without being reset. It
can be reset by switching the
MAIN ON/OFF SWITCH to OFF
and waiting 5 minutes before
switching the unit back on.
CAUTION: If you need to con-
tinuously reset the heater, unplug
the unit and call Dimplex North
America Limited at 1-800-DIM-
PLEX

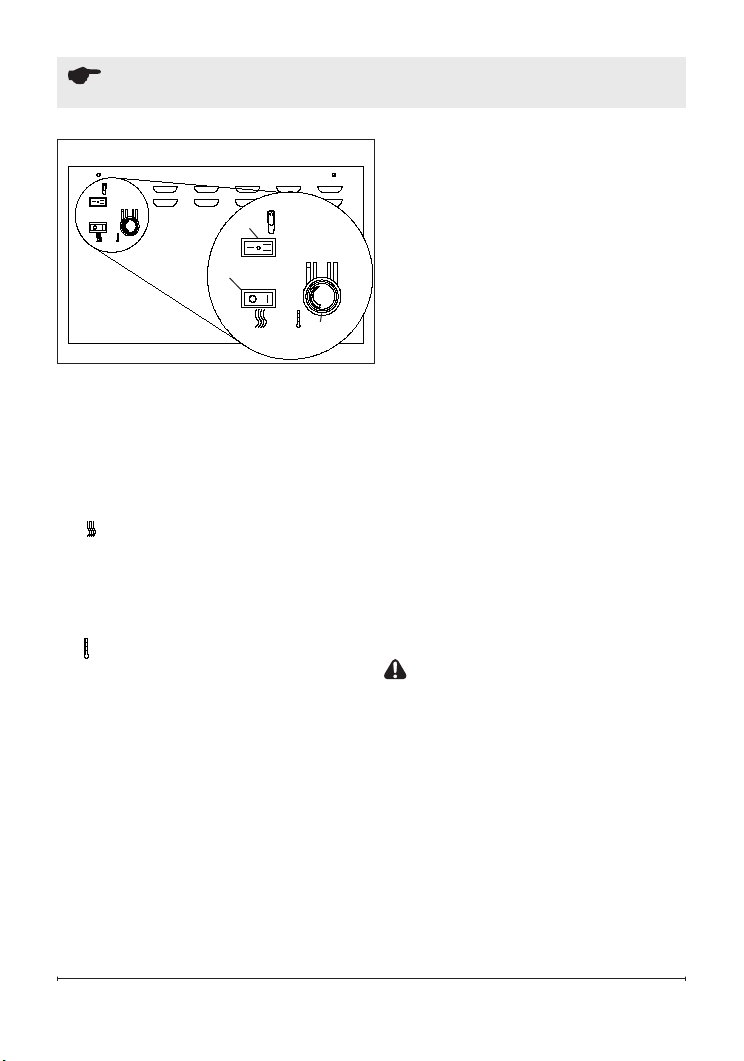

Figure 1
A
C
B

8 www.dimplex.com
Operation
REMOTE CONTROL USAGE
Plug the stove into the outlet1.
located on the side of the
receiver.
Plug the receiver into the wall 2.
outlet.
Install a 9 volt battery into the3.
transmitter.
Turn the stove main power4.
switch to the on position prior
to using the remote control.
The remote control works up 5.
to 50 feet away.
Push the ON button to turn6.
stove on, push the OFF but-
ton to turn the stove off.
!NOTE: To prevent the risk of
re, the stove plug must be in-
serted fully into the receiver.
!NOTE: The remote control and
receiver use one of 243 indepen-
dent frequencies. When replac-
ing the remote control or the
receiver they must be replaced as
a set to ensure proper operation.
The frequency of the remote is
located on the back of the remote
on a label. (Figure 2)
OPEN

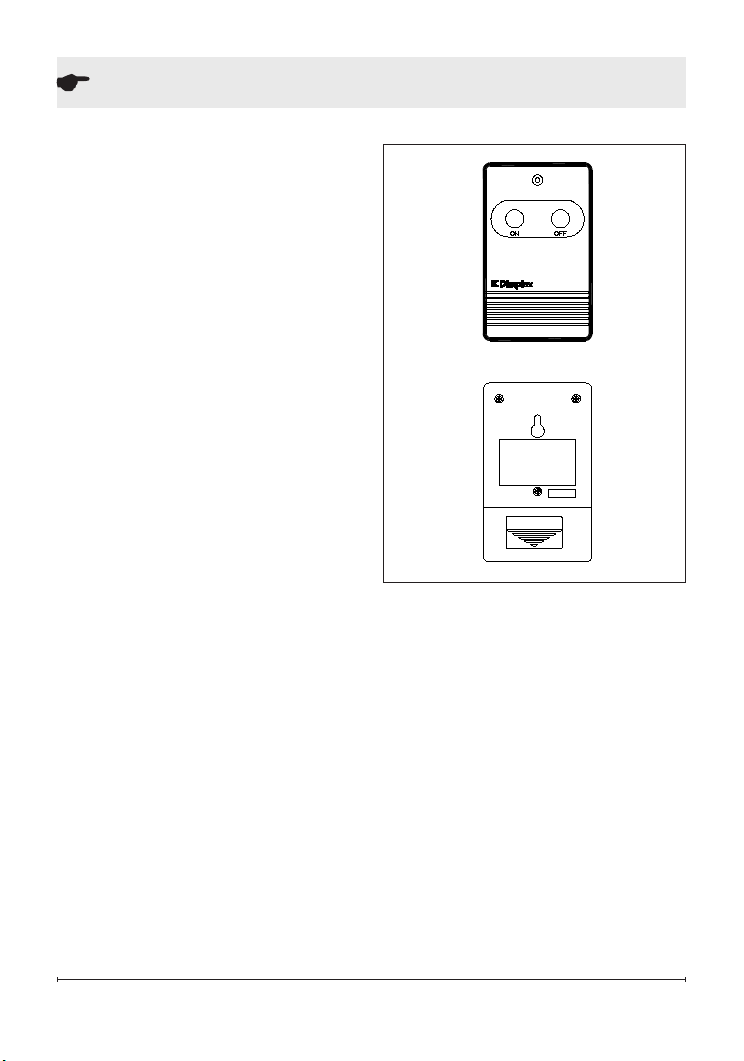

Figure 2

9
Maintenance
WARNING: Disconnect power
before attempting any mainte-
nance or cleaning to reduce the
risk of re, electric shock or dam-
age to persons.
LIGHT BULB REPLACEMENT
Allow at least 5 minutes for light
bulbs to cool off before touching
bulbs to avoid accidental burning
of skin.
Light bulbs need to be replaced
when you notice a dark section of
the ame or when the clarity and
detail of the log exterior disap-
pears. There are two bulbs under
the log set which generate the
ames and embers.
TOOL REQUIREMENTS
Slot screw driver
HELPFUL HINTS
It is a good idea to replace all
light bulbs at one time if they are
close to the end of their rated life.
Group replacement will reduce
the number of times you need
to open the unit to replace light
bulbs.
UPPER LIGHT BULB REQUIRE-
MENTS
Quantity of 1 clear chandelier or
candelabra bulbs with an E-12
(small) socket base, 7 watt rating.
UPPER BULB REPLACEMENT
Open door by turning the han-1.
dle ¼ turn to the right or left.
Locate the upper bulb brack-2.
et.
Unscrew the bulb counter 3.
clockwise.
Insert new bulb.4.
Close the door and turn the 5.
handle ¼ turn to the right or
left.
LOWER LIGHT BULB RE-
QUIREMENTS
Quantity of 2 clear chandelier or
candelabra bulbs with an E-12
(small) socket base, 60 watt rat-
ing.
LOWER BULB REPLACEMENT
Open door by turning the han-1.
dle ¼ turn to the right or left.
Remove the screw from the 2.
logset located in the center
of the emberbed and remove
the logset from the unit.
Locate and examine the bulbs 3.
to determine which bulb(s)
required replacement.
Unscrew the bulb(s) counter 4.
clockwise.
Insert new bulb(s).5.
Install the logset into the unit, 6.

10 www.dimplex.com
Maintenance
pushing rmly against the
glass. Replace the logset re-
taining screw into the ember
bed.
Close the door and turn the 7.
handle ¼ turn to the right or
left.
GLASS CLEANING
The clear door is cleaned in the
factory during the assembly op-
eration. During shipment, instal-
lation, handling, etc., the clear
door may collect dust particles,
these can be removed by dusting
lightly with a clean dry cloth.
To remove ngerprints or other
marks, the clear door can be
cleaned with a damp cloth. The
clear door should be completely
dried with a lint free cloth to
prevent water spots. To prevent
scratching, do not use abrasive
cleaners or spray liquids on the
clear door surface.
NICKEL DOORS
The nickel doors are hand
nished solid castings. Due to
the nature of the manufacturing
process, the doors may have
some small imperfections. This is
considered normal and adds to
the character of the stove.
NICKEL DOOR CLEANING
To remove ngerprints or other
marks, the clear door can be
cleaned with a damp cloth. The
clear door should be completely
dried with a lint free cloth to
prevent water spots. To prevent
scratching, do not use abrasive
cleaners or spray liquids on the
clear door surface.
STOVE SURFACE CLEANING
Use warm water only to clean
painted surfaces of the Com-
pact Stove. Do not use abrasive
cleaners.

11
Warranty
Products to which this limited war-
ranty applies
This limited warranty applies
to the following models of your
newly purchased Dimplex elec-
tric stove DS6650N and to newly
purchased Dimplex replace sur-
rounds (mantels) and trims. This
limited warranty applies only to
purchases made in any province
of Canada except for Yukon Ter-
ritory, Nunavut, or Northwest Ter-
ritories or in any of the 50 States
of the USA (and the District of
Columbia) except for Hawaii and
Alaska. This limited warranty
applies to the original purchaser
of the product only and is not
transferable.
Products excluded from this lim-
ited warranty
Light bulbs are not covered by
this limited warranty and are the
sole responsibility of the owner/
purchaser. Products purchased in
Yukon Territory, Nunavut, North-
west Territories, Hawaii, or Alaska
are not covered by this limited
warranty. Products purchased
in these States, provinces, or
territories are sold AS IS without
warranty or condition of any kind
(including, without limitation, any
implied warranties or conditions
of merchantability or tness for a
particular purpose) and the entire
risk of as to the quality and perfor-
mance of the products is with the
purchaser, and in the event of a
defect the purchaser assumes the
entire cost of all necessary servic-
ing or repair.
What this limited warranty covers
and for how long
Products covered by this limited
warranty have been tested and
inspected prior to shipment and,
subject to the provisions of this
warranty, Dimplex warrants such
products to be free from defects
in material and workmanship for
a period of 12 months from the
date of the rst purchase of such
product.
The limited 12 month warranty
period also applies to any implied
warranties that may exist under
applicable law. Some jurisdic-
tions do not allow limitations on
how long an implied warranty
lasts, so the above limitation may
not apply to the purchaser.
What this limited warranty does
not cover
This limited warranty does not
apply to products that have been

12 www.dimplex.com
Warranty
repaired (except by Dimplex or
its authorized service representa-
tives) or otherwise altered. This
limited warranty does further not
apply to defects resulting from
misuse, abuse, accident, neglect,
incorrect installation, improper
maintenance or handling, or
operation with an incorrect power
source.
What you must do to get service
under this limited warranty
Defects must be brought to the
attention of Dimplex Technical
Service by contacting Dimplex
at 1-888-DIMPLEX (1-888-346-
7539), or 1367 Industrial Road,
Cambridge Ontario, Canada
N1R 7G8. Please have proof of
purchase, catalogue/model and
serial numbers available when
calling. Limited warranty service
requires a proof of purchase of
the product.
What Dimplex will do in the event
of a defect
In the event a product or part
covered by this limited warranty is
proven to be defective in mate-
rial or workmanship during the 12
month limited warranty period you
have the following rights:
Dimplex will in its sole discre-•
tion either repair or replace
such defective product or part
without charge. If Dimplex
is unable to repair or replace
such product or part, or if
repair or replacement is not
commercially practicable
or cannot be timely made,
Dimplex may, in lieu of repair
or replacement, choose to
refund the purchase price for
such product or part.
Limited warranty service •
will be performed solely by
dealers or service agents of
Dimplex authorized to provide
limited warranty services.
The purchaser is responsible •
for removal and transporta-
tion of such product or part
(and any repaired or replace-
ment product or part) to and
from the authorized dealer's
or service agent's place of
business.
This limited warranty does•
not entitle the purchaser to
on-site or in-home services.
On-site or in-home services
may be performed at the
purchaser's specic request
and expense at Dimplex’s
then-current rates for such
services.
Dimplex will not be reponsible•
for, and the limited warranty

13
Warranty
services shall not include, any
expense incurred for installa-
tion or removal of the product
or part (or any replacement
product or part) or any labour
or transportation costs. Such
costs shall be the purchaser’s
responsibility.
What Dimplex and its dealers
and service agents are also not
responsible for:
IN NO EVENT WILL DIMPLEX,
OR ITS DIRECTORS, OFFI-
CERS, OR AGENTS, BE LIABLE
TO THE PURCHASER OR ANY
THIRD PARTY, WHETHER IN
CONTRACT, IN TORT, OR ON
ANY OTHER BASIS, FOR ANY
INDIRECT, SPECIAL, PUNITIVE,
EXEMPLARY, CONSEQUEN-
TIAL, OR INCIDENTAL LOSS,
COST, OR DAMAGE ARISING
OUT OF OR IN CONNECTION
WITH THE SALE, MAINTE-
NANCE, USE, OR INABILITY TO
USE THE PRODUCT, EVEN IF
DIMPLEX OR ITS DIRECTORS,
OFFICERS, OR AGENTS HAVE
BEEN ADVISED OF THE POS-
SIBILITY OF SUCH LOSSES,
COSTS OR DAMAGES, OR IF
SUCH LOSSES, COSTS, OR
DAMAGES ARE FORESEEABLE.
IN NO EVENT WILL DIMPLEX,
OR ITS OFFICERS, DIREC-
TORS, OR AGENTS BE LIABLE
FOR ANY DIRECT LOSSES,
COSTS, OR DAMAGES THAT
EXCEED THE PURCHASE
PRICE OF THE PRODUCT.
SOME JURISDICTIONS DO NOT
ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES,
SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY
TO THE PURCHASER.
How State and Provincial law
apply
This limited warranty gives you
specic legal rights, and you may
also have other rights which vary
from jurisdiction to jurisdiction.
The provisions of the United Na-
tions Convention on Contracts for
the Sale of Goods shall not apply
to this limited warranty or the sale
of products covered by this limited
warranty.

14 www.dimplex.com
© 2011 Dimplex North America Limited
Dimplex North America Limited
1367 Industrial Road
Cambridge ON
Canada N1R 7G8
