• Use ONLY with children who weigh between 40 and 120 pounds (18 and 54 kg)
and whose height is between 38 and 63 inches (97 and 160 cm).
•Use ONLY the vehicle’s lap and shoulder belt system when
restraining the child in this booster seat.
•Child Height: Child is too tall if the tops of the ears are above either
the top of the booster headrest or raised vehicle seat headrest.
•ONLY use this restraint forward-facing.
•NEVER use with only a vehicle lap belt to restrain a child. This
could result in serious injury or death to a child.
•Some vehicle seat belt systems cannot be used with this booster
seat. Read vehicle owner’s manual and ‘Vehicle Seat Belt Systems’
section of this manual.
•DO NOT use this booster seat without the backrest unless there
is vehicle headrest for that seating position.
•DO NOT use this booster seat without the backrest unless proper
vehicle seat belt placement can be achieved.
•This booster seat may be used with the lower anchors of a LATCH system.
WARNING!
DEATH or SERIOUS INJURY can occur
Failure to follow all written instructions and product labels can result in death or
serious injury in a crash. Carefully read and understand this instruction manual
prior to using this restraint. If you have any questions visit us.diono.com or contact
Diono LLC. To ensure proper long-term use, store this manual under the bottom of
the base.
EN_SP_cambria_Manual_09122017.indd 4 9/12/17 10:55 AM

5
•DO NOT use this booster seat with any other backrest or cushions.
•To prevent injury due to product deterioration, DO NOT use this booster seat if it
has been involved in a severe accident or if it is older than six years.
•NEVER leave a child alone in a vehicle, even for a short time.
•ALWAYS secure this booster seat and all add-on child restraint systems using
vehicle seat belt or LATCH anchors even when not occupied. In a crash, an
unsecured child restraint can cause injury to other vehicle occupants.
•Except as described in this manual, DO NOT disassemble or modify any part of this
booster seat or vehicle seat belt.
•You MUST register your car seat with the manufacturer to be reached in the event
of a recall.
•DO NOT place anything under the booster seat to raise it o the vehicle seat.
•This restraint is not a toy. DO NOT let a child play with it.
•DO NOT leave folding vehicle seats unlatched. In the event of a sudden stop, a
loose seat back could prevent the booster seat from protecting the child as well as
it should.
•In the event of an accident, the vehicle body itself provides the most signicant
passenger protection. While a properly installed restraint will improve chances for
survival in most accidents, a booster seat will not protect a child if the vehicle is too
severely impacted.
WARNING!
DEATH or SERIOUS INJURY can occur
EN_SP_cambria_Manual_09122017.indd 5 9/12/17 10:55 AM

6
•In vehicles with rear seating positions, accident statistics indicate that children are
safer when properly restrained in the rear seating positions than in the front
seating positions.
Important: Children who weigh 40 lbs (18 kg) or less are best protected in a 5-point
harness restraint. Diono recommends that children remain in a 5-point harness
restraint up to the maximum weight or height allowed for that restraint.
• If the child will not keep the vehicle shoulder belt properly positioned at all times,
DO NOT use a booster seat. You must use a harnessed child restraint.
•Maximum Child Height: Child is too tall if the top of the ears are above the top of
either the fully raised booster seat headrest or fully raised vehicle headrest.
WARNING!
DEATH or SERIOUS INJURY can occur
DO NOT place child restraint
on the front seat with air bag.
DEATH or SERIOUS INJURY
can occur. The back seat is the
safest place for children 12
and under.
WARNING
EN_SP_cambria_Manual_09122017.indd 6 9/12/17 10:55 AM

7
Safety Information
General
• Cover this booster seat if vehicle is left in direct sunlight. Portions of the booster
seat can become hot enough to burn a child and cover fabric can become faded.
• Store this booster seat in a safe place when not in use. Do not store near direct heat
source or place heavy objects on top of it.
• Always make sure vehicle seat is locked in its upright position. Reclining the vehicle
seat will adversely aect the safety and performance of the child seat in an accident.
Certification
This child restraint system conforms to all applicable Federal Motor Vehicle Safety
Standards (FMVSS 213). This child restraint is certied for use in passenger cars,
multi-purpose passenger vehicles, and trucks only. This restraint is not for use in
homes, boats, buses, and the following classes of vehicles: motorcycles of any class,
snowmobiles, snowmobile cutter, trailers, trailer converter dollies, low speed vehicles,
vehicles imported temporarily for special purposes or three wheeled vehicles.
This restraint is not certified for aircraft use. Lap belts in aircraft cannot be
used safely with this booster seat.
Registration
Child restraints could be recalled for safety reasons. You must register this restraint
to be reached in a recall. Send your name, address, email address if available, and the
restraint’s model number and manufacturing date to:
or call 1-855-463-4666, or register online at https://us.diono.com/product-registration/.
For recall information, call the U.S. Government’s Vehicle Safety Hotline at 1-888-327-4236
(TTY: 1-800-424-9153), or go to http://www.NHTSA.gov. You may also ll out and mail
the product registration card included with this product.
Diono LLC
PO Box 77129
Seattle, WA 98177
EN_SP_cambria_Manual_09122017.indd 7 9/12/17 10:55 AM

8
Vehicle Seat Belt Systems
In order to protect a child in an accident, this booster must be used with a compatible vehicle
seat belt. This booster seat may be used with LATCH in addition to vehicle 3-point seat belt.
The following seat belt types are NOT compatible with this booster seat:
XTwo-point seatbelts of any kind
XThree-point seat belts with separate retractors for lap and shoulder sections
XMotor-driven, automatic seat belts
XSeat belts with anchorage points on the door
The vehicle owner’s manual will have complete information on the types of seat belts in the
vehicle. If the seat belt type is listed above, choose another seating position in the vehicle.
This booster seat is only compatible with Ford Motor Company's inatable seat belts and has not
yet been tested with any other manufacturer's inatable seat belt.When using in backless booster
mode, the inatable seat belt can be used as long as the shoulder strap ts properly without
adding the adjustable belt strap. The inflatable seat belts cannot be used in combination with
the adjustable belt strap. Consult your vehicle owner's manual for more information.
Use ONLY the vehicle’s lap and shoulder belt system when restraining the child in the booster
seat. Do NOT use with a seat belt system that is motorized or anchored to the vehicle door.
WARNING!
DEATH or SERIOUS INJURY can occur
Safety Information (cont’d)
Important: Some vehicles have no seating positions compatible with booster seats.
If in doubt, please contact the vehicle manufacturer for assistance.
EN_SP_cambria_Manual_09122017.indd 8 9/12/17 10:55 AM

9
Vehicle Seat Positions
Diono and the U.S. Department of Transportation warn that children under 12 MUST ride
in the rear seats and away from front airbags. The only exception is if the airbag is turned
o. When using a vehicle with airbags, refer to the vehicle owner’s manual for additional
booster seat installation instructions and precautions. Owners of vehicles with front
passenger side airbags should refer to their vehicle owner’s manual for child restraint
installation instructions.
VEHICLE SEATING POSITIONS
Diono and Transport Canada warn that children under 12 must ride in the rear seats and away
from front airbags. The only exception is if the airbag is turned o. When using a vehicle with
airbags, refer to the vehicle owner’s manual for additional booster seat installation instructions
and precautions.
ONLY use this booster seat in forward-facing vehicle seats.
DO NOT use this booster seat in side-facing or rear-facing
seats in vans or station wagons.
Seats which face
sides of vehicle. Seats which face rear of vehicle.
PROPER POSITIONING ON VEHICLE SEAT
Place booster seat on vehicle seat so it is resting firmly
on vehicle seat bottom and touching the vehicle seat
back.
Safety Information (cont’d)
Booster Seat Use
WARNING
Safety Information (cont’d)
EN_SP_cambria_Manual_09122017.indd 9 9/12/17 10:55 AM

10
Parts for Assembly & Installation
Head
support
adjuster
Upper
belt
guide
Instruction
manual
LATCH
adjuster
straps
LATCH
connectors
Cup
holder
Lower
belt guide
EN_SP_cambria_Manual_09122017.indd 10 9/12/17 10:55 AM

11
Booster Seat Assembly
1) Tuck fabric panel at rear of seat
exposing the mounting points.
Attaching The Backrest
2) Load backrest hooks
to seat mounting points.
3) Push down on seatback
just above hooks.
4) Rotate seatback to an
upright position while
maintaining pressure
just above the hooks.
5) Finish by tucking any
excess fabric up and
under the fabric
of the backrest.
Booster Seat Assembly
Attaching the Backrest
Removing the Backrest
Follow above instructions in reverse.
EN_SP_cambria_Manual_09122017.indd 11 9/12/17 10:55 AM

12
Booster Seat Assembly (cont’d)
Adjusting the Headrest

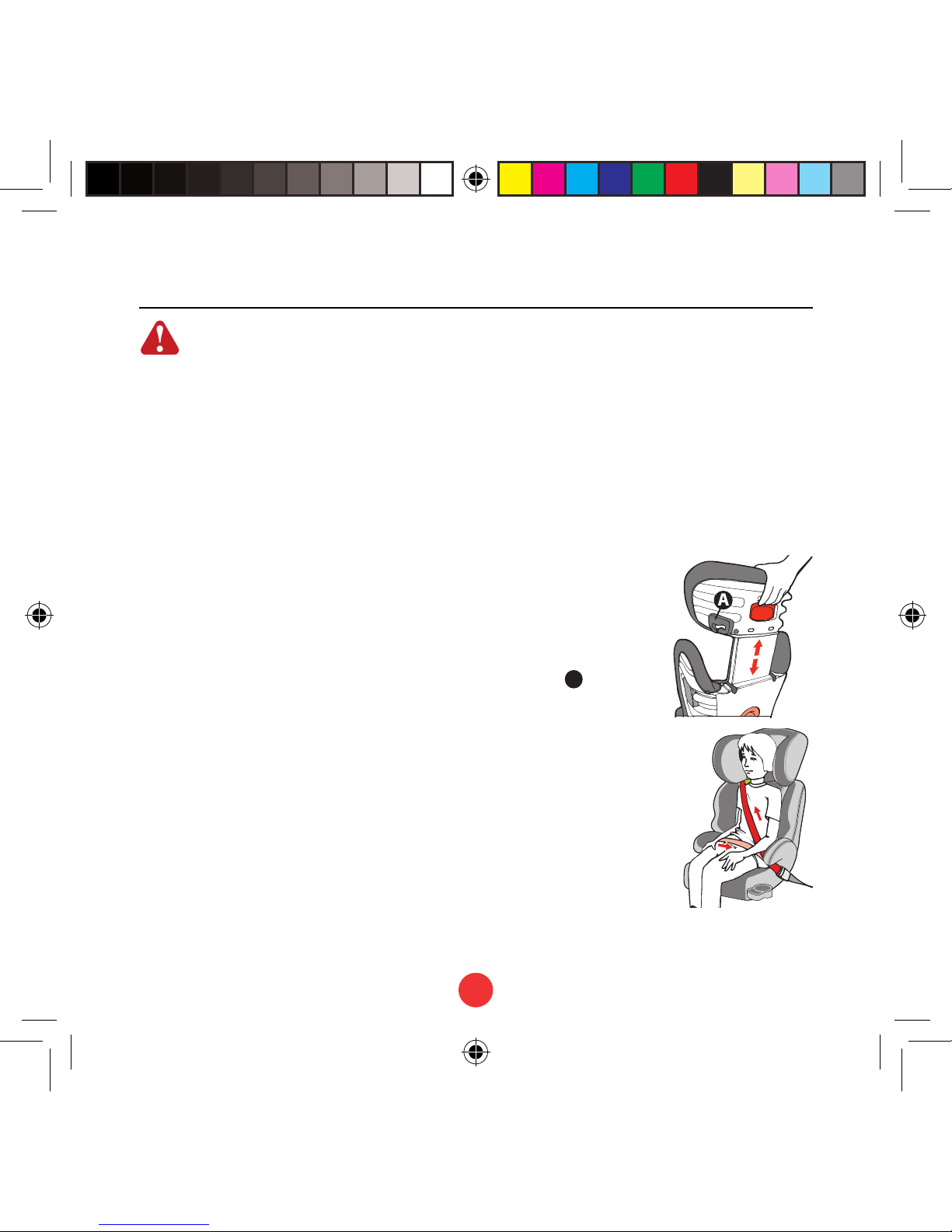

Squeeze the red head support adjuster on back of
booster seat head rest while adjusting its height up
or down to t the child.
EN_SP_cambria_Manual_09122017.indd 12 9/12/17 10:55 AM

13
LATCH Installation
To improve safety and performance, this booster seat is equipped with a unique,
LATCH system that allows secure attachment to a vehicle’s lower LATCH anchor
locations.
Disengage LATCH connectors from storage slots and lay
booster seat on its side.
1While depressing the cam lock lever,
2Pull LATCH connectors away from the booster seat and
extend both straps all the way.
3Attach both LATCH connectors to the vehicle anchors,
starting with the connector that is furthest from you.
For ease of use, make sure open end of hooks face
upward during use.
4While pushing booster against vehicle seat, 5pull one
adjuster strap tight and then the other.
NOTE: Even with LATCH properly attached and
adjusted, child seat will still have movement against
the vehicle seat back and bottom.
Unsecured objects can become ying hazards and can cause serious injury in an accident.
Diono always recommends utilizing LATCH installation in vehicles equipped with lower
anchors.
WARNING:
EN_SP_cambria_Manual_09122017.indd 13 9/12/17 10:55 AM

14
Disengaging LATCH Installation
Follow above instructions in reverse:
1) Depress the cam lock lever while pulling child seat away from the vehicle seat back until
the LATCH straps are extended all the way.
2) Disconnect LATCH connectors from vehicle anchors.
3) Pull LATCH adjuster straps to recess the LATCH connectors into the back of the
booster seat bottom for safe storage.
Proper Positioning on Vehicle Seat
Place booster seat on vehicle seat so it is resting rmly
on vehicle seat bottom and touching the vehicle seat back.
LATCH Installation (cont’d)
Important:
• A gap is acceptable as long as the top of the head
support is touching the vehicle headrest or vehicle
seat back.
• When using booster seat in center seating position,
make sure it is stable and
does not rock from side to side.
• DO NOT use LATCH if installation interferes with
vehicle seat belt.
EN_SP_cambria_Manual_09122017.indd 14 9/12/17 10:55 AM

15
1) Make sure booster seat is properly positioned and installed on
vehicle seat as per the instructions in pages 8–9 and 13–14.
2) Properly position child: sitting upright and all the way back in
the booster seat.
3) Raise the headrest to access red upper belt guides. AFeed the
diagonal portion of the seatbelt through the guide on the side
opposite the seatbelt buckle.
4) Fasten seatbelt across child: Lap portion of seatbelt should rest
within both lower belt guides. Diagonal shoulder portion should
route inside the lower belt guide closest to the buckle and over
child’s shoulder.
Securing the Child
• If headrest is adjusted to maximum height and child’s shoulder height is closer than
1 cm to the upper belt guide, child is too tall and the seat can only be used a
backless booster.
WARNING:
• If lap portion and diagonal portion of seatbelt are not positioned correctly, the
booster seat is not properly installed:
• Diagonal portion of seatbelt should lay over the shoulder and NOT touching the neck.
• Lap belt position should be forward and as low as possible over child’s pelvis
and contacting the upper thigh.
EN_SP_cambria_Manual_09122017.indd 15 9/12/17 10:55 AM

16
5) Adjust headrest (page 12) to proper height: Upper shoulder
guide should be slightly above (at least 1 cm) the child’s
shoulders.
6) The child’s head must be supported by the vehicle headrest or
vehicle seat back in high back booster or backless booster mode.
7) Make sure seat belt is not twisted and lays at across child’s
lap, torso and shoulder.
8) Tighten the seatbelt by pulling the diagonal shoulder belt
portion in the direction of the arrows.
9) Conrm seatbelt buckle is in correct position (see Warning
content on page 15).
Securing the Child (cont’d)
EN_SP_cambria_Manual_09122017.indd 16 9/12/17 10:55 AM

17
DO NOT use with hot liquids as this could burn a child.
Proper Buckle Position
Important: After booster seat is installed and seatbelt is fastened around child, it is
important to conrm correct seatbelt buckle position to ensure secure installation.
Correct seatbelt buckle position: Buckle is on the outside of lower belt guide.
Incorrect seat belt buckle position.
If buckle is being pulled across the
lower belt guide and into the seat,
choose another seating position
within the vehicle.
Cup holders and snack trays are located on both sides
of seat bottom. Swivel outward to the locked position
for use. Swivel inward to the recessed and locked
position when not in use.
Retractable Cup Holders and Snack Trays
Important: Do not step on or put excess weight
on cup holder and snack tray which could cause
it to break.
CAUTION:
EN_SP_cambria_Manual_09122017.indd 17 9/12/17 10:55 AM

18
Backless Booster Seat
While this booster seat is designed to oer reinforced side-impact protection with its
backrest section attached, the seat bottom can also be used alone as a backless booster.
1) Remove seat bottom from backrest section (see page 11).
2) Disengage the two middle elastic straps and unfold padded
fabric ap on back of seat bottom. A
3) Make sure booster seat is correctly installed (see pages 13–14)
and properly positioned on vehicle seat.
4) Properly position child: sitting upright and all the way back
in the booster seat.
5) The child’s head must be supported by the vehicle
headrest or vehicle seat back in high back booster or
backless booster mode
6) Fasten seatbelt across child.
7) Make sure seat belt is not twisted and lays at across
child’s hips, torso and shoulder.
8) Tighten the seatbelt by pulling the diagonal shoulder
belt portion in the direction of the arrows.
Important:
• Lap belt position should be as far forward and as low as possible over child’s
pelvis and contacting upper thighs.
•Diagonal seat belt portion should route inside the red lower belt guide closest to
the buckle and over child’s shoulder. It should NOT be touching the neck.
•NEVER position the shoulder belt loosely or under the child’s arm or behind their back.
•If the diagonal seat belt portion does not correctly t the child, then the seat MUST
only be used with the seatback portion attached and properly adjusted to t the child.
WARNING:
EN_SP_cambria_Manual_09122017.indd 18 9/12/17 10:55 AM

19
Booster Seat Assembly
Remove shoulder belt guide strap from
storage area underneath seat.
Position child correctly in seat as per the
instructions in the manual, making sure lap
and shoulder belts are positioned properly
across child.
Attach the red shoulder belt guide strap onto
the diagonal shoulder belt.
Adjust strap to correct length, so that red guide
is just above shoulder.
Diono_CA_ENFR_Cambria_Manual_310000_06242016.indd 20 6/24/16 2:06 PM
(cont’d)
SHOULDER BELT GUIDE STRAP
Backless Booster Seat (cont’d)
Shoulder Belt Guide Strap
Remove shoulder belt guide strap from
storage area underneath seat.
Position child correctly in seat as per
the instructions in the manual, making
sure lap and shoulder belts are
positioned properly across child.
Attach the red shoulder belt guide
strap onto the diagonal shoulder belt.
Adjust strap to correct length, so that
red guide is just above shoulder.
EN_SP_cambria_Manual_09122017.indd 19 9/12/17 10:55 AM

20
Care & Maintenance
Cleaning the Cover
Read all labels attached to cover for washing instructions.
Hand wash cover in cold water with mild detergent only.
Line dry to prevent shrinkage.
Do NOT wash cover in hot water.
Do NOT bleach, machine wash or machine dry.
Cleaning the Shell
Sponge clean ONLY using warm water and mild soap. Towel dry when nished.
Do NOT use solvents, detergents or any other chemical or cleaning agent. Do NOT
lubricate any part of the seat.
Removing the Fabric Cover
1) Separate seat back section from seat bottom section.
2) Remove plastic fasteners and elastics that secure fabric cover to seat bottom, seat
back and head rest.
3) Remove fabric cover pieces from the booster seat sections.
Attaching the Cover
Follow the above instructions in reverse.
Warranty Information
The manufacturer of this child restraint, Diono LLC, warrants this product only to
the original retail purchaser. Visit us.diono.com for complete warranty information
and details.
EN_SP_cambria_Manual_09122017.indd 20 9/12/17 10:55 AM
