DIR Pavo User manual

INSTRUCTION MANUAL
Pavo
8709
®

70”/178cm
20”/ 51cm 12 3/4” / 31cm 5 3/8” / 13.5cm
22”/ 56cm
34 3/4” / 88cm
23 3/4”/ 60cm
23 3/4”-39 3/8” / 60-100cm
90°
15°
80°
N.W.
USA UK
190 lbs
400 lbs
AC 110V/60HZ
DC 24V
Max load capacity
Input voltage
Output Voltage
180kg
86kg
AC 230V/50HZ
DC 24V

The whole bed can be inclined up and down by press-
ing these buttons
The inclined angle of the backrest can be adjuested up
and down by pressing these buttons
The inclined angle of the bottom seat can be adjusted
up and down by pressing these buttons
The leg can be controlled up and down by pressing
these buttons

The instruction
(1) The height adjustment
The whole bed can be inclined up and sown by pressing these buttons:
23 3/4” / 60cm
39 3/8” / 100cm

(2) The backrest adjustment
The inclined angle of the backrest can be adjusted up and down by pressing these buttons:

(3) Thebottom seat adjustment
The inclined angle of the bottom seat can beadjusted up and down by pressing these buttons:

(4) The footrest adjustment
The footrest can be controlled up and down by pressing these buttons:

(5) The pillow adjustment
The inclined angle of the whole pillow can be adjusted if you press the button A. And the
retroflexion of thepillow can be adjusted individuallyif you press the button B.

Button

Maintenance
1. Daily cleaning
You can wipe out the dust by using soft dry towel.
2. Eliminating thestubborndirt
As we all know, it is hard to eliminate the stubborn dirt by using normal dry towel. In this
case, you can use soft towel with diluted neutral detergent to clean it first. And then you can
usedry towel to scrub.
3. It’s prohibited to use benzene, diluent, gasoline or other solvent.
These solvents may damage the leather or it may cause the corrosion of the products’
appearance.
4. Storage and operating environment
Don’t put the product under the strong sunlight and moisture environment. Otherwise it may
cause the damages of the product.
5. It is allowed to use this product under the temperature from- 5℃to 50℃and the humidity
from 45% to 85%.

Fault diagnosis
If there is something wrong when you use the product, please try to check and eliminate the
wrong operation as followings.
Phenomenon
Diagnosis Operation of elimination
Press the button on the remote
but without any responses.
1. The function of control button
has reached to maximum.
2. To check if the power plug is
connected.
3. To check if each connecting
plug of the transformer is
connected.
1. Try to press other control
button.
2. Disconnect the power plug
and connect it again.
3. Disclose the chassis.
Discharge the plug and connect
it again.
Letting out noises and shaking
while going up and down Screw loosen Tighten all the screws
Remarks: It will be not informed if the improvements of the product do not
influence appearance and function.

66 Rea Street South
Birmingham
B5 6LB
UK
-----------------------------
Tel:
[phone]
-----------------------------
Email:
[email protected]
DIR BIRMINGHAM
[email protected]
Unit 1 River Road
Business Park
33 River Road, Barking
Greater London
IG11 0DA
UK
-----------------------------
Tel:
[phone]
--------- --------------------
Email:
DIR LONDON
Unit 20, Goldenbridge Ind.
Estate Tyrconnell Road
Inchicore
Dublin 8
Republic of Ireland
------------------------------
Phone:
[phone]
------------------------------
Email:
[email protected]
DIR IRELAND
USA
Tel:
sale
DIR NEW YORK
575 Underhill Blvd.
Suite 170
Syosset, NY 11791
---------------------------
[phone]
[phone]
-------- ---------------------
Email:
[e-mail]
Warranty

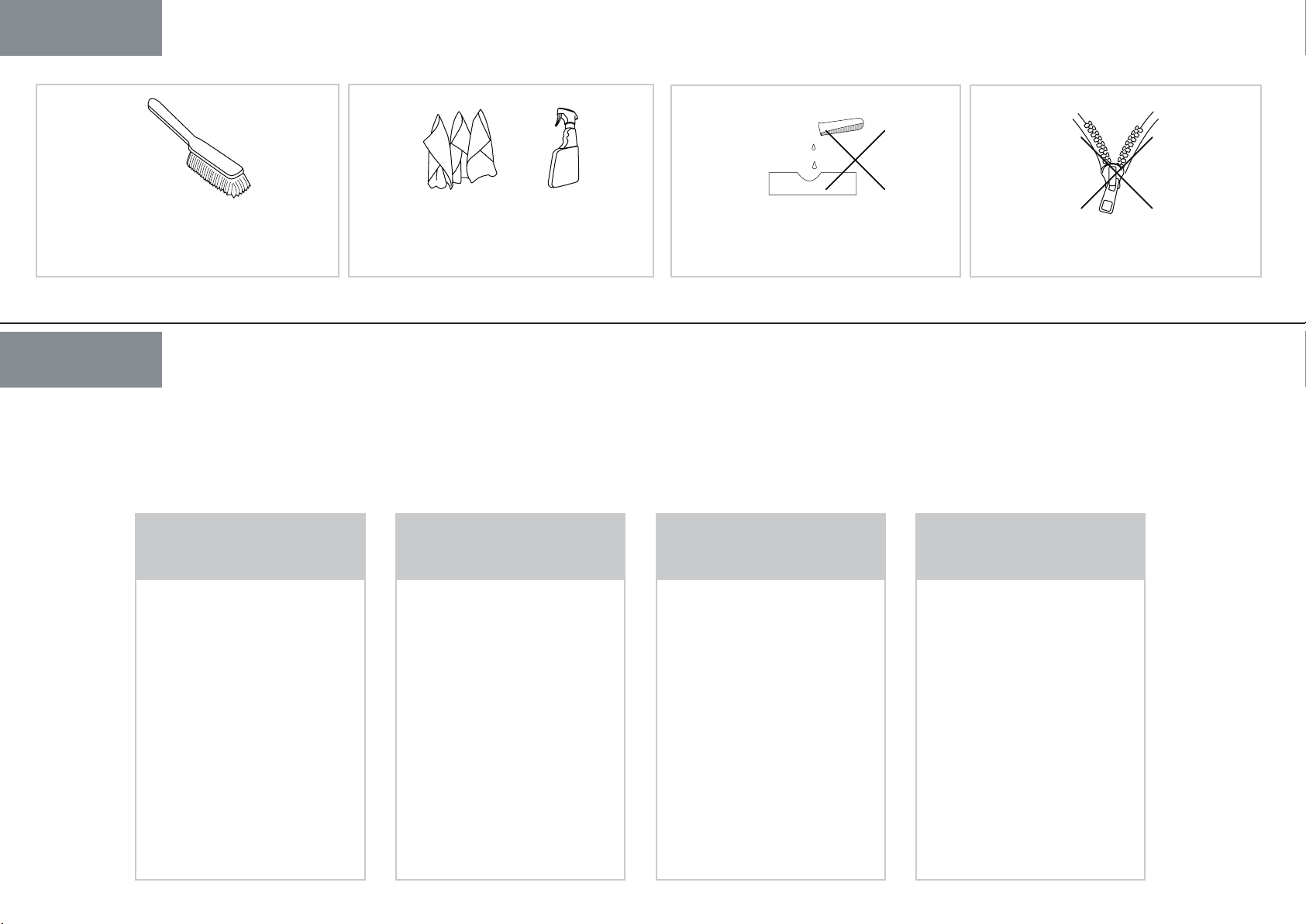

Product care
