DirectUPS JPX1000RM User manual

Line-interactive UPS
JPX1000RM/JPX2000RM
User Manual
K01-C000379-01
IMPORTANT SAFETY INSTRUCTIONS
(SAVE THESE INSTRUCTIONS)
This device complies with part 15 of the FCC rules, operation is subject to the following two conditions
(1) This device may not cause harmful interference and (2) this device must accept any interference
received, including interference that may cause undesired operation.
The lead acid battery may cause chemical hazard, the battery presents a risk of energy hazard.
This manual contains important safety instructions. Please read and follow all instructions carefully
during installation and operation of the unit. Read this manual thoroughly before attempting to unpack,
install, or operate your UPS.
CAUTION! Toprevent the risk of fire or electric shock, install in a temperature and humidity controlled
indoor area free of conductive contaminants. (See the specifications for the acceptable temperature
and humidity range.)
CAUTION! To reduce the risk of overheating the UPS, do not cover the UPS' cooling vents and avoid
exposing the unit to direct sunlight or installing the unit near heat emitting appliances such as space
heaters or furnaces.
CAUTION! Do not attach non-computer-related items, such as medical equipment, life-support
equipment, microwave ovens, or vacuum cleaners to UPS.
CAUTION! Do not plug the UPS input into its own output.
CAUTION! Do not allow liquids or any foreign object to enter the UPS. Do not place beverages or any
other liquid-containing vessels on or near the unit.
CAUTION! In the event of an emergency, press the OFF button and disconnect the power cord from
the AC power supply to properly disable the UPS.
CAUTION! Do not attach a power strip or surge suppressor to the UPS.
CAUTION! Unplug the UPS prior to cleaning and do not use liquid or spray detergent.
INSTALLING YOUR UPS SYSTEM
UNPACKING
The box should contain the following:
(1)UPS Unit1; (2)User Manual1;
HOW TO DETERMINE THE POWER REQUIREMENTS OF YOUR EQUIPMENT
1. Ensure that the equipment plugged into the battery power-supplied outlets does not exceed the
UPS unit’s rated capacity. If rated unit capacities are exceeded, an overload condition may occur
and cause the UPS unit to shut down or the fuse blow.
2. There are many factors that can affect the amount of power that your computer system will
require. For optimal system performance keep the load below 80% of the unit’s rated capacity.
HARDWARE INSTALLATION GUIDE
1. Your new UPS may be used immediately upon receipt. However, recharging the battery for at
least 8 hours is recommended to ensure that the battery's maximum charge capacity is achieved.
Charge loss may occur during shipping and storage. To recharge the battery, simply leave the
unit plugged into an AC outlet. The unit will charge in both the on and off position.
2. With the UPS unit off and unplugged, connect the computer, monitor, and any externally
powered data storage device.
3. Plug the UPS into a 2 pole, 3 wire grounded receptacle (wall outlet). Make sure the wall branch
outlet is protected by a fuse or circuit breaker and does not service equipment with large
electrical demands.
4. Depress the power switch to turn the unit on. The LCD indicator light will illuminate and the unit
will "beep".
5. To maintain optimal battery charge, leave the UPS plugged into an AC outlet at all times.
6. To store your UPS for an extended period, cover it and store with the battery fully charged.
Recharge the battery every three months to ensure battery life.
ROUTINE MAINTENANCE AND STORAGE
ROUTINE MAINTENANCE
1. Use dry soft clothes to clean the front panel and plastic parts. Do not use any detergent that
contains alcoholic ingredient.
2. The expected lifetime of the battery is around 3 years. Improper operation and harsh
environment will reduce the actual lifetime.
3. Unplug the UPS from power inlet if the UPS will not operate for long period of time.
STORAGE
1. First turn off your UPS and disconnect its power cord from the wall outlet. Disconnect all cables
connected the UPS to avoid battery drain.
2. The UPS should be stored in a cool dry location.
3. Make sure the battery is fully charged before the UPS is stored.
4. For extended storage in moderate climates, the battery should be charged for 12 hours every 3
months by plugging the power cord into the wall receptacle and turning on the main switch.
Repeat it every 2 months in high temperature locations.
BASIC OPERATION
FRONT AND TOP PANEL DESCRIPTION
1. Input Circuit Breaker
The circuit breaker provides optimal overload protection.
2. AC Inlet
Connect to utility power through the input power cord.
(IEC320 C14 for 1000, IEC 320 C20 for 2000)
3. AC outlet
The UPS provides outlets for connected equipment to insure temporary uninterrupted operation
during a power failure and against surges and spikes.
4. Communication Protection Ports(RJ45&RJ11)
Communication protection ports will protect any standard modem, fax, telephone line, or network
cable..
5. RS232 Port
This port allows connection and communication from the RS232 port on the computer to the
UPS unit.
6. USB Port
This port allows connection and communication from the USB port on the computer to the UPS
unit.
7. Power On/Off Button
Press the power Button to turn the UPS ON or OFF.
8. Mute Button
The audible alarm can be turned off/on by pressing this button 3s.
9. LCD Display
The LCD will display the UPS status.
DEFINITIONS FOR ILLUMINATED LCD INDICATORS
LCD Indicators
Initial
AC INPUT(Voltage)
V
OUTPUT(Voltage)
V
Line mode
Bat-mode
Battery capacity
Load capacity
Fault
Sound disable
(Press the mute key 3s to disable and enable the buzzer sound)

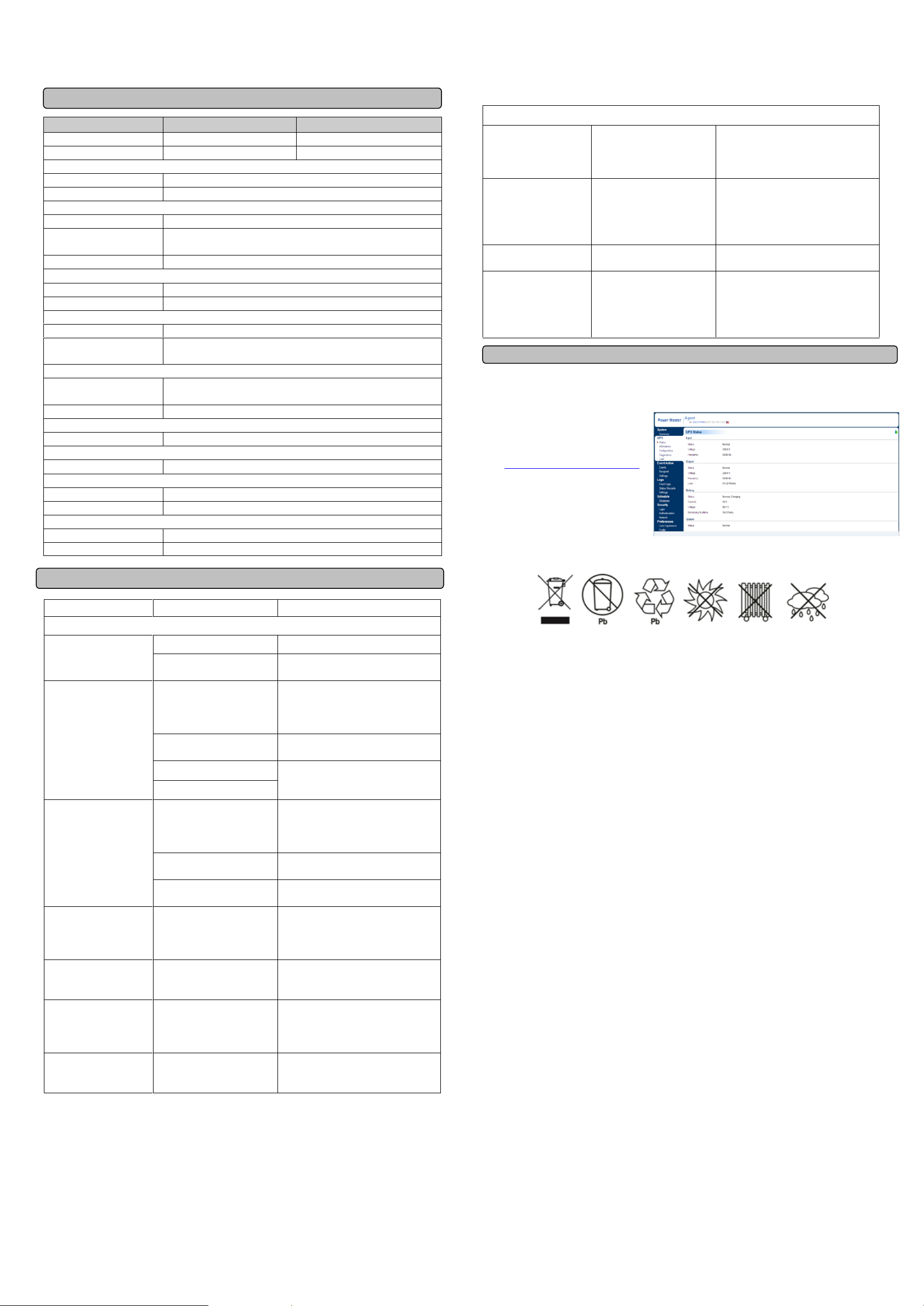

TECHNICAL SPECIFICATIONS
Model
JPX1000RM
JPX2000RM
Capacity (VA)
1000VA
1920VA
Capacity (Watts)
600W
1200W
Input
Input Voltage Range
82V~148V
Frequency
50/60Hz auto sensing
Output
On Battery Output Voltage
Pure Sine Wave at 120Vac +/-10%
On Battery Output
Frequency
50/60 Hz +/-1%
Overload Protection
Yes
AVR Function
Boost Function
Yes
Buck Function
Yes
Physical
Total # of UPS Receptacles
Nema 5-15R *8
Maximum Dimensions
(H x D x W)
88mm x 400mm x 433mm
Battery
Sealed Maintenance Free
Lead Acid Battery
24Vdc
Typical Recharge Time
8 Hours
Warning Diagnostics
Indicators
LCD
Communication
Communication port
USB,RS232
Environmental
Operating Temperature
32F to 122F ( 0C to 40C )
Operating Relative Humidity
0 to 90% NON-CONDENSING
Management
Auto-Charger
Yes
Auto-Restart
Yes
TROUBLE SHOOTING
Problem
Possible Causes
Remedy
Abnormal
Mains normal but not
works in AC mode
1. AC Input missing
1. Check AC input connection.
2. Input Breaker is tripped
2. Unplug the power cord of the UPS
then press the circuit breaker knob.
The UPS will not turn on.
The on/off Button is
designed to prevent damage
by rapidly turning it off and
on.
Turn the UPS off. Wait 10 seconds
and then turn the UPS on.
The unit is not connected to
an AC outlet.
The unit must be connected to a
100-127V 50/60Hz outlet.
The battery is worn out.
Contact technical support.
Mechanical problem.
Outlets do not provide
power to equipment
Circuit breaker is tripped due
to overload
Turn the UPS off and unplug at least
one piece connected equipment.
Unplug the power cord of the UPS then
press the circuit breaker knob.
Batteries are discharged
Allow the unit to recharge for at least 4
hours.
Unit has been damaged by a
surge or spike.
Contact technical support.
Alarm code A01
Site Fail:
Line and neutral conductors
of UPS Input are reversed or
the Ground is disconnected.
Check the input plug and socket.
Alarm code A06
Battery low:
Battery capacity is low, UPS
will turn off soon
1. Shut off non-essential equipment.
2. Save your data and turn off the
computer.
Alarm code A14
Overload:
Your equipment requires
more power than the UPS
can provide.
1. Shut off non-essential equipment.
Alarm code A18
Over Temperature
1. Shut off non-essential equipment.
2. Check the fan for operation and if
the ventilation hole has been covered.
Fault
Fault code F09
Output Short :
Output circuit short.
1. Shut down the UPS
2. Your attached equipment may have
problems, please remove them and
check again.
Fault code F14
Overload:
Your equipment requires
more power than the UPS
can provide.
It will shutdown.
Shut off non-essential equipment. If
this solves the overload problem, the
UPS will transfer to normal operation.
Fault code F18
Fan fail :
Fan has been damaged.
1.Shut down the UPS
2.Replace the fan
Fault code F19
Over Temperature
1. Shut down the UPS. Restart the
UPS to Check the fan for operation
and if the ventilation hole has been
covered
2. Contact technical support for repair.
SOFTWARE DOWNLOAD
Power Master management software provides a user-friendly interface for your power systems. The
graphic user-interface is intuitive and displays essential power information at a glance. Please follow
procedure below to install the software.
Installation procedure:
1. Download Power Master from the
website:
http://www.powermonitor.software/
2. Double-click the file and follow the
installation steps.
When your computer restarts, the Power
Master software will appear as a blue
icon located in the system tray.
All rights reserved. Reproduction without permission is prohibited.
