Dirt Devil DD2504 User manual

CYCLONE
VACUUM CLEANER
700W
220-240V~50/60HZ
ITEM: 871125247534
A.I.&E. Adriaan Mulderweg 9-11
5657 EM Eindhoven, The Netherlands
DD2504
2
YEAR
GUARANTEE
9 M
2,7L
4,9KG
79dB
Points de collecte sur www quefairedemesdechets.fr
Cet appareil,
ses accessoires,
piles et cordons
se recyclent
À DÉPOSER
EN MAGASIN À DÉPOSER EN DÉCHÈTERIE
OU
FRFR
INSTRUCTION MANUAL
2.7 LITER

aINSTRUCTION MANUAL
BAGLESS SINGLE CYCLONE
VACUUM CLEANER
ITEM NO: 871125247534
MODEL: DD2504 / V8229
IMPORTANT SAFETY INSTRUCTIONS
This appliance should only be used for domestic cleaning and not
for commercial or industrial use. Please ensure that this guide is fully
understood before operating the appliance.
WARNING: DANGER TO THE PERSON!
IMPORTANT: Damage to the appliance!
In addition we offer the following safety advice:
LOCATION
• Do not use or keep this product outside when it is raining.
• Do not store the appliance near hot ovens or heating appliances.
• Store your vacuum cleaner in a cool, dry area. If lters have been
cleaned as per user guide instructions ensure they are thoroughly
dry before storing away.
MAINS LEAD
• Do not allow the mains lead to become strained or run this
appliance over it.
• If the electrical cable becomes damaged, the complete cable
assembly must be replaced. Do not attempt this task yourself.
Contact the local retailers.
• Agency service: To ensure the continued safe and efcient
operation of this appliance we recommend that any servicing
or repairs are only carried out by an authorized Agency service
engineer.
CHILDREN
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved.
• Children shall not play with the appliance
Scan QR-Code for
extended manual

• This appliance can be used by children aged from 8 years and
above.
PERSONAL SAFETY
• The plug must be removed from the wall socket before cleaning or
maintaining the appliance.
• Never modify the cleaner in any way.
• Never use in the presence of explosive liquids or vapors.
• Never pick up inammable or poisonous liquids such as petrol,
copier toner or other volatile substances. Never pick up acids,
asbestos or asbestos dust.
• Repairs to electrical appliances are only to be undertaken by
trained personnel.
• Unprofessional repairs can be dangerous for users.
• The appliance must never be left running when unsupervised.
PRODUCT SAFETY
• Never use the appliance without the lters being installed.
• Never use the appliance to vacuum hot ashes, broken glass, sharp
objects or liquids.
• To protect against re, electric shock and personal injury do not
immerse cord, plug or cleaner in water or other liquid.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety. –
• Cleaning and user maintenance shall not be made by children
without supervision.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied persons in
order to avoid a hazard.
• Always switch off the vacuum cleaner before
disconnecting or connecting the hose and
accessories.
• Keep all openings clear and free from debris as this
may affect the airow/suction.
• Do not use the appliance to clean animals or people.
Electrical requirements
• Check that the voltage on the rating plate corresponds with your
house electricity supply which must be A.C (alternating current).

Product Description
Features
1. Separator 6. Dirt bin lid release clip
2. Hose entry point 7. Dirt container
3. Dirt container release button 8. Carry handle
4. Power On/Off button 9. Cord rewind button
5. Post motor lter cover 10. Post-motor lter cover release clip
HOW TO INSTALL / OPERATE THE MACHINE
Before you start
• Always switch off and unplug the vacuum cleaner before
connecting or disconnecting the hose/attachments, or
removing and emptying the dirt container.
• The vacuum cleaner is equipped with a thermal cut-out. If for

any reason the vacuum cleaner does overheat the thermostat
will automatically turn the vacuum cleaner off. If this happens,
switch the vacuum cleaner off and unplug from electrical
socket. Remove and empty the dirt container and also heck
the vacuum cleaner for blockages. Allow the vacuum cleaner
to cool for approximately 1 hour (if you have cleaned the lters
please wait 24 hours for the lters to fully dry before putting
back into the machine).
• For best cleaning results, lters should be tapped over a bin
every 4-6 uses to remove dirt and debris and washed every 3
to 6 months (depending on the level of use).
• If the vacuum cleaner is blocked, switch off and unplug before
removing the blockage.
ASSEMBLING YOUR MACHINE
IMPORTANT: The base of the vacuum cleaner should always
be positioned at on the oor when starting and in use. The
dirt container should be locked into place before lifting the
vacuum cleaner by the carry handle.

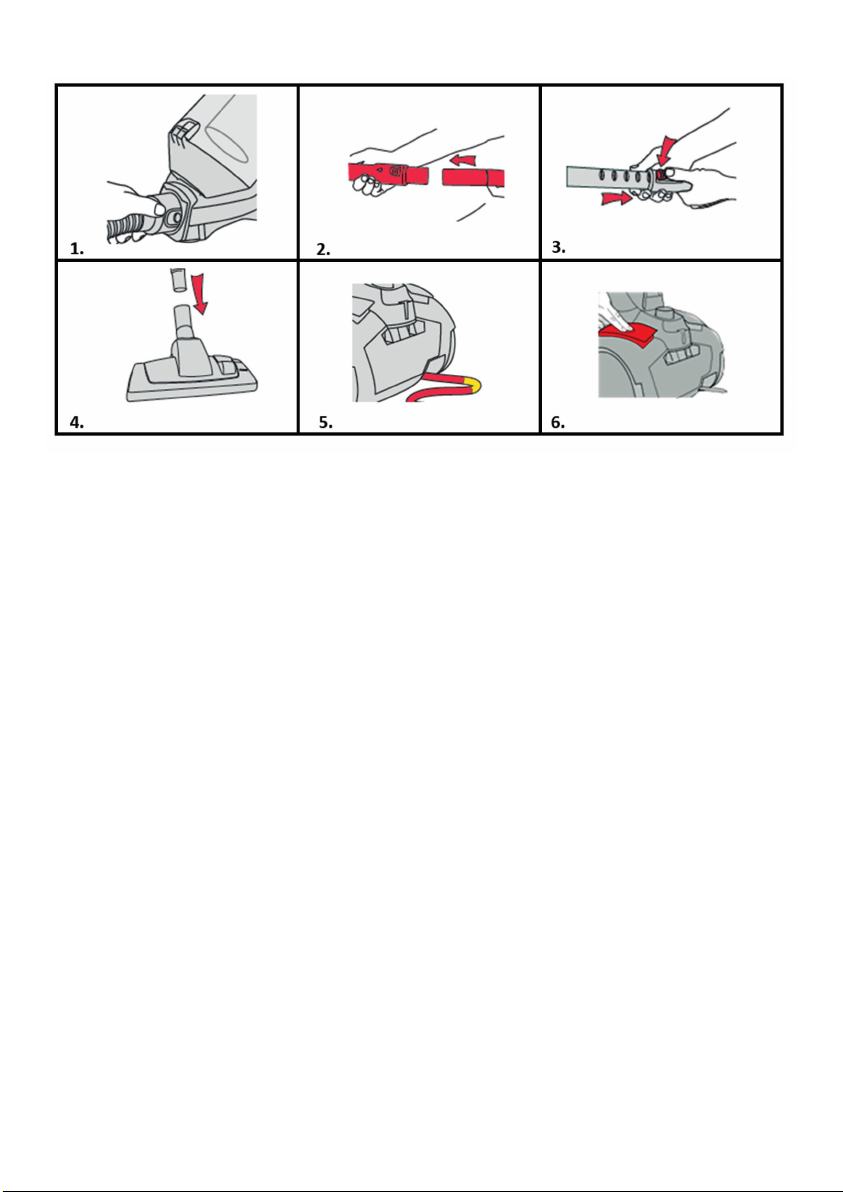

1. Press both buttons at the end of the hose and push hose into the
hose entry point.
2. Insert the hose grip into the telescopic extension tube.
3. Press the button on the telescopic extension tube and adjust to
required length.
4. Insert the other end of the telescopic extension tube into the

oorhead.
5. Fully unwind the power cord. A yellow mark on the cord indicates
the recommended cord length.
Do not exceed the cord beyond the yellow mark.
6. Plug in and switch the unit on by pressing the power button.
CAUTION: When unwinding the power cord always pull out to
the yellow marker but not further.
HOW TO USE
Carpets
Hard oors

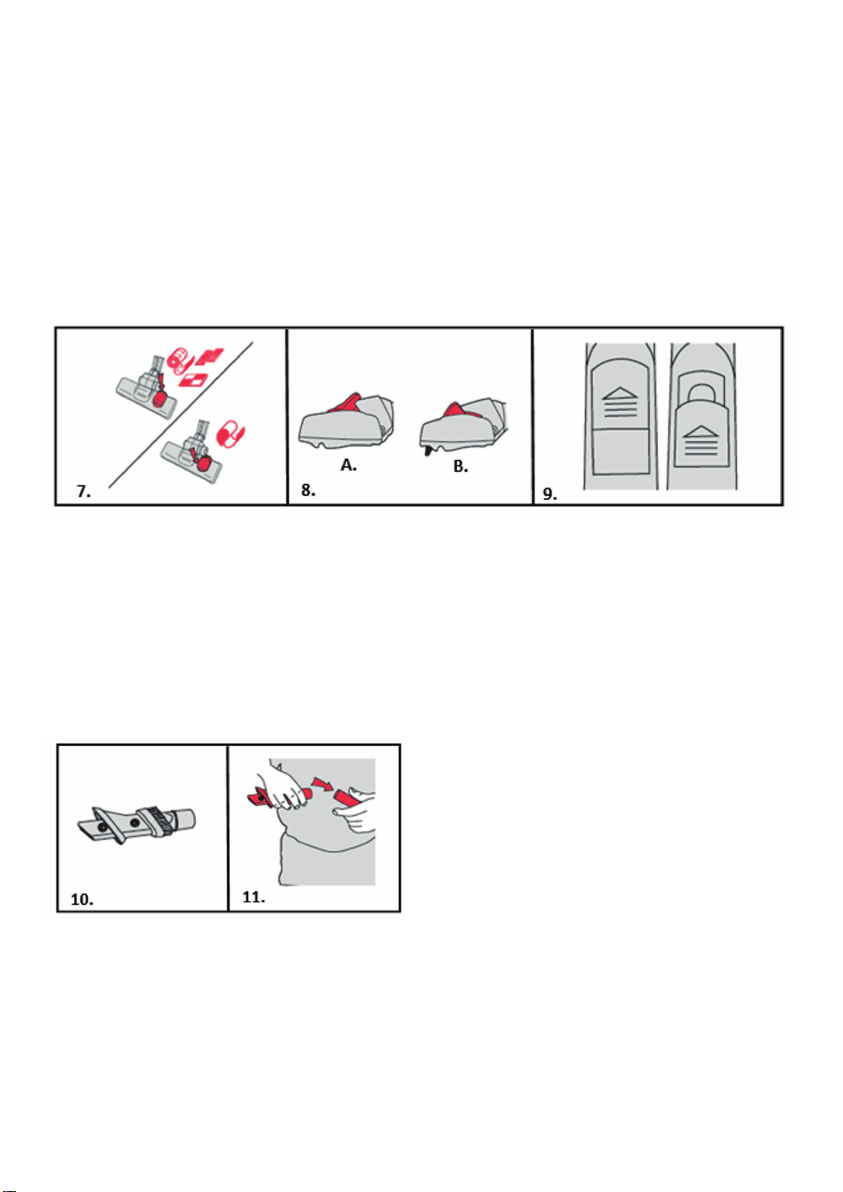

7. For use on carpets, click rocker switch forward for use on hard
oors click rocker switch back.
8. A: Raise brushes for carpets. B: Lower brushes for hard oors.
9. Slide vent cover on hose grip open to reduce suction if required.
USING YOUR ACCESSORIES
10. Choose an accessory (parquet brush / 3-in-1 tool)
11. Push accessory onto the telescopic extension tube or hose.

STORAGE

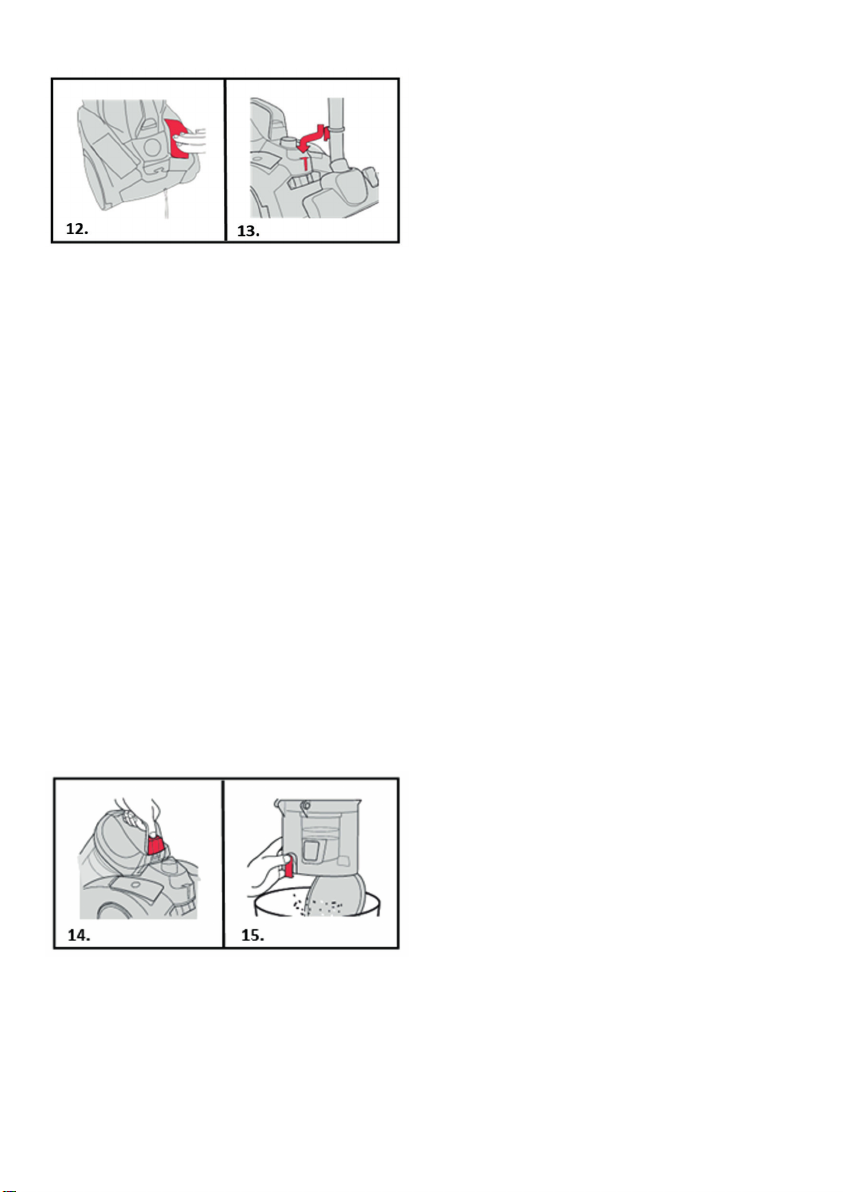

12. Press the cord rewind button to retract the cord into the
vacuum cleaner.
13. Place the oorhead into the parking slot on the back of the
vacuum cleaner for storage and carrying.
CAUTION: Make sure to hold the cord with your other hand to
prevent injury when rewinding.
EMPTYING AND CLEANING THE DIRT CONTAINER
IMPORTANT: Always switch off and unplug the vacuum
cleaner from the electrical socket before assembling,
opening or emptying the dirt container, or before connection
/ disconnecting the attachments. Check the pre-motor lter
every time you empty the dirt container and tap against a bin
to remove dirt/debris if required. Do not use your vacuum
cleaner without all of the lters in place.
The motor is equipped with a thermal cut-out. If for any
reason the unit should overheat, the thermostat will
automatically turn the unit off.
14. Remove dirt container by pushing down the dirt container
release button and lifting the dirt container.
15. Hold dirt container over a bin. Pull the dirt release clip at the
bottom of the container, the dirt release door will open allowing
dirt/debris to fall out.

CLEANING THE PRE-MOTOR FILTER
16. Lift the dirt bin lid release clip.
17. Lift the pre-motor lter and remove the dirt container.
18. Tap the pre-motor lter and sponge against a bin to remove any
dirt/debris.
19. Separate the sponge and lter and rinse under water (Max 40°C).
20. Leave to dry for 24 hours or until fully dry before placing back in the
machine.
CLEANING THE SEPARATOR
CAUTION: Incorrect tting of the separator cap will reduce
suction
21. Lift the dirt bin lid release clip.

22. Lift the pre-motor lter and remove from the dirt container.
23. Twist the separator cap anti-clockwise to unlock and remove.
24. Lift and remove the separator from the dirt container.
25. Tap the separator against a bin to remove any dirt/debris.
26. Make sure the rectangular hole in the dirt container lines up with the
rectangular hole on the separator.
27. Replace the separator cap, twist clockwise to lock.
28. Replace the pre-motor lter. Close dirt bin lid making sure it clicks
and locks into place.
POST-MOTOR FILTER MAINTENANCE
IMPORTANT: The exhaust lter is designed to offer long life with
no maintenance. The lter should be checked periodically and
when heavily discolored it should be replaced. Please do not
wash, scrub or brush the lter as this will damage the delicate
lter media.
29. Push the post-motor lter cover release clip to the right.
30. Pull open the post-motor lter cover. Lift out the post-motor lter.
31. Check the post-motor lter for discoloration. Do not wash the post-
motor lter.
REMOVING BLOCKAGES FROM THE HOSE
32. Remove the hose from the vacuum cleaner and telescopic
extension tube. Remove any blockage by inserting a wire coat
hanger into the hose.

NOTE: To test for a blockage in the hose, drop a small ball of
paper into the hose. The paper will drop through if the hose is
clear.
TROUBLE SHOOTING
Should you have any problem with you cleaner, follow this simple
check list before calling the agency customer service center.
A: Some accessories are missing
1. Check the packaging content that is mentioned below the product
specications to be sure the parts included with the appliances.
B: Appliances have no power
1. The plug is not connected (well) into the electrical socket.
2. Check if the plug need to be replaced.
3. The motor thermostat may have tripped. If this has happened,
unplug the vacuum cleaner. Remove and empty the dirt container
and check the hose for blockages. Clean the lter sand allow
the vacuum cleaner to cool for approximately 1 hour (if you have
washed the lters you will need to wait 24 hours for the lters to
fully dry before putting them back into the vacuum cleaner).
C: Vacuum cleaner won’t pick up dust
1. The dirt container may not be correctly tted, remove the dirt
container from the vacuum cleaner and check it’s assembled
correctly, ret ensuring it’s locked into place.
2. The lter may be clogged, clean the lter.
3. The dirt container may be blocked, empty the dirt container.
4. There may be a blockage in the hose/tube. Disconnect from the
vacuum cleaner and carefully remove any blockages.
5. The separator is blocked. Check cleaning the separator.
6. The separator is incorrectly tted. Check cleaning the separator.
D: Dust is escaping from the vacuum cleaner
1. The lters may be clogged, clean the lter.
