Dirt Devil DDC06-E01 User manual

user
guide
DDC06-E01/DDC06-P01
Bagless Cleaner
CYLiNder VACuuM

2
1
2
16
8
69
5
7
3
4
13
15 12
11
10
14

3
overview
1Lid
2Hose inlet
3Carry handle
4On/off switch-button
5Cable rewind button
6Dirt container
7Dirt container release button
8Dirt container handle
9Filter
10 Post motor filter
11 Air vent
12 Hose handle
13 Flexible hose
14 Extension tube (plastic)
15 Multi purpose nozzles (dusting brush and
crevice tool)
16 Combi tool
MACHINE OVERVIEW TABLE OF CONTENTS
Technical Data
Bagless Cylinder Vacuum Cleaner
QuickPower
DDC06-E01 / DDC06-P01
220 – 240V ~, 50 Hz
1,000W
1.5
5 m
5.5 kg
Type of appliance:
Model name:
Model number:
Voltage:
Power:
Dirt bin capacity:
Power cord length:
Weight:
We reserve the right to make changes to technical and
design specifications in the interest of continuous product
improvement. © Dirt Devil.
1Overview of your vacuum 2
Technical data 3
Guarantee 3
2Safety instructions 4
3Before use 6
3.1 Selecting a tool/accessory 6
3.2 Assembly 7
4Use 8
4.1 Operational safety 8
4.2 How to Use 8
4.3 Switching off 9
4.4 Transport and storage 9
5 Maintenance 10
5.1 Empty the dirt container 10
5.2 Cleaning dirt container and pre-motor filter 11
5.3 Cleaning the post-motor filter 12
5.4 Spare parts and accessories 13
5.5 Troubleshooting 14
LIMITED GUARANTEE
It’s quick and easy to register for your free 1 year guarantee online at
www.DirtDevil.co.uk.
Please retain your original receipt for proof of purchase. Please make a note of
the serial number and model number of the product before calling.

4
WArNiNg
BASiC SAFeTY PreCAUTioNS
• This vacuum cleaner is
intended for household use
only and NOT for commercial
or industrial use.
• Only use the vacuum cleaner
indoors on dry surfaces and
keep the area you’re cleaning
well lit.
• Keep ngers, hair and loose
clothing away from moving
parts and openings whilst
using the vacuum cleaner.
• This vacuum cleaner can be
used by children aged from 8
years and above and persons
with reduced physical, sensory
or mental capabilities or lack of
experience and knowledge if
they have been given
supervision or instruction
concerning use of the vacuum
cleaner in a safe way and
understand the hazards
involved. Children shall not
play with the vacuum cleaner.
Cleaning and user
maintenance shall not be made
by children without supervision.
• Only Dirt Devil recommended
tools should be used with the
vacuum cleaner, use of
non-branded Dirt Devil
accessories/tools will invalidate
your guarantee.
• Don’t use the vacuum cleaner
if it has been dropped,
damage or left outdoors.
• Don’t run over the power cord
or use vacuum cleaner if the
power cord or plug is
damaged. Please contact our
Customer Service on:
0330 026 2626 (Mon-Fri
9:00am-5:00pm).
• Don’t handle the plug or use
the vacuum cleaner with
wet hands.
• Don’t pull or carry the vacuum
cleaner by the power cord.
• Don’t use the power cord as a
handle, pull the power cord
around corners, sharp edges
or close a door over the
power cord.
• Don’t unplug the vacuum
cleaner by pulling on the power
cord.
• Don’t vacuum up any
ammable or combustible
materials (lighter uid, petrol,
kerosene etc) or use the
vacuum cleaner in an area with
explosive vapours or liquid.
• Don’t vacuum up hot coals,
cigarette butts, matches or
smoking hot burning items
DoN'TS

5
WArNiNg
or use in an area where there
may be harmful uids (chlorine,
bleach, and ammonia drain
cleaner).
• Don’t attempt to remove
blockages with sharp objects
as this may cause damage
to the vacuum cleaner, remove
blockages only as instructed in
this guide.
• Don’t vacuum up hard or sharp
objects such as glass, nails,
screws or coins etc.
• Don’t use the vacuum cleaner
with incorrect voltage as this
may result in damage or injury
to the user. The correct voltage
is listed on the ratings label.
DoN'TS CoNTiNUeD...
• Turn off all controls on the
vacuum cleaner before
disconnecting or connecting
the plug from the mains socket.
• Always make sure both the
pre-motor/post-motor lters are
in place before use.
• Take extra care when using
and positioning the vacuum
cleaner on the stairs
• Always switch off the vacuum
cleaner before disconnecting
or connecting the hose and
accessories.
• Keep all openings clear and
free from debris as this may
affect the airow/suction.
• Always replace the fuse in the
plug with a British 13amp fuse.
Always protect the power
cable from heated surfaces
and open ames.
• Use only CE approved 13amp
extension cords, non-approved
extension cords may overheat.
Care should be taken to
arrange the extension cord as
it can be a trip hazard.
• Store the vacuum cleaner in a
cool, dry area. If the lters have
been cleaned as per the user
guide instructions ensure they
are thoroughly dry before
storing away.
PLEASE KEEP INSTRUCTIONS
FOR FURTHER USE AND USE
ONLY AS INSTRUCTED IN
THIS GUIDE.
Do'S
SAFeTY
iNSTrUCTioNS

2. Check the selected tool/accessory
for damage.
6
1. Select the tool/accessory according to
the surface to be cleaned:
- Combi tool (Fig. 2.1):
Floor tool for cleaning both carpets and
hard ooring.
- 2 in 1 tool (Fig. 2.2):
Dusting brush and crevice tool.
- Turbo tool (Fig. 2.3*):
Is used to vacuum stairs, upholstery, car
interiors and pet hairs.
*Some models only.
ATTENTION: Use only intact tool/accessory.
If damaged, the nozzle may allow dust to escape
or scratch the surface.
3.1 SELECTING A TOOL/ACCESSORY
2
2
1
3

7
7
BeFore
USe
CAuTiON
Before vacuuming, make sure that the fitted tool/
accessory suits the surface to be cleaned. Also observe
the flooring manufacturer's recommendations.
IMPORTANT: Risk of injury! Only attach the tool/accessory if the appliance is not connected to the power supply. The
cylinder vacuum cleaner could be switched on by accident.
1. Press both buttons at the end of the hose
and insert the hose into hose entry point
(Fig. 3.1).
2. Insert the hose grip into the widest end
of one of the extension tubes (Fig 3.2).
3. Push both extension tubes together
(Fig 3.3).
4. Insert the other end of the extension tube
into the oor head (Fig 3.4).
3.2 ASSEMBLY
3
12
4
12
3
3
4

8
CAuTiON
Only use the cylinder vacuum cleaner when all filters are intact,
dry and correctly fitted. Make sure that no objects obstruct the
telescopic tube, the suction hose or other openings.
4.1 OPERATIONAL SAFETY
IMPORTANT: Risk of injury! Check machine and power cord before each use. A damaged machine must never be used.
IMPORTANT: Take extra care when positioning and using the vacuum cleaner on the stairs.
IMPORTANT: The vacuum cleaner is equipped with a thermal cut-out. If for any reason the vacuum cleaner does
overheat the thermostat will automatically turn the vacuum cleaner off. If this happens, switch the vacuum cleaner
off and unplug. Remove and empty the dirt container also check the vacuum cleaner for blockages. Allow the vacuum
cleaner to cool for approximately 1 hour (if you have cleaned the filters please wait 24 hours for the filters to fully dry
before putting back into the machine).
4.2 HOW TO USE
IMPORTANT: When unwinding the power cord do not pull further than the yellow marker.
1. Fully unwind the power
cord. Do not pull past
the yellow marker (Fig
4.1).
2. Plug into the mains
socket and press the
on/off button to switch
the vacuum cleaner on
(Fig 4.2).
3. For use on carpets
click the rocker switch
forward. For use on
hard floors click the
rocker switch back
(Fig 4.3).

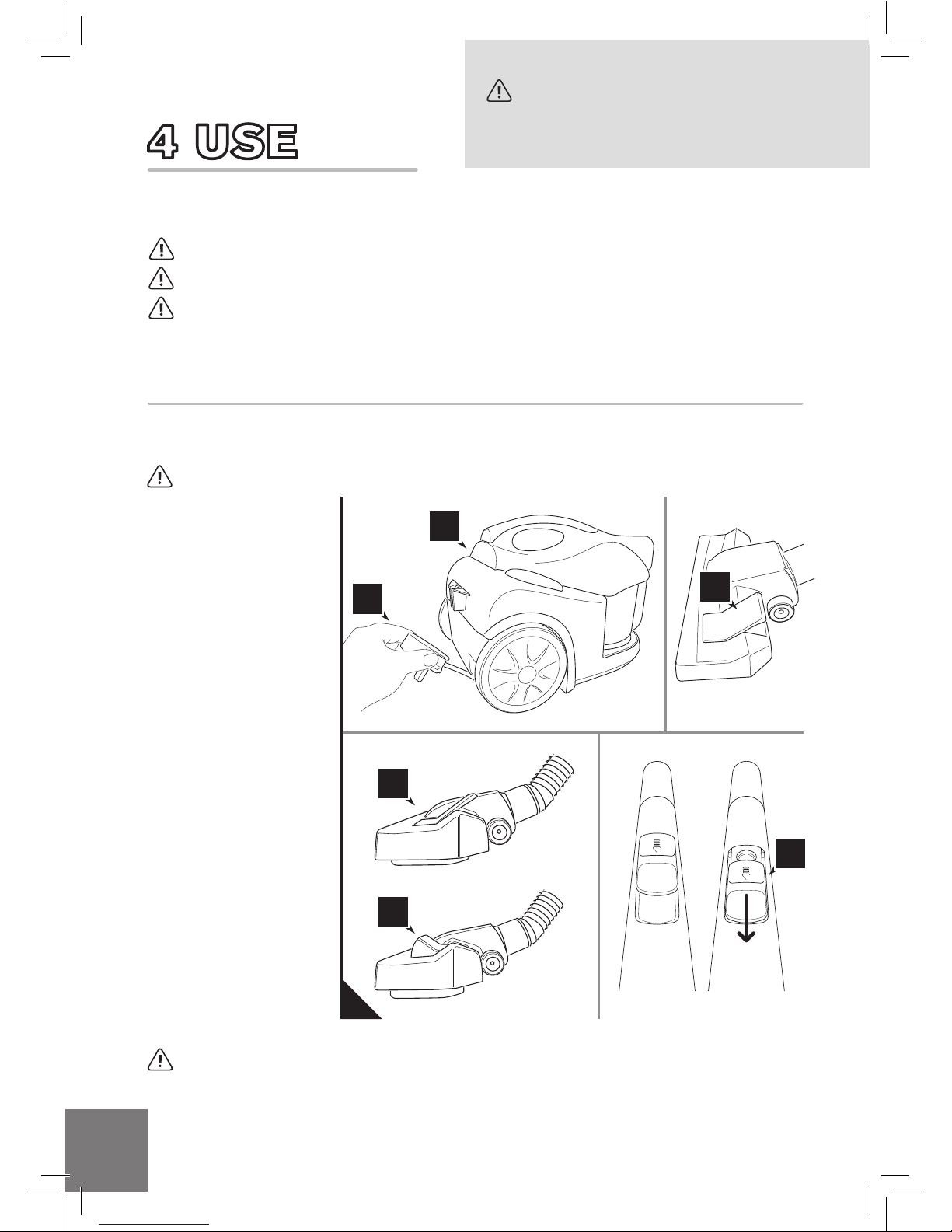

4. Raised brushes
for carpets (Fig 4.4).
5. Lowered brushes
for hard floors (Fig 4.5).
6. Slide vent cover on
hose grip open to
reduce suction if
required (Fig 4.6).
IMPORTANT: When leaving your working-area, switch off the appliance and comply with the notices in chapter 4.3,
"Switching off". This will help avoid accidents.
4
1
2
4
5
6
3

7
9
CAuTiON
Never store the machine directly next to heat sources
(e.g. heater, oven). Avoid exposure to direct sunlight.
Heat can damage the machine.
USe
4.3 SWITCHING OFF
1. Switch off the cylinder vacuum cleaner
with the on/off switch and unplug
from the mains.
2. Keep the plug in your hand.
3. To retract the power cord, push the cord
retracting button.
4.4 TRANSPORT AND STORAGE
n Only carry the machine by its carrying-
handle (Fig. 5/1).
nIf you want to store the machine for longer
period of time, empty the dirt container,
> Chapter 5.1, 'Emptying the dirt container
module'.
nStore the machine in a cool, dry place, out
of the reach of children. For storage you
can park the telescopic tube on the
vacuum cleaner by inserting the parking-
hook (Fig. 5/2) of the combi tool into the
parking slot (Fig.5/3).
5
1
3
2

10

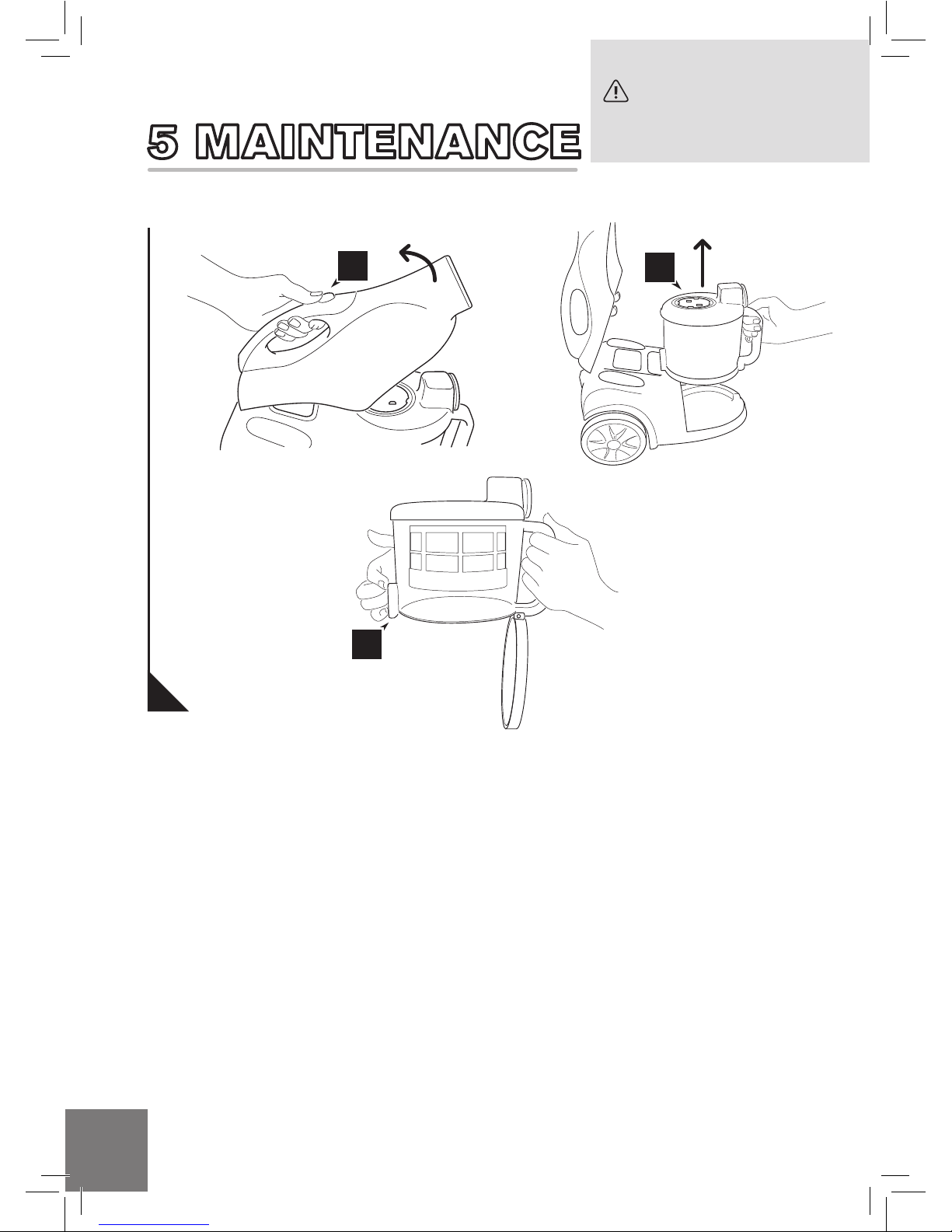

5.1 EMPTYING THE DIRT CONTAINER
CAuTiON
Switch off the machine before emptying
the dirt container. This will prevent dirt
from damaging the machine.
n It is best to empty the dirt container after
each vacuuming session.

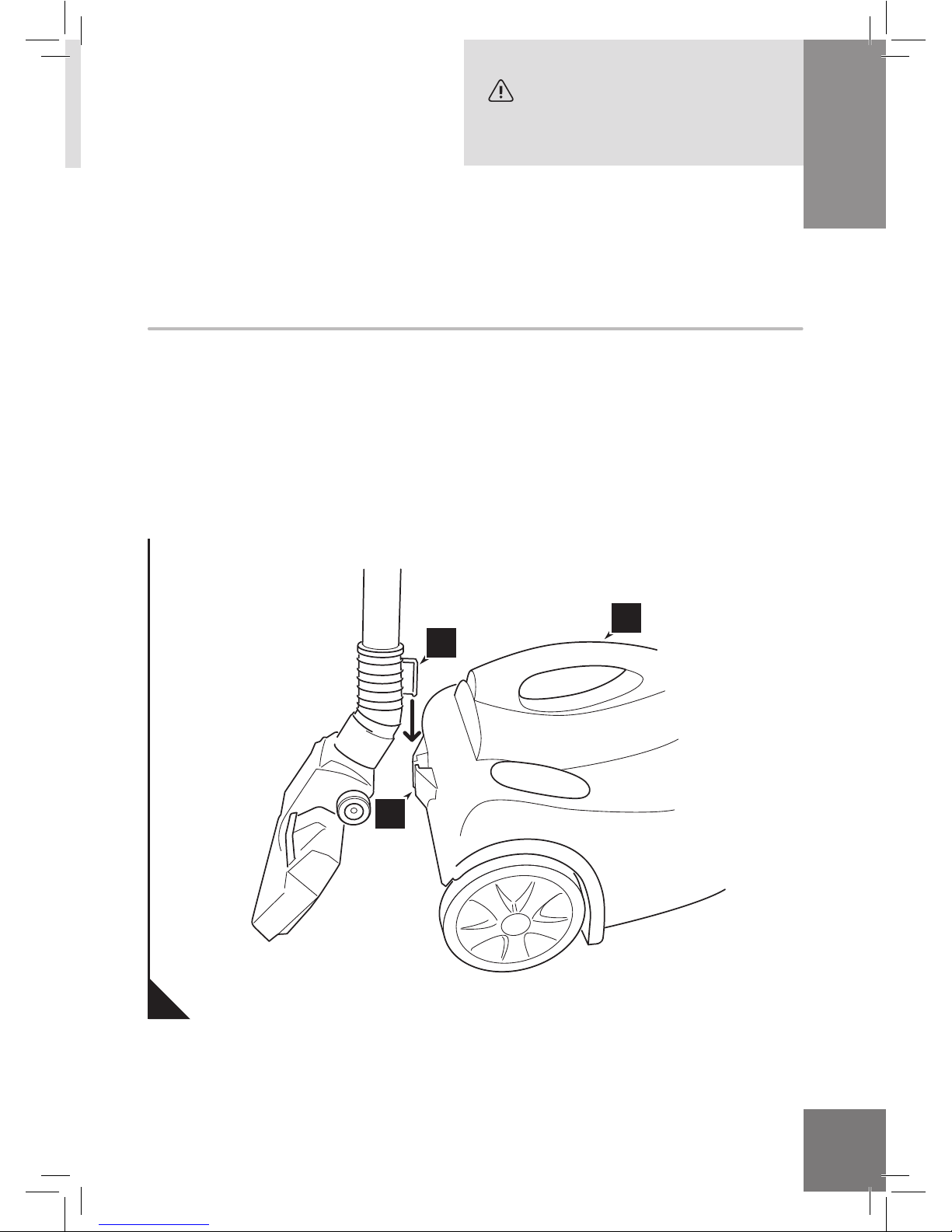

1. Press the lid release button and raise
the lid (Fig 6.1).
2. Lift to remove the dirt container from the
vacuum cleaner (Fig 6.2).
3. Hold dirt container over a bin. Press the
release clip at the bottom of the container.
The dirt release door will open allowing dirt/
debris to fall out (Fig 6.3).
6
3
12

7
11
MAiNTeNANCe
CAuTiON
The dirt container and the mesh casing are washable, but
may not be cleaned in dishwashers or washing-machines.
Also, do not use detergents or brushes with hard bristles
to clean them.
5.2 CLEANING THE
DIRT CONTAINER AND
PREMOTOR FILTER
n It is best to check the pre-motor filter each
time you empty the dirt container,
> Chapter 5.1, 'Emptying the dirt
container'.
nClean the pre-motor filter at the latest when
the blockage light lights up.

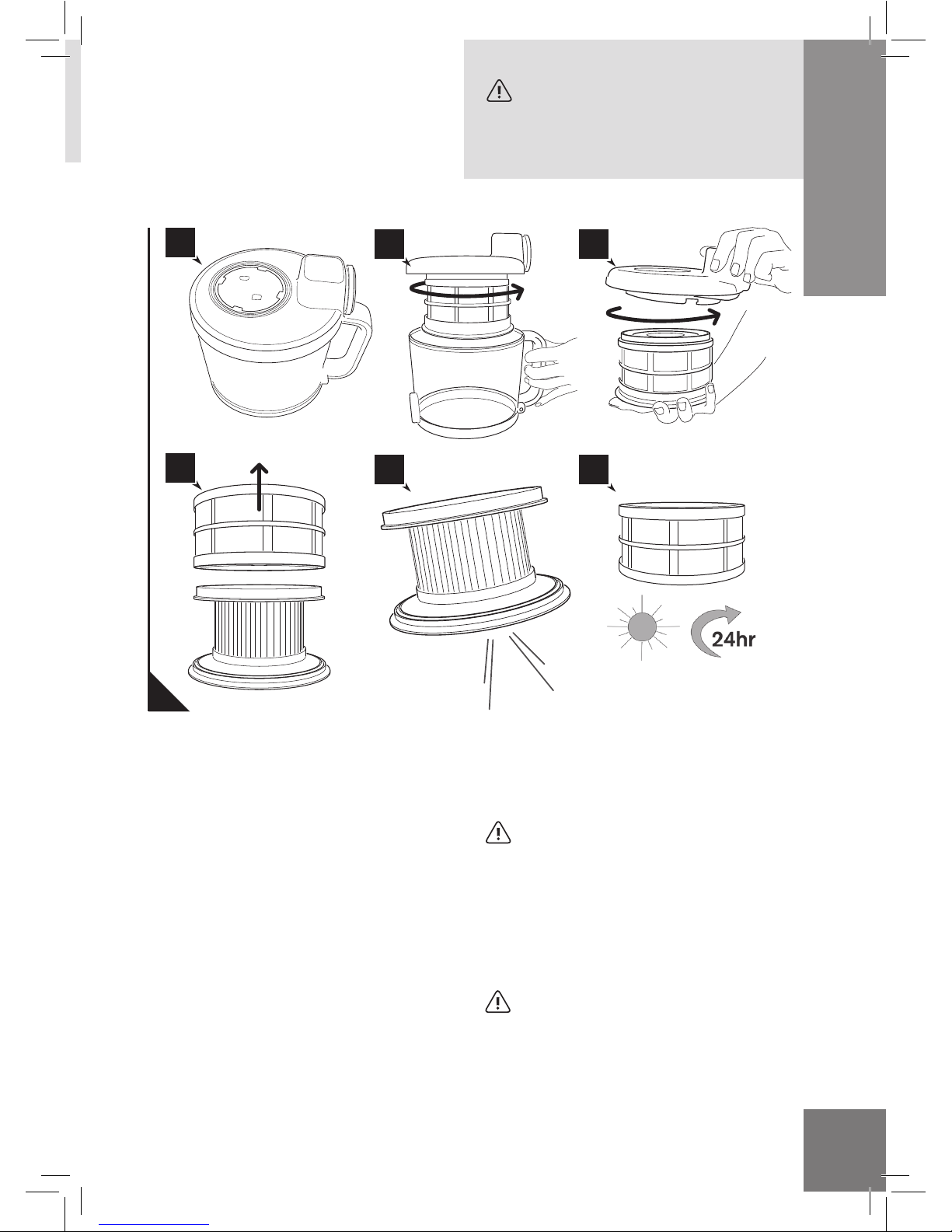

1. Remove any dirt/debris from the filter on
top of the dirt container lid (Fig 7.1).
2. Turn the dirt container lid anti-clockwise,
lift to remove from the dirt container
(Fig 7.2).
3. Turn the filter and shroud anti-clockwise
and remove from dirt container lid (Fig 7.3).
4. Lift to separate the shroud and filter from
the mesh casing (Fig 7.4).
IMPORTANT: Refrain from cleaning the separator and
filter with water. Otherwise, adhering dirt particles may
clog the separator and shroud.
5. Tap the filter and shroud against a bin to
remove any dirt/debris (Fig 7.5).
6. Rinse the mesh casing under running water
(Max 40°C). Leave to dry for 24 hours or
until fully dry before placing back in the
machine (Fig 7.6).
IMPORTANT: Let the mesh casing dry for approx.
24 hours at room temperature after cleaning. Only
put them back into the appliance when they are
completely dry.
7
12 3
45 6
TAP

5.3 CHECK THE POST MOTOR FILTER

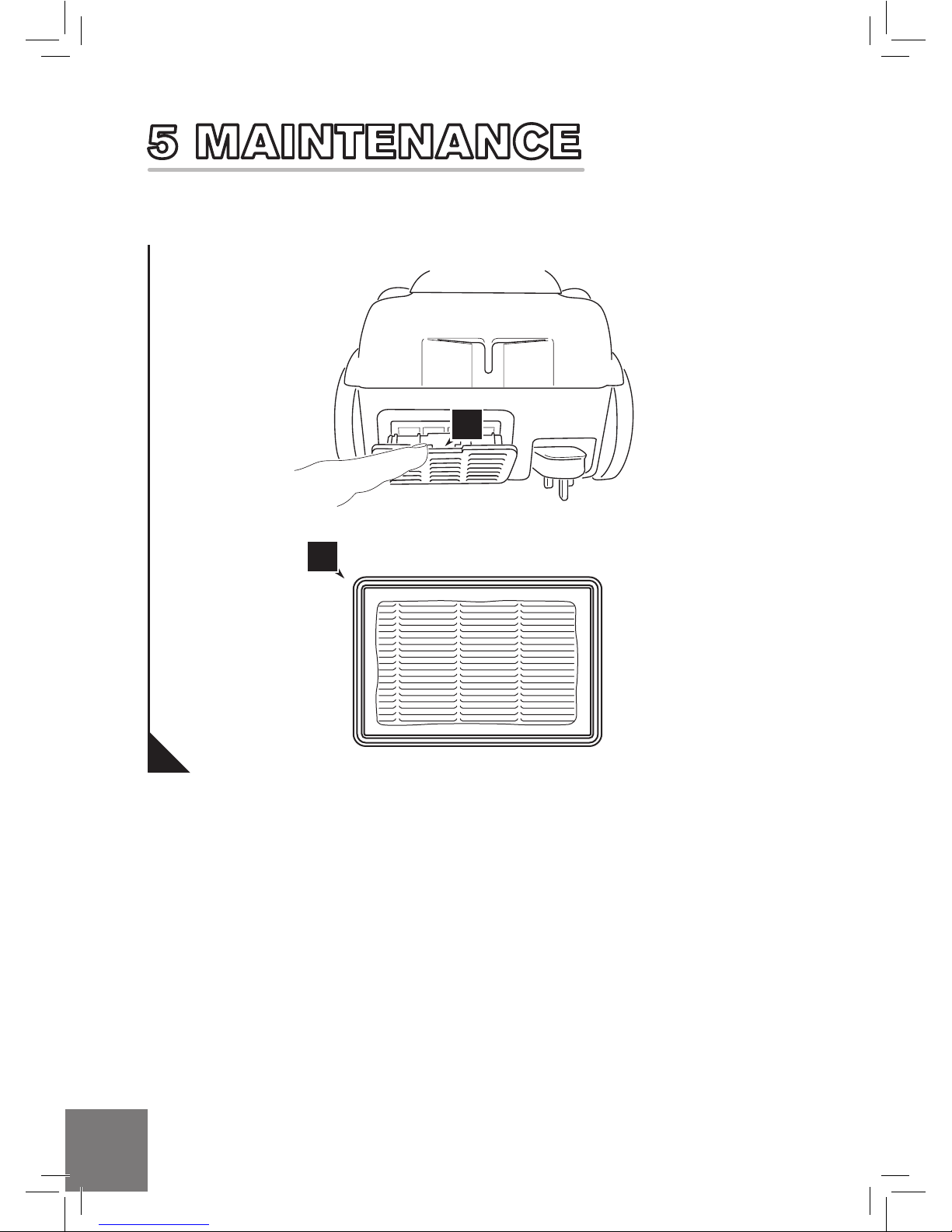

1. Press the release clip on the post motor
filter cover, pull to remove the cover then
pull to remove the post motor filter
(Fig 8.1).
2. The post motor filter is designed to offer
long life with no maintenance. The filter
should be checked periodically and when
heavily discoloured it should be replaced.
Please do not wash, scrub or brush the
filter as this will damage the filter (Fig 8.2).
12
8
1
2

7
13
5.4 SPARE PARTS
CAuTiON
Only Dirt Devil recommended spares and accessories
should be used with the vacuum cleaner, use of non-
branded Dirt Devil spares and accessories will invalidate
your guarantee.
Spare parts can be reordered from: www.DirtDevil.co.uk or
alternatively call 0330 026 2626.
MAiNTeNANCe

14
5.5 TROUBLESHOOTING
NOTE:
If you were unable to solve the problem using the information in the table above, please contact
our Customer Service (UK) 0330 026 2626.
IMPORTANT: Risk of injury! Never use a faulty machine! Always switch off the machine and disconnect it from the
mains before starting troubleshooting > chapter 4.3, "Switching off".
Problem Solution
Why won’t the
vacuum cleaner
pick up?
The dirt container is full. Empty the dirt container > Chapter 5.1,
'Emptying the dirt container'.
The filters are dirty. Clean the filter > Chapter 5.2, 'Cleaning
dirt container and pre-motor filter' or > Chapter 5.3, 'Check the
post-motor filter'.
Tool/accessory, extension tube or suction hose is blocked.
Remove the obstruction. If necessary, use a long wooden stick
(e.g. a broomstick) to do this.
The air vent is open. Close the air vent (Fig. 4.6).
The attached tool/accessory, is unsuitable. Change the tool/
accessory, > Chapter 3.2, 'Selecting a tool/accessory'.
The position of the 'carpet/hard floor' selector (Fig. 4.4/Fig.
4.5) is inappropriate. Set the 'carpet/hard floor' selector to the
correct position for the type of floor, > Chapter 4.2,
'How to Use'.
Why does my
vacuum cleaner
have no power?
The motor thermostat may have tripped. If this has happened,
unplug the vacuum cleaner. Remove and empty the dirt
container and check the hose for blockages. Clean the filters
and allow the vacuum cleaner to cool for approximately 1 hour
(if you have washed the filters you will need to wait 24 hours
for the filters to fully dry before putting them back into the
vacuum cleaner).
The plug may not be fully pushed into the electrical socket.
Check the fuse in the plug if this needs replacing, always
replace with a British 13amp fuse.

7
15
MAiNTeNANCe

EEC Statement of Compliance: Manufacturer/EEC importer: Vax Limited trading as Dirt Devil, hereby on our own
responsibility, declare that the DDC06-E01/DDC06-P01 series is manufactured in compliance with the following
Directives: Safety: 2006/95/EC Low Voltage Directive. EMC: 2004/108/EC Electromagnetic Compatibility Directive.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check
with your Local Authority or retailer for recycling advice.
Call our Customer
Service Department at
0330 026 2626
Monday-Friday 9:00am to 5:00pm.
www.DirtDevil.co.uk
Dirt Devil. 2 Colmore Square, 38 Colmore Circus, Queensway, Birmingham, B4 6BN.
