Bell EXPRESSVU User manual

INST
INSTALLA ALLATION TION GUIDE GUIDE
9200_Ins_eng 5/18/05 8:34 AM Page 1

Table of Contents
Safety Instructions............................................................................ I-i
Installation and Setup............................................................................... I-1
Introduction ......................................................................... I-1
Components of the Satellite Antenna..................................... I-2
Summary of Installation........................................................ I-4
Before You Start Installation ................................................. I-5
Discussion of Potential Mounting Sites .................................. I-9
Some Key Points to Consider ................................................ I-9
Finding the Right Location for the Dish................................. I-18
Multi-Satellite Antenna Installation....................................... I-21
System Set-up ................................................................... I-26
51 cm Dish Setup Guide ...................................................... I-27
3.1A Pre-assemble the Parts................................................ I-27
3.1B Attaching the Mount to your Dwelling ............................ I-28
3.1C Installing the Dish on the Mount ................................... I-29
3.1D Connecting Things Together......................................... I-29
60 cm Dish Setup Guide ..................................................... I-30
3.2A Pre-assemble the Parts............................................... I-30
3.2B Attaching the Mount to your Dwelling ............................ I-31
3.2C Installing the Dish on the Mount................................... I-32
3.3D Connecting Things Together ........................................ I-32
90 cm Dish Setup Guide............................................................ I-33
3.3A Pre-assemble the Parts ............................................... I-33
3.3B Attaching the Mount to your Dwelling............................ I-34
3.3C Installing the Dish on the Mount................................... I-36
3.3D Connecting Things Together ........................................ I-36
120 cm Dish Setup Guide .................................................... I-37
3.4A Pre-assemble the Parts ............................................... I-37
3.4B Attaching the Mount to your Dwelling ........................... I-38
3.4C Installing the Dish on the Mount................................... I-39
3.4D Connecting Things Together ........................................ I-39
Installing the Receiver......................................................... I-41
Ground and Wire the Satellite Antenna................................. I-42
Aligning the Dish................................................................ I-44
Change languages ............................................................. I-48
Help.................................................................................. I-49
Satellite Location Table ...................................................... I-50
Vertical Elevation Protractor................................................ I-53
Connect Receiver to Telephone Connection .......................... I-54
How to Test the System ...................................................... I-54
Order Your Bell ExpressVu Programming .............................. I-55
Pre-Authorized Payment Plan.............................................. I-56
Program the Remote .......................................................... I-58
Security Features ............................................................... I-59
9200_Ins_eng 5/18/05 8:34 AM Page 2

Page I-i
Important
Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or groundingtype plug. A polarized
plug has two blades with one wider than the other. A grounding-type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided
for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Use only attachments/accessories specified by the manufacturer.
12. Unplug this apparatus during lightning storms or when unused for long periods
of time.
13. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as the power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
Apparatus shall not be exposed to dripping or slashing and no
objects filled with liquids, such as vases, shall be placed on
the apparatus.
9200_Ins_eng 5/18/05 8:34 AM Page 3

Page I-ii
Installation Guide

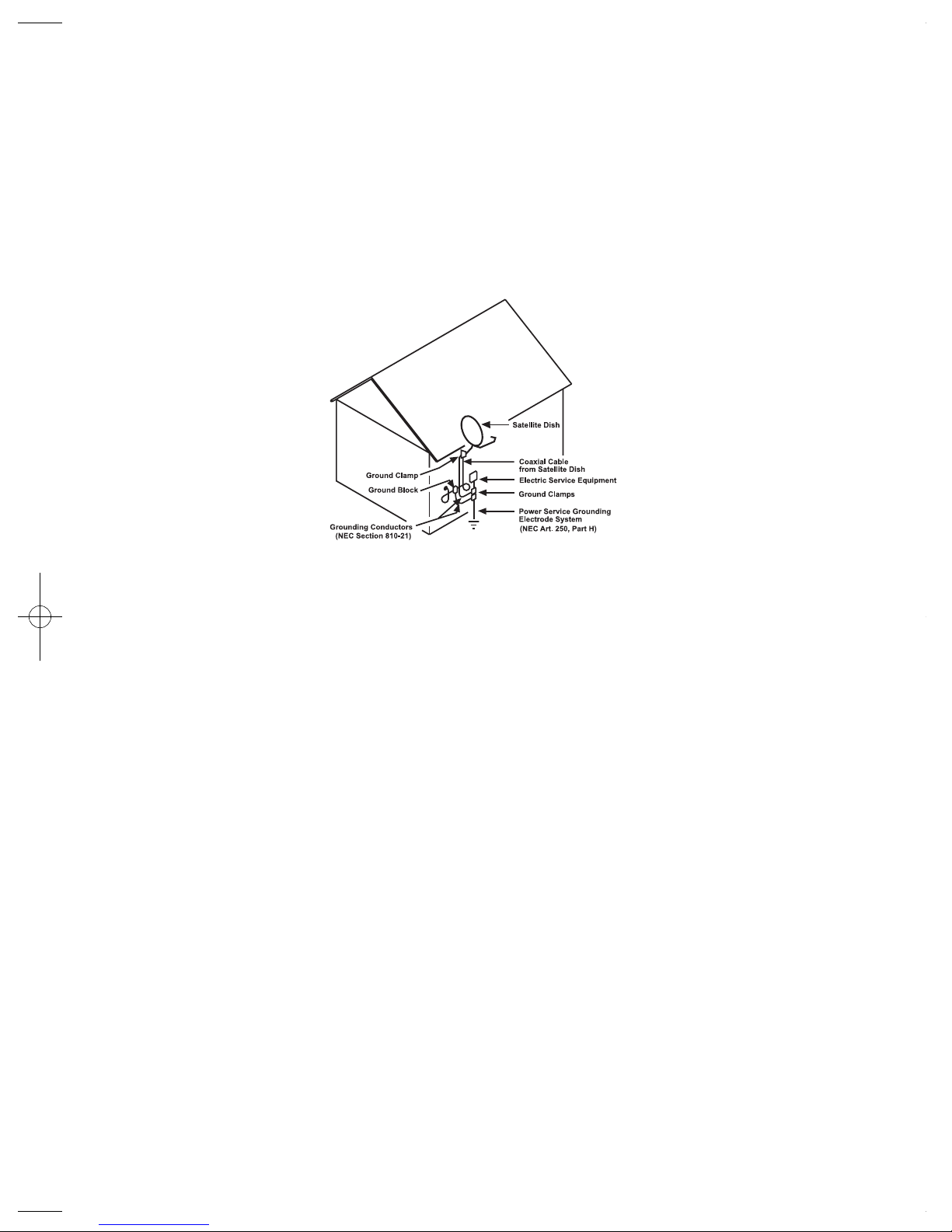

Note to Satellite TV System Installer: This reminder is provided to call the satellite
TV system installer’s attention to Article 820-40 of the National Electrical Code (NEC)
that provides guidelines for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the building as close to the point of
cable entry as practical.
Safety Tips
• Unplug the receiver from the AC power outlet before cleaning.
• The use of accessories or attachments not recommended by the receiver manufacturer
will void the Limited Warranty.
•Donot place the receiver in an enclosure such as a cabinet without proper ventilation.
• Do not stack the receiver on top of or below other electronic devices.
• Operate the receiver using only the type of power source indicated on the marking
label. Unplug the receiver power cord by gripping the power plug, not the cord.
• Do not overload wall outlets or extension cords, as this can result in a risk of fire or
electrical shock.
• Never insert objects of any kind into the receiver through openings, as the objects may
touch dangerous voltage points or short out parts. This could cause fire or electrical
shock.
• Make sure that the outdoor parts of the antenna system are grounded in accordance
with local, state, federal, and National Electrical Code (NEC) requirements.
• Do not locate the antenna near overhead light or power circuits, or where it can fall
into such power lines or circuits.When installing the antenna, take extreme care to
avoid touching such power lines or circuits, as contact with them can be fatal.
• Do not attempt to service the receiver yourself, as opening or removing covers may
expose you to dangerous voltage, and will void the Limited Warranty. Refer all
servicing to authorized service personnel.
• Use an outlet that contains surge suppression or ground fault protection. For added
protection during a lightning storm, or when the receiver is left unattended and unused
for long periods of time, unplug the power cord from the wall outlet, disconnect the
lines between the receiver and the antenna, and disconnect the telephone line. This will
provide some protection against damage caused by lightning or power line surges.
9200_Ins_eng 5/18/05 8:34 AM Page 4

INTRODUCTION
Congratulations on your selection of a Bell ExpressVu system. We thank you for your
purchase. We are confident that you will be pleased with the performance, capabilities,
entertainment options, and ease of operation of your Bell ExpressVu system for many
years to come.
Your Bell ExpressVu system complies with MPEG II and DVB standards for
compressing audio and video data. How does this benefit you? It means the Bell
ExpressVu system will be compatible with new technologies in consumer electronic
products as they arrive on the market, including digital video disk (DVD) players, digital
video cassette recorders (VCRs), and data communication networks.
The Bell ExpressVu Customer Service Call Center provides a single source for you to get
answers to all your questions. For all your questions or comments, call us at 1-888-SKY-
DISH (1-888-759-3474), or visit our Web Site at www.expressvu.com.
If you do not want to install your system yourself, you can have it installed by a
professional. Ask your retailer for information about the installer in your area. (You will
be given a toll-free number. Call the toll-free number and leave a message. The installer
will call you back to set an appointment).
If you do intend to install your Bell ExpressVu system yourself, this chapter provides
installation procedures. The procedures are relatively simple, but do require some skill in
construction-related tasks. Be sure to follow all warnings and cautions; they are provided
for your safety.
An optional Installation Kit is available. This Kit includes typical hardware used during
installation, and a more detailed Installation Kit Guide. Contact your Bell ExpressVu
dealer.
It is important that you follow all local building codes and the electrical
codes specified by your local electric company, as well as standard safety
procedures for installing and working with this type of equipment.
Improper procedures or installation can result in damage to the equipment
or the building, and harm to you. If you are not sure about whether your
installation follows these codes, contact a licensed building inspector or
electrician in your area for assistance.
Take extreme care to avoid contacting any overhead power lines, lights, and
power circuits while you are installing the satellite antenna. Contact with
any of these could prove fatal. Do not install the satellite antenna near
power lines.
See "Safety Instructions" on page I-i for additional safety information.
Page I-1
Installation
and Setup --
A 5 Step Process
9200_Ins_eng 5/18/05 8:34 AM Page 5

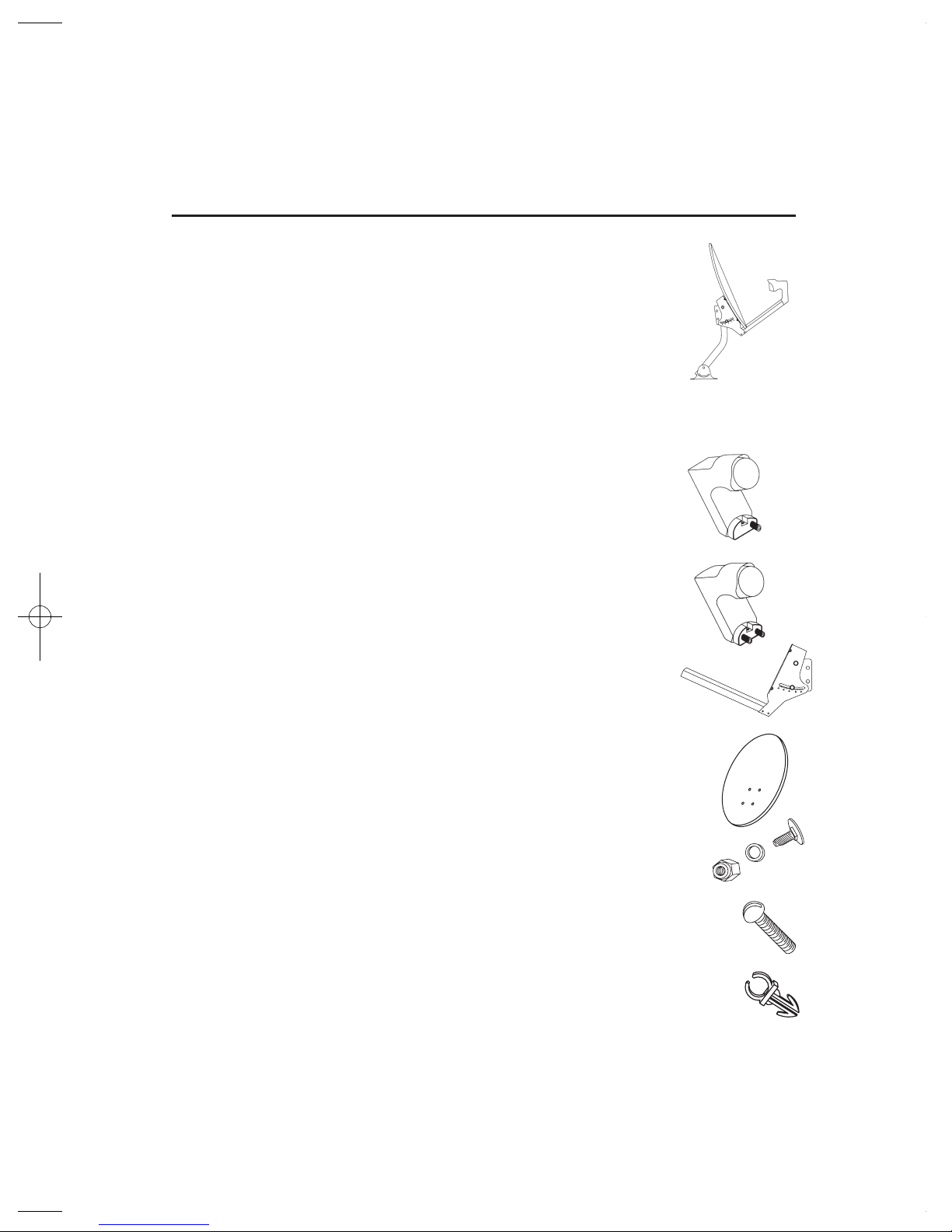

COMPONENTS OF THE SATELLITE ANTENNA
Note: The following pictures are not to scale.
The fully assembled Bell ExpressVu satellite antenna looks like this.
See "Install the Satellite Antenna" on page I-13 for the procedure to
assemble and install the satellite antenna. Following are descriptions of
each component of the satellite antenna.
DBS LNBF (Low Noise Block amplifier with integrated Feed)
DBS LNBF - Single Output
If you purchased the single-output LNBF to use with one
Bell ExpressVu receiver, your package contains this LNBF.
DBS LNBF - Dual Output
If you purchased the dual output LNBF for use with more
than one Bell ExpressVu receiver, your package contains
this LNBF.
LNBF Support Arm
The LNBF support arm attaches the LNBF and the dish to
the mast assembly. The support arm may come in two pieces
for larger antennas.
Dish
The dish collects and focuses the satellite signal onto the LNBF.
Note: The dish may have either three or four bolt holes.
Flathead bolts with nuts attach the dish to the support arm.
LNBF Screws
The LNBF screw attaches the LNBF to the support arm.
Cable Clip (optional)
The cable clip holds the cable to the top of the support arm.
Page I-2
Installation Guide
9200_Ins_eng 5/18/05 8:34 AM Page 6

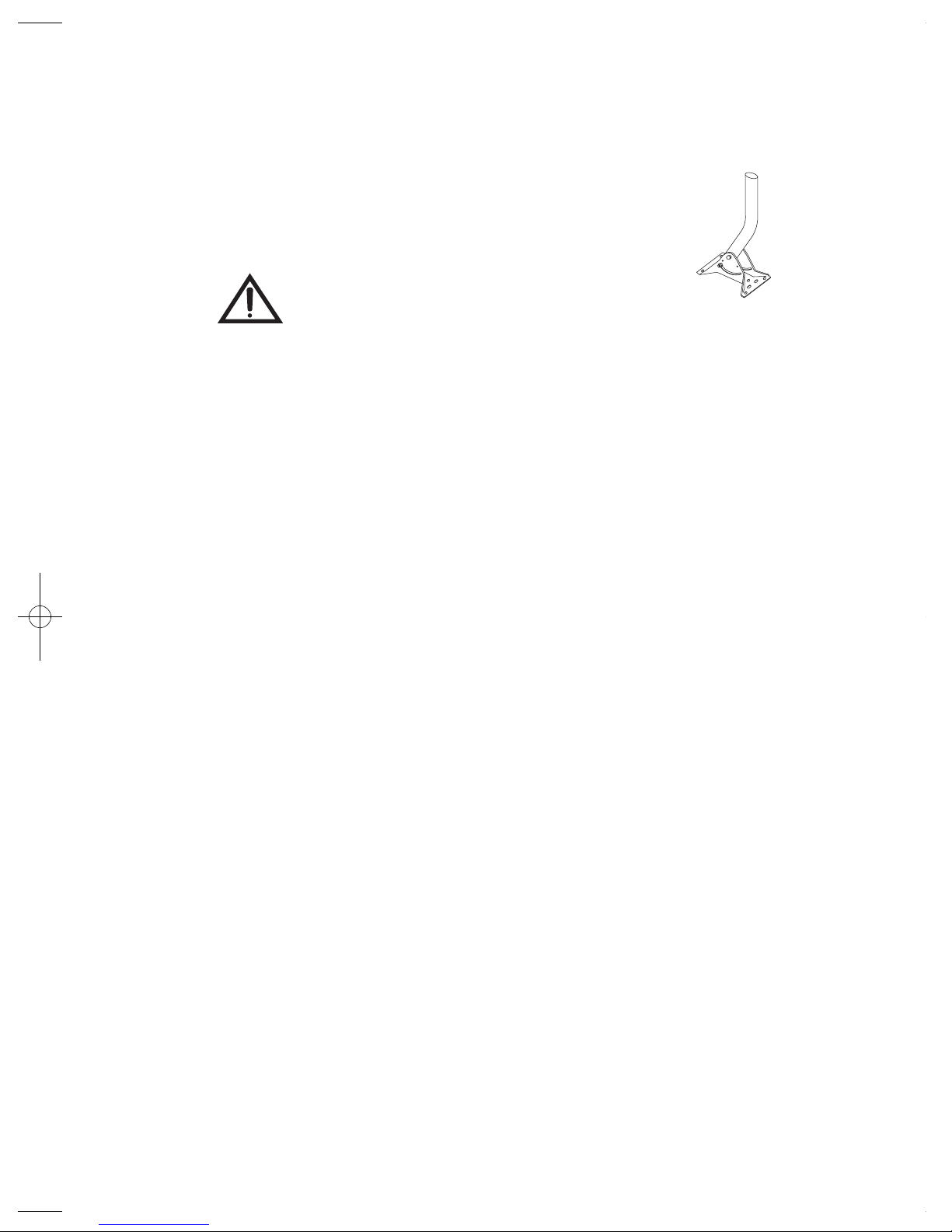

Mounting Brackets and Mast Assembly
The mounting bracket and mast assembly attaches the
dish and LNBF assembly to the mounting surface.
If you are planning to use a pole to mount the satellite
antenna, you will not need the mounting bracket and
mast assembly. However, we recommend you keep
them in case you decide to move the satellite antenna.
Optional Installation Kit
The Installation Kit is an optional product that contains the hardware and materials that
you would typically use during various types of installation. To buy the Installation Kit,
contact the location where your Bell ExpressVu system was purchased or call the
Customer Service Call Center at 1-888-SKY-DISH (1-888-759-3474).
The Installation Kit contains the following:
• Dual telephone adapter
• Dual grounding block
• 9.1-meter Grounding wire, either 8 gauge aluminum or 10 gauge copper
• 7.6-meter RG-6 (coaxial) cable with "F" connectors
• 30-meter RG-6 (coaxial) cable with "F" connectors
• 4 concrete anchors (3 1/8" x 1 7/8")
• 2 Lag bolts (3" x 5/16")
• 4 Cable ties
• 4 Lag bolts (2" x 5/16")
• Compass
• Silicone sealant
• 10 Cable clips for the coaxial cable
If you did not purchase the Installation Kit, but still plan to install your Bell ExpressVu
system yourself, we recommend that you gather the appropriate materials before
beginning installation. Note: Amount of RG-6 (coaxial) cable required will depend on
distance between LNBF and receiver.
The tools you will need to complete the installation will vary, depending on the type of
installation that you do. If you find that you do not have the tools and skills for a certain
procedure, call a professional, such as an Bell ExpressVu dealer or an electrician, for
assistance. These tools are not included in the Installation Kit.
Page I-3
Installation and Setup
Components of the Satellite Antenna
9200_Ins_eng 5/18/05 8:34 AM Page 7

SUMMARY OF INSTALLATION
Following is a summary of the procedures to install and set up your Bell ExpressVu
system. We recommend that you perform the procedures in the order presented.
1. Unpack the satellite antenna, receiver, and parts (see page I-6)
and the optional installation kit, if you purchased one (see page I-3).
2. Review "What You Need to Know" (see page I-6).
3. Connect the receiver to your TV set (see page I-8).
4. Determine the approximate location of the Bell ExpressVu satellite
(see page I-18).
5. Find the best location on your property for the satellite antenna, with a clear line
of sight to the satellite (see pages I-18 through I-20).
6. Assemble the satellite antenna and attach it to a solid surface (see pages I-27
through I-40).
7. Ground the satellite antenna, and wire it to the Bell ExpressVu receiver
(see pages I-42).
8. Aim the satellite antenna for the strongest possible signal (see pages I-44
through I-48).
9. Connect the receiver to an active telephone connection (see page I-54). With the
receiver wired to the TV and the antenna properly installed, you will be able to see
the Bell ExpressVu Program Guide, which tells you about available programs,
channels, and services.
10.Order your programming by calling the Bell ExpressVu Customer Service Call Centre
at 1-888-SKY-DISH (see page I-55).
11.Review “Bell ExpressVu Pre-Authorized Payment Plan”. (see page I-56).
12.Program the remote control to control the receiver and your other electronic
equipment. This feature is not available on all receiver models. (see page I-58).
13.Wire the receiver to your audio system, VCR, DVD and other electronic equipment,
as required.
Page I-4
Installation Guide
9200_Ins_eng 5/18/05 8:34 AM Page 8

STEP 1: BEFORE YOU START INSTALLATION
THE KEY TO SETTING UP YOUR
SYSTEM EASILY – THIS IS
IMPORTANT
The key to setting up the system is in the accurate initial setting of the vertical elevation
of the dish. The vertical elevation is the amount of tilt upwards, from horizontal, toward
the sky, which is required to “see” the satellite. This is best achieved by mounting the
dish support mast so that the top portion, to which the dish clamps attach, is as “Plumb”
as possible. That is to say: the top portion of the mount should be as perpendicular to the
earth as you can manage - this is true for wall mounting, roof mounting, any kind of
mounting. If it is “Plumb“, then, when the dish is mounted on it and the dish is tilted
upward toward the satellite at the correct vertical elevation angle, the dish can be easily
panned (East/West movements) to find the satellite.
UNPACK AND CHECK CONTENTS
As you unpack the system, confirm that all the parts are included. See "Package
Contents" on page I-6 for a list of the included components.
Note: Keep the shipping materials in which these items are packed, in case you ever
need to return them.
Unpack the contents carefully. Electronic equipment can be easily damaged if bumped or
handled roughly. Examine all parts for damage that may have occurred during shipment.
If you find any damage, immediately call the location where your Bell ExpressVu system
was purchased, or the Bell ExpressVu Customer Service Call Centre at
1-888-SKY-DISH, before continuing with installation.
The size of your dish will vary depending on the part of Canada in which you live. The
standard diameter of a Bell ExpressVu dish is 51 cm, however, 60 cm, 90 cm or 1.2m
dishes are also available. If you require the large dish, we recommend that you hire a
professional to install it because installation of the 90 cm and 1.2 m dishes is a more
exacting project.
Page I-5
Installation and Setup
Before You Start Installation

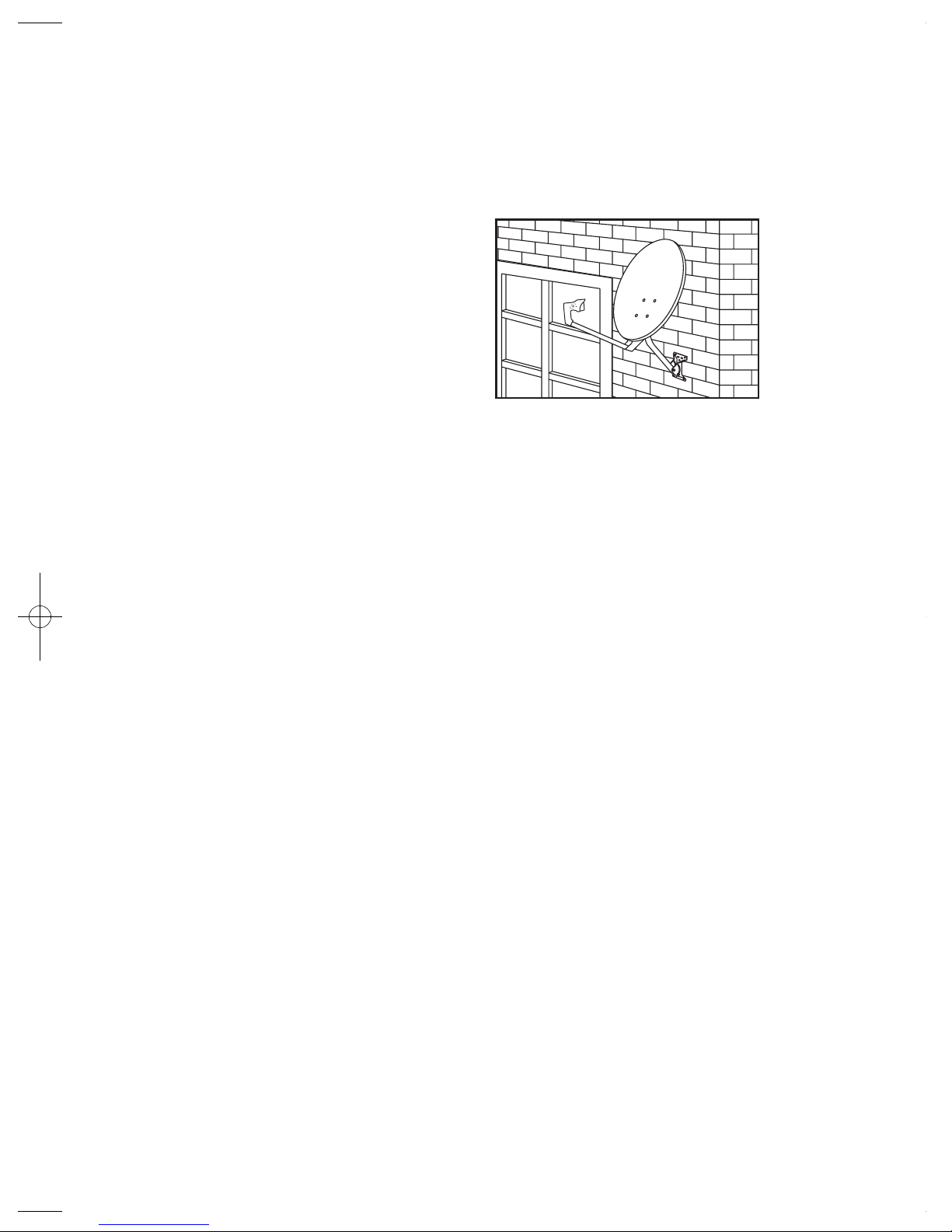

This is a typical
"Mount"shown
attached to a wall.
Notice that the top
portion is "Plumb". } Top
9200_Ins_eng 5/18/05 8:34 AM Page 9

PACKAGE CONTENTS
• User and Installation Guide
• Bell ExpressVu satellite antenna assembly
• Bell ExpressVu receiver
• Accessories
❒7.6-metre RJ11 telephone cable
❒2.4-metre phono (RCA) 3-connector cable
❒Two (2) 1.8-metre RG-59 cables
❒Two (2) remote controls, with eight (8) AAA batteries packaged separately
In addition, we provide an optional Installation Kit, which includes the necessary
hardware and cables that you would typically use during installation. Contact the
location where your Bell ExpressVu system was purchased for more information, or call
the Bell ExpressVu Customer Service Call Centre at 1-888-SKY-DISH for the location of
a licensed dealer near you.
WHAT YOU NEED TO KNOW
Because you will make modifications to the location where you mount the satellite
antenna, we suggest that you be familiar with and be able to safely perform the following
procedures.
• You should be able to use a plumb line or level to set both horizontal and vertical
surfaces. This is especially critical for vertical surfaces.
• You should know how to drill holes in the mounting surface (whether wood, brick,
cinder block, etc.).
• You should know how to drill holes and run cabling through your building. This
includes sealing the holes once the cable has been installed.
WHAT YOU NEED TO HAVE
If you did not purchase the installation kit, you will need the following materials:
• Coaxial cables and connectors (RG6 recommended up to 100ft. For longer distances
consult an installer)
• Fastening devices to attach the mount to your dwelling
• Waterproofing for the outdoor connections
• Grounding materials
• Cable ties
Page I-6
Installation Guide
9200_Ins_eng 5/18/05 8:34 AM Page 10
