disperator Excellent 500A-ATF Series User manual
FOOD WASTE DISPOSER 500A-ATF EXCELLENT SERIES
FOR INSTALLATION IN SINK AND DISHWASHING LINE
Product Descripon Installaon Safety Operaon Service
USER MANUAL
User manual in Original
Doc. ref: 500A_ATF_am_en_230306
DISPERATOR AB Tel: 08-724 0160 E-mail: info@disperator.se
Mälarvägen 9, 141 71 Segeltorp Web page: www.disperator.se
User manual in Original
Doc. ref: 500A_ATF_am_en_230306
DISPERATOR AB Tel: 08-724 0160 E-mail: info@disperator.se
Mälarvägen 9, 141 71 Segeltorp Web page: www.disperator.se
User manual in Original
Doc. ref: 500A_ATF_am_en_230306
DISPERATOR AB Tel: 08-724 0160 E-mail: info@disperator.se
Mälarvägen 9, 141 71 Segeltorp Web page: www.disperator.se
Statement of Compliance
DNV·GL
Folder: A1003885
Document N14240EG
no:
Regulation 4
Discharge of garbage outside special areas
Regulation 5
Special requiremen r discharge of garbage from jed or oating plaorms
Regulation 6
Discharge garbage within special areas
®
lf any person suffers loss or damage which is proven to have been caused by any negligent act or emission of the Society, then the Society shall pay compensation ta such person for his proven direct loss or damage. However, the
compensation shall not exceed an amount equal to ten times the fee charged for the service in question. The maximum compensation shall never exceed USD 2 million.
In this provision the “Society” shall mean DNV GLAS as well as all its direct and indirect owners, affiliates, subsidiaries, directors, officers, employees, agents and any other person or entity acting on behalf of DNV GLAS.
© DNV
GL
2014. DNV
GL AND THE HORIZON GRAPHIC ARE TRADEMARKS OF
DNV
GLAS.
Form
No.:
40.91a lssue: 2014-07
w.dnvgl.com
Page 1 of 1
User manual in Original
Doc. ref: 500A_ATF_am_en_230306
DISPERATOR AB Tel: 08-724 0160 E-mail: info@disperator.se
Mälarvägen 9, 141 71 Segeltorp Web page: www.disperator.se
Table of Contents
1. Safety Precauons _______________________________________________________ 7
1.1. Safety Signs __________________________________________________________ 7
1.2. Personnel Qualicaons and Training______________________________________ 8
2. Company Prole _________________________________________________________ 9
3. Product Descripon and Technical Specicaon _______________________________ 10
3.1. Food Waste Disposer 500A-ATF EXCELLENT-Series for installaon in sink and
dishwashing line ______________________________________________________ 10
3.2. Technical Specicaon _________________________________________________ 12
4. Storage and Displacement _________________________________________________ 13
4.1. Storage of the Machine_________________________________________________ 13
4.2. Displacement of the Machine____________________________________________ 13
5. Included in Delivery ______________________________________________________ 14
5.1. Documentaon _______________________________________________________ 14
5.2. Food Waste Disposer___________________________________________________ 14
6. Installaon Descripon for the Machine _____________________________________ 16
6.1. Assembly of the Machine _______________________________________________ 16
6.1.1. Mounng the Disposer With a AFT Mounng ____________________________ 16
6.1.2. Mounng and Support against Floor/Floor plate __________________________ 16
6.1.3. Fixaon of the Machine _____________________________________________ 18
6.1.4. Protecve lid connected to interlock switch______________________________ 18
6.2. Connecon of ushing water ____________________________________________ 19
6.2.1. Water pipe DN15___________________________________________________ 19
6.2.2. Line Strainer DN15 and Solenoid Valve DN15_____________________________ 19
6.2.3. Hose with Protecve Steel-Covered Stocking for Flushing Water, minimum
inner-Ø 9 mm _____________________________________________________ 19
6.2.4. Other orders / installaons for which standard EN 1717 does not apply _______ 20
6.3. Connecon of Machine Outlet to Water Trap and Sewer Pipe __________________ 21
6.3.1. Dimensions _______________________________________________________ 21
6.3.2. Depth and Threshold of Water Trap ____________________________________ 21
6.3.3. Curves and Bends __________________________________________________ 21
6.3.4. Level Dierence of Water Trap ________________________________________ 21
6.3.5. Slope of Sewer Pipe_________________________________________________ 21
6.3.6. Vacuum Evacuaon _________________________________________________ 21
6.4. Electrical Connecon___________________________________________________ 23
6.4.1. Supply Voltage_____________________________________________________ 23
6.4.2. Mains Fuses _______________________________________________________ 23
6.4.3. Wall/Bulkhead Mounted Electrical Security Breaker _______________________ 23
6.4.4. Cable Dimension ___________________________________________________ 23
6.4.5. Cable Protecon ___________________________________________________ 23
6.4.6. Earth Wire ________________________________________________________ 23
6.4.7. Direcon of Rotaon for the Disposer __________________________________ 23
User manual in Original
Doc. ref: 500A_ATF_am_en_230306
DISPERATOR AB Tel: 08-724 0160 E-mail: info@disperator.se
Mälarvägen 9, 141 71 Segeltorp Web page: www.disperator.se
6.5. Start Up and Final Tesng _______________________________________________ 24
6.5.1. Check before Start Up _______________________________________________ 24
6.5.2. Checks during Start Up ______________________________________________ 24
6.5.3. Final Measures ____________________________________________________ 24
7. Safety Instrucons _______________________________________________________ 25
8. Operang Instrucons ____________________________________________________ 26
8.1. Start and stop ________________________________________________________ 27
8.2. Daily cleaning of the disposer ____________________________________________ 27
8.3. Trouble Shoong ______________________________________________________ 28
8.3.1. Disposer Reduces Speed, Stops or does not Start _________________________ 28
8.3.2. Machine Starts but there is no Flushing Water ___________________________ 28
8.3.3. Machine does not Start and makes no Sound ____________________________ 28
9. Service Instrucons ______________________________________________________ 29
9.1. Authorizaon_________________________________________________________ 29
9.2. Exploded Views and Spare Parts List for the Disposer _________________________ 30
9.3. Overhaul of Protecon Cover with Switch, Assembly and Connecons ___________ 34
9.4. Dismantling of Disposer ________________________________________________ 34
9.5. Assembly of Disposer __________________________________________________ 37
9.6. Timer control and Sengs ______________________________________________ 41
9.7. Overhaul and Maintenance Intervals ______________________________________ 43
User manual in Original
Doc. ref: 500A_ATF_am_en_230306
DISPERATOR AB Tel: 08-724 0160 E-mail: info@disperator.se
Mälarvägen 9, 141 71 Segeltorp Web page: www.disperator.se
7 / 43
This manual contains instrucons for installaon, operaon and maintenance of the food waste disposer
(below also called the machine). It is therefore essenal for the installer, union representaves and
users of the machine to read the manual thoroughly prior to installaon, commissioning, operaon and
overhaul & maintenance.
This manual must always be at hand where the machine is being used.
It is not only the general safety instrucons in this secon that need to be considered, but also the other
special safety instrucons given in this manual.
1. Safety Precautions
1.1. Safety Signs
The following safety signs are used in this manual and on the machine. Failure to comply with the safety
regulaons contained in this manual as well as on the machine may cause personal injury or damage the
machine.
Read this User Manual before use
Use protecve goggles
Use ear protecon
Warning for electric voltage
General personal danger
Warning for mechanically caused damage (rotang parts)
Warning plates located on or close to the machine must always be observed and kept legible.
User manual in Original
Doc. ref: 500A_ATF_am_en_230306
DISPERATOR AB Tel: 08-724 0160 E-mail: info@disperator.se
Mälarvägen 9, 141 71 Segeltorp Web page: www.disperator.se
8 / 43
1.2. Personnel Qualications and Training
All personnel managing the below tasks for the machine as described in this manual, must have the
necessary qualicaons to carry out this work. Areas of responsibility, scope of authority and sta
supervision must be carefully dened by the machine owner. If the personnel do not have the necessary
qualicaons for this, they must receive training and instrucons. Such training can be provided by the
manufacturer / supplier. Moreover, it is the responsibility of the machine owner to make sure that all
users read and understand the content of this User Manual.
Moving the Machine
Sta responsible for moving the machine must have knowledge about the handling of the liing gear
and stopping devices and have knowledge of applicable safety regulaons for these. If they lack this
knowledge, they must receive the required training.
Installaon
Personnel responsible for the installaon of the machine must have knowledge equivalent to educaon
in industrial mechanics/technician. The electric connecon must be performed by trained and cered
electrician.
Commissioning and Maintenance
Personnel responsible for commissioning, overhaul and maintenance of the machine must be familiar
with all funcons, and how to operate these funcons. Furthermore, they must know of all safety
precauons in this manual, and which in other respects also are valid where the machine is used.
Operaon
All persons who operate and maintain the machine must be aware of the risks that may occur with its use
and as described in this manual.
Service and Repair
Responsible personnel for service and repair of the machine must have knowledge equivalent to
educaon in industrial and design mechanics, and also know and understand the technical data of the
machine described in this manual. Assisng personnel for these jobs must be trained and performed
repair work must be checked by the machine owner.
User manual in Original
Doc. ref: 500A_ATF_am_en_230306
DISPERATOR AB Tel: 08-724 0160 E-mail: info@disperator.se
Mälarvägen 9, 141 71 Segeltorp Web page: www.disperator.se
9 / 43
8 / 43
2. Company Prole
Disperator’s business idea is to provide innovave and adapve equipment for kitchens on land as well
as galleys at sea, and for the food processing industry, which enables ecient collecon of communited
food leovers for anaerobic digeson or composng in subsequent stages, which is of benet to society.
With over 70 years of experience in the development and producon of such equipment, our devoon
to this has resulted in the unique operaonal reliability required for the extreme condions prevailing in
the marine industry. Furthermore, our innovaveness has provided commercial kitchens on land with an
alternave approach to handle food waste separaon at source, complying with modern demands and
being economically aordable.
Our product assortment is unique! Disperator can as the only manufacturer of such equipment oer
all types of installaon possibilies needed in a kitchen. Our basic range of ve dierent series of
water-based food waste disposers, consisng of three to six dierent sizes in each serie, which may be
combined with as many as 13 dierent mounng assemblies. Furthermore, the advantage of the basic
model’s design is that the waste disposers may easily be integrated into other kitchen manufacturer’s
mounng assembly or furniture. Thereby, each workplace in a kithen or galley can be designed to its
specic requirements regarding funcon, ergonomics and economy. To all this there is also the dierent
series of water-saving processor technology for collecon and storage of grinded food waste in a tank, as
well as disposers that grinds food waste without any ushing water at all.
User manual in Original
Doc. ref: 500A_ATF_am_en_230306
DISPERATOR AB Tel: 08-724 0160 E-mail: info@disperator.se
Mälarvägen 9, 141 71 Segeltorp Web page: www.disperator.se
10 / 43

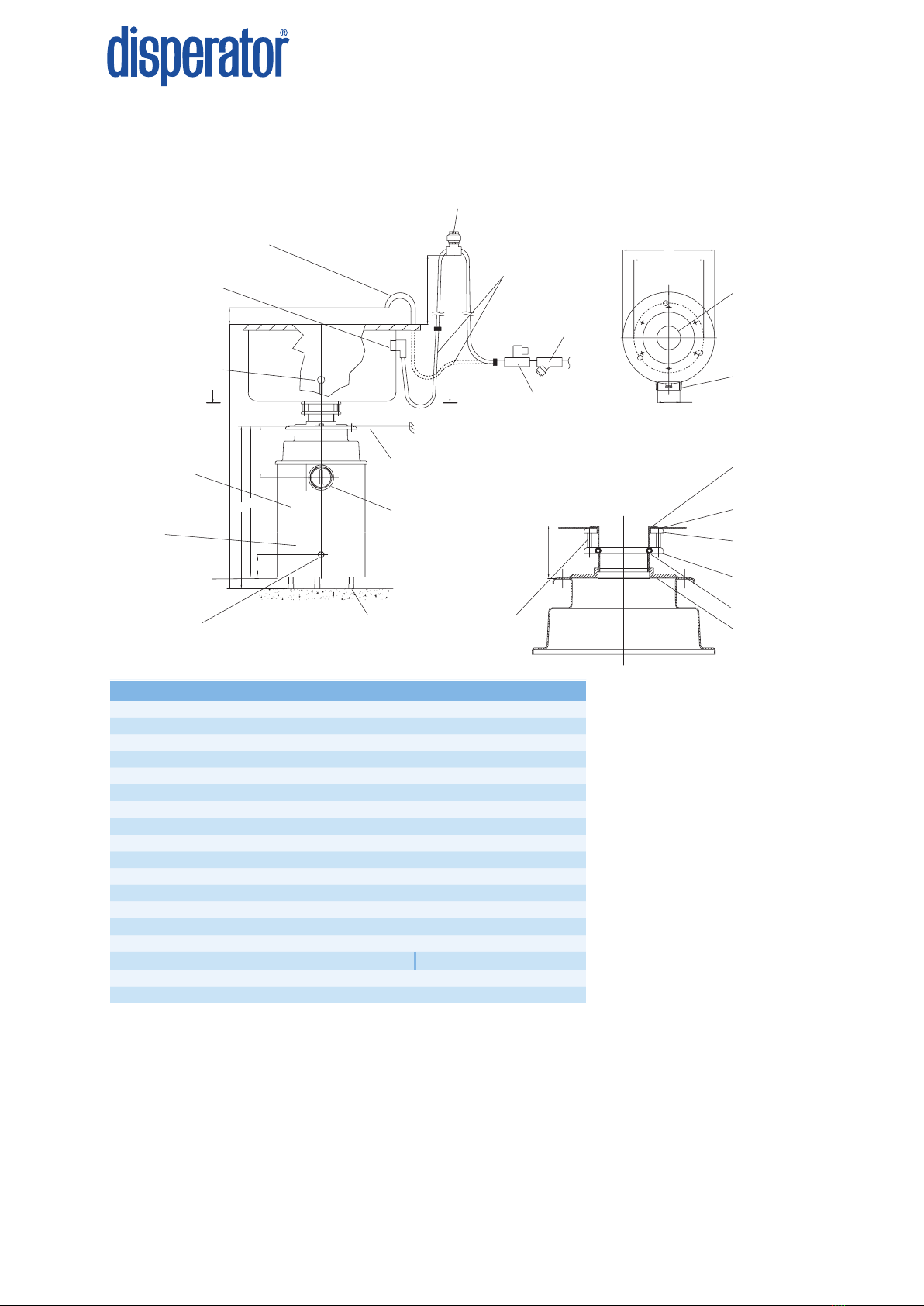

3. Product Description and Technical Specication
3.1. Food Waste Disposer 500A-ATF EXCELLENT-Series for installation in sink and
dishwashing line
The immediate and ecient removal of the heaviest part of kitchen waste - the food scraps - is a
necessity in any commercial kitchen. When using a Disperator waste grinder, the food waste can easily
collect and reduce the total amount of waste hygienically and without heavy liing or manual transfer
to a waste storage - in volume, but especially in the handling of the total weight in dierent transport
phases!
Disperator food waste disposers are used in kitchens and marine galleys around the world, providing an
ecient and immediate removal of food waste whenever the need arises and thereby improving hygiene
in the working environment, eliminang bad odors and bacteria formaon and minimizing manual
handling.
Regardless of the selected disposer model, the disposal procedure is the same. Food waste is fed down
into the machine and with water ground into small parcles for further transport in the sewer to a sealed
and odorless special tank where the slurry and grease are separated from much of the liquid which
ows out into the municipal sewer. Alternavely, all the sludge with liquid runs o in the municipal sewer
to a water treatment plant. The tank is emped by a vacuum truck approximately every four weeks or
according to the driving schedule that applies in your municipality. Depending upon preference, the tank
may be placed outdoors buried in the ground, as well as placed indoors. In water treatment plants as well
as in anaerobic digeson facilies the slurry is converted into a valuable renewable energy resource (i.e.
biogas), and oen the digested residue which is le aer biogas producon can also be used as ferlizer
on farmland. Biogas is today one of our society’s most environmentally clean and desired energy forms,
as fuel for vehicles as well as to produce heat and electricity.
Disperator’s broad assortment of dierent technical soluons for source separaon of food waste can be
adapted to your specic kitchen and your specic working environment, regardless of size or layout, and
regardless of the specic municipal’s food waste handling rules in your community!
User manual in Original
Doc. ref: 500A_ATF_am_en_230306
DISPERATOR AB Tel: 08-724 0160 E-mail: info@disperator.se
Mälarvägen 9, 141 71 Segeltorp Web page: www.disperator.se
11 / 43
10 / 43
Our product range is designed with the user’s needs in focus and meets today’s requirements for
handling of food waste. The high-quality grinding unit of specially alloyed steel together with the unique
and well-proven sealing design between the grinding unit and motor provides the user with many years
of operaonal reliability and low maintenance cost. The disposer’s life span is extended further by the
outer housing of stainless steel EN 1.4301 (AISI 304) and protecon class IP55 for electrical components
as standard.
The wide range of disposer sizes, and where each size ts all models of assemblies, makes it easy to
customize each installaon of disposer to t all workplaces in kitchens onshore as well as at sea. The
Excellent 500-Series disposers may be installed under sinks and washing lines, into tabletops and working
benches or as freestanding separate units. Installaon into an exisng kitchen furniture manufactured by
another supplier is also possible. For CE-marking an approved assembly with protecon above disposer
inlet is needed from Disperator or other manufacturer.
Standard delivery includes a complete start/stop unit with contactor and motor overload protector, and
a complete solenoid valve with line strainer, which for some of the assembly models need to be installed
and connected on site in the kitchen. Cold water will automacally ow when the disposer starts, ushing
the food waste into the grinding chamber, and then into the sewer system or a storage tank.
Food waste disposers within the Disperator Excellent-Series have the Declaraon of Compliance issued by
DNV, verifying compliance with applicable secons of IMO MARPOL consolidated edion 2017 ANNEX V
for disposal of ground food waste into the open sea
User manual in Original
Doc. ref: 500A_ATF_am_en_230306
DISPERATOR AB Tel: 08-724 0160 E-mail: info@disperator.se
Mälarvägen 9, 141 71 Segeltorp Web page: www.disperator.se
12 / 43
3.2. Technical Specication
d
cb
a
900
A
≥ 3 DN
75-80
A
min 300
e
g
f
¡¡
¡¡
¢
£
¡
¡
User manual in Original
Doc. ref: 500A_ATF_am_en_230306
DISPERATOR AB Tel: 08-724 0160 E-mail: info@disperator.se
Mälarvägen 9, 141 71 Segeltorp Web page: www.disperator.se
13 / 43
12 / 43
4. Storage and Displacement
4.1. Storage of the Machine
If the machine will be stocked before installaon and use the following applies:
• The machine should be stored in a dry and clean room where the relave humidity may not
exceed 60%.
• Recommended storage temperature of -20 °C to + 60 °C.
4.2. Displacement of the Machine
The machine should not be lied or moved by hand. During installaon, we recommend using a
pallet jack or forkli, and during service a liing trolley for component parts in a machine (like a
disposer placed inside a cabinet).
User manual in Original
Doc. ref: 500A_ATF_am_en_230306
DISPERATOR AB Tel: 08-724 0160 E-mail: info@disperator.se
Mälarvägen 9, 141 71 Segeltorp Web page: www.disperator.se
14 / 43
5. Included in Delivery
5.1. Documentation
• This User Manual
• Safety Instrucon (laminated),
• Operang Instrucon (laminated),
• Electric documentaon (connecon & wiring diagram and component layout diagram)
5.2. Food Waste Disposer
Disposer with motor size and voltage
according to the delivery note, including
rubber gasket to be placed between disposer
and cone
BS-ange with ATF mounng
Silencer rubber seal for disposer inlet
User manual in Original
Doc. ref: 500A_ATF_am_en_230306
DISPERATOR AB Tel: 08-724 0160 E-mail: info@disperator.se
Mälarvägen 9, 141 71 Segeltorp Web page: www.disperator.se
15 / 43
14 / 43
Start/stop control unit including contactor
with motor overload protector and control
voltage according to the delivery note.
Complete solenoid valve G½” (BSPP), internal
thread and coil with operang voltage
according to the delivery note
Flush pipe / Flush nozzle
Line strainer G½” (BSPP), internal thread
Jam release wrench, 1pc. for release of
disposer grinding unit, if a non-grindable
object by mistake happens to fall therein
Adjustable legs, 3 pcs. for disposer models
having motor power of 1.8 kW or more
User manual in Original
Doc. ref: 500A_ATF_am_en_230306
DISPERATOR AB Tel: 08-724 0160 E-mail: info@disperator.se
Mälarvägen 9, 141 71 Segeltorp Web page: www.disperator.se
16 / 43
6. Installation Description for the Machine
6.1. Assembly of the Machine
6.1.1. Mounting the Disposer With a AFT Mounting
Remove the ATF assembly by rst loosening the three clamping screws and then loosening the
locking spring (ring), taking care not to damage the thread on the AT nipple. Insert the AT nipple
with a seal into the outlet opening of the sink, which should be 93 mm (3.6614 in.) in diameter
with an embossing, a tool that creates this embossing can be hired by Disperator. From below
the sink, bring up the gasket, upper clamping ring and lower clamping ring (with the three
clamping screws) in said order over the AT nipple. Push up the gasket and the two clamping
rings against the sink and allow the locking spring (ring) to slide along the AT nipple unl it locks
into the intended groove just above the G3 “thread. Tighten the three clamping screws unl the
ATF assembly rests evenly and ghtly against the boom of the sink. Seal the thread and ghten
the BS ange on the AT nipple. The disposer is then screwed into the BS ange.
For those cases where a 3”ball valve has been ordered as an accessory between the sink and the
disposer, this is specied in the delivery note. To connect the lower outlet of the ball valve to the
BS ange and the disposer is supplied with an extra nipple G3”, external thread.
6.1.2. Mounting and Support against Floor/Floor plate
Mounng of models 510 and 515, delivered without legs as standard
The weight of disposer models 510 and 515 allows them, in most cases, to be hung vercally
under the mounng assembly (e.g. under a sink). The standard delivery of these models
therefore does not include legs. However, if they are to be placed standing on the oor/oor
plate (e.g. beside a peeling machine/dishwasher) these models must be ed with legs. If legs
have been ordered it is specied on the delivery note.
To minimize the risk of injuries, two persons shall always be present when the disposer is
installed. Below describe three dierent approaches, depending on the availability of tools at the
installaon site.
Place the disposer ghtly against the ange of the mounng assembly, by using one of below
menoned hoist methods. Make sure that the disposer top rubber seal is correctly posioned.
Tighten the six screws with nuts evenly. The rubber seal should be compressed approximately
1 mm.
Hoist alternave 1
Trolley, see picture below.
User manual in Original
Doc. ref: 500A_ATF_am_en_230306
DISPERATOR AB Tel: 08-724 0160 E-mail: info@disperator.se
Mälarvägen 9, 141 71 Segeltorp Web page: www.disperator.se
17 / 43
16 / 43
Hoist alternave 2
Use a rm and well-balanced jack with a support disk to hoist the disposer into posion under
the mounng ange.
Hoist alternave 3
If no hoisng tools are available, place the disposer on a solid object of the proper height (for
example a wooden crate), and push it in under the mounng ange. To get the proper height of
this object measure the space between the oor and the mounng ange and then subtract the
height of the disposer and the rubber seal (which is 3 mm thick).
Mounng of models 520, 530, 550 and 575, delivered with legs as standard
The weights of models 520, 530, 550 and 575 require legs for support. At installaon site the
separately delivered 3 legs must be xed to the 3 clamps in the disposer boom plate.
Proceed as follows when mounng the legs:
• Measure the height (X mm) between the ange of the mounng assembly and the
oor/oor plate.
• Measure the height (Y mm) of the disposer without legs including the 3 mm rubber seal.
• Lay down the disposer carefully on its side. Slide the three legs into respecve clamp.
Each leg should protrude X – Y - 4 mm.
• Tighten the clamps. Make sure that the legs are xated, and that their posion have not
changed during the ghtening of the screw.
• Place the disposer so that it stands on its legs. Move the disposer carefully into posion
under the ange of the mounng assembly.
• Using the six screws with nuts xate the disposer onto the ange with the 3 mm rubber seal
in between. Tighten the screws alternately and evenly unl the rubber seal is compressed
approximately 1 mm.
• Use a jack or a lever to push up the disposer towards the ange of the mounng assembly.
• While this upward pressure is maintained, unghten each leg and pull it downwards. Make
sure that all legs are rmly pressed against the oor. Tighten the clamps using a torque of
17 Nm. As this is a crical maer, a torque wrench should be used. If no torque wrench is
available use a leaver of approximately 30 cm and a force of 6 kg.
User manual in Original
Doc. ref: 500A_ATF_am_en_230306
DISPERATOR AB Tel: 08-724 0160 E-mail: info@disperator.se
Mälarvägen 9, 141 71 Segeltorp Web page: www.disperator.se
18 / 43
6.1.3. Fixation of the Machine
If the disposer can turn in the assembly, or if it is placed freely, for example next to a peeling
machine, then the machine must be xed with a torque protecon bar against the wall /
bulkhead according to the gure below. When starng or stopping quickly when stuck (for
example if cutlery accidentally ends up in the disposer), the motor torque can otherwise turn the
disposer so that the drain pipe / water trap is turned out of posion and there is a risk of leakage.
If the torque protecon bar is not suitable due to too great a distance to the wall / bulkhead, the
feet can be welded directly to the oor. If the torque protecon bar cannot be arranged at the
installaon site, it is available as an opon at Disperator, see secon 9.2 (P32). Torque protecon
for oor mounng is also available as an opon from Disperator, which facilitates work during
service as the weld around the legs does not need to be cut loose.
6.1.4. Protective lid connected to interlock switch
To comply with the CE mark, the disposer inlet must have an interlock switch connected to a
protecve lid mounted above the feed inlet, or similar safety device.
Torque protecon bar
User manual in Original
Doc. ref: 500A_ATF_am_en_230306
DISPERATOR AB Tel: 08-724 0160 E-mail: info@disperator.se
Mälarvägen 9, 141 71 Segeltorp Web page: www.disperator.se
19 / 43
18 / 43
6.2. Connection of ushing water
For the machines ordered for connecon to ushing water according to the requirements of standard
EN 1717 (in the UK also WRAS), or to be installed in countries where this standard must be complied
with, the machine’s dra ushing water is delivered according to these requirements to prevent
contaminaon by sucon in drinking water pipes.
This standard EN 1717 denes ve liquid categories that are or could come into contact with drinking
water. Category 5 is the category with the highest protecve requirements and which applies in all
kitchens where food is handled, regardless of whether food waste management equipment is there
or not. If stated when ordering, all Disperator’s machine models can be delivered in accordance with
the requirements for category 5, ie. the category with the highest protecon against contaminaon
of drinking water pipes.
Connecon of ushing water to the delivered machine may only be carried out by a qualied VA
installer and in accordance with current local VA regulaons. DISPERATOR takes no responsibility for,
according to standard EN 1717, a machine that is incorrectly connected to the drinking water line.
The machine’s automac rinsing water control is to be connected to cold rinsing water (hot water is
not needed).
6.2.1. Water pipe DN15
To provide the correct amount of ushing water to the machine, the incoming water pipe (incl.
accessories and protecon devices against sucon, cut-o valves, etc.) must have the same
dimension as the connecon to the machine assembly, ie. DN15. No throling may exist up to
the ushing water connecon on the machine.
6.2.2. Line Strainer DN15 and Solenoid Valve DN15
The delivered line strainer, DN15 must be mounted in the ow direcon before the solenoid
valve, DN15 in the incoming cold water pipe to the machine. Also make sure that the line
strainer and solenoid valve are mounted in the correct ow direcon (see the arrow on these
components), and that the nut on the line strainer (which is to be opened when cleaning the
line strainer) is directed downwards. Line strainer and solenoid valve have G½” (BSPP), internal
thread.
For funnel mounng that is welded into other manufacturers’ table tops / workbenches, and for
freestanding cabinet and table mounng, these components are pre-assembled from the factory
on the assembly for connecon to cold water supply. Connecon to these assemblies is R½”
(BSPT), external thread.
6.2.3. Hose with Protective Steel-Covered Stocking for Flushing Water, minimum
inner-Ø 9 mm
Between the incoming water pipe mounted on the wall/bulkhead, and the connecon for
ushing water on the machine assembly, a hose with protecve steel-covered stocking (with
minimum inner-Ø 9 mm) must be ed. This hose absorbs the compressive push in the pipe
when the ushing water is turned on and absorbs any small vibraons which may occur during
the grinding process of the disposer. This hose is not included in standard delivery but is available
as an opon from Disperator.
User manual in Original
Doc. ref: 500A_ATF_am_en_230306
DISPERATOR AB Tel: 08-724 0160 E-mail: info@disperator.se
Mälarvägen 9, 141 71 Segeltorp Web page: www.disperator.se
20 / 43
6.2.4. Other orders / installations for which standard EN 1717 does not apply
In cases where standard EN 1717 does not apply (eg countries outside the EU or marine
installaons) it is sll recommended that a vacuum valve (non-return valve), G½” (BSPP), be
installed on top of the lyre-shaped incoming water pipe according to the gure below. The
vacuum valve protects the water pipe against re-sucon in the event of overow. Vacuum valve is
not included in standard delivery but can be ordered as an opon from Disperator.
T h e p i c t u r e a b o v e s h o w s a n e x a m p l e o f t h e l o c a o n o f a v a c u u m v a l v e a b o v e
a standard installaon of a cabinet.
Vacuum valve
Hose with steel
covered stocking
Incoming water pipe to ushing
nozzle with solenoid valve and
line strainer
This manual suits for next models
8
Table of contents
Other disperator Garbage Disposal manuals
disperator
disperator EXCELLENT 550A-GKF Series User manual
disperator
disperator 500A-GTS-E65 EXCELLENT SERIES User manual
disperator
disperator 500A-ATF-K User manual
disperator
disperator EXCELLENT 500A-BASIC User manual
disperator
disperator 500A-MC EXCELLENT Series User manual
disperator
disperator EXCELLENT Series User manual
disperator
disperator 500A-GTS-E65 EXCELLENT SERIES User manual
disperator
disperator 500V-BAS Excellent Series User manual
disperator
disperator EXCELLENT 500A-BS Series User manual
disperator
disperator 500A-MC EXCELLENT Series User manual
Popular Garbage Disposal manuals by other brands
Weber mt
Weber mt CR 9-II Hd E Operating and maintenance manual
Made
Made Rask 60L operating instructions
Champion
Champion P5-30 Specifications
InSinkErator
InSinkErator AnswerLine EVOLUTION SEPTIC ASSIST manual
Electrolux
Electrolux DITO DR400 Brochure & specs
InSinkErator
InSinkErator Model WX-300 Brochure & specs
