Displays2go INTWHITWRLS User manual

User Manual Rev. 19.09
INTERACTIVE WHITEBOARD –WIRELESS
MODEL: INTWHITWRLS
Scan QR code to visit the product page:
Operating Instructions for Whiteboard
Note: Before using the product, please read the instructions thoroughly.
If you have any questions regarding our products, please visit us at www.displays2go.com or
contact D2G customer service at 844-221-3393.
Projector not included.

DISPLAYS2GO Table of Contents
Rev. 19.08 ii
Table of Contents
1. Introduction.............................................................................................................. 3
2. Set up the Whiteboard............................................................................................. 4
2.1 Wall Mounting...................................................................................................4
2.2 Floor Standing...................................................................................................6
3. Connection............................................................................................................... 7
3.1 Wireless Hub ....................................................................................................7
3.2 Wireless Stick ................................................................................................... 9
3.3 Wired Connection ........................................................................................... 10
4. Calibration.............................................................................................................. 11
4.1 Install the Calibration Software. ......................................................................11
4.2 16- or 9-point calibration.................................................................................11
5. Technical Specifications....................................................................................... 14

DISPLAYS2GO Interactive Whiteboard
3
1. Introduction
Thank you for purchasing the interactive whiteboard with eMark Pen.
This interactive whiteboard system uses optical touch sensor, easily turns your projected screen
into an interactive touchscreen. It provides the ideal interactive platform for educational and
business use in presentations and lectures.
After connecting with the included eMark Pen, you can draw or annotate on the interactive
whiteboard with this powerful stylus. Please refer to the user manual of the eMark Pen for more
information. Other opaque objects or your fingers can also act as a computer mouse.
Features:
Writing: users can write and draw on the whiteboard with included eMark Pen or a stylus
during a lecture or presentation.
Annotation: users can easily operate and annotate on the screen during presentation
and lecture.
The eMark Pen can fully function with all the supported file types and applications,
including Word, Excel, PDF, PowerPoint, Internet browser, Whiteboard, OneNote, and
more.
No pressure required to activate the touch.
No driver required. Plug and play.
Easy to set up and connect.
Stable connection. The wireless hub and stick use individual network channel, that won’t
cause interference with other devices.

NOTE: To use all the functions of the interactive whiteboard, please connect it with the PC
installed Windows 10 operating system.

DISPLAYS2GO Interactive Whiteboard
4
2. Set up the Whiteboard
2.1 Wall Mounting
The wall mounting installation is quick and easy using the included hardware kit.
Minimum 2 people. Tools required: power drill, bubble level, adjustable wrench.
Hardware
a. Mounting Bracket –Top
b. Metal Bracket –Bottom
c. M8 Expansion Wall Anchor
d. M4 Screw
QTY.
2 pcs
1 pc
5 pcs
2 pcs
Step 1: Assemble the Metal Bracket (b) to the bottom back-side of the white board with (2) M4
screws (d), as shown below. Do not tighten the screws.
Step 2: Drill holes on the wall where the whiteboard will be. Drill 5 holes that are 38
⁄inch in
diameter and 2 inches deep at the locations marked as “A” below.
Metal Bracket (b)

DISPLAYS2GO Interactive Whiteboard
5
Step 3: Insert the (5) expansion wall anchors (c) into the holes drilled in step 2, then unscrew
the M8 Hex screw from the anchor sleeves. Make sure all anchors are flush against the wall.
See below:
Step 4: Insert a screwdriver or other metal rod into the anchor sleeve. Hit the other end of the
tool with a hammer to fix the anchors in the wall.
Step 5: Align (2) mounting brackets (a) to the upper wall anchors. Secure them to the wall by
tightening the hex screws back to wall anchors through the slots on the brackets.
Step 6: Carefully lift the whiteboard and hang it on the wall.

DISPLAYS2GO Interactive Whiteboard
6
Step 7: Horizontally slide the assembled bottom bracket at the back of the whiteboard, until the
wall anchor can be seen through the cutout on the bracket. Fix the bracket from the back by
tightening the 2xM4 screws on the back of the whiteboard.
Step 8: Use the removed M8 hex screw to secure the bracket at bottom to the wall. The
installation is completed.
CAUTION: For your safety, the whiteboard must be mounted to solid wall ONLY.
Please use the included wall anchor and follow the installation instructions.
2.2 Floor Standing.
The whiteboard can also be used with a mobile/stationary stand.
Please find the floor stand that is compatible with the size of the whiteboard and will best suit
your needs.

DISPLAYS2GO Interactive Whiteboard
7
3. Connection
It’s easy to set up the wireless interactive whiteboard. Just follow a few simple steps
below, the whiteboard will be connected and ready to use.
Packing List:
Name
Qty
1
eMark Stick
1
2
HDMI Cable (Standard HDMI Cable,15cm)
1
3
USB Cable
1
3.1 Wireless Hub
The wireless hub is pre-mounted on top of the whiteboard.
①HDMI Output;
②SM16B-GHDS-A-TF:
.
USB Ports RS232 Serial Port Power Supply Optical Touch Modules (Internally Connected)
NOTE: The 9-pin (RS232) port is for OEM use ONLY.
③Indicator Light
LIGHT
HUB STATUS
Stable green light
Run smoothly in transmitting status
Quick flash of green light
Connected, but no video signal input
Slower flash of green light
Connected with video transmission
Stable red light/ slower flash red light
Waiting to be connected
Stable blue light/ slower flash blue light
Disconnected

DISPLAYS2GO Interactive Whiteboard
8
Connect the projector to the wireless hub using cable. Turn the power on by plugging in the
included adapter.
The wireless hub could cover most of the space in front of the whiteboard in the room.
Do not cover or place other objects on the wireless hub so the connection is not interrupted. For
better reception, position the wireless stick within the range below.
Dimensions
149.4*34.4*21.4 (mm)
Interfaces
HDMI (A), 16pin Interface (SM16B-GHDS-A-TF)
Transmit Protocols
Wireless HD
Speed
4G bps/s
Video Resolution
Maximum 1080P@60Hz
Power Supplying
DC 5V/1A
Average Power
5W
Working Temperature
32°F～131°F

DISPLAYS2GO Interactive Whiteboard
9
3.2 Wireless Stick
Wireless stick can work with wireless hub when plugged into your PC, within 65 feet distance.
① Reset Button ② USB ③ HDMI Input ④ Indication Light
LIGHT
HUB STATUS
Stable green light
Run smoothly in transmitting status
Quick flash of green light
Connected, but no video signal input
Slower flash of green light
Connected with video transmission
Stable red light/ slower flash red light
Wait to be connected
Stable blue light/ slower flash blue light
Disconnected
Plug one end of the provided HDMI cable into the USB stick. Connect the wireless stick with
your PC by plugging in the USB and HDMI cables. After the 2 cables are plugged in, the stick
and the hub will connect automatically.

DISPLAYS2GO Interactive Whiteboard
10
Be sure there’s no object directly between the wireless hub and the wireless stick.
The wireless stick can be effectively connected with the wireless hub within the range below.
3.3 Wired Connection
The Whiteboard also has the option to connect with your computer thru USB ports without using
the Hub and the stick. Simply connect all the device as shown below.
Dimensions
83.0*45.1*19.6 (mm)
Interfaces
HDMI (A), USB (A Male)
Transmit Protocols
Wireless HD
Speed
4G bps/s
Video Resolution
Maximum 1080P@60Hz
Power Supplying
USB. DC 5V/500mA
Average Power
2.5W
Working Temperature
32°F～131°F

DISPLAYS2GO Interactive Whiteboard
11
4. Calibration
Calibrate after connected with the projector.
4.1 Install the Calibration Software.
Install the calibration software from the supplied USB flash drive onto your PC. Then
Find and open the “Optical Touch Device Control Panel” on your Windows desktop.
4.2 16- or 9-point calibration.
NOTE: For accurate calibration, please connect the whiteboard with the PC using the
USB cable (3.3). After the calibration is done, it can be switched to wireless mode.
Click Setting at bottom of the calibration software.

DISPLAYS2GO Interactive Whiteboard
12

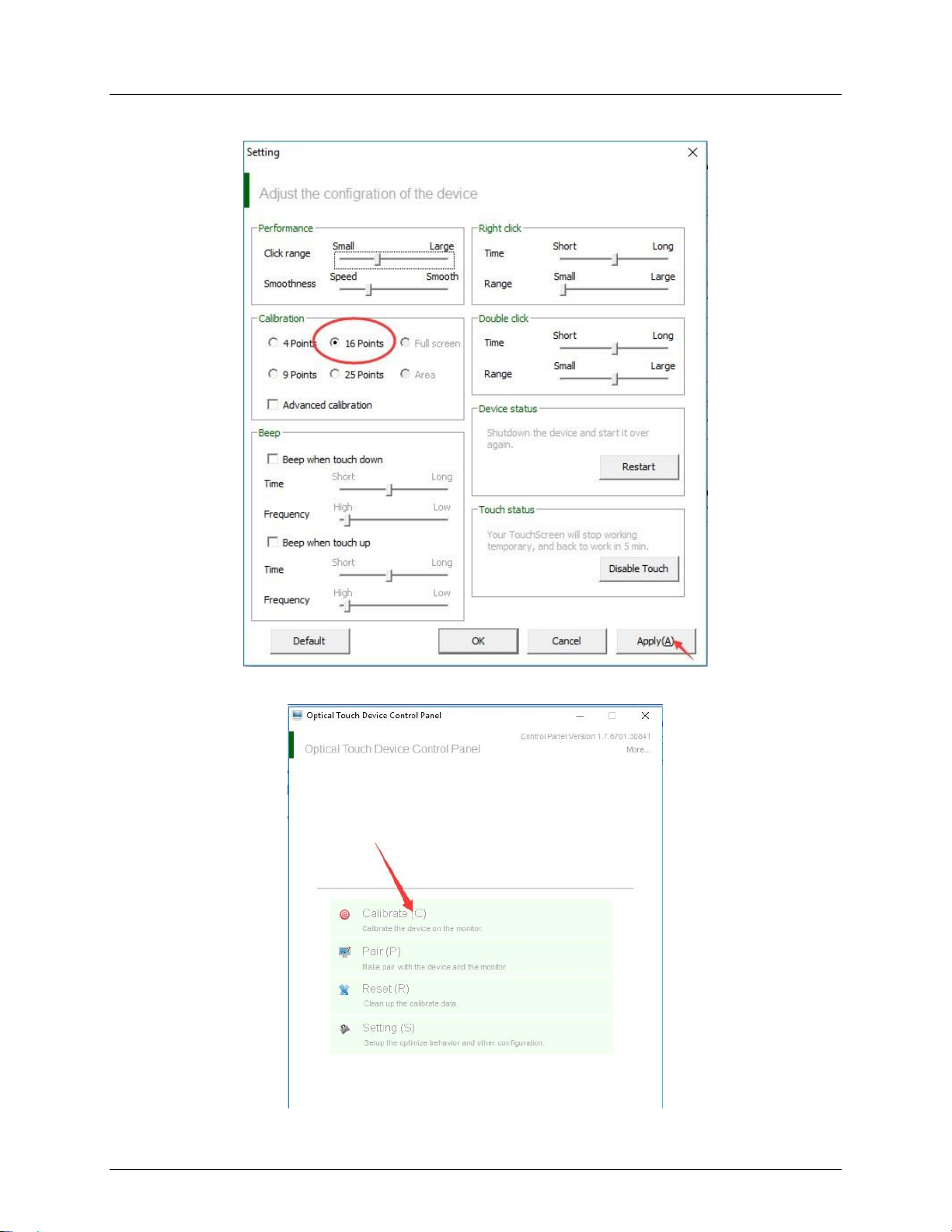

Choose “16 points” in “calibration” section then click “Apply” and “OK” to confirm the selection.
Next, click “Calibrate” to enter the calibration window.

DISPLAYS2GO Interactive Whiteboard
13

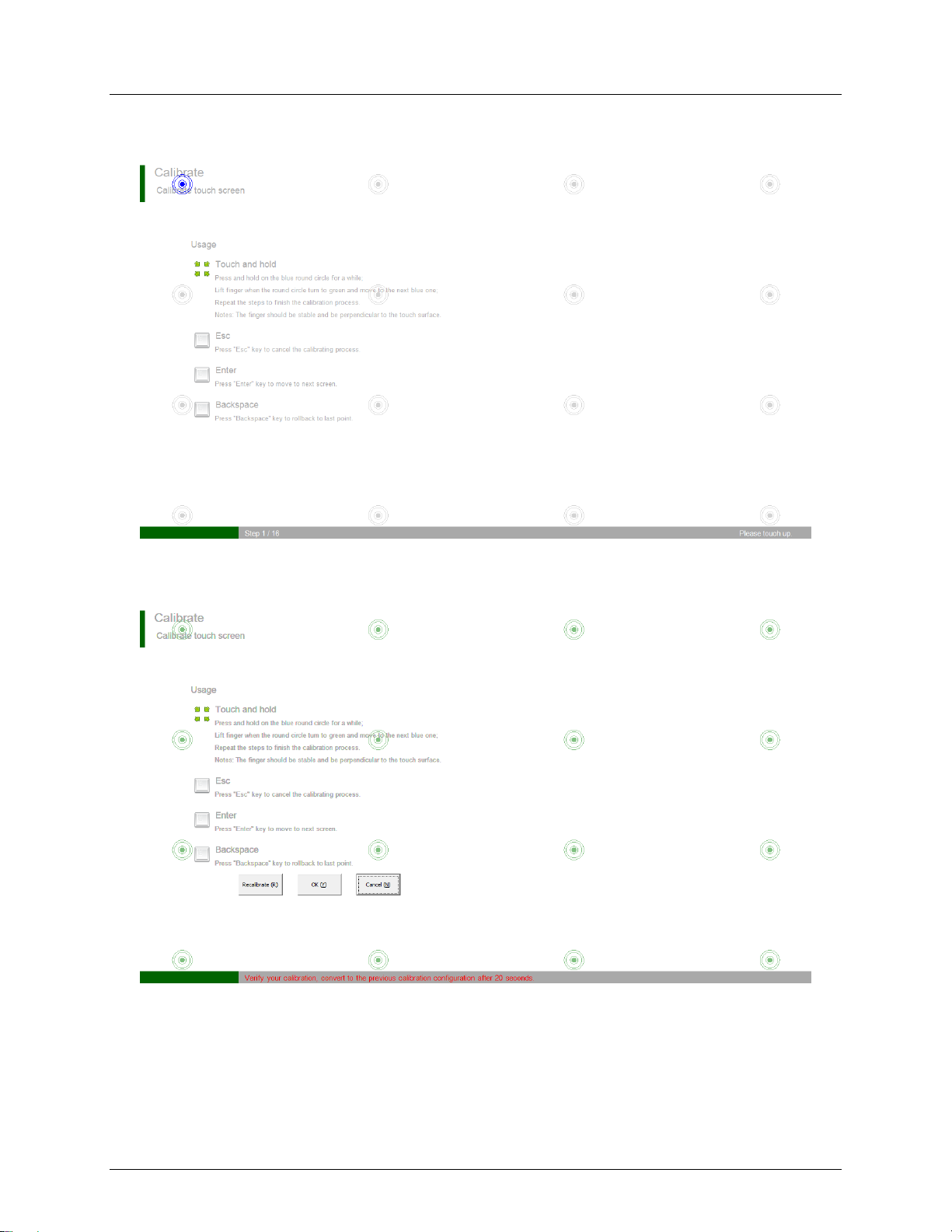

Follow the instructions on the screen: press and hold the blue dot. It will turn green after long
press.
After 16 dots all turn to green, the calibration is done. Press “OK”

DISPLAYS2GO Interactive Whiteboard
14
5. Technical Specifications
ITEM
SPECIFICATION
Whiteboard
Sensing Technology
Infrared/ Optical imaging touch technology
Sampling Rate
120 fps
Touch Points
Up to 10 Points
Touch Accuracy
±3mm
Touch Resolution
32768*32768
Response Time
≈8ms
Display Size
86’’
Aspect Ratio
16:10
Wall mounting
Supported
Touch Durability
Unlimited
Touch Object Diameter
≥10mm
Active Touch Area
72.91x45.59 in (1852x1158 mm)
Dimension
75.94x48.62x1.34 in (1929x1235x34 mm)
Interface
USB2.0 (Full Speed)
Power Requirements
DC5V±5%@500mA
Power Consumption
Average power consumption<2.5W, @5V
Software
Firmware Upgrade
Supported
Device Type
Touch (with gesture support per OS) or Mouse (click, drag,
double click, right-click)
Calibration
4-point, 16-point, 25-point
Operating Systems
Windows 10
eMark Wireless
Hub and Stick
Interface
HDMI+USB
Color
White
Transmission
Wireless, Ultra-wideband
Speed
4Gbps
Other Features
Plug and Play, Zero Lag, No Compression, 1080P HD
Interactive Transmission

DISPLAYS2GO Interactive Whiteboard
15
Environment
Operating Temperature
32°F～131°F
Storage Temperature
-13°F～167°F
Operating Humidity
10% to 90% RH, non-condensing
Storage Humidity
10% to 90% RH, non-condensing
Drift
No drift in operating temperature range
ESD
Per EN 61000-4-2: Level 4, contact discharge 6KV, air
discharge 8KV
