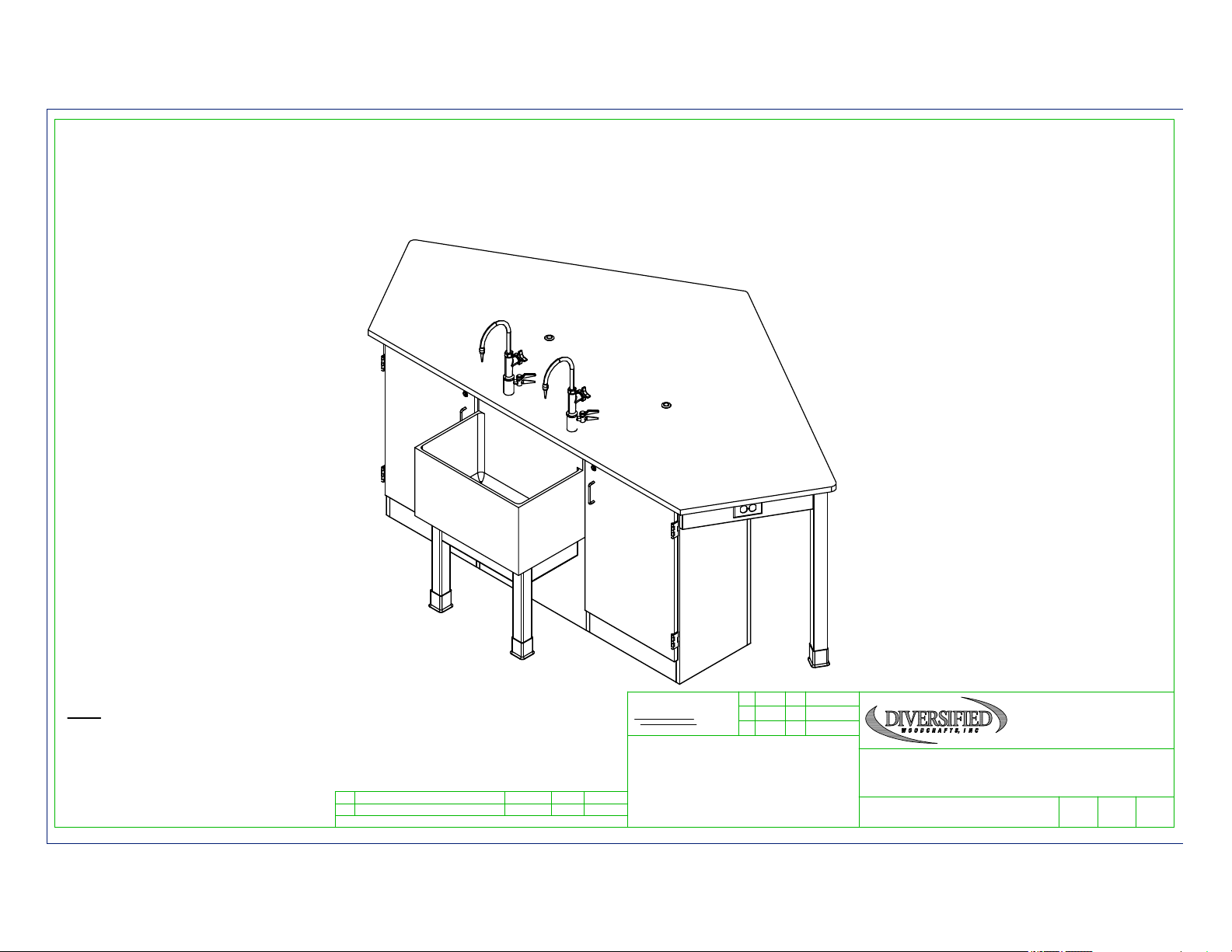

DIVERSIFIED WOODCRAFTS 2916K Series User manual

ASSEMBLY TEMPLATE
NOTE:
1. MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED
FORWARD VISION I
2916K, 2916KLH, 2936K, 2936KLH, 2946K, 2946KF, 2956K, & 2956KF SERIES
ASSEMBLY INSTRUCTIONS
REVISION LEVEL
EMK11/2/16CREATED DRAWING
REV.
A -
DWN
TITLE:
BY:
BY:
APR
DATE
DWN:
APR:
DATE
REVISION:
SCALE: SHEET:
DRAWING NUMBER:
BY:
APR
APR:
DATE
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.

THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
ALL DIMENSIONS ARE IN INCHES UNLESS
NOTED OTHERWISE
CABINET SQUARENESS = ± .0625
FRACTIONAL VALUES = ± 1/32"
- ALL VALUES ± OVERALL -
FORWARD VISION I
FORWARD VISION I
ASSEMBLY INSTRUCTIONS
REV A
1 OF 18NTS
EMK 11/2/16
NAMEDATEDESCRIPTION ECN NO.
K:\AutoCAD\Assembly Instructions\2916K & KLH, 2936K & KLH, 2946K & KF,
2956K & KF SERIES.dwg, 4/15/2020 2:58:22 PM, DWG To PDF.pc3

ASSEMBLY TEMPLATE
REVISION LEVEL
EMK11/2/16CREATED DRAWING
REV.
A -
DWN
TITLE:
BY:
BY:
APR
DATE
DWN:
APR:
DATE
REVISION:
SCALE: SHEET:
DRAWING NUMBER:
BY:
APR
APR:
DATE
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.

THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
ALL DIMENSIONS ARE IN INCHES UNLESS
NOTED OTHERWISE
CABINET SQUARENESS = ± .0625
FRACTIONAL VALUES = ± 1/32"
- ALL VALUES ± OVERALL -
FORWARD VISION I
FORWARD VISION I
TOOLS AND ASSEMBLY COMPONENTS
REV A
2 OF 18NTS
EMK 11/2/16
NAMEDATEDESCRIPTION ECN NO.
ASSEMBLY COMPONENTS
ITEMS INCLUDED PART # PART DESCRIPTION QTY
TOP VARIES TOP,EPOXY (SIZE VARIES W/ STYLE OF
CABINET) 1
CABINET N/A 2946 & 2956 CABINETS - 24"W X 35"H X
15.25"D 2
CABINET N/A 2916 & 2936 CABINETS - 21"W X 35"H X
15.25"D 2
REMOVABLE PANEL N/A 2946 & 2956 REMOVABLE PANEL - 18"W
X 35"H X 0.75"D 1
REMOVABLE PANEL N/A 2916 & 2936 REMOVABLE PANEL - 24"W
X 35"H X 0.75"D 1
BACK PANEL N/A BACK PANEL - 66"W X 35"H X 0.75"D 1
SCREWS - REMOVABLE PANEL 100495 SCREW,#10X1- 12 PHIL TR. SMS,ZN 6
SCREWS - BACK PANEL 100478 SCREW,#8X1 14 SQ. WASHER FLAT HEAD 12
LONG APRON N/A LONG APRON - 0.81"THK X 4.50"W X 49"L 2
SHORT APRON N/A SHORT APRON - 0.81"THK X 4.50"W X
21.88"L 2
BRACKET - APRON TO CABINET 100972 BRACKET, APRON TO CABINET 2
SCREWS - APRON TO CABINET 100037 SCREW,#10X58 QUAD PNHD LUB 4
BOLT - APRON TO CABINET 100387 BOLT, 38 -16X1.50 HEX HEAD 4
NUT - APRON TO CABINET 100621 NUT, 38 -16 HEX ZINC 4
WASHER - APRON TO CABINET 100451 WASHER,516 FLAT ZINC PLATED 4
BRACKET - APRON TO APRON 100376 BRACKET, APRON TO APRON 1
SCREWS - APRON TO APRON 100037 SCREW,#10X58 QUAD PNHD LUB 8
TOOLS REQUIRED
12" WRENCH
12" SOCKET AND TORQUE WRENCH - OPTIONAL
CONTACT CEMENT
SCREW DRIVER
C-CLAMPS
SHIM STOCK (IF NEEDED)
NOTE:
1. *XX* INDICATES ITEMS USED ONLY FOR THE DROP IN SINK UNITS.
1.1. EX. 2946K AND 2956K
2. **XX** INDICATES ITEMS USED ONLY FOR THE END SINK UNITS.
2.1. EX. 2916K & KLH AND 2936K & KLH
3. ***XX*** INDICATES ITEMS USED ONLY FOR THE LAB HAND UNITS.
3.1. EX. 2916KLH AND 2936KLH
K:\AutoCAD\Assembly Instructions\2916K & KLH, 2936K & KLH, 2946K & KF,
2956K & KF SERIES.dwg, 4/15/2020 2:58:29 PM, DWG To PDF.pc3

ASSEMBLY TEMPLATE
REVISION LEVEL
EMK11/2/16CREATED DRAWING
REV.
A -
DWN
TITLE:
BY:
BY:
APR
DATE
DWN:
APR:
DATE
REVISION:
SCALE: SHEET:
DRAWING NUMBER:
BY:
APR
APR:
DATE
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.

THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
ALL DIMENSIONS ARE IN INCHES UNLESS
NOTED OTHERWISE
CABINET SQUARENESS = ± .0625
FRACTIONAL VALUES = ± 1/32"
- ALL VALUES ± OVERALL -
FORWARD VISION I
FORWARD VISION I
TOOLS AND ASSEMBLY COMPONENTS
REV A
3 OF 18NTS
EMK 11/2/16
NAMEDATEDESCRIPTION ECN NO.
ASSEMBLY COMPONENTS
ITEMS INCLUDED PART # PART DESCRIPTION QTY
BOLT - APRON TO APRON 100381 BOLT,516 X2- 34, CARRIAGE BOLT 2
NUT - APRON TO APRON 100044 NUT,HEX 516 -18 STEEL ZINC 2
WASHER - APRON TO APRON 100451 WASHER,516 FLAT ZINC PLATED 2
BRACKET - CORNER LEG 100077 CORNERS,STEEL TABLE APRON 2
SCREWS - CORNER LEG 100037 SCREW,#10X58 QUAD PNHD LUB 8
LEGS 500101 LEG,OAK,2.25X2.25X34.25 3
LEG HARDWARE KIT 520001 LEG HARDWARE KIT,1 LEG 2
LEG LEVELER 100079 LEG LEVELER,BLK,BASE 1 1
LEG BOOT 100076 LEG BOOT,BLK RUBBER 3
SILICONE 100711 SILICONE,SEALANT,CLEAR 1
RUBBER BASE MOLDING 100283 RUBBER BASE MOLDING (SOLD BY FOOT) 14
STAINLESS STEEL CORNERS 100057 CORNERS-STAINLESS STEEL,BASE 4
SCREWS - BASE 100064 SCREW,#6X 12 PTH SMS SS SCREW 16
ELECTRICAL BOX 100033 ELECTRICAL BOX 3.00X2X2.5 DEEP 2
ELECTRICAL OUTLET 100034 ELEC,OUTLET,GFI,20A 125V,BLK 2
*FIXTURE - FAUCET* 100074-BKR FIXTURE,L65-WSA-DIV(MULTI-SERVICE) 2
*FIXTURE - SINK* 100691 SINK,EPOXY L3,BLK 1
*FIXTURE - SINK TRAP* 100056 SINK TRAP,PLASTIC ADJUSTABLE 1
*FIXTURE - SINK STOPPER* 100112 SINK STOPPER 1 12,BLK 1
NOTE:
1. *XX* INDICATES ITEMS USED ONLY FOR THE DROP IN SINK UNITS.
1.1. EX. 2946K AND 2956K
2. **XX** INDICATES ITEMS USED ONLY FOR THE END SINK UNITS.
2.1. EX. 2916K & KLH AND 2936K & KLH
3. ***XX*** INDICATES ITEMS USED ONLY FOR THE LAB HAND UNITS.
3.1. EX. 2916KLH AND 2936KLH
K:\AutoCAD\Assembly Instructions\2916K & KLH, 2936K & KLH, 2946K & KF,
2956K & KF SERIES.dwg, 4/15/2020 2:58:34 PM, DWG To PDF.pc3

ASSEMBLY TEMPLATE
NOTE:
1. *XX* INDICATES ITEMS USED ONLY FOR THE DROP IN SINK UNITS.
1.1. EX. 2946K AND 2956K
2. **XX** INDICATES ITEMS USED ONLY FOR THE END SINK UNITS.
2.1. EX. 2916K & KLH AND 2936K & KLH
3. ***XX*** INDICATES ITEMS USED ONLY FOR THE LAB HAND UNITS.
3.1. EX. 2916KLH AND 2936KLH
REVISION LEVEL
EMK11/2/16CREATED DRAWING
REV.
A -
DWN
TITLE:
BY:
BY:
APR
DATE
DWN:
APR:
DATE
REVISION:
SCALE: SHEET:
DRAWING NUMBER:
BY:
APR
APR:
DATE
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.

THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
ALL DIMENSIONS ARE IN INCHES UNLESS
NOTED OTHERWISE
CABINET SQUARENESS = ± .0625
FRACTIONAL VALUES = ± 1/32"
- ALL VALUES ± OVERALL -
FORWARD VISION I
FORWARD VISION I
TOOLS AND ASSEMBLY COMPONENTS
REV A
4 OF 18NTS
EMK 11/2/16
NAMEDATEDESCRIPTION ECN NO.
ASSEMBLY COMPONENTS
ITEMS INCLUDED PART # PART DESCRIPTION QTY
*FIXTURE - STRAINER* 100055 SINK,OUTLET/STRAINER EPOXY,BLK 1
**LONG APRON** N/A LONG APRON FOR END SINK - 0.81"THK
X 4.50"W X 16.06"L 1
**SHORT APRON** N/A SHORT APRON FOR END SINK - 0.81"THK
X 4.50"W X 10.44"L 2
**LEGS** 500100 LEG,OAK,2.25X2.25X28.25 2
**LEG HARDWARE** 520001 LEG HARDWARE KIT, 1 LEG 2
**LEG BOOT** 100076 LEG BOOT,BLK RUBBER 2
**BRACKET - CORNER LEG** 100077 CORNERS,STEEL TABLE APRON 2
**SCREWS - CORNER LEG** 100037 SCREW,#10X 58 QUAD PNHD LUB 8
**L BRACKET** 100355 BRACKET,RAIL 1.25X1.25X4.25 2
**SCREWS - L BRACKET** 100649 SCREW,#8X 34 PHIL TRUSS HEAD SMS 8
**FIXTURE - FAUCETS** 100074-BKR FIXTURE,L65-WSA-DIV(MULTI-SERVICE) 2
**FIXTURE - SINK** 100831 SINK,EPOXY 46E,BLK END/WALL 1
** FIXTURE - SINK TRAP** 100056 SINK TRAP,PLASTIC ADJUSTABLE 1
**FIXTURE - STOPPER** 100112 SINK STOPPER, 1 12,BLK 1
**FIXTURE - STRAINER** 100055 SINK,OUTLET/STRAINER EPOXY,BLK 1
***ROD SOCKETS*** 206505 ROD SOCKET ASSY,SOCKET,WASHER,NUT 2
***LAB HAND*** 101090 LAB HAND METAL 2
***LAB HAND ROD*** 206578-P ROD,LAB HAND,PLASTIC 78 DIAX9L 2
K:\AutoCAD\Assembly Instructions\2916K & KLH, 2936K & KLH, 2946K & KF,
2956K & KF SERIES.dwg, 4/15/2020 2:58:39 PM, DWG To PDF.pc3

ASSEMBLY TEMPLATE
NOTE:
1.
REVISION LEVEL
EMK11/2/16CREATED DRAWING
REV.
A -
DWN
TITLE:
BY:
BY:
APR
DATE
DWN:
APR:
DATE
REVISION:
SCALE: SHEET:
DRAWING NUMBER:
BY:
APR
APR:
DATE
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.

THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
ALL DIMENSIONS ARE IN INCHES UNLESS
NOTED OTHERWISE
CABINET SQUARENESS = ± .0625
FRACTIONAL VALUES = ± 1/32"
- ALL VALUES ± OVERALL -
FORWARD VISION I
FORWARD VISION I
ASSEMBLY INSTRUCTIONS
REV A
5 OF 18NTS
EMK 11/2/16
NAMEDATEDESCRIPTION ECN NO.

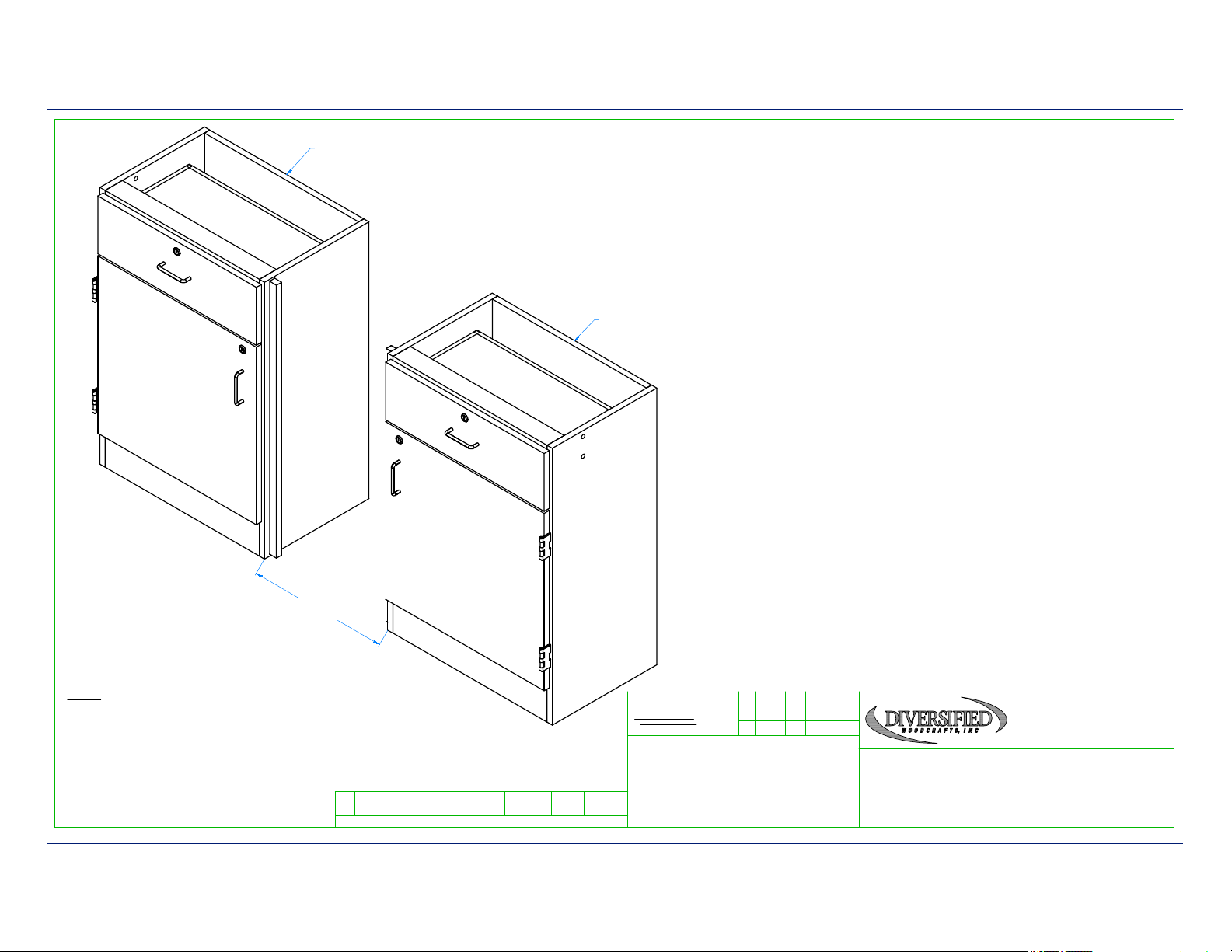

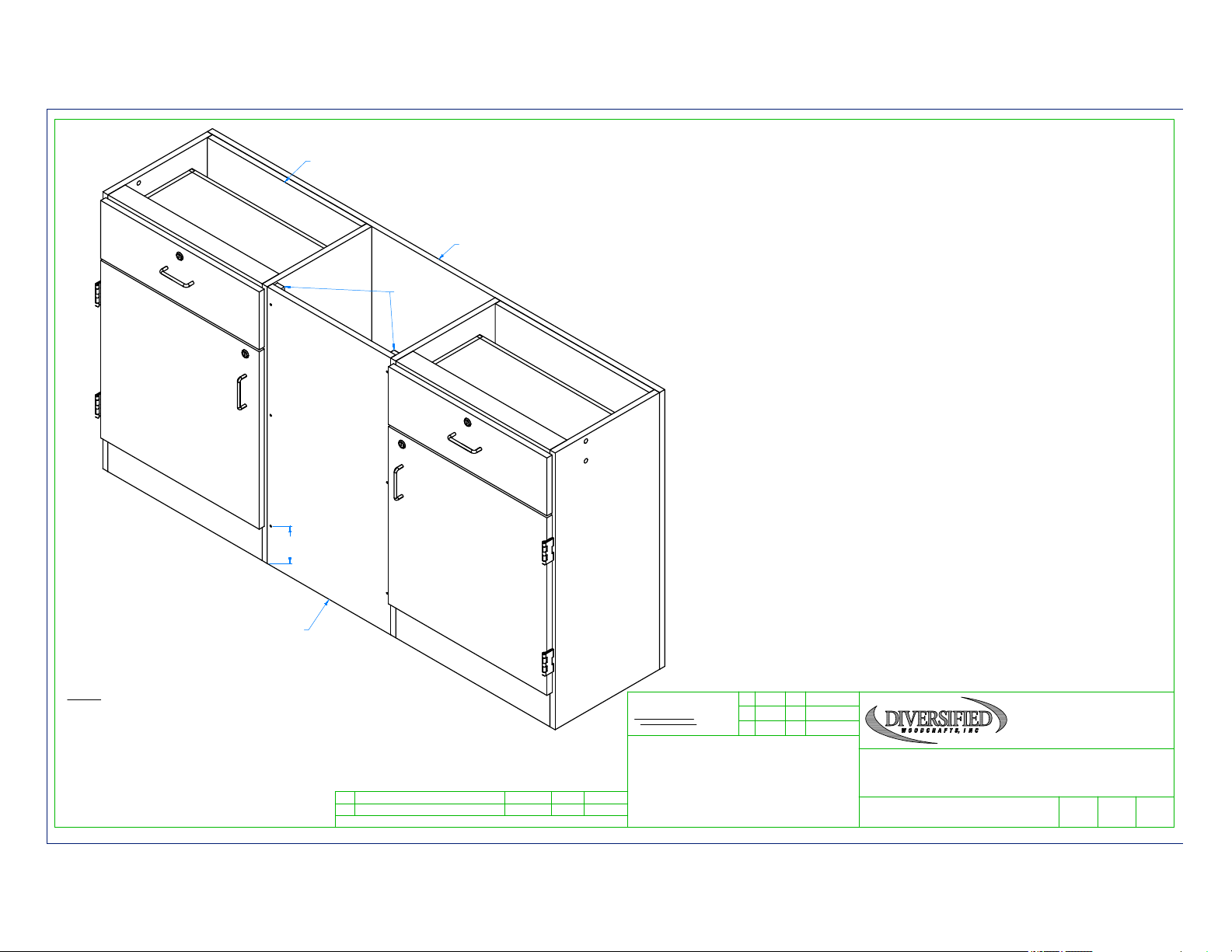

STEP 1:
•POSITION THE TWO CABINETS IN DESIRED LOCATION.
•MAKE SURE DOOR HINGES ARE ON OUTSIDE.
•IF YOU HAVE A "K" OR "KLH" SERIES, PLACE UNIT OVER
UTILITY HOOKUPS.
•LEAVE ENOUGH ROOM IN BETWEEN CABINETS FOR
REMOVABLE PANEL (EITHER 18" OR 24", DEPENDING ON
UNIT YOU HAVE).
•LEVEL CABINETS.
•ATTACH TO FLOOR.
18.00
OR
24.00
LEFT CABINET
RIGHT CABINET
K:\AutoCAD\Assembly Instructions\2916K & KLH, 2936K & KLH, 2946K & KF,
2956K & KF SERIES.dwg, 4/15/2020 2:58:44 PM, DWG To PDF.pc3

ASSEMBLY TEMPLATE
NOTE:
1.
REVISION LEVEL
EMK11/2/16CREATED DRAWING
REV.
A -
DWN
TITLE:
BY:
BY:
APR
DATE
DWN:
APR:
DATE
REVISION:
SCALE: SHEET:
DRAWING NUMBER:
BY:
APR
APR:
DATE
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.

THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
ALL DIMENSIONS ARE IN INCHES UNLESS
NOTED OTHERWISE
CABINET SQUARENESS = ± .0625
FRACTIONAL VALUES = ± 1/32"
- ALL VALUES ± OVERALL -
FORWARD VISION I
FORWARD VISION I
ASSEMBLY INSTRUCTIONS
REV A
6 OF 18NTS
EMK 11/2/16
NAMEDATEDESCRIPTION ECN NO.
STEP 2:
•ATTACH REMOVABLE PANEL WITH HARDWARE PROVIDED TO THE
CLEATS ON SIDES OF LEFT AND RIGHT CABINETS BY DRILLING PILOT
HOLES THROUGH CLEATS.
•POSITION REMOVABLE PANEL SO THAT BOTTOM HOLES ARE MORE
THAN 4" ABOVE FLOOR.
•ATTACH BACK PANEL TO BACK OF CABINETS WITH HARDWARE
PROVIDED INTO MOUNTING CLEATS LOCATED INSIDE ON TOP AND
BOTTOM OF BOTH CABINETS.

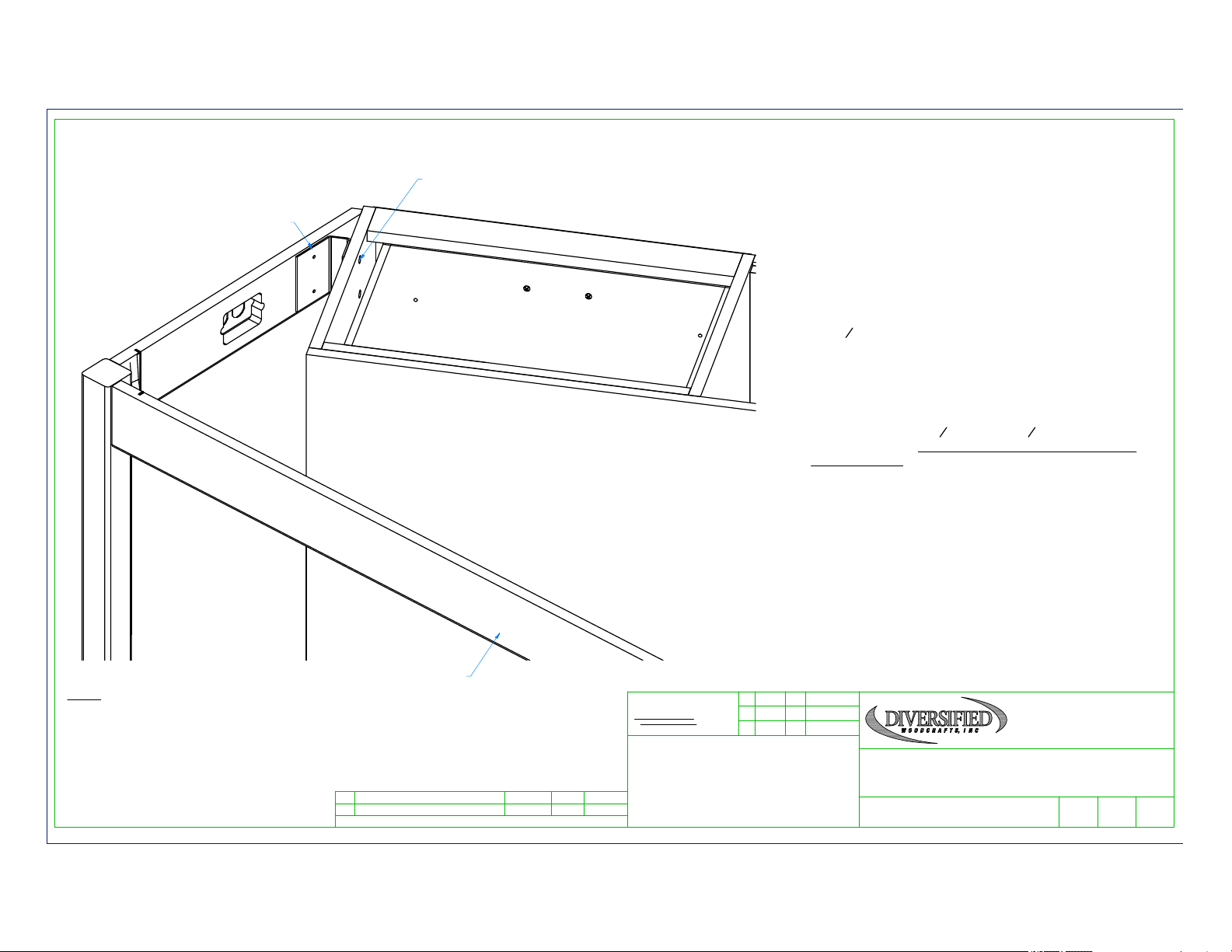

REMOVABLE PANEL
TOP MOUNTING CLEAT - TYPICAL
ATTACH BACK TO TOP AND BOTTOM MOUNTING
CLEATS FROM INSIDE OF BOTH CABINETS
(BOTTOM MOUNTING CLEAT NOT SHOWN)
CLEATS
BACK
5.00
K:\AutoCAD\Assembly Instructions\2916K & KLH, 2936K & KLH, 2946K & KF,
2956K & KF SERIES.dwg, 4/15/2020 2:58:49 PM, DWG To PDF.pc3

ASSEMBLY TEMPLATE
NOTE:
1.
REVISION LEVEL
EMK11/2/16CREATED DRAWING
REV.
A -
DWN
TITLE:
BY:
BY:
APR
DATE
DWN:
APR:
DATE
REVISION:
SCALE: SHEET:
DRAWING NUMBER:
BY:
APR
APR:
DATE
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.

THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
ALL DIMENSIONS ARE IN INCHES UNLESS
NOTED OTHERWISE
CABINET SQUARENESS = ± .0625
FRACTIONAL VALUES = ± 1/32"
- ALL VALUES ± OVERALL -
FORWARD VISION I
FORWARD VISION I
ASSEMBLY INSTRUCTIONS
REV A
7 OF 18NTS
EMK 11/2/16
NAMEDATEDESCRIPTION ECN NO.
STEP 3:
•LAYOUT WORKSTATION FRAME WITH SQUARE EDGES OF APRONS ON
FLOOR AND BOTTOM OF LEGS FACING UP.
•ATTACH THE APRON TO APRON BRACKET ONTO CENTER LEG WITH
HARDWARE PROVIDED.
•MAKE SURE BRACKET IS FLUSH TO TOP OF LEG.
•TIGHTEN NUTS USING A 12" WRENCH OR 12" SOCKET AND TORQUE
WRENCH, TO A MINIMUM OF 12FT LBS BUT NOT TO EXCEED 17FT LBS .
•ATTACH THE TWO LONG APRONS TO THE APRON TO APRON BRACKET
WITH HARDWARE PROVIDED.

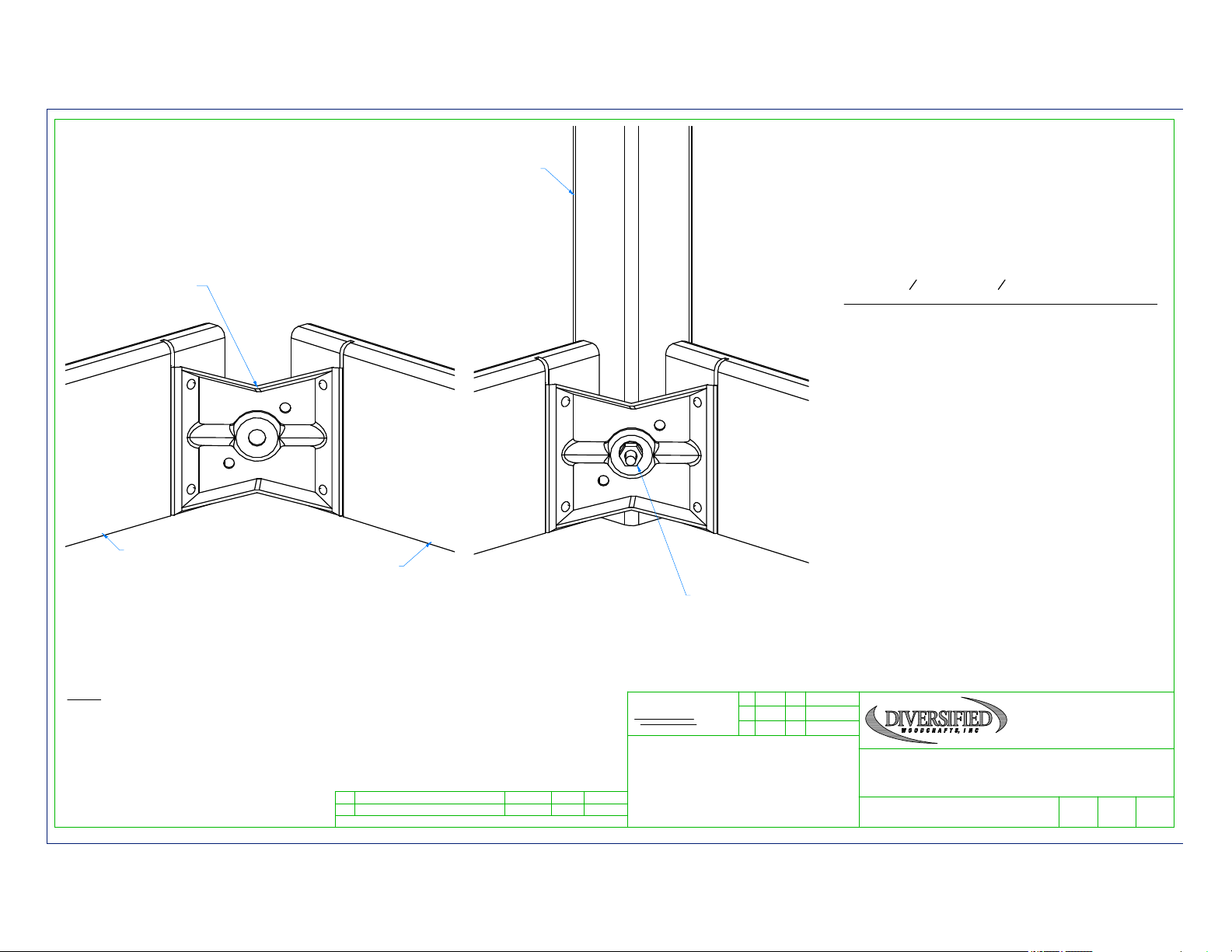

CLOSE UP OF CENTER LEG AND APRON TO APRON
BRACKET ASSEMBLY
LONG APRON
LONG APRON
SQUARE EDGES FACING DOWN
APRON TO APRON BRACKET
(FLUSH TO TOP OF LEG)
CENTER LEG
K:\AutoCAD\Assembly Instructions\2916K & KLH, 2936K & KLH, 2946K & KF,
2956K & KF SERIES.dwg, 4/15/2020 2:58:54 PM, DWG To PDF.pc3

ASSEMBLY TEMPLATE
NOTE:
1.
REVISION LEVEL
EMK11/2/16CREATED DRAWING
REV.
A -
DWN
TITLE:
BY:
BY:
APR
DATE
DWN:
APR:
DATE
REVISION:
SCALE: SHEET:
DRAWING NUMBER:
BY:
APR
APR:
DATE
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.

THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
ALL DIMENSIONS ARE IN INCHES UNLESS
NOTED OTHERWISE
CABINET SQUARENESS = ± .0625
FRACTIONAL VALUES = ± 1/32"
- ALL VALUES ± OVERALL -
FORWARD VISION I
FORWARD VISION I
ASSEMBLY INSTRUCTIONS
REV A
8 OF 18NTS
EMK 11/2/16
NAMEDATEDESCRIPTION ECN NO.
STEP 4:
•CONNECT LONG APRON AND SHORT APRON TOGETHER BY USING
THE CORNER LEG BRACKET.
•MAKE SURE BRACKET IS FLUSH WITH SQUARE EDGES OF APRONS.
•INSERT HANGER BOLT ON ONE LEG THROUGH THE CORNER
BRACKET AND INSERT LOCK WASHER AND HEX NUT.
•TIGHTEN NUT USING A 12" WRENCH OR 12" SOCKET AND TORQUE
WRENCH, TO A MINIMUM OF 12FT LBS BUT NOT TO EXCEED 17FT LBS .
•REPEAT FOR OTHER CORNER LEG.

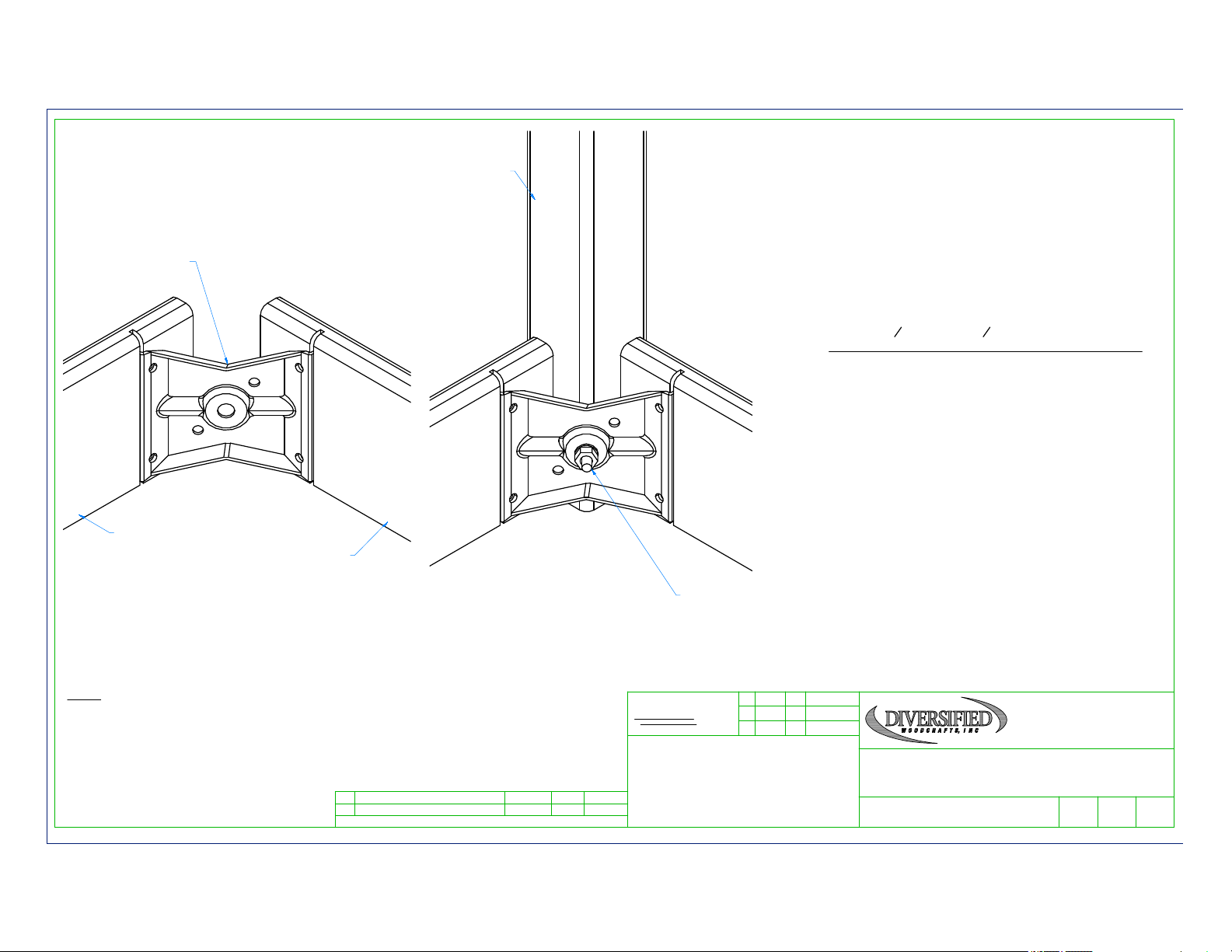

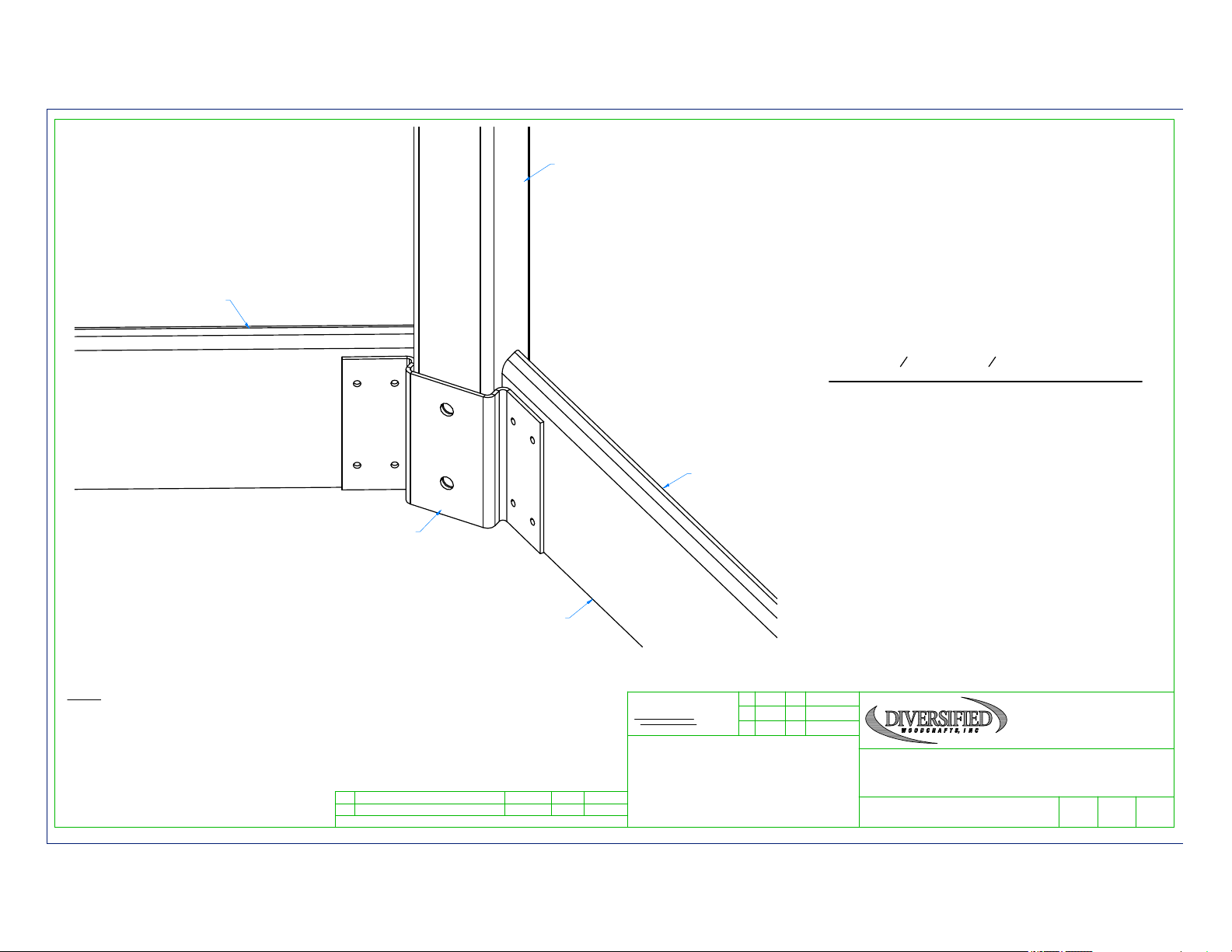

CLOSE UP OF CORNER LEG AND CORNER LEG
BRACKET ASSEMBLY
SHORT APRON
LONG APRON
CORNER LEG BRACKET
(FLUSH WITH SQUARE
EDGES OF APRONS)
CORNER LEG
INSERT HANGER BOLT
THROUGH HERE WITH LOCK
WASHER AND HEX NUT
K:\AutoCAD\Assembly Instructions\2916K & KLH, 2936K & KLH, 2946K & KF,
2956K & KF SERIES.dwg, 4/15/2020 2:58:59 PM, DWG To PDF.pc3

ASSEMBLY TEMPLATE
NOTE:
1.
REVISION LEVEL
EMK11/2/16CREATED DRAWING
REV.
A -
DWN
TITLE:
BY:
BY:
APR
DATE
DWN:
APR:
DATE
REVISION:
SCALE: SHEET:
DRAWING NUMBER:
BY:
APR
APR:
DATE
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.

THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
ALL DIMENSIONS ARE IN INCHES UNLESS
NOTED OTHERWISE
CABINET SQUARENESS = ± .0625
FRACTIONAL VALUES = ± 1/32"
- ALL VALUES ± OVERALL -
FORWARD VISION I
FORWARD VISION I
ASSEMBLY INSTRUCTIONS
REV A
9 OF 18NTS
EMK 11/2/16
NAMEDATEDESCRIPTION ECN NO.
STEP 5:
•SLIDE LEG BOOT ONTO LEG WITH FLARED END TOWARDS
BOTTOM OF LEG.
•SCREW LEG LEVELER INTO T-NUT ON BOTTOM OF THE LEG.
•REPEAT FOR ALL LEGS.
CLOSE UP OF LEG LEVELER AND LEG BOOT ASSEMBLY
LEG LEVELER
LEG BOOT
K:\AutoCAD\Assembly Instructions\2916K & KLH, 2936K & KLH, 2946K & KF,
2956K & KF SERIES.dwg, 4/15/2020 2:59:04 PM, DWG To PDF.pc3

ASSEMBLY TEMPLATE
NOTE:
1.
REVISION LEVEL
EMK11/2/16CREATED DRAWING
REV.
A -
DWN
TITLE:
BY:
BY:
APR
DATE
DWN:
APR:
DATE
REVISION:
SCALE: SHEET:
DRAWING NUMBER:
BY:
APR
APR:
DATE
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.

THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
ALL DIMENSIONS ARE IN INCHES UNLESS
NOTED OTHERWISE
CABINET SQUARENESS = ± .0625
FRACTIONAL VALUES = ± 1/32"
- ALL VALUES ± OVERALL -
FORWARD VISION I
FORWARD VISION I
ASSEMBLY INSTRUCTIONS
REV A
10 OF 18NTS
EMK 11/2/16
NAMEDATEDESCRIPTION ECN NO.
STEP 6:
•WITH HELP FROM ANOTHER PERSON, STAND WORKSTATION
FRAME UP.
•POSITION FRAME UP TO CABINET, MAKING SURE APRONS ARE
SET IN 14" FROM FRONT OF CABINETS.
•ATTACH APRON TO CABINET BRACKET ONTO APRON WITH
REMAINING SCREWS PROVIDED.
•ATTACH BRACKET ONTO SIDES OF WORKSTATION BY GOING
INSIDE OF THE CABINETS AND PLACING BOLTS THROUGH THE
HOLES PROVIDED ON SIDES OF CABINET.
•INSERT WASHERS, AND NUTS ON OUTSIDE .
•TIGHTEN NUTS USING A 12" WRENCH OR 12" SOCKET AND
TORQUE WRENCH, TO A MINIMUM OF 12FT LBS BUT NOT TO
EXCEED 17FT LBS.

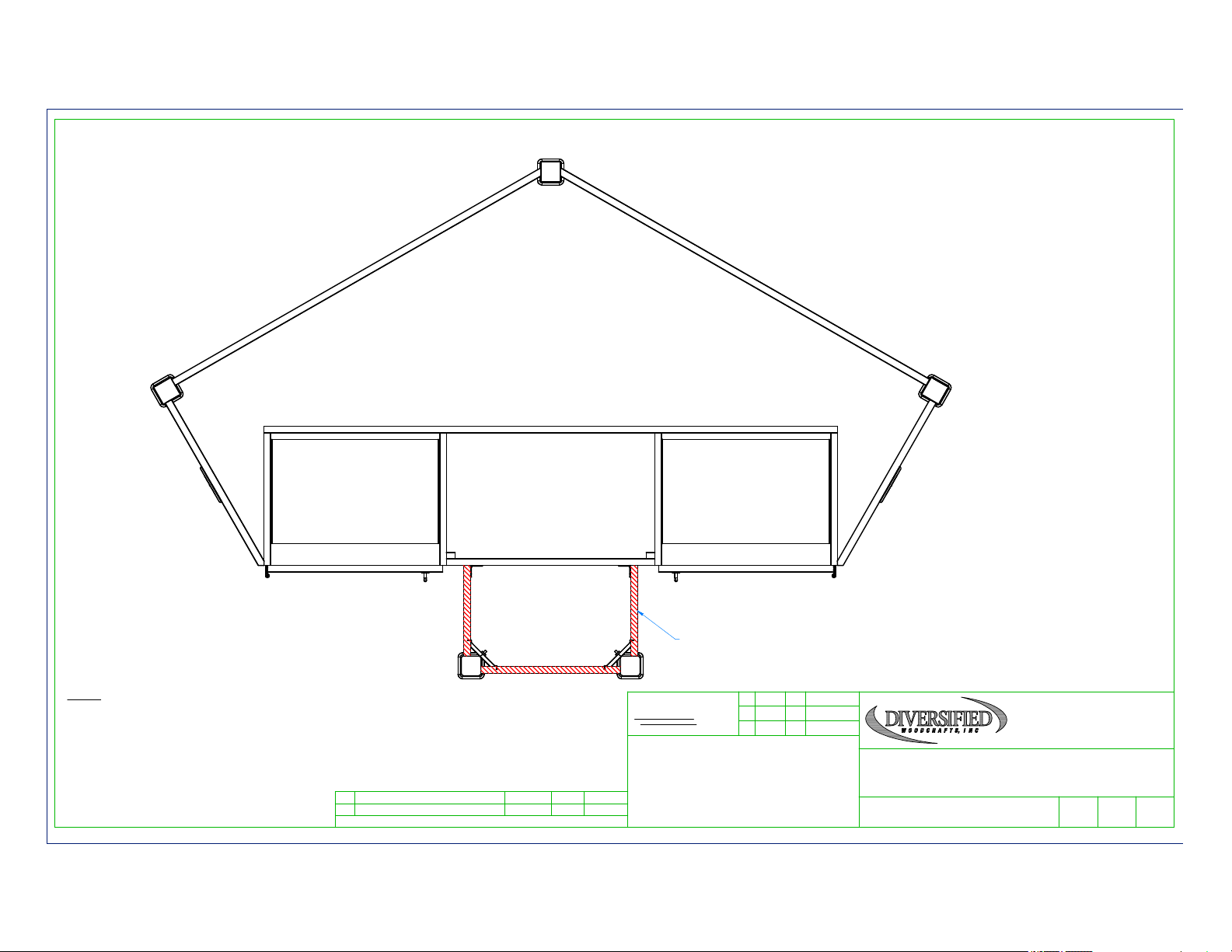

APRON TO APRON BRACKET
WORKSTATION FRAME
BACK OF WORKSTATION
ATTACH WORKSTATION FRAME
FROM INSIDE OF CABINET HERE
(REPEAT ON OTHER SIDE)
K:\AutoCAD\Assembly Instructions\2916K & KLH, 2936K & KLH, 2946K & KF,
2956K & KF SERIES.dwg, 4/15/2020 2:59:09 PM, DWG To PDF.pc3

ASSEMBLY TEMPLATE
NOTE:
1.
REVISION LEVEL
EMK11/2/16CREATED DRAWING
REV.
A -
DWN
TITLE:
BY:
BY:
APR
DATE
DWN:
APR:
DATE
REVISION:
SCALE: SHEET:
DRAWING NUMBER:
BY:
APR
APR:
DATE
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.

THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
ALL DIMENSIONS ARE IN INCHES UNLESS
NOTED OTHERWISE
CABINET SQUARENESS = ± .0625
FRACTIONAL VALUES = ± 1/32"
- ALL VALUES ± OVERALL -
FORWARD VISION I
FORWARD VISION I
ASSEMBLY INSTRUCTIONS
REV A
11 OF 18NTS
EMK 11/2/16
NAMEDATEDESCRIPTION ECN NO.
STEP 7:
•ADJUST LEG LEVELERS TO LEVEL WORKSTATION FRAME WITH CABINETS.
•APPLY SILICONE ADHESIVE TO TOP EDGES OF CABINET AND WINGS.
•PLACE TOP ON UNIT WITH PROPER OVERHANG (CENTERED ON
WORKSTATION).
•CLAMP ON TOP TO WINGS TO REMOVE ANY WARP USING SHIMS AND
C-CLAMPS, IF NEEDED, WHEN ALIGNING THE TOP (DO THIS BEFORE
ADHESIVE ON EDGES SETS UP).
•LET CURE FOR 6-12 HOURS.
•DO NOT APPLY SILICONE ADHESIVE TO REMOVABLE PANEL .

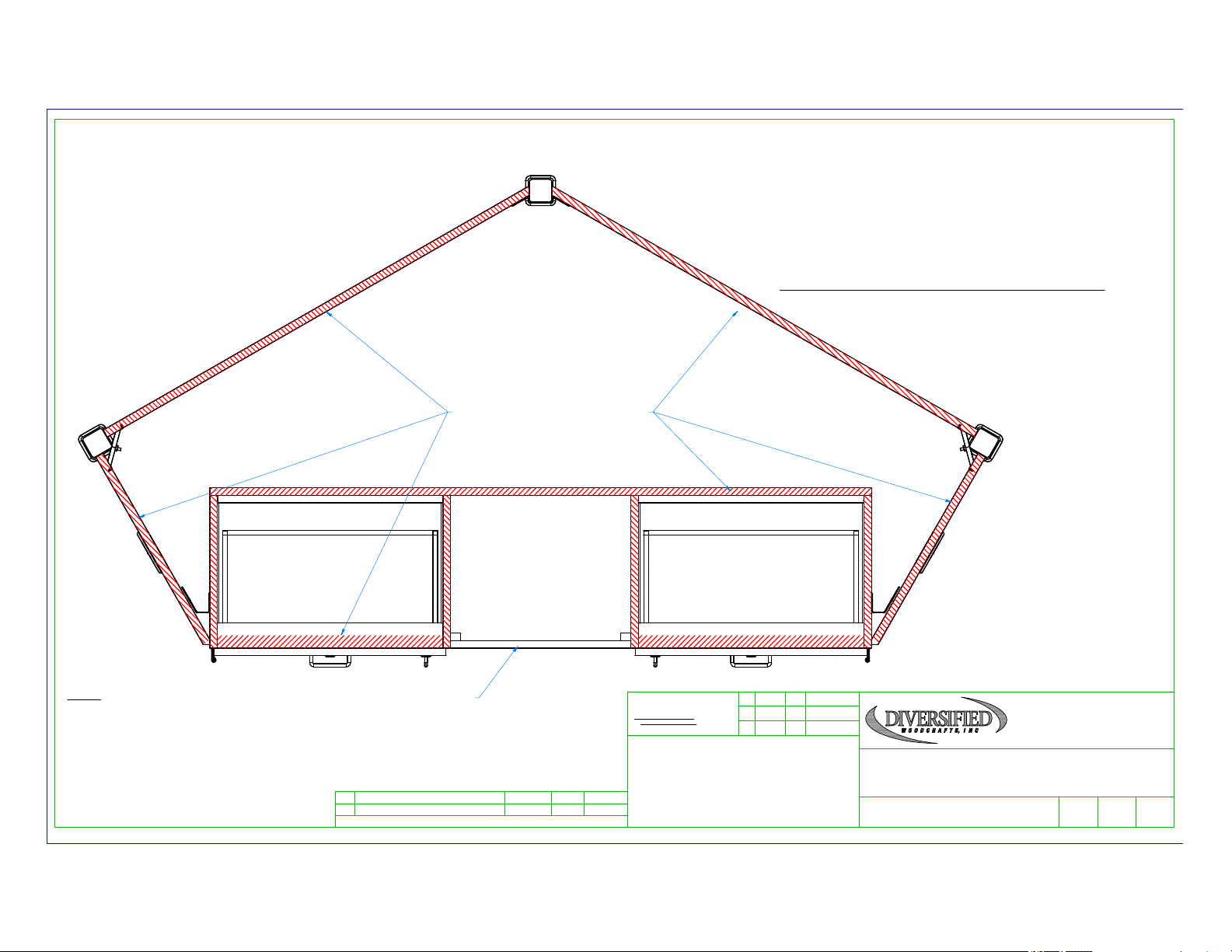

TOP VIEW OF WORKSTATION SHOWN
APPLY SILICONE ADHESIVE TO TOP
EDGES OF WINGS AND CABINETS
DO NOT APPLY SILICONE
ADHESIVE ON REMOVABLE
PANEL
K:\AutoCAD\Assembly Instructions\2916K & KLH, 2936K & KLH, 2946K & KF,
2956K & KF SERIES.dwg, 4/15/2020 2:59:14 PM, DWG To PDF.pc3

ASSEMBLY TEMPLATE
NOTE:
1.
REVISION LEVEL
EMK11/2/16CREATED DRAWING
REV.
A -
DWN
TITLE:
BY:
BY:
APR
DATE
DWN:
APR:
DATE
REVISION:
SCALE: SHEET:
DRAWING NUMBER:
BY:
APR
APR:
DATE
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.

THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
ALL DIMENSIONS ARE IN INCHES UNLESS
NOTED OTHERWISE
CABINET SQUARENESS = ± .0625
FRACTIONAL VALUES = ± 1/32"
- ALL VALUES ± OVERALL -
FORWARD VISION I
FORWARD VISION I
ASSEMBLY INSTRUCTIONS
REV A
12 OF 18NTS
EMK 11/2/16
NAMEDATEDESCRIPTION ECN NO.
STEP 8:
•IF YOU DO NOT HAVE A 2946K OR 2956K UNIT, SKIP TO STEP 13.
•APPLY SILICONE ADHESIVE TO SINK OPENING ON TOP.
•LOWER SINK INTO OPENING.
•WIPE OFF ANY EXCESS CAULK AND ALLOW TO SET.
•LET CURE FOR 6-12 HOURS.

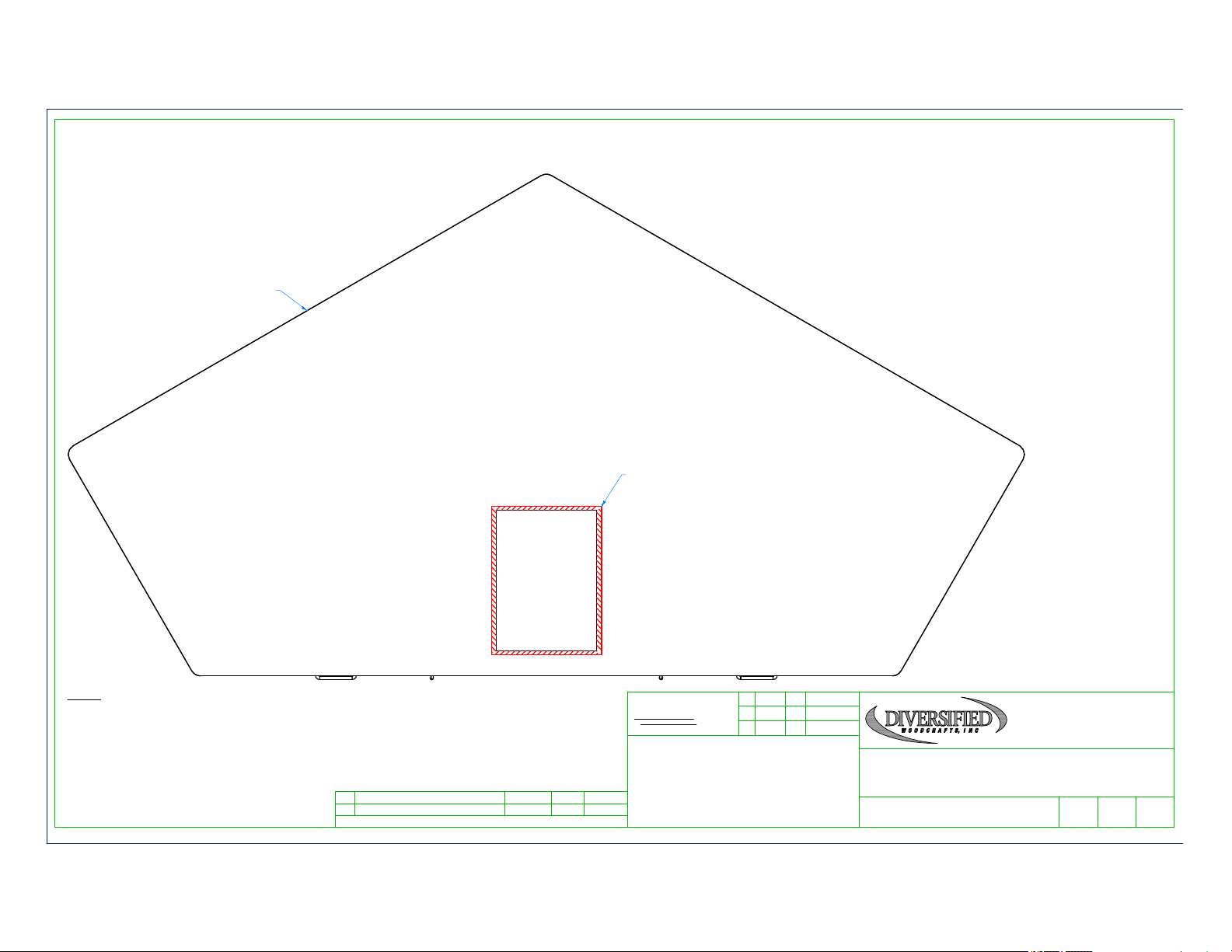

TOP VIEW OF WORKSTATION SHOWN
TOP
APPLY SILICONE ADHESIVE
AROUND OPENING FOR SINK
K:\AutoCAD\Assembly Instructions\2916K & KLH, 2936K & KLH, 2946K & KF,
2956K & KF SERIES.dwg, 4/15/2020 2:59:19 PM, DWG To PDF.pc3

ASSEMBLY TEMPLATE
NOTE:
1.
REVISION LEVEL
EMK11/2/16CREATED DRAWING
REV.
A -
DWN
TITLE:
BY:
BY:
APR
DATE
DWN:
APR:
DATE
REVISION:
SCALE: SHEET:
DRAWING NUMBER:
BY:
APR
APR:
DATE
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.

THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
ALL DIMENSIONS ARE IN INCHES UNLESS
NOTED OTHERWISE
CABINET SQUARENESS = ± .0625
FRACTIONAL VALUES = ± 1/32"
- ALL VALUES ± OVERALL -
FORWARD VISION I
FORWARD VISION I
ASSEMBLY INSTRUCTIONS
REV A
13 OF 18NTS
EMK 11/2/16
NAMEDATEDESCRIPTION ECN NO.
STEP 9:
•IF YOU DO NOT HAVE A 2916K, 2916KLH, 2936K, OR 2936KLH UNIT, SKIP
TO STEP 13.
•LAYOUT END SINK FRAME WITH SQUARE EDGES OF APRONS ON FLOOR
AND BOTTOM OF LEGS FACING UP.
•CONNECT LONG APRON AND SHORT APRON OF THE END SINK FRAME
TOGETHER BY USING THE CORNER LEG BRACKET.
•MAKE SURE BRACKET IS FLUSH WITH SQUARE EDGES OF APRONS.
•INSERT HANGER BOLT ON ONE OF THE LEGS THROUGH THE CORNER
BRACKET AND INSERT LOCK WASHER AND HEX NUT.
•TIGHTEN NUT USING A 12" WRENCH OR 12" SOCKET AND TORQUE
WRENCH, TO A MINIMUM OF 12FT LBS BUT NOT TO EXCEED 17FT LBS .
•REPEAT FOR OTHER CORNER LEG.
CLOSE UP OF CORNER LEG BRACKET ON
END SINK ASSEMBLY
LONG APRON
SHORT APRON
CORNER LEG BRACKET
(FLUSH WITH SQUARED
EDGES OF APRONS)
CORNER LEG
INSERT HANGER BOLT
THROUGH HERE WITH LOCK
WASHER AND HEX NUT
K:\AutoCAD\Assembly Instructions\2916K & KLH, 2936K & KLH, 2946K & KF,
2956K & KF SERIES.dwg, 4/15/2020 2:59:24 PM, DWG To PDF.pc3

ASSEMBLY TEMPLATE
NOTE:
1.
REVISION LEVEL
EMK11/2/16CREATED DRAWING
REV.
A -
DWN
TITLE:
BY:
BY:
APR
DATE
DWN:
APR:
DATE
REVISION:
SCALE: SHEET:
DRAWING NUMBER:
BY:
APR
APR:
DATE
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.

THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
ALL DIMENSIONS ARE IN INCHES UNLESS
NOTED OTHERWISE
CABINET SQUARENESS = ± .0625
FRACTIONAL VALUES = ± 1/32"
- ALL VALUES ± OVERALL -
FORWARD VISION I
FORWARD VISION I
ASSEMBLY INSTRUCTIONS
REV A
14 OF 18NTS
EMK 11/2/16
NAMEDATEDESCRIPTION ECN NO.
STEP 10:
•SLIDE LEG BOOT ONTO LEG WITH FLARED END TOWARDS
BOTTOM OF LEG.
•SCREW LEG LEVELER INTO T-NUT ON BOTTOM OF THE LEG.
•REPEAT FOR OTHER LEG.
CLOSE UP OF LEG LEVELER AND LEG BOOT ON END
SINK ASSEMBLY
LEG BOOT
LEG LEVELER
K:\AutoCAD\Assembly Instructions\2916K & KLH, 2936K & KLH, 2946K & KF,
2956K & KF SERIES.dwg, 4/15/2020 2:59:29 PM, DWG To PDF.pc3

ASSEMBLY TEMPLATE
NOTE:
1.
REVISION LEVEL
EMK11/2/16CREATED DRAWING
REV.
A -
DWN
TITLE:
BY:
BY:
APR
DATE
DWN:
APR:
DATE
REVISION:
SCALE: SHEET:
DRAWING NUMBER:
BY:
APR
APR:
DATE
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.

THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
ALL DIMENSIONS ARE IN INCHES UNLESS
NOTED OTHERWISE
CABINET SQUARENESS = ± .0625
FRACTIONAL VALUES = ± 1/32"
- ALL VALUES ± OVERALL -
FORWARD VISION I
FORWARD VISION I
ASSEMBLY INSTRUCTIONS
REV A
15 OF 18NTS
EMK 11/2/16
NAMEDATEDESCRIPTION ECN NO.

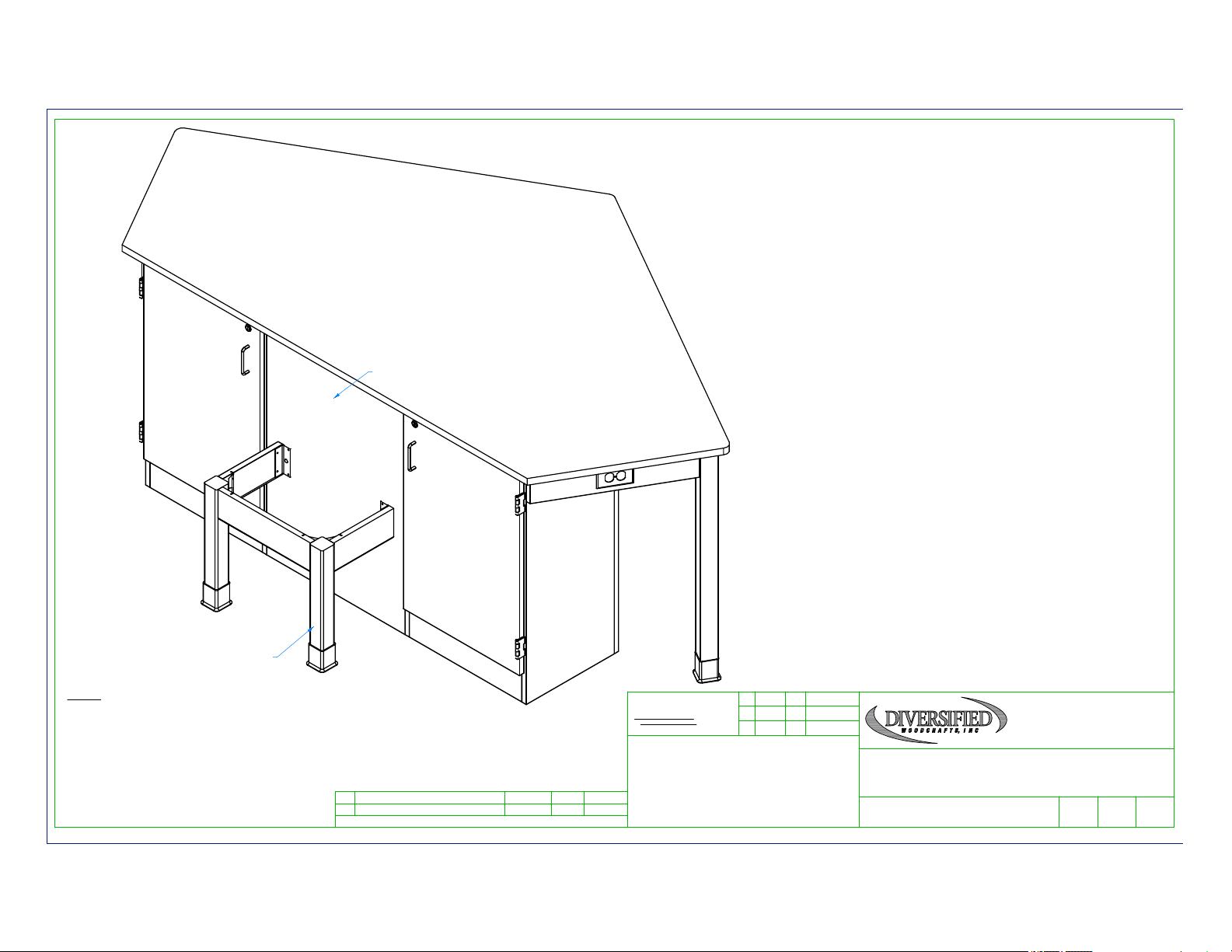

STEP 11:
•TURN END SINK FRAME UP SO SQUARE EDGES ARE
FACING UP AND BOTTOM OF LEGS ARE ON FLOOR.
•LEVEL END SINK FRAME.
•ATTACH TO REMOVABLE PANEL WITH HARDWARE
PROVIDED.
REMOVABLE PANEL
END SINK FRAME
K:\AutoCAD\Assembly Instructions\2916K & KLH, 2936K & KLH, 2946K & KF,
2956K & KF SERIES.dwg, 4/15/2020 2:59:34 PM, DWG To PDF.pc3

ASSEMBLY TEMPLATE
NOTE:
1.
REVISION LEVEL
EMK11/2/16CREATED DRAWING
REV.
A -
DWN
TITLE:
BY:
BY:
APR
DATE
DWN:
APR:
DATE
REVISION:
SCALE: SHEET:
DRAWING NUMBER:
BY:
APR
APR:
DATE
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.

THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
ALL DIMENSIONS ARE IN INCHES UNLESS
NOTED OTHERWISE
CABINET SQUARENESS = ± .0625
FRACTIONAL VALUES = ± 1/32"
- ALL VALUES ± OVERALL -
FORWARD VISION I
FORWARD VISION I
ASSEMBLY INSTRUCTIONS
REV A
16 OF 18NTS
EMK 11/2/16
NAMEDATEDESCRIPTION ECN NO.
STEP 12:
•APPLY SILICONE ADHESIVE TO TOP EDGES OF WINGS
ON THE END SINK FRAME.
•LOWER SINK ONTO FRAME.
•MAKE SURE SINK IS TIGHT AGAINST CABINET PANEL.
•WIPE OFF ANY EXCESS CAULK AND ALLOW TO SET.
•LET CURE FOR 6-12 HOURS.
TOP VIEW OF END SINK FRAME SHOWN
(TOP REMOVED TO SHOW CLARITY)
APPLY SILICONE
ADHESIVE HERE FOR SINK
K:\AutoCAD\Assembly Instructions\2916K & KLH, 2936K & KLH, 2946K & KF,
2956K & KF SERIES.dwg, 4/15/2020 2:59:39 PM, DWG To PDF.pc3

ASSEMBLY TEMPLATE
NOTE:
1. ALL WATER, ELECTRICAL, AND GAS CONNECTIONS SHOULD BE
PERFORMED BY A TRAINED PROFESSIONAL PER LOCAL CODE.
REVISION LEVEL
EMK11/2/16CREATED DRAWING
REV.
A -
DWN
TITLE:
BY:
BY:
APR
DATE
DWN:
APR:
DATE
REVISION:
SCALE: SHEET:
DRAWING NUMBER:
BY:
APR
APR:
DATE
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.

THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
CONSENT IS SUBJECT TO LEGAL ACTION.
ALL DIMENSIONS ARE IN INCHES UNLESS
NOTED OTHERWISE
CABINET SQUARENESS = ± .0625
FRACTIONAL VALUES = ± 1/32"
- ALL VALUES ± OVERALL -
FORWARD VISION I
FORWARD VISION I
ASSEMBLY INSTRUCTIONS
REV A
17 OF 18NTS
EMK 11/2/16
NAMEDATEDESCRIPTION ECN NO.
STEP 13:
•ATTACH RUBBER MOLDING TO BASE OF WORKSTATION USING
CONTACT CEMENT.
•SCREW STAINLESS STEEL CORNER BRACKETS ON EACH CORNER OVER
BASE MOLDING WITH HARDWARE PROVIDED.
•IF YOU HAVE A 2916K, 2916KLH, 2936K, 2936KLH, 2946K, OR 2956K UNIT,
INSTALL MULTI-SERVICE FIXTURES IN THE HOLES PROVIDED ON TOP.
•INSERT ROD SOCKETS INTO PRE-DRILLED HOLES IN TOP.

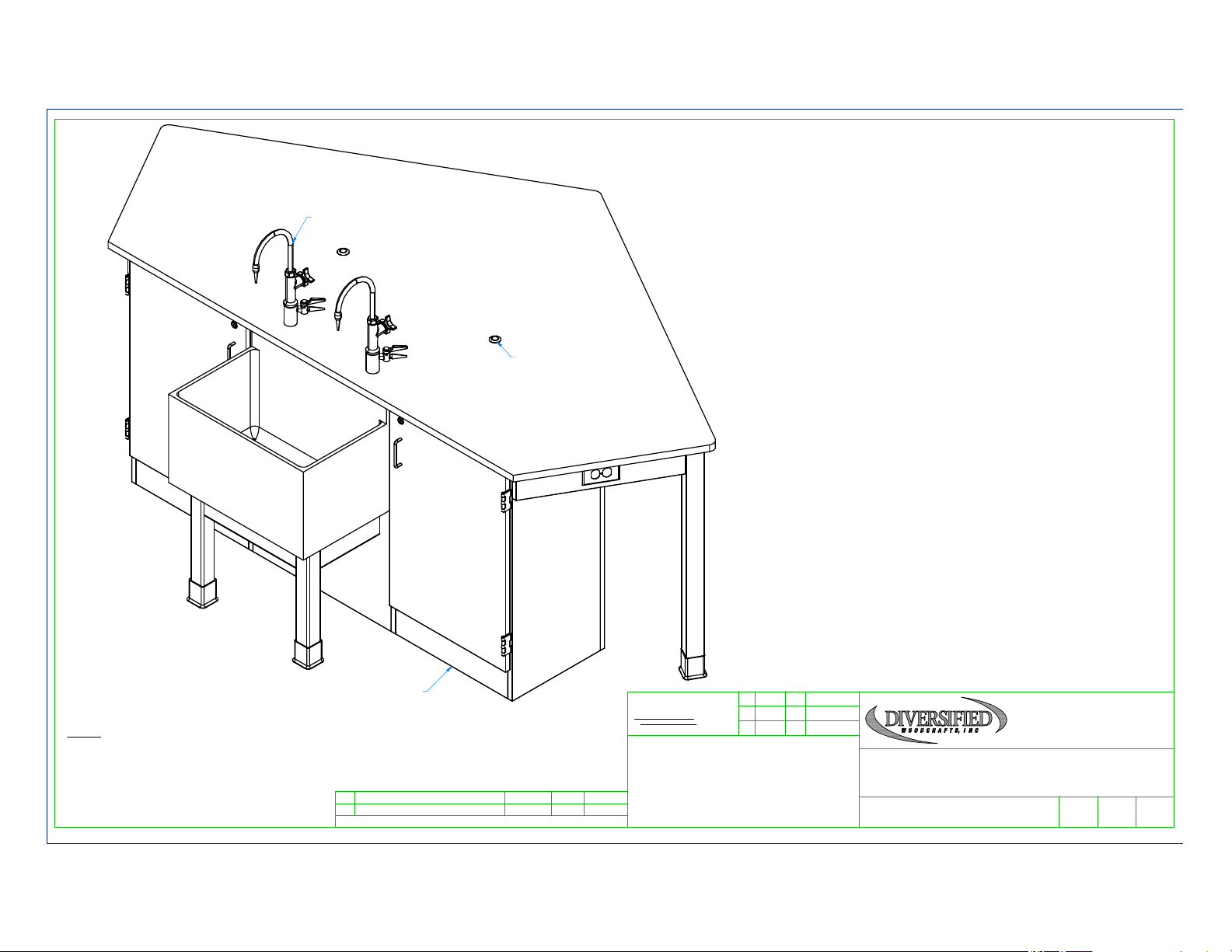

COMPLETE UNIT SHOWN
MULTI-SERVICE
FIXTURE - TYPICAL
ROD SOCKET - TYPICAL
ATTACH RUBBER
MOLDING TO BASE
K:\AutoCAD\Assembly Instructions\2916K & KLH, 2936K & KLH, 2946K & KF,
2956K & KF SERIES.dwg, 4/15/2020 2:59:44 PM, DWG To PDF.pc3

TROUBLESHOOTING YOUR GFCI ELECTRICAL RECEPTACLE:
PLEASE NOTE: THROUGHOUT ANY OF THE FOLLOWING STEPS (PROCEDURES); IF YOU ARE
NOT SURE YOU CAN DO THIS JOB SAFELY, AND COMPETENTLY, REFER THIS WORK TO
QUALIFIED PROFESSIONAL!
If your unit comes equipped with a GFCI (Ground Fault Circuit Interrupter) electrical
receptacle, and there is no power in the receptacle please consider/check the following:
•The extension cord (if being used) is working properly.
•The breaker hasn’t been tripped, or turned off.
This type of GFCI has two testing-related buttons on it. One button is appropriately labeled “TEST”,
and the other button is labeled “RESET”. To test the GFCI receptacle follow these steps:
•Plug in an appliance (lamp or night light) into the outlet. The light should now be on. Then
press the “TEST” button on the GFCI. The GFCI “RESET” button should pop out, and the
light should go out.
•If the “RESET” button pops out, but the light doesn’t go out, the GFCI has been improperly
wired. In this case please contact a certified professional. There may also be a problem with
other wiring in the same circuit.
•If the “RESET” button doesn’t pop out, the GFCI is defective, or malfunctioned, and should
be replaced.
•If the GFCI is functioning properly, and the lamp goes out, press the “RESET” button to
restore power to the outlet.
Conversely, if you have a GFI that has tripped (which is common) and it will not reset, you may
have a wiring short in the circuit, a defective appliance on the circuit, or the GFI itself has become
defective. To test a tripping GFCI follow these steps:
•Remove every appliance connected to the GFCI's circuit and reset it. If it doesn't reset there
may either be a wiring fault behind a socket outlet, or your GFCI itself has become faulty.
•Make sure whatever you are plugging into to the GFCI is dry and not damaged.
•Only plug in one item at a time. If you are plugging in a defective item it will cause the GFCI
to trip, and that item therefore should be replaced.
If you are still having difficulty the easiest way to troubleshoot a GFI is to obtain a GFI tester, which
is available at most hardware stores. It plugs into the GFI outlet, and will supply you with a
"snapshot" of your connections, indicating wiring problems and/or the condition of the GFI. Another
way to troubleshoot is to simply purchase a new GFI and install it.
