DIVERSITECH Asurity ULTRACP-22 User manual

Installation Instructions
Standard Applications
Models: ULTRACP-22, ULTRACP-22-230,
ULTRACP-22T, ULTRACP-22T-230
Condensate
Pump Ultra

ASURITYTM
CONDENSATE MANAGEMENT PAGE 2
INTRODUCTION
SAFETY INFORMATION
Please read, understand, and follow all safety instructions. Failure to follow
instructions may result in property damage, serious injury, or death.
DANGER
ALWAYS disconnect power prior to moving, adjusting, or servicing
pump or attached systems. DO NOT use this pump in the presence of
spraying or standing water. Failure to do so could result in a fatal electric
shock.
WARNING: FIRE AND EXPLOSION HAZARD
DO NOT use this pump to move ammable or explosive liquids.
DO NOT use this pump in explosive or ammable environments.
Carbon monoxide hazard. Ensure that pump is mounted away from heat
exchanger or wiring. If you are unsure of any items in this manual, please
consult a professional and DO NOT attempt to install this product.
CALIFORNIA PROPOSITION 65
This product may contain chemicals known to the state of California to
cause cancer, birth defects, or other reproductive harm. Wash hands
after handling this product.
CAUTION: FLOOD RISK
Personal injury or property damage can result from an inoperative
pump. If a ood has occurred, DO NOT walk in wet area until all power
has been turned o. Check with local electric company or a qualied
electrician before disconnecting any electrical service prior to pump
removal.
WARNING
Supply voltage and frequency must match what is shown on pump
nameplate. Source voltages lower than the rated supply can reduce
performance and cause pump to overheat.
Pump must be level and should be mounted to or placed on a solid
surface or oor.
DO NOT cover pump air vents. Pump is air cooled. DO NOT cover
vent holes located on top or sides of the pump housing. Pump may be
operated continuously as long as air vents are not covered.
Pump should be stored indoors. The chosen location should be clean
and dry.
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or

www.diversitech.com | 800.995.2222 PAGE 3
instruction concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not play
with the appliance.
WATER TEMPERATURE RATING (NOT TESTED FOR HOT WATER)
• Continuous duty 140˚F
• Max inlet temperature 160˚F
• Not suitable for contact with steam or gases that exceed 160˚F
GENERAL INFORMATION
This pump is designed to automatically remove the condensate water that
collects from appliances such as air conditioners and de-humidiers. The
pump has a built-in tank that collects water from the appliance. When water
collected reaches sucient level inside pump tank, pump switches on and
pumps water to a remote location for disposal.
When tank is suciently empty, pump automatically switches o. Pump is
capable of lifting water up to 22 ft. and is equipped with a check valve that
prevents water from owing back into tank when pump shuts o.
The pump utilizes LED lights that show the status of Power Available, Motor
Running, and High Water (Alarm) Conditions. Pump is also equipped with a
switch that activates when water in tank reaches an overow condition. The
overow safety switch may be connected to turn o the appliance if high
water condition occurs.

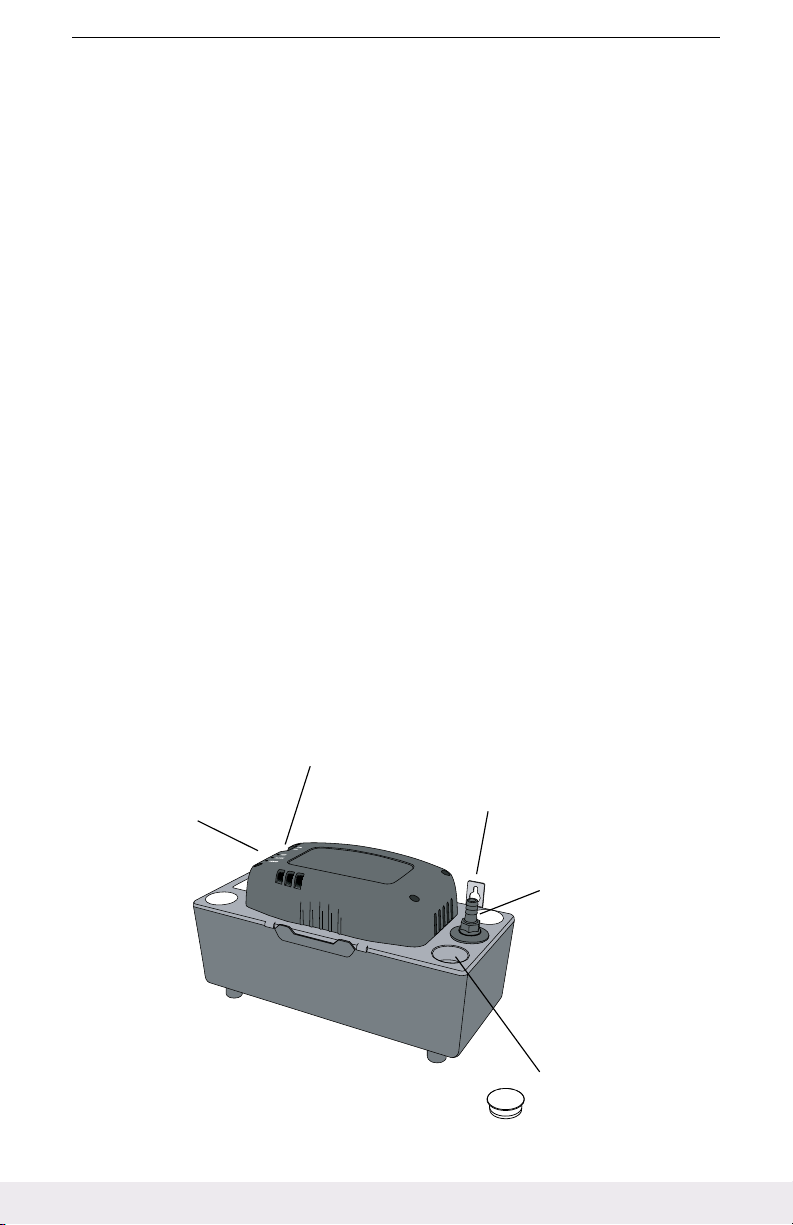

FEATURES
Metal Hang Tabs
Lengüetas colgantes
de metal
Check valve - Removable
Válvula de retención - Removible
Inlet Hole Cover
Cubierta
Inlet Hole
Orificio de entrada
Overflow Safety Switch Terminals
Terminales del interruptor de seguridad de rebose
LED indicator Lights
Luces indicadoras con
bombilla LED

ASURITYTM
CONDENSATE MANAGEMENT PAGE 4
PACKAGE CONTENTS
SPECIFICATIONS
PART DESCRIPTION QUANTITY
A Condensate Pump 1
B Inlet Hole Covers 3
C Wires with Pre-crimped Connectors 1
A
ULTRACP-22 ULTRACP-22-230
Rated Voltage 120 Volts/60Hz 230 Volts/60 Hz
Rated Current Draw 1.9 Amps 1.0 Amps
Head Height 22 ft. maximum 22 ft. maximum
Flow Rate at Zero
Head
1.6 GPM 1.0 GPM
Product Weight 5 lbs. 5 lbs.
Inlet Height from Base 4.4 in. 4.4 in.

www.diversitech.com | 800.995.2222 PAGE 5
INSTALLATION

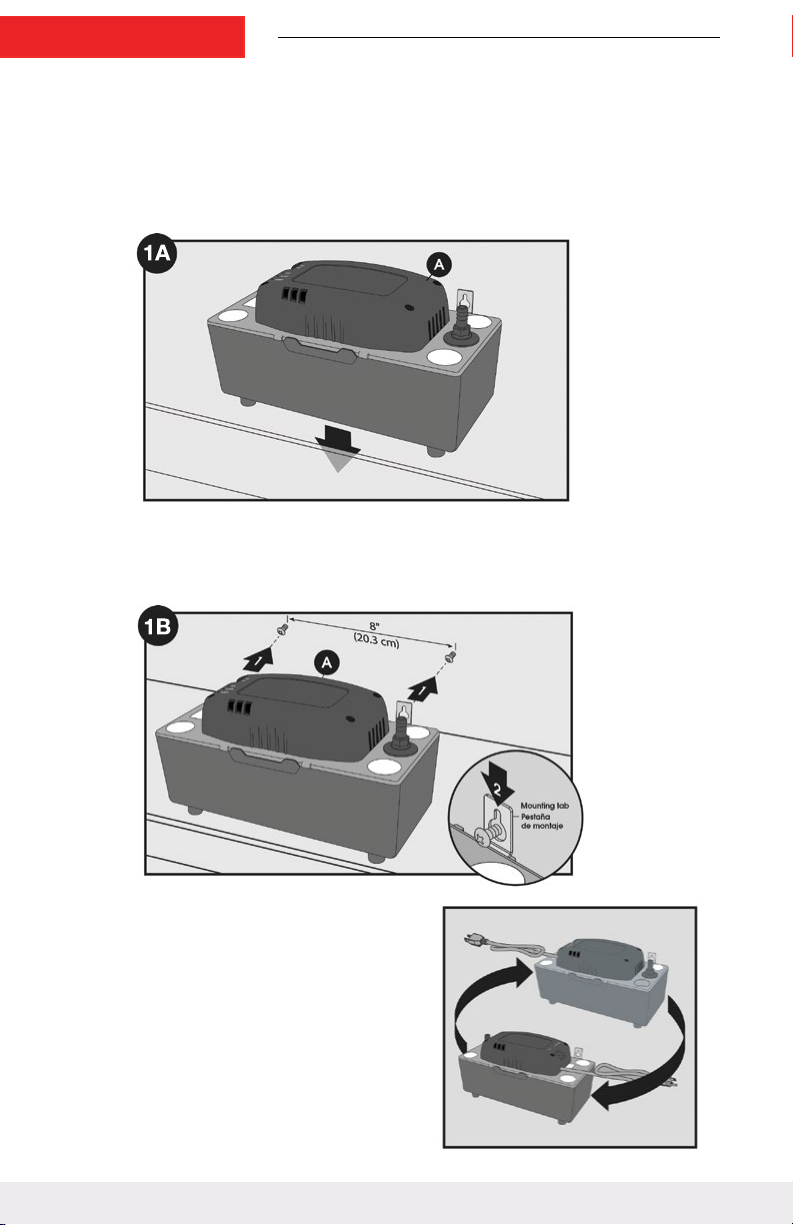

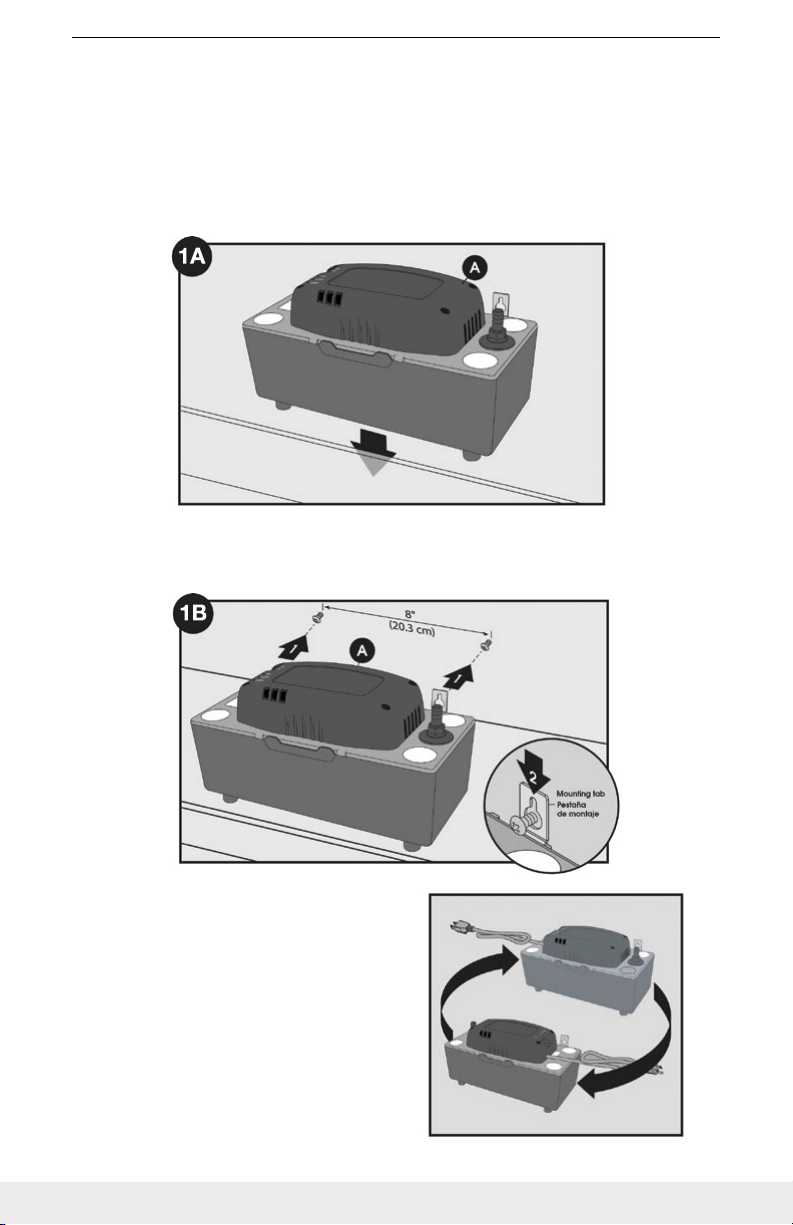

MOUNTING OPTIONS
1A. PLACE ON FLOOR
Determine condensate pump location.
1B. ATTACH TO WALL
Attach condensate pump with screws (8 in. between mounting tabs).
OPTION: REVERSE TOP IF
NECESSARY
Pump top may be rotated 180˚
to allow access to pump outlet
or power connection.

ASURITYTM
CONDENSATE MANAGEMENT PAGE 6
INSTALLATION (continued)
2. LEVEL UNIT
Ensure that condensate pump is level.
OUTLET CONNECTIONS
3. INSTALL OUTLET TUBE CONNECTION
Attach plastic tubing to check valve and secure with hose clamp.
Route tubing up and away from condensate pump (avoid compressing
or kinking tubing).
1
3/8" Clear vinyl plastic tubing
Tubería de plástico de vinilo
transparente de 9,53mm
1/2" Hose clamp
Abrazadera para manguera
de 12,7 mm
Check valve
Válvula de control
3
A
2

www.diversitech.com | 800.995.2222 PAGE 7
INSTALLATION (continued)
INLET CONNECTIONS
4. INSTALL INLET TUBE CONNECTIONS
Install condensate drain tubing into one of the four inlet holes,
making sure tubing is straight.
If installing to a humidier, a
“P” trap should be used.
INLET COVERS
5. INSTALL INLET COVERS
Insert inlet covers in remaining condensate pump inlet holes.
Inlet tubing
Tubería de
entrada
Inlet holes
Orificios de
entrada
Inlet holes
Orificios de
entrada
4A
AB
5

ASURITYTM
CONDENSATE MANAGEMENT PAGE 8
INSTALLATION (continued)

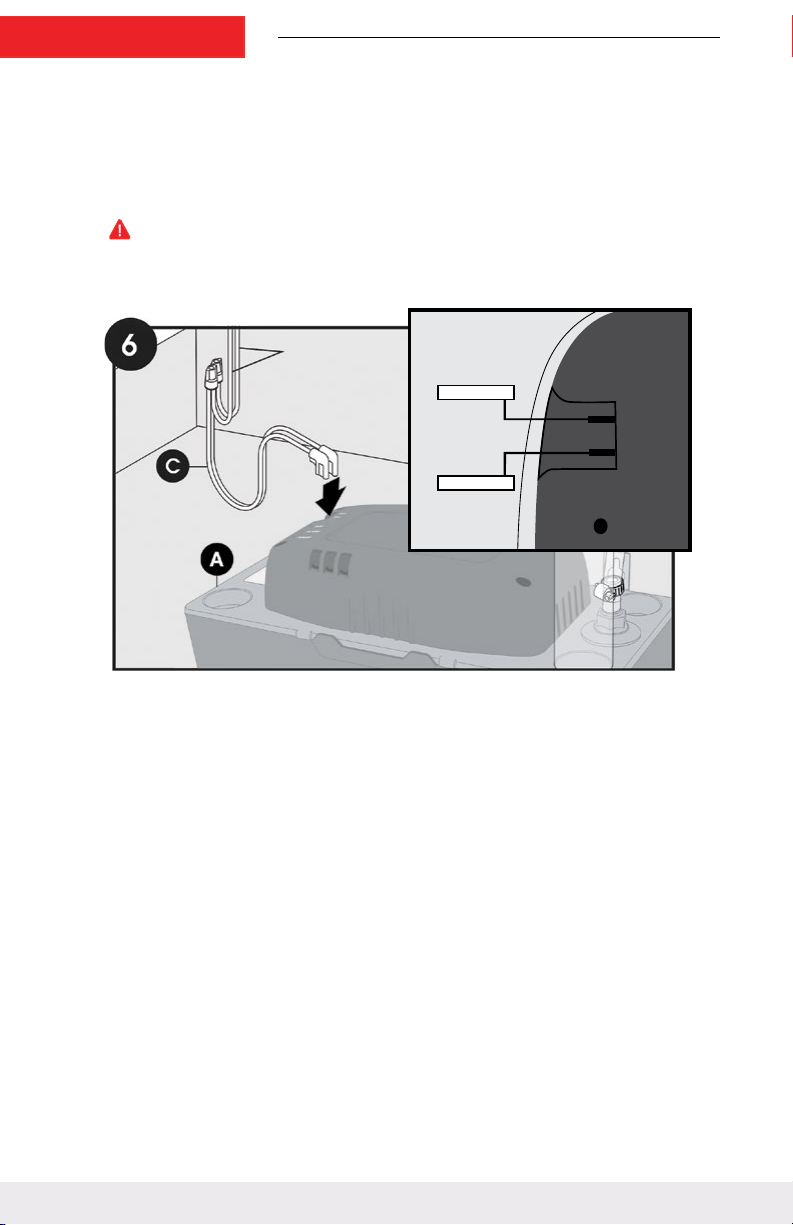

6. SAFETY SWITCH CONNECTION
Connect overow safety switch terminals as shown in wiring diagram.
WARNING: RISK OF ELECTRIC SHOCK
Ensure that power to appliance and pump is shut o before
attempting this step! Failure to follow these warnings will void the
warranty and could result in a fatal electric shock.
Com
Run
RUN
Shut-Down Circuit*
Shut-Down Circuit*
*Overflow Switch is normally
closed and opens when a
high water level is detected.
Connect this circuit in series
with the appropriate 24V
shut-down circuit for the
appliance.

www.diversitech.com | 800.995.2222 PAGE 9
INSTALLATION (continued)
ELECTRICAL CONNECTION
7. ELECTRICAL CONNECTION
WARNING: RISK OF ELECTRIC SHOCK
This pump is supplied with a grounding conductor and grounding-
type attachment plug.To reduce the risk of electric shock, be certain
that it is connected only to a properly grounded, grounding-type
receptacle. This pump must be properly connected to power
following the National Electric Code (NEC). Failure to follow these
warnings will void warranty and could result in a fatal electric shock.
A green LED will indicate if power is available.
This pump is supplied with a grounding conductor and grounding
type attachment plug. To reduce the risk of electric shock, be certain
that it is connected only to a properly grounded, grounding-type
receptacle.
Plug Note: Removal of the wall side electrical plug may be
permissible if:
1. The power leads, after plug removal, are connected directly
within an approved junction or conduit box, as judged by the local
authority having jurisdiction.
  2.Themodicationisperformedbyaqualiedtechnician.
  3.Themodicationmeetscodecompliantrequirementsaccording 
to the local authority.
This modication does not void the factory warranty. Final
installations should always be inspected and approved by the local
authority according to the requirements set forth by
the same local authority.

ASURITYTM
CONDENSATE MANAGEMENT PAGE 10
OPERATION
1. TESTING FLOAT
Manually ll the tank with water. An amber LED will indicate pump is
operating.
2. TESTING OVERFLOW SWITCH (IF CONNECTED)
Manually overll tank with water. If overow safety switch is wired
correctly, appliance will shut down, condensate pump will pump out
water, and a red LED will illuminate.
2
1
1
1
2

www.diversitech.com | 800.995.2222 PAGE 11
LED INDICATOR STATUS
LED STATUS
Green LED Indicates pump has power and is ready
Amber LED Indicates pump is running and removing condensate from tank
Red LED Indicates pump is in alarm mode and that the system is shuto/
disabled (if connected)

ASURITYTM
CONDENSATE MANAGEMENT PAGE 12

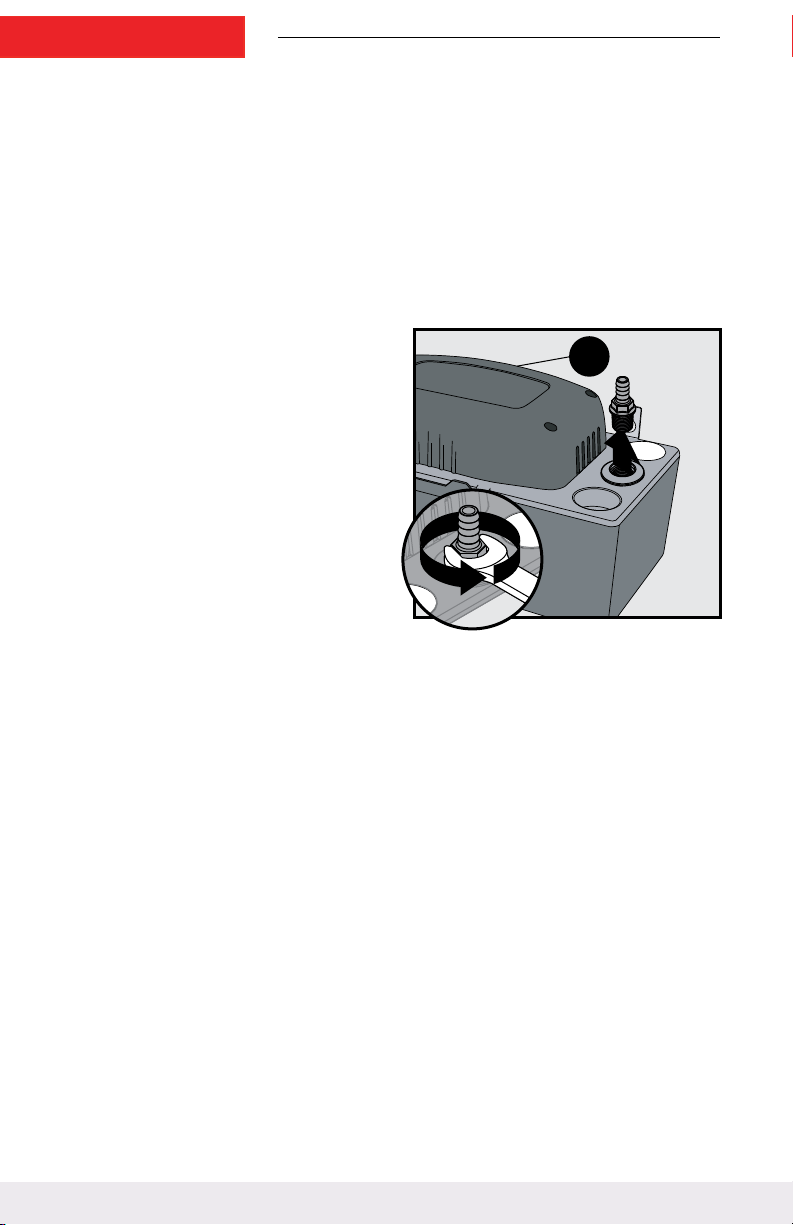

MAINTENANCE AND DISASSEMBLY
ALWAYS disconnect power before performing maintenance. Pump and
deck may be removed from tank by pushing tabs located on tank sides
away from deck while lifting on pump cover.
Periodically inspect the condensate pump tank to ensure it is free of
accumulated dirt or sludge. DO NOT use solvent cleaners. Clean tank with
soap and warm water only. Check valve may be removed for cleaning or
replacement by unscrewing with a 5/8” wrench.
Clean inlet and outlet piping.
Reassemble system and check for
correct operation. A
1

www.diversitech.com | 800.995.2222 PAGE 13
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Unit does not
start when
full of
condensate
1. Power is not
supplied to pump.
2. Pump impeller is
not turning.
1. Ensure that power is supplied to pump. A
green LED indicator on top of pump cover
will show that power is supplied and that
pump is ready.
2. Clear any blockage in impeller housing. If
problem persists, motor is stuck. Return
pump to place of purchase if under
warranty.
Condensate is
overowing
from unit
1. Power is not
supplied to pump.
2. Pump is in overow
condition.
3. Pump is not level.
4. Outlet ow is
blocked.
5. Pump impeller is not
turning.
1. Ensure that power is supplied to pump. A
green LED indicator on top of pump cover
will show that power is supplied.
2. The inlet ow to condensate pump is
exceeding outlet ow. Check to ensure
that pump safety switch (alarm circuit)
is connected to appliance. The safety
switch connection will shut o appliance
in this condition.
3. Check to ensure that pump is level. If
pump is not level, it may not activate,
causing water to overow from tank.
Place unit on a at and level surface.
4. Check outlet tubing to ensure that it is not
kinked or blocked. Clear blocked tubing
of slime and debris. Clean inlet and outlet
piping.
5. Clear any blockage in impeller housing. If
problem persists, motor is stuck. Return
pump to place of purchase if under
warranty.
Pump will not
shut o
1. The pump is in
overow condition.
2. Outlet ow is
blocked.
1. The inlet ow to condensate pump is
exceeding outlet ow. Check to ensure
that pump safety switch (alarm circuit)
is connected to A/C / furnace unit. The
safety switch connection will shut o
A/C / furnace in this condition.
2. Check outlet tubing to ensure that it is not
kinked or blocked. Clear blocked tubing
of slime and debris. Clean inlet and outlet
piping.

ASURITYTM
CONDENSATE MANAGEMENT PAGE 14
WARRANTY
All pumps manufactured by or for DiversiTech Corporation (the Company)
and sold by the Company under the Asurity or DiversiTech brand are
warranted to be free of defects in workmanship and materials for a period
of 36 months from date of sale from the distributor to the contractor. The
Company will credit, repair or replace, at its option, any Pump if deemed
defective within this time period. All products returned to the Company
must include a return authorization issued by the Company. The returned
product should be suitably packaged and shipped prepaid from the point of
shipment to the point designated in the Company’s return authorization.
This warranty is a limited warranty and shall be in lieu of any other
warranties, expressed or implied, including, but not limited to, any implied
warranty of merchantability or tness for a particular purpose. There are
no other warranties that extend beyond the description of the face hereof.
The liability of the Company arising out of its supply of said products, or
their use shall not in any case exceed the cost of correcting defects in the
products as set forth above. The Company shall not be liable for any costs
or damage incurred by its customers in the removal or replacement of
defective products from units in which the products have been assembled.
In no event shall the company be liable for loss of prots, indirect,
consequential, or incidental damages.

www.diversitech.com | 800.995.2222 PAGE 15
INFORMACIÓN DE SEGURIDAD
Lea, comprenda y siga todas las instrucciones de seguridad. Si no respeta
las instrucciones, se pueden producir daños a la propiedad, lesiones graves
o la muerte.
PELIGRO
SIEMPRE desconecte la alimentación antes de mover, ajustar o realizar
mantenimiento a la bomba o a los sistemas conectados. NO use esta
bomba con agua estancada o agua que se rocíe. El incumplimiento de
esta medida podría provocar una descarga eléctrica fatal.
ADVERTENCIA: PELIGRO DE INCENDIO Y EXPLOSIÓN
NO use esta bomba para mover líquidos inamables o explosivos. NO
use esta bomba en ambientes inamables o explosivos.
Peligro de monóxido de carbono. Asegúrese de montar la bomba lejos
del intercambiador de calor y el cableado. Si NO comprende algún
ítem de este manual, consulte a un profesional y no intente instalar este
producto.
PROPUESTA 65 DE CALIFORNIA
Este producto puede contener sustancias químicas reconocidas por el
estado de California como causantes de cáncer, defectos congénitos u
otros daños en el aparato reproductivo. Lávese las manos después de
manipular este producto.
PRECAUCIÓN: RIESGO DE INUNDACIÓN
Una bomba que no funcione puede producir lesiones personales o
daños a la propiedad. Si se produce una inundación, NO camine en
el área mojada hasta que desconecte la alimentación. Consulte a la
compañía de electricidad local o un electricista calicado antes de
desconectar el servicio eléctrico para retirar la bomba.
ADVERTENCIA
La bomba debe estar conectada correctamente para condensar y
ocasionar el control del tablero de control del electrodoméstico para
cerrar la bomba en condiciones de alarma (agua alta).
El voltaje y la frecuencia del suministro deben coincidir con los que se
muestran en la placa de datos de la bomba. Si los voltajes de la fuente
son inferiores al del suministro calicado, el rendimiento de la bomba
podría reducirse y esta podría sobrecalentarse.
Bomba debe estar nivelada y se debe colocar sobre una supercie o
piso sólido.
NO cubra los respiraderos de la bomba. La bomba se refrigera por aire.
NO cubra los oricios de ventilación ubicados en la parte superior o en
los costados de la carcasa de la bomba. La bomba puede funcionar de
manera continua siempre y cuando no se cubran los respiraderos.
Esta bomba se debe almacenar en interiores. La ubicación elegida debe
estar limpia y seca.

ASURITYTM
CONDENSATE MANAGEMENT PAGE 16
ÍNDICE DE TEMPERATURA DEL AGUA
(NO PROBADO PARA AGUA CALIENTE)
• Funcionamiento continuo a 60 ˚C
• Temperatura máxima de entrada de 71,1 ˚C
• No es adecuado para contactarse con vapor o con gases que superan los
71,1 ˚C
INFORMACIÓN GENERAL
Esta bomba de condensación está diseñada para eliminar automáticamente
el agua condensada que recolecta de electrodomésticos tales como
acondicionadores de aire y deshumidicadores de alta eciencia. La bomba
tiene un tanque integrado que recolecta el agua de los electrodomésticos.
Cuando el agua recolectada alcanza un nivel suciente dentro del tanque de
la bomba, la bomba se enciende y bombea el agua a una ubicación remota
para su eliminación.
Cuando el tanque está lo sucientemente vacío, la bomba se apaga
automáticamente. La bomba tiene capacidad para elevar el agua hasta
6,10 m y está equipada con una válvula de control que evita que el agua se
devuelva al tanque cuando la bomba se apaga.
La bomba cuenta con luces en su exterior que muestran el estado de la
alimentación disponible, el funcionamiento del motor y condiciones en
las que hay una alta cantidad de agua (alarma). Esta bomba también está
equipada con un interruptor que se activa cuando el agua en el tanque
alcanza una condición de desborde. El interruptor de seguridad para
desbordes se puede conectar para apagar el electrodoméstico cuando
ocurra una condición de una alta cantidad de agua.
CARACTERÍSTICAS
Metal Hang Tabs
Lengüetas colgantes
de metal
Check valve - Removable
Válvula de retención - Removible
Inlet Hole Cover
Cubierta
Inlet Hole
Orificio de entrada
Overflow Safety Switch Terminals
Terminales del interruptor de seguridad de rebose
LED indicator Lights
Luces indicadoras con
bombilla LED

www.diversitech.com | 800.995.2222 PAGE 17
CONTENIDO DEL PAQUETE
ESPECIFICACIONES
PIEZA DESCRIPCIÓN CANTIDAD
A Bomba de condensación 1
B Cubierta 3
A
ULTRACP-22 ULTRACP-22-230
Voltaje calicado 120 voltios/60 Hz 230 voltios/60 Hz
Consumo calicado de
corriente
1,9 amperios 1,0 amperios
Alto de cabezales Máximo de 6,71 m Máximo de 6,71 m
Índice de ujo con cabezal
cero
6,01 LPM 3,79 LPM
Peso de producto 2,27 kg 2,27 kg
Alto de entrada a partir de
la base
11,18 cm 11,18 cm

ASURITYTM
CONDENSATE MANAGEMENT PAGE 18
INSTALACIÓN
OPCIONES DE MONTAJE
1A. COLOQUE EN EL PISO
Determine la ubicación de la bomba de condensación
1B. FIJE A LA PARED
Fije la bomba de condensación con los tornillos (20,32 cm entre las
lengüetas de montaje).
OPCIÓN: 2 INVIERTA LA PARTE
SUPERIOR SI FUERA NECESARIO
La parte superior de la bomba puede
girar 180˚ para permitir un fácil acceso
a la salida de la bomba o para
conectar la alimentación.

www.diversitech.com | 800.995.2222 PAGE 19
INSTALACIÓN
2. UNIDAD DE NIVEL
Asegúrese de que la bomba de condensación esté nivelada.
CONEXIONES DE SALIDA
3. INSTALE LA CONEXIÓN DEL TUBO DE SALIDA
Fije el tubo de plástico para vericar la válvula y asegurarlo con la
abrazadera para manguera. Guíe la tubería hacia arriba y lejos de la
bomba de condensación (Evite comprimir o retorcer la tubería)
1
3/8" Clear vinyl plastic tubing
Tubería de plástico de vinilo
transparente de 9,53mm
1/2" Hose clamp
Abrazadera para manguera
de 12,7 mm
Check valve
Válvula de control
3
A
2

ASURITYTM
CONDENSATE MANAGEMENT PAGE 20
INSTALACIÓN
CONEXIÓN DE ENTRADA
4. INSTALE LAS CONEXIONES DEL TUBO DE ENTRADA
Instale la tubería de drenaje de condensación en uno de los cuatro
oricios de entrada, asegurándose de que la tubería esté recta.
Si instala la bomba a un
humidicador de
condensación, deberá usar
una trampa plástica.
CUBIERTA
5. INSTALE LAS CUBIERTAS DE ENTRADA
Coloque las cubiertas de entrada en los oricios de entrada restantes
de la bomba de condensación.
Inlet tubing
Tubería de
entrada
Inlet holes
Orificios de
entrada
Inlet holes
Orificios de
entrada
4A
AB
5
