DJMed M2 El-Tip User manual

IMPORTANT!
WHEN CHARGING, DO NOT TURN ON THE SWITCH
BEFORE THE CHARGER IS CONNECTED TO THE
CHAIR.
THE BATTERY SHOULD BE CHARGED 24 HOURS
THE FIRST TIME.
WHEN THE BATTERY HAS RUN DOWN THERE IS A
BEEP SOUND FROM THE CONTROL BOX WHEN THE
ELECTRICAL PARTS ARE IN USE.
WHEN THE BEEP SOUND COMES, YOU HAVE TO
RECHARGE THE BATTERY AS IT CAN BE DAMAGED
IF YOU LET IT RUN 100 % OUT OF POWER.
(IF THE BATTERY HAS RUN OUT OF POWER, YOU
CANNOT USE THE ENGINE BY PUTTING THE
CHARGER IN THE WALL PLUG AND THE CHAIR.
A FULL RECHARGE TAKES TYPICALLY 8 HOURS.)
IF THE LIGHTBOLT ON THE CHARGER LIGHTS
GREEN WHEN CONNECTED, IT IS DUE TO A
MALFUNCTION OF THE BATTERY, AND THEREFORE
IT NEEDS TO BE CHANGED.
DO NOT CHARGE THE CHAIR WHILE BEING USED IN
AREAS WITH WATER.
DO NOT USE THE ELECTRICALL FUNCTIONS ON
THE CHAIR WHILE SPRAYING WITH WATER.

M2-200 KG’S MOTOR
2/4
USERS GUIDE: SHOWER/COMMODE CHAIR M2.
CHAIR FOR WASHING/TOILETING PURPOSES
LOCKING THE WHEELS:
BEFORE YOU USE THE CHAIR FOR BATHING/SHOWERING YOU CAN APPLY THE BRAKE ON
THE FRONT WHEELS. THE DRIVING WHEELS ARE AUTOMATICLY LOCKED WHEN YOU ARE
NOT DRIVING.
MOUNTING OF FOOT RESTS ON THE SHOWER/COMMODE CHAIR:
ADJUST THE HEIGHT OF THE FOOTRESTS BY TAKING THE CLIPS OUT, PLACING THE
FOOTRESTS IN THE WISHED POSITION AND AT LAST PUT THE CLIPS BACK AGAIN.
TO PUT SEAT ON:
MAKE SURE THAT THE BACK EDGE OF THE SEAT IS FITTED AROUND THE FLAT METAL BAR
AT THE BACK.
CLEANING:
TO MAKE THE CLEANING TASK EASIER YOU CAN CLICK THE SEAT ON AND OFF.
REPLACEMENT OF FRONT WHEEL:
TAKE OUT THE CLIPS AND THE WHEEL AND PUT THE NEW WHEEL ON.
1) CHARGING THE BATTERY
2) CHARGING THE BATTERY
WITH THE ONE HAND, YOU GRAB AROUND THE CHARGING PLUG
(SOCKET) ON THE CHAIR AND WITH THE OTHER HAND YOU PULL
OUT THE CONNECTING CABLE FOR THE BATTERY.
WITH THE ONE HAND, YOU GRAB AROUND THE CHARGING
PLUG (SOCKET) ON THE CHAIR AND WITH THE OTHER HAND,
YOU PUSH THE PLUG FROM THE TRANSFORMER IN PLACE.
3) CHARGING THE BATTERY
DEPENDING ON REGION PLUG TYPE 1, 2 OR 3 SLIDES INTO
THE CHARGER.
AFTERWARDS YOU PUT THE TRANSFORMER IN THE SOCKET
AND TURN ON THE POWER.
A FULL CHARGE TAKES APPROXIMATELY 8 HOURS.
WHEN THE BATTERI IS RUNNING OUT OF POWER YOU WILL
HEAR A “BEEP” SOUND.
WHEN THE BATTERY IS BEING CHARGED, THE LIGHT BOLT ON
THE CHARGER LIGHTS ORANGE.
WHEN THE BATTERY HAS BEEN FULLY CHARGED, THE LIGHT
BOLT ON THE BATTERY WILL LIGHT GREEN.
NOTE: IF THE LIGHT BOLT ON THE CHARGER LIGHTS GREEN,
WHEN IT IS BEING CONNECTED, IT IS DUE TO A

M2-200 KG’S MOTOR
3/4
USING THE CHAIR: USE OF JOYSTICK:
THE CHAIR IS EASILY CONTROLLED BY PUSHING THE JOYSTICK IN THE DIRECTION YOU
WANT TO DRIVE. WHEN YOU LET THE JOYSTICK GO THE CHAIR STOPS (IT WORKS LIKE A
BRAKE).
PLACING THE JOYSTICK:
THE JOYSTICK CAN BE PLACED AT THE FRONT SO THE USER CAN CONTROL IT OR AT THE
BACK SO THE HELPER CAN CONTROL IT. YOU FASTEN IT TO THE CHAIR BY TIGHTENING THE
FINGER SCREW.
CHARGING THE BATTERIES:
THE 6 LIGHTS INDICATES HOW MUCH POWER THERE IS LEFT IN THE BATTERIES. WHEN THE
GREEN LIGHTS STOP LIGHTING YOU HAVE TO RECHARGE THE CHAIR.
PLEASE NOTICE:
IF YOU USE UP ALL THE BATTERI POWER WITHOUT RECHARGING THE BATTERIES WILL BE
DAMAGED AND WILL HAVE TO BE REPLACED.
DRIVING SPEED:
YOU CONTROL THE DRIVING SPEED OF THE CHAIR BY TURNING THE NOB TO THE LEFT FOR
FASTER AND TO THE RIGHT FOR SLOWER.
HORN:
THE CHAIR IS EQUIPPED WITH A HORN, WHICH IS ACTIVATED BY PRESSING THE HORN
BUTTON IN FRONT OF THE JOYSTICK.
LOCKING MECHANISM:
IT IS EASILY LOCKED (WHEN THE CHAIR IS ON) BY PRESSING AND HOLDING THE ON/OFF
BUTTON FOR A FEW SECONDS.
aFTER A FEW SECONDS THE LIGHTS IN THE DISPLAY FLAS AND THE HORN IS BEEPING. IT IS
NOW LOCKED.
TO UNLOCK IT YOU PRESS THE ON/OFF BUTTON AND PRESS THE HORN BUTTON 2 TIMES
WITHIN 10 SECONDS.

M2-200 KG’S MOTOR

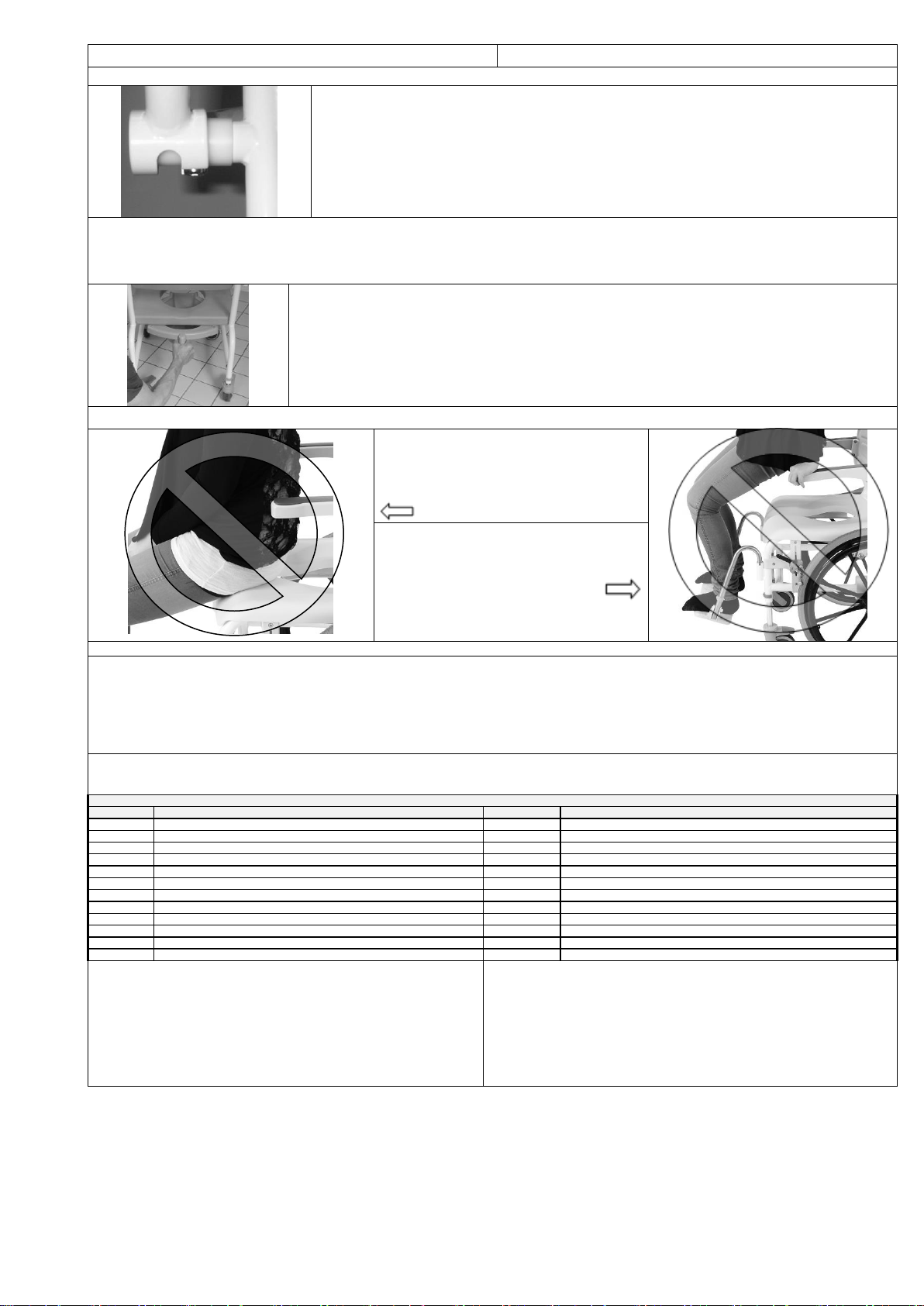

4/4
ARMRESTS:
TO DISASSEMBLE THE ARMREST YOU HAVE TO FIT THE HEAD OF THE BOLT TO WHERE THE
ARMREST IS MILLED OUT AND PULL IT OFF.
IMPORTANT:
IF THE PROTECTION BOXES AROUND THE ELECTRICALL PARTS ARE IN ANY WAY DAMAGED THEY HAVE TO BE REPAIRED WITH
ORIGINAL PARTS BEFORE THE CHAIR CAN BE USED AGAIN. OTHERWISE WATER CAN GET INTO THE ELECTRICAL PARTS AND
DAMAGE THESE.
WHEN SLIDING THE BUCKET OF THE CHAIR, IT IS IMPORTANT TO SLIDE IT STRAIGHT
BACKWARDS, ALONG THE SEAT. OTHERWISE IT CAN BE VERY DIFFICULT TO GET THE BUCKED
OF THE CHAIR.
WARNING
DO NOT SIT ON THE OUTER 10 CM
OF THE SEAT THAT THE CHAIR
CAN TIP FORWARD.
DO NOT STAND ON THE
FOODRESTS
Article. N0. 310274/310275
Maximum user load 200 kg
2 year’s complaint right against manufacturing errors.
1 year on batteries
Terms of claim for frame.
HMN grants 5 years claim rights against frame break-down for all M2-Shower/commode chairs and stainless steel shower stools. The warranty applies for production
and material break downs, and can only be used if the products have been in normal use. Please note that normal wear is not included in the warranty.
Cleaning: The product can be cleaned with regular cleaning without non-abrasive detergent.
Wash and dry the product after the cleaning. The product can be washed up to 85° degrees in 3 minutes.
Spare parts M2-200 KG-MOTOR
Article. No.:
Description
Article. No.:
Description
800194
Joystick console
310344
Pu back, grey
800195
Back wheel
310063
Screw for back, 4 pcs.
800196
Protection box, right hand side back wheel
800155
125 mm directional controlling wheel with massive leg and 1 clips
800197
Protection box, left hand side back wheel
310073
Plastic ferrule for flat armrest
800198
Control box
310074
Plastic ferrule for round armrest
800130
Charger
800245
Grey ferrule for flat oval armrest
800129
Batteri
800244
Plastic ferrule for handle
310354
Intimate seat for M2 200 kg’s, grey
310076
Nylon bush for armrests, 1 pcs.
310343
Cover for intimate seat, grey
800082
Bolt for armrests, 1 pcs.
800073
Armrest for M2 200 kg., Set with 2 pieces
310065
Clips for height adjustment, grey
800181
P.U. foam cushion for armrest. One unit. Grey
310165
Clips for height adjustment, magenta
800012
Screws for P.U. foam cushion for armrest. 2 pcs.
CE
This product is CE marking which means the product
complies with EU legislations and enables the free
movement of the product in the European market.
09.10.15
DJMed Pty Ltd
Email [email protected]
Web djmed.com.au
Mail PO Box Q541, Queen Victoria Building NSW 1230
