DK-TEC LS6000C User manual
2
SAFETY LABELS
Symbol explanations:
The following symbols are used in this user manual and/or on the machine.
Product safety:
The product meets
the requirements
EU standards
Prohibition:
General
prohibitions (in
conjunction with
any other icon)
No smoking!
No open flames!
No use in
closed rooms!
Warnings:
Warning/caution
Warning against
dangerous
voltage
Keep a safe
distance
Warning! Risk of being
crushed
Commander:
Read the user manual
before using the
machine
Use safety
glasses and
hearing
protection
Use safety
gloves
Use safety shoes
3
Environmental protection:
Dispose of waste
professionally so as
not to harm the
environment
Wrapping in
paper
material can
be delivered
to
collection points for
recycling
Any defective
and/or discarded
electrical or
electronic devices
must be delivered
to appropriate
collection centres
Packaging:
Protect from
moisture
This side Up
Warning - fragile
Before using the mower for the first time, it is necessary to check all the safety devices (especially
two-hand control).
Technical specifications:
Connection
Engine power
Hoof lift
Split tree length
Hydraulic pressure
Cleavage power
Weight
No heavy load
4
SAFETY INSTRUCTIONS
In general:
For safety reasons, the safety instructions mentioned in this user manual and the instructions on the
machine regarding operation, maintenance and repair must be observed and followed.
Operating staff:
Risks may be associated with using clover. Therefore, only trained and experienced
persons may handle and work with the machine. The operator must wear close-fitting
clothing and protective shoes.
Persons under the age of 18 may not work with the tree trimmer. However, persons over
the age of 16 can work with the woodcutter for learning purposes if supervised by a
professional.
Workplace:
To ensure safe tree splitting, it is necessary that the workplace is level and enables stability in the
work as well as sufficient free movement. All obstacles must be removed from access paths
when transporting the clover. Adequate lighting must be available at the workplace.
Work preparation:
The electric power supply must be disconnected when repairing or maintaining the clover. This is
done by removing the plug from the socket and pressing the red button. Interruption of the
electrical power supply by turning the switch to OFF is not enough!
The tree cleaver is always supplied with hardened cleaver blades. If, when using the machine,
there is minor damage to the knife edge after splitting wood containing invisible foreign elements,
e.g. out of concrete, steel, etc., it must be removed with a file or sanded off. By keeping the
cleaver sharp at all times, increases operation.
TIP: Lubricate the splitting knife with grease from time to time (for problematic wood).
5
Risks and protective measures
WARNING!
It is strictly forbidden to switch off, modify, block, disassemble or install parts on the safety and
protection parts of the machine. It can lead to serious or life-threatening injuries if this is not
observed. DK-TEC cannot be held responsible for material and personal damage that occurs as a
result of such negligence. Any warranty claims do not apply to negligence mentioned above.
Mechanical risks
Risk
Description
Protective measure(s)
Risk
Fastening
Parts of the body
can be trapped or
amputated when
splitting due to
hydraulic blade
lowering.
Risk of split wood being
pressed. Be aware that
the wood is strongly
tensioned when it is
removed, whereby your
fingers can be pinched
in the clover crack.
Only use the clover with the use
of both hands. Do not reach into
the cleavage.
Never operate the machine with
two people.
Split only jammed wood. There
must be supported to hold the tree
after splitting. Be aware of falling
wood as this can injure the
operator.
A device for holding the tree
before and during splitting
must be present.
Any worn or
damaged aid
must be replaced
immediately. Be
aware of
spectators!
Safety shoes must
always be worn
when working with
the machine.
Cleavage
Parts of the body can be
jammed or amputated
when cleaving with
hydraulic knife lowering.
Only use the clover with the use
of both hands. Do not reach into
the cleavage.
Any worn or
damaged aid
must be replaced
immediately.
General
damage
When processing dry
wood, intensive
splitting can cause
serious damage.
Logs created during
splitting can fall down
and injure, in
particular, the
operator's legs.
Do not reach into the cleavage.
Always maintain a sufficient safety
distance.
The machine must always be
operated carefully.
Wear specified protective clothing,
safety shoes and goggles at all
times. Be careful.
Any worn or
damaged aid
must be replaced
immediately. Be
aware of
spectators!
6
Stuck/wounded
Loose clothing, jewelry
and long hair can get
caught in the moving parts
Tight-fitting clothing should
always be worn, do not wear
jewelry and protect your hair
with a hair net
Electrical hazards
Risk
Description
Protective measure(s)
Residual risk
Direct
electric
al
contact
A faulty cable or plug
can be the cause of
electric shock
Always have faulty cables
or plugs replaced by an
expert. Only use the
machine with a safety
switch against alternating
current
Check the supply
cable each time the
machine is to be used
Indirect
electrica
l contact
Electrical shock of
conductive parts by
exposed electrical or
defective design
components
Remove the plug from the socket
when servicing.
Only use the machine with
a safety switch against
alternating current
Exposure to noise
Risk
Description
Protective measure(s)
Residual risk
Hearing
damage
Prolonged work
with the machine
can damage
hearing
Hearing protection must always
be worn
Neglect of the ergonomic principles
Risk
Description
Protective measure(s)
Residual risk
Careless use
of personal
protective agents
Careless use
of personal
protective agents
Wear specified protective
clothing at all times. Work
carefully.
Inappropriate local
lighting
Inadequate lighting
poses a high safety
risk.
There must be adequate
lighting at all times when
working with the machine.
7
Other risks
Risk
Description
Protective measure(s)
Residual
risk
Residual
risks
Mechanical parts can hurt
your eyes when split.
Safety glasses must always be used when
working with the machine.
8
Operator requirements
The operator must carefully read the operating instructions before putting the machine into use.
Qualifications:
No special qualification is required to use the machine apart from detailed instruction from a
expert.
Minimum age:
The machine may only be operated by persons over 18 years of age. An exception includes young
people who use the machine as part of their vocational training to acquire necessary skills under the
supervision of the teacher.
Action in emergency situations
Perform the first aid appropriate to the injury and get qualified medical attention as soon as
possible. Protect the casualty from more accidents and calm him/her down.
In the event of an accident, a workplace must be equipped with a first aid kit. It is essential to
replace all used material in the first aid kit immediately after use. If you are looking for help,
please provide the following information:
1. Accident site
2. Type of accident
3. Number of injured
4. Damage type(s)
9
Service and treatment
Keep the woodcutter clean at all times.
Change the hydraulic oil after approximately 500 hours of operation. Use regular hydraulic oil.
Lubricate the cleaver with grease each time the machine is to be used - this will increase the
life of the cleaver. When replacing parts on the machine, only original spare parts may be used.
Regularly check the tightness and strength of hydraulic hoses and hose connections.
WARNING! Only add oil when the clevis head
is in the engaged position.
Field of application
The machine may only be used for splitting firewood. Split material must have the following
dimensions:
• Minimum diameter: 80 mm
• Maximum diameter: 350 mm
• Only splitting wood along the grain of the wood is permitted.
• The pressed piece of wood can be released by lightly tapping the wood.
• It is forbidden to cut the split tree free!
Application
1. Start the engine by pressing the green button. WARNING! Make sure the direction of
motor rotation matches the 400 V setting! Stop the engine by pressing the red button.
2. Keep the supply cable as short as possible for the 230 V models and choose as large a
cross-section as possible.
3. When the temperature is low, allow the clover to idle for about 15 minutes before use to allow
the oil to warm to a suitable temperature.
4. Place the material to be split on the splitting table and hold it firmly using the control handles.
5. The splitting starts by pressing both handle down.
6. During splitting, the wedge usually holds the wood in the splitting position.
10
7. After splitting is complete, lift at least one handle, whereby
the splitting head will automatically rise.
8. After splitting, the wood is placed in a separate storage area.
The use of wood splitters, where two people respectively
hold the tree and another drives the splitter head
downwards, is strictly prohibited.
Height settings
The operating energy can be increased by shortening the distance of the cleaver head's backward
movement, for pieces of wood smaller than approximately 50 cm.
Proceed as follows:
Place a low piece of wood on the splitting table and lower the
splitting head to approximately 2 cm above the piece of wood.
Switch off the clover (red button on the switch and pull out the plug).
Now you can shorten the movement of the clevis head by means of
a side bound rod, by fixing the rod in the desired position using the
adjustment screw (see picture).
Electrical/hydraulic connection
Connection:
All clovers are equipped with an undervoltage solution in the contact. This prevents the machine
from starting itself if the power supply is interrupted as a result of a power cut, accidental
disconnection, faulty fuse, etc. The machine must be switched on by pressing the green button.
Deliberately holding or blocking the switch button may lead to failure automatically
power failure. In such case, which can be identified later, the warranty does not apply.
Only for 400 V machines:
The direction of engine rotation (see the arrow on the machine) must be observed, as use with the
wrong direction of rotation can damage the oil pump. In that case, all claims in connection with the
guarantee will not apply.
11

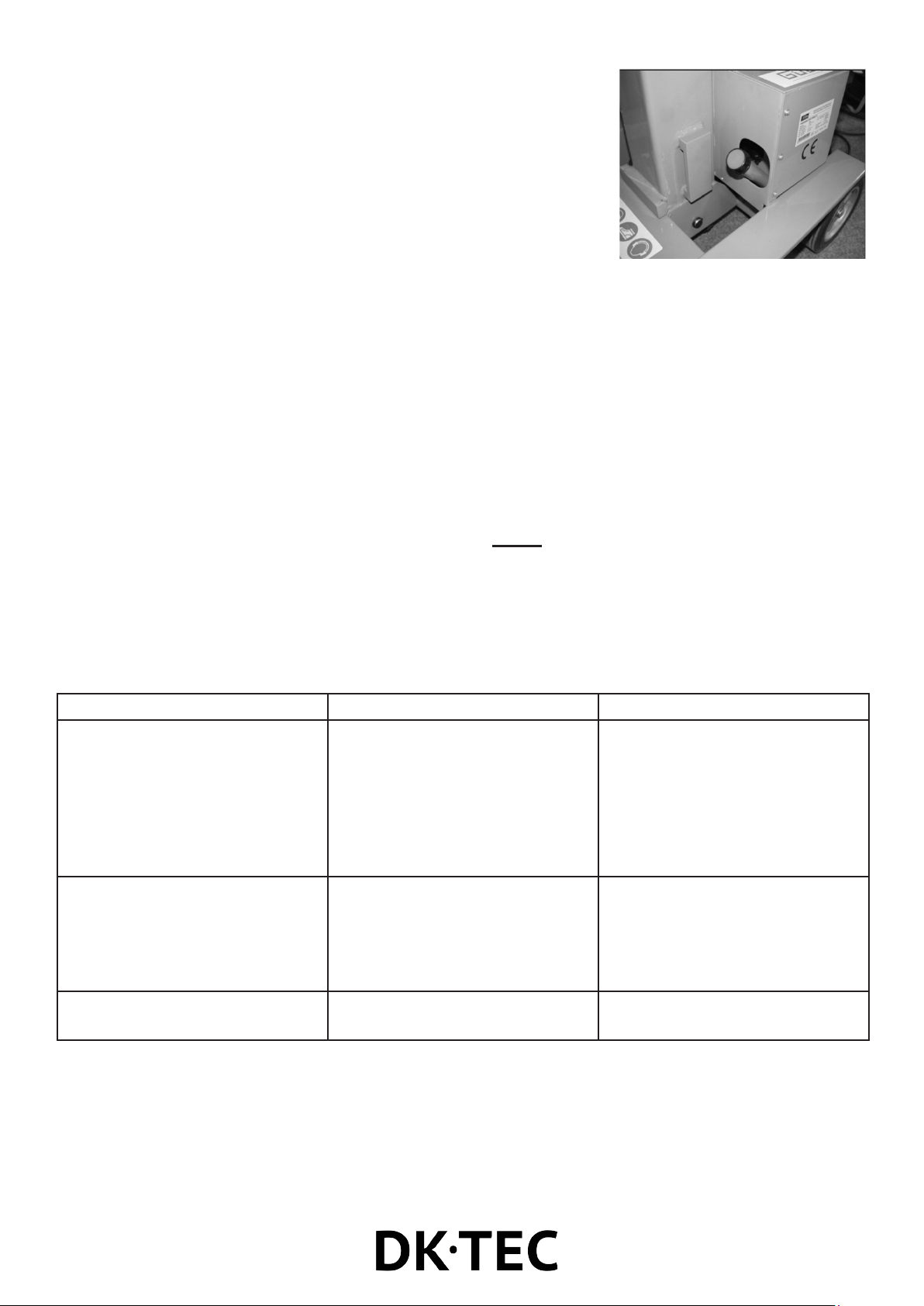

Hydraulic equipment:
Tightening must be checked at hydraulic hoses and couplings after
approximately 4 hours of operation and tightening must be carried
out if necessary.
Hydraulic oil / tank
Ordinary hydraulic oil can be used for all clovers. Oil
change is not necessary.
Transport instructions
Transportation:
All wood splitters are equipped with large wheels. To transport the mower, grasp the handle of
the mower head with one hand and the handle above the motor with the other hand and gently tilt
the mower toward you. In this position, the clover can be easily moved.
To prevent hydraulic oil leakage, the clover must never moved when it is lying down. Lower
the riving blade completely when moving the machine.
Betrayal
Betrayal
Cause
Solution
No cleavage effect
• Wrong direction of
rotation (400 V only)
• Too little hydraulic oil
• The shift rod is bent; the
hydraulic lifter is not fully
pressed
• Have the direction of
rotation changed by a
professional
• Add hydraulic oil
• Adjust the rod
mechanism; tighten the
relevant nuts.
The green button does not stay
lit
• Earth connection
not connected
• Defective fuse etc. (400 V
only)
• 2-phase operation (400 V)
• Have the cable or
network checked by a
professional
• Check the cable
Hydraulic pump pipes; the
cleaver moves
• Too little hydraulic oil
• Add hydraulic oil
The machine must not be used for anything other than the work for which the machine was
designed and which is described in this user manual.
EC DECLARATION OF CONFORMITY DK
Manufacturer
Laizhou New Hardware Machinery Co., Ltd.
Daiyuan Rd. Development Zone, Laizhou, Shandong
261411, PR
China
Hereby declares that the following machine:
Designation:
Clover
Model:
LS6000
Is manufactured in conformity with following ECdirective:
•Machinery Directive 2006/42/EC
Applied standards:
EN 60204-1:2006+A1:2009+AC:2010 EN
609-1:2017
Mr. Shaopeng Song 9/11/2021
name and date
signature
This manual suits for next models
1
Table of contents
Other DK-TEC Media Converter manuals
