DK2 Power OPG777 User manual
STUMP GRINDER ASSEMBLY GUIDE
MODEL: OPG777
3.5 CUT 14HP STUMP GRINDER
3.5 WIDE CUT
TOWABLE
14HP KOHLER ENGINE
COMMERCIAL STUMP GRINDER
REV 2 – 7-14-20
DETAIL K2 INC.
DK2 POWER USA
4301 S Valley View Blvd STE 10-11
Las Vegas, NV 89103
1-702-331-5353
DETAIL K2, INC.
1080 Clay Avenue Unit 2
Burlington, Ontario, Canada L7L0A1
DK2 USA EAST
6245 Industrial Parkway
Whitehouse, OH 43571
OFF ROAD TOWING ONLY
PARTS AND SERVICE 702-331-5353 OR WWW.DK2POWER.COM CONTACT US
1
STEP 2: INSTALL AXLE AND WHEELS
1. Grease or OIL the axles (grease not included).
2. Pin ONLY the axle to allow the wheel to spin freely. PIN
WHEEL AND AXLE FOR WHEEL BRAKE DURING GRINDING
O N LY.
3. During transport in trailer or pickup PIN BOTH WHEELS for
dual wheel brakes.
4. Install axle onto frame with 2 bolts and hardware provided.
PIN FOR
FREE ROLLING
BOLT AXLE TO FRAME
3

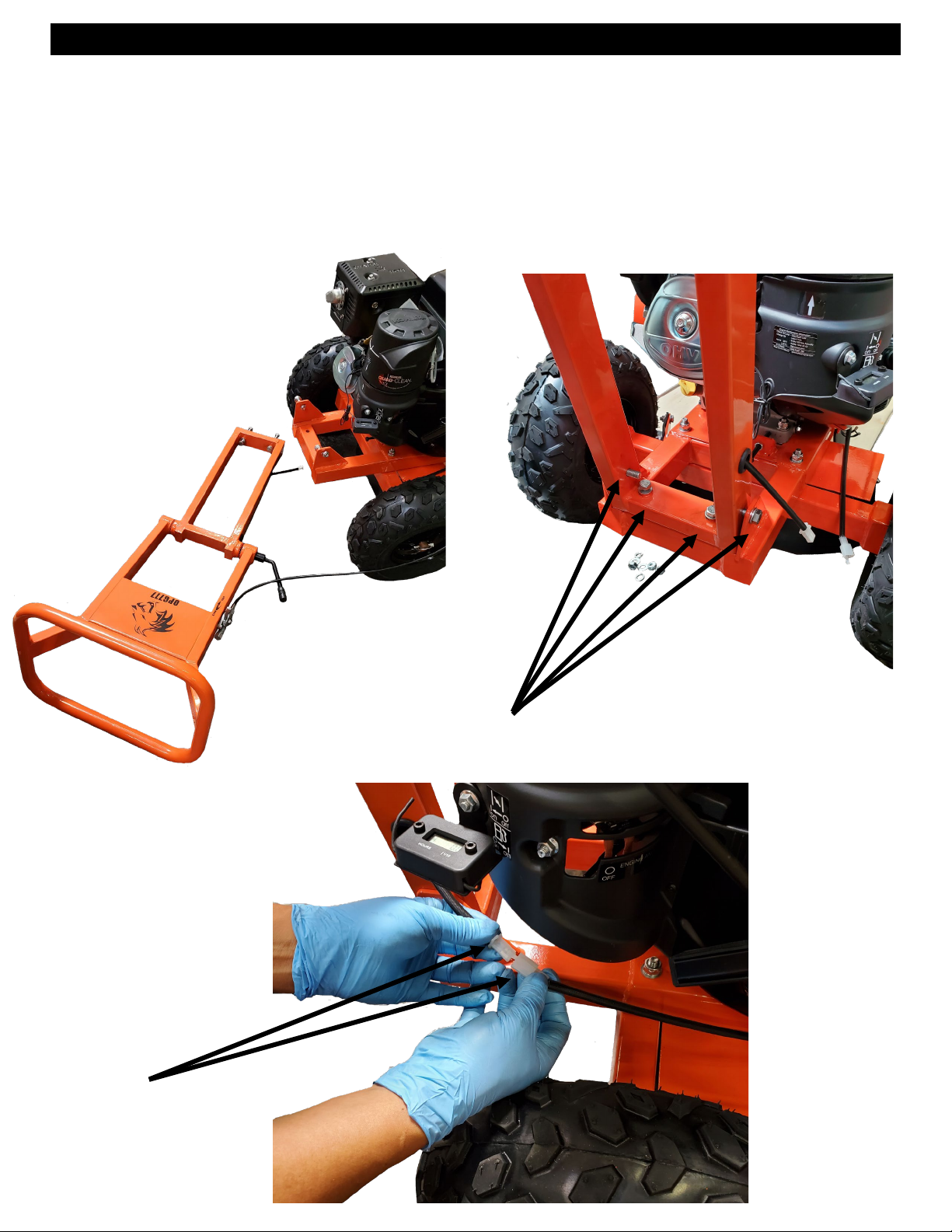

STEP 3: HANDLE MOUNTING
1. Mount the handle tower assembly with the bolts provided.
2. Connect the 2 wire connectors.
1
2
4
STEP 4: SECURE THE THROTTLE CABLE
1. SECURE THE THROTTLE CABLE WITH THE LOOP WIRE CLAMP
PROVIDED ON THE CHASSIS.
5
STEP 5: TOW BAR ASSEMBLY
1. INSTALL THE TOW BAR
OFF ROAD ONLY
6

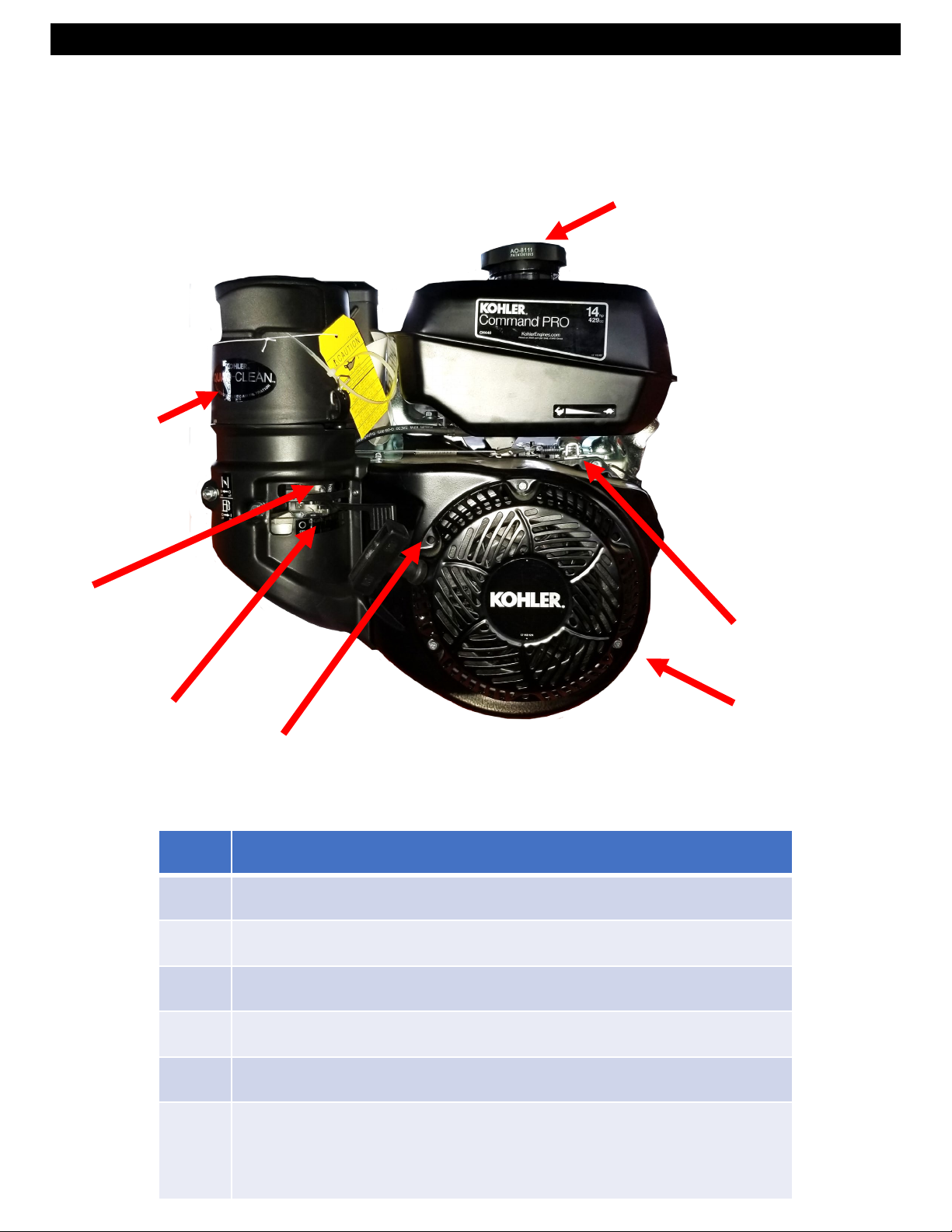

STEP 7:
READ THE KOHLER ENGINE MANUAL SUPPLIED WITH YOUR
UNIT FOR FULL ENGINE OPERATION, SAFETY, AND
MAINTENANCE.
1Air Filter –Summer and Winter Positions
2GAS –USE MID GRADE OR HIGHER
3 CHOKE – LEFT IS ON / RIGHT IS OFF (RUN POSITION)
4GAS ON/OFF SWITCH –LEFT IS OFF / RIGHT IS ON
5THROTTLE –RABBIT FAST / TURTLE SLOW
6PULL STARTER –PULL TIGHT-THEN PULL START
7OIL –FILL TO MARK 10W30, WILL NOT START IF OIL IS
LOW, HAS LOW OIL SHUTOFF PROTECTION. 2 YELLOW
CAPS ARE OIL FILL CAPS. USE EITHER ONE TO FILL OIL.
3
2
6
47
5
1
7
PARTS DIAGRAM
8
1 engine 36
engine pulley
2M10 locknut 37
key
3010 lockwasher 38
engine spacer
4washer 01O*02O*1.5 39
bolt M8*65
5Bolt M8*25 40
wheel axle
68 lockwasher 41
bolt M10*125
7washer 08*016*1.5 42
leather protect sheet
8protection sheet plate 43
leather protect sheet fixed plate
9protection sheet 44
M8 locknut
10 knob o50 45
half
-round head square neck
11 bolt M8*30 46
bolt M10*45 46 washer
12 rubber 47
frame
13 D-pin 08*5O 48
Inner six angle cylinder bolt M14*95
14 support foot 49
bolt M8*80
15 vertical seat bearing 50
M8 nut
16 014 lockwasher 51
bolt M10*50
17 washer 014*028*2 52
bolt MIO* 100
18 M14 locknut 53
bolt M6*50
19 M10 nut 54
washer 06*012*1.2
20 bolt M10*35 55
M6 locknut
21 right cutter 56
lower part of handle
22 left cutter 57
right tire
23 straight cutter 58
left tire
24 cutter rotor 59
Ring type lock
25 side spacer 60
handle adjusted bar
26 key 61
bolt M16*310
27 Belt cover accessory plate 62
handle
28 rotor pulley 63
key switch
29 belt 64
stop wire
30 washer 65
throttle
31 bolt M10*25 66
tow bar
32 bolt M8*16 67
hitch trailer
33 belt cover 68
bolt M10*80
34 engine bolt 69
rubber ring
35 washer 70
Pipe Plug
PART NUMBERS
9
OPERATION –BEFORE TURNING KEY AND PULL STARTING ENGINE
CLEAR AREA OF ALL PEOPLE AND PROPERTY THAT COULD BE DAMAGED. THINK
SAFETY. CHIPS ARE FLYING PROJECTILES AND CAN CAUSE INJURY.
WEAR SAFETY GLASSES, HEARING PROTECTION, AND GLOVES
DO NOT WEAR LOOSE FITTING CLOTHES THAT COULD GET STUCK IN THE MACHINE
MOVING PARTS, ONLY CHIP WOOD, CHILDREN SHOULD NOT RUN THIS EQUIPMENT,
STAY ALERT OF YOUR SURROUNDING AND PERSONS THAT COULD APEAR IN THE
CHIP PATH WHILE YOU ARE WORKING.
UNIT IS A DIRECT DUAL BELT DRIVE. NO CLUTCH TO SLIP OR BURN UP
BUT YOUR BELTS WILL NEED TIGHTENED AND CHECKED ON A REGULAR BASIS TO
MAINTAIN 100% CUTTING POWER.
•Tip the Stump Grinder up with the cutters off the ground when pull starting.
PERFORMANCE OPERATION -
APPROACH STUMP FROM THE TOP CUTTING STRAIGHT DOWN INTO THE STUMP
WITH THE 3.5 INCH WIDE CUTTING TEETH. RAISE UP OUT OF THE CUT, MOVE
OVER, PLUNGE AGAIN. REPEAT ACROSS ENTIRE STUMP. MOVE SIDE TO SIDE TO
FACE OFF THE STUMP. ADJUST YOUR BOW HANDLE FOR COMFORT.
SET ONE OF YOUR WHEEL BRAKES SO YOU CAN PIVOT THE MACHINE CUT.
TO MOVE THE MACHINE FORWARD WITH THE BRAKE ON, ALLOW THE ROTATING
TEETH AGAINST THE STUMP TO PULL THE UNIT FORWARD.
TIGHTEN ALL BOLTS AND TEETH BEFORE EACH USE. TEETH ARE NOT COVERED
UNDER WARRANTY. CLEAN ALL STONES AND ROCKS AWAYS FROM CUTTING STUMP
AREA, CHECK FOR METAL STAKES AND OR NAILS IN THE TREE STUMP BEFORE
CUTTING.
KOHLER ENGINES HAVE A LOW OIL SHUTOFF TO PROTECT THE ENGINE, TILTING THE
GRINDER HIGHER THAN 12 INCHES AT AN ANGLE CAN CAUSE THE OIL TO ROLL BACK
AND THE LOW OIL SENSOR WILL SHUT THE ENGINE OFF. CUT YOUR STUMP 9 TO 10
INCHES OFF THE GROUND SO YOU DON’T TRIP THE SENSOR ON THE ENGINE.
READ AND OBEY ALL WARNING LABELS ON THIS MACHINE.
10
TROUBLE SHOOTING GUIDE
QUICK START SETUP
•ADD 10W30 OIL TO ENGINE
•ADD GAS
•RAISE UP KICK STAND
•TURN KEY ON
•TURN GAS ON
•HALF THROTTLE (CHOKE OPTIONAL FOR COLD STARTS)
•TIP THE UNIT BACK WITH THE CUTTERS OFF THE GROUND
•PULL START THE ENGINE
STUMP CUTTING
•ENGINE ON HIGHEST SPEED
•HOLD TIGHT ON BOW HANDLE WITH BOTH HANDS
•LOWER CUTTERS INTO TOP OF STUMP, CUT 3.5IN WIDE TO CUTTER DEPTH
•RAISE CUTTERS UP AND MOVE OVER FOR NEXT CUT, REPEAT
•PIVOT CUTTERS FROM SIDE TO SIDE TO FACE OFF REMAINING STUMP
TROUBLE SHOOTING
•ENGINE WON'T START
•TURN KEY ON –CHECK ENGINE OIL LEVEL -CHECK GAS LEVEL
•UNPLUG KEY SWITCH –IF ENGINE STARTS REPLACE THE KEY SWITCH.
•FOLLOW YOUR ENGINE MANUAL FOR FURTHER TROUBLE SHOOTING.
•UNIT VIBRATES
•CHECK YOUR CUTTERS FOR MISSING OR LOOSE TEETH.
•CHECK YOUR CUTTER WHEEL PILLAR BEARING MOUNTING BOLTS.
•POWER LOSS AT CUTTER WHEEL
•CHECK YOUR BELT TENSION –SLIPPING BELTS CAUSE POWER LOSS.
•WORN BELTS -REPLACE
•BELT TENSION SHOULD BE SET AT .25 INCH MOVEMENT ABOVE AND
BELOW BELT NORMAL POSITION.
•CHECK YOUR 4 ENGINE MOUNTING BOLTS, LOOSE ENGINE BOLTS WILL
CREATE LOOSE BELT TENSION.
11
ADJUSTING THE DRIVE BELTS
•POWER LOSS AT CUTTER WHEEL
•CHECK YOUR BELT TENSION –SLIPPING BELTS CAUSE POWER LOSS.
•WORN BELTS -REPLACE
•BELT TENSION SHOULD BE SET AT .25 INCH MOVEMENT ABOVE AND
BELOW BELT NORMAL POSITION.
•CHECK YOUR 4 ENGINE MOUNTING BOLTS, LOOSE ENGINE BOLTS WILL
CREATE LOOSE BELT TENSION.
LOOSEN 4 ENGINE
MOUNTING BOLTS
ADJUST BOLTS TO MOVE
THE ENGINE -CHANGING
TENSION ON BELTS.
REMOVE 4 COVER
BOLTS AND REMOVE
BELT COVER
USE DK2 POWER OEM REPLACEMENT BELTS FOR TOP PERFORMANCE
12
DO’S AND DON’TS
•DO’S
•CHECK YOUR BELT TENSION –SLIPPING BELTS CAUSE POWER LOSS.
•CHECK YOUR 4 ENGINE MOUNTING BOLTS, LOOSE ENGINE BOLTS WILL CREATE LOOSE
BELT TENSION.
•CHECK YOUR TEETH BOLTS REGULAR, TORQUETO 30 FTLBS
•GREASE YOUR TIRE AXLES
•REMOVE THE TOW BAR WHEN GRINDING
•LIFT THE KICK STAND WHEN GRINDING
•CHANGE YOUR FIRST OIL AFTER 5 HOURS, THEN PER THE ENGINE MANUAL
•USE DK2 POWER OEM REPLACEMENT PARTS FOR TOP PERFORMANCE
•DON’T GRIND SAND, ROCKS OR DIRT, IT WILL DULL OR DAMAGE YOUR TEETH
•DONT’S
•DON’T LIFT THE FRONT END UP IN THE AIR TO WORK ON TEETH.
•When you had the nose of your grinder up in the air for extended time the oil
from the oil pan has flooded the piston cylinder and your cylinder is full of oil.
This creates compression and you can't turn the engine over. So, remove the
spark plug, remove both oil fill caps, this allows air flow. Let it sit for a day over
night is best. Replace the oil caps, give it a shot of starting fluid in the spark plug
hole, replace the spark plug. Now start your engine. It will smoke until all the oil
burns off, but it will burn off. You may even see oil from the muffler until it
burns off.
•DON’T GRIND ANYTHING BUT STUMPS
•DON’T PULL ON THE ROAD –HIGH SPEED WITH NO GREASE WILL DAMAGE YOUR
RIMS FROM HEAT. KEEP THEM GREASED.
•DON’T PULL START WITH THE KICK STAND DOWN
•DON’T START WITH YOUR TEETH ON THE GROUND
•ALWAYS
•ALWAYS CALL DK2POWER FOR AND QUESTIONS, TECHNICAL ADVICE AND PARTS.
702-331-5353 EXT 1
USE DK2 POWER OEM REPLACEMENT BELTS FOR TOP PERFORMANCE
13
WHAT IS COVERED –3 YEAR COMMERCIAL EXTENDED WARRANTY INCLUDED
Detail K2 Inc. warrants to the original purchaser that model OPG777 will be free and clear of manufacturing defects in
workmanship and materials under normal use and service for a period of one (1) year from the date of the original
purchase after July 4th 2020 and included two more years to extend the warranty to three (3) years. Product
registration is required to obtain the extended warranty.
If within three (3) years from the original date of purchase this OPG777 fails due to defect in material or workmanship,
Detail K2 will repair, replace, or supply any covered defective part at our option. DK2 POWER OPG777 is 3-years parts
only warranty no labor. Kohler 3 year warranty is PARTS and LABOR.
Upon expiry of three (3) years, Detail K2 will have no further liability related to the product. Detail K2 does not
authorize any party, including its authorized distributors or dealers, to offer any other warranty on behalf of Detail K2
Inc.
SERIAL NUMBERS MUST BE REGISTERED ONLINE AT WWW.DK2POWER.COM, WARRANTY NON-TRANSFERABLE.
KOHLER ENGINES –KOHLER CH SERIES ENGINES COMMERCIAL 3 YR PARTS AND LABOR WARRANTY
KOHLER ENGINES –KOHLER SH SERIES ENGINES RESIDENTIAL 2 YR PARTS AND LABOR WARRANTY
see your Kohler manual for specific warranty.
DK2 OPG777 STUMP GRINDER– 3-Year parts only, no labor. 3-year commercial Kohler warranty.
THIS WARRANTY DOES NOT COVER OR APPLY TO:
Damage to the product due to misuse, mishandling and abuse
(b) Improper installation, maintenance and storage
(c) Expendable parts such as nuts and bolts, pins and springs, wiring and switch components, hydraulic hoses and
fittings, cutting teeth, cutting chains, cutting blades, throttles, belts and tires.
(d) Normal wear and tear
(e) Consequential damage & incidental damages such as damage to persons or property
PROCEDURE FOR OUTDOOR POWER EQUIPMENT WARRANTY
Within the three (3) year warranty period, the purchaser of the product can CALL 702-331-5353 DK2POWER or
contact us on www.DK2Power.com. Notify us of the claimed defect and provide proof of original purchase. At this
time the validity of the claim will be determined, and if approved replacement parts will be issued. No returned
product will be accepted under warranty unless accompanied by an RGA# issued by Detail K2 Inc.
DAMAGED FREIGHT
Damage to your product caused by freight mishandling is NOT covered under warranty. If your freight arrives
damaged, REFUSE it. Inspect your product when it arrives, otherwise if you accept it, you will be responsible for filing
any freight claims with the delivery company. Dk2 warranty excludes damage to product.
RETURNS BEFORE GAS AND OIL
Follow the return policy from the retailer you purchased the equipment from.
RESOLUTION FOR A DEFECTIVE PRODUCT AFTER GAS AND OIL HAS BEEN ADDED.
Call DK2Power at 702-331-5353 in Las Vegas between 8am-4pm M-F Pacific Time.
PLEASE DO NOT RETURN TO THE STORE
CALL US AT 702-331-5353 FOR OEM WARRANTY PARTS AND QUESTIONS
14
STEP 6: QUICK START GUIDE
1. ADD GAS MID GRADE AND 10W30 OIL TO EITHER ONE OF
THE YELLOW PLUGS.
2. YOUR GRINDER WON'T START ON LOW OIL. MAKE SURE
YOUR OIL IS FULL –HALFWAY UP THE FILLER NECK.
3. KICK STAND UP
4. ENGINE GAS PADDLE ON FULL TO THE RIGHT (LOCATED ON
THE AIR CLEANER
5. CHOKE IN THE MIDDLE
6. SPEED ON TURTLE
7. TURN YOUR KEY ON
8. TEETH OFF THE GROUND
9. PULL START
15
