OPV425
17” x 21” PLATE COMPACTOR
4,750 VPM FREQUENCY • 17” x 21” PLATE • 7 HP KOHLER® ENGINE
USER MANUAL
NOTE: If you find any damaged or missing parts please call DK2 Customer Service or contact us via our website. We will
replace any damaged or missing parts to you for free. Please do not return to the store.

2 | OPV425 man.
TABLE OF CONTENTS
TECHNICAL SPECIFICATIONS..........................................................3
SECTION I: SAFETY ...............................................................4
SAFETY CONVENTIONS ..............................................................5
SAFETY LABELS FOUND ON YOUR UNIT ...............................................6
SAFE PRACTICES & GENERAL INFORMATION ...........................................7
SECTION II: OPERATION ..........................................................12
OPERATOR ZONE ...................................................................13
YOUR KOHLER ENGINE ..............................................................14
SPECIFIC OPERATION WARNINGS.....................................................15
BEFORE STARTING ..................................................................16
HANDLE ASSEMBLY ................................................................. 17
STARTING THE ENGINE ..............................................................18
STOPPING THE ENGINE ..............................................................20
AFTER EACH USE ...................................................................21
STORING YOUR UNIT ................................................................22
ENGINE START-UP (AFTER LONG-TERM STORAGE)......................................23
ENGINE STOPPING ..................................................................28
MAINTENANCE .....................................................................29
SECTION III: PARTS & SCHEMATICS ................................................31
FULL SCHEMATICS ..................................................................32
BASE PLATE ........................................................................33
ENGINE BASE PLATE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
ENGINE FRAME .....................................................................35
VIBRATORY HOUSE ASSEMBLY .......................................................36
CLUTCH AND BELT ..................................................................37
HANDLE............................................................................38
WARRANTY .....................................................................39
ENGLISH

v.211220 | 3
TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
ENGINE Kohler CH270 • 7 hp • 4,000 rpm • Command Pro Commercial
BORE 2.8 in
70 mm
STROKE 2.1 in
54 mm
DISPLACEMENT 12.7 in3
208 cc
OIL CAPACITY REFILL 0.63 U.S. qt
0.60 L
SPARK PLUG GAP 0.030 in
0.76 mm
MAXIMUM ANGLE OF OPERATION
@ FULL OIL LEVEL* 25°
WEIGHT 198.42 lb
90 kg
CENTRIFUGAL FORCE 16 kn
FREQUENCY 4750 vpm
POWER 3.5~5 kw
SPEED 12.6 in/s
32 cm/s
COMPACTION DEPTH 11.8 in
30 cm
ENGLISH

SECTION I
SAFETY

v.211220 | 5
SAFETY
SAFETY CONVENTIONS
CONVENTIONS USED IN THIS MANUAL
WARNING: This indicates a hazardous situation, which, if not avoided, could result
in death or serious injury.
CAUTION: This indicates a hazardous situation, which, if not avoided, could result in
minor or moderate injury.
NOTICE: This information is important in proper use of your machine. Failure to
follow this instruction could result in damage to your machine or property.
ADDITIONAL INFORMATION AND POTENTIAL CHANGES
We reserve the right to discontinue, change, and improve our products at any time without
notice or obligation to the purchaser. The descriptions and specifications contained in this
manual were in eect at printing. Equipment described within this manual may be optional.
Some illustrations may not be applicable to your machine.
ENGLISH

6 | OPV425 man.
SAFETY
SAFETY LABELS
SAFETY LABELS FOUND ON YOUR UNIT
WARNING
Read and
understand
operator’s
manual before
using this
machine.
CAUTION
Wear necessary
protective
equipment
to prevent
possible injury.
WARNING: HAND AND
FOOT CRUSH ZONE
Keep hands and feet away
from vibrating plate at all
times. Failure to follow this
instruction could result in
serious injury.
WARNING
AVERTISSEMENT
(EN) Read and understand operator’s
manual before using this machine.
(FR) Lire attentivement et veiller à
bien comprendre toutes les sections
de ce manuel d'utilisation avant
d'entreprendre une coupe
quelconque.
CAUTION
ATTENTION
(EN) Wear necessary protective
equipment to prevent possible injury.
(FR) Portez les protections
d'équipement nécessaires pour éviter
d'éventuelles blessures.
WARNING
• Engine exhaust contains carbon
monoxide. This is a poison you cannot
see or smell.
• NEVER use inside a home or garage,
even if doors and windows are open.
• ONLY USE OUTSIDE and far away from
windows, doors, and vents.
CAUTION NOTICE
NOTICE: OIL
LEVEL
WARNING/AVERTISSEMENT
• Engine exhaust contains carbon monoxide. This is a poison you cannot see or smell. / Les gaz d'échappement du moteur contiennent du monoxyde de
carbone. C'est un poison que vous ne pouvez ni voir ni sentir.
• NEVER use inside a home or garage, even if doors and windows are open. / NE JAMAIS utiliser à l'intérieur d'une maison ou d'un garage, même si les
portes et les fenêtres sont ouvertes.
• ONLY USE OUTSIDE and far away from windows, doors, and vents. / UTILISER UNIQUEMENT À L'EXTÉRIEUR et loin des fenêtres, des portes et des
prises aérations.
按实际尺寸调整 / 130mm x 30mm
CAUTION
MISE EN GARDE
LIFT
LEVER ICI
25mm x 50mm
MAX
MIN
20mm x 45mm
OIL LEVEL!
NIVEAU D'HUILE!
CC or CD GRADE
GRADE CC ou CD
70mm x 48mm
ENGLISH

v.211220 | 7
SAFETY
SAFE PRACTICES & GENERAL INFORMATION
WARNING: Read the Safety & Operations sections before you use the machine.
Become familiar with the operation and service recommendations to ensure the best
performance of your machine.
CAUTION: This machine is designed solely to compact and must not be used for
any other purpose. It should only be used by trained operators who are familiar with
the content of this manual. It is potentially hazardous to fit or use any parts other than
DK2 OEM parts. The company disclaims all liability for the consequences of such use,
which in addition voids the machine warranty.
WARNING: OVERVIEW
• The warnings, cautions, and instructions in this manual cannot cover all possible conditions
or situations that could occur. Exercise common sense and caution when using this plate
compactor. Always be aware of the environment and ensure that the plate compactor is
used in a safe and responsible manner.
• DO NOT allow persons to assemble or operate this plate compactor until they have read this
manual and have developed a thorough understanding of how the plate compactor works.
• Use the right tool for the job. DO NOT attempt to force small equipment to do the work of
larger industrial equipment. There are certain applications for which this equipment was not
designed. It will be safer and do the job better at the capacity for which it was intended. DO
NOT use this equipment for a purpose for which it was not intended.
• Industrial or commercial applications must follow OSHA requirements.
WARNING: ENGINE EXHAUST
• Engine exhaust contains carbon monoxide. This is a poison you cannot see or smell.
• NEVER use this unit inside a home or garage, even if doors and windows are open.
• Only use OUTSIDE and far away from windows, doors, and vents.
ENGLISH

8 | OPV425 man.
SAFETY
SAFE PRACTICES & GENERAL INFORMATION
WARNING: CALIFORNIA PROP 65
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities
contains chemicals known to the State of California to cause cancer, birth defects, or other
reproductive harm. Some examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement and other masonry products
• Arsenic and chromium from chemically-treated lumber
Your risk from these exposures varies, depending on how often you do this type of work.
To reduce your exposure to these chemicals: work in a well-ventilated area, and work with
approved safety equipment, such as dust masks that are specially designed to filter out
microscopic particles.
WARNING: WORK AREA SAFETY
• Inspect the work area before each use. Keep the work area clean, dry, free of clutter, and
well-lit. Cluttered, wet, or dark work areas can result in injury.
 DO NOT use the plate compactor where there is a risk of causing a fire or an explosion; e.g.,
in the presence of flammable liquids, gases, or dust. The plate compactor can create sparks,
which may ignite the flammable liquids, gases, or dust.
 DO NOT allow the plate compactor to come into contact with an electrical source. The plate
compactor is not insulated and contact will cause electrical shock.
• Keep children and bystanders away from the work area while operating the plate compactor.
DO NOT allow children to handle the plate compactor.
• Be aware of all power lines, electrical circuits, water pipes, and other mechanical hazards
in your work area. Some of these hazards may be hidden from your view and may cause
personal injury and/or property damage if contacted.
WARNING: PROTECTING YOURSELF AND THOSE AROUND YOU
This is a powerful machine, with moving parts operating with high energy. You must operate the
machine safely. Unsafe operation can create several hazards for you, as well as anyone else in
the nearby area. Always take the following precautions when using this machine.
• Keep in mind that the operator or user is responsible for accidents or hazards occurring to
other people, their property, and themselves.
• Always wear protective goggles or safety glasses with side shields while using the
Compactor to protect your eyes from possible thrown debris.
ENGLISH

v.211220 | 9
SAFETY
SAFE PRACTICES & GENERAL INFORMATION
• Avoid wearing loose fitting clothing or jewelry, which can catch on moving parts.
• We recommend wearing gloves while operating the machine. Be sure your gloves fit
properly and DO NOT have loose cus or drawstrings.
• Wear shoes with non-slip treads when using your machine. If you have safety shoes, we
recommend wearing them. DO NOT use this machine while barefoot or wearing open-toed
footwear.
• Wear long pants while operating the machine.
• Always keep bystanders at least 50 feet away from your work area. Stop the engine when
another person or pet approaches.
WARNING: SAFETY FOR CHILDREN AND PETS
Tragic accidents can occur if the operator is not alert to the presence of children and pets.
Children are often attracted to the machine and its activity. Never assume that children will
remain where you last saw them. Always follow these precautions.
• Keep children and pets at least 50 feet from the working area and ensure they are under the
watchful care of a responsible adult.
• Be alert and turn the machine o if children or pets enter the work area.
• Never allow children to operate the machine.
WARNING: SAFETY WITH GASOLINE
Gasoline is a highly flammable liquid. Gasoline also gives o a flammable vapor that can be
easily ignited and cause a fire or explosion. Never overlook the hazards of gasoline. Always
follow these precautions.
• Never run the engine in an enclosed area or without proper ventilation as the exhaust from
the engine contains carbon monoxide, which is an odorless, tasteless, and deadly poisonous
gas.
• Store all fuel and oil in containers specifically designed and approved for this purpose and
keep away from heat and open flame.
• Replace rubber fuel lines and grommets when worn or damaged and after 5 years of use.
• Fill the gasoline tank outdoors with the engine o and allow the engine to cool completely.
Don’t handle gasoline if you or anyone nearby is smoking, or if you’re near anything that
could cause it to ignite or explode. Reinstall the fuel tank cap and fuel container cap
securely.
• If you spill gasoline, DO NOT attempt to start the engine. Move the machine away from
the area of the spill and avoid creating any source of ignition until the gas vapors have
dissipated. Wipe up any spilled fuel to prevent a fire hazard and properly dispose of the
ENGLISH

10 | OPV425 man.
waste.
• Allow the engine to cool completely before storing in any enclosure. Never store a machine
that has gas in the tank, or a fuel container, near an open flame or spark such as a water
heater, space heater, clothes dryer, or furnace.
• Never adjust or repair with the engine running. Shut down the engine, disconnect the spark
plug wire, keeping it away from the spark plug to prevent accidental starting, wait 5 minutes
before adjusting or repairing.
• Never tamper with the engine’s governor setting. The governor controls the maximum safe
operation speed and protects the engine. Over-speeding the engine is dangerous and will
cause damage to the engine and to the other moving parts of the machine. If required, see
your authorized dealer for engine governor adjustments.
• Keep combustible substances away from the engine while it is hot.
• Never cover the engine while the muer is still hot.
 DO NOT operate the engine with the air cleaner or the carburetor air intake cover removed.
Removal of such parts could create a fire hazard. DO NOT use flammable solutions to clean
the air filter.
• The muer and engine become very hot and can cause a sever burn; DO NOT touch.
WARNING: GENERAL SAFETY
Operating this Compactor safely is necessary to prevent or minimize the risk of death or
serious injury. Unsafe operation can create several hazards for you. Always take the following
precautions when operating.
• Your machine is a powerful tool, not a plaything. Exercise extreme caution always. The
machine is designed to compact. DO NOT use it for any other purpose.
• Know how to stop the Compactor quickly.
• Never operate your unit on a slippery, wet, muddy, or icy surface. Exercise caution to avoid
slipping or falling.
• Never use the machine without ensuring that all guards and shields are in place.
• Never, under any conditions, remove, bend, cut, fit, weld, or otherwise alter standard parts
on the Compactor. This includes all shields and guards. Modifications to your machine could
cause personal injuries and property damage and will void your warranty.
• If the machine starts to make an unusual noise or vibrate, shut down the engine, disconnect
the spark plug wire, keeping it away from the spark plug to prevent accidental starting, wait
5 minutes for the engine to cool down, then inspect for damage. Vibration is generally a
warning of trouble. Check for any broken or missing expendable items such as nuts, bolts,
pins, springs, wiring and switch components, fittings, throttles and belts. Also check engine
mounting bolts.
• Never tamper with safety devices. Check their proper operation regularly.
• Before performing any maintenance or inspection procedure, shut down the engine,
SAFETY
SAFE PRACTICES & GENERAL INFORMATION
ENGLISH

v.211220 | 11
disconnect the spark plug wire keeping it away from the spark plug to prevent accidental
starting, wait 5 minutes for machine to cool down.
• Never allow people who are unfamiliar with these instructions to use the machine. Allow
only responsible individuals who are familiar with these rules of safe operation to use your
machine.
• While using, don’t hurry or take things for granted. When in doubt about the equipment or
your surroundings stop the machine and take time to look things over.
• Never operate the machine when under the influence of alcohol, drugs, or medication.
• Use the machine only in daylight. Stay alert for hidden hazards.
• Keep all nuts and bolts tight and keep the equipment in good operating condition.
NOTE: List of warnings and cautions cannot be all-inclusive. If situations occur that are
not covered by this manual, the operator must apply common sense and operate this
Compactor in a safe manner. Contact DK2 Customer Service for assistance or questions.
WARNING: BEFORE OPERATION
1. Read and understand all instructions, safety precautions, and/or warnings listed in this
manual before operating the Compactor. If any doubt or question arises about the correct
or safe method of performing anything found in this manual, please contact DK2 Customer
Service at 1 [phone].
2. When operating the Compactor, make sure you are standing in the safe operating area
(OPERATOR ZONE). Never place any part of your body into a position that causes an unsafe
operating condition.
3. Before operating the Compactor, always wear protective gear, including safety goggles,
hearing protection, tight-fitting gloves without draw strings or loose cus, and steel-toed
shoes.
4. Never use an incorrect or unsafe method of operation.
SAFETY
SAFE PRACTICES & GENERAL INFORMATION
ENGLISH

SECTION II
OPERATION

v.211220 | 13
NOTICE: Clear area around planned operating location.
WARNING

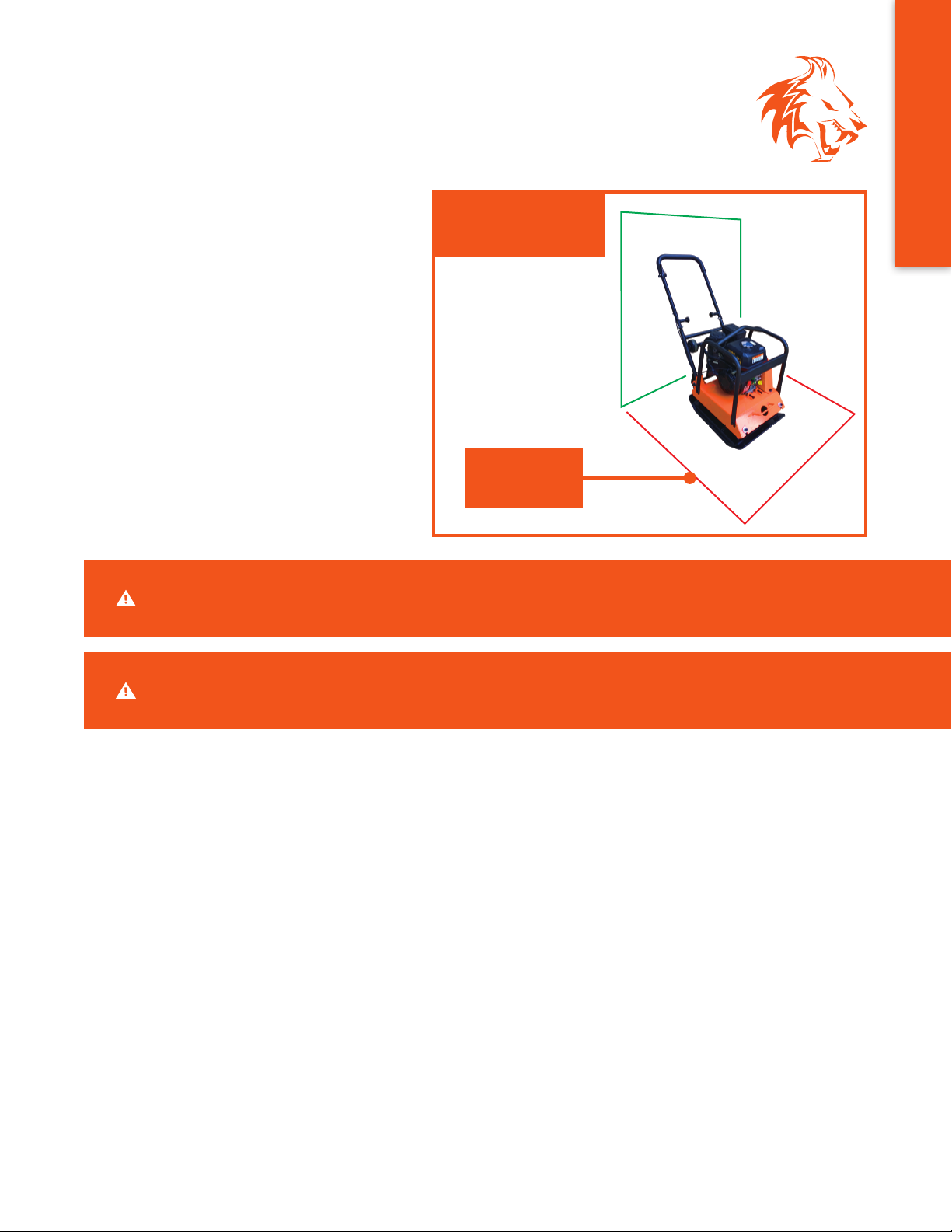

Never allow yourself or others to reach or step to the side or the front of the Compactor when it
is running. This is very unsafe and could cause personal injury or death.
OPERATION
OPERATOR ZONE
OPERATOR
ZONE
KEEP CLEAR
OF THE RED
ENGLISH

14 | OPV425 man.
1On/O Switch
2Gas • Use Mid Grade or Higher
3Choke • Left = ON / Right = OFF
4Gas ON / OFF Switch • Left = OFF / Right = ON
5Throttle • Rabbit = Fast / Turtle = Slow
6Pull Starter • Pull Tight, Then Pull Start
7Oil • Fill to mark with 10W30, will not start if oil is low, has low oil shut-o protection.
Two yellow caps are oil fill caps, use either one to fill oil.
OPERATION
YOUR KOHLER ENGINE
2
1
5
3
4
6
7
ENGLISH

v.211220 | 15
OPERATION
SPECIFIC OPERATION WARNINGS
WARNING
• Only trained personnel are permitted to operate the compactor.
• DO NOT operate under the influence of drugs or alcohol.
• DO NOT operate in the presence of explosives or flammable substances such as liquids,
gases, or dust. Gasoline-powered engines may ignite these substances causing an
explosion.
• DO NOT leave the compactor unattended while it is running.
• The engine must be turned o and secure before restarting, make sure you pull out the
spark plug before maintenance and servicing.
• Keep hands, feet, and tools clear from the compactor base while operating.
• Only use suitable means of transport and lifting devices with sucient loading capacity.
• Securely fasten the plate compactor before transportation. Insecure fastening of the unit
may cause damage or injury during transportation.
• DO NOT transport the compactor by a motor vehicle with fuel in its tank.
• DO NOT refuel the engine while it is still hot. Fuel is flammable.
• DO NOT service the engine while it is still hot.
• Operate the compactor with both hands.
• NOT for use by or around children or pets. Keep a watchful eye of your surroundings and
ensure children and pets are under appropriate, responsible supervision.
WARNING: BEFORE EACH USE
To avoid risk of an explosion or fire from a fuel spill, only add fuel to the tank when the engine is
stopped and has cooled down. In the event of a fuel spill, DO NOT attempt to start the engine
until the fuel residue has been completely cleaned up, and the area surrounding the engine is
dry.
ENGLISH

16 | OPV425 man.
OPERATION
BEFORE STARTING
BEFORE STARTING THE PLATE COMPACTOR
Read and understand the safety and operating instructions of both this manual, and your engine
manual.
CHECKLIST
1. Oil level in engine
2. Fuel level
3. Condition of air cleaner
4. Tightness of external fasteners
5. Condition of fuel lines
INSPECT THE PLATE COMPACTOR
1. Check all the bolts, nuts, and belts. Tighten any if necessary.
2. Check the general condition of the plate compactor and its components. Clean any foreign
material (dirt, fragments, etc.) from the unit that may have been thrown o, causing injury.
ENGLISH

v.211220 | 17
OPERATION
HANDLE ASSEMBLY
WARNING: Read and understand both the engine and plate compactor’s manuals
before starting or operating the unit to avoid incorrect operation that may result in
damage or injury.

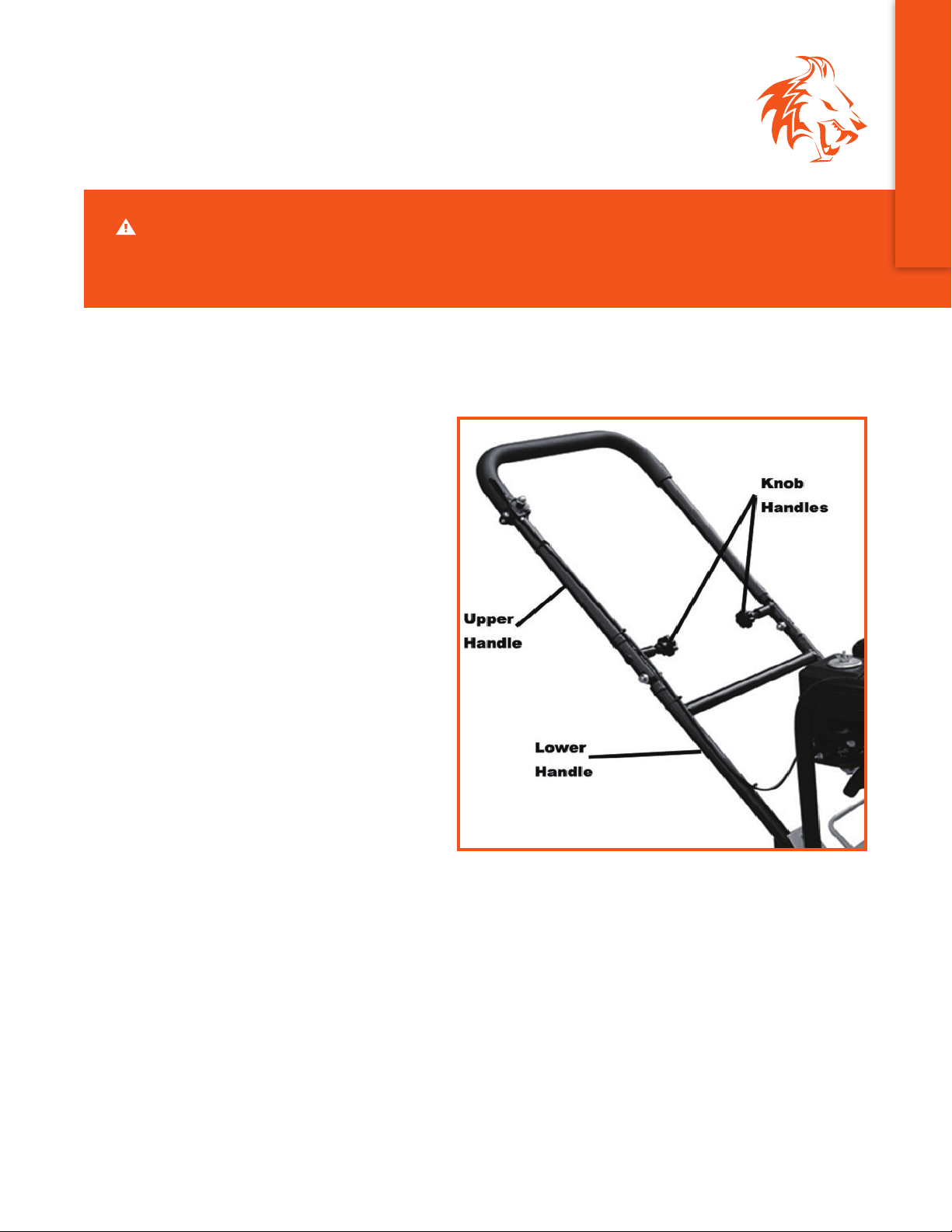

1. Loosen the knob handle on each side of the upper handle.
2. Swing the upper handle until it points straight out from the lower handle.
3. Tighten both knob handles securely.
ENGLISH

18 | OPV425 man.
STARTING THE ENGINE
1. Open the fuel valve by moving the lever to the right (a1).
2. Turn the engine switch to the ON position (e1).
3. Open the throttle by moving it slightly to the left (d1).
4. Pull the starter rope (c).
5. Open the choke as the engine warms (b2).
6. Open the throttle fully to operate.
NOTE: If the engine is cold, move the choke lever to the CLOSE position (b1). If the engine is
hot, set the choke to the OPEN position (b2).
NOTE: If the oil level in the engine is low, the engine will not start. If it doesn’t start, add oil to
the engine. Some engines are equipped with an oil alert light that will come on while pulling
the starter rope.
OPERATION
STARTING THE ENGINE
ENGLISH

v.211220 | 19
OPERATION
STARTING THE ENGINE
NOTE: Whenever high-speed operation (over 3,600 RPM) is NOT required, slow the engine
by moving the speed control lever to a low position to save fuel and extend the life of the
equipment.
7. Once the engine has started, firmly grasp the plate compactor’s handle bar with one hand
then quickly turn the throttle lever to high speed. The engine speed should be around 2,300
RPM therefore engaging the centrifugal clutch.
NOTE: Always move the throttle lever quickly without hesitation, because increasing the
engine speed slowly will cause the clutch to slip.
8. Firmly grasp the plate compactor’s handle bar with both hands as it begins to move forward.
Walk behind the unit watching for any large objects or foreign matter that might cause
damage to the compactor or shoot out causing property damage or bodily injury. If objects
are in the travel path, slow the engine (stopping compactor travel) and remove the object
before proceeding.
The compactor’s travel speed may slow down on soils that contain clay; however, there may
be cases where the travel speed slows because the vibrator/compaction plate does not
leave the ground surface easily due to the composition of the soil. To correct this problem:
• With the compactor turned o completely and the engine cooled, check the vibrator
plate to see if clay or other materials have been lodged in the mechanism. If so, clean the
plate mechanism with water and remove the material.
• Remember that the plate compactor does not work eciently on clay or very moist soil.
• If the soil is very moist, dry it to a suitable level or perform compaction twice.
ENGLISH

20 | OPV425 man.
OPERATION
STOPPING THE ENGINE
STOPPING THE ENGINE
CAUTION: Never stop the engine abruptly from full speed. Slow the speed and
allow the engine to run idle for a few minutes. This is necessary to prevent the
moisture of the outside air from getting into the engine carburetor.
• Slow the engine to idle by turning the accelerator lever fully counter-clockwise.
• Shift the engine ON/OFF switch to the OFF position.
• Close the fuel valve.
See the engine’s owner’s manual for further information about your engine.
ENGLISH
