GET STARTED
8860 7-Inch Touchscreen Keypads oer an easy to use touchscreen interface with an on-board camera, optional
panic keys, an internal speaker, a simple terminal connection to a 4-wire keypad bus, and other features. The 8860 has
enhanced Wi-Fi communications to Dealer Admin™ for video system integration and image capture when arming and
disarming at the keypad. Keypads can be mounted on a flat surface with appropriate fasteners.
What’s Included
▶One 8860 7-Inch Touchscreen Keypad
▶Hardware pack
What You’ll Need
▶5/64” (2.0mm) drill bit
▶#2 Phillips screwdriver
Procedure
This guide walks you through the required steps needed to install an 8860 keypad. They are:
1. Install the keypad.
2. Use the keypad.
3. Program the panel.
4. Program the keypad.
5. Program the carousel menu.
6. Program keypad options.
7. Connect the keypad to Wi-Fi.
8. Program Z-Wave devices.
9. Train your customers.

8860 Installation and Programming Guide | Digital Monitoring Products 2
INSTALL THE KEYPAD
1 Run Wire
Run wire from the power source to the keypad mounting location. See Keypad Bus Wiring Specifications section
on page 16 for maximum wire runs.
Mount the Keypad
1. Route the keypad wires through the cutouts in
the base. See Figure 1.
2. Use the keypad base to mark the holes for the
screws on the mounting surface.
3. Set the base aside and drill the holes.
4. Use the included screws to secure the keypad
base to the surface. Do not overtighten.
5. Attach the wire harness to the keypad.
6. Slide the keypad onto the base and press the
keypad into place.
2

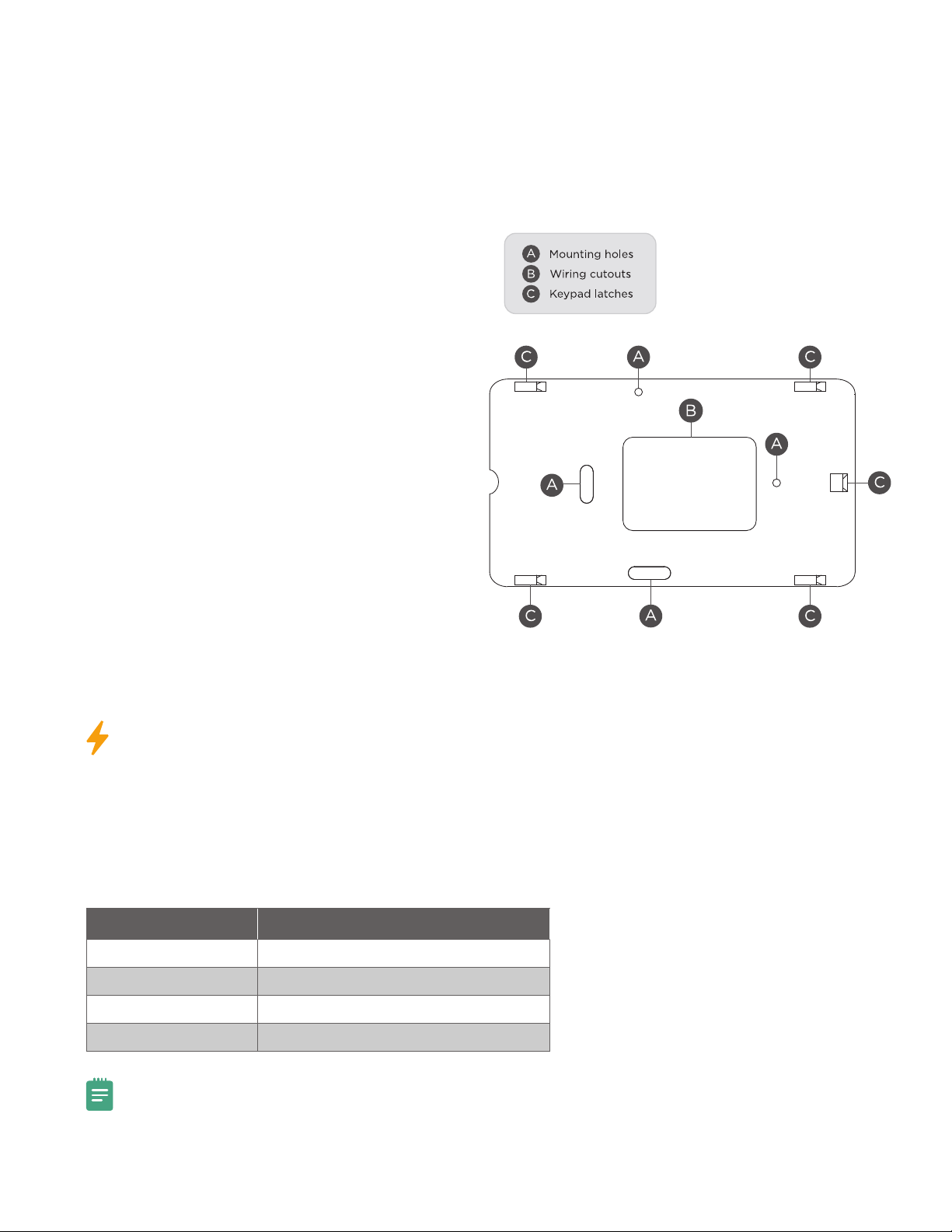

Figure 1: Mounting Hole Locations
3 Wire the Keypad
To wire the keypad to the panel, make the connections shown in Figure 2.
Caution: Disconnect all power before wiring. Failure to do so may result in equipment damage or injury.
Observe polarity when making power connections.
1. Connect the red wire to panel terminal 7.
2. Connect the yellow wire to panel terminal 8.
3. Connect the green wire to panel terminal 9.
4. Connect the black wire to panel terminal 10.
WIRE COLOR PURPOSE
Black Ground from Panel*
Green Receive Data from Panel*
Yellow Send Data from Panel*
Red Power from Panel or Auxiliary Power Source*
*Required connections
Note: The keypad bus on a typical system can power up to four 8860 keypads on an XR panel and no more
than one 8860 on an XT panel without the use of an external power supply. DMP recommends performing
system power calculations before installing more than one device on the keypad bus.

8860 Installation and Programming Guide | Digital Monitoring Products 3
Black - Ground
Green - Receive Data
To Panel
Keypad Bus Yellow - Send Data
Red - Power
Keypad
Back
Figure 2: Keypad Wiring

8860 Installation and Programming Guide | Digital Monitoring Products 4
USE THE KEYPAD
Enter Characters
To see how to enter characters, watch the video How to Type on a Keypad.
Standard Keyboard
▶Press ABC to enter uppercase letters.
▶Press abc to enter lowercase letters.
▶Press !@# to enter special characters.
▶Press 123 to enter numbers and to return to the number pad.
Select Areas
Return to
Home Screen
Figure 4: Number Pad Figure 5: Standard Keyboard
Number Pad
Uppercase/
Lowercase
Letters
Special
Characters

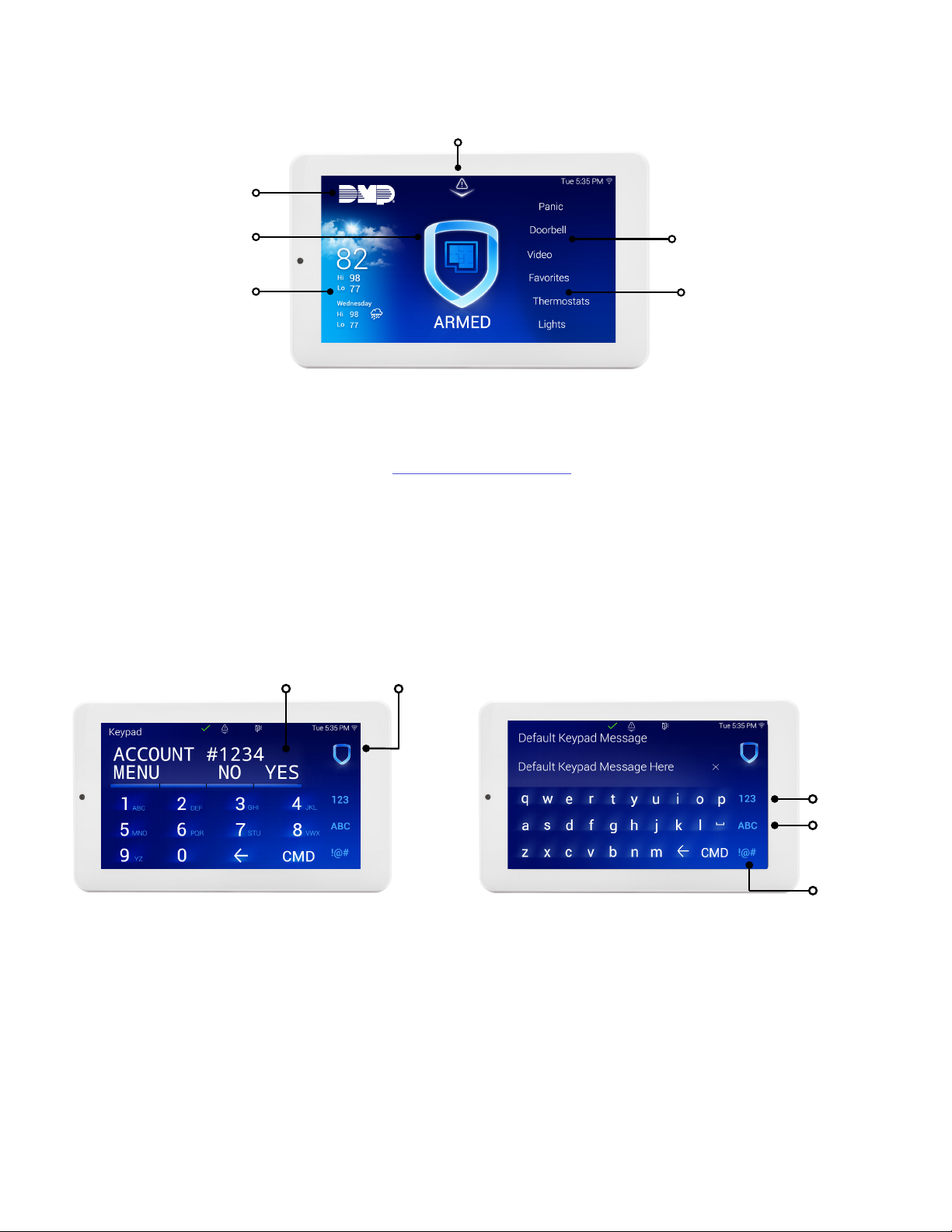

Keypad Layout
Figure 3: Keypad Layout
Dealer Logo
Carousel Menu
Local
Weather
Interactive
Arming/
Disarming
Home Shield
Drag the menu
to scroll
Drag down the attention
list to view events

8860 Installation and Programming Guide | Digital Monitoring Products 5
PROGRAM THE PANEL
Before continuing with programming and setup, program the keypad in the panel as a device.
To access the Programmer menu, reset the panel by shorting the RESET header, press Keypad in the Carousel menu,
enter 6653 (PROG), then press CMD.
After completing each of the following steps, press CMD to advance to the next option. To exit the Programmer menu,
tap CMD to advance through the menu items until you reach the end of the menu. At the end of the menu, press the
back button twice to return to the main screen. Refer to the panel programming guide as needed.
Device Setup
Advance to Device Setup, then press a select area to enter the setup menu.
Device Number
Set the keypad address.
Panel Models Compatible Device Numbers
XR550 1 - 16
XR150 1 - 8
XT30/XT50 1 - 8
Device Name
Enter a name for the device.
Device Type
For use as a standard keypad, select KPD.
Communication Type
Ensure the COMM TYPE is set to KPD (Keypad Bus).
Configure additional options as needed.
DEVICE SETUP
DEVICE SETUP
DEVICE NO: -
DEVICE SETUP
*UNUSED*
DEVICE SETUP
TYPE: KEYPAD
DEVICE SETUP
COMM TYPE: KPD

8860 Installation and Programming Guide | Digital Monitoring Products 6
PROGRAM THE KEYPAD
To access the Keypad Installer Options menu, press Options in the Carousel menu. Tap the Installer Options wrench icon,
enter 3577 (INST), then press CMD.
Installer Options

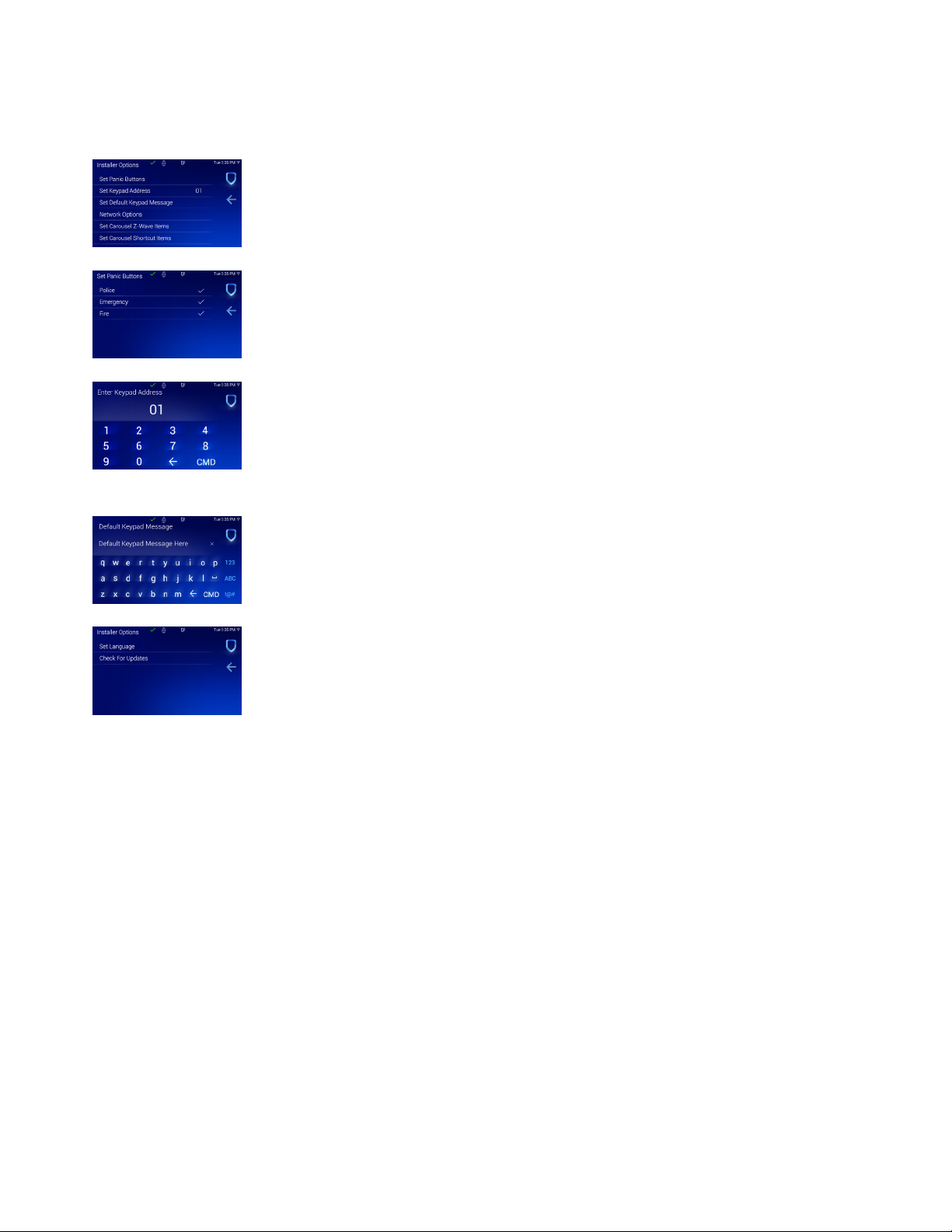

To program keypad options, press the Installer Options wrench icon and enter 3577
(INST). Press CMD. Select an option to configure its settings. Press the back arrow to
back out of the menu.
Set Panic Buttons
Use this option to enable or disable the panic keys. Select the panic buttons you would
like to have displayed on the keypad. Once the panic option is enabled, a check mark
displays next to the selected options.
Set Keypad Address
Set the current keypad address to be the same as the panel device number. The default
address is set at 01. To change the current address, press any select area to clear the
keypad display, enter the new address, and press CMD. It’s not necessary to enter a
leading zero for addresses 1 to 9.
Set Default Keypad Message
Enter a custom message of up to sixteen characters to appear at the top of the keypad
display. Press any select area, enter a new message, and press CMD. If a message has
been entered, it will display in the field until changed.
Check for Updates
The keypad has local and remote update capabilities. The keypad must be connected to
Wi-Fi to perform a local and remote update. The remote update capabilities can be used
for per device updates through Dealer Admin™.

8860 Installation and Programming Guide | Digital Monitoring Products 7
PROGRAM THE CAROUSEL MENU
The Carousel menu allows the user to pick and choose what displays within the Carousel menu on the home screen.
Press Options in the Carousel menu. Tap the Installer Options wrench icon, enter 3577 (INST), then press CMD. From
here, select Carousel Z-Wave Items or Carousel Shortcut Items to configure their settings.
Carousel Z-Wave Items
Carousel Z-Wave Items allows you to select the Z-Wave options to display in the
Carousel menu. Press an item to select and a check mark displays. Press again to
deselect that option. Items for the Carousel include Lights, Doors, Thermostats,
Appliances, and Favorites. Press the back arrow to return to the previous screen. Default
is no items selected.
Carousel Shortcut Items
Carousel Shortcut Items allows you to select additional menu items to display in the
Carousel menu. Press an item to select and a check mark displays. Press again to
deselect that option. Items for the Carousel include User Codes, Schedules, Events, and
Bypass. Default is no items selected. Select Edit Favorites to display the Edit Z-Wave
icon on the Favorites screen. Select Edit Z-Wave to display the Edit Z-Wave icon for the
Lights, Doors, Thermostats, and Appliances screens.
