INSTALLATION AND PROGRAMMING GUIDE
1100T Series
Wireless Translator

About the Translator.................................. 1
Learn Feature......................................................... 1
Tampers.................................................................... 1
Compatibility......................................................... 2
Full Compatibility Guide................................... 2
Translator Features ....................................3
Pre-Installation ...........................................4
Install the Translator ..................................4
Wire the Power Supply ..................................... 4
Program Device Setup ..................................... 5
Select a Location for the Translator............. 6
Program Zone Information.............................. 6
Mount the Translator.......................................... 8
Walk Test................................................................. 9
Additional Information ............................. 11
Replace the Battery............................................11
Status LEDs ..........................................................12
1100T Supported Zones ...................................13
Non-DMP Sensor Supervision Time ............13
TABLE OF CONTENTS
Compliance Listing Specifications ........ 14
Commercial Fire..................................................14
Product Specifications ............................ 15
Patents ....................................................... 15
Accessories................................................ 16
Certifications............................................. 16
Intertek (ETL Listed).........................................16
Ordering Information............................... 17
FCC Information ....................................... 18
Industry Canada Information.................. 19

Digital Monitoring Products, Inc. | 1100T Wireless Translator Installation and Programming Guide 1
The 1100T Wireless Translator allows upgrades of non-DMP systems with one way, low
frequency, wireless transmitters to DMP. The 1100T is compatible with transmitters that
operate at various MHz such as Interlogix, Honeywell 5800, 2GIG, and DSC.
The translator operates with a wireless connection to a DMP receiver on a DMP panel and
is available as an 1100T or 1100TF version.
Learn Feature
Transmitters that have been learned into
the 1100T are able to send supervision and
low battery messages to the panel.
Tampers
The translator is equipped with a case and
wall tamper.
ABOUT THE TRANSLATOR

2 1100T Wireless Translator Installation and Programming Guide | Digital Monitoring Products, Inc.
Compatibility
• All DMP XT Series panels and XR Series panels with version 211 or higher
• All 1100 Series Wireless Receivers with versions 207 or higher—excluding the 1100R
Repeater
Warning: The 1100T Wireless Translator is not compatible with systems using
the 1100R Wireless Repeater.
• Interlogix 319.5 MHz
• Honeywell 5800 345 MHz
• 2GIG Series 345 MHz
• DSC 433 MHz
• Encryption from 1100T to DMP Receiver requires panel Version 211 or higher and
Receiver Version 301 or higher
• Remote Link Version 2.11 (3/2/21) or higher
Full Compatibility Guide
For a full list of compatible non-DMP products, see the 1100T Wireless
Translator Compatibility Guide LT-2430. Scan the QR code below if
viewing this in a printed manual.

Digital Monitoring Products, Inc. | 1100T Wireless Translator Installation and Programming Guide 3
TRANSLATOR FEATURES

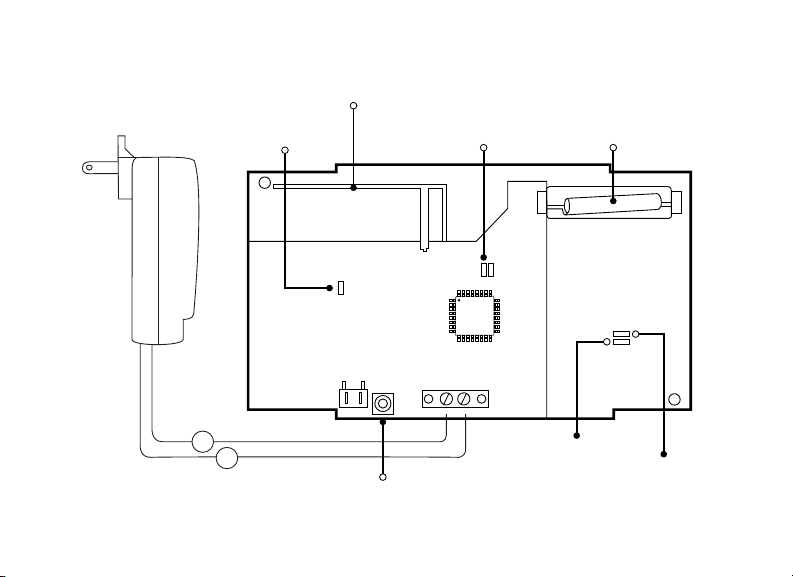

Figure 1: Product Features
+BAT- +12V-
-
+
Tamper Switch
Survey LED
MODEL 1100T
Non-DMP
Antenna
DMP Antenna
Charge Status
LED
Green
Status LED Red
Status LED

4 1100T Wireless Translator Installation and Programming Guide | Digital Monitoring Products, Inc.
INSTALL THE TRANSLATOR
Wire the Power Supply
The 1100T Wireless Translator can be powered from a 12 VDC external power supply.
In addition to powering the translator, the power supply also charges the back-up
battery. If the DC power source is removed, the power failure is indicated as an open
condition on the translator device number.
The 372-500-W power supply must be located within 100 feet of the translator using
22 AWG wire. Use the following steps to connect it:
1. With the cover removed, connect the positive wire to the positive terminal on
the translator.
2. Connect the negative wire to the negative terminal on the translator.
3. Plug the power supply into a wall outlet not controlled by a switch.
1
PRE-INSTALLATION
Before installing the translator, the DMP panel and receiver must already be powered on
and set up in their final locations. See the panel and receiver guides for their installation
information.

Digital Monitoring Products, Inc. | 1100T Wireless Translator Installation and Programming Guide 5
Program Device Setup
The translator must first be programmed as a device in Device Setup. Zones should
be programmed in Zone Information.
1. Go to DEVICE SETUP and press CMD.
2. At DEVICE NO, enter the desired device number for the 1100T. Available addresses:
• XT30, XT50, XTL Series, or XR150: 2-8
• XR550: 2-16
3. Select *UNUSED* to enter a name for the device. After naming the device,
press CMD.
• XR Series Panels:
Press the fourth select key or area to change the device type.
Press CMD until TLR is displayed and select that for the translator.
• XT Series Panels:
At 1100T? NO YES, select YES and press CMD.
4. Enter the Serial number.
5. At 1100T FREQ, press any select key or area to select the non-DMP system.
Default is HWL (Honeywell).
6. At SUPRVSN TIME, select the supervision time required for the 1100T. DMP
default supervision time is 240 minutes.
7. Press CMD and then the Back Arrow to exit Device Setup.
2

6 1100T Wireless Translator Installation and Programming Guide | Digital Monitoring Products, Inc.
Select a Location for the Translator
The 1100T translator provides a Survey LED capability to allow one person to confirm
communication with the panel while the cover is removed.
1. While remaining in panel programming, hold the translator in the exact
desired location.
2. Press the tamper switch to send data to the panel and determine if
communication is confirmed or faulty.
Confirmed: If communication is confirmed, for each press or release of
the tamper switch, the LED blinks immediately on and immediately o.
Repeat this test 5 times to confirm ten separate consecutive LED
blinks. Any indication otherwise means proper communication has not
been established.
Faulty: If communication is faulty, the LED remains on for about 8
seconds or flashes multiple times in quick succession. Relocate the
translator or receiver until the LED confirms clear communication.
3
Program Zone Information
1. In ZONE INFORMATION, enter the wireless zone number.
2. At *UNUSED*, enter the zone name.
3. Select a ZONE TYPE.
4
