Wireless ArtNet-DMX
STAGE-PROFI 1.1
User Manual
Art-Net™ Designed by and Copyright Artistic Licence Holdings Ltd

Wireless ArtNet-DMX STAGE-PROFI 1.1 2
Description
The Wireless ArtNet-DMX STAGE-PROFI 1.1 is a compact Art-Net (DMX via
Ethernet) Interface which includes modern ARM
®
-Processor technology.
Furthermore the Wireless ArtNet-DMX STAGE-PROFI 1.1 offers a certified
2.4GHz 802.11 b/g/n Wi-Fi (FCC, CE, IC, and TELEC) for the direct integration in a
WLAN.
Switchable DMX-Line
The DMX-Line is switchable according to usage. So Art-Net can be realized to DMX
or DMX to Art-Net.
Adjustable DMX-Frame rate
Within the DMX-OUTPUT-MODE the frame rate is adjustable, so this interface is
compatible to “slow” DMX-Devices.
Art-Net Merge-Function
Two Art-Net-Sources will be joined outputted via LTP (Latest) or http (Highest) to the
DMX-Output.
Switched off LED-Display
The LED-Display at the Wireless ArtNet-DMX 1.1 are suppressible via ArtNet-
Command (AcLedMute) or time-controlled.
This is helpful on stages to avoid disturbing “light points”.
Fast launch with WPS
With the WPS-Function the registration to an Access-Point is possible at the touch of
a button. Without an additional installation of encoding, the controlling can be
integrate in existing networks and allows an easy possibility of usage without
additional network activities.
Easy Configuration
For an easy IP-Setting we provide free the IP-Configurator as PC-Tool or Android-
App.
IEEE 802.11 WEP/WPA/WPA2 Encoding
For a safety operation within a WLAN the possibility of using a WEP/WPA/WPA2-
encoding exists. An uncoded operation (OPEN) is possible too.
High-quality and compact performance
The Wireless ArtNet-DMX 1.1 is built in compact aluminium housing with 3pin XLR-
Connection for the DMX-line.
Firmware-Update-Function
To use prospective and further functions the Wireless ArtNet-DMX STAGE-PROFI
1.1 provides an integrated Firmware-Update-Function.

Wireless ArtNet-DMX STAGE-PROFI 1.1 3
Data sheet
Power supply: 5V/1A DC via attached USB-power supply
Ethernet: 2.4GHz IEEE
®
802.11 b/g/n Wi-Fi
®
DMX: 3 pin XLR-Connecting female
DMX-Direction adjustable:
- 512 Channel OUT
- 512 Channel IN
For DMX-IN a DMX-Adapter XLR-Male / XLR-Male 3pin is needed
Protocol: Art-Net™
Dimensions (LxBxH): 125 x 60 x 35 mm (without feeler)
Delivery
- Wireless ArtNet-DMX STAGE-PROFI 1.1
- WiFi-Feeler
- Mini USB Cable
- Power supply
- User manual (german)

Wireless ArtNet-DMX STAGE-PROFI 1.1 4

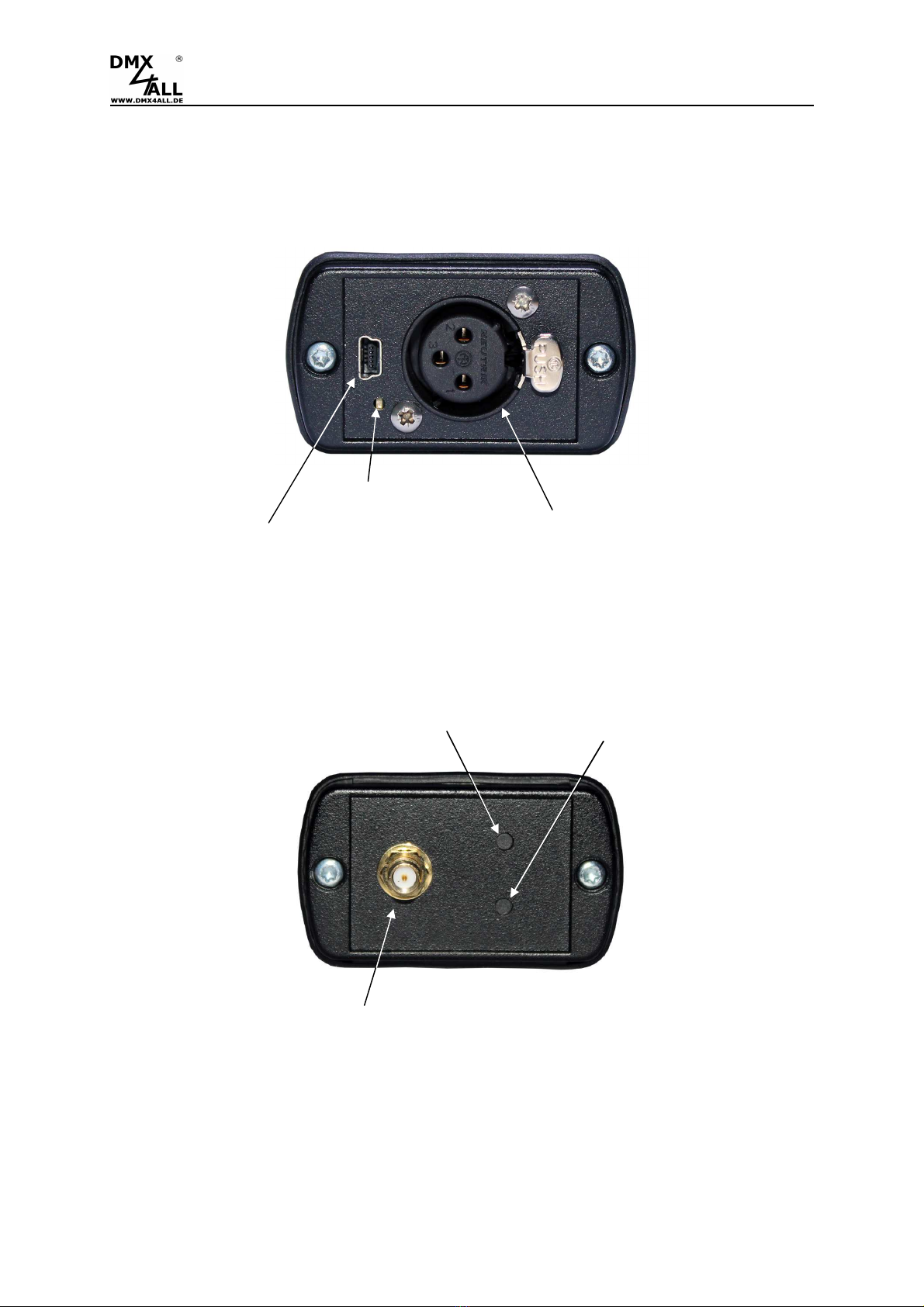

Connection
USB (POWER 5V/1A)
LED
DMX
-
Connection
1 – GND
2 – DMX-
3 – DMX+
Feeler-Connection
WPS-Button RESET-Button

Wireless ArtNet-DMX STAGE-PROFI 1.1 5
Multi-Color-LED-Display
The Multi-Color-LED signals the several states of the Wireless ArtNet-DMX STAGE-
PROFI 1.1.
Flashes RED Device has no Wifi-Connection
Flashes RED
3x short / long Pause Power supply incorrect Please check, if the USB-Connection respectively
the power supply provides enough performance!
Flashes GREEN No DMX-Signal existing
Flashes BLUE Waiting for WPS-Answer
Lights RED Device is not configured
Lights GREEN Device works normally
Lights BLUE Factory-Reset is running
RED /GREEN
alternate Device is within the Update-Mode

Wireless ArtNet-DMX STAGE-PROFI 1.1 6
Quick Start with WPS
Please proceed as follows to run the Wirless ArtNet-DMX STAGE-PROFI 1.1 with the
WPS-Function:
-Connect the Wireless ArtNet-DMX STAGE-PROFI 1.1 with the attached power
supply.
-Start the WPS-Function at your Router/Access-Point.
-Push the WPS-Button at the Wireless ArtNet-DMX STAGE-PROFI 1.1 .
The LED flashes blue
-As soon as the LED lights permanently green the connection to your WiFi-
Network is established. The IP is received via DHCP.
-Optionally you can adjust a fixed IP.
See section „Set a fixed IP with IP-Configurator“
- Art-Net details which are sent to the ArtNet-DMX STAGE-PROFI 1.1 are
outputted via DMX. The Default settings are:
Universe: 0
SubNet: 0
Net: 0
The quick start with WPS instruction assumed that the Wireless ArtNet-DMX
STAGE-PROFI 1.1 is located within the default settings at the beginning!
to generate the Default settings see section „Factory Reset“

Wireless ArtNet-DMX STAGE-PROFI 1.1 7

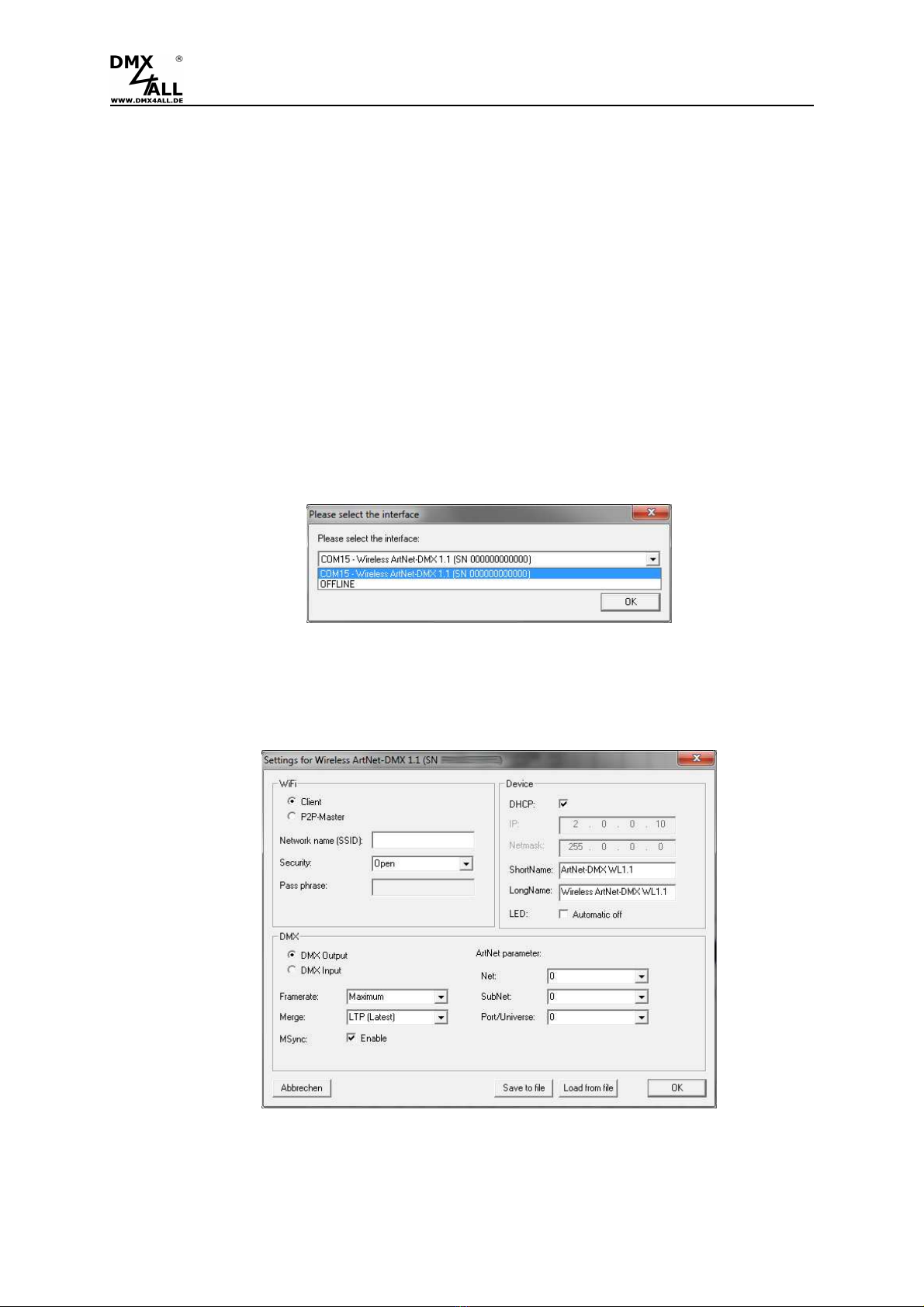

Device Configuration
For the configuration you need an USB-Connection to PC with the program DMX-
Configurator.
Proceed as follows to make the device configuration:
-Connect the Wireless ArtNet-DMX STAGE-PROFI 1.1 via USB to PC
A USB-cable with MiniB-plug is needed
Install the USB-driver if it does not exist so far
-Start the program DMX-Configurator (Minimum Version 2.4)
Available as download by www.dmx4all.de
Please built a connection with the Wireless ArtNet-DMX STAGE-PROFI 1.1
within the DMX-Configurator
-Please call up under menu Settings Hardware Settings
-Here the device configuration can be done
By clicking OK the settings are transferred and stored to the Wireless ArtNet-DMX
STAGE-PROFI 1.1.

Wireless ArtNet-DMX STAGE-PROFI 1.1 8

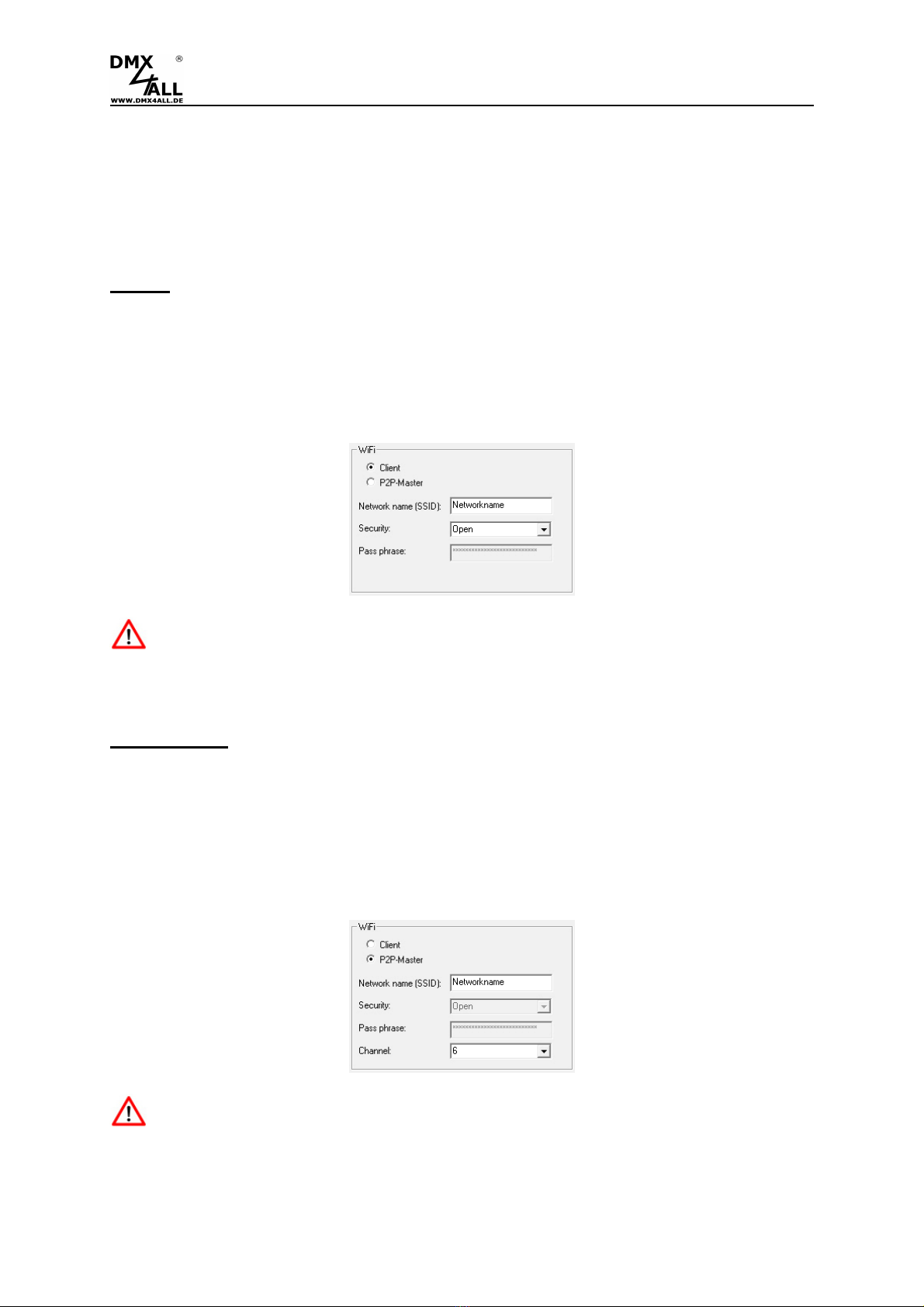

WiFi-Settings
The Wireless ArtNet-DMX STAGE-PROFI 1.1 can be configured as WiFi-Client or
P2P-Master.
Client
If the Wireless ArtNet-DMX STAGE-PROFI 1.1 is configured as Client, so the device
registers itself to an Access-Point.
Therefore the network-name must be created under Network name (SSID). The
Security-Mode must be chosen and if necessary the password (Pass phrase) must
be entered.
In this configuration the Security-Mode Open, WPA/WPA2 or WEP (40 or 104)
can be used.
P2P-Master
If the Wireless ArtNet-DMX STAGE-PROFI 1.1 is configured as P2P-Master so a
Client can register itself directly to this per WiFi. So a direct point to point connection
is possible and no access point is needed.
For the WiFi-Connection the channel (Channel) is to assign which should be used.
Each Art-Net-Device, which has the consistent settings for Net, Subnet and
Port/Universe, accept the DMX-Data!

Wireless ArtNet-DMX STAGE-PROFI 1.1 9
Device-Settings
Each device within the network need an own IP-Address, so the assignment occurs
clearly within the network. It can be get automatically per DHCP or set fixed.
Is DHCP active, the IP is get automatically.
Is DHCP not active, the IP and Netmask must adjust manual.
Use in accordance to the ArtNet-Specifications the IP-Address 2.x.x.x or
10.x.x.x . In this case the Netmask must be set to 255.0.0.0 .
Any other IP-Address can also be used e.g. 192.168.1.10 .
In this case the Net-mask has to be fit to 255.255.255.0 !
You can assign each device with any name for a better distinction.
The Short-Name is limited up to 18 signs and the Long-Name up to 64 signs.
Is the option LED Automatic off activated the LEDs at the device are shut off
automatically after 10 minutes operation with permanent network connection.

Wireless ArtNet-DMX STAGE-PROFI 1.1 10

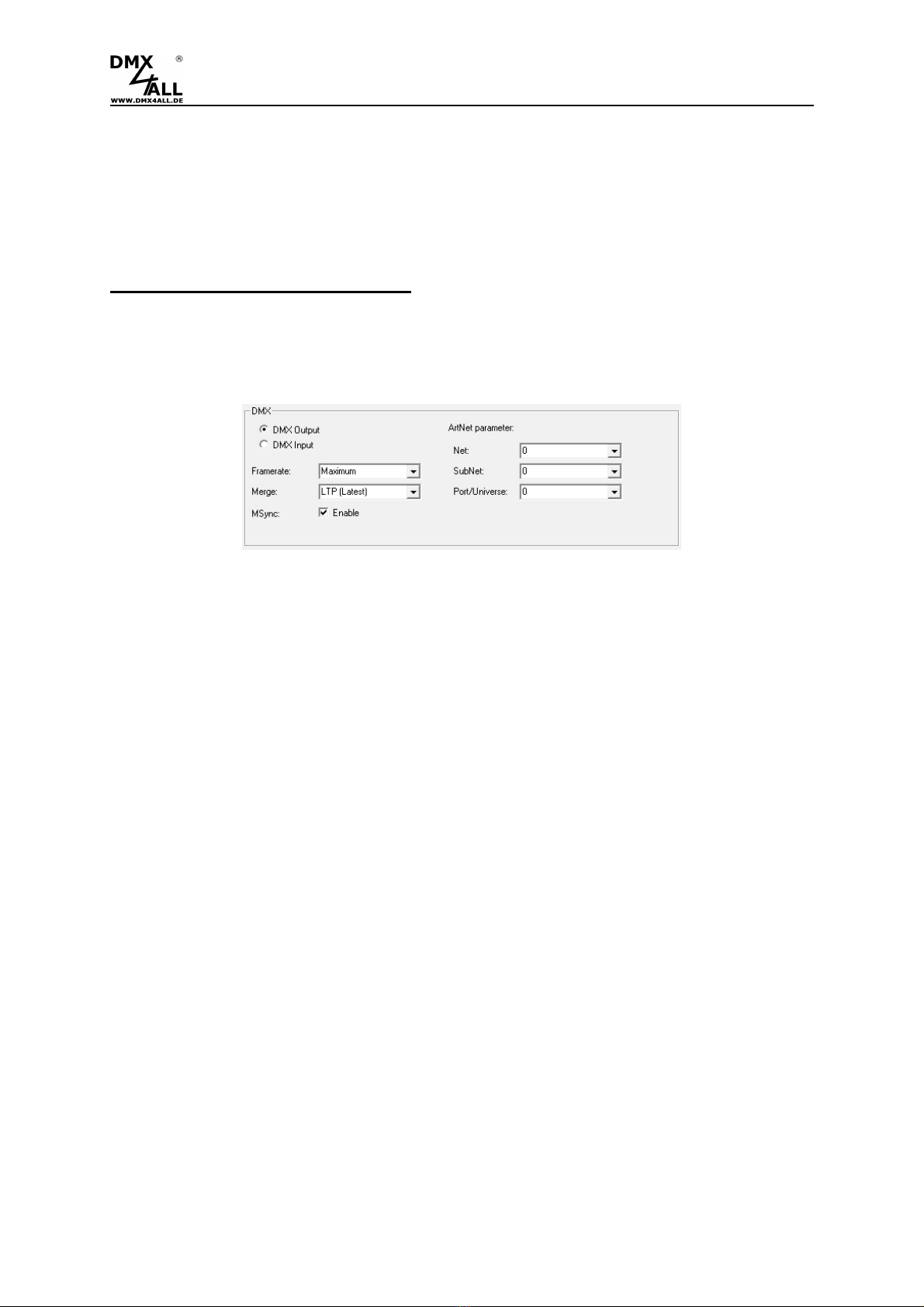

DMX-Settings
The Wireless ArtNet-DMX STAGE-PROFI 1.1 can be configured as DMX-Output
(Art-Net to DMX) or DMX-Input (DMX to Art-Net).
DMX-Output (Art-Net to DMX)
To use the Wireless ArtNet-DMX STAGE-PROFI 1.1 as DMX-Output-Interface, the
Interface-Mode DMX-Output must be chosen.
The parameters Net, SubNet and Port/Universe specify which DMX-data should be
used.
Framerate specifies the maximal DMX-Frame rate.
Maximum complies the maximal frame rate of ca. 44 fps (Frames/second).
The Merge setting can be adjusted to LTP (Latest) or HTP (Highest).
Via ArtSync/MSync the DMX-output of several Art-Net-devices can be synchronized
by using the Software MADRIX ®
.

Wireless ArtNet-DMX STAGE-PROFI 1.1 11
DMX-Input (DMX to ArtNet)
To use the Wireless ArtNet-DMX STAGE-PROFI 1.1 as DMX-Input-Interface, the
Interface-Mode DMX- Input must be chosen.
The Update-Rate can be adjusted with which the DMX-Input data should be
outputted via Art-Net.
40Hz … 5Hz - The DMX-Data will be outputted with the adjusted transfer rate
On change data - DMX-Data are only transferred if these change
DMX Frame rate - DMX-Data are transferred as soon as a frame is closed.
So the frame rate from the inputted DMX-Signal will be used for
the Update-Rate.
Several actions can be chosen for the DMX-Input in the case of a DMX-Signal
(DMXFAIL).
NO DATA - via Art-Net is no DMX-Input received
HOLD last DMX data - the last data are retained
CLEA all channels to 0% - all DMX-Channels are set to 0
SET all channels to 100% - all DMX-Channels are set to 255
The Art-Net-Parameters Net, SubNet and Port/Universe specify the DMX-Data
source.
Via Art-Net the DMX-Data are sent to the Dest. IP (Destination IP). This is to adjust
in the same way as the Device-IP.
If Broadcast is activated, like in the image, so the DMX-Data are sent per Art-Net in
the whole net work to ALL devices.
Each Art-Net-Device, which has the consistent settings for Net, Subnet and
Port/Universe, accept the DMX-Data!

Wireless ArtNet-DMX STAGE-PROFI 1.1 12
Adjust a fixed IP with the IP-Configurator
The IP-Configurator allows the IP-Address setting and the net mask setting of the
Wireless ArtNet-DMX STAGE-PROFI 1.1 .
-Install the program IP-Configurator
-Connect the Wireless ArtNet-DMX STAGE-PROFI 1.1 with the network
-Start the program IP-Configurator
-A Wireless ArtNet-DMX STAGE-PROFI 1.1 is shown in the list
-Choose the entry (by clicking)
-Please enter a new IP and net mask
-Click to SET

Wireless ArtNet-DMX STAGE-PROFI 1.1 13
Register in WiFi/WLAN via Webinterface with Smartphone
The entry of the WiFi/WLAN-access data can occur via Webinterface too.
Therefore access data must not be available. If necessary make a Factory-Reset.
Gehen Sie dazu wie folgt vor:
-Connect the Wireless ArtNet-DMX STAGE-PROFI 1.1 with the attached power
supply.
-Activate WiFi/WLAN within your Smartphone
-Select the WLAN ArtNet STAGE-PROFI 1.1 from the list of the available
devices and occur Connection:
-According to the Smartphone respectively the operating systems version the
following note appears. Click the note:
Alternatively you can open the web browser and open the site
dmx4allconfig.com
-An entry field appears in which you can enter the WiFi/WLAN access data:
-Click to connect. The Wireless ArtNet-DMX STAGE-PROFI 1.1 closes now the
connection to the WiFi/WLAN-Network.

Wireless ArtNet-DMX STAGE-PROFI 1.1 14
Factory Reset
The Wireless ArtNet-DMX STAGE-PROFI 1.1 can be set back into the delivery
status.
Please proceed as follows:
- Press RESET ca. 5 seconds until the RESET-LED shines
- Release the RESET and the Wireless ArtNet-DMX STAGE-PROFI 1.1 will be
set back into the delivery status.
Execute the Firmware Update
The Wireless ArtNet-DMX STAGE-PROFI 1.1 has an Update-Function, which
allows transferring prospective firmware-versions.
Please proceed as follows:
- Turn off the device
- Establish a USB-Connection to PC
- Press RESET and turn on the Wireless ArtNet-DMX STAGE-PROFI 1.1
- The WPS-LED and RESET-LED flashes alternate
- Install the USB-Driver if necessary
- Start the Update-Software DMX4ALL USB- Updater
- Select the Wireless ArtNet-DMX STAGE-PROFI 1.1 from the list
- Click Firmware-Update
- Select the Firmware-Datei (.bin) and confirm
- Wait until the Update has finished
If an error occurs during the update you can start at the beginning
at any time.

Wireless ArtNet-DMX STAGE-PROFI 1.1 15
CE-conformity
This assembly (board) is controlled by a microprocessor and
uses high frequency (8MHz). To get the characteristics of the
assembly in relation to the CE-conformity, an installation in a
compact metal casing is necessary.
Risk-Notes
You purchased a technical product. Conformable to the best available technology the
following risks should not excluded:
Failure risk: The device can drop out partially or completely at any time without
warning. To reduce the probability of a failure a redundant system structure is
necessary.
Initiation risk: For the installation of the board, the board must be connected and
adjusted to foreign components according to the device paperwork. This work can
only be done by qualified personnel, which read the full device paperwork and
understand it.
Operating risk: The Change or the operation under special conditions of the
installed systems/components could as well as hidden defects cause to breakdown
within the running time.
Misusage risk: Any nonstandard use could cause incalculable risks and is not
allowed.
Warning: It is not allowed to use the device in an operation, where the safety of
persons depend on this device

DMX4ALL GmbH
Reiterweg 2A
D-44869 Bochum
Germany
Last changes: 10.03.2017
© Copyright DMX4ALL GmbH
All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another
procedure) without written permission or processed, multiplied or spread using electronic systems.
All information contained in this manual was arranged with largest care and after best knowledge. Nevertheless errors are to be
excluded not completely. For this reason I see myself compelled to point out that I can take over neither a warranty nor the
legal responsibility or any adhesion for consequences, which decrease/go back to incorrect data. This document does not
contain assured characteristics. The guidance and the characteristics can be changed at any time and without previous
announcement.
