Installation Manual
SRR-70

2
Contents
1. Symbols 3
2. General warnings 3
2.1 Safetyrequirementsforassemblyandrstuse3
3. Terms and conditions 3
4. Area of application
3
5. Guidelines 4
6. Fixing material building 4
7. System summary 4
7.1 Pre-assembled rail set 5
8. Fasteners/ tools 6
9. Assembly 7
10. Handover 37
10.1 First use 37
11. Electric operator (optional) 37
11.1 To adjust the operator 37
12. Disassembly 37
12.1 Disposal 37
13. Maintenance 38

3
1. Symbols
Danger
Attention
Additional manuals
2. General warnings
Thismanualhasbeenpreparedforusebyqualiedpersonnelandthereforenotbytraineesor“doityourselfers”
In case of doubt about the assembly and/or maintenance, please contact DOCO International
To avoid severe personal injury, carefully read and observe all indications and warnings in this manual.
- This manual describes the assembly, use and maintenance of your residential system /door SRR70; this may be supplemented by other
manuals, for instance the spring break device manual and operator manual (if applicable.)
- This residential system has been designed in accordance with the latest European standards; however you have to check yourself
whether this standard corresponds with the local national standard.
- Allmeasurementsareinmillimetresunlessotherwisespecied.
- After installation ensure that the CE marking label has been completed and attached.
- Keep this manual in a safe place.
- Subject to technical changes, without written notice.
2 .1 Safety requirements for assembly and rst use.
- Thisresidentialsystemmayonlybemounted,connectedandputintooperationbyqualiedpersonnel.
- Make sure that the power is switched off and remains switched off while electrical work is carried out!
- Never bridge safety devices !
- Adding or leaving out parts can affect the door operation in a negative way and therefore the safety of the installed sectional door. This
is therefore strongly discouraged!
- Some parts can contain sharp edges: use protective gloves.
- All references to the door/component handing within this manual is always as viewed from inside looking out.
- Never use the sectional door in case or visual damage on the safety devices.
- When performing assembly/maintenance, always wear at least gloves and safety boots and during drilling/cutting wear safety goggles!
-Make sure that you can always perform your work in a stable environment.
- Secure the assembly/maintenance site with safety ribbon to keep others (children!) at a distance.
- Maintenancemustonlybeperformedbyaqualiedcompanyand/orqualiedpersonnel.
- Make sure there is enough light.
- Only use appropriate tools, especially when tensioning the torsion springs.
3. Terms and conditions
Our general conditions of delivery and payments are applicable on all our offers, agreements or subsequent revisions.
A copy of our terms and conditions are available on request or can be downloaded from our website: www.doco-international.com.
4. Area of application
This hardware set has been developed for installation in garages in the private sector
- Maximum width 5000 mm
- Maximum height 3000 mm
- Weight door leaf maximum 165 kg
- Maximum temperature range outside* : -20 degr until + 50 degr C
- Relative humidity 20 – 90%
- Lifetime : 25.000 cycles (unless the torsion springs have been calculated for this)
*bigdifferencesintemperaturebetweentheinsideandoutsidecancausedeectioninthepanelleafs(bi-metaleffect).Inparticulardark
coloured panels are susceptible to this problem and should be avoided. Care should be taken during manual handeling as there is a big risk of
damage.

4
5. Guidelines
DOCOInternationalhadcarriedoutthe“ProductTest“ofthisdoor(InitialTypeTesting=ITT)bytheSPinstituteinSweden,knownasNoti-
edBodyNo.0402.
Documents regarding this ITTr can, in consultation with DOCO, be transferred to the company which produces the door. This is necessary to
complete a CE-dossier.
NOTE: CE-approved only using the correct DOCO-components.
It is the responsibility of the installation company to ensure that the chosen E-operator and panels conform to the product standard EN13241-1
and have carried out the necessary ITTr.
If a wicket door is to be installed, it is the responsibility of the installation company to ensure that the complete door conforms to the product
standard EN13241-1 and have carried out the necessary ITTr.
6. Fixing material building
Thenecessaryxingstoensurethegaragedoortothebuildingand/orceiling,arenotincluded!
Itisthe responsibilityoftheinstallertomakesurethatthebuildingstructureissafe/strongenough,toacceptthedooranditsxings.
Theinstallerisalsoresponsibleforusingthecorrectxingmaterialsontherightfoundation(stone,concrete,steel,wood).
Intheimagesectiontherewillbethereforenospecicationincluded.
7. System overview7. System overview
Structural depth = OH + 640
OW
Track height = H - 45
Free opening height = H - 70
H = Opening Height Daylight
OW = Opening Width Daylight

5
Vertical Kit SRR70 (Pair) Horizontal Kit SRR70 (Pair) Curve Kit
SRR70 (pair)
Day light height
(H)
Bolt version Rivet version Bolt version Rivet version Rivet version
Article Article Article Article Article
2000 44000-2000 44010-2000 43001-2000 43011-2000
44012
2125 44000-2125 44010-2125 43001-2125 43011-2125
2250 44000-2250 44010-2250 43001-2250 43011-2250
2375 44000-2375 44010-2375 43001-2375 43011-2375
2500 44000-2500 44010-2500 43001-2500 43011-2500
2750 44000-2750 44010-2750 43001-2750 43011-2750
3000 44000-3000 44010-3000 43001-3000 43011-3000
7.1 Pre assembled track sets overview SRR 70 system
Curve Kit
SRR 70 (pair)
Horizontal kit SRR 70 (pair).
Vertical kit
SRR70 (pair)
Vertical Kit SRR70 (Pair) Horizontal Kit SRR70 (Pair) Curve Kit
SRR70 (pair)
Day light height
(H)
Bolt version Rivet version Bolt version Rivet version Rivet version
Article Article Article Article Article
2000 44000-2000 44010-2000 47001-2000 47011-2000
24720-L
&
24720-R
2125 44000-2125 44010-2125 47001-2125 47011-2125
2250 44000-2250 44010-2250 47001-2250 47011-2250
2375 44000-2375 44010-2375 47001-2375 47011-2375
2500 44000-2500 44010-2500 47001-2500 47011-2500
2750 44000-2750 44010-2750 47001-2750 47011-2750
3000 44000-3000 44010-3000 47001-3000 47011-3000

6

44000-xxxx
44010-xxxx
24740-xxxx
Alt: 225010-xxxx
7

8

44012 (pr)
9

43001-xxxx
43011-xxxx

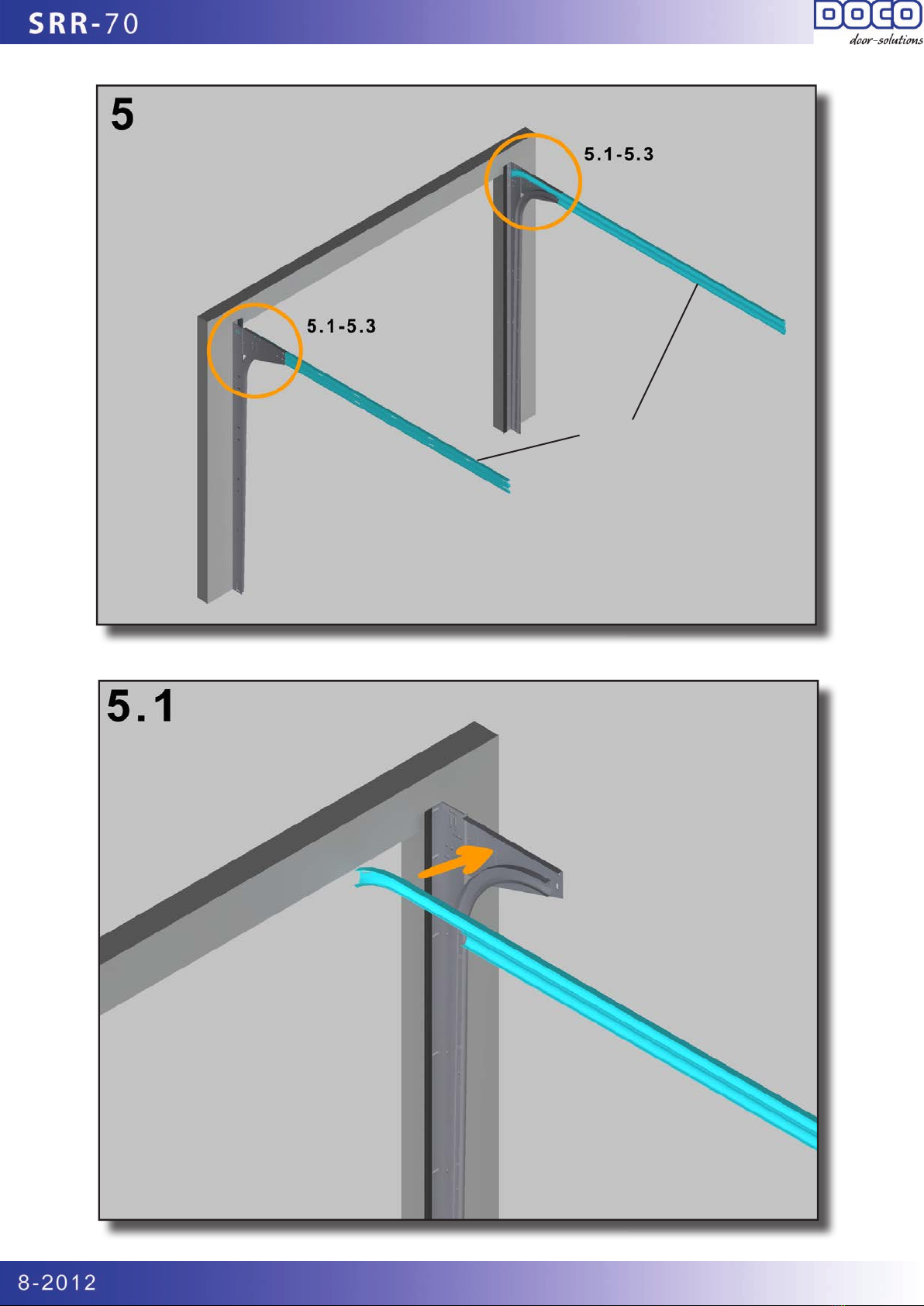

10

11

24619 (pr)
12

13

14

24803
24801
15

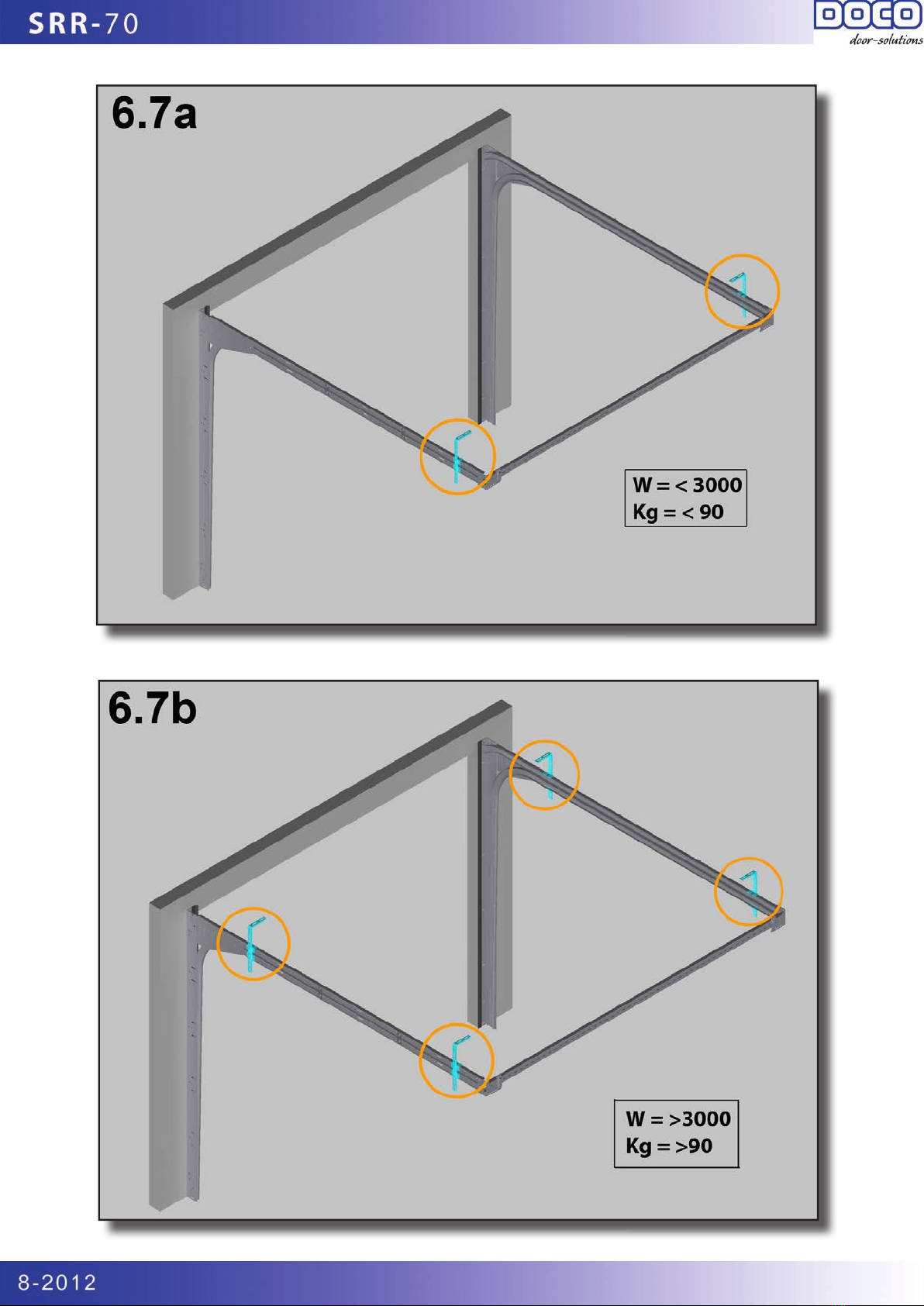

16

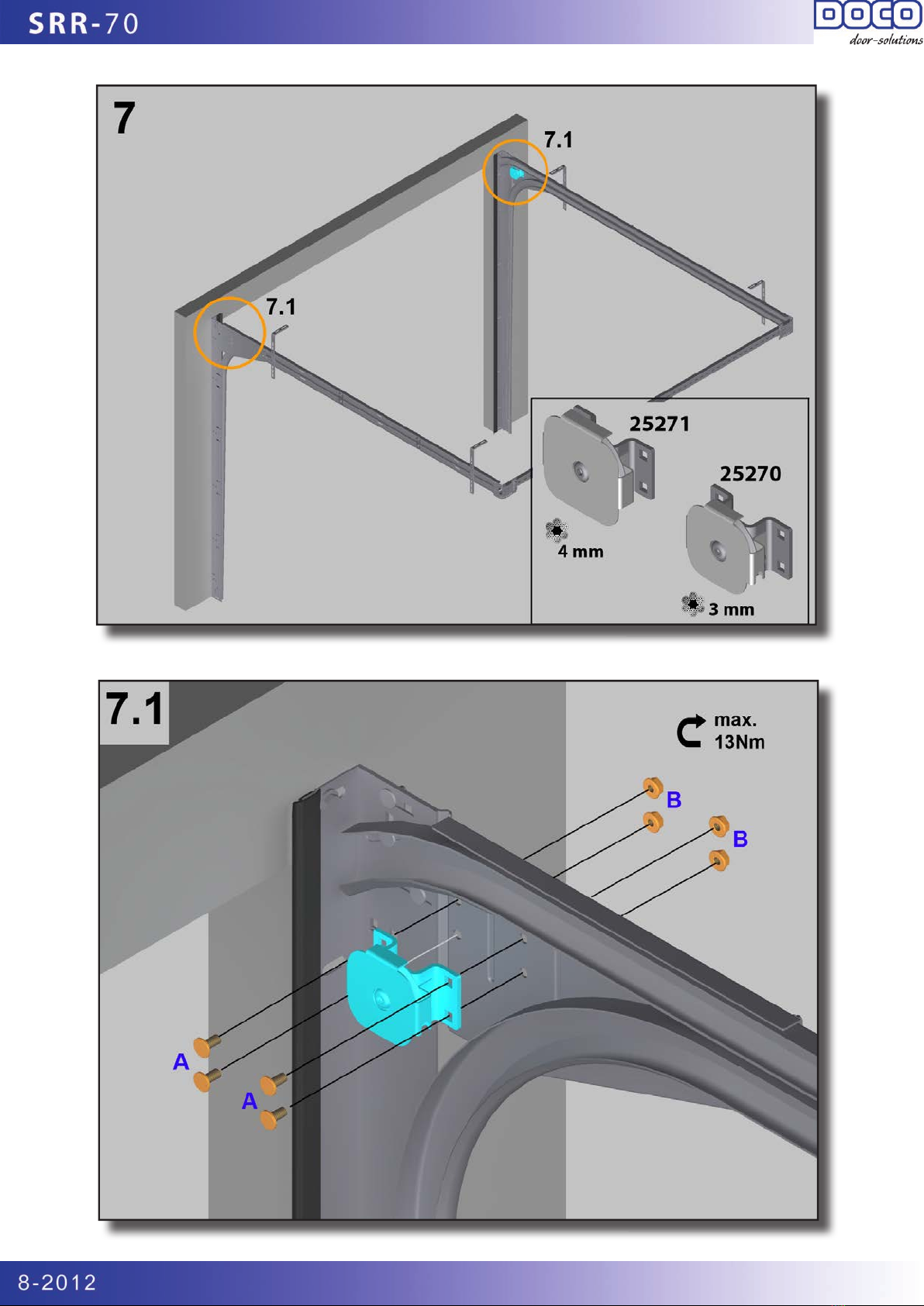

17

11000
11000-3
11001
11014
25650
Springmatrix
Springmatrix
25650
11000
11000-3
11001
11014
25018/25019
26018
13023
25047
13026/27
13026/27

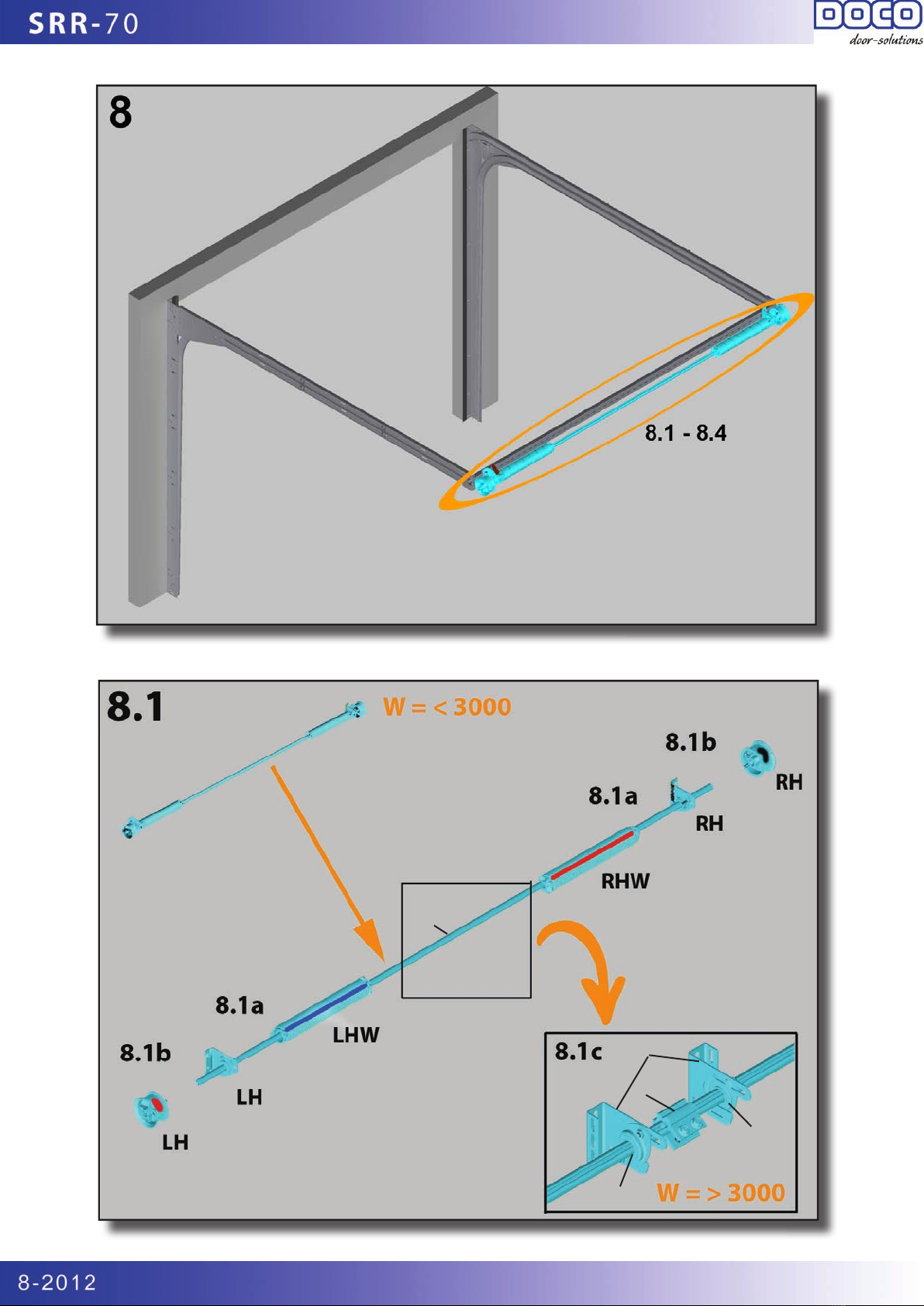

18

19

13026/27
13023
25047

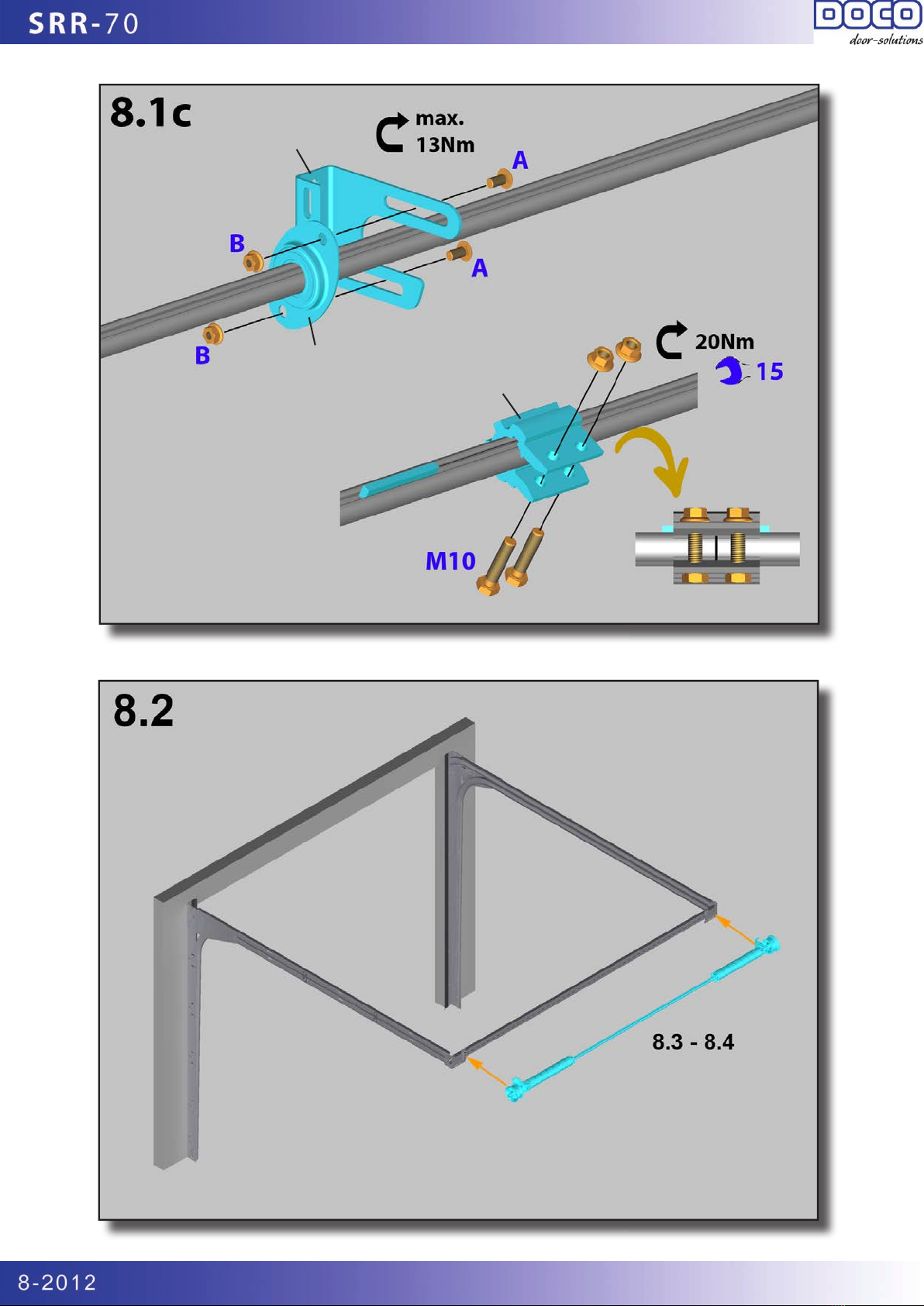

20
