Product Features
Registered fingerprints can open the door
With a registered fingerprint, you can unlock the door.
Registering entire users’ fingerprints will make entrance easier.
(Up to 100 fingerprints can be registered.)
Registered passwords can open the door
Register desired password, and use it to open the door.
Locked door can be easily opened from
inside
From inside, the door can be opened simply by pushing the handle
down.
Door has auto-lock function
Auto-lock allows the door to be locked automatically.
Double lock system is more secure
At night it is best to use double lock function to lock the door.
Protects from outside tampering
When trying to open the door with an unregistered fingerprint or
password 5 times, the power will shut down for 3 minutes.
With the fire detection feature, it is possible to
exit promptly and safely in case of a fire
When a fire breaks out from the inside and temperature exceeds
normal, warning alarm will sound and the door will automatically open.

2
Table of Contents
Product Features 1
Precautions 4
Read Before Use 7
Product Composition ................................................................... 7
Outer body Part Names ............................................................... 9
Inner body Part Names ............................................................... 1 1
Mortise .................................................................................... 12
How to Replace Batteries ............................................................ 13
How to Use Emergency Battery ................................................... 14
How to Use Emergency key ......................................................... 15
Basic Functions 16
How to Reset (master password, password, fingerprint) ................... 16
How to Use Main Menu ............................................................... 17
Summary of How to Select Modes ................................................ 17
How to Change Master Password ................................................. 18
How to Register Password ........................................................... 19
How to Delete Password ............................................................ 20
How to Register Fingerprint ......................................................... 21
How to Delete Fingerprint .......................................................... 23
How to Open the Door from the Outside (password) ....................... 24
How to Open the Door from the Outside (fingerprint) ...................... 25
How to Open the Door from the Inside ......................................... 26
How to Close the Door from the Outside ....................................... 27
How to Close the Door from the Inside ......................................... 27

3
Additional Functions 28
How to Set Up Double Security Mode ........................................... 28
How to Set Up Double Authorization Mode .................................... 29
How to Set Up Auto/Manual Lock ............................................... 30
How to Set Up and Turn Off Sound ............................................... 31
Reset Function .......................................................................... 31
Warning Alarm / Emergency Alarm .............................................. 32
Troubleshooting 36
Summary of Usage 38
Product Specifications 40
Wa r r a n t y 4 1

4
Precautions
The following contents are designed to protect user safety and prevent loss and
damage of their property. Please read this prior to use to ensure the product
properly used.
Meaning of warning, caution, and reference
Warning Text
Provides user information to prevent physical damage.
Things to be Cautious of
Provides user information to prevent system error or system damage.
Things to Refer to
Provides additional information regarding each topic.
Meaning of each symbol
Indicates warnings or cautions.
Indicates banning miss-use of the product.
Indicates special instructions for the user.

5
Do not install or disassemble on
your own.
If user installs or repairs on his/her own
accord, the company
will not be
responsible
for any
damage.
Please do not use the product with
wet hands, and make sure that
liquids such as water or a
beverage do not get inside the
product.
This may result in a
malfunction or damage
to the
p
roduct.
Please check if the door is locked
before you leave.
The company will not be responsible for
accidents resulting
from an unlocked
door.
Cautions regarding the installation
Caution while in use
Do not let others know the
password. Change it periodically.
This is done to prevent a potential break
-in.
Do not install where the gap
between door and door frame is
bigger than 5mm.
Might not work well if
large gap exists.
Do not push the buttons
excessively hard or with a sharp
object.
This may result in a malfunction.

6
Caution while in use
Cautions regarding repair and maintenance
When replacing the batteries,
please replace all the batteries at
the same time, and do not use
brand new batteries with used
ones.
Product can be
damaged or its
lifespan can be
reduced.
Insert batteries with correct +/-
directions.
If the battery is not properly inserted,
it might lead to leakage or explosion.
When the product sounds to indicate
the need for a battery change for the
first time, please make sure to do so
within one week.
If the batteries are not replaced on
time, it may only be opened
with the
emergency
ke
y
.
Take care not to trap your finger
when the door is closing.
It is possible for a finger to get
stuck and injured.
When cleaning the product, please
do not use water, benzene, or
alcohol; instead, please use a soft,
dry cloth.
There is a risk of
damaging the
product.
Do not push the cover excessively
hard.
Product can be damaged
and user could get hurt.

7
User Guide
Read Before Use
Product Composition
Inner body Outer body
'AA' Batteries (LR6) Emergency Key (5EA)
Or
Strike
Strike box
Mortise
(SHS-AML220)
Mortise
(SHS-AML320)
Strike

8
Outer body holding panel and screws
to ensure fixtures
Handle shaft spring
Product composition can be different depending on installation conditions.
Handle shaft
Screw bolts to hold the fixtures from
the inside
Screws for holding Strike
Inner body holding panel and screws
to ensure fixtures

9
Outer body Part Names
Fingerprint
Reading Panel
Number Pad
Reset Button
External Power
Source Connector
External Power
Source Connector
Cover
Outer body
Handle
Open Fingerprint
Cover Button
Emergency
Key Hole
Number Pad (On)
Number Pad (Off)

10
No. Part Function of each Description
1 Number Pad Press to change master password or to select or delete it.
Use number pad to enter the password and open the door.
2 Fingerprint
Reading Panel
The place to register and scan the fingerprint.
3 Open Fingerprint
Cover Button
Opens the cover on the fingerprint reading panel.
4 Outer body
Handle
Allows opening of the door by pressing it down when the door is
unlocked.
5 Emergency Key
Hole
Allows the door to be unlocked with the emergency key and
opened by turning outer body handle down when the battery is
completely discharged or any electronic failure happens.
6 External Power
Source Connector
Cover
Covers and protects the power source connector.
7 Reset Button Allows restart of the door lock when it does not respond to a
registered fingerprint or touches on the number pad.
8 External Power
Source Connector
Gives power in case of complete discharge of batteries with the
connection of an emergency battery(use 9 volt battery).

11
Inner body Part Names
Auto/Manual
Locking Switch
Inner body
Handle
CLOSE Button
Registration
Button
Manual Open-and-
close Lever
Battery Cover
Sound Control
Switch

12
No. Part Function of each Description
1 Registration
Button
Press to change password or to select or delete a fingerprint.
2 Inner body
Handle
Allows the door to be opened when the door lock handle is pushed
down.
3 Battery Cover Protects the batteries and the registration button.
4 Sound Control
Switch
Adjusts the sound volume for the door lock.
5 Auto-
lock/Manual-
lock Switch
It is used to switch between auto-lock and manual-lock.
Place the switch on auto-lock and door locks automatically, while
manual position does not lock door even if it is closed.
6 CLOSE Button Allows the door to be locked from the inside or to start the double
lock function.
7 Manual Open-
and-close Lever
Locks or unlocks the door manually in case of an emergency or any
electronic failure.
Mortise
※ The package includes SHS-AML320, but it would be able to substitute SHS-AML320 to
SHS-AML220 depending on the door type.
No. Part Function of each Description
1 Deadbolt Locks the door at the door frame.
2 Latch bolt Holds the door and the door frame when the door is closed.
3 Open-door
Sensor
Checks if the door is open or closed.
Latch bolt
Deadbolt
Open-door sensor
SHS-AML320 SHS-AML220

13
How to Replace Batteries
1. When the ‘low battery’ ring tone sounds
If the melody “Fur Elise” rings before the door
opens, it is time to replace batteries (The
Low battery indicator at the bottom of the
number pad will light up).
2. Opening inner body cover
Press the battery cover lightly
and push it in the direction of the
arrow.
3. Replacing the batteries
Please replace the batteries with new ones
within a week.
Fur Elise
Battery life span is different depending on its
manufacturer, manufacturing date, and use environment.
Use 8 1.5 volt AA Alkaline batteries.
Battery
- If the batteries are not inserted in the right way, the door lock will not work.
- Leakage from the battery may harm the product, so please check the battery regularly (about once
every six months).
- Until the batteries are replaced after the low battery ring tone, functions like register, change, or reset
of password/fingerprint cannot be used.
- The product may shut down without warning if the batteries are not replaced promptly after the low
battery ring tone.
8 AA batteries

14
How to Use Emergency Battery
1. When the door does not open and it is time to change
the AA batteries
If not replaced, the door lock will not function normally.
2. Purchase a 9 volt battery
Purchase emergency battery (9 volt) at the
nearest convenience store or electronics shop.
3. Opening the door using emergency battery

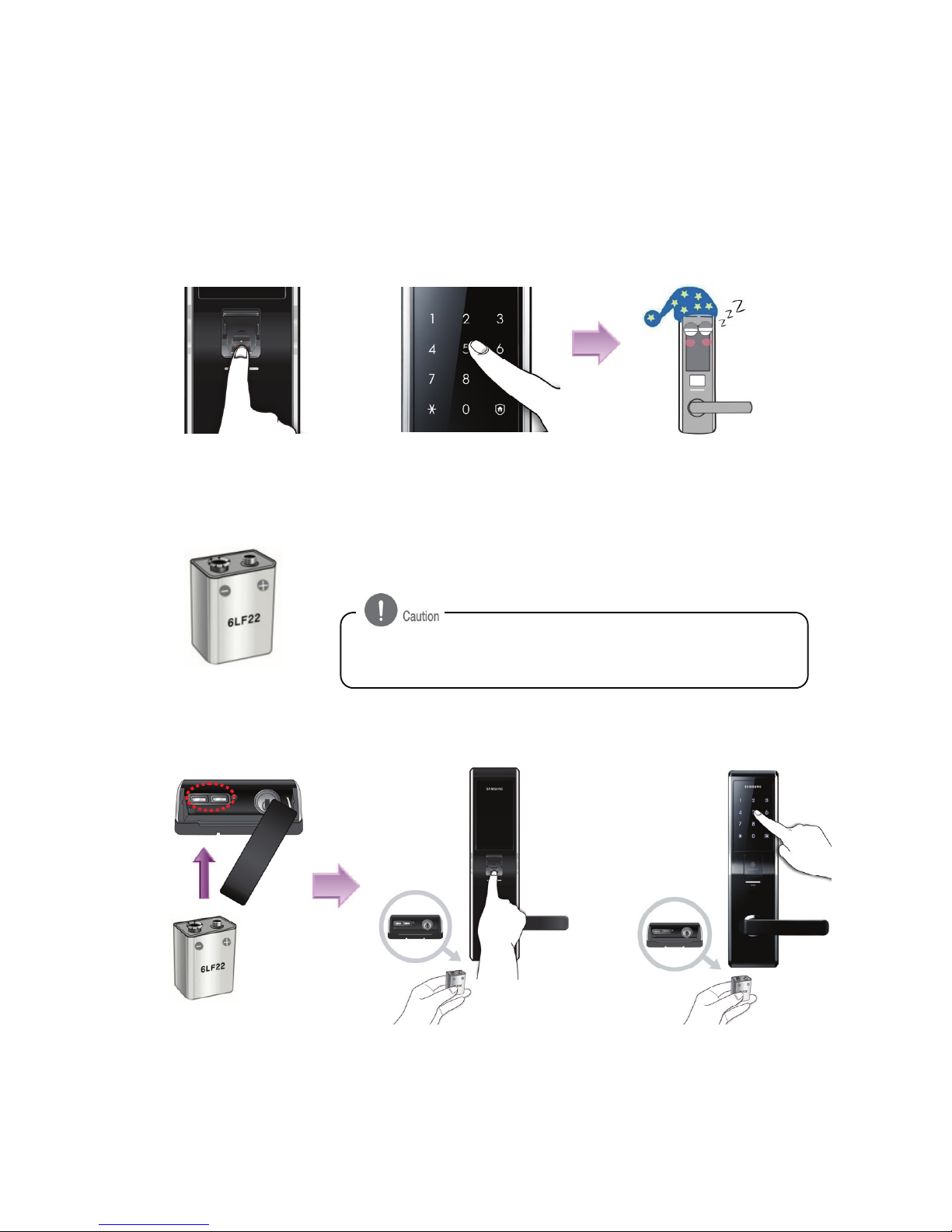

Remove the cover of the external power source connector, place 9 volt battery
(emergency battery) at the connection point, and then place finger on the fingerprint
reading panel.
Use alkaline batteries that last longer than normal manganese
batteries or rechargeable batteries.
Or
Enter password. Door is not opening properly. Read fingerprint.
Or

15
How to Use Emergency key
Use emergency key when the batteries are dead or any electronic failure makes the
door lock not work.
Turn Manual open-and-close lever left or right
to lock or unlock.
- Works without battery.
- Please have at least 1 emergency key on hand.
- In case of missing emergency key, we recommend calling the customer support center to
replace entire key cylinder (replacing will incur charge).
- After unlocking the door, take out emergency key from the key hole and keep it safe.

16
Basic Functions
This section explains ways to reset the data in the door lock system, ways to register
password, fingerprint and other information, and ways to open / close the door.
How to Reset (master password, password,
fingerprint)
Delete all data. When data is being reset, new master password will be ‘1234’ and
previously registered fingerprints and password will be deleted.

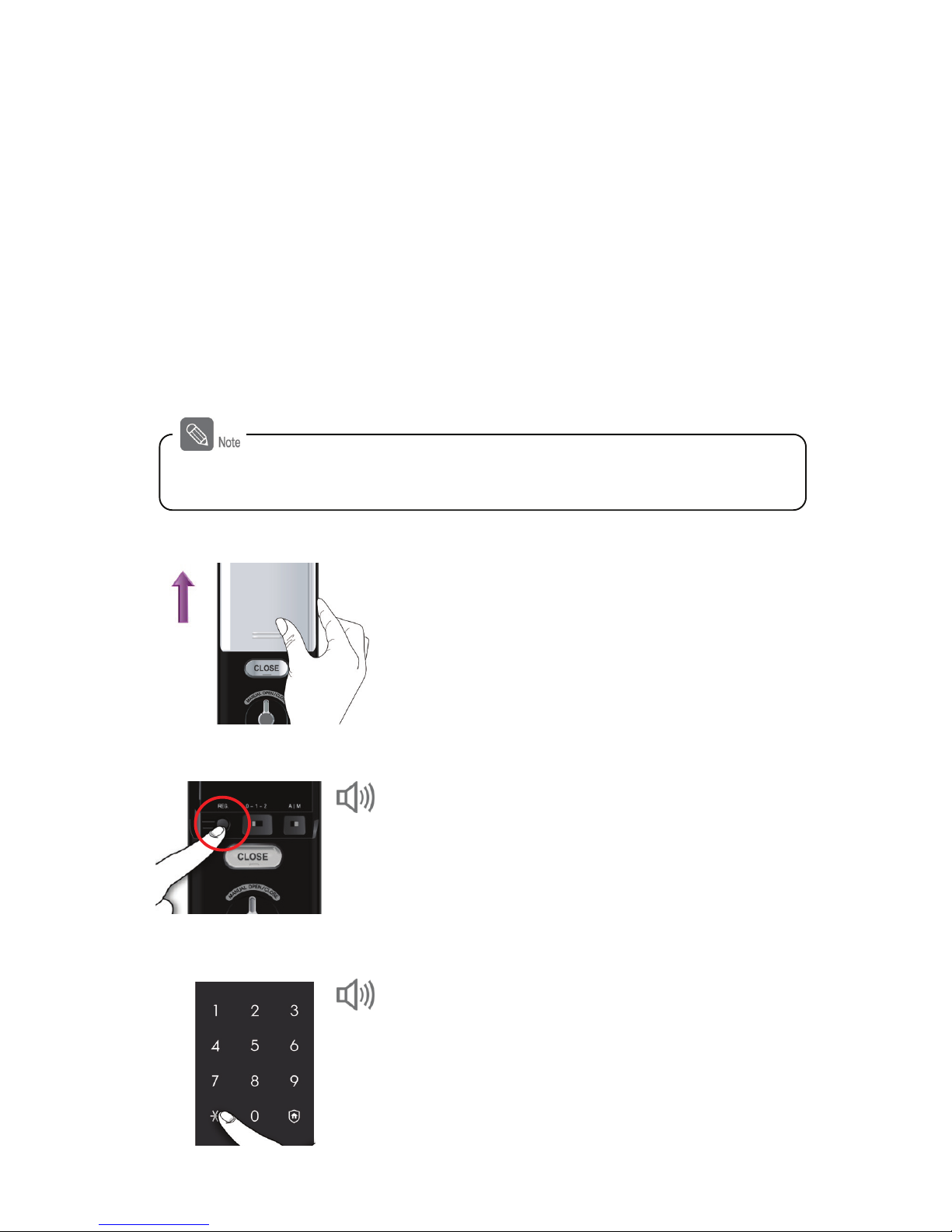

1. Opening the cover
Press the battery cover lightly and push it in
the direction of the arrow.
2. Press [Register] button
Press [Register] button for 3 seconds.
- Success: “ding dong ding dong” bell sounds
3. Entering reset number
Press ‘4560852580’ when the [Number Pad]
lights up enter then press [¿] button.
- Success: “ding dong” notice bell
- Fail: “ding dong ding dong” notice bell ring
- Reset the door lock data and re-register new password and fingerprint.
- Resetting can only be done while the door is open.

17
How to Use Main Menu
To setup door lock function, go to main menu.

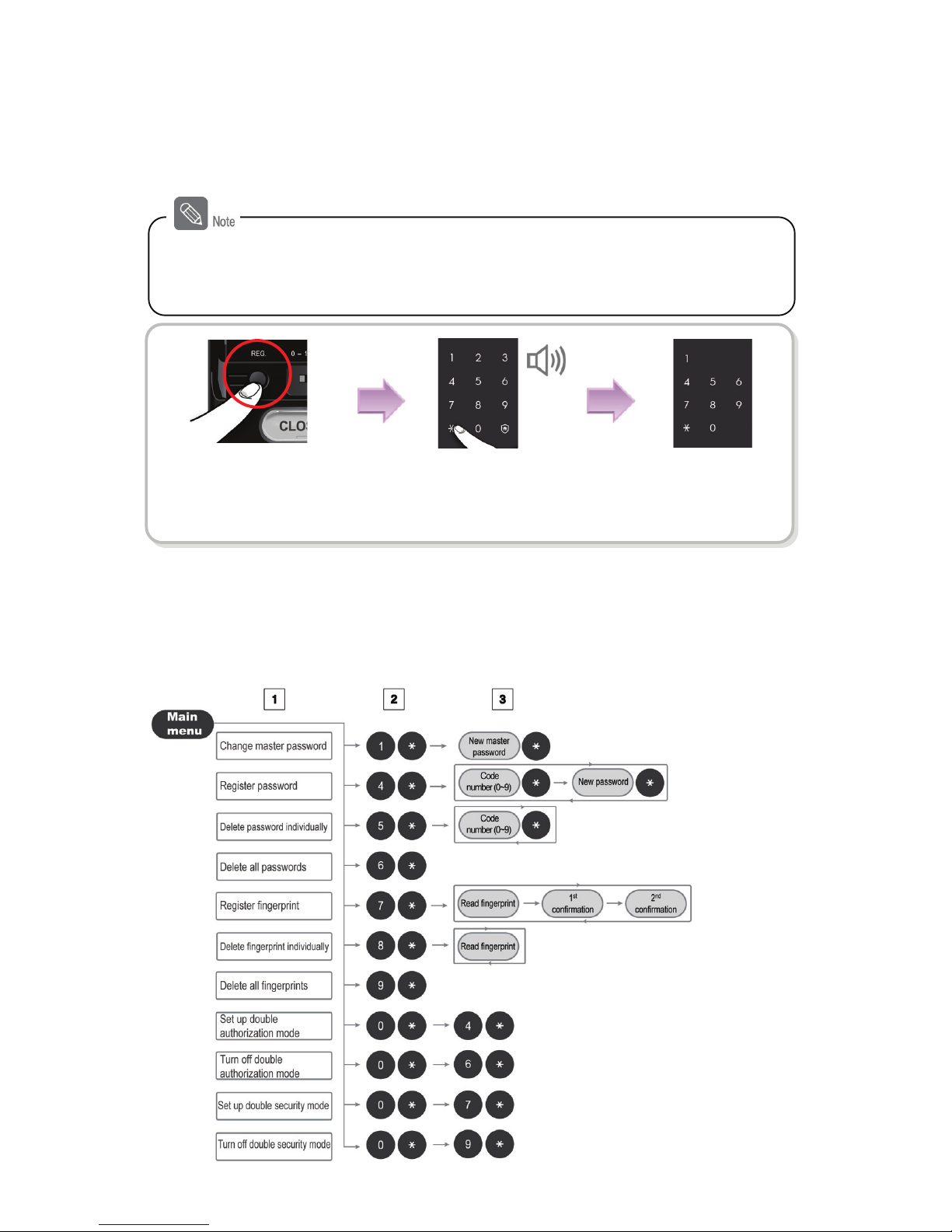

Summary of How to Select Modes
1. Enter the main menu.
2. Press menu code, then press [¿] button.
3. Select the function you want and press [¿] button.
While the door is open, open
up the battery cover from the
inside and press [Register]
button briefl
y
.
When the light comes on, on
the number pad, enter the
master password and press
[
¿
]
button.
Ding dong
dang
- To set up door lock function, go to main menu and set up in that mode.
- Default master password is '1234'.
- Main menu can only be accessed when the door is open.
- Press [¿] button to go to previous step.
The pad is in the
main menu.

18
How to Change Master Password
Master password must be 4~12 digits long, and only one can be designated as the
master password.
1. Entering the main menu (refer to page 17)
2. Selecting change master password menu
When the light comes on, on the number pad,
press [1] and [¿] button.
3. Entering new master password
Enter the new master password (4~12 digits)
and press [¿] button.
- If the change is successful, the newly registered
password will show up in order.
- To prevent theft, it is highly recommended to use a
password with more than 6 digits. (Only numbers
from 0 to 9 can be used.)
Ding dong
Success: ding
dong dang
Fail: ding dong
ding dong
Changing master password can only work when the door is open.
- To check if the change is correct, press open-door sensor of Mortise while the door is
open, and when the deadbolt is out follow the "open door from the outside" method.
- When the new master password is being entered, the same number as the old
password or default password cannot be used any more.
- Do not let others know the password. Change it periodically to prevent break-in.
- Registered master password cannot be deleted, and can only be changed with new
password or reset of everything (master password, password, fingerprints) and re-
registration.
