DOG BONE LOCKSMART Manual

Instruction Guide
LOCKSMART ABODE
Open
Front Door

Installation guidance----------------------------------------------------- 4
Downloading the LockSmart app ----------------------------------- 6
Sign in with Facebook -------------------------------------------------- 6
Create a LockSmart account ----------------------------------------- 7
Log in with a LockSmart account ----------------------------------- 7
Add a lock ------------------------------------------------------------------ 8
Logging out of the app ------------------------------------------------- 9
Setting up Wi-Fi Bridge ----------------------------------------------- 10
Tap to unlock ------------------------------------------------------------- 11
Touch ID / Fingerprint -------------------------------------------------- 12
Passcode------------------------------------------------------------------- 13
Face unlock --------------------------------------------------------------- 14
Apple Watch unlock ---------------------------------------------------- 15
Auto unlock --------------------------------------------------------------- 16
RFID-------------------------------------------------------------------------- 17
Key pad pin code ------------------------------------------------------- 18
Physical key -------------------------------------------------------------- 19
Share a lock with someone else ---------------------------------- 20
Scheduled access for shared users------------------------------ 21
Shared lock functionality--------------------------------------------- 22
Activity log---------------------------------------------------------------- 23
Transferring a lock to a new owner------------------------------- 24
Sharing a pin code----------------------------------------------------- 25
Notifications -------------------------------------------------------------- 26
Anti-break-in and security function ------------------------------- 26
Modify account or password --------------------------------------- 27
Lost mobile device----------------------------------------------------- 28
Add a photo to a lock ------------------------------------------------- 30
Battery percentage display ------------------------------------------ 31
What to do if your lock runs out of battery power? --------- 32
Serial number & firmware version--------------------------------- 33
Firmware upgrade------------------------------------------------------ 34
Replacing your batteries --------------------------------------------- 35
Lock care------------------------------------------------------------------ 36
Getting started
Unlocking
Finding and sharing
Other features
Lock ID & Maintenance
Table of contents
3

A B C1 & C2 D
E F x3 G x2 H x2 I x2 J K
Included
#2 Phillips
Screw Driver
25mm Spade Bit
To fit a new door
To retrofit existing door
10 mm Drill Bit
Chisel
54 mm Hole Saw
Drill
Hammer
What you will need to retrofit existing door
Installation guidance
Locksmart Abode Before installation
Check: Door thickness must be
38-55mm, Door frame ≥110mm
Check: Use the grub screw
located on the lock stem
assembly and reposition
the handle to suit your door
position. See diagram on right
Check: Existing lock has been removed
from door
Getting started
A B C1 & C2 D
E F x3 G x2 H x2 I x2 J K
Lock stem
Grub screw
4

A
C2
B
G
F
F
H
K
E
C1
D
Installation process
Step 1: Drill two holes with the template using a 10mm
drill
Step 2: Install the lock latch (E) using supplied screws
(H). (Suits Australian standard door latch sizing)
Step 3: Install the front lock panel (A) with the rubber
gasket (C2) and fix them with screws (F) through the
and gasket (C1) and backplate (D) Step 4: Thread cable through centre hole and connect to
cable in back panel and gasket
Step 5: Install the back panel (B), fix with screws (2xG,F)
Step 6: Install 4 x AA batteries. Replace battery cover
Step 7: Use existing latch plate, if suitable. If required,
attach supplied latch plate (J, K) to door frame
A
C2
B
G
F
F
H
K
E
C1
D
2
3
1
5
4
6
7
J/K
H
For install video go to www.dogandbonecases.com/abode
Getting started
5

Downloading the LockSmart app
Sign in with Facebook
1. Open the App Store on your iOS
or Android device*
2. Go to search and type in
‘LockSmart’
3. Select LockSmart from the search
results and install the application
1. To log in with your Facebook account, press
‘Sign in with Facebook’
2. You will be asked to authorise your use of
Facebook to login via LockSmart
3. Once authorised, your LockSmart account
will be created using your Facebook account
information
* Compatible with iOS devices supporting Bluetooth 4.0 or higher
and running iOS 8.2 or later.
Compatible with Android devices supporting Bluetooth 4.0 or higher
and running Android 4.3 or later.
For best performance, please ensure your device is running the
latest version of the LockSmart software.
Getting started
6

Create a LockSmart account
1. Press ‘Create Account with Email’ on the home
screen
2. Fill in all of the required details including First
Name, Last Name, Mobile Number, Email and
Password
3. Choose whether or not to opt-out from receiving
product oers
4. Press ‘Create Account’ to create your account
Log in with a LockSmart
account
1. To log in with your LockSmart account, press the
‘Have an account? Sign in’ button on the home screen
2. Enter your user name and password
3. Press ‘Sign In’ to log in to your account
Getting started
7

Add a lock
1. Ensure you have Bluetooth
enabled on your device
2. Ensure lock is in range (5m)
3. Ensure the lock does not
belong to another user
4. Press ‘Add Lock’ on the lock
screen
5. Follow instructions on
screen and press ‘Next’
6. The app will now search for
the lock via Bluetooth
7. Once lock is found, press
‘Setup’ to confirm lock
ownership
8. You will now return to your
lock list. Select your lock,
then press ‘Settings’ to
name your lock, control
access, set notifications and
other options
9. Press ‘Done’ to save your
lock name
NB If you wish to transfer
ownership of the lock from
one user to another, please
see the ‘Transferring a lock
to a new owner’ section on
page 24. If you wish to share
a lock with another user,
please see the ‘Share a lock
with someone else’ section
on page 20.
Getting started
8

Logging out of the app
1. Open the options menu by pressing the
three buttons in the top right section of
the ‘Locks’ list screen
2. Press ‘Sign Out’
3. All of your personal and lock information
will be removed from your device until
you sign in again
Options menu
Getting started
9

Setting up Wi-Fi Bridge
For Siri voice activation and other Wi-Fi features, you require
the Wi-fi Bridge (purchased separately to be paired to your
door lock).
1. Enable Wi-Fi bridge from the settings menu for your lock
2. Press and hold the button on the Wi-Fi bridge for 3
seconds
3. When prompted, enter your Wi-Fi details within the app
Press the button
on the Wi-Fi
Bridge wall unit
Getting started
10

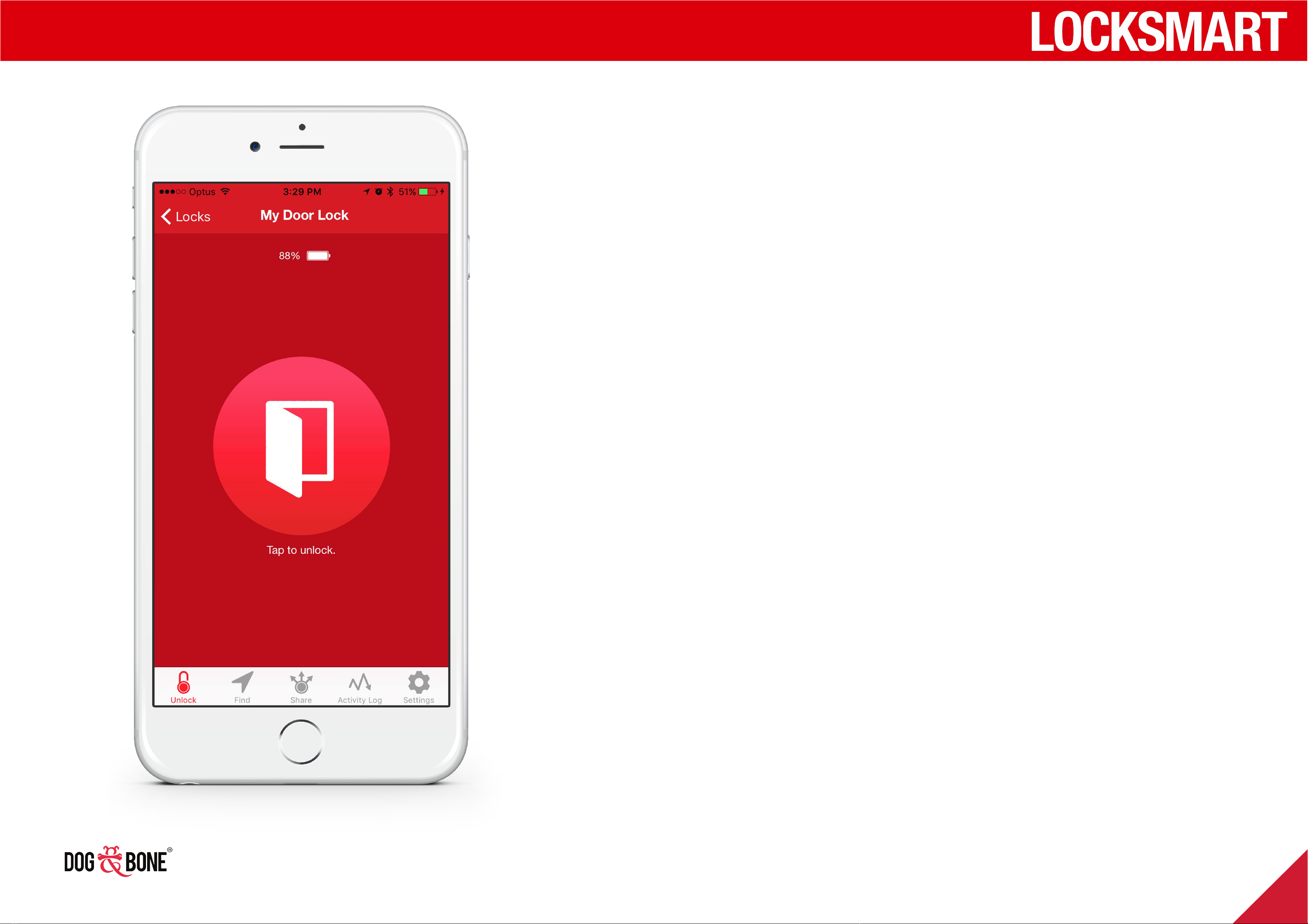

Tap to unlock
1. Ensure you have already enabled Tap to unlock
authentication from the settings menu for your lock
2. Ensure you have Bluetooth enabled and the lock is
within 5m of your device
3. Choose the lock from the lock list screen
4. You will see a large door button in the center of the
screen
5. Simply tap on the door button to unlock
Unlocking
11

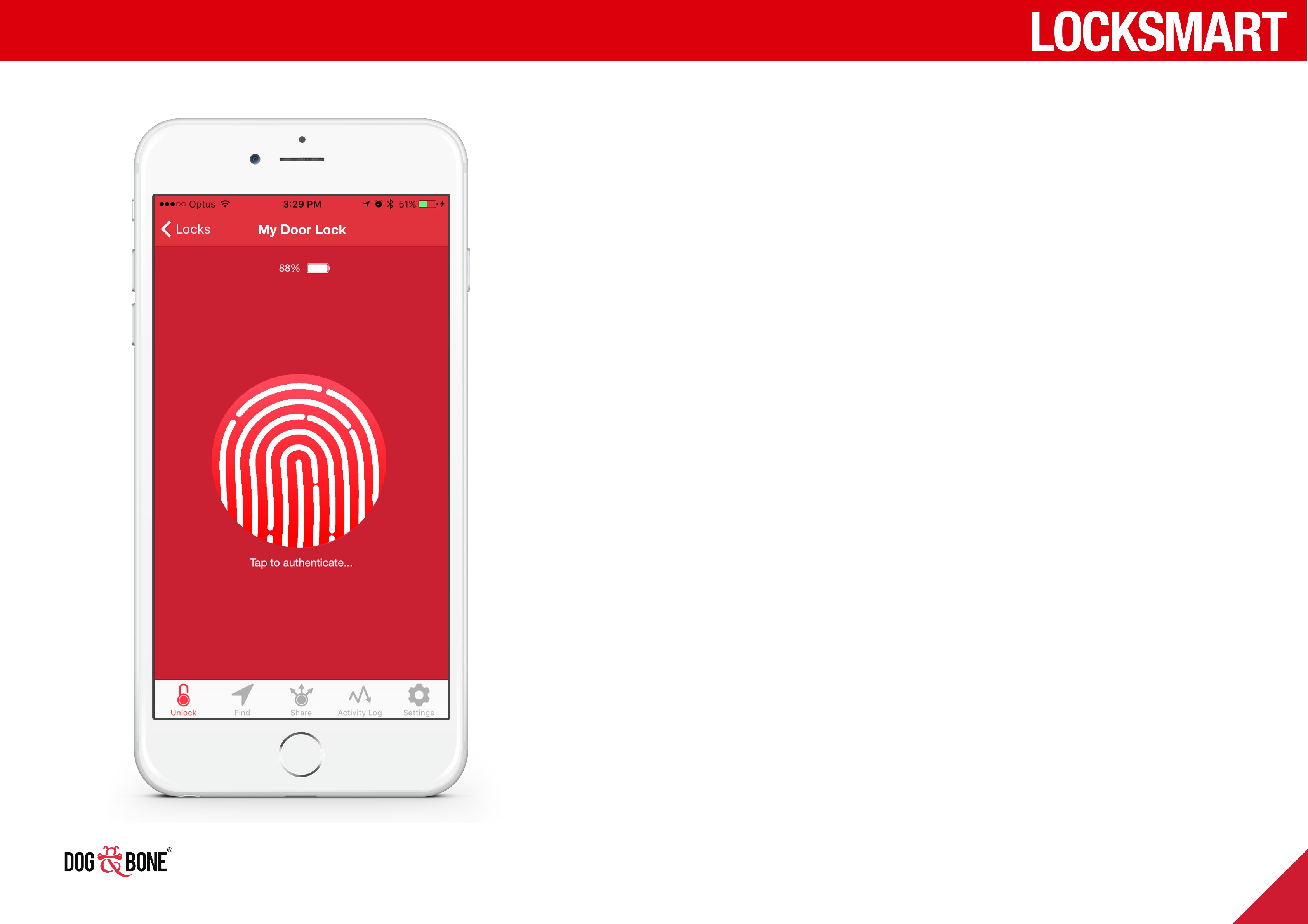

Touch ID / Fingerprint
Available on compatible mobile devices
1. Ensure your device has been previously
configured to enable Touch ID (on iOS
devices) or Fingerprint (on Android devices)
2. Ensure you have Bluetooth enabled and the
lock is within 5m of your device
3. Ensure you have Bluetooth enabled and that
the lock is within 5m of your device and turned
on. To turn on, press the button on the bottom
of the lock until a solid green light is displayed
4. Choose the lock from the lock list screen
5. You will see a large button in the center of the
screen
6. Tap on the button on screen
7. When prompted, place your finger on your
device’s home button to unlock the lock
Unlocking
12

Passcode
1. Ensure you have already
enabled Passcode
authentication from the
settings menu for your lock
- Once enabled, you will
be required to enter this
passcode to access the
settings screen, invite a
shared user, or to unlock
your lock
- After successfully
entering your passcode
to access settings or
unlock your lock, you will
remain authenticated for
a period of five minutes
- If you lock your phone
or exit the application,
this authentication will
immediately expire
2. Ensure you have Bluetooth
enabled and the lock is within
5m of your device
3. Choose the lock from the lock
list screen
4. You will see a large button in
the center of the screen
5. Tap on the button on screen
6. Enter your passcode to unlock
the lock
Unlocking
13

Face unlock
Available on compatible mobile devices
1. Ensure your device has been previously configured to enable
Face Unlock
2. Ensure you have already enabled Face Unlock authentication
from the settings menu for your lock
3. Ensure you have Bluetooth enabled and that the lock is within
5m of your device
4. Choose the lock from the lock list screen
5. When prompted for Face ID, position your face towards your
mobile screen camera to unlock the lock
Unlocking
14

Apple Watch unlock
NB Lock must already be paired to your account
1. Ensure your Apple Watch is paired to your mobile device
2. Ensure your paired device has the latest version of LockSmart
downloaded. Go to the app store to update if not downloaded
3. Ensure the LockSmart app is selected within the Watch App
4. Ensure your Bluetooth is enabled on your mobile device and that
the lock is within 5m of your device
5. Choose the lock from the lock list screen on your watch
6. You will see a large button in the center of your watch screen
7. Simply tap on the button to unlock
Unlocking
15

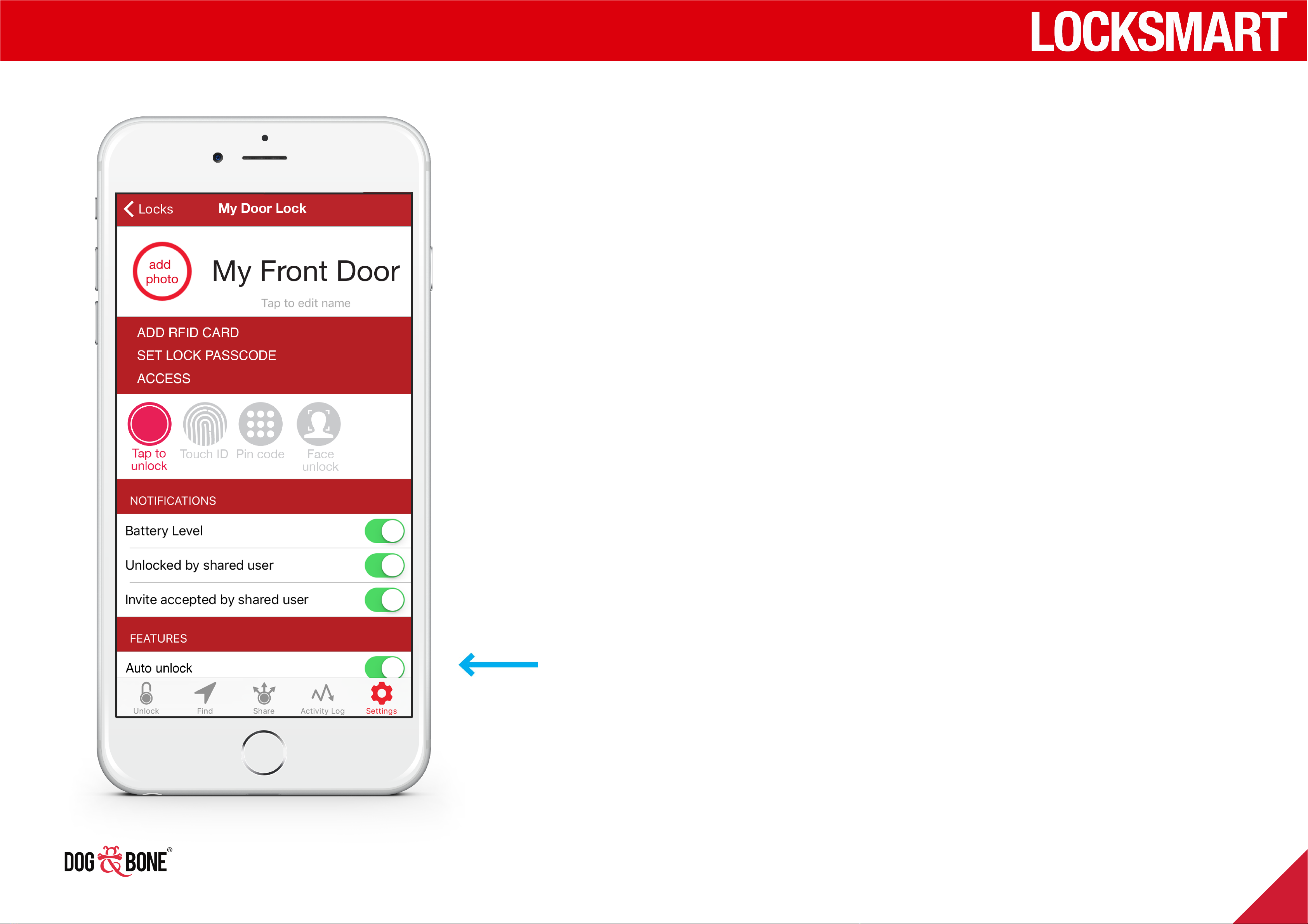

Auto unlock
1. Ensure you have already enabled Auto Unlock from the settings
menu for your lock
2. Ensure you have already enabled Location Services on your mobile
device
3. Ensure you have Bluetooth enabled on your mobile device
4. When you approach lock within 5m of your device, it will
automatically unlock
Unlocking
16

RFID
1. Before first use, pair RFID with lock by a) Selecting Add
RFID within settings menu for your lock followed by b)
Swiping card in front of lock keypad on prompt
2. Swipe the card on the front of the lock to unlock
NB To remove card, click the ‘X’ button
Unlocking
17

Key pad pin code
1. Before first use, set Key Pad Pin Code from the settings
menu for your lock by entering the pin code into the
app as prompted. Pin codes can be unlimited or limited
by time or use
2. Enter pin code on lock key pad to unlock
Unlocking
18

Physical key
For peace of mind, the LockSmart door locks have a back-up
physical key
For the LockSmart Abode
Use the supplied allen key to undo the grub screw holding
the handle in place. Remove the handle. Key barrel is located
behind the lock handle
LockSmart Abode
LockSmart Room 121
Unlocking
19

Share a lock with someone else
Each LockSmart lock can be shared with
up to 50 users
1. Choose any lock from the lock
list screen and press the ‘Share’
option in the bottom menu

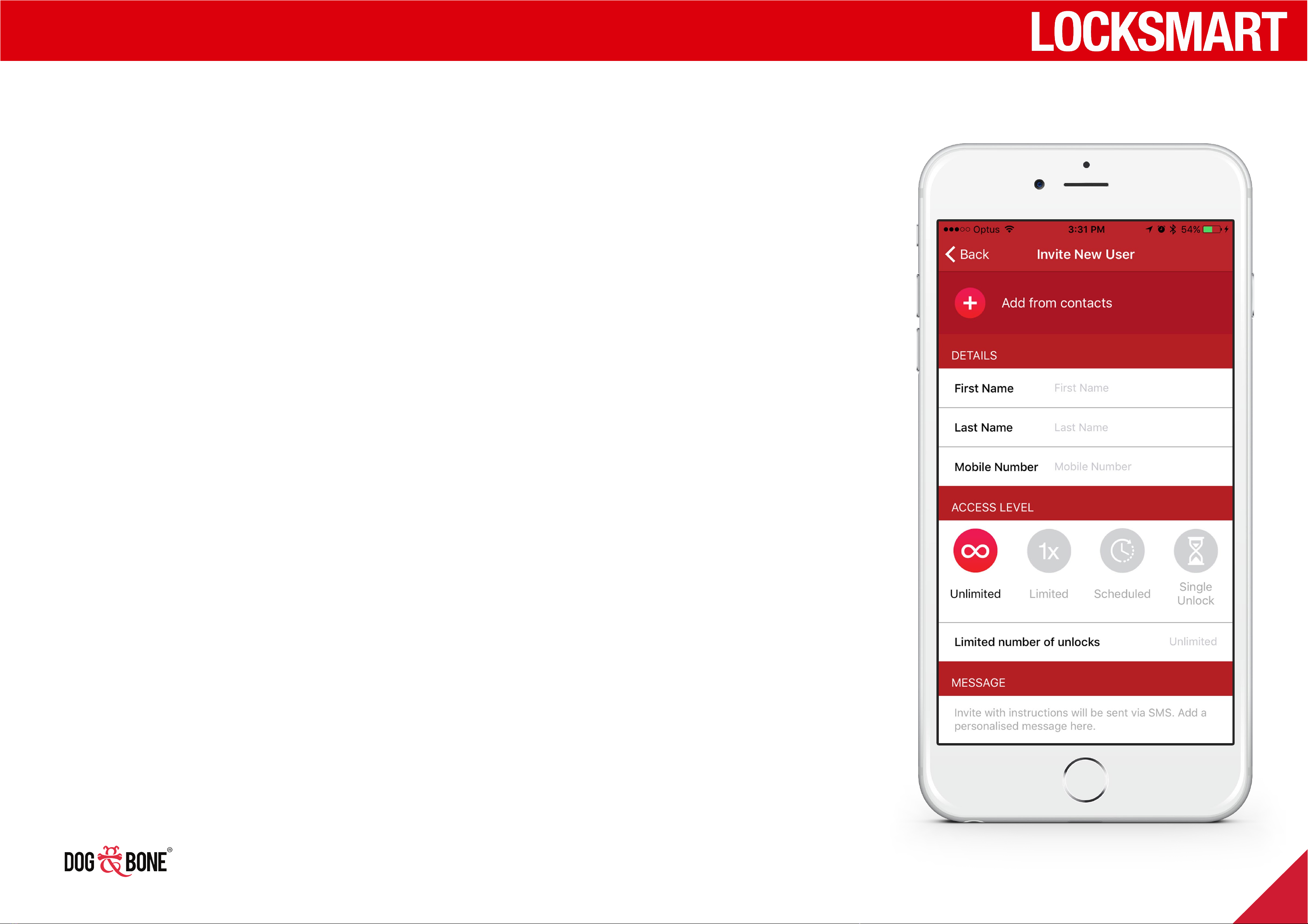

2. Press the ‘Invite New User’ button,
and enter the shared user’s
contact details
3. Press the ‘Add From Contacts’
option to add a user from your
device’s contact list
4. Select an access level for the
shared user: ‘Unlimited’, ‘Limited’,
‘Scheduled’, or ‘Single Unlock’
-Unlimited: Unrestricted
unlock access
-Limited: User will be
limited to the specified
number of unlocks
-Scheduled: see page 21
-Single Unlock: Unlock the
lock a single time without
needing to login or register
5. Your device’s native SMS
messaging application will be
opened with an editable invitation
message to send to the invited
user
6. After opening the web link, the
invited user will be prompted to
install the LockSmart application
and create a new account (if they
have not already done so)
7. After installing LockSmart, the
invited user must press the
‘Accept Invite’ button from
their device on the invitation
acceptance web link to add the
shared lock to their account
- Pressing this button will
open the LockSmart
application and add the
shared lock to their account
using the included security
code
8. The shared lock will now appear
in the user’s LockSmart list screen
Finding and sharing
20

Scheduled access for shared users
1. Choose ‘Scheduled’ as the
access level when adding a
shared user (see page 21)
2. The ‘Timezone’ selected
on the ‘Invite New User’
screen (see page 20) will be
used as the timezone for all
dates/times selected on this
screen
3. Choose the ‘Start Time’
and ‘End Time’ for when
a shared user may unlock
your lock
4. Choose the schedule
recurrence option of ‘Never’,
‘Weekly’ or ‘Weekly Until
Expiration’
-Never: Create a fixed
schedule from the
chosen start date until
the end date
-Weekly: Choose a
range of access time
during the week, which
will be repeated every
week
-Weekly Until
Expiration: Same as
‘Weekly’, but will stop
on the set date
5. Press the ‘Add’ button to
add this schedule to the
shared user, and you will
be taken back to the ‘Invite
New User’ page to complete
the invitation process
6. You can create multiple
schedules for the user
by pressing ‘Add New
Schedule’ again and
repeating the above steps
Finding and sharing
21
