Dogtrace d-control 200 mini User manual

d–control 200 mini
Electronic training collar –
basic training set for one dog
d–control 202 mini
Electronic training collar –
basic training set for two dogs –
with a carrying case
User Guide
EN

2
Declaration of Conformity
We:
VNT electronics s.r.o.
Smetanovo náměstí 104
570 01, Litomyšl
IČO: 64793826
declare under own responsibility that the product:
Electronic training collar
Dogtrace d-control 200 mini
is in compliance with essential requirements and other relevant provisions of
Directive 1999/5/EC from 9. 3. 1999
meets requirements of General Licence of The Czech Telecommunication Oce
according to general licence no. VO-R/10/05.2014-3, and corresponds to the following standarts:
ETSI EN 301 489-1 V1.9.2
ETSI EN 301 489-3 V1.6.1
ETSI EN 300 220-2 V.2.4.1
ETSI EN 60950-1:2006
The product is safe on condition of commonly used in conformity with instruction
manual. The Declaration of Conformity is created in exclusive responsibility of producer.
Measuring report no.: 6440-7600/2008 issued by certicated laboratory no.1103 VTÚPV Vyškov
Measuring report no.: 6440-697/2008 issued by certicated laboratory no.1103 VTÚPV Vyškov
This declaration of Conformity is created in exclusive responsibility of producer.
In Litomyšl 28.8.2014
Ing. Jan Horák
executive director
Tel.: [phone]
[e-mail]
www.dogtrace.com

3
WARNING:
The person with a personal instrument to support heart activity (pacemaker, debrillator) must
respect the relevant precautionary measures. The d–control emits a certain stationary
magnetic eld (lower part of the remote controller and RF signals).
Frequency= 869, 525 MHz, maximum transmitted power = 25 mW.
Contents
Introduction ................................................................................ 4
Package contents ........................................................................... 4
Optional accessories ........................................................................ 4
Product description ......................................................................... 5
Battery insertion and replacement .......................................................... 6
Choosing the contact points ................................................................ 7
Switching ON/OFF .......................................................................... 8
Programming (coding) the transmitter with the receiver ..................................... 9
Transmitter - button functions .............................................................10
How to check that your d–control works correctly ..........................................12
Using d–control training collar in winter....................................................12
Getting the best results ...................................................................13
Training tips ...............................................................................14
Caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Maintenance...............................................................................15
Troubleshooting ...........................................................................16
Technical specications ....................................................................17
Warranty terms and conditions.............................................................18
Certicate of warranty .....................................................................20
Hereby, VNT electronics s.r.o. , declares that this d-control 200 mini is in compliance
with the essential requirements and other relevant provisions
of Directive 1999/5/EC.

4
Introduction
Package contents
Optional accessories
The electronic training collar Dogtrace d–control, consisting of the transmitter and the receiver, it is a
modern, safe, reliable, and eective training tool. With the d-control training collar you can make
corrections that are suited to your dog‘s temperament and the distraction level of the moment, at the
proper time, for maximum training eciency. However, correcting to stop unwanted behaviour is only
a small part of what you can do with the d-control. More importantly, the d-control is a powerful tool
for encouraging desired behaviour. It is possible to easily adjust the intensity of the stimulation.
Thanks to the ergonomic design and low weight of the receiver, it is suitable for all dog breeds and
sizes.
Collar unit (receiver) with the strap (two receivers for d–control 202 mini)
Two pairs of contact points (short - 12 mm and long - 17 mm)
Two lithium CR2 3V batteries (3 pcs for d–control 202 mini)
Transmitter (remote control) with the belt clip
User guide and certicate of warranty
Carrying case (for d–control 202 mini)
Test discharge lamp
Transmitter neck strap
Additional receiver
Dummy receiver
Spare screws
Silicone grease
Spare contact points (12 mm, 17 mm, 21 mm)
Spare lithium CR2 3V batteries
Spare rubber seal
Woven or plastic collars - various colours

5
Product description
TRANSMITTER RECEIVER
TRANSMITTER - 1 - Backlit LCD display, 2 - Booster button, 3 - Stimulation button, 4 - Tone signal
button, 5 - ON/OFF Switch, 6 - Adjustment of the level of the stimulation, 7 - Dog selection button
(dog A, dog B)
RECEIVER - 1 - Strap, 2 - Contact points, 3 - ON/OFF LED Indicator, 4 - indicator area where the
ON/OFF magnetic switch is located
DISPLAY - 1 - Indicator of the radio transmission, 2 - Battery power indicator, 3 - Stimulation level
indicator (from 0 to 19), 4 - Dog selection indicator (dog A, dog B)
2
1
7
5
3
4
6
7
6
1
2
3
4
LCD DISPLAY
1 2
3
4

6
Battery insertion and replacement
INSERTION (REPLACEMENT) OF THE BATTERY IN THE RECEIVER
Unscrew the 4 screws of the top of the receiver using a cross-head screwdriver and remove the lid.
Insert the lithium CR2 3V battery into the battery compartment. Please check that and the battery
is installed with correct polarity (according to the polarity indicated with the "+" symbol in the
battery compartment - see the picture). Wrong polarity may damage the unit.
A beep sound is emitted indicating the correct installation of the battery.

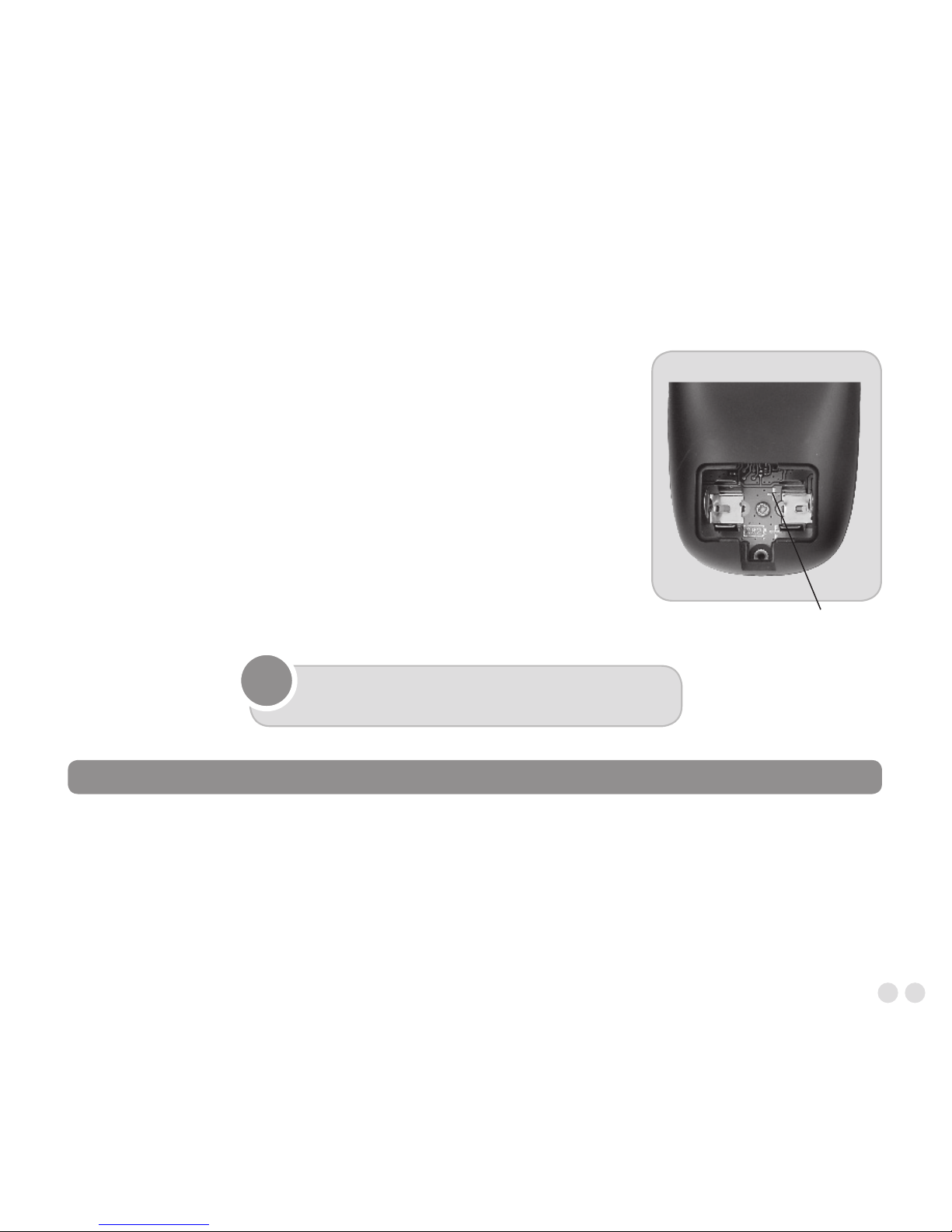

If the beep sound is not emitted after the battery is inserted, remove it immediately. Initialize the
system by using a metal tool (e.g. a screwdriver, scissors, etc.) and short-circuit (connect) both
contacts of the battery holder for about 2 seconds (see the picture on the page 16). Please check
the correct polarity and try to insert the battery again.
Before putting the lid of the receiver back in place, make sure that the rubber seal is correctly
seated in its groove. Screw down the 4 screws of the top tightly (do not over tighten them).
Checking the battery status
LED indicator on the receiver‘s front cover indicates the status of
the battery:
Checking the battery status
Green ashing LED indicates the battery is fully charged.
Red and green ashing LEDs together indicate low battery.
Prepare a spare lithium CR2 3V battery and follow the
instructions described in the section "Battery insertion and
replacement".Make sure that the receiver works correctly.

7
INSERTION (REPLACEMENT) OF THE BATTERY IN THE TRANSMITTER
Observe polarity when installing the battery. Reversing the battery will damage the transmitter. Use
only lithium CR2 3V batteries.
Battery polarity marks
TIP: You can easily lift up the battery using
the small flat-head screwdriver.
TIP
 Remove the transmitter battery cover using a cross-head
screwdriver.
If replacing the battery, remove the old battery and dispose of it
properly.
Place the lithium CR2 3V battery in the holder and press into place.
Put the battery cover back into place and secure with screw.
The battery level is shown at the battery life status bar on the LCD
display.
Battery fully charged: full battery icon is shown on the LCD display.
Low battery: battery empty icon is shown on the LCD display.
Prepare a spare lithium CR2 3V battery and follow the instructions
described in the section "Insertion (replacement of the battery in
the transmitter".
Choosing the contact points
The stimulation is delivered through the receiver contact points. Two different series of contact points
are supplied. The length of the contact points must be sufficient to have proper contact with the dog‘s
skin, enabling the device to operate correctly. If you have a short-haired dog use the short 12 mm
contact points, if you have a long-haired dog replace them with the longer 17 mm contact points
supplied with the kit. Carefully tighten them manually (do not use a key). It is possible to purchase the
21 mm long contact points.

8
Switching ON/OFF
Switching ON/OFF the transmitter/Programming the transmitter with the receiver
SWITCHING THE TRASNMITTER ON/OFF
Switching on: Press down for 1 second the button on the transmitter.
The LCD display indicates that the unit is active.
Switching o: Again, press down for 1 second the button on the transmitter.
SWITCHING THE RECEIVER ON/OFF
A magnet located at the lower part of the transmitter is used to activate or deactivate the magnetic
switch located in the receiver.
Switching on: approach the low area of the transmitter where the magnet is located until coming
close to the indicator located on the receiver (see the picture), hold for 1 second, the receiver
LED indicator will ash in green indicating the receiver is ON.
Switching o: approach the low area of the transmitter where the magnet is located until coming
close to the indicator located on the receiver, hold for 1 second,
the receiver LED indicator will ash from green to red indicating
the receiver is OFF.
To extend the battery life it is necessary to switch o both receiver and
transmitter after the training is nished. If the battery will not be in use
for a month or longer, it is recommended that it is removed from the
receiver.

9
Programming (coding) the transmitter with the receiver
Each transmitter has its own operational code. The programming of the transmitter with the receiver
enables the two units to work together. This operation will help you to program the receiver to work
with a new transmitter or to program a new receiver to work with your existing transmitter. Receiver
can be reprogrammed indenitely, either with the same transmitter or a new d-control transmitter. It
is possible to program an unlimited number of receivers to one transmitter.
Switch on the transmitter. The receiver must be switched o.
Select dog A using the button on the transmitter.
Approach the low area of the transmitter where the magnet is located until coming close to the
indicator located on the receiver (see the picture on the page 8), hold for 5 second, the receiver LED
indicator will ash four times in green and red simultaneously indicating the receiver is in
programming mode.
Move your transmitter away and press the tone signal button on the transmitter. A beep sound is
emitted; the receiver is then synchronized with the transmitter.
Select dog B using the button on the transmitter and proceed in the same way (applicable
when programming additional receiver for second dog).
IMPORTANT: Before the programming make sure no other person is using his d-control or
other products from the Dogtrace range close by: your receiver could accidentally record
the code of his transmitter.

10

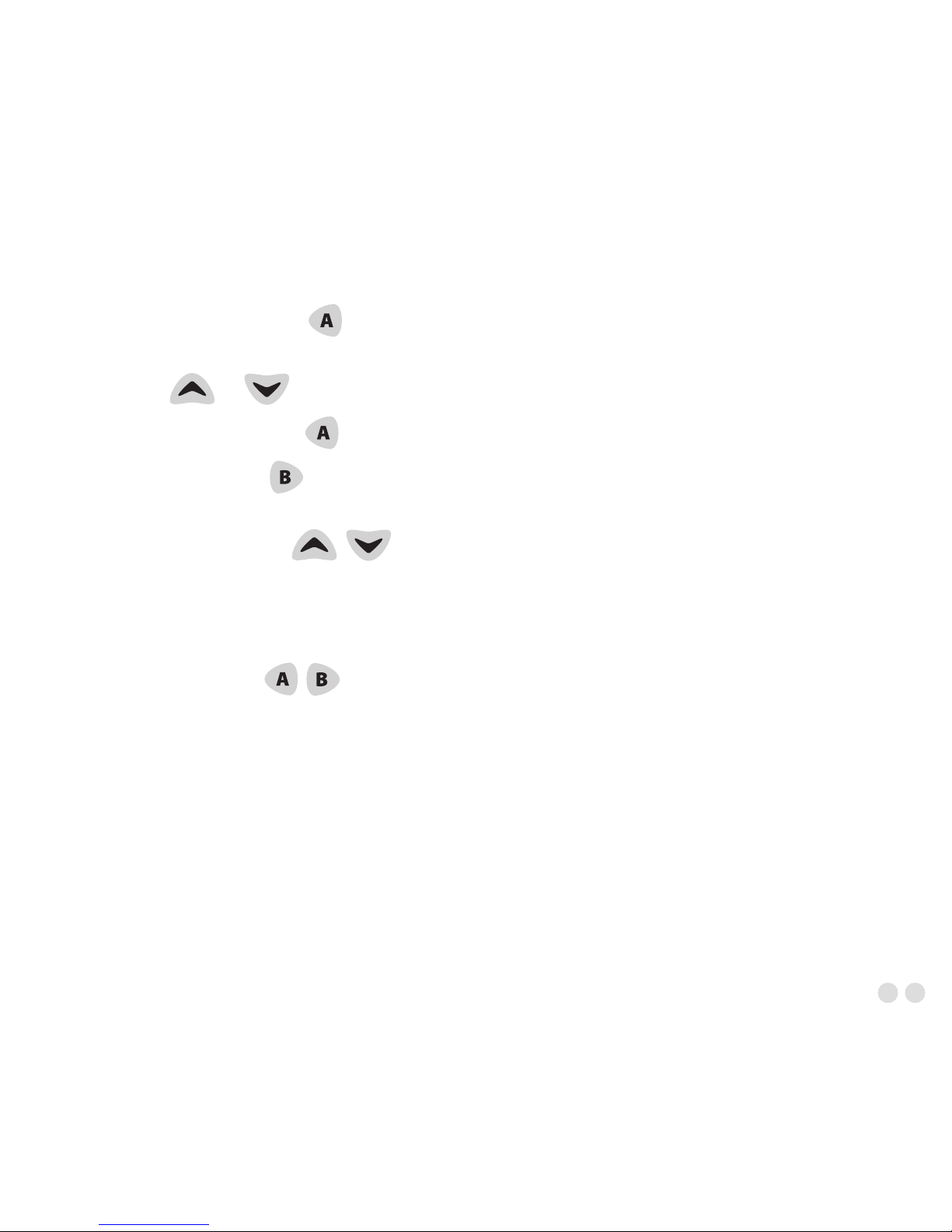

Transmitter - button functions
The d–control 200 transmitter is designed to operate with two separate receivers (dog A and dog B).
The selected level of stimulations can be dierent for each receiver.
Button - Tone signal
The receiver emits a beeping noise when a "Tone button" is pressed. If the button is not released after
10 seconds, the tone will automatically turn o. While pressing, an indicator of the radio transmission
will appear on the LCD display of the transmitter; the indicator light on the receiver goes from ashing
green to permanent green for as long as the button is pressed.
Button - Continuous stimulation
Pressing the "Stimulation button" gives continuous electric stimulation transmitted by the two contact
points located on the receiver as long as the button is pushed. If the button is not released after 4
seconds, the stimulation will automatically turn o as a safety feature. The receiver will be ready to be
reactivated once the button has been released. While pressing, an indicator of the radio transmission
will appear on the LCD display of the transmitter; the indicator light on the receiver goes from ashing
green to permanent red for as long as the button is pressed.
Button - Booster
Pressing the "Booster button" gives continuous electric stimulation transmitted by the two contact
points located on the receiver as long as the button is pushed. If the button is not released after 4
seconds, the stimulation will automatically turn o as a safety feature. The receiver will be ready to be
reactivated once the button has been released. While pressing, an indicator of the radio transmission
will appear on the LCD display of the transmitter; the indicator light on the receiver goes from ashing
green to permanent red. You can set the level of the Booster stimulation by 0-5 intensity levels higher than
the level you are using on the "Stimulation button". As a result, you do not need to press the
button.
