Load-bearing tower
Staxo 100 eco
with brief design as per Eurocode
User Information
Instructions for assembly and use (Method statement)
© by Doka GmbH, A-3300 Amstetten
98087-200-01

2999808702 - 11/2019
User Information Load-bearing tower Staxo 100 eco

User Information Load-bearing tower Staxo 100 eco
3999808702 - 11/2019
Contents
4Introduction
4Elementary safety warnings
7Services
8System description
10 System overview
12 The Staxo 100 eco frame in detail
14 Practical examples
16 Adapts to different ground plans, heights,
floor shapes and loads
22 Linking towers / placing assembly-level
planking between towers
24 Assembly
25 Horizontal assembly
28 Assembling towers in the upright by hand
32 Assembling towers in the upright by forklift
truck
34 Repositioning
35 Repositioning using traveller units
37 Lifting by crane
39 Lifting by forklift truck
40 General
40 Combining Staxo 100 eco with Staxo 100
41 Combining with Dokamatic tables
43 Anchoring on the structure
45 Back-stays/shoring supports for the load-
bearing towers
49 Adaptation to building layout
52 Inclination adjustment
55 Steel primary beams
56 Transporting, stacking and storing
61 Structural design
64 Component overview

4999808702 - 11/2019
Introduction User Information Load-bearing tower Staxo 100 eco
Introduction
Elementary safety warnings
User target groups
▪ This booklet is aimed at all persons who will be work-
ing with the Doka product or system that it describes.
It contains information on the standard design for
setting up this system, and on correct, compliant uti-
lisation of the system.
▪ All persons working with the product described
herein must be familiar with the contents of this
booklet and with all the safety instructions it contains.
▪ Persons who are incapable of reading and under-
standing this booklet, or who can do so only with dif-
ficulty, must be instructed and trained by the cus-
tomer.
▪ The customer is to ensure that the information mate-
rials provided by Doka (e.g. User Information book-
lets, Instructions for Assembly and Use, Operating
Instruction manuals, plans etc.) are up to date and
available to all users, and that they have been made
aware of them and have easy access to them at the
usage location.
▪ In the relevant technical documentation and form-
work utilisation plans, Doka shows the workplace
safety precautions that are necessary in order to use
the Doka products safely in the usage situations
shown.
In all cases, users are obliged to ensure compliance
with national laws, standards and regulations
throughout the entire project and to take appropriate
additional or alternative workplace safety precau-
tions where necessary.
Hazard assessment
▪ The customer is responsible for drawing up, docu-
menting, implementing and continually updating a
hazard assessment at every job-site.
This booklet serves as the basis for the site-specific
hazard assessment, and for the instructions given to
users on how to prepare and utilise the system. It
does not substitute for these, however.
Remarks on this booklet
▪ This document can be used as general Instructions
for Assembly and Use (Method Statement) or be
incorporated into site-specific Instructions for
Assembly and Use (Method Statement).
▪ The graphics, animations and videos in this doc-
ument or app sometimes depict partially assem-
bled assemblies and may require additional
safety equipment and/or measures to comply
with safety regulations.
The customer must ensure all applicable regulations
are complied with, even if they are not shown or
implied in the graphics, animations and videos pro-
vided.
▪ Individual sections contain further safety
instructions and/or special warnings as applica-
ble.
Planning
▪ Provide safe workplaces for those using the form-
work (e.g. for when it is being erected/dismantled,
modified or repositioned etc). It must be possible to
get to and from these workplaces via safe access
routes!
▪ If you are considering any deviation from the
details and instructions given in this booklet, or
any application which goes beyond those
described in the booklet, then revised static cal-
culations must be produced for checking, as well
as supplementary assembly instructions.
Regulations; industrial safety
▪ All laws, Standards, industrial safety regulations and
other safety rules applying to the utilisation of our
products in the country and/or region in which you
are operating must be observed at all times.
▪ If a person or object falls against, or into, the side-
guard component and/or any of its accessories, the
component affected may only continue in use after it
has been inspected and passed by an expert.

User Information Load-bearing tower Staxo 100 eco Introduction
5999808702 - 11/2019
Rules applying during all phases of
the assignment
▪ The customer must ensure that this product is
erected and dismantled, reset and generally used for
its intended purpose in accordance with the applica-
ble laws, standards and rules, under the direction
and supervision of suitably skilled persons.
These persons' mental and physical capacity must
not in any way be impaired by alcohol, medicines or
drugs.
▪ Doka products are technical working appliances
which are intended for industrial / commercial use
only, always in accordance with the respective Doka
User Information booklets or other technical docu-
mentation authored by Doka.
▪ The stability and load-bearing capacity of all compo-
nents and units must be ensured during all phases of
the construction work!
▪ Do not step on or apply strain to cantilevers, clo-
sures, etc. until suitable measures to ensure their
stability have been correctly implemented (e.g. by
tie-backs).
▪ Strict attention to and compliance with the functional
instructions, safety instructions and load specifica-
tions are required. Non-compliance can cause acci-
dents and severe injury (risk of fatality) and consid-
erable damage to property.
▪ Sources of fire in the vicinity of the formwork are pro-
hibited. Heaters are permissible only when used cor-
rectly and situated a correspondingly safe distance
from the formwork.
▪ Customer must give due consideration to any and all
effects of the weather on the equipment and regards
both its use and storage (e.g. slippery surfaces, risk
of slipping, effects of the wind, etc.) and implement
appropriate precautionary measures to secure the
equipment and surrounding areas and to protect
workers.
▪ All connections must be checked at regular intervals
to ensure that they are secure and in full working
order.
In particular threaded connections and wedged con-
nections have to be checked and retightened as nec-
essary in accordance with activity on the jobsite and
especially after out-of-the-ordinary occurrences (e.g.
after a storm).
▪ It is strictly forbidden to weld Doka products – in par-
ticular anchoring/tying components, suspension
components, connector components and castings
etc. – or otherwise subject them to heating.
Welding causes serious change in the microstruc-
ture of the materials from which these components
are made. This leads to a dramatic drop in the failure
load, representing a very great risk to safety.
It is permissible to cut individual tie rods to length
with metal cutting discs (introduction of heat at the
end of the rod only), but it is important to ensure that
flying sparks do not heat and thus damage other tie
rods.
The only articles which are allowed to be welded are
those for which the Doka literature expressly points
out that welding is permitted.
Assembly
▪ The equipment/system must be inspected by the
customer before use, to ensure that it is in an accept-
able condition. Steps must be taken to exclude com-
ponents that are damaged, deformed, or weakened
due to wear, corrosion or rot (e.g. fungal decay).
▪ Using our safety and formwork systems together
with those of other manufacturers can create risks
that may lead to injury and damage to property. This
requires separate verification.
▪ The equipment/system must be assembled and
erected in accordance with the applicable laws,
standards and rules by trained customer personnel
whilst maintaining any applicable safety inspections
that may be required.
▪ It is not permitted to modify Doka products; such
modifications constitute a safety risk.
Closing the formwork
▪ Doka products and systems must be set up so that
all loads acting upon them are safely transferred!
Pouring
▪ Do not exceed the permitted fresh-concrete pres-
sures. Over-high pouring rates overload the form-
work, cause greater deflection and risk breakage.
Stripping the formwork
▪ Do not strip out the formwork until the concrete has
reached sufficient strength and the person in charge
has given the order for the formwork to be stripped
out!
▪ When stripping out the formwork, never use the
crane to break concrete cohesion. Use suitable tools
such as timber wedges, special pry-bars or system
features such as Framax stripping corners.
▪ When stripping out the formwork, do not endanger
the stability of any part of the structure, or of any
scaffolding, platforms or formwork that is still in
place!

6999808702 - 11/2019
Introduction User Information Load-bearing tower Staxo 100 eco
Transporting, stacking and storing
▪ Observe all country-specific regulations applying to
the handling of formwork and scaffolding. For system
formwork the Doka slinging means stated in this
booklet must be used – this is a mandatory require-
ment.
If the type of sling is not specified in this document,
the customer must use slinging means that are suit-
able for the application envisaged and that comply
with the regulations.
▪ When lifting, always make sure that the unit to be
lifted and its individual parts can absorb the forces
that occur.
▪ Remove loose parts or secure them so that they can-
not slip out of position and drop.
▪ All components must be stored safely, following all
the special Doka instructions given in the relevant
sections of this document!
Maintenance
▪ Only original Doka components may be used as
spare parts. Repairs may only be carried out by the
manufacturer or authorised facilities.
Miscellaneous
The weights as stated are averages for new material;
actual weights can differ, depending on material toler-
ances. Dirt accretions, moisture saturation, etc. can
also affect weight.
We reserve the right to make alterations in the interests
of technical progress.
Eurocodes at Doka
The permissible values stated in Doka documents
(e.g. Fperm = 70 kN) are not design values (e.g. FRd =
105 kN)!
▪ It is essential to avoid confusing permissible values
with design values!
▪ Doka documents will continue to state the permissi-
ble values.
Allowance has been made for the following partial fac-
tors:
▪ γF = 1.5
▪ γM, timber = 1.3
▪ γM, steel = 1.1
▪ kmod = 0.9
Consequently, all the design values for an EC design
calculation can be determined from the permissible val-
ues.
Symbols used
The following symbols are used in this document:
DANGER
This is a notifier drawing attention to an
extremely dangerous situation in which non-
compliance with this notifier will lead to death
or severe, irreversible injury.
WARNING
This is a notifier drawing attention to a dan-
gerous situation in which non-compliance
with this notifier can lead to death or severe,
irreversible injury.
CAUTION
This is a notifier drawing attention to a dan-
gerous situation in which non-compliance
with this notifier can lead to slight, reversible
injury.
NOTICE
This is a notifier drawing attention to a situa-
tion in which non-compliance with this noti-
fier can lead to malfunctions or damage to
property.
Instruction
Indicates that actions have to be performed
by the user.
Sight-check
Indicates that you need to do a sight-check
to make sure that necessary actions have
been carried out.
Tip
Points out useful practical tips.
Reference
Cross-references other documents.

User Information Load-bearing tower Staxo 100 eco Introduction
7999808702 - 11/2019
Services
Support in every stage of the project
▪ Project success assured by products and services
from a single source.
▪ Competent support from planning through to assem-
bly directly on site.
High performance, in all stages of the project
Project assistance from start to finish
Every single project is unique and calls for individual-
ised solutions. When it comes to the forming opera-
tions, the Doka team can help you with its consulting,
planning and ancillary services in the field, enabling
you to carry out your project effectively, safely and reli-
ably. Doka assists you with individual consulting ser-
vices and customised training courses.
Efficient planning for a safe project sequence
Efficient formwork solutions can only be developed
economically if there is an understanding of project
requirements and construction processes. This under-
standing is the basis of Doka engineering services.
Optimise construction workflows with Doka
Doka offers special tools that help you in designing
transparent processes. This is the way to speed up
pouring processes, optimise inventories and create
more efficient formwork planning processes.
Custom formwork and on-site assembly
To complement its system formwork range, Doka
offers customised formwork units. And specially
trained personnel assemble load-bearing towers and
formwork on site.
Just-in-time availability
Formwork availability is a crucial factor in realising
your project on time and on budget. The worldwide
logistics network puts the necessary formwork quanti-
ties on site at the agreed time.
Rental and reconditioning service
The formwork material needed for any particular pro-
ject can be rented from Doka’s high-performing rental
park. Doka Reconditioning cleans and overhauls both
client-owned equipment and Doka rental equipment.
Tender Operations
scheduling
Construction
work
Project close-
out
Engineering
▪ Execution planning
▪ Cycle planning
▪ Structure modelling/3D-planning
▪ Assembly drawings
▪ Statics calculation
▪ Concremote
Consulting and training
▪ Project processing on-site
▪ Formwork instructor
▪ Training & consulting
Process optimisation
▪ Concremote
▪ myDoka
▪ Planning software
▪ Yard management
Pre-assembly and assembly
▪ Pre-assembly service
▪ Pre-assembly on site service
Logistics
▪ Organisation of transport & freight
Rental and reconditioning service
▪ Rental service
▪ Formwork returns
▪ Reconditioning & service fixed rates
upbeat construction
digital services for higher productivity
From planning through to completion - with
upbeat construction we’ll be moving construc-
tion forward and upping the beat for more pro-
ductive building with all our digital services.
Our digital portfolio covers the entire construc-
tion process and is being extended all the time.
To find out more about our specially developed
solutions go to doka.com/upbeatconstruction.

8999808702 - 11/2019
System description User Information Load-bearing tower Staxo 100 eco
System description
Load-bearing tower Staxo 100 eco –
the extra-high-capacity, extra-fast
and extra-economical shoring system
Staxo 100 eco comes with all the field-proven advan-
tages of Staxo 100 – meaning that it is robust, fast and
versatile.
Sturdy galvanised or painted steel frames, in three dif-
ferent heights, are the basis of this high-speed, high-
performance load-bearing tower system.
High load-bearing capacity, quick and easy assembly
and great versatility – these are the outstanding char-
acteristics of Staxo 100 eco.
Wherever high loads occur, in either the building-con-
struction or civil-engineering fields, this load-bearing
tower is the ideal solution.
The high-performance load-bearing tower
▪ high capacity of up to 100 kN per leg
▪ with lightweight components (frames up to h=1.20 m
can be manhandled)
▪ ergonomical: easy-to-handle parts
... speeds up work
▪ the small number of system components makes for
easier handling and means that no time is wasted
searching for parts
▪ no tools are needed for assembling the towers
... provides optimum safety
▪ high stability, due to its 1.52 m wide frames
▪ attachment points for fall-arrest set
... is flexible
▪ the inter-frame spacing can be varied (from 0.60 m
to 3.00 m), for optimum utilisation of the frames'
load-bearing capacity. (From 1.00m, in 50 cm incre-
ments).
▪ different frame heights - 0.90 m, 1.20 m and 1.80 m
- for rough height adjustment in 30 cm increments:
0.90, 1.20 and 1.80 m
▪ fine adjustment by means of screw-jack U-heads
and feet
▪ can be used in conjunction with floor props and
Dokaflex
... is economical
▪ The tower units are quick and easy to assemble:
- either on their sides or in the upright
- for tall towers, tower units can be pre-assembled
on their sides, and then simply stacked by crane
- scaffold planking units make it easy to erect and
dismantle the tower and superstructure
▪ with special wheel units, complete tableforms can
quickly be wheeled to their next location
▪ the Forklift shifting device TG makes the job of erect-
ing, dismantling and transporting Doka load-bearing
towers very much easier.

User Information Load-bearing tower Staxo 100 eco System description
9999808702 - 11/2019
Areas of use
The Load-bearing tower Staxo is ideal:
▪ as falsework for use in bridge-building, where high
loads occur and where great stability is called for in
that horizontal forces such as wind loads have to be
safely transferred
▪ in the building construction field, e.g. for administra-
tion buildings and multistorey car-park decks, where
large-area tableform units reduce forming times
▪ in the industrial and power-station construction field,
as a load-bearing tower for all manner of applications
Doka stair tower 250
The Doka stair tower 250 consists of 1.20m frames and
a small number of lightweight aluminium stairway ele-
ments.
Quick to erect, the stair tower provides 'high-level'
safety and lets the site crew get quickly to their work-
places.
Follow the directions in the 'Doka stair tower
250' User Information booklet!

10 999808702 - 11/2019
System description User Information Load-bearing tower Staxo 100 eco
System overview
Basic design concept
a ... Inter-frame spacing = 60* / 100 / 150 / 175 / 200 / 250 / 300 cm
b ... Frame width = 152 cm
* only for 1.20 and 0.90m frames
The Staxo 100 eco system
components
Head units (A)
Staxo 100 eco frame (B)
Diagonal crosses (C)
AHead unit
BStaxo 100 eco frame
CDiagonal cross
DBase unit
EScaffold planking
a
b
98087-201-01
A
B
C
D
E
C
4-way screw-
jack head
Screw jack U-
head
Heavy duty
screw jack 70
top + Split nut B
U-head D
Top height-adjustment screwjacks for load-bearing
towers. For holding the superstructure and adjust-
ing its height.
Rotatable, but
with no height
adjustment.
May be used
with either one
or two Doka
H20 beams.
For holding the primary beams
(e.g. multi-purpose walings, steel
girders).
For holding the
primary beams
(e.g. WS10
steel walings or
double H20
beams).
The primary
beams are fixed
so that they
cannot tip over.
Staxo 100 eco frame
1.80m
Staxo 100 eco frame
1.20m
Staxo 100 eco frame
0.90m
The steel frames are available either galvanised or painted.
Slot-in bracing crosses made of
tubular steel, for mounting between
the frames.
Identified by:
▪ Embossed marking (G) e.g.
18.250
- 18 = frame height 1.80 m
- 250 = inter-frame spacing
250 cm
▪ Notched, colour-coded clips (H)
(see table)
G
H

User Information Load-bearing tower Staxo 100 eco System description
11999808702 - 11/2019
Note:
For horizontal bracing of the frames, always use
Diagonal crosses 9.xxx.
In levels in which scaffold planking units are mounted,
horizontal bracing with diagonal crosses is no longer
needed. This only applies, of course, if the scaffold
planking units are left in place in this "storey" until the
very end of the assignment (assembly, pouring etc.)
Base units (D)
Scaffold planking units (E)
Designation Colour-coded
clip Notches
Diagonal cross 9.060 Black —
Diagonal cross 9.100 Green —
Diagonal cross 9.150 Red —
Diagonal cross 9.175 Light green —
Diagonal cross 9.200 Blue —
Diagonal cross 9.250 Yellow —
Diagonal cross 9.300 Orange —
Diagonal cross 12.060 Black 1
Diagonal cross 12.100 Green 1
Diagonal cross 12.150 Red 1
Diagonal cross 12.175 Light green 1
Diagonal cross 12.200 Blue 1
Diagonal cross 12.250 Yellow 1
Diagonal cross 12.300 Orange 1
Diagonal cross 18.100 Green 3
Diagonal cross 18.150 Red 3
Diagonal cross 18.175 Light green 3
Diagonal cross 18.200 Blue 3
Diagonal cross 18.250 Yellow 3
Diagonal cross 18.300 Orange 3
Screw jack foot
Heavy-duty screw
jack 70
+ Split nut B
Heavy-duty screw
jack 130 + Split nut B
Bottom height-adjustment spindle for load-bearing towers.
The Split nut B can be swung apart, meaning
that it does not need to be turned through the
full length of the threaded
spindle.
Specially for height
mis-matches such as
on steps. Otherwise
identical to Heavy-
duty screw jack 70.
For details, see the
section headed
"Structural design".
Scaffold planking 60/...cm Scaffold planking 60/...cm
with manhole
Aluminium/timber scaffold planking units with or without self-closing
cover, for making safe assembly decks.
Integral anti-liftout guard
Width: 60 cm
Lengths: 60 / 100 / 150 / 175 / 200 / 250 / 300 cm
Scaffold planking 30/... cm
Steel scaffold planking units for
making safe assembly decks.
Integral anti-liftout guard
Width: 30 cm
Lengths: 100 / 150 / 175 / 200 /
250 / 300 cm
Permitted service load: 1.5 kN/m2 (150 kg/m2)
Load Class 2 to EN 12811-1:2003

12 999808702 - 11/2019
System description User Information Load-bearing tower Staxo 100 eco
The Staxo 100 eco frame in detail
Interconnection system on Load-
bearing tower Staxo 100 eco
▪ Easy, safe interconnection using the couplers and
spring-locked connecting pins 16mm.
1) Fix a coupler in the top frame, using a Spring locked
connecting pin 16mm.
2) Place this frame on top of the one below it.
3) Secure it with a Spring locked connecting pin
16mm.
Safety catch
▪ tried-and-tested interconnection system (captive)
▪ secures the diagonal crosses
▪ two defined positions (closed – open)
Connecting the couplers
a ... max. 16 cm (exception: where tubes are being connected for
constructional design purposes)
c ... Diameter 75 mm
Profile form
▪ low weight, yet high load-bearing capacity
▪ sturdy
Profile seal
▪ protects against damage
▪ sliding contact surface for nuts
NOTICE
Only Staxo 100 frames and Staxo 100 eco
frames fulfil the capacity ratings stated in this
document!
ACoupler
BSpring-locked connecting pin 16mm
CStaxo 100 eco frame
9718-218-01
A
B
C
Closed Open
ATransition swivel coupler 48/76mm.
This type of link is not in conformity with DIN 4421 (DIN EN 74).
No loads may be introduced parallel to the Staxo tubes.
98087-206-01 98087-206-02
98087-205-02
c
a
A

User Information Load-bearing tower Staxo 100 eco System description
13999808702 - 11/2019
Attachment point for personal fall-
arrest set
980 -20 -0187 7

14 999808702 - 11/2019
System description User Information Load-bearing tower Staxo 100 eco
Practical examples
Tableforms and tower frames are both assembled from
the same system components.
Tableform units
▪ For repetitive use, the load-bearing tower can be
assembled into complete tableforms.
Combined with Dokaflex
For downstand beams, the load-bearing towers and
beam-forming supports can be combined very effec-
tively with Dokaflex.
Edge floor-beam
Tower frames
With a load-bearing capacity of up to 100 kN per leg,
Staxo 100 eco is an extremely strong load-bearing
tower system.
It safely withstands horizontal forces such as wind
loads.
The wide frames make for high stability right from the
word "go".
Close inter-frame spacing is possible, for transferring
high loads.
ALoad-bearing tower
BDokaflex
CBeam forming support 20
DHandrail post T 1.80m (optionally with Toeboard holder T
1.80m), Edge protection system XP, Handrail clamp S or Hand-
rail post 1.50m
ELashing strap 5.00m
FDoka express anchor 16x125mm and Doka coil 16mm
AB
D
E
C
F
98087-208-01
The Universal dismantling tool makes it easier
to turn the Split nut B - even when it is under
higher loads.
98087-209-01

User Information Load-bearing tower Staxo 100 eco System description
15999808702 - 11/2019
Shoring load-bearing structures
For bridges, underpasses and industrial structures, the
load-bearing towers also combine perfectly with Doka
large-area formwork Top 50.
Even complicated structures can be formed cost-effec-
tively in this way, with standard parts used extensively.
Propping an arched bridge
Typical section - propping a superstructure form-
work
9716-222-01
98087-234-01

16 999808702 - 11/2019
System description User Information Load-bearing tower Staxo 100 eco
Adapts to different ground plans, heights, floor shapes and loads
The different sizes of diagonal brace for each height of
frame enable the frames to be spaced close together or
further apart, depending on the load.
In this way, only as much material is used as is really
needed.
Height ranges and materials schedule
Frame-sizes up to 1.80 m
1.80m, 1.20m and 0.90m frames are possible here.
e.g. light loads – frames spaced further apart e.g. heavy loads – frames spaced close together
Plan view Plan view
98003-311-01 98003-309-01
9716-263-01 98003-310-01
NOTICE
▪ The minimum values hmin. given in Table A
are only applicable if the biggest possible
frame is always used in the base storey.
▪ The lowering distance of 6 cm is already
allowed for in Table A!
▪ LK and LF are in accordance with the struc-
tural design. In some cases, the structural
design will permit greater extension lengths
- see Tables B and C in the section headed
'Height adjustment'.
98087-210-01
h
h
F
h
L
K
L
F
L
F

User Information Load-bearing tower Staxo 100 eco System description
17999808702 - 11/2019
Table A
Choose the right diagonal crosses for the distance between the frames.
The schedule of materials does not include scaffold planking units.
The scaffold planking units have to be planned separately for each set-up configuration. Provided they are located in the same level, they replace
the Diagonal crosses 9.xxx needed for horizontal bracing. This reduction in the number of diagonal crosses needed must be allowed for in the
schedule of materials.
Fixed height of frame Fh [m]
Variant 1
LK = max. 30 cm
LF = max. 30 cm
Variant 2
LK = max. 45 cm
LF = max. 70 cm
Variant 3
LK = max. 45 cm
LF = max. 130 cm
Basic items
4-way screw-jack head, Screw jack U-head or Heavy-duty screw jack 70 top Screw-jack foot 4-way screw-jack head, Screw jack U-head or Heavy-duty screw jack 70 top Screw-jack foot or Heavy-duty screw jack 70 + Split nut B 4-way screw-jack head, Screw jack U-head or Heavy-duty screw jack 70 top Heavy-duty screw jack 130 + Split nut B Staxo 100 frame 0.90m Staxo 100 frame 1.20m Staxo 100 frame 1.80m Diagonal cross 9.xxx Diagonal cross 12.xxx Diagonal cross 18.xxx Coupler Spring locked connecting pin 16mm
h [m]
min. - max.
h [m]
min. - max.
h [m]
min. - max.
1.20 1.45 - 1.80 4 4 1.76 - 2.35 4 4 2.48 - 2.95 4 4 - 2 - 1 2 - - -
1.80 2.02 - 2.40 4 4 2.06 - 2.95 4 4 2.48 - 3.55 4 4 - - 2 1 - 2 - -
1.80 2.02 - 2.40 4 4 2.52 - 2.95 4 4 2.91 - 3.55 4 4 4 - - 5 - - 4 8
2.10 2.32 - 2.70 4 4 2.52 - 3.25 4 4 3.24 - 3.85 4 4 2 2 - 3 2 - 4 8
2.40 2.62 - 3.00 4 4 2.82 - 3.55 4 4 3.54 - 4.15 4 4 - 4 - 1 4 - 4 8
2.70 2.92 - 3.30 4 4 2.92 - 3.85 4 4 3.24 - 4.45 4 4 2 - 2 3 - 2 4 8
3.00 3.22 - 3.60 4 4 3.22 - 4.15 4 4 3.54 - 4.75 4 4 - 2 2 1 2 2 4 8
3.30 3.52 - 3.90 4 4 3.52 - 4.45 4 4 4.44 - 5.05 4 4 2 4 - 4 4 - 8 16
3.60 3.82 - 4.20 4 4 3.82 - 4.75 4 4 4.14 - 5.35 4 4 - - 4 1 - 4 4 8
3.90 4.12 - 4.50 4 4 4.12 - 5.05 4 4 4.44 - 5.65 4 4 2 2 2 4 2 2 8 16
4.20 4.42 - 4.80 4 4 4.42 - 5.35 4 4 4.74 - 5.95 4 4 - 4 2 2 4 2 8 16
4.50 4.72 - 5.10 4 4 4.72 - 5.65 4 4 5.04 - 6.25 4 4 2 - 4 4 - 4 8 16
4.80 5.02 - 5.40 4 4 5.02 - 5.95 4 4 5.34 - 6.55 4 4 - 2 4 2 2 4 8 16
5.10 5.32 - 5.70 4 4 5.32 -6.25 4 4 5.64 - 6.85 4 4 2 4 2 4 4 2 12 24
5.40 5.62 - 6.00 4 4 5.62 - 6.55 4 4 5.94 - 7.15 4 4 - - 6 2 - 6 8 16
5.70 5.92 - 6.30 4 4 5.92 - 6.85 4 4 6.24 - 7.45 4 4 2 2 4 4 2 4 12 24
6.00 6.22 - 6.60 4 4 6.22 - 7.15 4 4 6.54 - 7.75 4 4 - 4 4 2 4 4 12 24
6.30 6.52 - 6.90 4 4 6.52 - 7.45 4 4 6.84 - 8.05 4 4 2 - 6 4 - 6 12 24
6.60 6.82 - 7.20 4 4 6.82 - 7.75 4 4 7.14 - 8.35 4 4 - 2 6 2 2 6 12 24
6.90 7.12 - 7.50 4 4 7.12 - 8.05 4 4 7.44 - 8.65 4 4 2 4 4 4 4 4 16 32
7.20 7.42 - 7.80 4 4 7.42 - 8.35 4 4 7.74 - 8.95 4 4 - - 8 2 - 8 12 24
7.50 7.72 - 8.10 4 4 7.72 - 8.65 4 4 8.04 - 9.25 4 4 2 2 6 4 2 6 16 32
7.80 8.02 - 8.40 4 4 8.02 - 8.95 4 4 8.34 - 9.55 4 4 - 4 6 2 4 6 16 32
8.10 8.32 - 8.70 4 4 8.32 - 9.12 4 4 8.64 - 9.85 4 4 2 - 8 4 - 8 16 32
8.40 8.62 - 9.00 4 4 8.62 - 9.55 4 4 8.94 - 10.15 4 4 - 2 8 2 2 8 16 32
8.70 8.92 - 9.30 4 4 8.92 - 9.85 4 4 9.24 - 10.45 4 4 2 4 6 4 4 6 20 40
9.00 9.22 - 9.60 4 4 9.22 - 10.15 4 4 9.54 - 10.75 4 4 - - 10 2 - 10 16 32
9.30 9.52 - 9.90 4 4 9.52 - 10.45 4 4 9.84 - 11.05 4 4 2 2 8 4 2 8 20 40
98003-113
98003-113 98003-113

18 999808702 - 11/2019
System description User Information Load-bearing tower Staxo 100 eco
Frame-sizes up to 1.20 m
1.20m and 0.90m frames are possible here.
Table A
Choose the right diagonal crosses for the distance between the
frames.
The schedule of materials does not include scaffold planking units.
The scaffold planking units have to be planned separately for each
set-up configuration. Provided they are located in the same level,
they replace the Diagonal crosses 9.xxx needed for horizontal brac-
ing. This reduction in the number of diagonal crosses needed must
be allowed for in the schedule of materials.
NOTICE
▪ The minimum values hmin. given in Table A
are only applicable if the biggest possible
frame is always used in the base storey.
▪ The lowering distance of 6 cm is already
allowed for in Table A!
▪ LK and LF are in accordance with the struc-
tural design. In some cases, the structural
design will permit greater extension lengths
- see Tables B and C in the section headed
'Height adjustment'.
▪ Greater extension lengths are possible (up
to max. 45 cm) if the head units and/or base
units are given suitable scaffold-tube brac-
ing.
▪ In principle, it is possible to use Heavy-duty
screw jacks 70 and Heavy-duty screw jacks
70 top. However, when these are combined
with the small frames, you must observe the
limitations given in Tables B and C of the
section headed 'Height adjustment'.
98087-211-01
h
h
F
h
L
K
L
F
L
F
Fixed height of frame Fh [m]
LK = max. 30 cm
LF = max. 30 cm Basic items
4-way screw-jack head or Screw jack U-head Screw-jack foot Staxo 100 frame 0.90m Staxo 100 frame 1.20m Diagonal cross 9.xxx Diagonal cross 12.xxx Coupler Spring locked connecting pin 16mm
h [m]
min. - max.
1.20 1.45 - 1.80 4 4 - 2 1 2 - -
1.80 2.02 - 2.40 4 4 4 - 5 - 4 8
2.10 2.32 - 2.70 4 4 2 2 3 2 4 8
2.40 2.62 - 3.00 4 4 - 4 1 4 4 8
2.70 3.10 - 3.30 4 4 6 - 8 - 8 16
3.00 3.22 - 3.60 4 4 4 2 6 2 8 16
3.30 3.52 - 3.90 4 4 2 4 4 4 8 16
3.60 3.82 - 4.20 4 4 - 6 2 6 8 16
3.90 4.12 - 4.50 4 4 6 2 8 2 12 24
4.20 4.42 - 4.80 4 4 4 4 6 4 12 24
4.50 4.72 - 5.10 4 4 2 6 4 6 12 24
4.80 5.02 - 5.40 4 4 - 8 2 8 12 24
5.10 5.32 - 5.70 4 4 6 4 8 4 16 32
5.40 5.62 - 6.00 4 4 4 6 6 6 16 32
5.70 5.92 - 6.30 4 4 2 8 4 8 16 32
6.00 6.22 - 6.60 4 4 - 10 2 10 16 32
6.30 6.52 - 6.90 4 4 6 6 8 6 20 40
6.60 6.82 - 7.20 4 4 4 8 6 8 20 40
6.90 7.12 - 7.50 4 4 2 10 4 10 20 40
7.20 7.42 - 7.80 4 4 - 12 2 12 20 40
7.50 7.72 - 8.10 4 4 6 8 8 8 24 48
7.80 8.02 - 8.40 4 4 4 10 6 10 24 48
8.10 8.32 - 8.70 4 4 2 12 4 12 24 48
8.40 8.62 - 9.00 4 4 - 14 2 14 24 48
8.70 8.92 - 9.30 4 4 6 10 8 10 28 56
9.00 9.22 - 9.60 4 4 4 12 6 12 28 56
9.30 9.52 - 9.90 4 4 2 14 4 14 28 56
98003-113

User Information Load-bearing tower Staxo 100 eco System description
19999808702 - 11/2019
Frame-sizes up to 1.20 m (with 0.90 m frames
in the top and bottom 'storeys')
1.20m and 0.90m frames are possible here.
Table A
Choose the right diagonal crosses for the distance between the
frames.
The schedule of materials does not include scaffold planking units.
The scaffold planking units have to be planned separately for each
set-up configuration. Provided they are located in the same level,
they replace the Diagonal crosses 9.xxx needed for horizontal brac-
ing. This reduction in the number of diagonal crosses needed must
be allowed for in the schedule of materials.
NOTICE
▪ The minimum values given in the table can
only be obtained if the integrated connec-
tion sleeve is removed from the frame.
▪ The lowering distance of 6 cm is already
allowed for in Table A!
▪ LK and LF are in accordance with the struc-
tural design. In some cases, the structural
design will permit greater extension lengths
- see Tables B and C in the section headed
'Height adjustment'.
▪ In the top and bottom 'storeys', 0.90m
frames MUST be used.
▪ Greater extension lengths are possible (up
to max. 40 cm) if the head units and/or base
units are given suitable scaffold-tube brac-
ing.
▪ In principle, it is possible to use Heavy-duty
screw jacks 70 and Heavy-duty screw jacks
70 top. However, when these are combined
with the small frames, you must observe the
limitations given in Tables B and C of the

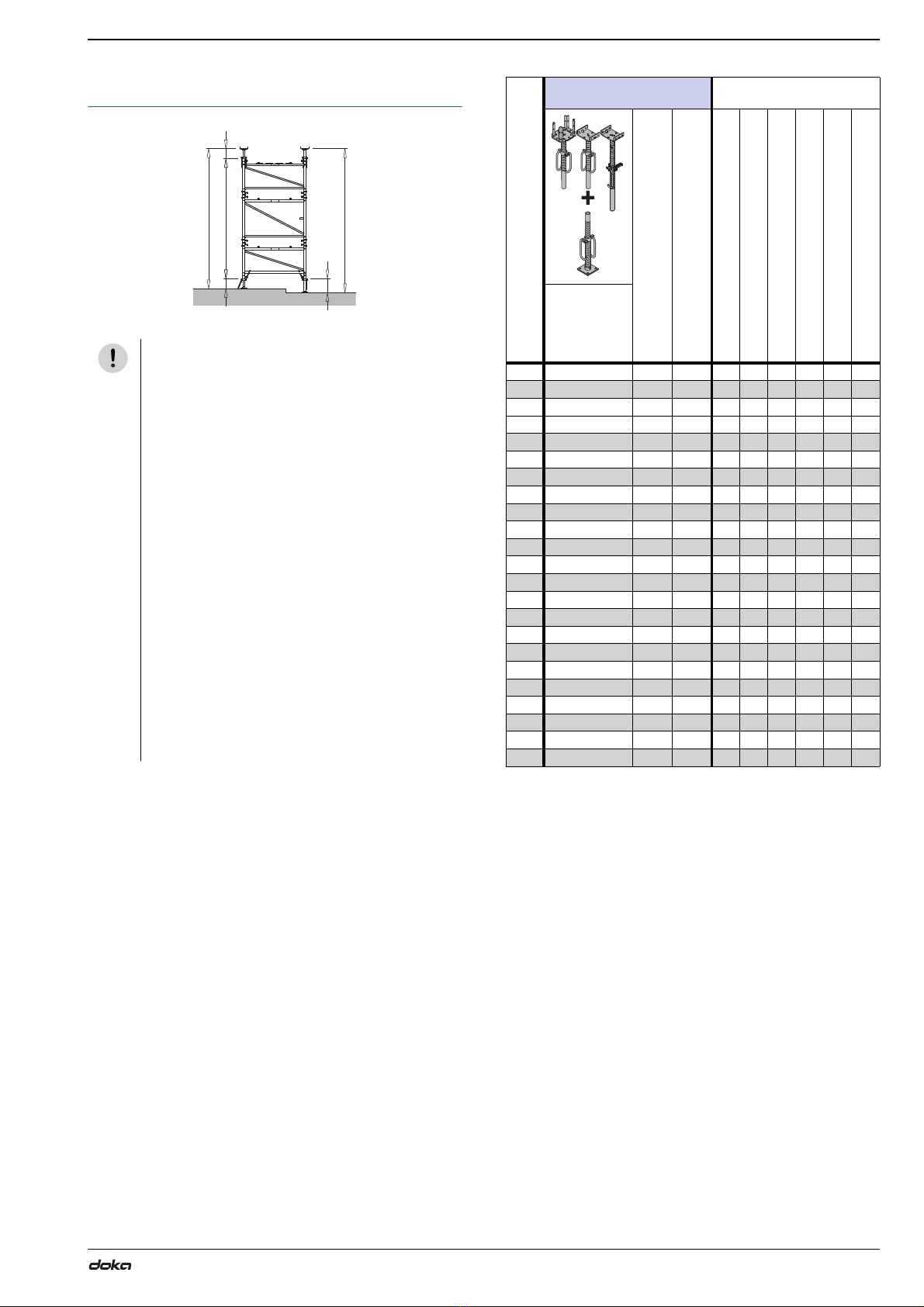

section headed 'Height adjustment'.
98087-212-01
h
h
F
h
L
K
L
F
L
F
Fixed height of frame Fh [m]
LK = max. 25 cm
LF = max. 25 cm Basic items
4-way screw-jack head or Screw jack U-head Screw-jack foot Staxo 100 frame 0.90m Staxo 100 frame 1.20m Diagonal cross 9.xxx Diagonal cross 12.xxx Coupler Spring locked connecting pin 16mm
h [m]
min. - max.
1.80 2.02 - 2.30 4 4 4 - 5 - 4 8
2.70 2.92 - 3.20 4 4 6 - 8 - 8 16
3.00 3.22 - 3.50 4 4 4 2 6 2 8 16
3.60 3.82 - 4.10 4 4 8 - 10 - 12 24
3.90 4.12 - 4.40 4 4 6 2 8 2 12 24
4.20 4.42 - 4.70 4 4 4 4 6 4 12 24
4.50 4.72 - 5.00 4 4 10 - 12 0 16 32
4.80 5.02 - 5.30 4 4 8 2 10 2 16 32
5.10 5.32 - 5.60 4 4 6 4 8 4 16 32
5.40 5.62 - 5.90 4 4 4 6 6 6 16 32
5.70 5.92 - 6.20 4 4 10 2 12 2 20 40
6.00 6.22 - 6.50 4 4 8 4 10 4 20 40
6.30 6.36 - 6.80 4 4 6 6 8 6 20 40
6.60 6.66 - 7.10 4 4 4 8 6 8 20 40
6.90 6.96 - 7.40 4 4 10 4 12 4 24 48
7.20 7.26 - 7.70 4 4 8 6 10 6 24 48
7.50 7.56 - 8.00 4 4 6 8 8 8 24 48
7.80 7.86 - 8.30 4 4 4 10 6 10 24 48
8.10 8.16 - 8.60 4 4 10 6 12 6 28 56
8.40 8.46 - 8.90 4 4 8 8 10 8 28 56
8.70 8.76 - 9.20 4 4 6 10 8 10 28 56
9.00 9.06 - 9.50 4 4 4 12 6 12 28 56
9.30 9.36 - 9.80 4 4 10 8 12 8 32 64
98003-113

20 999808702 - 11/2019
System description User Information Load-bearing tower Staxo 100 eco
Height adjustment
▪ The 3 different heights of frame 0.90 m, 1.20 m and
1.80 m enable coarse adjustment to within 30 cm.
▪ Fine adjustment, down to the last millimetre, is done
using the various head and base units.
System dimensions
on multi-storey towers
Regarding Table A ("Height ranges and materials
schedule"), use the version of this table given in the
chapter for the usage situation concerned.

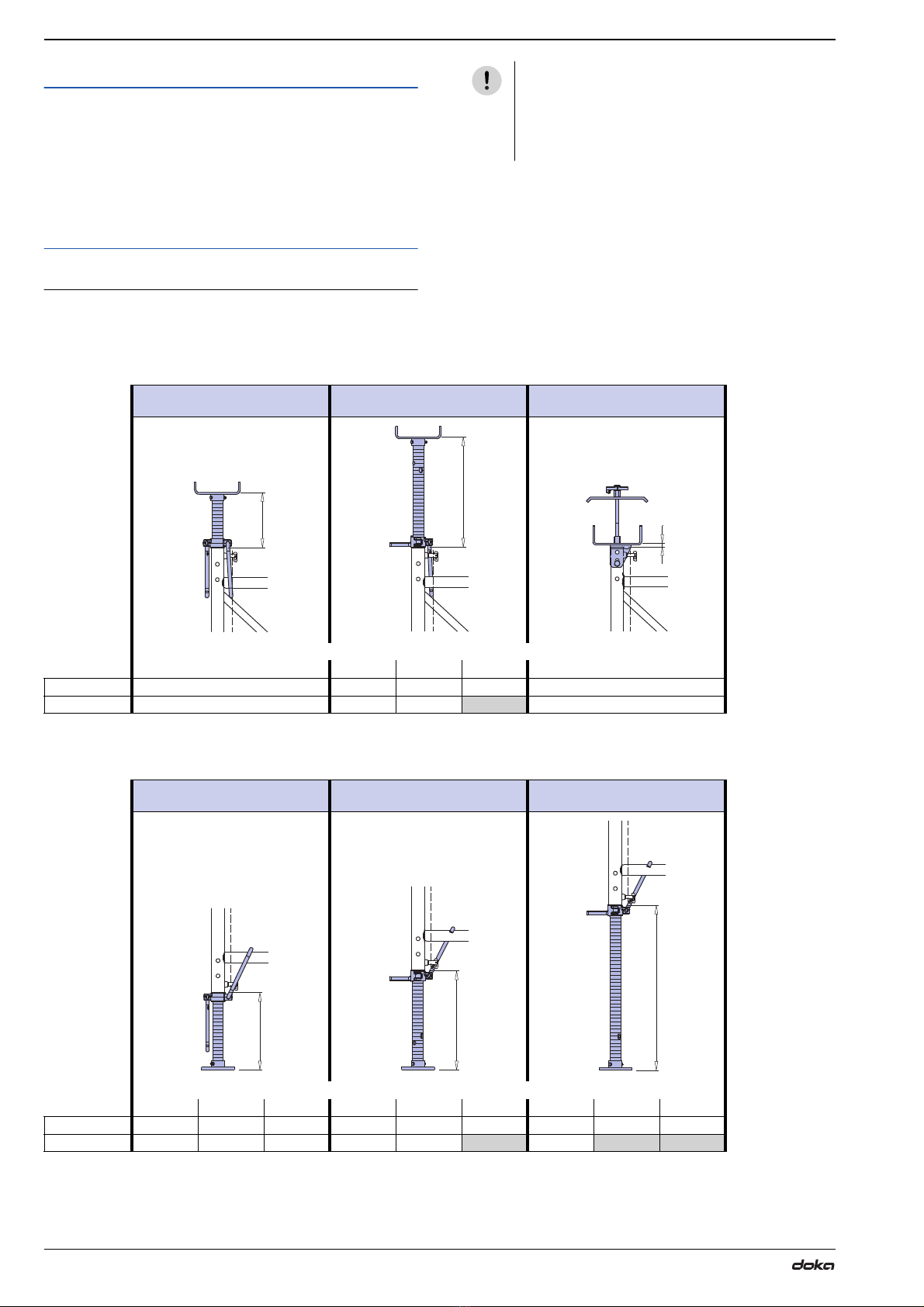

Table B: Head zone
Values in cm
Min. values with no formwork-striking play
Table C: Base zone
Values in cm
Min. values with no formwork-striking play
NOTICE
The structural design of the load-bearing tower
may make it necessary to plan for shorter
extension lengths. See the section headed
'Structural design' for dimensioning details.
Screw jack U-head and
4-way screw-jack head Heavy duty screw jack 70 top U-head D
Frames in the top 'storey'
1.80 / 1.20 / 0.90m 1.80m 1.20m 0.90m 1.80 / 1.20 / 0.90m
LK max. 45.8 71.2 71.2 71.2 1.6
LK min. 7.8 8.4 8.4 24.3 1.6
Screw-jack foot Heavy duty screw jack 70
+ Split nut B
Heavy duty screw jack 130
+ Split nut B
Frames in the bottom 'storey'
1.80m 1.20m 0.90m 1.80m 1.20m 0.90m 1.80m 1.20m 0.90m
LF max. 46.2 46.2 46.2 71.2 71.2 71.2 131.2 131.2 131.2
LF min. 8.2 8.2 8.2 8.8 8.8 24.7 8.8 66.5 96.5
L
K
98087-213-01
98087-214-01
L
K
98087-215-01
L
K
98087-213-02
L
F
98087-214-02
L
F
L
F
98087-215-02
