DOL 44R-T SENSOR
TECHNICAL USER GUIDE
For other language variants of
this document we refer to www.dol-
sensors.com or your local dealer.

dol-sensors a/s Hedelund 4, Glyngøre 7870 Roslev Denmark Tlf. [phone] Fax [phone] www.dol-sensors.com
EN –TECHNICALUSERGUIDE
PRODUCT DESCRIPTION:
MS 44R is a capacitive relay sensor for
detection of feed, grain and solids. The
sensors have relay output including switch
function.
Fields of application:
• Start/Stop for supply of materials.

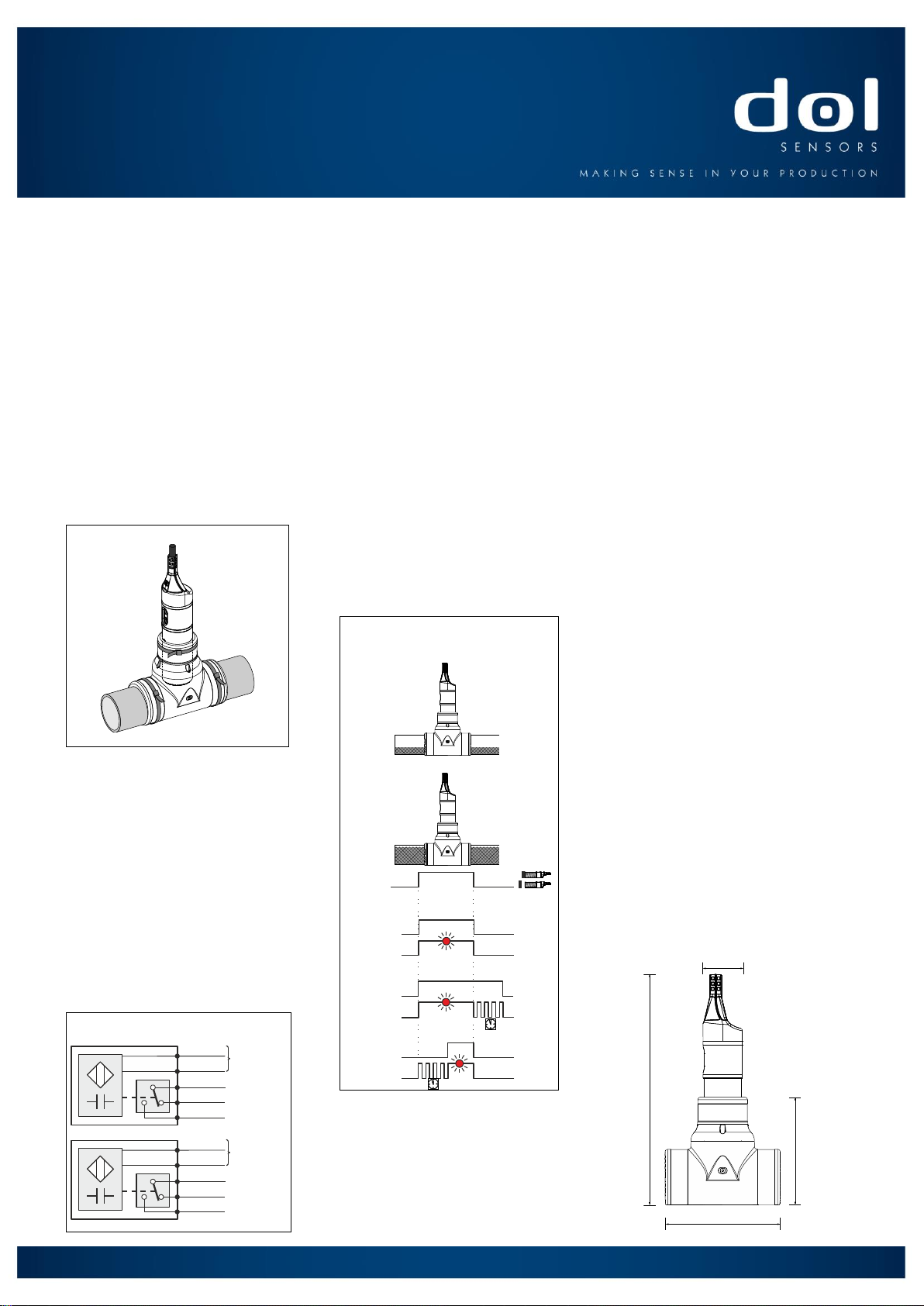

MOUNTING GUIDE (FIG. 1):
•Use the supplied cable ties to mount the
sensor on the feed line. The sensor only
works if mounted on ø40-60 mm plastic
pipes.
• The sensor needs to be in direct contact
with the plastic pipe. This can be verified be
checking that the edge of the sensor is flush
with the lower edge of the bracket.
Figure1
DOL 44R-T
INSTALLATION GUIDE (FIG. 2):
Supply voltage is connected to the blue and
brown wire.
The load is connected in series with the relay
contact of the sensor.
STOP by activating the sensor: Use the black
wires 1 and 3.
START by activating the sensor: Use the
black wires 1 and 4.
NOTE! The internal relay is in position NC
when the supply voltage is connected and the
sensor is activated - wire 1 and 4 are
connected.
Figure 2: No-current sensor
USER’S GUIDE (FIG. 3):
Depending on its type, DOL 44R has two
trimmers with different functionalities. See
product label.
Delayed disconnection:
• Fixed time or
• Time adjustable on trimmer
Delayed connection:
• Fixed time or
• Time adjustable on trimmer
Sensitivity:
• Fixed distance or
• Distance adjustable on trimmer
MaxRunTimer:
• Settings on the trimmer: Off, Period 1,
Period 2
The actual functionality of the sensor is
indicated on the product label.
DOL 44R has a red LED, indicating sensor
status.
Fig. 3 shows examples of LED sequences.
Figure 3
TECHNICAL DATA:
Supply voltage:
Voltage version:
90 - 265 VAC
47 - 63 Hz
Voltage version:
10 - 30V AC/DC
47 - 63 Hz
Relay:
Max. resistive load,,
250VAC:
5 A
Max. lagging load,
250VAC:
2 A
Min. relay current,, 12
VDC
100 mA
Temperature:
Temp. operation:
- 20 °C - + 70 °C
- 4 °F - + 158 °F
Temp. operation,
USA and Canada:
- 20 °C - + 65 °C
- 4 °F - + 149 °F
Temp. operation,
storage:
- 30 °C - + 80 °C
- 22 °F - + 176 °F
Degree of protection:
IP:
69k
NEMA:
1, 3, 4, 6, 12, 13
Cable:
Lenght:
2 m
6.6 feet
Conductor
dimensions:
5 x 0.5 mm2
5 x AWG20
Approvals:
CE
UL
C-UL
Dimensions:
2018.07.13 • 604168 • 17.9 • EN • Made in Denmark
Blue
Brown
Black 1
Black 4
Black 3
10-30V
AC/DC
COM
NC
NO
Blue
Brown
Black 1
Black 4
Black 3
90-
265VAC
COM
NC
NO
NC(1-4)
NO(1-3)
NC(1-4)
NO(1-3)
NC(1-4)
NO(1-3)
Sensor
Ingen
tidsforsinkelse
Forsinket
frakobling
Forsinket
tilkobling
LED
LED
LED
Relay NC(1-4)
Relay NO(1-3)
after delay
LED- sequence
No time
delay
Delayed dis-
connection
Delayed
connection
89 mm
180 mm
30 mm
84 mm
