USERS MANUAL
DMC-008-001 |DKS-008-001
Module 8 relay outputs
8 x
O
N
/
O
F
F
O
N
/
O
F
F
O
N
/
O
F
F
O
N
/
O
F
F
O
N
/
O
F
F
O
N
/
O
F
F
DMC-008-001/
DKS-008-001

2

3
CONTENTS
1 DESCRIPTION .............................................................................................. 4
2 CONNECTION.............................................................................................. 5
2.1 Basic wiring ................................................................................................ 5
2.2 Chaining the boards .................................................................................. 6
2.3 Connecting the DMI identification modules ............................................. 6
2.4 Connecting the digital inputs («stand alone» mode) ............................... 7
3 Configuration using the 6 keys and the LCD screen.................................. 9
3.1 Configuring the base parameters ............................................................. 9
3.1.1 Language selection ...................................................................................... 9
3.1.2 Master or slave configuration ...................................................................... 9
3.2 Output configuration ................................................................................. 9
3.2.1 Configuring the times for timers and shutters.............................................. 10
3.2.2 Configuring the minimum and maximum values to dim them ................ 10
3.2.3 Configuring the RGB ..................................................................................... 10
3.3 Configuring groups .................................................................................... 11
3.3.1 Configuring the group content (except the «Scenario» type) ................ 11
3.3.2 Configuring the content of the «Scenario» group type............................ 11
3.3.3 Operation of the presence simulation......................................................... 11
3.4 Programming the push buttons (identification modules) ......................... 12
3.5 Local input configuration .......................................................................... 12
3.6 Long press configuration (second function).............................................. 12
4Configuring the board with the «Domestia Home Manager©» application ... 13
4.1 Wi-Fi module configuration ........................................................................ 13
4.1.1Wi-Fi AP mode configuration (WI-FI access point)....................................... 13
4.1.2 Wi-Fi client mode configuration (Wi-Fi access point connection) ................. 13
4.2 Installing «Domestia Home Manager©» .................................................... 13
4.3 Starting the «Domestia Home Manager©» application ............................ 14

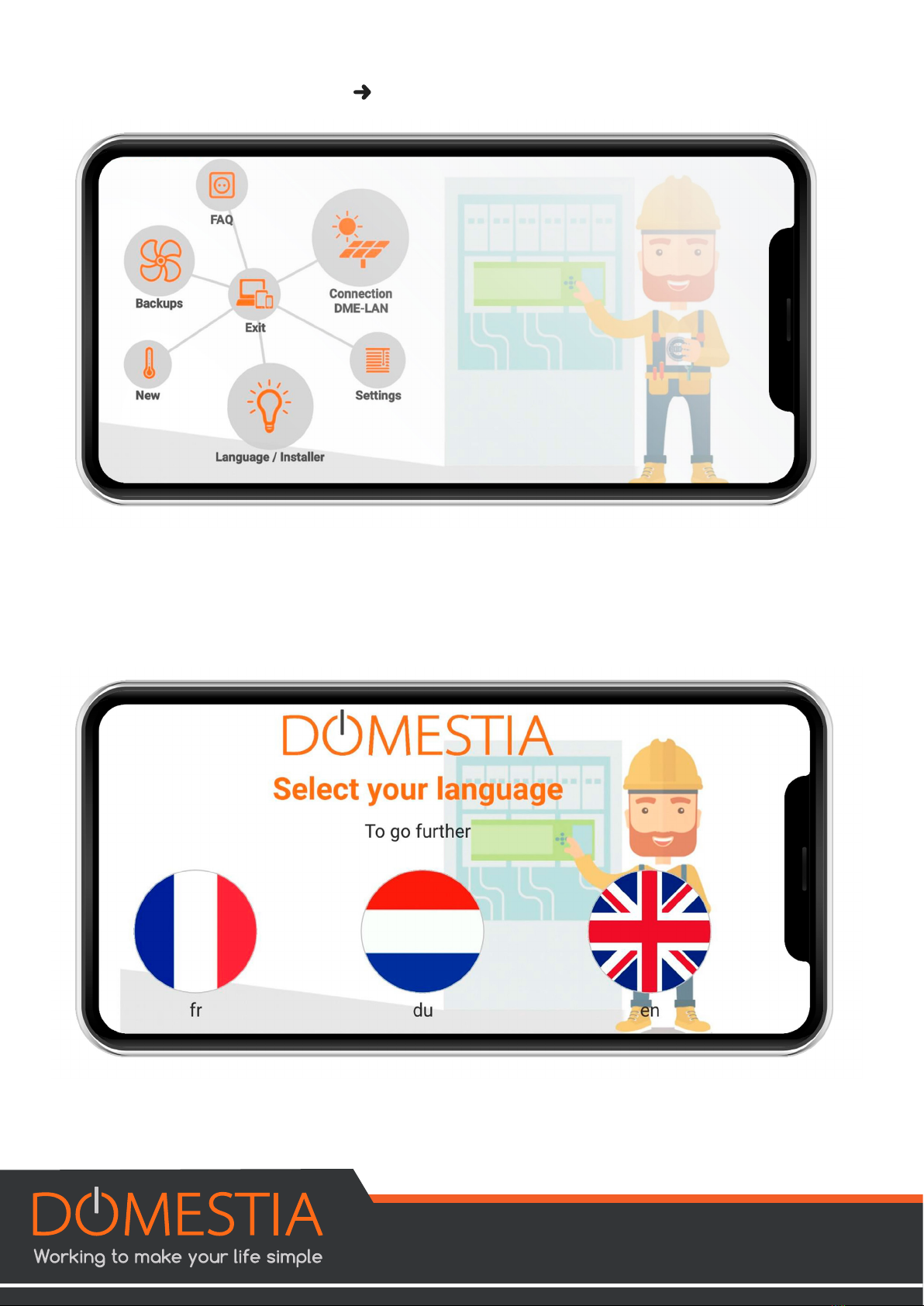

4.4 Installer language selection ...................................................................... 14
4.5 Entering your installer details .................................................................... 15
4.6 Creating a new configuration.................................................................... 15
4.7 Connecting to an existing configuration.................................................... 16
4.8 Composition of the installation................................................................... 16
4.9 Configuring the slave boards..................................................................... 18
4.9.1Addressing the 12-output boards (DMC-012-002, DMC-012-016, DMCV-
006-002 ..................................................................................................................... 18
4.9.2Addressing the 8-output and 4-output boards (DMC-008-001,
DMC-004-003, DMA-004-003, DML-004-002, DMD-004-002, DMCV-002-003).... 19
4.10 Output configuration ................................................................................ 20
4.11 Group configuration .................................................................................. 21
4.12 Saving the configuration .......................................................................... 24
4.13 PROGRAMMING THE PUSH BUTTONS .......................................................... 24
4.13.1Programming the outputs .......................................................................... 24
4.13.2Programming the groups ............................................................................ 25
5 TECHNICAL CHARACTERISTICS .................................................................. 25
6 WARRANTIES ............................................................................................... 26

4
1. DESCRIPTION 1
Module DMC-008-001 is a board with 8 relay outputs able to work alone, work as a master
board (to manage up to 48 outputs) or work as a slave board.
The DMC-008-001 module is also equipped with:
• 12 digital outputs which are digitally configurable according to the installation’s
needs or for autonomous use («stand alone»).
• An identification module bus (DMI-006-001 or DMI-LED-006) which considers the
mixed functions such as sockets, lighting, shutters.
• A RS485 board for connecting to other boards.
The programming takes place using the 6 keys accompanied by an LCD screen (see
point 3), or via Wi-Fi access (see point 4.1) using our programming application, Home
Manager© (see below), with any smartphone, PC or tablet (available in iOS, Google Play
and Windows).
IN 1 IN 2 IN 3 IN 4 IN 5 IN 6 IN 7 IN 8 IN 9 IN 10 IN 11 IN 12 COM
RS2 RS1
Slave Address
BUS
DMI A B GND
RS485
LN
100-240Vac 50/60HZ
DMC-008-001
OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8
X
AP CLI
5 6 7 8 9
1
2
3
4
Legend:
(1) 8 outputs (NO relay contacts)
(2) LCD screen
(3) State LEDs: Power – Stop/error – Run – Wi-Fi AP ON – Wi-Fi CLI connected
(4) Keys for programming/browsing the menus
(5) 2 inputs for using in stand alone mode
(6) Wheels
(7) DMI bus: Red LED = overconsumption of the bus/blue LED = 1 or several push buttons pressed

5
(8) RS485 for connecting to other boards: Blue LED - communication status between the boards
(9) Module power
2. CONNECTION 1
The DMC-008-001 module is designed to operate as a master board or as a slave board
with the following as a master board:
• A board with 12-output relays (DMC-012-002)
• A board with 8-output relays (DMC-008-001)
• A management unit control board (DME-LAN-002)
The DMI bus loop (see figure below) must only be connected to the master board.
The boards must be connected using 3 wires: Bus RS485 (A, B and GND).
NB: It is possible to install the boards in several electric boards (for example: a board in the
basement and another in the attic) by connecting the RS485 bus between the dierent
electric boards. The buses must always relate to the master board.
2.1 BASIC WIRING
IN 1 IN 2 IN 3 IN 4 IN 5 IN 6 IN 7 IN 8 IN 9 IN 10 IN 11 IN 12 COM
RS2 RS1
Slave Address
BUS
DMI
A B GND
RS485
LN
100-240Vac 50/60HZ
DMC-008-001
OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8
X
AP CLI
LN
LN
Bus for
Identication
modules

6
2.2 CHAINING THE BOARDS
2.3 CONNECTING THE DMI IDENTIFICATION MODULES
IN 1 IN 2 IN 3 IN 4 IN 5 IN 6 IN 7 IN 8 IN 9 IN 10 IN 11 IN 12 COM
RS2 RS1
Slave Address
BUS
DMI A B GND
RS485
LN
100-240Vac 50/60HZ
DMC-008-001
OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8
X
AP CLI
IN 1 IN 2 IN 3 IN 4 IN 5 IN 6 IN 7 IN 8 IN 9 IN 10 IN 11 IN 12 COM
RS2 RS1
Slave Address
BUS
DMI A B GND
RS485
LN
100-240Vac 50/60HZ
DMC-008-001
OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8
X
AP CLI
IN 1 IN 2 IN 3 IN 4 IN 5 IN 6 IN 7 IN 8 IN 9 IN 10 IN 11 IN 12 COM
RS2 RS1
Slave Address
BUS
DMI A B GND
RS485
LN
100-240Vac 50/60HZ
DMC-008-001
OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8
X
AP CLI
IN 1 IN 2 IN 3 IN 4 IN 5 IN 6 IN 7 IN 8 IN 9 IN 10 IN 11 IN 12 COM
RS2 RS1
Slave Address
BUS
DMI A B GND
RS485
LN
100-240Vac 50/60HZ
DMC-008-001
OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8
X
AP CLI
Card congured as Master (Outputs 1 To 8) Card congured as Slave with address 0-3 (Outputs 9 To 16)
Card congured as Slave with address 0-5 (Outputs 17 to 24) Card congured as Slave with address 0-7 (Outputs 25 To 32)
Do not
connected
Do not
connected
Do not
connected
Foor previous module
Or DMC-008-001 To following module(s)
*
Autorised star departure
*Max. Lenght :
Module
Identification
DMI-006-001
Isolate
the unused
inputs It is advisable to place the identification
modules as close as possible to the
pushbuttons.
Max.Lenght
Module
Identification
DMI-006-001
Module
Identification
Blue
DMI-006-001
Blue Blue Blue Blue Blue Blue
Blue Blue Blue Blue Blue Blue Blue Blue Blue Blue Blue Yellow
Yellow
Yellow
Black Black
Black Black Black Black
*
Max.L thgne
*
Max. neL thg
Isolate
the unused
inputs
Cable type (0.25, 0.8...)*

7
2.4 CONNECTING THE DIGITAL INPUTS STAND ALONE MODE
Legend
(1) 12 digital inputs
This type of connection is for using the module alone, with no identification modules. E.g.
For the contact renewal of an external clock, an alarm or any other device supplying dry
contacts.
IN 1 IN 2 IN 3 IN 4 IN 5 IN 6 IN 7 IN 8 IN 9 IN 10 IN 11 IN 12 COM
RS2 RS1
Slave Address
BUS
DMI
A B GND
RS485
LN
100-240Vac 50/60HZ
DMC-008-001
OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8
X
AP CLI
1

8
ORGANIZATION OF MENUS
2 Outputs
Configuration>
3 Group
1 Domestia DMC-008
Run
Configuration>
7 DMC-008-001
Configuration
2.1 ↨Output XX
<>Toggle *
3.1 ↨ Group xx
2.1.1Output XX Time:
↨HH:mm:ss
<>« Toggle »
4 Push button
programming
3.1.1Content grp xx
↨Output XX (*)
7.1 Language
Configuration
Type Timer/Shutter
1.1 Switch outputs
↨Output/Group xx <>ON/OFF
6.1 Long press on:
↨ Output/Group XX
5 Local Inputs
Configuration
7.3 Backlight
Configuration
5.1 <> Input 1-13
↨ Output/Group XX(*)
7.4 Factory reset
Configuration
7.3.1 Backlight OFF
↨ XX secondes
4.1 Program button?
↨Output/Group XX
7.2 Master/Slave
Configuration
7.5 Backup of the
Configuration
7.2.1 Master Mode or Slave
if slave: displays the addressing (configure the encoder wheels)
7.6 Reload previous
Configuration
↨ Select xx/xx/20xx
Xxxxxxxxxxx (nom)
7.4.1 Do you want to delete the
entire configuration?
Back = Cancel
Enter your name Enter The date
XX/XX/20XX
ENTER + *
Toggle/Impuls
6 Long push
Configuration
2.1.2 Output XX
Dimmer
Minimum: xx/64
6.2 Long press Out/GrpXX
↨Output/Group XX <>ON/OFF...
7.8 Diagnostic 7.8.1 Current:xxmA
I1:8, ...
7.7 Dimmer speed
Configuration
7.7.1 Dimmer speed
↨4/8
7.9 WIFI
Configuration
7.9.1↨ WIFI Station
<>ON/OFF
7.9.2↨ WIFI Client
<>ON/OFF
Wifi station name:
DMC-008_XXXXXXXX
Wifi station pass:
123456789
Wifi client name:
VOO-xxxxx ********
Wifi client pass:
configuration?
7.5.1Do you want to save the
Back = Cancel
Enter your name
7.1.1 Language
<> English
Enter The date
XX/XX/20XX
Programming! Press the push
buttons
↨Output/Group XX
7.8.2 IP Client:
xxx.xxx.xxx.xxx
7.8.3 IP AP:
xxx.xxx.xxx.xxx
7.10 Version
FW: 1.1 HW:1.0
2.1.3 Output XX
Maximum: xx/64
Types Outputs:
Types Groups:
Toggle
Not configured
All ON
All OFF
All down
All up
Scenario
Simulation
Not configured
Toggle
Relay
Timer ON/OFF
Timer ON
Dimmer Stop
Dimmer continu
Shutter Down
Shutter Down 1PB
Shutter UP
RGB Red
RGB Green
RGB Blue
Long press
(Second fonction possible):
ON/OFF
ON
OFF
Relay
7.12 System
reboot ?
7.11 Serial number:
01234567890123456789

9
3. Configuration using the 6 keys and the LCD screen 1
The DMC-008-001 is equipped with 6 keys for programming with visualisation via an
LCD screen. Navigation in the menus is as follows:
• The ENTER key to validate a selection or enter in a submenu.
• The RETURN key to exit the current menu or submenu (= return)
• The UP, DOWN, LEFT and RIGHT keys to navigate the menus, the submenus and
select the configuration options.
3.1 CONFIGURING THE BASE PARAMETERS
3.1.1 LANGUAGE SELECTION
The choice of display language is configured in menu 7.1 (see «Menu organisation»
diagram - page 8).
• Press ENTER to enter submenu 7.1.1 and select your language.
• Once your language is selected, click on ENTER again.
• To return to the previous menu, use the RETURN key.
3.1.2 MASTER OR SLAVE CONFIGURATION
Menu 7.2 can be used to select master or slave mode.
Reminder: There can only be one master board for
each installation.
Press UP or DOWN to change the mode. Then validate
with ENTER
In the case of a slave board, the addressing is configured
with the address switches RS1 and RS2.
The address range selected is displayed on the screen
when the wheels are turned.
3.2 OUTPUT CONFIGURATION
The DMC-008-001 can manage a maximum of 48 outputs.
To configure the outputs, you need to go to menu 2.1 and
select the output you want to configure using the UP and
DOWN keys. The second line displays the function type
configured.
The outputs are not configured by default. Therefore, you need to select the appropriate
function type for each output connected by using the LEFT and RIGHT keys and validating
with ENTER (the logo indicates the type of output configured).
Adresschake-
laars
DMC-004-003
Uitgangsbe-
reik
RS2 RS1
0 1 Van 1 tot 8
0 2 Van 5 tot 12
0 3 Van 9 tot 16
0 4 Van 13 tot 20
0 5 Van 17 tot 24
0 6 Van 21 tot 28
0 7 Van 25 tot 32
0 8 Van 29 tot 36
0 9 Van 33 tot 40
1 0 Van 37 tot 44
1 1 Van 41 tot 48

10
Function types available:
• Not configured
• Remote : pressing the push button reverses the state of the output.
• Relay/Impulse : holding the push button down keeps the relay active while the
button is pressed.
• Timer ON/OFF : Pressing the push button reverses the state of the output. The relay is
automatically disabled aer the time configured. A second short press reverses the
state of the output again (the lamp goes o if the latter is lit). A long press keeps the
lamp lit for 24 hours.
• Timer ON : a press activates the timer for the time configured. A second press starts
the timer for the time configured.
• Dimmer (Stop at the maximum or minimum) : a 1st press and hold varies the
intensity to its maximum or minimum. A second press and hold reverses the variation
type.
• Dimmer (no stop if the button is not released): a press varies the continuous intensity
• RGB red
• RGB green
• RGB blue
• Shutters down (for odd output only)
• Shutters up (for even output only)
Note: The «Dimmer» type only works with «Dimmer» modules (e.g. DML-004-002 -
consult our website for more information)
3.2.1 CONFIGURING THE TIMES FOR TIMERS AND SHUTTERS
When an output is configured in «Timer ON», «Timer ON/OFF», Shutters down» or
«Shutters up» mode, to determine and/or modify the times for timers and shutters, you
need to press ENTER to enter submenu 2.1.1. You can modify the time between 1
second and 17h59m59s. Once the time is determined, press ENTER to save the change.
3.2.2 CONFIGURING THE MINIMUM AND MAXIMUM VALUES TO DIM THEM
It is possible to limit the minimum and maximum dimming values by using the
«Dimmers». By default, the minimum value is 1/64 and the maximum value is 64/64.
When an output is configured as Dimmer, if you want to modify the minimum and
maximum values, you need to press ENTER to enter submenu 2.1.2 (minimum value)
then in submenu 2.1.3 (maximum value)
3.2.3 CONFIGURING THE RGB
To manage the three RGB colours (red, green, blue), you need to configure the three
red, green and blue outputs. The push button associated with the colour red is used to
switch on, switch o and vary the intensity. The push button associated with the colour
green is used to vary the colours. The push button associated with the colour blue
selects the colours by colour hops.

11
3.3 CONFIGURING GROUPS
The DMC-008-001 allows the creation of up to 22 groups. To create and configure the
groups, you need to go to menu 3.1 and select the group you want to configure using
the UP and DOWN keys. The second line displays the function type configured. Then
select the type of operation required using the LEFT and RIGHT keys and validate with
ENTER (the logo indicates the type of operation configured).
3.3.1 CONFIGURING THE GROUP CONTENT (EXCEPT THE «SCENARIO» TYPE)
When you have defined the group type, pressing ENTER allows access to submenu
3.1.1 «Group content».
• The UP and DOWN keys are used to view the outputs available
• The ENTER key is used to add or remove the output selected from the group.
• The RETURN key is used to exit the group configuration.
The lighting groups (Remote, Switch all on, Switch all o, Simulation) are only used to
add lighting outputs.
The shutter groups (Open all, Close all) are only used to add «Shutters up» or «Shutters
down» outputs.
3.3.2 CONFIGURING THE CONTENT OF THE «SCENARIO» GROUP TYPE
When you have defined the «Scenario» group type, pressing ENTER allows access to
submenu 3.1.1 «Group content».
• The UP and DOWN keys are used to view the outputs available
• The LEFT and RIGHT keys are used to define the state of the output in the scenario
ON The output will be on when the group is enabled.
OFF The output will be OFF when the group is enabled.
XX/64 The output will be dimmed (for the Dimmer outputs only)
... The output is not part of the group
• The ENTER button is used to confirm the selection
• The RETURN key is used to exit the group configuration.
3.3.3 OPERATION OF THE PRESENCE SIMULATION
For the presence simulaon, you should create a group and associate this with a push buon.
Pressing the push buon switches all the outputs o and then randomly acvates the dierent
group outputs in a random order and for a random duraon.

12
3.4 PROGRAMMING THE PUSH BUTTONS IDENTIFICATION MODULES
To program the push buttons, you need to go to menu 4.1.
1. Use the UP and DOWN keys to select the output/group to be programmed.
2. Press ENTER to enable programming mode.
From now on, when you press a push button, it will be associated with the
output/group you are programming. Therefore, it is a good idea to warn people in
the building not to press the push buttons to avoid changing their programming.
When programming an output/group, all the outputs are disabled and ONLY
the output or the group selected is on (this allows visualisation of the output or
group programmed).
1. Then, go to the room concerned and press the push button(s) to be associated
with this output.
2. Press UP or DOWN to exit the programming of the output/group and move to the
next one. Repeat the operation from point 2 for the subsequent outputs/groups.
3. Press BACK to exit the programming of the push buttons.
3.5 LOCAL INPUT CONFIGURATION
The DMC-008-001 module has 12 configurable digital inputs. They can be used with any
dry contact.
To configure the role of the local inputs, you need to go to menu 5.1.
• The LEFT and RIGHT keys are used to select the input to be configured.
• The UP and DOWN keys are used to select the output/group to be associated with
this input.
• The ENTER key validates the configuration.
• The RETURN key is used to exit the local input configuration.
3.6 LONG PRESS CONFIGURATION SECOND FUNCTION
It is possible to define a second function when managing an output or a group.
For example: Long press on output 1 => «group 3» enabled.
To configure the long presses, you need to go to menu 6.1 and select the output/group
on which you want a second function with UP and DOWN then press ENTER. Then use
the UP and DOWN keys to select the output/group of the second function. Use LEFT
and RIGHT to select the function type for the second function (ON/OFF, ON, OFF, Relay).
Confirm with ENTER.
A second function is only available in the outputs and groups configured in «remote»
mode.

13
4. Configuring the board with the
« Domestia Home Manager©» application 1
Note: The board must be configured as a master before using the «Domestia Home
Manager©» soware (See point 3.1.2 Configuration Master or slave).
4.1 WIFI MODULE CONFIGURATION
The Wi-Fi module of the DMC-008-001 may operate as a Wi-Fi access point (we
can connect directly to the DMC-008-001 without needing a Wi-Fi router or Internet
connection) or as a Wi-Fi client (The DMC-008-001 is connected to your Wi-Fi router) or
both simultaneously.
4.1.1 WI-FI AP MODE CONFIGURATION (WI-FI ACCESS POINT)
In submenu 7.9.1, use the LEFT and RIGHT keys to enable or disable the Wi-Fi station
mode.
Press ENTER to configure the access point name. Press ENTER again to change the
password (123456789 by default).
Press ENTER to save the configuration.
4.1.2 WI-FI CLIENT MODE CONFIGURATION (WI-FI ACCESS POINT CONNECTION)
Submenu 7.9.2 is used to configure the «Wi-Fi client» mode. Use the LEFT and RIGHT
keys to enable/disable client Wi-Fi mode. Press ENTER to configure the WI-FI access
point name (SSID) to which you want to connect. Press ENTER again to configure the
password.
Submenu 7.9.2 is used to configure the Wi-Fi connection status:
• Disconnected
• Connecting
• Connected
4.2 INSTALLING DOMESTIA HOME MANAGER©
The «Domestia Home Manager©» application is available for Windows PC, Android tablet/
smartphone or iPhone/iPad

14
4.3 STARTING THE DOMESTIA HOME MANAGER© APPLICATION
Click on the «Home Manager©» icon to access these home screens.
4.4 INSTALLER LANGUAGE SELECTION
Click on Language / Installer (bulb icon).
Then click on the corresponding flag to determine the selected language.

15
4.5 ENTERING YOUR INSTALLER DETAILS
When your data is validated, you will return to the home screen by clicking on the icon
(V).
4.6 CREATING A NEW CONFIGURATION
Click on New (thermometer icon).
Enter the installation’s details.
* A magnifying class bearing «IP» allows you to automatically configure the IP address.
Save the data by clicking «Valid». Confirm that you want to connect to the board.

16
If a connection with the board is not possible, you will be able to continue in «Not
connected» mode.
4.7 CONNECTING TO AN EXISTING CONFIGURATION
Click on Connection (solar panel icon).
If the connection with the board is possible (tablet/computer/smartphone and DMC-008-
001 interconnected via a network and compatible IP parameters) then the application
reads the content of the board.
4.8 COMPOSITION OF THE INSTALLATION
This screen is used to define the boards installed. The boards appear in the table on the
right in the order in which they are added. The table on the right indicates the list of
boards and the address to be configured on each board.

17
For the 12-output boards, the diagram represents the LEDs that must be lit when
configuring the board address. For the 4- and 8-output boards, the diagram indicates the
numbering to be applies to the wheels.
Add the type and exact number of boards comprising your installation.

18
Confirm the composition of your installation by pressing icon (V) on the le of the screen.
Remember to configure the boards! (see below)
4.9 CONFIGURING THE SLAVE BOARDS
4.9.1 ADDRESSING THE 12-OUTPUT BOARDS (DMC-012-002, DMC-012-016, DMCV-006-002) :
When you switch the board on, you have two seconds to press the key at the bottom
to light up the BCE LEDs. If you have not had the time to do this, turn the power to the
board o and repeat the action.
At this stage, you have configured the board in slave mode. The next step involves
setting the address of the board based on what is required by Home Manager©.
For each board, you need to press the le and right keys to obtain the lit LEDS
corresponding to that displayed in
the window «Composition of the installation» in the Home Manager© application. In
the above example of the DMCV-006-xx board, it is necessary to press the key to the
right to light up LEDs 1 and 3.
DMC-012-002
A
B
C
D
E

19
You can press the central key to validate and your board will be in
«RUN» mode (LED: AE)
4.9.2 ADDRESSING THE 8-OUTPUT AND 4-OUTPUT BOARDS (DMC-008-001, DMC-
004-003, DMA-004-003, DML-004-002, DMD-004-001, DMCV-002-003) :
Simply turn the wheels to obtain the code indicated in the «Composition of the
installation» window of the Home Manager© application.
DMCV-006-xx
A
B
C
D
E

20
As soon as you have validated the composition of the installation, a «Help»
window appears.
Then press on «stop/help». You can now start the configuration of the output names.
4.10 OUTPUT CONFIGURATION
To configure an output, click on its name. A window opens allowing the name to be
configured and the output type to be selected.
Note: By default, the relay outputs are not configured.
