EN
CAM45
9
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
2 Safety and installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
6 Information on electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
7 Fitting the camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
8 Cleaning and caring for the camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
9 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
10 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
11 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
CAM45-IO-16S.book Seite 9 Donnerstag, 9. Februar 2017 3:22 15

EN
Explanation of symbols CAM45
10
1 Explanation of symbols
!
!
A
I
2 Safety and installation instructions
Pleaseobserve the prescribedsafety instructionsand stipulations fromthe
vehicle manufacturer and service workshops.
The manufacturer accepts no liability for damage in the following cases:
•Faulty assembly or connection
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
Please note the following:
•To prevent the risk of short circuits, always disconnect the negative terminal of
the vehicle's electrical system before working on it.
If the vehicle has an additional battery, its negative terminal should also be
disconnected.
•Inadequate supply cable connections could result in short circuits, causing:
– Cable fires
– The airbag being triggered
– Damage to electronic control equipment
– Electrical malfunctions (indicators, brake light, horn, ignition, lights)
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
CAM45-IO-16S.book Seite 10 Donnerstag, 9. Februar 2017 3:22 15

EN
CAM45 Safety and installation instructions
11
•When working on the following cables, only use insulated cable terminals, plugs
and flat sockets:
– 30 (direct supply from positive battery terminal)
– 15 (connected positive terminal, behind the battery)
– 31 (return cable from the battery, earth)
– 58 (reversing light)
Do not use porcelain wire connectors.
•Use a crimping tool (fig. 110, page 3) to connect the cables.
•Screw the cable when connecting cable 31 (earth).
– Screw on the cable using a cable terminal and serrated washer to one of the
vehicle's earth bolts or
– screw the cable to the bodywork using a cable terminal and a self-tapping
screw.
Make sure there is a good earth connection.
If you disconnect the negative terminal of the battery, all data stored in the volatile
memories will be lost.
•The following data must be reset, depending on the vehicle equipment options:
–Radiocode
– Vehicle clock
–Timer
– On-board computer
– Seat position
You can find instructions for making these settings in the operating manual.
Observe the following installation instructions:
•Secure the parts of the camerawhich are installed in the vehicle in such a way that
they cannot become loose under any circumstances (sudden braking, accidents)
and cause injuries to the occupants of the vehicle.
•Secure any parts of the system concealed by the bodywork in such a manner that
they cannot be come loose or damage other parts or cables, or impair vehicle
functions (steering, pedals, etc.).

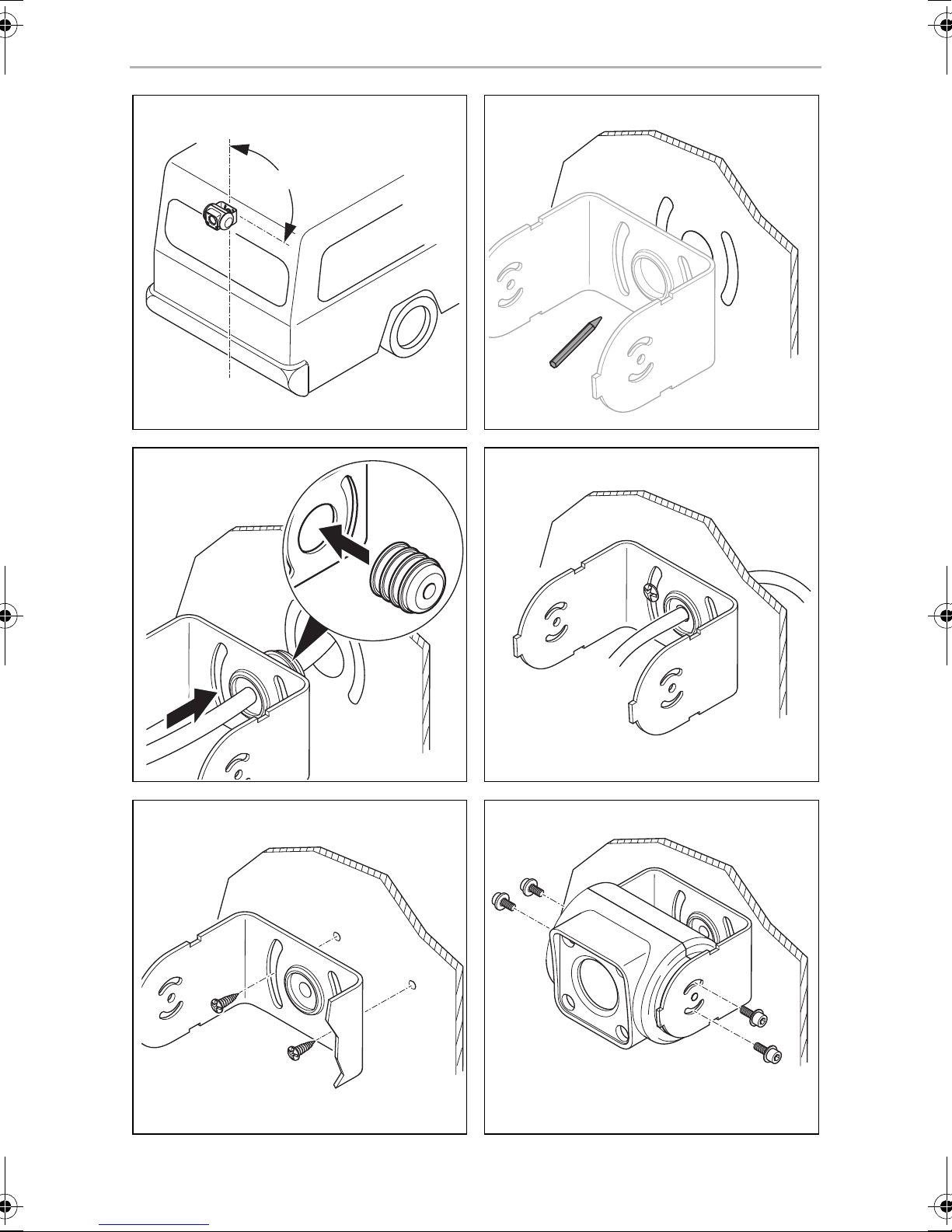

•To prevent damage when drilling, make sure there is sufficient space on the other
side for the drill head to come out (fig. 2, page 4).
•Deburr all drill holes and treat them with a rust-protection agent.
•Always follow the safety instructions of the vehicle manufacturer.
Some work (e.g. on retention systems such as the AIRBAG etc.) may only be
performed by qualified specialists.
CAM45-IO-16S.book Seite 11 Donnerstag, 9. Februar 2017 3:22 15

EN
Safety and installation instructions CAM45
12
Observe the following instructions when working with electrical parts:
•When testing the voltage in electrical cables, only use a diode test lamp
(fig. 18, page 3) or a voltmeter (fig. 19, page 3).
Test lamps with a bulb (fig. 112, page 3) consume voltages which are too high
and can damage the vehicle's electronic system.
•When making electrical connections, (fig. 3, page 4), ensure that:
– they are not kinked or twisted
– they do not rub on edges
– they are not laid in sharp-edged ducts without protection.
•Insulate all connections.
•Secure the cables against mechanical wear by using cable binders or insulating
tape, for example on existing cables.
The camera is watertight. However, the seals on the camera cannot withstand a
high-pressurecleaner (fig. 4,page 4). Therefore,youshouldobservethe following
instructions when handling the camera:
•People (including children) whose physical, sensory or mental capacities or
whose lack of experience or knowledge prevent them from using this product
safely should not use it without the supervision or instruction of a responsible
person.
•Do not open the camera, as this impairs the leak tightness and the function of the
camera (fig. 5, page 4).
•Do not pull at the cables, as this impairs the tightness and the function of the
camera (fig. 6, page 4).
•The camera is not suitable for use under water (fig. 7, page 4)!
CAM45-IO-16S.book Seite 12 Donnerstag, 9. Februar 2017 3:22 15

EN
CAM45 Scope of delivery
13
3Scopeofdelivery
4 Intended use
The CAM45 camera (ref. no. 9600000523) is designed primarily for use in vehicles.
It can be used in video systems to observe the space around the vehicle from the
driver's seat when, for example manoeuvring or parking.
!

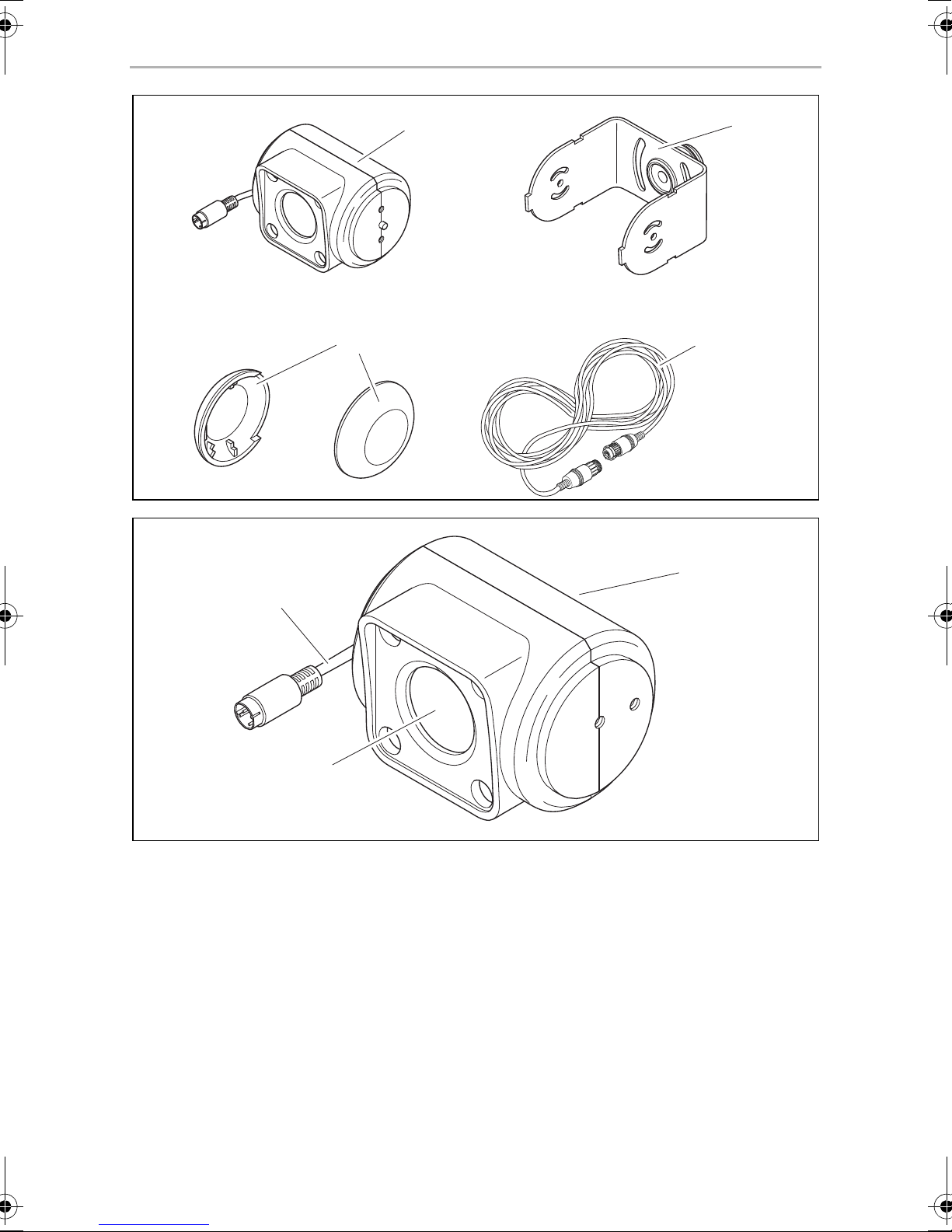

No. in
fig. 8, page 5 Quantity Description Ref. no.
1 1 Camera 9600000523
2 1 Camera bracket
with bushing sleeve
9600000571
32Sidecover –
4 1 System cable 9600000208
– 1 Fastening material –
– 1 Installation and operating manual –
WARNING!
Danger of personal injury by vehicle.
Reversing video systems are designed merely as an additional aid for
reversing, however this does not relieve you of the duty to take
proper care when reversing.
CAM45-IO-16S.book Seite 13 Donnerstag, 9. Februar 2017 3:22 15

EN
Technical description CAM45
14
5 Technical description
The camera with integratedmicrophone, which is encased in an aluminium housing,
transmits image and sound to a monitor via a cable. The infrared LEDs improve night
vision.
The camera transmits the image as if you were looking in the rear-view mirror.
The camera consists of the following elements:
6 Information on electrical connection
6.1 Laying cables
A
Therefore, please observe the following instructions:
•As far as possible, use original ducts for laying the cables, or other suitable
options such as panelling edges, ventilation grilles or dummy plugs. If no
openings are available, you must drill holes for the cables. Check beforehand
that there is sufficient space on the other side for the drill head to emerge.
•Wherever possible, lay cables inside the vehicle, as they are better protected
there than outside.
If you do need to lay a cable outside the vehicle, ensure that it iswell fastened (use
additional cable ties, insulating tape etc.).
No. in
fig. 9, page 5 Description
1 6-pin connection cable
2 Infrared LEDs
3 Microphone (rear side)
NOTICE! Beware of damage
•When drilling holes, check beforehand that there is sufficient space
on the other side for the drill head to come out.
•Cables and connections that are not properly installed will cause
malfunctions or damage to components. Correct installation of
cablesand connections ensures lastingand trouble-free operationof
the retrofitted components.
•The cables may not be exposed for long periods to solvents such as
benzene, since solvents can damage the cable.
CAM45-IO-16S.book Seite 14 Donnerstag, 9. Februar 2017 3:22 15

EN
CAM45 Fitting the camera
15
•To prevent damage to the cables when laying them, ensure that they are far
enough away from hot or moving vehicle components (exhaust pipes, drive
shafts, light systems, fans, heaters, etc.). Use corrugated piping or other
protective materials to protect against mechanical wear.
•Screw on the plug connections for the connecting cables to protect them against
water penetration (fig. g, page 7).
•When laying the cables (fig. 3, page 4), make sure:
– they are not kinked or twisted
– they do not rub on edges
– they are not routed in sharp-edged ducts without protection.
•Attach the cables securely in the vehicles to prevent tripping hazards. This can be
performed by using cable binders, insulating tape or gluing in place with
adhesives.
•Protect every through-hole made in the bodywork against water penetration,
e.g. by using a cable with a sealant and by spraying the cable and the cable
sleeve with sealant.
I
7 Fitting the camera
7.1 Tools required
For installation and assembly, you will need the following tools:
•Drill bit set (fig. 11, page 3)
•Electric drill (fig. 12, page 3)
•Screwdriver (fig. 13, page 3)
•Set of ring or open-ended spanners (fig. 14, page 3)
•Measuring ruler (fig. 15, page 3)
•Hammer (fig. 16, page 3)
•Centre punch (fig. 17, page 3)
NOTE
Only start sealing through-holes when you have completed all
installation work on the camera and have laid the required cable lengths.
CAM45-IO-16S.book Seite 15 Donnerstag, 9. Februar 2017 3:22 15

EN
Fitting the camera CAM45
16
To establish and test the electrical connection, the following tools are required:
•Diode test lamp (fig. 18, page 3) or voltmeter (fig. 19, page 3)
•Insulating tape (fig. 111, page 3)
•Cable bushing sleeves (optional)
To fasten the cables you may require additional cable binders.
7.2 Fitting the camera
!
I
Observe the following installation instructions:
•To provide a suitable viewing angle, the camera must be attached at a height of
at least 2 m.
Ensure that you have a firm place from which to work when mounting the camera.
•Make sure that the installation location of the camera is sufficiently firm (e.g. to
prevent the camera from being knocked down by branches that may brush the
roof of the vehicle).
•Mount the camera bracket horizontally and in the middle of the rear of the vehicle
(fig. 0, page 6).
•The most secure type of attachment is with screws fitted through the body (not
included in scope of delivery). Please observe the following instructions:
– There must be sufficient space behind the chosen installation location to be
able to carry out the mounting procedure.
– Suitable measures must be taken to prevent water penetrating through any
holes made (e.g. by using screws and sealant and/or spraying the outer
attachment parts with sealant).
– The location on the body where you wish to attach the camera must be rigid
enough to allow the camera to be tightly fastened.
CAUTION!
Select a location for the camera and attach it firmly enough so that it
cannot under any circumstances fall off and injure bystanders (e.g. by
being knocked off by branches brushing over the roof of the vehicle).
NOTE
If installing the camera alters the vehicle height or the length specified in
the vehicle documents, your vehicle must be inspected by the
appropriate authorities.
This authority must note any such changes your vehicle documents.
CAM45-IO-16S.book Seite 16 Donnerstag, 9. Februar 2017 3:22 15

EN
CAM45 Fitting the camera
17
•Check beforehand that there is sufficient space on the other side for the drill head
to come out (fig. 2, page 4).
•If you are not sure about the location you have chosen, ask your vehicle
manufacturer or dealer.
I
To perform the installation, proceed as follows:
➤Hold the camera at the chosen location and mark at least two different points for
the drill holes and the duct for the connection cable (fig. a, page 6).
➤Using a hammer and centre punch, gently pre-punch the previously marked
points to prevent the drill head from slipping off.
Creating a through-hole for the camera connection cable (fig. b, page 6)
I
A
➤Drill a hole with a Ø 16 mm at the previously marked duct.
➤Deburr all drill holes that have been made in the sheet metal and apply
rust-protection.
Screw on camera using self-tapping screws (fig. c, page 6)
A
➤Drill the holes, with a Ø of 4 mm, at each of the markings.
➤Deburr all drill holes and apply rust-protection.
➤Screw on the camera bracket using 5 x 20 mm self-tapping screws.
NOTE
We recommend greasing the threads of the bolts to prevent corrosion.
NOTE
If possible, use available openings, such as ventilation grilles, to feed the
connection cables through. If there are no existing ducts, you must drill
a hole of Ø 16 mm.
NOTICE! Beware of damage
Check beforehand that there is sufficient space on the other side for the
drill head to come out.
NOTICE! Beware of damage
Self-tapping screws may only be fastened to steel metal with a minimum
thickness of 1.5 mm.
CAM45-IO-16S.book Seite 17 Donnerstag, 9. Februar 2017 3:22 15

EN
Fitting the camera CAM45
18
Fitting the camera
A
➤Guide the camera cable into the vehicle interior.
➤Slide the camera into the camera bracket.

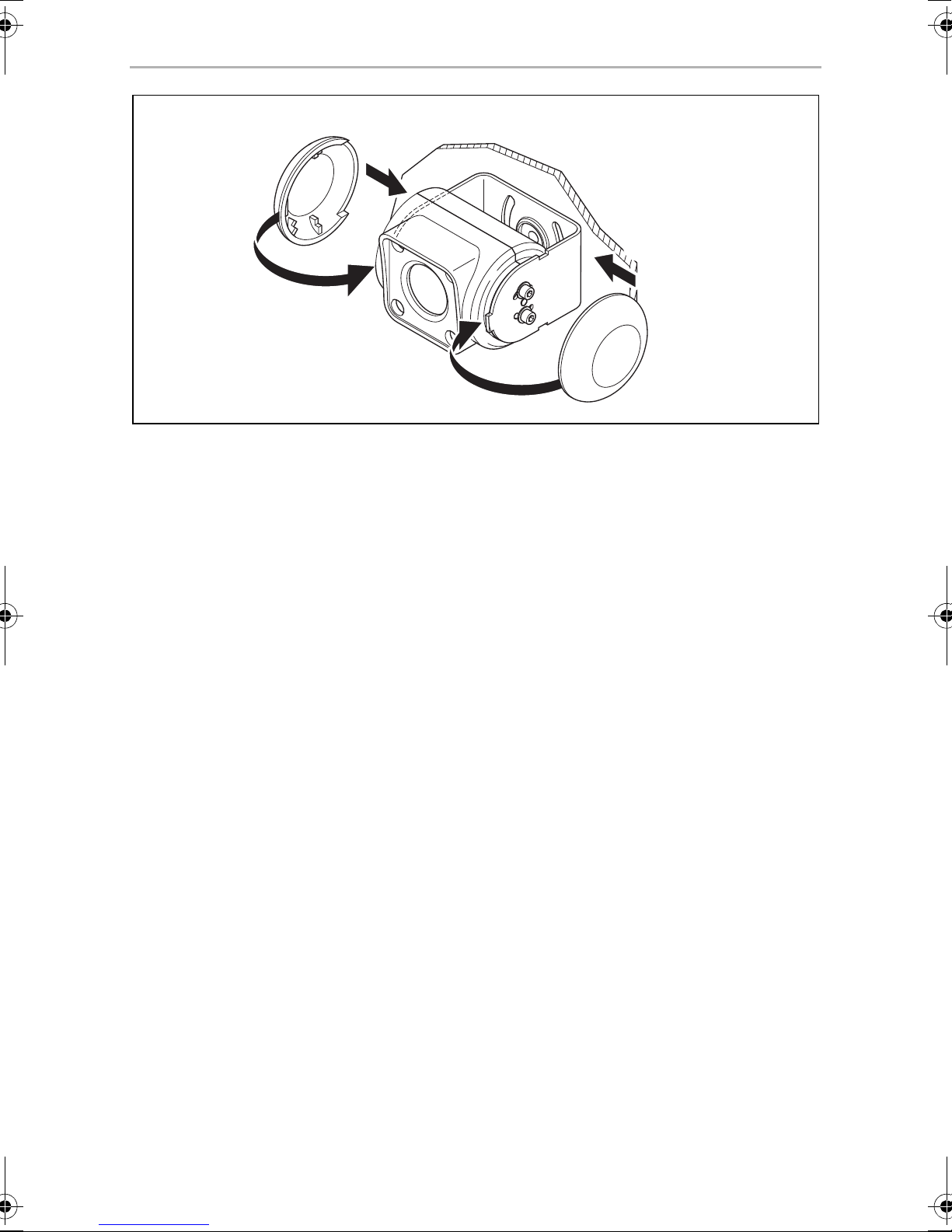

➤Fasten the camera loosely using the two screws M3 x 6 mm in the slots (fig. e,
page 6).
➤Provisionally align the camera, so that the lens is at an angle of approx. 50° to the
vertical axis of the vehicle (fig. f, page 7).
Establishing the electrical connection for the camera
I
➤Insert the camera cable plug into the socket for the extension cable.
➤Screw on the plug connection of the connecting cables to protect against water
penetration (fig. g, page 7).
Aligning the camera
I
➤Align the camera using the image on the monitor to help you:
The monitor image should show the rear or the bumper of the vehicle at the
bottom edge of the screen. The middle of the bumper should be in the middle
of the screen (fig. i, page 7).
➤Check the function of the camera after you have connected it to a monitor.
NOTICE! Beware of damage
Only use the screws supplied to mount the camera. Longer screws will
damage the camera.
NOTE
•Lay the camera cable so that, should you need to remove the
camera, you can access the plug connection between the
camera and the extension cable easily. This greatly facilitates the
disassembly.
•To minimise corrosion in the plug, apply a small amount of grease,
such as pin grease, in one of the plugs.
NOTE
To do this you must first install and electrically connect a monitor (see
schematic connection diagram fig. h, page 7).
CAM45-IO-16S.book Seite 18 Donnerstag, 9. Februar 2017 3:22 15

EN
CAM45 Cleaning and caring for the camera
19
Fastening the camera
➤Tighten the two fastening screws in the slots on the monitor bracket.
➤Fit side covers into place (fig. j, page 8).
8 Cleaning and caring for the camera
A
➤Clean the camera with a soft, damp cloth from time to time.
9Warranty
The statutory warranty period applies. If the product is defective, please contact the
manufacturer's branch in your country (see the back of the instruction manual for the
addresses) or your retailer.
For repair and guarantee processing, please send the following items:
•Defect components
•A copy of the receipt with purchasing date
•A reason for the claim or description of the fault
10 Disposal
➤Place the packaging material in the appropriate recycling waste bins wherever
possible.
MIf you wish to finally disposeof the product, ask your local recycling centre
or specialist dealer for details about how to do this in accordance with the
applicable disposal regulations.
NOTICE! Beware of damage
Do not use any sharp or hard objects for cleaning since they may
damage the device.
CAM45-IO-16S.book Seite 19 Donnerstag, 9. Februar 2017 3:22 15

EN
Technical data CAM45
20
11 Technical data
PerfectView CAM45
Ref. no.: 9600000523
Image sensor: 1/4" CCD
Pixels: Approx. 250000 pixels
Video standard: PAL, 1 Vpp
Sensitivity: < 1 Lux / 0 Lux with infrared LEDs
Viewing angle: Approx. 120° diagonal
Approx. 80° horizontal
Approx. 65° vertical
Operating voltage: 11 to 16 Vg
Consumption: 1.2 W
Operating temperature: –20 °C to +70 °C
Protection class: IP69k
Vibration resistance: 6g
Dimensions W x H x D
(with bracket):
78 x 60 x 50 mm
Weight: Approx. 0.18 kg
Certification:
8
CAM45-IO-16S.book Seite 20 Donnerstag, 9. Februar 2017 3:22 15
