Dometic CoolAir RTX2000 User manual

RTX2000, SPX1200IC
Parking cooler
Operating manual
EN
CLIMATE CONTROL
COOLAIR
RTX2000-SPX1200IC_OPM_APAC(en).book Seite 1 Donnerstag, 20. Februar 2020 2:13 14

© 2020 Dometic Group. The visual appearance of the contents of this manual is
protected by copyright and design law. The underlying technical design and the
products contained herein may be protected by design, patent or be patent
pending. The trademarks mentioned in this manual belong to Dometic Sweden AB.
All rights are reserved.
RTX2000-SPX1200IC_OPM_APAC(en).book Seite 2 Donnerstag, 20. Februar 2020 2:13 14

EN
RTX2000, SPX1200IC
3
Original instructions
Please read this instruction manual carefully before first use, and store it in
a safe place. If you pass on the product to another person, hand over this
instruction manual along with it.
Table of contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3 Target group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
6 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
7 Using the parking cooler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
8 Display messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
9 Cleaning and care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
10 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
RTX2000-SPX1200IC_OPM_APAC(en).book Seite 3 Donnerstag, 20. Februar 2020 2:13 14

EN
Explanation of symbols RTX2000, SPX1200IC
4
1 Explanation of symbols
!
!
A
I
2Safety
The manufacturer accepts no liability for damage in the following cases:
• Damage to the product resulting from mechanical influences and incorrect
connection voltage
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in the operating manual
2.1 Handling the product
!WARNING!
• Only use the parking cooler for the purpose specified by the manufac-
turer and do not make any alterations or structural changes to the
device.
• If the supply cord is damaged, it must be replaced by the manufac-
turer, its service agentor similarly qualified persons in order to avoid a
hazard.
• Do not use the parking cooler if it is visibly damaged.
WARNING!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
CAUTION!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.
NOTICE!
Indicates a situation that, if not avoided, can result in property damage.
NOTE
Supplementary information for operating the product.
RTX2000-SPX1200IC_OPM_APAC(en).book Seite 4 Donnerstag, 20. Februar 2020 2:13 14

EN
RTX2000, SPX1200IC Safety
5
• Installation and repairs to the parking cooler may only be carried out
by qualified personnel who are familiar with the risks involved and the
relevant regulations. Inadequate repairs may cause serious hazards.
For repair service, please contact the service centre in your country
(addresses on the back page).
• People (including children) whose physical, sensory or mental capac-
ities or whose lack of experience or knowledge prevent them from
using this product safely should not use it without the supervision or
instruction of a responsible person.
•Electrical devices are not toys.
Always keep and use the product out of the reach of children.
• Children must be supervised to ensure that they do not play with the
product.
• Make sure no combustible objects are stored or installed near the air
outlet. A distance of at least 50 cm must be maintained.
•Donot undo the upper cover of the parking cooler in the event of a
fire. Use approved extinguishing agents instead. Do not use water to
extinguish fires.
• Do not reach into air grilles or ventilation nozzles or insert any foreign
objects in the system.
!CAUTION!
• Disconnect all power supply lines when working on the parking cooler
(cleaning, maintenance etc).
ANOTICE!
• The parking cooler is not suitable for use in agricultural or construction
vehicles.
• Vehicles with attached parking coolers may only be cleaned in auto-
matic car washes where the top brush can be manually deactivated.
• Switch the parking cooler off before tilting the cab for maintenance.
• Switch off the parking cooler before using automatic washing equip-
ment (automatic car washes etc.) to clean the vehicle.
•Donot operate the parking cooler if the ambient temperature is
below 0 °C or above 52 °C.
• Please inform your vehicle manufacturer if the height entered in your
vehicle documents needs to be altered due to the installation of the
parking cooler.
RTX2000-SPX1200IC_OPM_APAC(en).book Seite 5 Donnerstag, 20. Februar 2020 2:13 14

EN
Target group RTX2000, SPX1200IC
6
2.2 Operating the product safely
ANOTICE!
• Do not insert foreign objects into the system.
3 Target group
The information contained is aimed at the user of the parking cooler.
4 Intended use
The parking cooler is used to supply the interior of the driver's cab with cool and
dehumidified air.
The system is designed for stationary use, however it can be used while driving.
The parking cooler is not designed for use in agricultural or construction vehicles.
The parking cooler is suitable for ambient temperatures of 5 °C to 52 °C.
INOTE
Only install the parking cooler using the manufacturer's assembly kit.
RTX2000-SPX1200IC_OPM_APAC(en).book Seite 6 Donnerstag, 20. Februar 2020 2:13 14

EN
RTX2000, SPX1200IC Technical description
7
5 Technical description
The parking cooler can be used for conditioning inside the vehicle. The air in the inte-
rior is guided into the system through the intake grille, cooled, dried and conveyed
back into the interior through the blower nozzles.
In BOOST mode, the parking cooler cools the vehicle interior for not more than
20 minutes at maximum power and then switches to AUTO mode. When the set
temperature is reached, the parking cooler switches to AUTO mode before the
20 minutes is reached.
In AUTO mode, the fan and compressor speed are controlled automatically.
In ECO mode the fan and compressor speed are controlled automatically. The com-
pressor power is limited in ECO mode electronically.
The system is controlled using the control panel or the remote control.
I
The system is fitted with a battery monitor. If the system is operated when the vehicle
ignition is switched off, the system switches off automatically as soon as the supply
voltage falls below a set level.
I
NOTE
The parking cooler can lower the temperature within the vehicle to a cer-
tain level. The temperature depends on the type of vehicle, the ambient
temperature and the cooling capacity of your parking cooler. For the
cooling capacity of your parking cooler, chapter “Technical data” on
page 27.
NOTE
This set level can be changed. For this, please contact the specialised
company that installed the system.
RTX2000-SPX1200IC_OPM_APAC(en).book Seite 7 Donnerstag, 20. Februar 2020 2:13 14

EN
Operation RTX2000, SPX1200IC
8
6Operation
6.1 Device elements
The parking cooler has the following device elements:
No. in
fig. 1, page 3 Explanation
1 Blower nozzles
2 Intake grille
3 Control panel
1
1
3
3
2
2
2
RTX2000
SPX1200IC
1
RTX2000-SPX1200IC_OPM_APAC(en).book Seite 8 Donnerstag, 20. Februar 2020 2:13 14

EN
RTX2000, SPX1200IC Operation
9

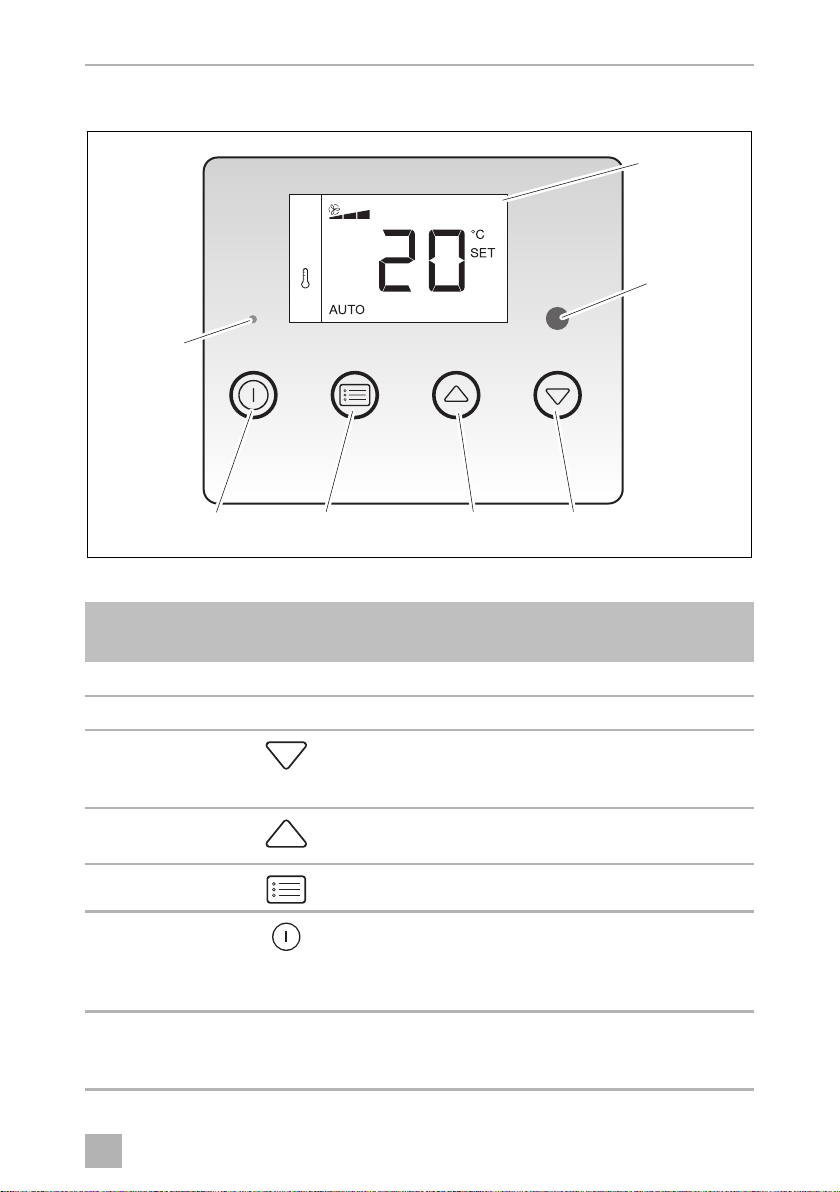

6.2 Control panel
The system's control panel contains the following operating and display elements:
No. in
fig. 2, page 4 Symbol Description
1 Display (see chapter “Display” on page 12)
2 Infrared receiver (for the remote control)
3 Opens the sub-menus for setting or decreases the value
of the selected parameter once a menu has been
opened.
4 Opens the sub-menus for setting or increases the value of
the selected parameter once a menu has been opened.
5 Scrolls through the menu items.
6 Switches the parking cooler
•on
• off (press button briefly)
• to standby mode (press button longer than 3 s)
7 LED Power (blue):
Only lights up when the system is switched on or in
standby.
7
456 3
1
2
2
RTX2000-SPX1200IC_OPM_APAC(en).book Seite 9 Donnerstag, 20. Februar 2020 2:13 14

EN
Operation RTX2000, SPX1200IC
10
6.3 Remote control
3
12
34
56
79
8
RTX2000-SPX1200IC_OPM_APAC(en).book Seite 10 Donnerstag, 20. Februar 2020 2:13 14

EN
RTX2000, SPX1200IC Operation
11
The remote control contains the following operating elements:
No. in
fig. 3, page 4 Symbol Description
1Press button briefly: Switches the parking cooler to
standby mode or on again, if it is in standby mode
Press button longer than 3 s: Switches the parking
cooler off
The parking cooler only can be switched on at the control
panel.
2 Increases the timer running time by 10 minutes.
3–Reduces the set point by 1 °C/2 °F.
4+Increases the set point by 1 °C/2 °F.
5–Switches the parking cooler to MANUAL mode and
reduces the speed of the fan.
6+Switches the parking cooler to MANUAL mode and
increases the speed of the fan.
7 Switches the parking cooler to AUTO mode.
8 Switches the parking cooler to ECO mode.
9 Switches the parking cooler to BOOST mode.
RTX2000-SPX1200IC_OPM_APAC(en).book Seite 11 Donnerstag, 20. Februar 2020 2:13 14

EN
Operation RTX2000, SPX1200IC
12
6.4 Display
The display has the following indicators:
No. in
fig. 4, page 5 Description
1 The symbol shows the current menu selected (see chapter “Using
menus” on page 15).
2 Depending on the current menu, shows:
• the required temperature
• the current fan speed
• the remaining running time of the timer
3 Shows the current fan speed.
4Setting: Lights up when the setting menu has been activated.
5ERROR: Lights up when the supply voltage falls below a set value.
Additionally the display flashes.
6Battery: Displays problems with the supply voltage.
7°C: Lights up when the temperature is shown in °C.
°F: Lights up when the temperature is shown in °F.
8SET: Indicates that the set temperature is being shown.
9MIN: Lights up when the timer has been set.
10 Shows the current mode (see chapter “Menu mode” on page 16)
32
1
4 5 6
7
8
9
10
4
RTX2000-SPX1200IC_OPM_APAC(en).book Seite 12 Donnerstag, 20. Februar 2020 2:13 14

EN
RTX2000, SPX1200IC Using the parking cooler
13
I
7 Using the parking cooler
A
I
7.1 Tip for improved use
I
Observe the following instructions to ensure your CoolAir parking cooler is used
efficiently.
It is recommended that you
• Park your vehicle in the shade when possible.
• Shade your vehicle when possible.
• If you do not have a vehicle air conditioning system, air out your vehicle well
before using the parking cooler. You should always cool down the vehicle
interior before a rest period using the vehicle air conditioning system.
• Keep doors and windows closed.
• Avoid any heat sources in the vehicle.
• Reduce the power consumed by other products to ensure the maximum
possible operating time of the parking cooler.
NOTE
You can find full details of the display messages in the chapter “Display
messages” on page 20.
NOTICE!
• The manufacturer assumes no liability for non-observance of this
operating manual, in particular for any consequential damage,
especially consequential damage caused by failure of the parking
cooler.
• Do not insert foreign objects into the system.
NOTE
In EX/III and FL vehicles, the parking cooler can be shut off via a battery
master switch in case of emergency.
NOTE
The CoolAir parking coolers are designed as air conditioners for relaxing
rest periods. They can be used while driving, however they are not
designed to replace the engine-powered vehicle air conditioning
system.
RTX2000-SPX1200IC_OPM_APAC(en).book Seite 13 Donnerstag, 20. Februar 2020 2:13 14

EN
Using the parking cooler RTX2000, SPX1200IC
14
• Select a suitable temperature and operating mode.
• Make sure the blower nozzles (fig. 11, page 3) and intake grille (fig. 12,
page 3) are not covered by cloths, paper or other objects.
• The best cooling capacity is achieved when the blower nozzles (fig. 11,
page 3) are not directed towards the intake grille (fig. 12, page 3).
Always observe the following
• If you would like the parking cooler to match the colour of your vehicle, only paint
the upper shell casing of the parking cooler.
Only paint this when it has been removed. Use light colours when possible.
• Wash your vehicle regularly, as dirty driver's cabs heat up more quickly.
• Make sure that the performance of the parking cooler is not affected by other
sources of heat (e.g. waste heat from cold machines).
7.2 Switching on the parking cooler
A
I
➤With the system switched off, press the button.
✓The fan starts.
✓The Power LED (fig. 27, page 4) lights up.
✓The digital display (fig. 21, page 4) shows the current status of the parking
cooler (see chapter “Display” on page 12).
I
NOTICE!
Never close all of the air nozzles of the parking cooler simultaneously.
The system would ice up inside.
NOTE
The first time the parking cooler is used, there may be a slight smell. This
odour is caused by a design feature and ends after the system has been
running for a short time.
NOTE
Depending on the system status, the system compressor is switched on
with a delay of up to 180 seconds.
RTX2000-SPX1200IC_OPM_APAC(en).book Seite 14 Donnerstag, 20. Februar 2020 2:13 14

EN
RTX2000, SPX1200IC Using the parking cooler
15
7.3 Switching the parking cooler to standby mode
➤Press the button briefly to switch the parking cooler to standby mode.
✓The parking cooler saves the current settings.
✓The Power LED (fig. 27, page 4) continues to light up.
I
7.4 Switching off the parking cooler
➤Press the button for at least 3 seconds to switch off parking cooler.
✓The parking cooler saves the current settings.
✓The Power LED (fig. 27, page 4) goes out.
I
7.5 Using menus
You can set the parking cooler to suit your requirements using the menus:
➤Press the button to browse through the menus.
➤Press the or button to navigate to the appropriate sub-menu or to
change the selected value.
➤Press the button to reduce the selected value.
➤Press the button to increase the selected value.
NOTE
• When the parking cooler is in BOOST mode and switched to
standby mode, it will start the next time in AUTO mode.
• A running timer is set to 0 by switching the parking cooler in standby
mode.
• The parking cooler switches off completely after 12 hours in standby
mode to save power.
NOTE
• When the parking cooler is in BOOST mode and switched off, it will
start the next time in AUTO mode.
• A running timer is set to 0 by switching off the parking cooler.
• If the parking cooler is switched off while the compressor is still
operating, the fan will continue to run for 20 seconds to dry the
evaporator, among other things.
RTX2000-SPX1200IC_OPM_APAC(en).book Seite 15 Donnerstag, 20. Februar 2020 2:13 14

EN
Using the parking cooler RTX2000, SPX1200IC
16
I
You can select the following menus:
Menu mode
In menu mode, you can select the following sub-menus:
NOTE
If you don‘t press any button for more than 5 seconds, the display
switches back to the menu mode.
Menu Description Change in
value
Setting the temperature (17 °C to 30 °C/62 °F to 86 °F) 1 °C/2 °F
Setting the mode (see chapter “Menu mode” on page 16) –
MANUAL mode:
Set the fan speed manually (level 1 – 5)
1
Set the running time of the timer (10 – 120 min) 10 min
Sub-menu Purpose
AUTO AUTO mode:
The fan and the compressor are controlled automatically.
ECO Energy-saving mode:
The fan and the compressor are controlled automatically. The speed of the
compressor is limited electronically.
BOOST BOOST mode:
The system runs at once at full-power. The system switches to automatic
mode after 20 minutes or once the set temperature has been reached.
MANUAL MANUAL mode:
You can set the fan speed manually.
The compressor is controlled automatically.
RTX2000-SPX1200IC_OPM_APAC(en).book Seite 16 Donnerstag, 20. Februar 2020 2:13 14

EN
RTX2000, SPX1200IC Using the parking cooler
17
7.6 Using the air conditioner
➤Set the required temperature (chapter “Setting the temperature” on page 17).
➤Set the required mode (chapter “Setting the mode” on page 18).
I
➤Set the timer (chapter “Setting the timer” on page 19), if you want the parking
cooler to switch off automatically after the required time.
7.7 Setting the temperature
I
Control panel
➤Press the button until the symbol is displayed.
➤Press the or button to set the desired temperature.
➤Press the button to save the value.
Remote control
➤Press the +button to increase the temperature.
➤Press the –button to decrease the temperature.
➤To save the value don‘t press any button for more than 5 seconds.
NOTE
If the required temperature is not reached in the energy-saving mode or
at a low fan speed, increase the fan speed or switch to BOOST mode or
to AUTO mode.
NOTE
Depending on the set unit for the temperature, the temperature is
changed in steps of either 1 °C or 2 °F.
RTX2000-SPX1200IC_OPM_APAC(en).book Seite 17 Donnerstag, 20. Februar 2020 2:13 14

EN
Using the parking cooler RTX2000, SPX1200IC
18
7.8 Setting the mode
Control panel
➤Press the button until the symbol is displayed.
➤Press the or button to set the AUTO, ECO or BOOST mode.
To set the MANUAL mode see below.
➤Press the button to start the selected mode.
If you like to set the fan speed manually (MANUAL mode):
➤Press the button until the symbol is displayed.
➤Press the or button to set the desired fan speed. At the same time the
MANUAL mode is started.
➤Press the button to save the value.
If you want to leave the MANUAL mode:
➤Press the button until the symbol is displayed.
➤Press the button to leave the MANUAL mode.
✓The BOOST mode is started.
➤Press the button
– one more time to set the ECO mode
– two more times to set the AUTO mode
Remote control
➤Press the button to set the AUTO mode.
➤Press the button to set the ECO mode.
➤Press the button to set the BOOST mode.
➤Press the +button to increase the fan speed manually and to start the
MANUAL mode.
➤Press the –button to decrease the fan speed manually and to start the
MANUAL mode.
➤To to start the selected mode don‘t press any button for more than 5 seconds.
RTX2000-SPX1200IC_OPM_APAC(en).book Seite 18 Donnerstag, 20. Februar 2020 2:13 14

EN
RTX2000, SPX1200IC Using the parking cooler
19
7.9 Setting the timer
The parking cooler is fitted with a timer. Once the set time has elapsed in the timer,
the parking cooler automatically switches off.
If the timer is activated, the display alternates between the set temperature and the
duration.
Control panel
➤Press the button until the symbol appears.
➤Press the or button to set the required running time of the timer in
10 minute intervals.
➤Press the button to save the value.
Remote control
➤Press the button to increase the required running time of the timer in
10 minute intervals.
The maximum running time is 120 minutes.
➤To save the value don‘t press any button for more than 5 seconds.
To reset the timer to 0 minutes, proceed as follows:
➤Press the button until the timer shows 120 min.
➤Press the button again.
➤To save the value don‘t press any button for more than 5 seconds.
RTX2000-SPX1200IC_OPM_APAC(en).book Seite 19 Donnerstag, 20. Februar 2020 2:13 14

EN
Display messages RTX2000, SPX1200IC
20
8 Display messages
I
8.1 Control panel warnings
The system control unit has various functions for protecting the device and the
battery. If one of these protective functions has been triggered, this is shown by the
following codes on the display.
NOTE
When you start the vehicle or switch on several consumers at once, the
display text “LO” may briefly appear.
Display
indication Description Cause Remedy
LO The battery monitor has
detected low voltage.
Connection voltage is too
low. The battery capacity is
not sufficient to operate the
system.
➤Charge your vehicle
battery.
➤If the fault occurs again,
contact an authorised
workshop.
LO °C The system has detected
that the ambient
temperature is too low
for operation.
The ambient temperature is
below 5 °C.
➤Wait until the ambient
temperature has risen
above 5 °C before
switching on the system.
HI The system has detected
a brief or constant over-
voltage.
A brief over-voltage may
occur when large electrical
consumers are switched off.
Constant over-voltage is the
result of an incorrect con-
nection voltage.
➤Brief over-voltage: No
action required.
➤If the display message
“HI” remains visible for a
longer period: Have the
vehicle electronics
checked. Make sure the
connection voltage is less
than 30 V.
The system has detected
a too big inclination.
The compressor is
switched off. 10 minutes
later, the entire system
will be switched off.
The compressor (driver's
cab) is tilted too far.
➤Once the compressor has
been returned to its
normal position, the
system can be switched
on again.
RTX2000-SPX1200IC_OPM_APAC(en).book Seite 20 Donnerstag, 20. Februar 2020 2:13 14
