Please read this operating manual carefully before starting the device.
Keep it in a safe place for future reference. If the device is passed on to
another person, this operating manual must be handed over to the user
along with it.
The manufacturer cannot be held liable for damage resulting from improper usage
or incorrect operation.
List of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
2 Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
4 Use as intended. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
6 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
7 Cleaning and servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
8 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
10 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
TC14-TC21-TC35-O-US.book Seite 5 Mittwoch, 12. April 2017 10:40 10

EN
Explanation of symbols TC
6
1 Explanation of symbols
!
!
A
I
2Safetynotes
2.1 General safety
!WARNING!
•Do not operate the device if it is visibly damaged.
•If this device's power cable is damaged, it must be replaced by the
manufacturer, customer service or a similarly qualified person in order
to prevent safety hazards.
•This device may only be repaired by qualified personnel. Improper
repairs can lead to considerable hazards.
•This device can be used by children aged 8 years or over, as well as by
persons with diminished physical, sensory or mental capacities or a
lack of experience and/or knowledge, providing they are supervised
or have been taught how to use the device safely and are aware of the
resulting risks.
•Cleaning and user maintenance must not be carried out by children
without supervision.
•Children must not play with the device.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
TC14-TC21-TC35-O-US.book Seite 6 Mittwoch, 12. April 2017 10:40 10

EN
TC Safety notes
7
•Children must be supervised to ensure that they do not play with the
device.
•Always keep and use the device out of the reach of children under the
age of 8 years.
•Do not store any explosive substances such as spray cans with a
flammable propellant in the device.
!CAUTION!
•Disconnect the device from the power supply
– before each cleaning and maintenance
– after every use
•Food may only be stored in its original packaging or in suitable
containers.
ANOTICE!
•Check that the voltage specification on the type plate corresponds to
that of the energy supply.
•Only connect the device to a DC plug socket in the vehicle (e. g.
cigarette lighter) with the DC cable.
•Never pull the plug out of the socket by the cable.
•Disconnect the cooler and other power consuming devices from the
battery before connecting the quick charging device.
•Disconnect the cooler or switch it off when you turn off the engine.
Otherwise you may discharge the battery.
•The cooling device is not suitable for transporting caustic materials or
materials containing solvents.
•The cooling device contains inflammable cyclopentane in the
insulation. The gases in the insulation material require special disposal
procedures. Deliver the device at the end of its life-cycle to an appro-
priate recycling.
2.2 Operating the device safely
!CAUTION!
•Before starting the device, ensure that the power supply line and the
plug are dry.
ANOTICE!
•Do not use electrical devices inside the cooler unless they are
recommended by the manufacturer for the purpose.
TC14-TC21-TC35-O-US.book Seite 7 Mittwoch, 12. April 2017 10:40 10

EN
Scope of delivery TC
8
•Do not place the device near naked flames or other heat sources
(heaters, direct sunlight, gas ovens etc.).
•Danger of overheating!
Ensure at all timesthat there is sufficient ventilation so that the heatthat
arises during operation does not build up. Make sure that the device
is sufficiently far away from walls and other objects so that the air can
circulate.
•Ensure that the ventilation openings are not covered.
•Do not fill the inner container with ice or fluid.
•Never immerse the device in water.
•Protect the device and the cable against heat and moisture.
3Scopeofdelivery
•Refrigerator
•Connection cable for 12/24 Vg
•Instruction manual
Check before starting up the device that all parts are available belonging to the
scope of delivery.
4Useasintended
The refrigerator can be used to cool and keep foodstuffs warm. The device can be
also used for camping purposes.
If you want to cool medicine, check please if the cooling capacity of the device
corresponds to the requirements of the respective pharmaceuticals.
All materials processed in the refrigerator are safe for foodstuffs.
TC14-TC21-TC35-O-US.book Seite 8 Mittwoch, 12. April 2017 10:40 10

EN
TC Technical description
9
5 Technical description
The cooling box is suitable for mobile use. It can cool goods up to max. 30 °C (86 °F)
under ambient temperature (thermostatic switch-offwithapprox.0°C(32°F))or
keep them cool or warm them up to max. 65 °C (149 °F) or keep them warm.
If the device has reached the set temperature range, then it will automatically switch
over to the energy save mode. In this mode only the energy is consumed which is
required to reach the temperature inside the box.
The cooling is a wear-free thermo-electric cooler with heat removal through a
ventilator.
The cooling box is equipped with an automatic priority circuit. Thus it is ensured
that with simultaneous connection to the alternating current circuit and to a
12/24 V-battery, the alternating current circuit will be used.
6Operation
I
6.1 Tips to save energy
I
•Choose a well ventilated installation location which is protected against direct
sunlight.
•Allow warm food to cool down first before placing it in the cooling device to
keep cool.
•Do not open the cooling device more often than necessary.
•Do not leave the cooling device open for longer than necessary.
NOTE
Before you put the new refrigerator into operation, you should clean it
inside and outside with a damp cloth for hygienic reasons (see also
chapter “Cleaning and servicing” on page 12).
NOTE
A ventilator in the interior space of the cooling box provides for the
circulation of the cold air within the box. Thus a better cooling capacity
will be achieved. In order that the cold air cannot reach the outside
when opening the cooling box, this is equipped with a switch which
turns off the ventilator as soon as the lid is opened.
TC14-TC21-TC35-O-US.book Seite 9 Mittwoch, 12. April 2017 10:40 10

EN
Operation TC
10
6.2 TC35: Opening the cooler

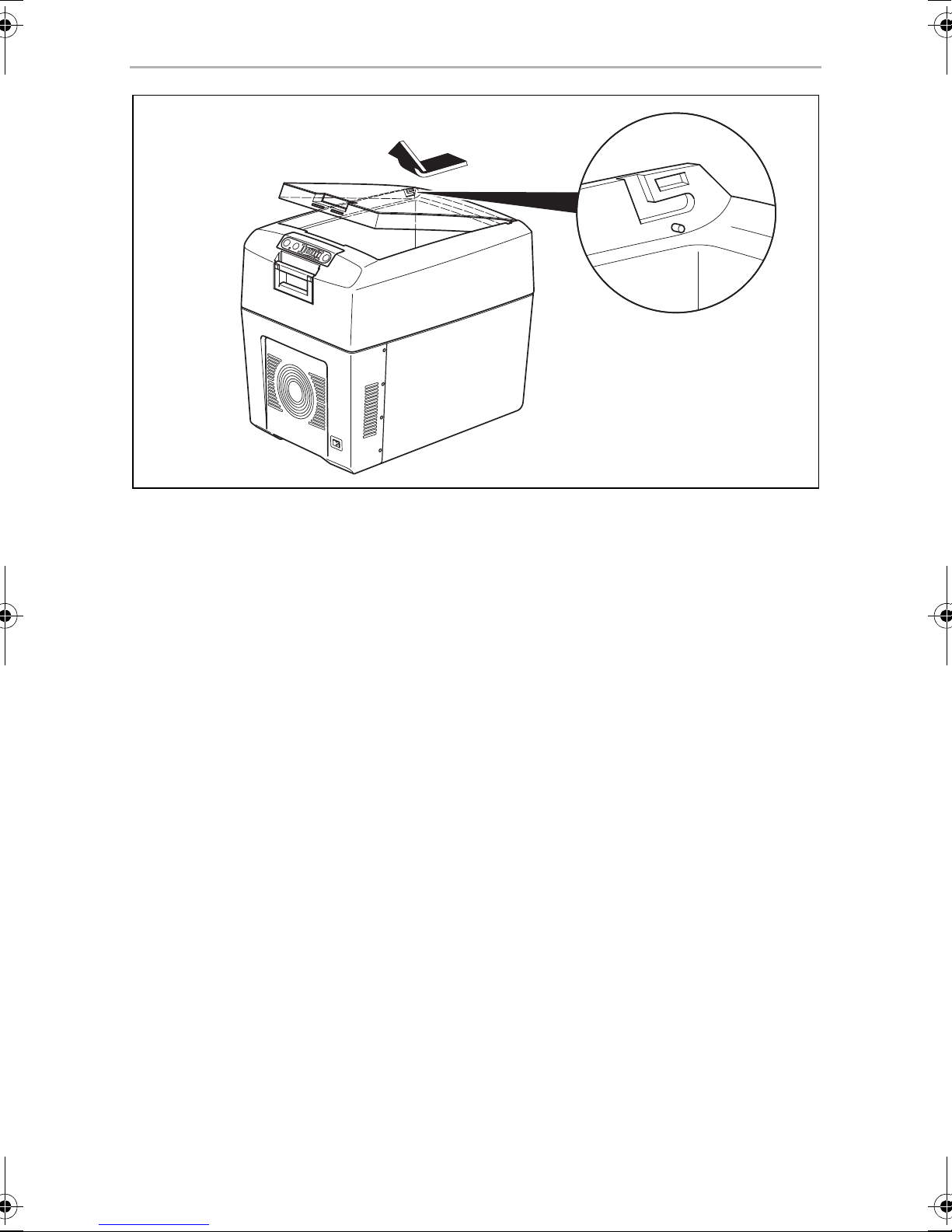

The TC35 cooler must be unlocked for opening (fig. 4, page 3).
6.3 Switch on the cooling box
A
➤Place the cooling box on a stable base.
I
➤Connect the cooling box with the supplied connecting cable to the 12/24 V
socket in the vehicle (fig. 3, page 3).

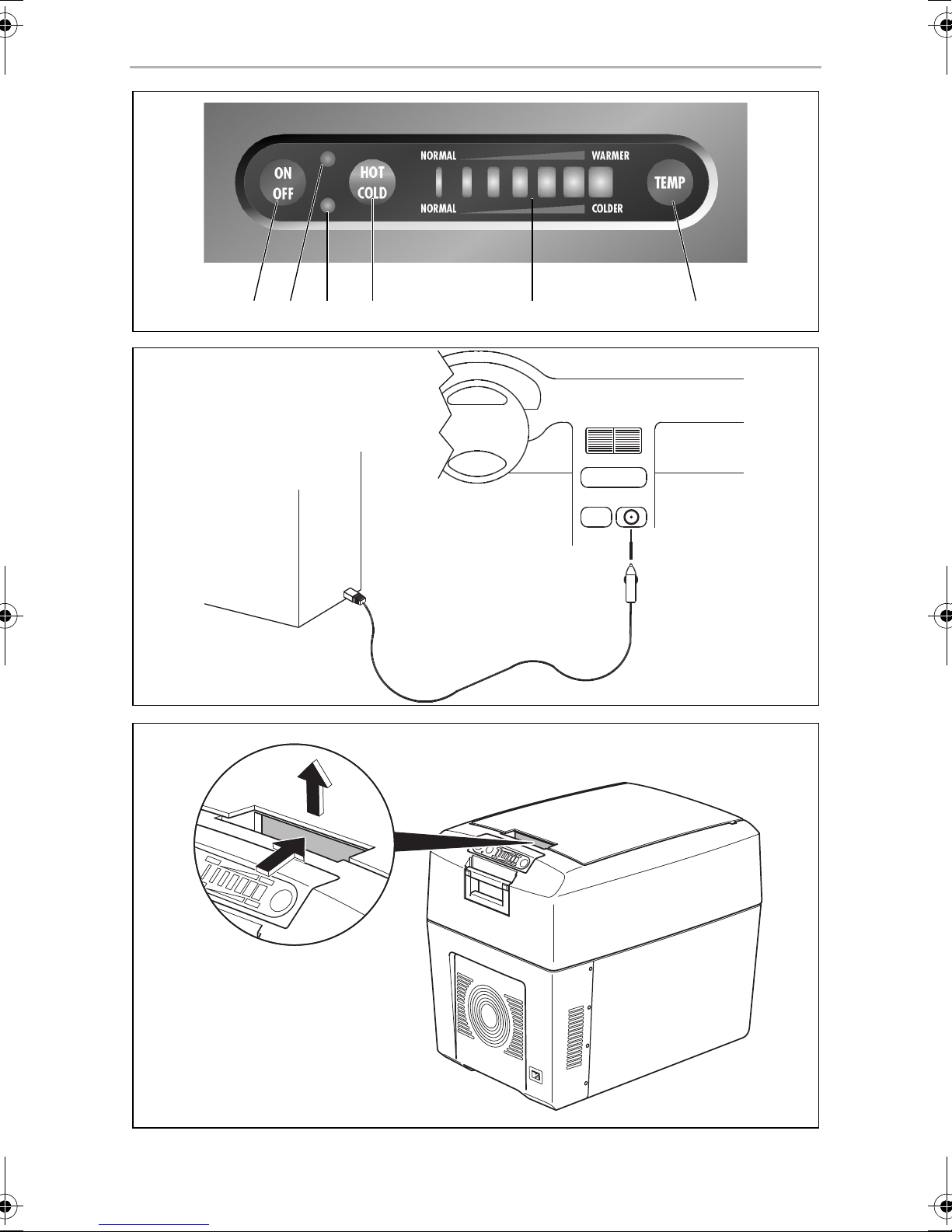

➤Press the button “ON/OFF” at the control panel (fig. 2A, page 3) to switch on
the cooling box.
✓The cooling box starts to cool or heat the interior space.
NOTICE!
Take care that there are only objects or goods in the cooling box which
may be cooled or heated to the selected temperature.
NOTE
The plug is safe against wrong polarity: You can plug it only in one
direction into the (fig. 3, page 3) socket.
Operating display Operating mode
red (fig. 2B, page 3) heating
blue (fig. 2C, page 3) cooling
