Please read this operating manual carefully before starting the device.
Keep it in a safe place for future reference. If the device is passed on to
another person, this operating manual must be handed over to the user
along with it.
The manufacturer cannot be held liable for damage resulting from improper usage
or incorrect operation.
Contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
5 Function description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
6 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
7 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
8 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
10 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
11 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
cdf16-O-16s.book Seite 5 Dienstag, 14. März 2017 1:06 13

EN
Explanation of symbols CoolFreeze CDF16
6
1 Explanation of symbols
D
!
!
A
I
2 Safety instructions
2.1 General safety
!WARNING!
•Do not operate the device if it is visibly damaged.
•If this device's power cable is damaged, it must be replaced by the
manufacturer, customer service or a similarly qualified person in order
to prevent safety hazards.
•This device may only be repaired by qualified personnel. Improper
repairs can lead to considerable hazards.
•This device can be used by childrenaged 8 years or over, as well as by
persons with diminished physical, sensory or mental capacities or a
lack of experience and/or knowledge, providing they are supervised
or have been taught how to use the device safely and are aware of the
resulting risks.
DANGER!
Safety instruction: Failure to observe this instruction will cause fatal or
serious injury.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
cdf16-O-16s.book Seite 6 Dienstag, 14. März 2017 1:06 13

EN
CoolFreeze CDF16 Safety instructions
7
•Cleaning and user maintenance must not be carried out by children
without supervision.
•Children must not play with the device.
•Children must be supervised to ensure that they do not play with the
device.
•Always keep and use the device out of the reach of children under the
age of 8 years.
•Do not store any explosive substances such as spray cans with a
flammable propellant in the device.
!CAUTION!
•Disconnect the device from the power supply
– before each cleaning and maintenance
– after every use
•Food may only be stored in its original packaging or in suitable
containers.
ANOTICE!
•Check that the voltage specification on the type plate corresponds to
that of the energy supply.
•Only connect the device to a DC plug socket in the vehicle (e. g.
cigarette lighter) with the DC cable.
•Never pull the plug out of the socket by the cable.
•Disconnect the cooler and other power consuming devices from the
battery before connecting the quick charging device.
•Disconnect the cooler or switch it off when you turn off the engine.
Otherwise you may discharge the battery.
•The cooling device is not suitable for transporting caustic materials or
materials containing solvents.
•The cooling device contains inflammable cyclopentane in the
insulation. The gases in the insulation material require special disposal
procedures. Deliver the device at the end of its life-cycle to an appro-
priate recycling.
2.2 Operating the device safely
!CAUTION!
•Before starting the device, ensure that the power supply line and the
plug are dry.
cdf16-O-16s.book Seite 7 Dienstag, 14. März 2017 1:06 13

EN
Scope of delivery CoolFreeze CDF16
8
ANOTICE!
•Do not use electrical devices inside the cooler unless they are
recommended by the manufacturer for the purpose.
•Do not place the device near naked flames or other heat sources
(heaters, direct sunlight, gas ovens etc.).
•Danger of overheating!
Ensure at all times that there is sufficient ventilation so that the heat that
arises during operation does not build up. Make sure that the device
is sufficiently far away from walls and other objects so that the air can
circulate.
•Ensure that the ventilation openings are not covered.
•Do not fill the inner container with ice or fluid.
•Never immerse the device in water.
•Protect the device and the cable against heat and moisture.
3Scopeofdelivery
4 Intended use
The cooler is suitable for cooling and freezing foods. The device is also suitable for
use on boats.
The device is designed to be operated from a 12 Vgor 24 Vgon-board supply
socket of a vehicle (e. g. cigarette lighter), boat or caravan..
!
Quantity Description
1 Cooler
1 Connection cable for 12/24 Vgconnection
1 Operating manual
CAUTION! Health hazard!
Please check if the cooling capacity of the device is suitable for storing
the food or medicine you wish to cool.
cdf16-O-16s.book Seite 8 Dienstag, 14. März 2017 1:06 13

EN
CoolFreeze CDF16 Function description
9
5 Function description
The cooler can chill products, keep them cool as well as freeze them. A mainte-
nance-free refrigerant circuit with compressor provides the cooling. The extra strong
insulation and powerful compressor ensure especially fast cooling.
The cooler is portable.
When used on boats, the cooler can be withstand a constant heel (inclination) of 30°.
An integrated battery monitor can be set to protect your vehicle battery from
discharging to dangerously low levels
5.1 Operating and display elements

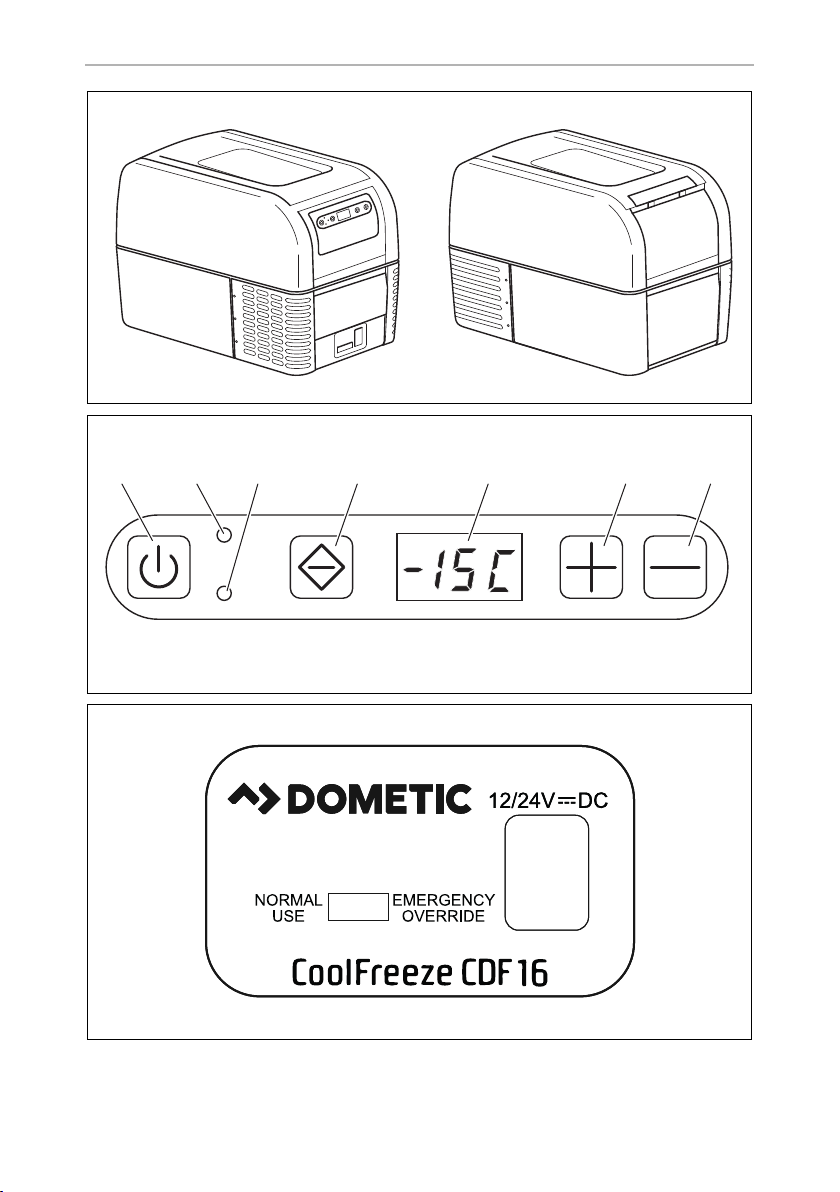

fig. 2, page 3
Item Description Explanation
1ON
OFF button
Switches the cooler on or off when the button is pressed for
between one and two seconds
2 POWER Status indication
LED lights up green: Compressor is on
LED lights up orange: Compressor is off
LED flashes orange: Display switched off
automatically due to low
battery voltage
3 ERROR LED flashes red: Device is switched on but not
ready for operation
4 SET Selects the input mode
– Temperature setting
– Celsius or Fahrenheit display
– Set battery monitor
5 – Display, shows the information
The first three digits of the four-digit display show the
temperature, the fourth digit shows the temperature unit
(°C or °F).
6 UP + Press once to increase the value
7 DOWN – Press once to decrease the value
cdf16-O-16s.book Seite 9 Dienstag, 14. März 2017 1:06 13

EN
Operation CoolFreeze CDF16
10
6Operation
6.1 Before initial use
I
6.2 Energy saving tips
•Choose a well ventilated installation location which is protected against direct
sunlight.
•Allow warm food to cool down first before placing it in the cooling device to
keep cool.
•Do not open the cooling device more often than necessary.
•Do not leave the cooling device open for longer than necessary.
•Defrost the cooler once a layer of ice forms.
•Avoid unnecessary low temperatures.
6.3 Connecting the cooler
The cooler can be operated with 12 Vgor 24 Vg.
A
For safety reasons the cooler is equipped with an electronic system to prevent the
polarityreversal. Thisprotectsthe cooleragainstshort-circuiting when connectingto
a battery.
➤Plug the 12/24-V connection cable into the DC voltage socket and also into the
cigarette lighter or a 12 V or 24 V socket.
NOTE
Before starting your new cooler for the first time, you should clean it
inside and outside with a damp cloth for hygienic reasons (please also
refer to the chapter “Cleaning and maintenance” on page 14).
NOTICE! Danger of damage!
Disconnect the cooler and other consumer units from the battery before
you connect the battery to a quick charging device.
Overvoltage can damage the electronics of the device.
