Dometic CSO103 User manual

CSO103
Camping oven and stove
Installation and Operating Manual
EN
HOT & COOKING
COOKERS
OUTDOOR
CSO103_IOM_APAC(en).book Seite 1 Donnerstag, 5. März 2020 4:28 16

© 2020 Dometic Group. The visual appearance of the contents of this manual is
protected by copyright and design law. The underlying technical design and the
products contained herein may be protected by design, patent or be patent
pending. The trademarks mentioned in this manual belong to Dometic Sweden AB.
All rights are reserved.
CSO103_IOM_APAC(en).book Seite 2 Donnerstag, 5. März 2020 4:28 16

CSO103
3
1
2
CSO103_IOM_APAC(en).book Seite 3 Donnerstag, 5. März 2020 4:28 16

CSO103
4
t50 cm
3
5 – 8 years
4
CSO103_IOM_APAC(en).book Seite 4 Donnerstag, 5. März 2020 4:28 16

CSO103
5
7
98
5
6
4
3
21
5
1.
2.
3.
6
CSO103_IOM_APAC(en).book Seite 5 Donnerstag, 5. März 2020 4:28 16

CSO103
6
10 – 15 s
5.
4.
CLICK
3.
6.
1.
2.
7
CSO103_IOM_APAC(en).book Seite 6 Donnerstag, 5. März 2020 4:28 16

CSO103
7
1. 1.
6.
4.
CLICK
3.
10 – 15 s
5.
2.
8
CSO103_IOM_APAC(en).book Seite 7 Donnerstag, 5. März 2020 4:28 16

CSO103
8
1. 3.
2.
9
2.
3.
1.
0
a
CSO103_IOM_APAC(en).book Seite 8 Donnerstag, 5. März 2020 4:28 16

EN
CSO103 Explanation of symbols
9
Important. Read this instructions for use carefully.
Familiarise yourself with the appliance before connecting it to its gas con-
tainer. Keep this instructions for future reference. If the device is passed on
to another person, this manual must be handed over to the user along
with it.
Contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
2 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
5 Before initial use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
6 Using the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
7 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
8 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
9 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
10 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
11 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
1 Explanation of symbols
!
!
A
WARNING!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
CAUTION!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.
NOTICE!
Indicates a situation that, if not avoided, can result in property damage.
CSO103_IOM_APAC(en).book Seite 9 Donnerstag, 5. März 2020 4:28 16

EN
General safety instructions CSO103
10
I
2 General safety instructions
The manufacturer accepts no liability for damage in the following cases:
• Faulty assembly or connection
• Damage to the product resulting from mechanical influences and incorrect
connection voltage
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in the operating manual
2.1 General safety
!WARNING!
• This appliance shall only be used with a Universal LPG refillable con-
tainer certified to AS 2469.
• It may be hazardous to attempt to fit other types of gas containers.
• Only use in well ventilated areas.
•Carbon Monoxide hazard
Using this appliance in an enclosed space may cause death. Do not
use in caravans, tents, marine craft, cars, mobile homes or similar loca-
tion
• Do not modify this device.
2.2 Safety precautions when handling liquid gas
!WARNING!
• After use always disconnect the gas cylinder.
• Store gas cylinders away from heating or cooking devices and other
light or heat sources in a well-ventilated area out of the reach of chil-
dren.
•Never store liquid gas cylinders in unventilated areas or below
ground level (funnel shaped holes in the ground).
•Never store liquid gas cylinders in buildings such as garages.
• Any indoor storage must comply with AS/NZS 1596.
• Do not store gas cylinders on their side.
NOTE
Supplementary information for operating the product.
CSO103_IOM_APAC(en).book Seite 10 Donnerstag, 5. März 2020 4:28 16

EN
CSO103 General safety instructions
11
• Keep liquid gas cylinders away from direct sunlight. The temperature
should not exceed 50 °C.
2.3 Operating the device safely
!WARNING!
•Beware of suffocation.
While burning liquid gas, the device also consumes oxygen. When
used indoors, there is a risk of suffocation due to insufficient oxygen.
Only use the device outdoors. Under no circumstances use it indoors.
Never use the device in a garage, porch or tent.
• If there is a leak on your device (smell of gas):
– Immediately attempt to turn off the cylinder valve.
– Remove the device to a well-ventilated location away from any
ignition source.
– Check for leaks using soapy water.
– Do not try to detect leaks using a flame.
– If odor continues, keep away from the device and immediately call
your gas supplier or your fire department.
• Do not use this device if it is leaking, damaged or does not operate
properly.
• Check that seals between the device and the gas cylinder are in place
and in good condition before connecting the gas cylinder.
• Do not use the device if it has damaged or worn seals.
• Only use the hose assembly as supplied with this device for connec-
tion to the cylinder – do not use adapters.
• Avoid twisting or kinking the flexible hose.
• This device can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the device in a safe way and understand
the hazards involved.
• Children must be supervised to ensure that they do not play with the
device.
• Cleaning shall not be conducted by children without supervision.
• Only operate the device when you or another person can attend to it.
• Wear appropriate clothing when using the device.
Do not wear loose-fitting clothing which could easily catch fire.
CSO103_IOM_APAC(en).book Seite 11 Donnerstag, 5. März 2020 4:28 16

EN
Scope of delivery CSO103
12
• Do not move the device during operation.
• Leave the device to cool down properly before you touch it with bare
hands.
• Replace porous or damaged hoses immediately.
• This device must only be serviced by an authorized person.
• Never change the nozzles, injector or burners.
• Use the device for cooking only. Never use it for other purposes.
• Avoid using the device near combustible materials.
• Keep the area around the device free from fat, alcoholic substances,
plastic and flammable materials (e.g. curtains, cloths or kitchen mate-
rials).
• Only use pots and pans with an even base and a diameter not larger
than 220 mm. The pots and pans should be large enough to cover the
flame. If the flame is not covered, items of clothing could catch fire.
Pots and pans of the correct size also improve the efficiency of the
hob.
• Ensure that pots and pans are stable when cooking.
• Never allow pot or pan handles to protrude over the edge of the hob.
Turn the handles inwards, making sure that they are not positioned
over other burners. This reduces the risk of spillage, the ignition of
flammable materials and serious scolding.
• Avoid boil over and spillage. Pots which boil over can cause smoke
and fires.
• Proceed with caution when heating oil or fat, as they can ignite under
excessive heat.
• Only use dry pot holders to avoid steam build-up. Do not use towels
or cloths as these can catch fire.
• Leave the device to cool down completely before stowing it away in a
tent or awning.
• Do not use the device as a space heater.
3Scopeofdelivery
➤See fig. 1, page 3.
CSO103_IOM_APAC(en).book Seite 12 Donnerstag, 5. März 2020 4:28 16

EN
CSO103 Intended use
13
4 Intended use
The camping oven and stove CSO103 is intended for mobile use outdoors. For use

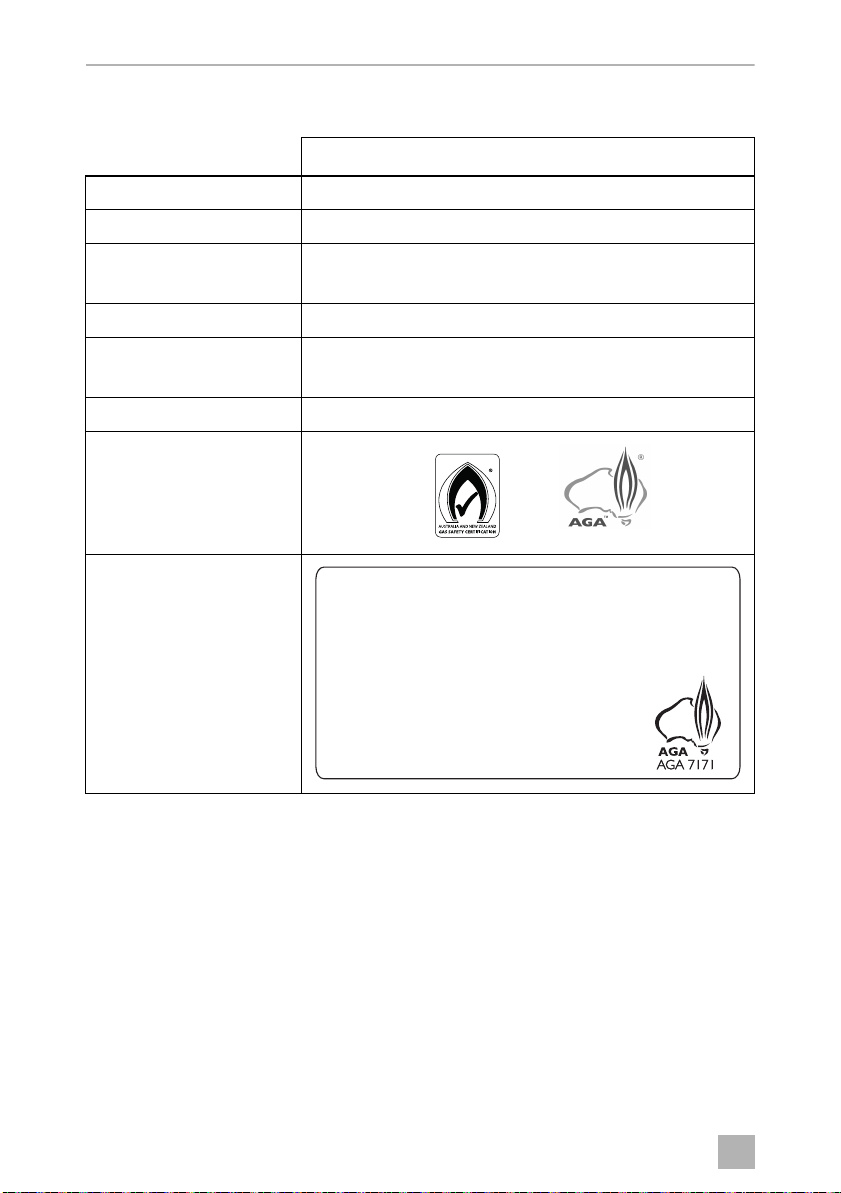

in enclosed spaces, requirements shown in fig. 2, page 3 must be met. In cases
where there are 3 walls, 30 % of the total wall area must be open and unrestricted.
With this unit, you can cook and bake at the same time. The device has to be con-
nected to a gas cylinder.
5 Before initial use
The permitted gas pressure can be found on the type plate of the device.
➤Always use the supplied gas hose and regulator. If it becomes damaged please
contact the manufacturer‘s support (see back page) to organise a replacement.
6 Using the device
6.1 Parts identification

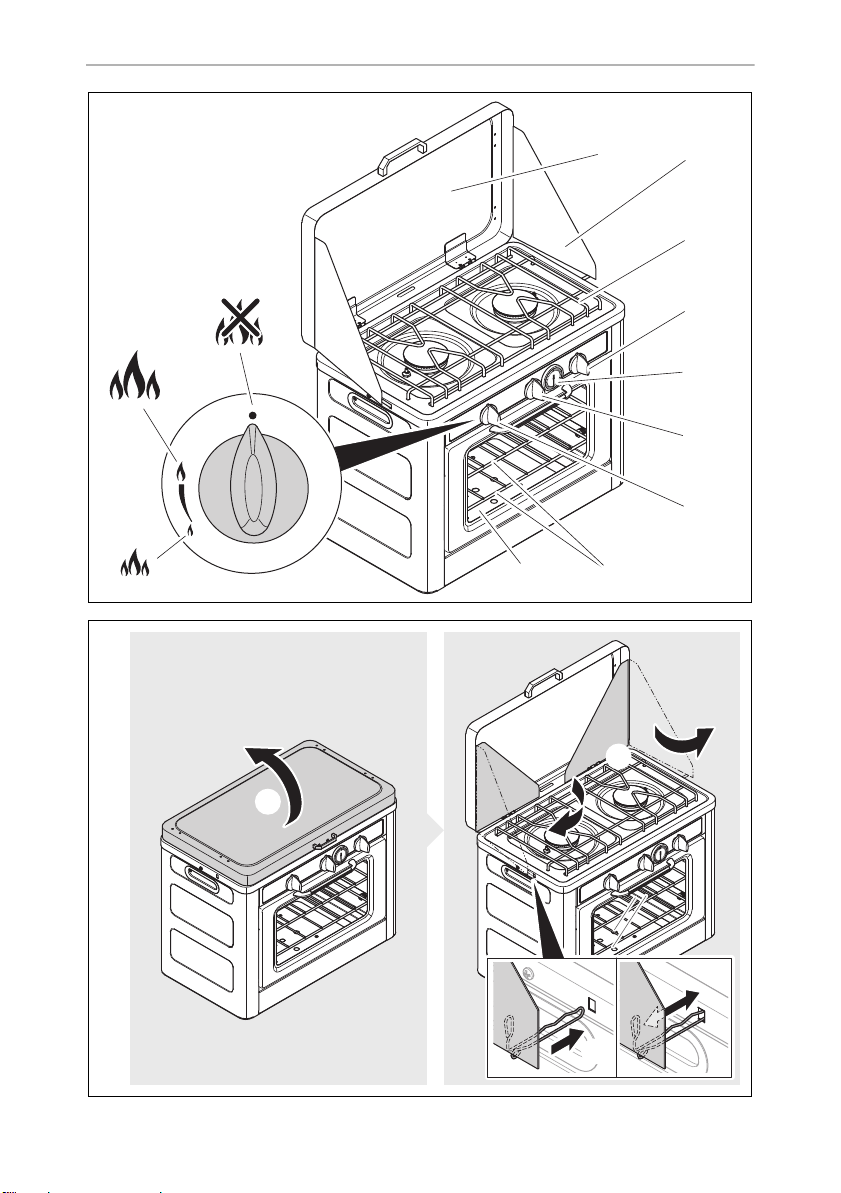

No. in fig. 5,
page 5 Description
1Lid
2 Wind shield
3Potgrid
4 Control knob for the right burner
5 Oven thermometer
6 Oven control knob
7 Control knob for the left burner
8 Oven shelves
9 Oven spill tray
CSO103_IOM_APAC(en).book Seite 13 Donnerstag, 5. März 2020 4:28 16

EN
Using the device CSO103
14
6.2 Placing the device
When selecting the location for setting up the device, observe the following instruc-
tions:
• Position the device outdoors or in an enclosed space that meets the require-
ments shown in fig. 2, page 3.
• The place must be well-ventilated. Do not place it in a dip to prevent any gases
from accumulating there.
• Keep the device protected from the wind and direct drafts.
• The ground must be firm, level and stable.
• Never place the device near flammable materials, even when cooling down.
Keep a distance of at least 800 mm.
• Never place the device near flammable liquids. Keep a distance of at least 8 m.
• The device must stand on a base that can withstand heat of up to at least 80 °C.
The housing and grill cabinet become very hot when in use.
• Observe the safety instructions, see chapter “Safety precautions when handling
liquid gas” on page 10.
6.3 Connecting the device to the gas cylinder
➤Connect the hose assembly to the device. It must be tightened using a suitable
spanner (such as an adjustable wrench) to obtain a gas tight seal.

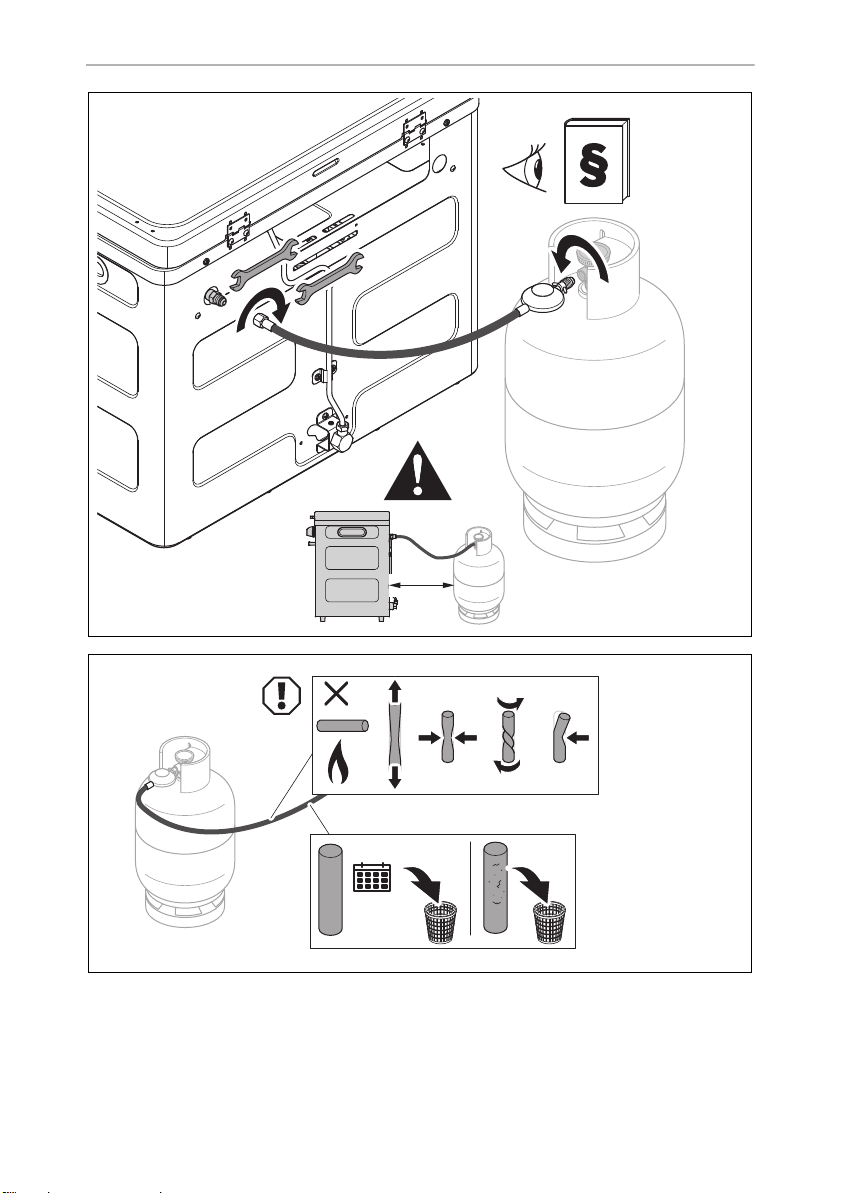

➤Proceed as shown (fig. 3, page 4 and fig. 4, page 4).
➤After connecting the device to the gas supply, check the gas pipe for leakage
using a foaming agent, e. g. with soap. Never use a naked flame to test for gas
leaks.
6.4 Igniting the burners
!WARNING! Beware of injury!
• Do not leave the device unattended while in use.
• Ignite the burners as soon as you have turned on the gas supply.
Otherwise gas can accumulate in the burner area and could cause an
explosion.
• The complete ignition process must be visible from above and must
not be hidden by pots placed on top of the stove.
CSO103_IOM_APAC(en).book Seite 14 Donnerstag, 5. März 2020 4:28 16

EN
CSO103 Using the device
15
I
Igniting the stove

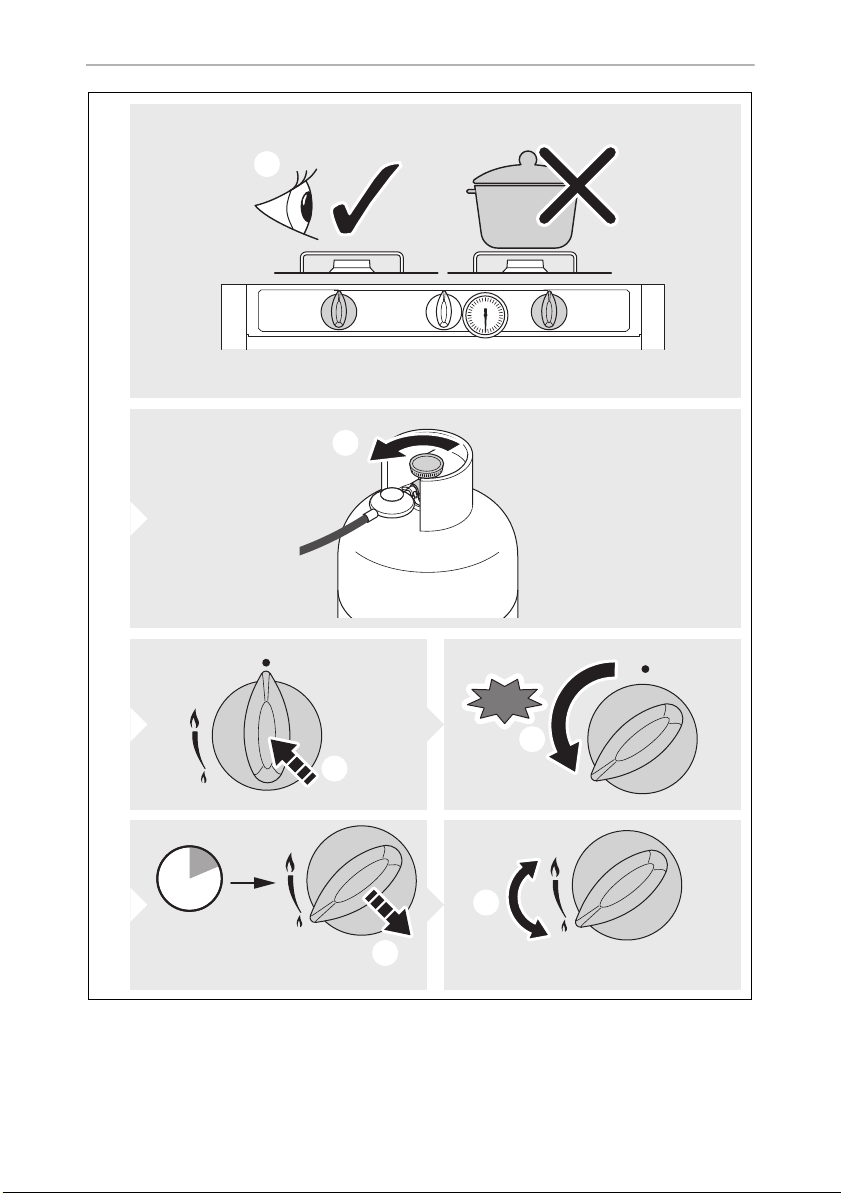

➤Proceed as shown (fig. 6, page 5 and fig. 7, page 6).
Igniting the oven
➤Proceed as shown (fig. 8, page 7).
6.5 Turning off the device

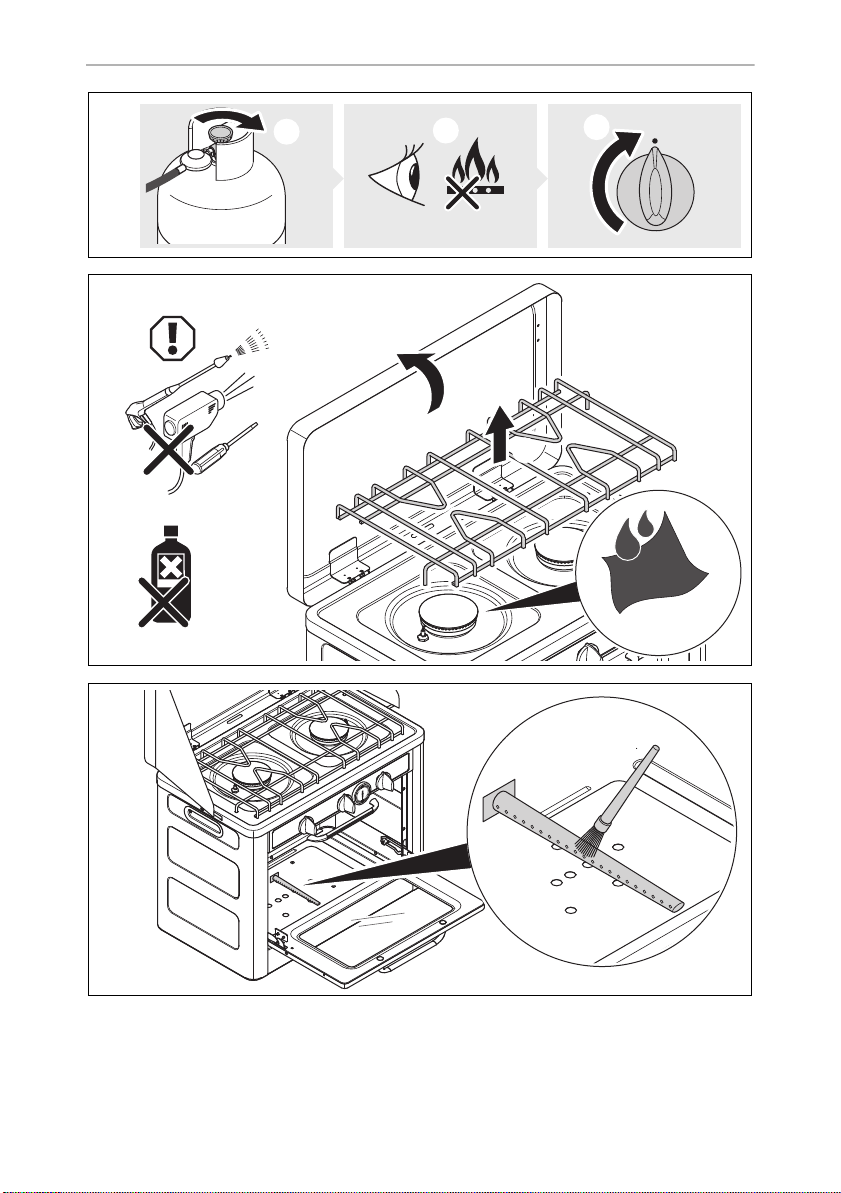

➤Proceed as shown (fig. 9, page 8).
6.6 Packing up the device
!
Proceed as follows:
➤Turn off the device (see chapter “Turning off the device” on page 15).
➤Disconnect the device from the gas supply.
➤Clean the device (see chapter “Cleaning and maintenance” on page 16).
➤Close the lid.
6.7 Replacing the gas cylinder
!
➤Completely close the valve on the gas cylinder.
➤Unscrew the regulator from the cylinder.
NOTE
• While it is operating, you will be able to hear a slight noise caused by
the gas flowing out. This is completely normal.
• Smoke can occur when using it for the first time. This is caused by
deposits of machine oil burning and stops after approx. 10 minutes.
CAUTION! Beware of burns
The device is very hot when you use it. Leave the device to cool down
before you clean, pack up or transport it.
WARNING! Beware of injury
Change the gas cylinder in a well-ventilated location.
Ensure that there are no open flames in the vicinity.
Only replace the gas cylinder when the device is switched off.
CSO103_IOM_APAC(en).book Seite 15 Donnerstag, 5. März 2020 4:28 16

EN
Troubleshooting CSO103
16
➤Check the condition of the gas hose.
Replace the hose line if the material is brittle or porous.
➤Tightly screw the regulator by hand into the new cylinder.
7 Troubleshooting
Due to unforeseen circumstances the appliance may not operate as designed.
Indications of this are flashing back in the burner, large soft yellow flames, flames lift-
ing extensively away from the burner and the appliance not igniting or remaining
alight.
➤In these cases, check your gas supply to ensure there is sufficient gas, no leaks
and the valves are opened sufficiently for use. If this is the case and the problem/s
still persists, you will need to contact a suitably qualified authorized person to ser-
vice your appliance.
Repairs to the gas supply parts on the device may only be carried out by a qualified
technician.
➤Shut off the gas supply immediately if a fault occurs.
➤Check again that the device has been assembled correctly and the parts are
undamaged, especially the gas hose.
➤Replace the damaged parts.
➤Only use the device again once all the faults have been rectified.
8 Cleaning and maintenance
!
Cleaning the device
➤Proceed as shown (fig. 0, page 8).
Cleaning the oven tube burner
➤Proceed as shown (fig. a, page 8).
CAUTION! Beware of burns
The device is very hot when you use it. Leave the device to cool down
before you clean, pack up or transport it.
CSO103_IOM_APAC(en).book Seite 16 Donnerstag, 5. März 2020 4:28 16

EN
CSO103 Warranty
17
Maintaining the device
➤Let a suitable authorized and qualified person perform a thorough examination of
the device at least every 5 years.
Maintaining the burners
!
9Warranty
If the product does not work as it should, please contact your retailer or the
manufacturer's branch in your country (see dometic.com/dealer). The warranty
applicable to your product is 1 year(s).
For repair and warranty processing, please include the following documents when
you send in the device:
• A copy of the receipt with purchasing date
• A reason for the claim or description of the fault
Australia only
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure and for
compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.
New Zealand only
This warranty policy is subject to the conditions and guarantees which are mandatory
as implied by the Consumer Guarantees Act 1993(NZ).
10 Disposal
➤Place the packaging material in the appropriate recycling waste bins wherever
possible.
WARNING! Beware of injury!
Insects can spin webs and build nests inside the burners. The webs and
nests can obstruct gas flow and cause a fire.
• Check the burner tubes once to twice a month.
• Remove any insects, insect nests or spider webs inside the burner
tubes.
CSO103_IOM_APAC(en).book Seite 17 Donnerstag, 5. März 2020 4:28 16

EN
Technical data CSO103
18
11 Technical data
CSO103
Ref. no.: 9600027162
Connection pressure: 2.75 kPa
Gas consumption: Per burner 5.6 Mj/hr – 111.1 g/hr
Oven: 3.8 Mj/hr – 75.4 g/hr
Gas category: Universal LPG
Dimensions (H x W x D): Lid closed: 460 x 540 370 mm
Lid open: 740 x 540 370 mm
Weight: 16.5 kg
Certification:
Rating label:
DO NOT REMOVE
AGA 7171 G
CSO 103Model:
Per burner: 5.6 Mj/hr – 111.1 g/hrGas consumption:
Oven: 3.8 Mj/hr – 75.4 g/hr
Burner: 0.675 mmInjector size:
Oven: 0.575 mm
2.75 KpaInlet pressure:
Date of manufacture:
PORTABLE GAS OVEN AND COOKTOP
CSO103_IOM_APAC(en).book Seite 18 Donnerstag, 5. März 2020 4:28 16

CSO103_IOM_APAC(en).book Seite 19 Donnerstag, 5. März 2020 4:28 16

YOUR LOCAL
SALES OFFICE
dometicĶ ,*ű0)"0Ŗ,= "s
YOUR LOCAL
DEALER
dometic.com/dealer
YOUR LOCAL
SUPPORT
dometic.com/contact
dometic.com
 *+-)"1")&01*#*+"1&  *+-,&"0ķ4%& % *+-/&0"1%"*+"1& /*2-ķ ,"#*2,!&,1%"-2)& 9)&,$0*#ĸ
DOMETIC GROUP AB"+3E/,0$1,ĉčŖĉďĉčČ*),4"!",
4445103023 03/2020
CSO103_IOM_APAC(en).book Seite 20 Donnerstag, 5. März 2020 4:28 16
